Cockerill Weapon systems - Which ones, what weapons and what ammunitions

John Cockerill Defence - If it’s armoured it can have their turrets!

The Belgian company John Cockerill Defence is famous for its long-standing history in weapons manufactoring. This discussion is an attempt at clarifying and gathering all possible variants that include Cockerill turrets which could find, or already have found their way into War Thunder. At the moment there are 50+ vehicles in this list, if you know more, please let me know!

Small Calibre 20 - 30 mm

  • CPWS20 or CPWS25 or CWPS30
Spoiler

CPWS Turret Textron Commando 4x4 armored (YT-link)


BTR-3E CPWS 30

30-mm ZTM-1 cannon (Ukrainian version based on the 2-72 cannon)

KIFV CPWS 30

p1643590

A Doosan DST Korean Infantry Fighting Vehicle fitted with the CMI CPWS armed with an Orbital ATK 30 mm M230LF cannon.

The CPWS is designed to incorporate the 20 mm to 30 mm calibre automatic gun that best meet the user’s needs:

  • CPWS20 - 20 mm

  • CPWS25 - 25 mm - ATK M242, Nexter, Oerlikon KBA

  • CPWS30 - 30 mm - ATK M230 LF, ZTM-1

  • elevation: -10° to +45°

  • LRF

  • Thermal camera

  • 1 x 1 7.62 mm FN-MAG coaxial machine gun


  • CPWS Gen.2
Spoiler

M113 CPWS 25: Keeping the legend alive

Arquus APC with CPWS gen.2


French Pilar V acoustic detection system

Armament:

  • Main armament: 1x 25mm M242 cannon (can fire APDS, HEI-T and APFSDS)
  • secondary armament: Launcher with 5x FZ275 laser guided rockets.
  • coaxial armament: 1x 7.62 mm machine gun.


The second-generation CPWS retains all the advantages of its predecessor: it is remotely controlled from inside the vehicle on which it is installed, provides the ability to recharge from the inside of the hull, given its light weight, it can be installed on all types of wheeled vehicles 4x4, 6x6, 8x8 and track vehicles.

  • addition of 2 AT missiles possible

  • EWS
Spoiler


  • Single or two man turrets
  • Possibilities of integration of existing automatic cannons for 20 to 40 mm calibre

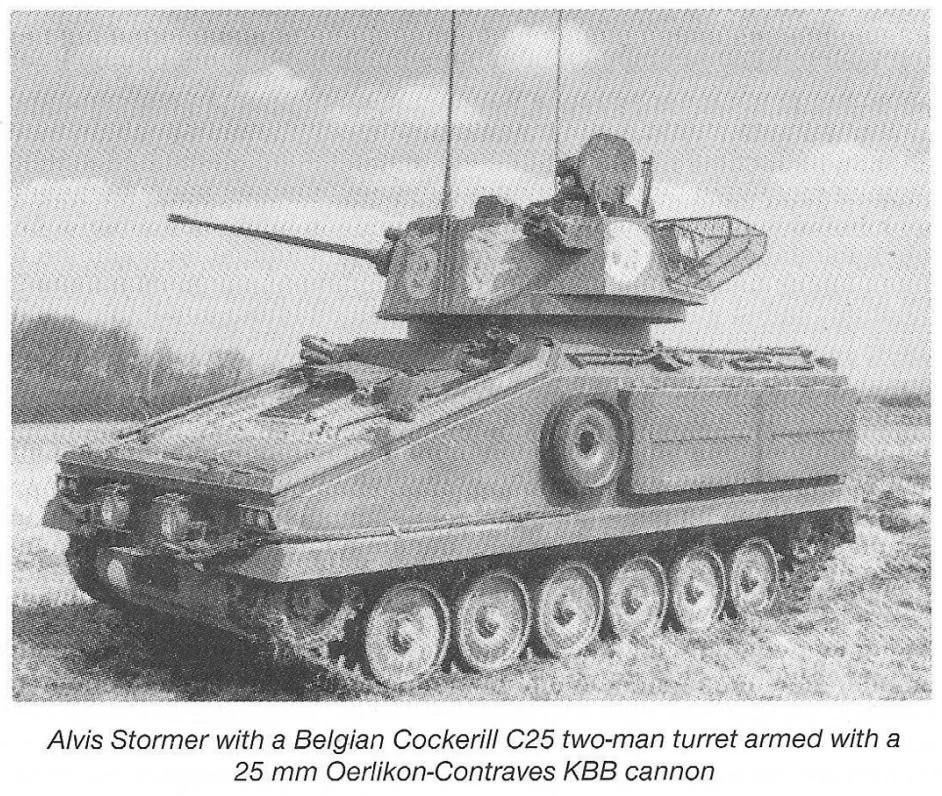

  • Experienced with Oerlikon KBA 25mm C25
  • Experienced with Oerlikon KBB 25mm C25
  • Experienced with Mauser 30mm C30
  • High speed electro-mechanical power drives
  • Stabilisation available
  • Can be mounted on either tracked or wheeled vehicles

  • 1030 (manned and unmanned)
Spoiler

Standalone


Polish BMP variant with 1030


Patria with 1030


Armament:

  • 1 x 1 30x173 mm chain gun
  • 1 x 2 MANPAD launch system (type stinger or mistral)
  • 1 x 1 7.62 mm FN-MAG coaxial machine gun
  • Sights: Commander (360°, stabilized) and
    Gunner sight (TV/IR/LRF): Thermal Imager: 13.5 / 6.1 / 3.1 km
  • Elevation: -10°/+70°
  • Counter drone munitions and launch options

  • 3030
Spoiler

Piranha 5 3030

Piranha IIIH 3030


Desert Piranha 3030/40


VBCI 3030

nexter-group-unveil-vbci-fitted-with-john-cockerill-defense-3030-turret

GDLS-Canada LAV-700 3030 - Saudi Arabia


Patria-AMV Cockerill 3030


Armament:

  • 1 x 7 70 mm Thales Rocket Pod
    • Ammunition storage: 7 Rockets in the pod + Unknown number of spare rockets
    • Ammunition types:
      • HEGP (FZ71) - [High Explosive General Purpose, 1 kg explosive mass]
      • HEAP (FZ319) - [High Explosive Armour Piercing, 1 kg explosive mass]
      • LGR (FZ275) - [Semi-Active Laser Guided Rocket, 4.1 kg explosive mass]
      • MULTIDART (FZ149) - [Shotgun effect, 36 darts of 35 grams each]
      • Flechette (FZ122) - [Shotgun effect, 2200 flechettes of 1.3 grams each]
      • SMK (FZ336) - [Smoke rocket]
  • OR 1x2 Bayonet AT-missiles (laserguided)
  • 1 x 1 30 mm Bushmaster II gun
  • 1 x 1 7.62 mm FN-MAG coaxial machine gun

Spoiler


Armour:
STANAG 4569 lv. 2, resistant to 7.62mm AP

Armament:

  • 1 x 1 25 mm M242 Bushmaster autocannon
    • Ammunition types:
      • APFSDS (M919) [penetrates 51mm at 1000 meters, 60°]
      • APFSDS (M935A2) [penetrates 40mm at 1000 meters, 45°]
    • Reload type: Belt-fed gun
    • Rate of fire: 500 rounds per minute

Medium Calibre 90 mm

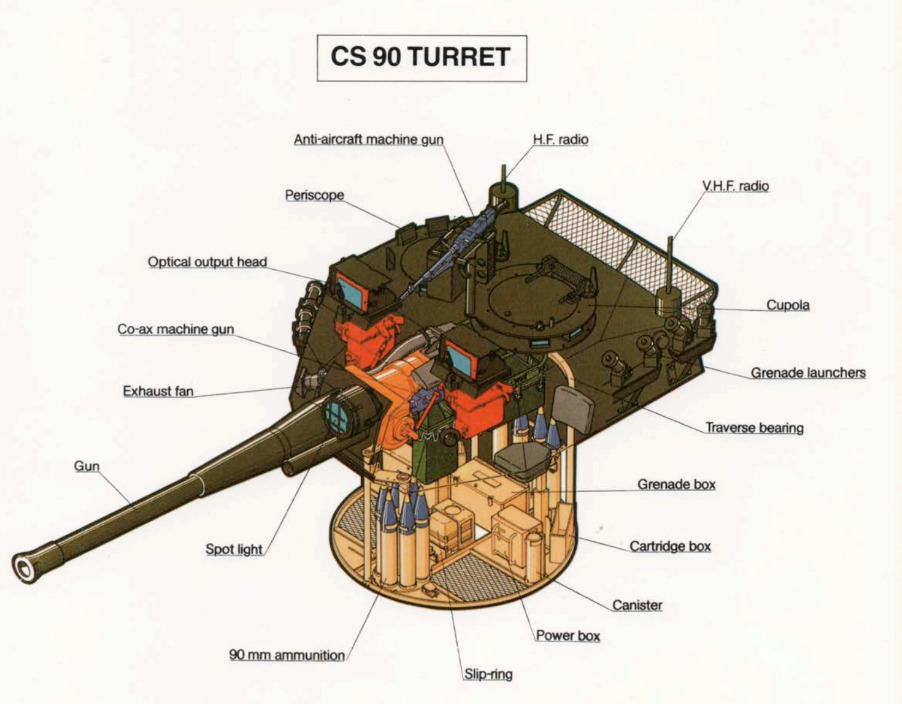

  • CM 90
Spoiler

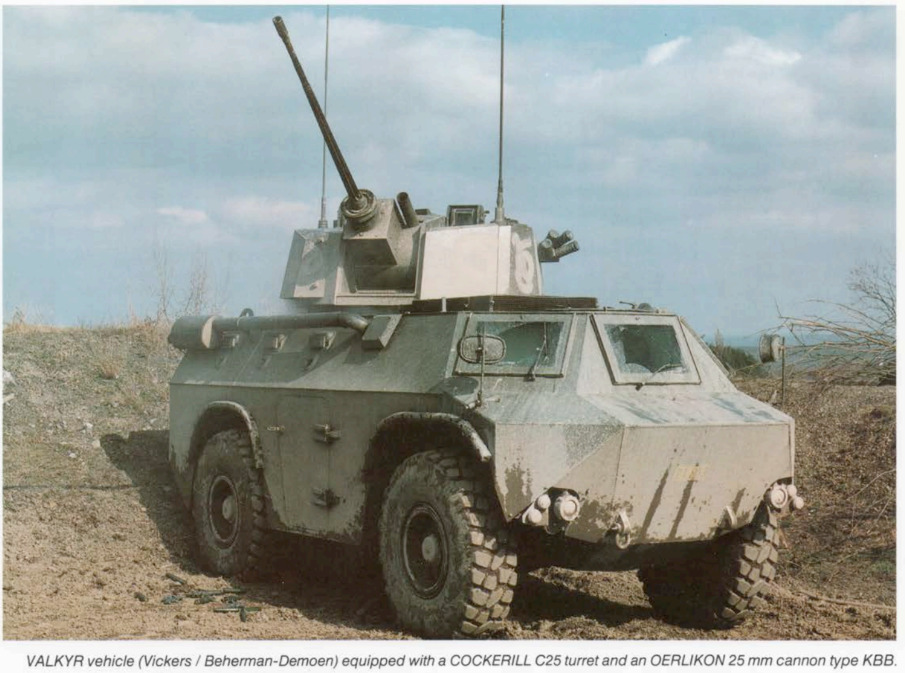

Vickers Valkyr CM 90

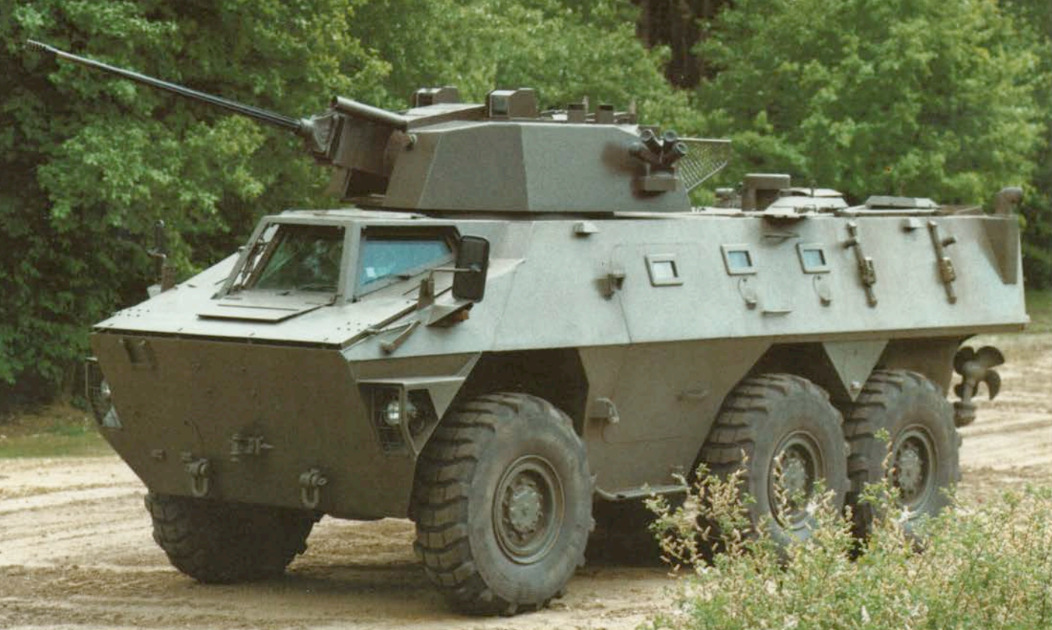

SIBMAS AFSV-90 - A Belgian in Malaysia

Cardoen Piraña I 6x6


Piraña II 8x8


Armament of CM 90:

  • 90 mm Cockerill Mk III cannon (ammo: 12 + hull stowage)
    • M620A1 HEAT-FS: 250 mm RHA, 890 m/s
    • NR 478 HEAT-FS: 300 mm RHA, 890 m/s
    • NR 220 HEAT-FS: 330 mm RHA, 700 m/s
    • M625A1 HESH: 102 mm RHA, 800 m/s
    • M618A1 Smoke: 714 m/s
  • Reloading rate: Unknown, around 8.7 s
  • 2 x 7.62 mm machine guns (ammo: coaxial: 400, cupola: 200)
  • Vertical guidance: -10 / 30° at 30°/s

Systems

  • 16 x smoke grenade launcher
  • Stabiliser: no
  • Laser rangefinder: optional
  • Night vision sights: optional

  • CSE 90
Spoiler

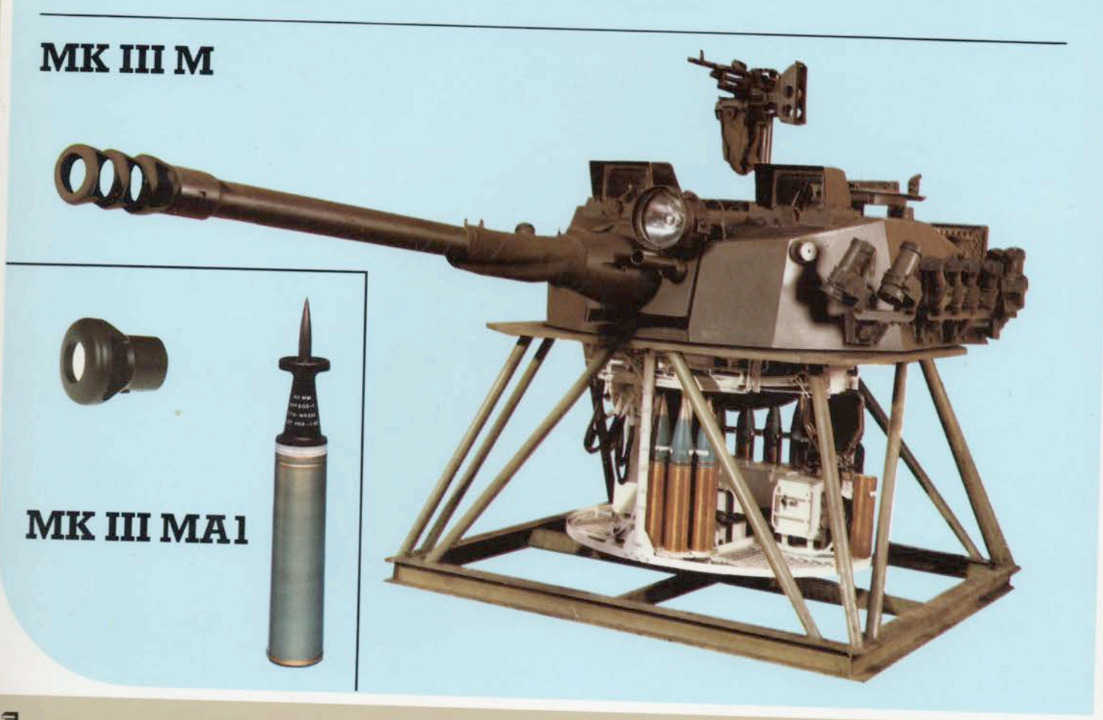

The CSE 90 is the CM 90 with a Mk. 3MA-1 gun and the single-baffle muzzle brake that can fire M652 APFSDS. It has a laser rangefinder and optional thermal sights.

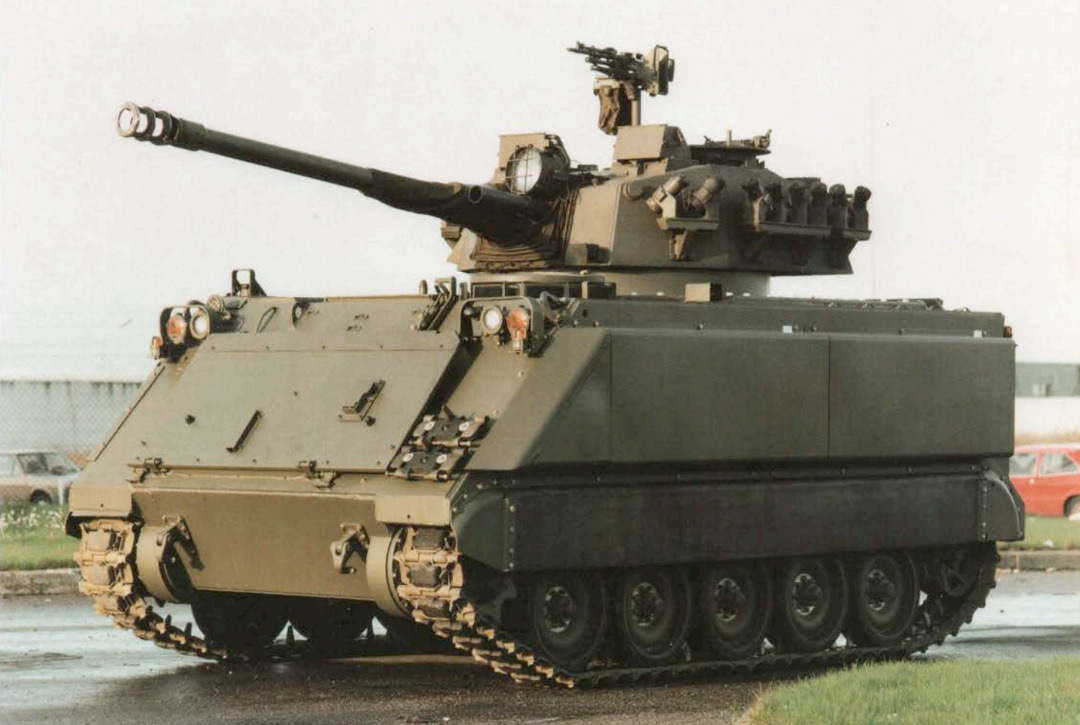

M113a1-b cse 90


Pindad «Badak» ( Rhino ) CSE 90 - (early model) Indonesian in service


armament of CSE 90:

  • 90 mm Cockerill Mk IIIM-A1 cannon (ammo: 12 + hull stowage)
    • M652A1 APFSDS: 100 mm RHA at 1000 m and 60°, 1210 m/s
    • M620A1 HEAT-FS: 250 mm RHA, 890 m/s
    • NR 478 HEAT-FS: 300 mm RHA, 890 m/s
    • NR 220 HEAT-FS: 330 mm RHA, 700 m/s
    • M625A1 HESH: 102 mm RHA, 800 m/s
    • M618A1 Smoke: 714 m/s
  • Reloading rate: Unknown, around 8.7 s
  • 2 x 7.62 mm machine guns (ammo: coaxial: 400, cupola: 200)
  • Vertical guidance: -10 / 30° at 30°/s

systems:

  • 16 x smoke grenade launcher
  • Stabiliser: no
  • Laser rangefinder: optional
  • Night vision sights: optional

Armor:

  • Turret protected against 7.62 mm AP

  • LCTS 90MP
Spoiler

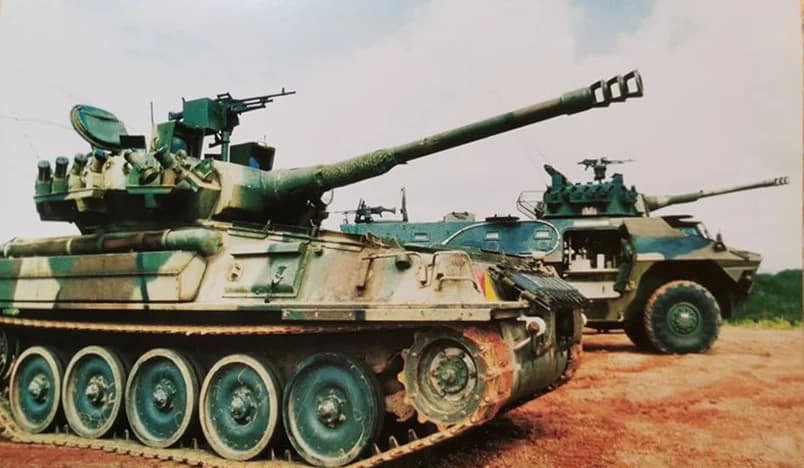

M41 LCTS 90

aPVSmbW.png.4a54e91836335637a7661cba0da9
armament of LCTS 90:

  • 90 mm Cockerill Mk. 7 cannon (ammo: ~40-45)
    • M690A1 APFSDS: >300 mm RHA at 2 km (similar to DM23)
    • M691A2 HESH: similar to DM502
  • Reloading rate: ~7 s
  • 2 x 7.62 mm machine guns (probably FN MAG) (ammo: 750, 250 for roof-mounted and 500 for coaxial)
  • Turret rotation speed: 30°/s
  • Vertical guidance: -9 / 20°

systems:

  • 8 x smoke grenade launcher (ammo: 16)
  • Stabiliser: unknown - probably
  • Laser rangefinder: yes
  • Thermal sights: yes

M113A1-B LCTS 90 — danger box

Armament:

  • 90 mm Cockerill Mk 8 cannon (ammo: 20 + hull stowage)
    • M690A1 APFSDS: 150 mm RHA at 2000 m and 60°, 1345 m/s
    • M691A2 HESH: similar to DM502, 712 m/s
    • M693A2 Smoke: 709 m/s
  • Reloading rate: Unknown, around 7 s
  • 1 x 7.62 mm machine gun

Systems:

  • Vertical guidance: -9 / 20°
  • Stabiliser: yes
  • Laser rangefinder: yes
  • Laser warning system: yes
  • Thermal sights: yes

Mowag Piranha IIIC DF90: Belgium’s Warrior on Wheels


Armament:

  • 1x Mk.8 Cockerill 90mm cannon.
    • APFSDS-T rounds (150mm RHA at 2000m & 60°, 300mm RHA at 2000m & 0°)
    • HESH-T
  • 1x coaxial 7.62mm FN machine gun
  • 1x roof-mounted 7.62mm FN machine gun

Systems:

  • Stabilizer: yes, 2-plane
  • Laser-rangefinder: yes
  • commander-sight: yes
  • commander override: yes
  • thermals: yes, gunner & commander
More info on the turret of specifically the Belgian variant can be found on its post or here, provided by vickers43850:

SIBMAS LCTS 90MP: The ultimate all-Belgian vehicle

LAV-AG(S) - Wheeled 90 mm Assault Gun (LCTS 90MP)


old post: link

Pandur 1 LCTS 90



  • CSE 90LP (modern)
Spoiler

The CSE 90LP is a turret that has been exported to numerous countries with over 3000 units sold or built under license around the world. It is the modernisation of the CSE 90 and the CM 90. The following are a selection of collaborations and series-produced vehicles with this turret.

BTR-3E (CSE 90LP)


FAMAE Piraña I 8x8D - Cockerill CSE 90 mm


Pindad «Badak» ( Rhino ) CSE 90LP - Indonesian in service

Cadillac Gage Commando Select 90mm DFV: A Modern Fire Support Car

  • Cockerill 90LP cannon, 37 rounds (auto loader)
    • 1 x 7.62 mm MAG machine gun coax + 1 x 7.62 mm MAG machine gun AA
    • 8 x smoke launcher canisters
    • elevation: -10°/+30° at 90°/s
    • traverse at 30°/s
    • Sights: x1-8 with rank 1 thermals
    • LRF

Large Calibre >105 mm

  • CT-CV 105HP
Spoiler

The CT-CV brought an autoloader for large calibre 105mm guns into the series, with the integration of very new munitions such as Belgian MECAR M1060CV ammunition, smart ammunition and Belgian-Ukranian gun fired missiles.

Piranha III CT-CV 105HP


Pandur II FSV (CT-CV 105HP) - Indonesian Army


Arma 8x8 (CT-CV 105HP) - Exceptional Hunter

Patria CT-CV 105HP tank destroyer

KTO MAS 105: The Polish Mobile Artillery System

Main Components

  • Two man turret
  • Cockerill 105 mm CV gun
  • Electro-mechanical power control system
  • Panoramic sight
  • Fully stabilised day/night gunner sight
  • Laser range finder
  • Ballistic computer for firing on the move

Characteristics

  • Calibre: 105 mm NATO
  • Barrel length: 5,586 mm
  • Weight: 1,750 kg
  • Maximum firing rate: 6 to 8 rounds/minute
  • Uniquely high elevation range: -10° to +42°
  • Effective indirect-fire engagement capability

  • XC-8-105
Spoiler

The XC-8 is an upgrade of the CT-CV variant, with several design changes. The turret was made lighter, but level 5 STANAG 4569 armour was added all-around. The optical systems were majorly updated, with the possible integration of soft APS systems, far more smoke grenade options and ammunition and more integrated environmental measurement systems to help with the ballistics computer in the turret.

K21 XC-8-105

Arma I (8x8) XC-8-105


Arma II (8x8) XC-8-105


The ARMA II, equipped with a Cockerill XC-8 105HP 105mm turret.

CV90105


Main Components

  • Two man turret
  • 2 Panoramic sights
  • Fully stabilised day/night gunner sight for both gunner and commander
  • Laser range finder/Laser warning system
  • Ballistic computer for firing on the move with additional environmental measurement system
  • computerized fire control system

Characteristics

  • Barrel length: 5,586 mm

  • Weight: 1,750 kg

  • elevation range: -10° to +42°
    Armament:

  • 1 x 1 105 mm Cockerill HP gun

    • Ammunition storage: 40 rounds
    • Ammunition types:
      • HESH (M393A3)
      • HEAT (M1061) [1173 m/s, penetrates 400mm at 1500 meters, 0°]
      • APFSDS (M1060CV) [1620 m/s, penetrates 560mm at 2000 meters, 60°]
      • GLATGM (Falarick 105) [penetrates more then 550mm, Tandem-charge]
      • CANISTER (M1204) [1173 m/s, shotgun effect]
      • SMK (M416) [731 m/s, smoke round]
    • Reload type: Auto-loader
    • Reload rate: 5 seconds
  • 1 x 1 7.62 mm FN-MAG coaxial machine gun


  • XC-8-120
Spoiler

K21 XC-8-120


Rosomak 8×8 XC-8-120HP


WWO (Wóz Wsparcia Ogniowego, Fire Support Vehicle), 120mm variant

  • 1 x 1 120 mm Cockerill HP gun
    • Ammunition storage: 12-16 ready rack, more in storage
    • Ammunition types: any NATO 120 mm rounds
      • GLATGM (Falarick 120) [penetrates more then 550mm, Tandem-charge]

  • 3105
Spoiler

The 3105 variant of the 3000-series is actually a development from the XC-8, but with many internal and external changes, such as a new crew compartiment, bustle mount, optics, breach mount, LWD, UAV integration since 2016, new environmental measurement, etc.

The two-person turret houses a Cockerill 105HP mm rifled gun coupled to an autoloader that stores 12-16 rounds, depending on the configuration. The turret has been seen on a Leopard 1A5BE at Eurosatory 2022, demonstrating its viability on the platform. Modifications required the installation of a turret ring adapter as well as integrating the turret with the Leopard 1’s electrical supply. The key advantage a turret like this could provide to legacy MBTs is a suite of modern mission systems, along with a reduction in weight and crew. The 3105 has also entered service on the FNSS/PT Pindad Harimau tracked fire support vehicle (FSV) for Indonesia, and the GDLS-Canada LAV-700 FSV for Saudi Arabia. Other platforms the turret has been mounted on for testing include the GDLS-Canada LAV-III, Hanwha K-21, KNDS Boxer, and the Otokar Tulpar.

LAV 700 C3105: LAV-700AG - Next Generation Wheeled Assault Gun


Piranha IIIH (8x8) 3105 (early) - early prototype for the LAV 700 trials


Piranha IIIH (8x8) 3105


Patria AMV (8x8) 3105


Pandur II FSV 3105

The MLU of the Indonesian pandur II FSV to 3105 standards

Cockerill 3105 MPF - Hunter goes Heavy

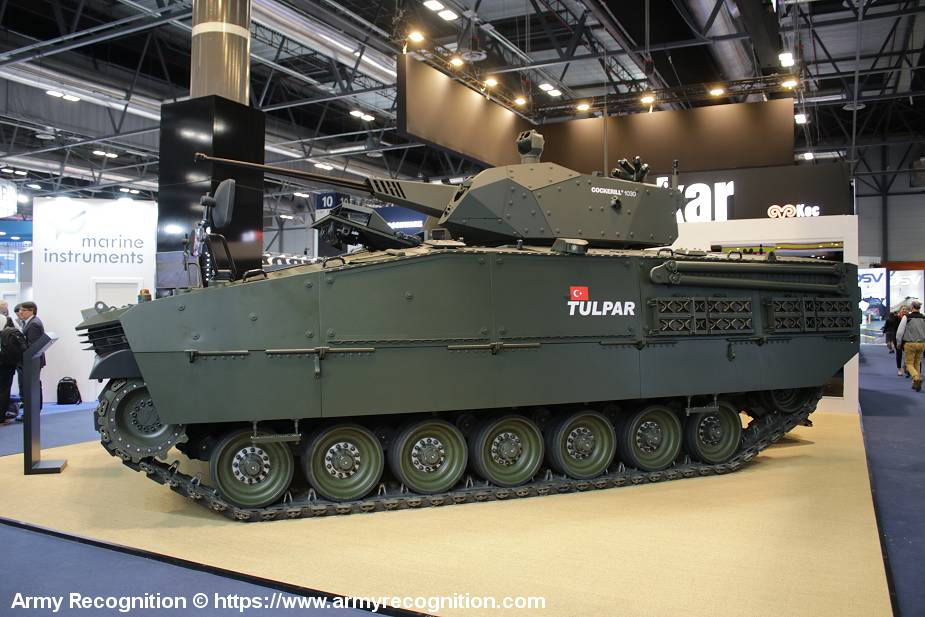

Tulpar Light Tank (3105) - Winged Galloper

Zorawar Light Tank: India’s Mountain Marcher

Modified 3105:

  • BEL RCWS 12.7 mm anti-aircraft machine gun that has its own laser rangefinder, target auto-tracker, and thermal imager for targeting
  • coaxial PKT machine gun
  • etc. (read the suggestion post for more info)

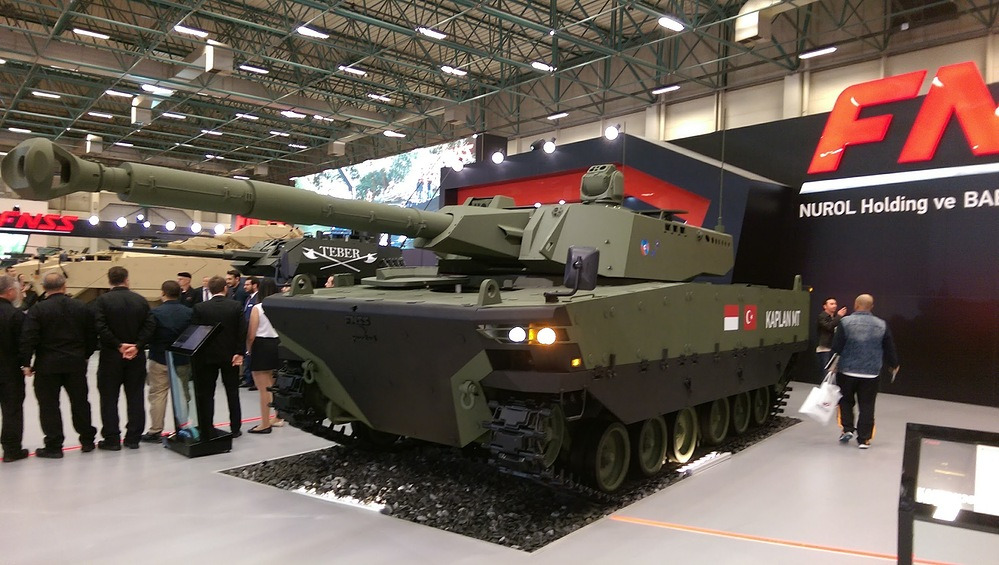

Kaplan MT / Harimau 3105 - Indonesian amry


Boxer Cockerill 3105 - The aberrant flanker / [Development] Mobile Sniper: Boxer MGS

Leopard 1A5 Cockerill 3105 Upgrade


  • Crew: 2
  • 1 x 1 105 mm Cockerill HP gun
    • Ammunition storage: 40-20 rounds
    • Ammunition types:
      • HESH (M393A3)
      • HEAT (M1061) [1173 m/s, penetrates 400mm at 1500 meters, 0°]
      • APFSDS (M1060CV) [1620 m/s, penetrates 560mm at 2000 meters, 60°]
      • GLATGM (Falarick 105) [penetrates more then 550mm, Tandem-charge]
      • CANISTER (M1204) [1173 m/s, shotgun effect]
      • SMK (M416) [731 m/s, smoke round]
    • Reload type: Auto-loader
    • Reload rate: 5 seconds
  • 1 x 1 7.62 mm FN-MAG coaxial machine gun
  • LWD
  • APS, Acoustic gunshot detections
  • 8 x smoke grenades
  • Identical gunner/commander third gen thermal sights (Thermal imager: 15 / 7 / 3.5 km)

This list will undoubtedly be incomplete and/or wrong, please do say so if you notice lacking systems!


Sources:

Spoiler
10 Likes

Munition types in Belgian service also used on Cockerill turrets

This is @mr_boo’s Belgian ammunition spreadsheet. I’d highly recommend reading it! (and I will share a link if I get permission)

25 mm

Spoiler

(incomplete)

Designation Gun Caliber Type Velocity Weight Penetration Notes Fire rate
M935 KBA / M242 / M811 25 mm APFSDS 1440 m/s 130 g >40 mm at 60° at 1000 m >30 mm at 2000 m

30 mm

Spoiler

(incomplete)

Designation Gun Caliber Type Velocity Weight Penetration Notes Fire rate
M928 Bushmaster II 30 mm APFSDS 1430 m/s 220 g >60 mm at 60° at 1000 m

90 mm

Spoiler
Designation Gun Caliber Type Velocity Weight Penetration Notes Fire rate
M616 Cockerill Mk 3 90 mm HE 700 m/s 5,1 kg (1,02 charge) 18 mm Comp B filler
NR 501 Cockerill Mk 3 90 mm HE 700 m/s 5,1 kg TNT filler
M617 Cockerill Mk 3 90 mm HEAT 730 m/s 5,07 kg 350 mm
M618 Cockerill Mk 3 90 mm SMK 695 m/s 5,3 kg / In-game
M620 Cockerill Mk 3 90 mm HEAT 900 m/s 4,15 kg 250 mm In-game
M624 Cockerill Mk 3 90 mm HE* 338 m/s 6,6 kg (0,95 charge) 13 mm Long range, TNT filler
M625 Cockerill Mk 3 90 mm HESH 800 m/s 4,3 kg 102 mm In-game
NR 478 Cockerill Mk 3 90 mm HEAT 890 m/s 4,1 kg 300 mm The in-game M620A1 has the same weight and velocity, strange
NR 220 Cockerill Mk 3 90 mm HEAT 700 m/s 5,1 kg 330 mm Interesting tradeoff in velocity for some pen, but M617 better
NR 232 Cockerill Mk 3 90 mm APFSDS ? ? ? ?
M652 Cockerill Mk 3MA-1 90 mm APFSDS 1210 m/s 2,5 kg At least 200 mm Found in the files, 360 mm of penetration (!)
NR 185 Cockerill Mk 4 90 mm HE 730 m/s 10,6 kg TNT filler
NR 181 Cockerill Mk 4 90 mm HEAT 1000 m/s 5,9 kg 400 mm Also fired by Cockerill Mk 4-A3 8 rpm
NR 182 Cockerill Mk 4 90 mm HESH 792 m/s 7 kg ? Also fired by Cockerill Mk 4-A3
M670 M36/M41 (Patton) 90 mm APFSDS 1500 m/s 3,65 kg (2,1 penetrator) Should be a bit less than 300 mm Interesting APFSDS for M47 and M48
M603 MECAR 90/46 90 mm APFSDS 1430 m/s 2,73 kg (1,73 penetrator) 150 mm at 60° at 2000 m Should pen about 300 mm flat like the T320 shell
M626 MECAR 90/46 90 mm HEAT 780 m/s 5 kg (1,4 charge) ? Also fired by Cockerill Mk 7 and 8, comp A3 filler 7 - 10 rpm
M627 MECAR 90/46 90 mm HE 779 m/s 5 kg (1,4 charge) 23 mm Also fired by Cockerill Mk 7 and 8, comp B filler
M644 MECAR 90/46 90 mm HEAT 1000 m/s 4,08 kg 350 mm Also fired by Cockerill Mk 7 and 8
M645 DEFA F1 (DEFA 921) 90 mm APFSDS 1050 m/s 2,5 kg 70 mm at 60° at 1300 m
M630 DEFA F1 (DEFA 921) 90 mm HEAT 750 m/s 3,65 kg or 4,2 kg 250 mm Worse than OCC 90-62, no point
M631 DEFA F1 (DEFA 921) 90 mm HE 650 m/s 5,2 kg Extremely similar to OE 90 F1
M632 DEFA F1 (DEFA 921) 90 mm SMK 650 m/s 5,4 kg /
M678 DEFA F3/F4 90 mm HE 766 m/s 5,1 kg (1,1 charge) 19 mm Comp B filler
M679 DEFA F3/F4 90 mm HEAT 962 m/s 4 kg (600 g charge) 250 mm Octol filler
M667 DEFA F3/F4 90 mm SMK 744 m/s 5,2 kg /
M669 DEFA F4 90 mm APFSDS 1275 m/s 3,7 kg 150 mm at 60° at 1000 m Very similar to OFL 90 F1 (271 mm in game)
NR 299 Cockerill Mk 7 90 mm HEAT 950 m/s 5,4 kg (2,2 charge)
NR 300 Cockerill Mk 7 90 mm HESH 700 m/s 7,2 kg (1,7 charge)
NR 320 Cockerill Mk 7 90 mm APFSDS 1400 m/s 3,1 kg (1,9 penetrator) NATO Triple medium at 30° at 1800 m Also fired by Cockerill Mk 4-A3
M690 Cockerill Mk 7/8 90 mm APFSDS 1345 m/s 3,7 kg (2,05 penetrator) 150 mm at 60° at 2000 m Penetrates more than 300 mm at 2000 m (slightly better than M603)
M691 Cockerill Mk 7/8 90 mm HESH 703 m/s 7,2 kg (1,6 charge) 100 mm
Falarick 90 Cockerill Mk 8 90 mm GLATGM 550 mm behind ERA

105 mm

Spoiler
Designation Gun Caliber Type Velocity Weight Penetration Notes
M393A2 NATO 105 mm 105 mm HESH 732 m/s 11,2 kg 127 mm In-game
M416 NATO 105 mm 105 mm SMK 732 m/s 11,6 kg / In-game
M1001 NATO 105 mm 105 mm APFSDS 1525 m/s 5,8 kg (3,8 penetrator) ? Equivalent to the FP105 round (353 mm in game)
M1010 NATO 105 mm 105 mm HE 700 m/s 12,1 kg (2 charge)
M1050 NATO 105 mm 105 mm APFSDS 1510 m/s 5,8 kg NATO Heavy at all ranges Equivalent to the FP105 round (353 mm in game)
M1060(A1) NATO 105 mm 105 mm APFSDS 1510 m/s 5,8 kg 400 mm at 60° at 2000 m Equivalent to the M833 round (395 mm in game)
M1060A2 NATO 105 mm 105 mm APFSDS 1460 m/s 6,2 kg 440 mm at 60° at 2000 m
M1060A3 NATO 105 mm 105 mm APFSDS 1560 m/s 6,2 kg >500 mm at 60° at 2000 m
M1060CV Cockerill 105HP 105 mm APFSDS 1620 m/s 6,2 kg 560 mm at 60° at 2000 m Superior to M900 (522 mm in game), matching NATO 120 mm
M1061 NATO 105 mm 105 mm HEAT 1173 m/s 10,5 kg 400 mm Modernized M456A2
Falarick 105 Cockerill 105HP 105 mm GLATGM 370 m/s 24 kg 550 mm behind ERA In-game

120 mm

Spoiler
Designation Gun Caliber Type Velocity Weight Penetration Notes
Falarick 120 Rh120 120 mm GLATGM 370 m/s 24 kg 550 mm behind ERA /
M1080 Rh120 120 mm APFSDS 1675 m/s 7,2 kg Over 540 mm ?
4 Likes

A few of the mentioned vehicles, particularly the Belgian CSE-90LP carriers and the 3010 patria, seem like obvious choices to fill tt gaps (stab. tanks below 10.0 for the french tree, and an IR manpads for the Swedish) and i hope that they are at least considered by gaijin

I think the french should 100% get more vehicles below 10.0 but I feel like models using the TML105 turret would be better, as it’s a indigenous french design that provides that sweet sweet stabilized 105 gameplay that the french don’t get.

(I believe the TML turret was used on the CV90, Mars 15, and Amx10RC chassis)

2 Likes

Here is a photo of a Cardoen Piraña I 6x6 from Chile with Cockerill’s CSE 90LP turret


1 Like

Thanks for including my suggestion! Much appreciated! :D

1 Like

Yup and i’ll gladly take help wherever info is missing

1 Like

Just to clear any confusion regarding CM 90/CSE 90/CSE 90LP turrets because you mixed up some pics there
The CM 90 turret is the first one and is recognizable with the standard Cockerill Mk. 3 gun with the triple-baffle muzzle brake. It can only fire chemical rounds and only has a laser rangefinder as an option.
The CSE 90 is basically the same but with a Mk. 3MA-1 gun with the single-baffle muzzle brake that can fire M652 APFSDS. It has a laser rangefinder and optional thermal sights.
The CSE 90LP is the modern one that can be seen today on Cockerill’s website, it doesn’t have the small flat turret cheeks like on the two previous ones, it has LRF and thermal sights but it still isn’t stabilized.

1 Like

I’ll sort them out later today. Can you say which pics are wrong? I know the m113 is wrong, but I’m still looking through all 90mm turrets.

The FAMAE Piraña is an old CSE 90, the Cardoen Piraña is a CM 90 and i doubt the first Badak picture is the modern CSE 90LP but im not sure

1 Like

Can anyone identify this turret on this Greek Leonidas-2 APC? Said to be the EWS with 25mm Bushmaster but it looks different to the standard EWS turret (if there even is a standard? I mean for vehicles like the YPR-765), some sort of prototype maybe? Or if you have any more info on the turret, would be handy.

c93985c8920bfe6e58858b1523935e32
Leonidas_4
051109_Leonidas_04

I’d be surprised if that was Cockerill

1 Like

You’re right, I confused it with something else, my bad

1 Like

This is a LAV 700 C3105 which was a Belgian Canadian export to Saudi Arabia. Here are more photos:

Spoiler


This. I don’t know what chassis it is but for whatever reason it is using the L3 Harris MX-GCS sights, or ‘off-brand PASEO’:

1 Like

Thanks, I have corrected it.

Yeah, I was a bit confused at that one, as the first vehicle they put the 3105 on was a piranha V, but all sites used that picture, and from that cropped angle the hull for the LAV and the piranha V looked exactly the same.

I just also discovered that the 3030 turret was also used on the LAV 700:

Spoiler

CMI banyonet AT missile

https://youtu.be/446qCJmH0a8

In the background.


It’s quoted as being:

  • LAV prototype
  • Piranha III Desert version prototype
  • Desert Piranha V prototype

It definitely looks like a mash between the Piranha III Base model and the Piranha V (looking at exhaust location, nose, headlights, wheels, etc. , but with some weird changes…

It’s the Piranha IIIH.

Pictures from the early trials:

Spoiler



And one from Eurosatory 2016

1 Like

I mean, the LAV 700 and final assembly with the turret took place in Canada.

Only because Cockerill was sanctioned at the time and couldn’t directly export the vehicle to Saudi Arabia. Everything else was carried out by Cockerill.

“Everything else” besides the manufacture, design of the finished system, system integration, and ultimate contract through the Canadian Commercial Corporation. I get that it’s a matter of national pride but you’re misinforming people.

The 3105 looks like what the Boxer is going to get in game.

Hey again,

The article you list is fairly ambiguous on who the subcontractor is (Amnesty International France, 2020), but I understand how you could take the quote either way. It even goes on to say that Cockerill was charged with delivering 700 turrets to equip the 928 Canadian vehicles to be sent to Riyadh:

“Un contrat de sous-traitance avec la firme canadienne General Dynamics Land System-Canada (GDLS-C) pour un montant de 4,5 milliards d’euros. Elle est chargée de livrer environ 700 tourelles-canons pour équiper les 928 véhicules blindés légers canadiens envoyés à Riyad.”

However, Chase and LeBlanc (2016) clarify that GDLS-C and CMI Defence are contractor and subcontractor respectively:

“Some of the armoured combat vehicles Canada is selling to Saudi Arabia in a controversial $15-billion arms deal will feature medium- or high-calibre weapons supplied by a European subcontractor – such as a powerful cannon designed to shoot anti-tank missiles.”

“Details about the turreted weapons have been slow to emerge because both General Dynamics Land Systems (Canada) and its Belgian supplier CMI Defence, part of CMI Groupe, are saying little about the contract and subcontract.”

The “contract of the century” quote in the Amnesty International France article comes from this article by RTBF, who state that Cockerill is the subcontractor to GLDS-C (RTBF, 2014):

“En fait, l’entreprise sérésienne est sous-traitant pour le compte d’un groupe canadien. Mais cette commande est capitale: elle consacre la montée en puissance de la branche militaire de la société CMI.”

In fact, the contract for sale to the Saudis was renegotiated by the Canadian federal government (Sevunts, 2020) after the breakdown of trade relations following Jamal Khashoggi’s assassination. Canadian Commercial Corporation is listed as the prime contractor (Chase, 2015) (Perry, 2016).

As well, GDLS owns the license to the finished product as they continue to market it, specifically with the Brazilian Army’s VBC-Cav MSR program.

.

References:

Amnesty International France. (2020). Armes la France, terre d’accueil. Amnesty International. Retrieved from: [Révélations] En France, un centre de formation pour des soldats saoudiens - Amnesty International France

Chase, S. (2015). Ottawa’s arms deal with Saudi Arabia contingent on secrecy. The Globe and Mail. Retrieved from: Ottawa's arms deal with Saudi Arabia contingent on secrecy - The Globe and Mail

Chase, S. & LeBlanc, D. (January 6, 2016). Armoured vehicles in Saudi deal will pack lethal punch. The Globe and Mail. Retrieved from: https://www.theglobeandmail.com/news/politics/armoured-vehicles-in-saudi-deal-will-pack-lethal-punch/article28046099/

RBTF. (August, 2014). L’entreprise sérésienne CMI décroche un “contrat du siècle” en Arabie. RBTF. Retrieved from: L'entreprise sérésienne CMI décroche un 'contrat du siècle' en Arabie - RTBF Actus

Perry, D. (March 21, 2016). The other side of Canada’s deal with the Saudis. Vanguard Canada. Retrieved from: The other side of Canada’s deal with the Saudis – Vanguard

Sevunts, L. (April 10, 2020). Canada cuts new deal with Saudi Arabia, clearing way for more arms sales. Radio Canada International. Retrieved from: https://www.rcinet.ca/en/2020/04/10/canada-cuts-new-deal-with-saudi-arabia-clearing-way-for-more-arms-sales/
