This suggestion is a complement to the previous 3 suggestions I have made that are the Chilean air, naval and Helicopter subtree for Israel, for the history and details please check out the other 3 suggestions within the forum.
History between Chile and Israel
During the 1970s Chile was going through very tense moments with its 3 neighbors (Argentina, Bolivia and Peru) that had territorial claims and like Israel at the time Chile was politically alone and surrounded by belligerent countries and because Chile was under the government of Dictator Augusto Pinochet accused of crimes against humanity, the country was under an embargo on military purchases. Chile was interested in buying European tanks but no country was willing to sell weapons to Chile for fear of losing its good relations with the United States.
This is how Chile turned to Israel, which accepted the request for help. Thus, in 1977, Chile and Israel signed a contract for the purchase of various Israeli tanks, M-51 and M-50 Super Shermans arriving in Chile (both models would later be modified in Chile), and many 60mm IMI HVMS cannons were purchased, Chile being its only user and arming the M24 Chaffee and M-50 with this powerful anti-tank cannon, in this way experienced Israeli instructors traveled to Chile to train the Chilean crews, and created a new doctrine for the Chilean armored forces.
In the air field, Israel was also willing to sell the Shafrir II Air-to-Air Missiles to Chile, which would be the main air means to be able to confront the fighters of Chile’s neighbors and installing these missiles on the Hawker Hunter and F-5 Tiger II that in those years were the best fighters in Chile. Fortunately, the almost wars that were going to occur, mainly with Argentina, were resolved diplomatically at the last second.
After these historic events, Chile would not forget the help that Israel gave it in difficult times, which is why they continued to cooperate in the field of military purchases and modifications, mainly in Chilean fighters. Currently, a large amount of Chilean military equipment is made up of Israeli weapons (assault rifles, missiles, howitzers, mortars, rocket artillery, military vehicles) and an agreement was signed between both countries to expand defense cooperation.
As a curiosity within the game there is a Chilean camouflage for one of Israel’s tanks, specifically the premium M-51, so there is already a link between the two countries in the game.
Disclaimers:
- Not necessarily all the vehicles from the following list must be added, they can be chosen according to the convenience of the tree in which it would be implemented and moved as necessary. It was ordered in the best way I found possible.
- The BR of this tree represent the realistic game mode.
- Some data may not be 100% accurate, also some sources may contradict in some aspects such as technical specifications, basically I did what I could with what I found, if anyone has more information I would appreciate it if you share it in the comments section.
(Israel’s new I-III tanks are part of the forum suggestion made by @CaID and the image shows what the new Israel tree could look like with those new tanks and with the Chilean sub-tree.)

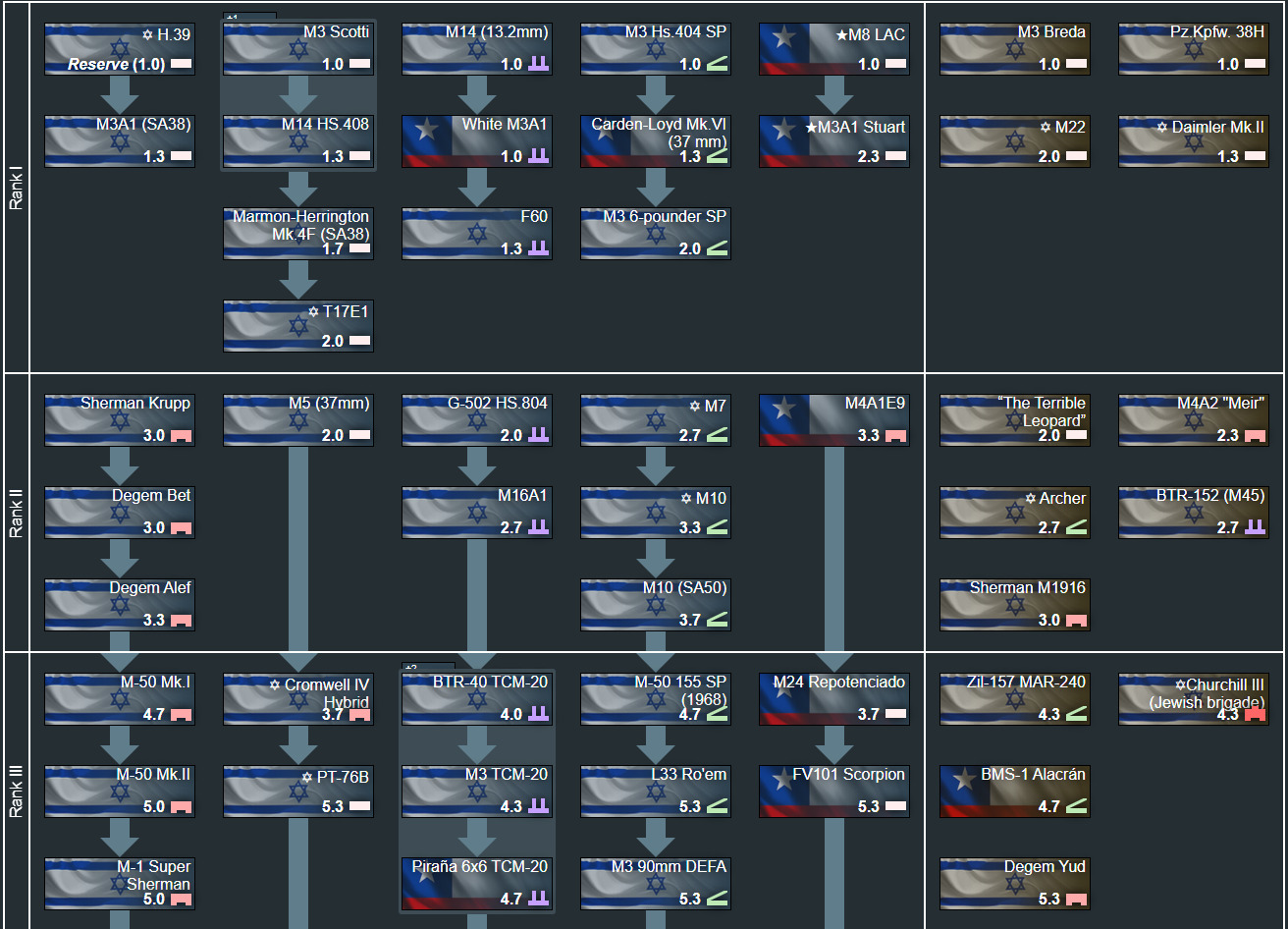

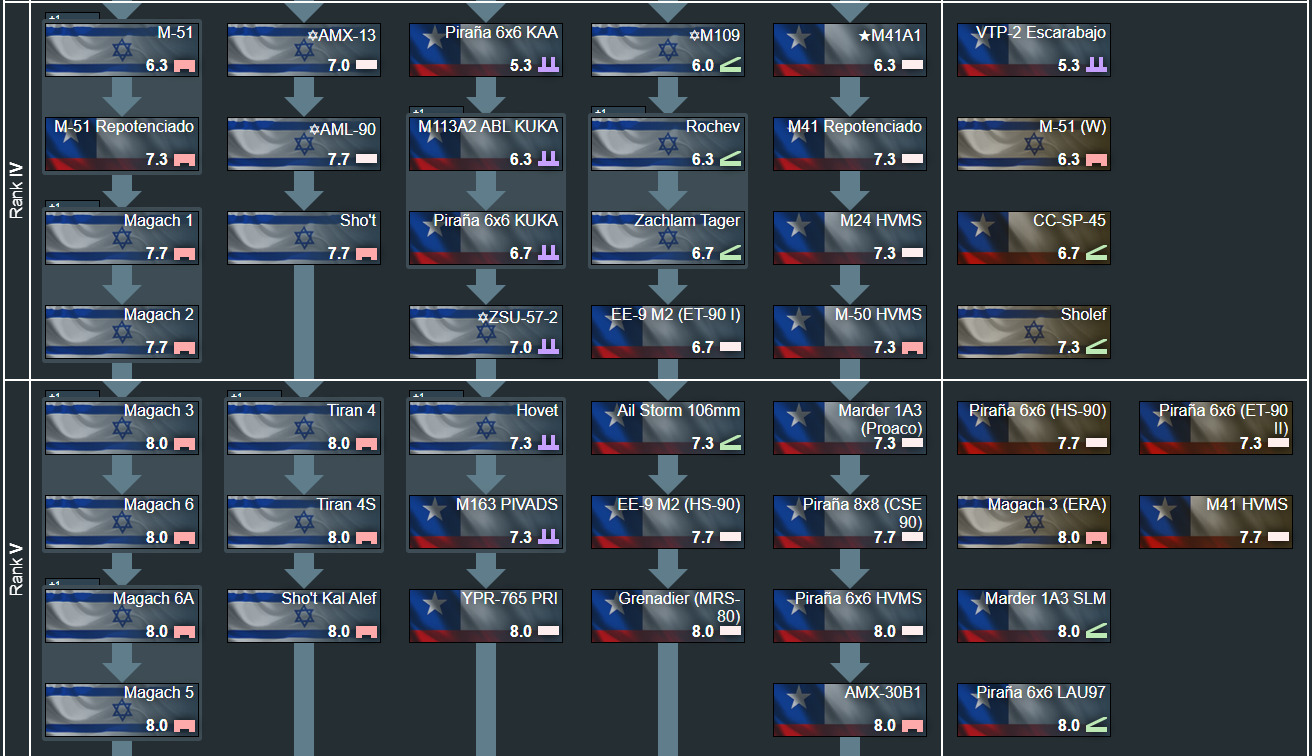

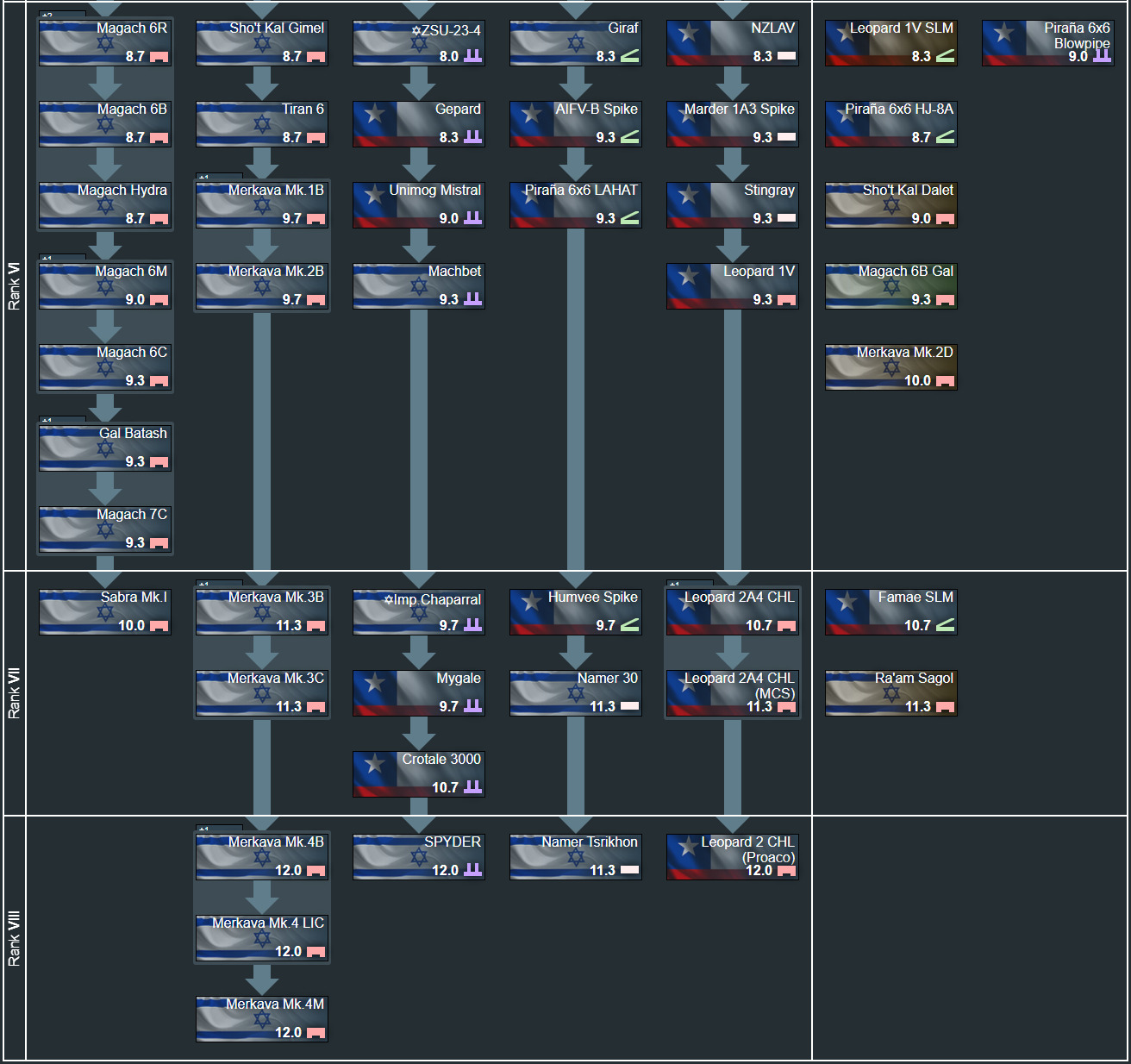

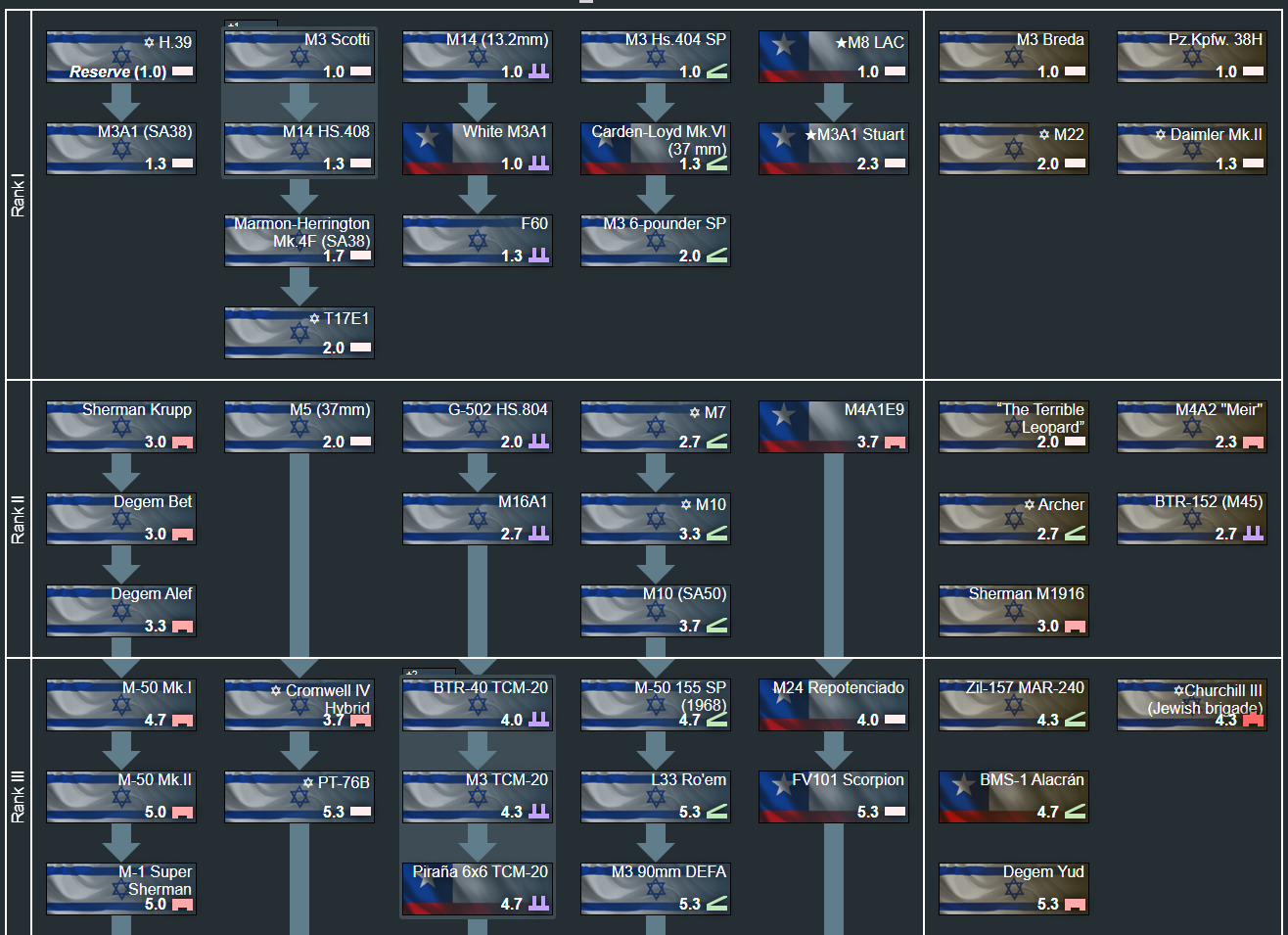

Vehicle list:
Rank 1
White M3A1
- Description:
- Half-track of American origin widely used in the Second World War to transport troops, in 1943 12 of these vehicles arrived in Chile, they had up to 3 machine guns, 2 .30 machine guns in the rear and the main one being the Browning M2HB .50 machine gun in the front where it was operated by a gunner. which could rotate it 360° thanks to a special support.
- Year:
- 1943
- Crew:
- 3 (Commander, Gunner, Driver)
- Armament:
- Primary: 1x .50 Browning M2HB machine gun, 2x .30 Browning M1919A4 machine guns
- Dimensions:
- Length: 6.16 m
- Width: 2.22 m
- Height: 2.38 m
- Weight: 7.7 t
- Maneuverability:
- Engine: White 160AX 147 hp
- Suspension: spring package (front) bogie (rear)
- Max. Speed: 72 - 80 km/h
- Armor:
- 12.7 mm front, 6 mm engine cover, 6.35 mm side
- Sources:
M8 Greyhound
- Description:
- In 1953, Chile received five M8 units that served in the Mechanized School, becoming one of the first military vehicles to serve in Chile along with the M3 Stuart. Same as the one found in the game.
- Year:
- 1953
- Crew:
- 4 (driver, commander/radio, gunner, loader)
- Armament:
- Primary: 37 mm (1.46 in) M6 QF AT gun
- Secondary: cal.50 (12.7 mm) and cal.30 (7.62 mm) Browning M1919
- Dimensions:
- Length: 5m
- Width: 2.53m
- Height: 2.23m
- Weight: 8.6 short tons (7.8 tons)
- Maneuverability:
- Engine: Hercules JXD 6-cyl gasoline, 110 hp (82 kW)
- Suspension: 6x6 individual leaf spring
- Max. Speed: 56 mph (90 km/h)
- Range: 560 km at medium speed (350 mi)
- Sources:
Carden-Loyd Mk.VI
- Description:
- It arrived in Chile in 1936, delivering five units to the Infantry Application School. This vehicle, despite not being considered a true tank, was the first motorized vehicle of this type to arrive in Chile. Later the Army changed its original .303 Vickers machine gun for a 57mm M-18 recoilless rifle and added a mount for this weapon.
- Year:
- 1936
- Crew:
- 2 (driver, gunner)
- Armament:
- Primary: M-18 57mm recoilless rifle
- Dimensions:
- Length: 2.46 m
- Width: 1.75m
- Height: 1.22m
- Weight: 1.5t
- Maneuverability:
- Engine: Ford T 40hp
- Speed: 40km/h
- Weight/power: 26.6 hp/t
- Suspension: bogie
- Autonomy: 140 km
- Sources:
M3A1 Stuart
- Description:
- A first batch of 12 M3A1 tanks arrived in Chile during 1943. The M3A1 tank was the first tank of the Chilean Army. Later, between 1944-1945, new batches of tanks were sent to Armored Detachment No. 1 in Iquique. These tanks were the first real entry into the world of tanks for Chile. Same as the one found in the game.
- Year:
- 1943
- Crew:
- 4 (Commandant, Driver, Gunner, Loader)
- Armament:
- Primary: 37 mm M6 gun with 174 rounds
- Secondary: 2 x .30 Browning M1919A4
- Dimensions:
- Length: 4.5m
- Width: 2.46m
- Height: 2.3m
- Weight: 14.7t
- Maneuverability:
- Engine: Continental W-670-9A, 7-cylinder radial, 250hp
- Max. Speed: 58 km/h roads, 30 km/h offroad
- Weight/power: 17.82 hp/t
- Suspension: VVSS (Vertical Volute Spring Suspension)
- Autonomy: 120 km
- Sources:
Rank 2
Sherman M4A1E9
- Description:
- In 1952, a total of 17 Sherman tanks of the M4A1E9 version with a radial engine, which ran on 100/110 octane white gasoline, arrived in Chile. They were updated, rebuilt and modernized by Chrysler. Part of the process was the installation of the so-called “spaced suspension”, which gave them the E9 designation. Grouser extenders were installed to increase track width. The E9 modification included wider track protective fenders and “fender clamps”, they also had additional armor on the sides that can be easily seen from the outside (where the ammunition magazines are located), on the right side of the mantlet (protecting to the gunner and commander). They were in service for some decades in Chile. They were finally decommissioned in the 1970s. Special variant not found in the game.
- Year:
- 1952
- Crew:
- 5 (Commander, Driver, Gunner, Loader, Radioman)
- Armament:
- Primary: 75 mm gun M3 L/40, with 90 rounds
- Secondary: .50 Browning HB machine gun, 2 × .30 Browning M1919A4 machine guns
- Dimensions:
- Length: 5.84m
- Width: 2.62m
- Height: 2.74m
- Weight: 30.3 t
- Maneuverability:
- Engine: Continental R975 Cl 350 hp radial
- Max. Speed: 38.5km/h
- Weight/power: 15.8 hp/t
- Suspension: VVSS (Vertical Volute Spring Suspension)
- Autonomy: 193 km
- Sources:
Rank 3
Cardoen Piraña 6x6 TCM-20
- Description:
- Mowag Piranha built under license in Chile by Cardoen industries, this version has 2 HS.404 automatic cannons better known as TCM-20 of Israeli origin for anti-aircraft defense. It could be the direct continuation of Israel’s TCM-20 since it represents an improvement in speed and protection of the crew as it is a completely closed vehicle that withstands low-caliber shots.
- Year:
- 1980
- Crew:
- 4 (driver, gunner, loader, commander)
- Armament:
- Primary: Two 20 mm HS.404 automatic cannons
- Dimensions:
- Length: 5.97 m
- Width: 2.5 m
- Height: 1.85 m (without weapons)
- Weight: Total combat weight: 10.500 kg, plus the weight of the guns 1.350 kg (with two loaded magazines)
- Maneuverability:
- Engine: Detroit diesel 6V-53T
- Horse Power: 300 HP/2800 RPM
- Max. speed on roads: 100 km/h
- Speed in water: 10.5 km/h
- Gear box: Allison MT-653
- Type: Automatic
- Gears: 5+1
- Fuel tank capacity: 400 lts.
- Range: 1,200 km.
- Max. gradient: 70%
- Lateral inclination: 30%
- Maximum obstacle height: 0,5 ms
- Turning circle: 11,3 ms
- Additional system: fire extinguishing system that is activated in the engine once it exceeds a certain temperature. Amphibious capability.
- Sources:
- TCM-20 | Weaponsystems.net .
- http://www.memoriachilena.gob.cl/archivos2/pdfs/MC0067618.pdf
- Famae-Cardoen Piraña (1981)
- Janes Land-Based Air Defence 1992-93 by Tony Cullen, Christopher F. Foss
- Cardoen Piraña 6x6 TCM-20
AMX MK I F3
- Description:
- 155 mm self-propelled howitzer of French origin, arrived in Chile in 1970 and was the first self-propelled artillery in Chile. It was operated by a driver and his commander and could also have additional assistants who came in another vehicle. They were later replaced by the American M109.
- Year:
- 1970
- Crew:
- 3 (Driver, Gunner, Commander)
- Armament:
- Primary: howitzer GCT 155mm F3 L/33
- Rate of fire: 3-4 rounds per minute
- Maximum range: 25 km
- Dimensions:
- Lenght: 6.22 m
- Width: 2.72 m
- Height: 2.08 m
- Weight: 17.41 tons
- Maneuverability:
- Engine: SOFAM 8Gxb 250 hp
- Max. speed: 60 km/h
- Range: Up to 300 km
- Armour:
- 15 mm frontal, 20 mm lateral
- Sources:
- http://www.memoriachilena.gob.cl/archivos2/pdfs/MC0067618.pdf
- https://defenceredefined.com.cy/amx-13-mk-f3-the-1st-self-propelled-howitzer-of-the-national-guard-the-present-and-the-future/
M24 Repotenciado
- Description:
- Chile received its 21 M24 Chaffees in 1952, later these M24s were modified, a mount for an extra 7.62 mm Browning M1919 machine gun was added to the roof of the tank operable by the loader. At the end of 1978, the joint MACO-Detroit Diesel project was chosen and the 21 M24 Chaffee engines were repowered by the Detroit Diesel 6V53T, a 6-cylinder turbodiesel that developed 275 HP at 2,800 rpm and weighed 770 kg. The engine platform was modified and received more air vents. Added a new radio station of unknown model with a new antenna. The hydraulic automatic transmission was replaced by an Allison HT 700 5-speed automatic transmission (5 forward gears and 1 reverse gear). The maximum speed increased slightly to around 60 km/h, while the weight increased from 18.4 to 19 tons. Chilean version of the M24 with extra machine gun, better engine and more maximum speed than the one in the game.
- Year:
- 1978
- Crew:
- 5 (Commander, gunner, loader, driver, bow-gunner)
- Armament:
- Primary: 75 mm M6 gyro-stabilized gun, with 48 shells
- Secondary: x.50 Browning HB in cupola, Browning M1919 7.62mm machine gun in cupola, .30 Browning M1919A4 coaxial
- Dimensions:
- Length: 5,56 m
- Width: 3 m
- Height: 2,77 m
- Weight: battle ready 19 tons.
- Maneuverability:
- Engine: Detroit Diesel 6V53T, a 6-cylinder turbo-diesel, 275 hp at 2,800 rpm
- Max. speed: 60 km/h
- Suspension: torsion bars
- Autonomy: 350 km
- Sources:
Cardoen BMS-1 Alacrán
- Description:
- Half-track infantry vehicle developed and built in Chile in 1983 by Cardoen industries, it was the last half-track built in the world and was capable of surpassing its half-track predecessors in mobility. It was not a sales success so it was not mass produced. The only version built has a 70 mm LAU-97 rocket launcher. Although it can fire rockets with better penetration for balance reasons we will limit it to FZ100 rockets with only 105 mm penetration.
- Year:
- 1983
- Crew:
- 3 (Commander, Gunner, Driver)
- Armament:
- Primary: LAU-97 70mm rocket launcher, 40 rockets (FZ-100 6.2 kg cargo warhead capable of penetrating up to 105 mm of conventional steel armour plate, FZ-71 4.3 kg anti-personnel which forms more than 8,000 fragments on detonation and is lethal to between 18 and 21 m radius)
- Secondary: Browning 12.7mm or 7.62 mm machine gun
- Dimensions:
- Length: 6.37 m
- Width: 2.38 m
- Height: 2 m (without armament)
- Weight: 10.5 ton combat weight
- Maneuverability:
- Engine: Cummins V-555 turbo-charged diesel developing 225 hp at 3000 rpm
- Transmission: Allison MT-653 automatic. 5 forward and 1 reverse gears
- Max. speed: 70 km/h
- Power to weight ratio: 22 hp/ton
- Fuel capacity: 350 litres
- Max range: 900 km
- Fording: 1.6 m
- Slope: 70%
- Sources:
- Jane’s armoured personnel carriers
- Army Guide
- https://www.militarytoday.com/apc/alacran.htm
- Cardoen BMS-1 Alacrán - The last half-track manufactured in the world
Rank 4
M-51 Proyecto-T
- Description:
- M-51 of Israeli origin that were sold to Chile and that were modernized in Chile under the name “Proyecto-T”, the engine was changed for a new 8V-71T diesel engine giving 350 hp at 2,100 rpm from the Detroit Diesel Company that increased the maximum speed to 46 km/h, despite having a less powerful engine, it managed to improve the tank’s ability to climb slopes. The engine platform was modified and a new exhaust outlet for the engine was installed, an improved periscope was added for the driver, laser rangefinders were added for commanders, it was installed a special support for minesweepers that also acted as additional armor on the front of the tank.
- Year:
- 1990
- Crew:
- 5 (Commander, gunner, loader, driver, bow-gunner)
- Armament:
- Primary: 105 mm gun L.51 D.1508 with 47 rounds
- Secondary: Coaxial Browning M1919 7.62 mm machine gun with 4750 rounds, Browning M1919 7.62 mm machine gun or Browning M2HB 12.7 mm machine with 600 rounds gun on top. Four 76mm smoke grenade launcher.
- Dimensions:
- Length: 6.15 m
- Width: 2.42 m
- Height: 2.24 m
- Weight: 40 tons battle ready
- Maneuverability:
- Engine: Detroit 8V-71T 350 HP diesel with 606 liters tank
- Max. speed: 46 km/h
- Suspensions: Horizontal Volute Springs Suspensions (HVSS)
- Armour:
- 63 mm frontal hull, 38 mm sides and rear, 19 mm top and bottom. 89 mm mantlet, 73 mm front, sides and rear of the turret.
- Accessories:
- laser rangefinder for commander
- RKM mineroller
- Additional front armor plate
- Sources:
- M-51 Proyecto-T - The Chilean modification of the Israeli modification
- M-51 in Chilean Service - Tank Encyclopedia
- The Sherman in the Chilean Army Written by Tom Gannon
- M4 Sherman – Serie Terrestre #2 by Juan Carlos Cicalesi & Hugo Bianucci
- http://www.memoriachilena.gob.cl/archivos2/pdfs/MC0067618.pdf

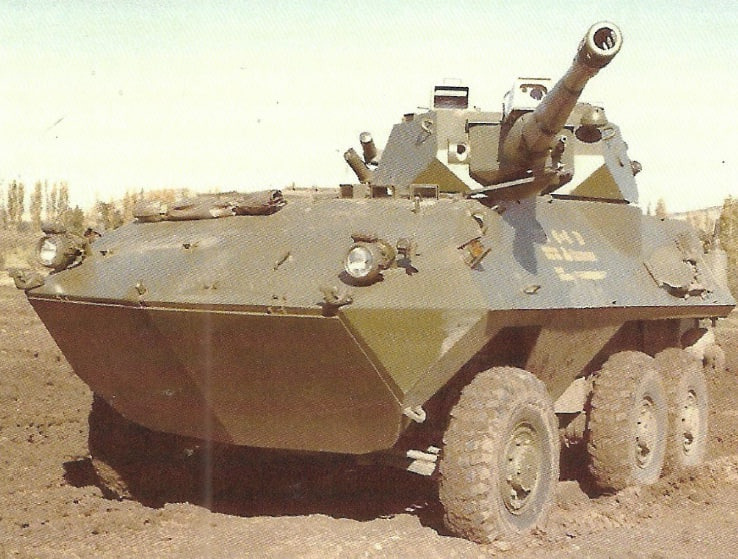

Cardoen Piraña 6x6 AML-90
- Description:
- Mowag Piranha built under license in Chile by Cardoen industries, in this version the turret and cannon of the AML-90 were installed, it could be the direct continuation of the Israeli AML-90.
- Year:
- 1980
- Crew:
- 3 (driver, gunner, commander)
- Armament:
- Primary: 90 mm DEFA F1 cannon
- Secondary: 7.62 mm A-A-F1N machine gun (coaxial)
- Dimensions:
- Length: 5.97 m
- Width: 2.5 m
- Height: 1.85 m (without weapons)
- Weight: Total combat weight: 10.500 kg, plus the weight of the turret and the cannon
- Maneuverability:
- Engine: Detroit diesel 6V-53T
- Horse Power: 300 HP/2800 RPM
- Max. speed on roads: 100 km/h
- Speed in water: 10.5 km/h
- Gear box: Allison MT-653
- Type: Automatic
- Gears: 5+1
- Fuel tank capacity: 400 lts.
- Range: 1,200 km.
- Max. gradient: 70%
- Lateral inclination: 30%
- Maximum obstacle height: 0,5 ms
- Turning circle: 11,3 ms
- Additional system: fire extinguishing system that is activated in the engine once it exceeds a certain temperature. Amphibious capability.
- Sources:
- http://www.memoriachilena.gob.cl/archivos2/pdfs/MC0067618.pdf
- Famae-Cardoen Piraña (1981)
- Janes Land-Based Air Defence 1992-93 by Tony Cullen, Christopher F. Foss
Cardoen VTP-2 Escarabajo
- Description:
- Infantry transport vehicle designed and built in Chile by Cardoen Industries in 1982, it had a 20 mm Oerlikon KAA automatic cannon intended for anti-aircraft defense, other variants were proposed but never built.
- Year:
- 1982
- Crew:
- 3 (commander, gunner, driver)
- Armament:
- Primary: GAD-AOA turret with an Oerlikon KAA 20-mm Autocannon
- Dimensions:
- Length: 5.27m
- Width: 2.3m
- Height: 2.18m
- Weight: 7.6 tons (combat weight)
- Maneuverability:
- Engine: Mercedes-Benz OM-352 6-cylinder water-cooled diesel developing 120 hp at 2800 rpm
- Transmission: Manual, 8 forward and 4 reverse gears
- Max. speed: 100 km/h
- Fuel capacity: 150 litres
- Max range: 600 km
- Gradient: 70%
- Side slope: 35%
- Vertical obstacle: 0.5 m
- Turning radius: 6.45 m
- Clutch: single dry plate
- Transfer case: 2-speed
- Steering: hydraulic
- Tyres: 12.5 x20 bulletproof
- Number of tyres: 4
- Brakes: main, disc on all 4 wheels; parking, mechanical on rear 2 wheels
- Armour:
- Steel 8 mm
- Sources:
- Jane’s armoured personnel carriers
- Jane’s armour and artillery 1985-86
- Janes_Armour_and_Artillery_Upgrades_2003-2004
- Chile, Industrias Cardoen, Uso Militar y Civil | PDF
- VTP-2 Escarabajo - The Chilean armoured personnel carrier

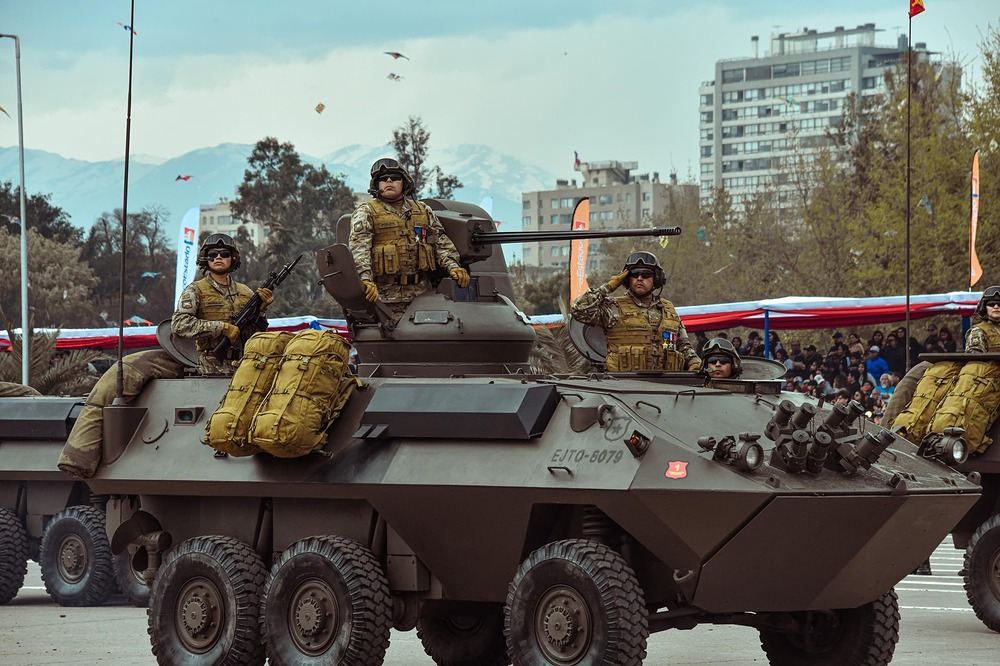

Cardoen Piraña 6x6 KAA
- Description:
- Mowag Piranha built under license in Chile by Cardoen industries, this version uses a 20 mm Oerlikon KAA automatic cannon for anti-aircraft defense. Great mobility and excellent capacity for shots per minute.
- Year:
- 1980
- Crew:
- 3 (commander, gunner and driver)
- Armament:
- Primary: GAD-AOA turret with an Oerlikon KAA 20-mm Autocannon
- Dimensions:
- Length: 5.97m
- Width: 2.5m
- Height: 1.85m (without weapons)
- Weight: Total combat weight: 10.500 kg
- Maneuverability :
- Engine: Detroit diesel 6V-53T
- Horse Power: 300 HP/2800 RPM
- Max. speed on roads: 100 km/h
- Speed in water: 10.5 km/h
- Power to weight ratio: 28,6 HP/TON
- Gear box: Allison MT-653
- Type: Automatic
- Gears: 5+1
- Max. gradient: 70%
- Lateral inclination: 30%
- Maximum obstacle height: 0,5 ms
- Turning circle: 11,3 ms
- Fuel tank capacity: 400 lts.
- Range: 1.200 kms.
- Additional system: fire extinguishing system that is activated in the engine once it exceeds a certain temperature, amphibious capability.
- Sources:
- Jane’s armour and artillery 1985-86
- International Defense Review
- https://www.memoriachilena.gob.cl/archivos2/pdfs/MC0067618.pdf

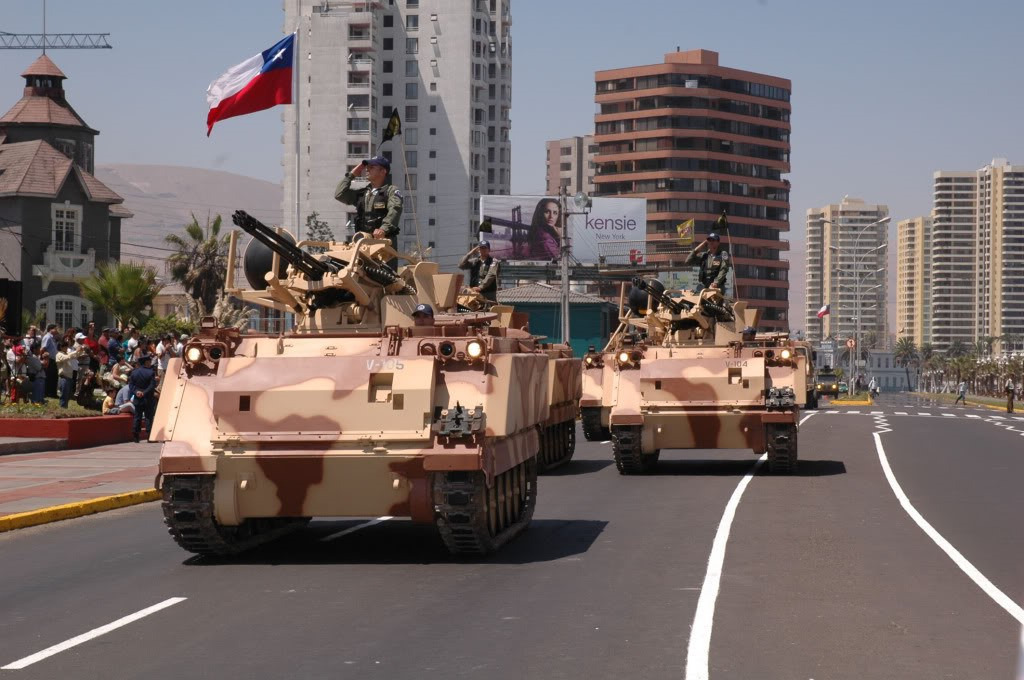

M113A2 ABL KUKA
- Description:
- M113A2 modified in Chile to carry a GBD-AOA (KUKA) turret with an Oerlikon KBA-B 25mm autocannon, this cannon allows it to confront aircraft flying at low altitude or other vehicles with little armor, smoke launchers were also installed for self-defense.
- Year:
- 2003
- Crew:
- 3 (Commander, Gunner, Driver)
- Armament:
- Primary: GBD-AOA (KUKA) turret with an Oerlikon KBA-B 25mm autocannon (570 rounds per minute)
- Secondary: 2 × Wegmann 76mm quadruple smoke launchers
- Dimensions:
- Length: 4.8m
- Width: 2.6m
- Height: 2.5m
- Weight: Combat weight 11.200 kg, plus 930 kg including turret, gun and ammunition
- Maneuverability:
- Engine: Detroit Diesel 6V-53T with 6 cylinders that develops a power of 275 CV at 2,800 rpm.
- Maximum speed: 60.7 km/h.
- Power/weight: 18.51 hp/t.
- Suspension: torsion bars.
- Transmission: Allison TX-100-1A automatic with three forward gears and one reverse.
- Fuel capacity: 360 liters.
- Autonomy: 480 kilometers.
- Slope: 60%
- Side slope: 30%
- Vertical obstacle: 0.6 meters.
- Sources:
Cardoen Piraña 6x6 KUKA
- Description:
- Mowag Piranha built under license in Chile by Cardoen Industries, this version has a GBD-AOA (KUKA) turret with a 25 mm Oerlikon KBA-B automatic cannon, in Chile this variant is used as an anti-aircraft vehicle thanks to its high rate of fire being able to shoot down airplanes or helicopters that fly at low altitude and also as an anti-armor vehicle since it has ammunition with up to 80 mm penetration. As self-protection measures, it has two launchers with four smoke grenades of 76 mm each.
- Year:
- 1980
- Crew:
- 4 (Commander, Gunner, Loader, Driver)
- Armament:
- Primary: GBD-AOA (KUKA) turret with an Oerlikon KBA-B 25mm autocannon (570 rounds per minute)
- Secondary: Two launchers with four 76mm smoke grenades each
- Dimensions:
- Length: 5.97m
- Width: 2.5m
- Height: 1.85m (without weapons)
- Weight: Total combat weight: 10.500 kg, plus 930 kg including turret, gun and ammunition
- Maneuverability :
- Engine: Detroit diesel 6V-53T
- Horse Power: 300 HP/2800 RPM
- Max. speed on roads: 100 km/h
- Speed in water: 10.5 km/h
- Power to weight ratio: 28,6 HP/TON
- Gear box: Allison MT-653
- Type: Automatic
- Gears: 5+1
- Max. gradient: 70%
- Lateral inclination: 30%
- Maximum obstacle height: 0,5 ms
- Turning circle: 11,3 ms
- Fuel tank capacity: 400 lts.
- Range: 1.200 kms.
- Additional system: fire extinguishing system that is activated in the engine once it exceeds a certain temperature, amphibious capability.
- Accessories:
- laser warning system
- Sources:
Ail Storm 106mm
- Description:
- 106mm recoilless guns are mounted on Israeli Ail Storm M240 light vehicles that do not have a roof so that the guns be fired from them and have an extra metal plate for the engine cover for the cannon to rest on, in addition these cannons were modified in Chile and very important features were added, which are: thermal or infrared sight, laser rangefinder, digital aiming with fire calculator and MVS-800 night vision system and the driver is he equipped him with the independent NVG-50 system. All these improvements made this weapon that can be seen somewhat archaic can be used under any condition, day or night, and improve its accuracy.
- Year:
- 2000
- Crew:
- 4-5 Commander, Driver, Gunner, Loader, (+1 support)
- Armament:
- Primary: M40 A1 106mm recoilless gun
- Dimensions:
- Length: 4,49m
- Width: 1,67m
- Height: 2,02m (with roof)
- Weight: Vehicle 1,760 kg / Anti tank gun 209.5 kg
- Maneuverability:
- Engine: 3.983 L AMC petrol I6 180 hp (130 kW) at 4,700 rpm or 2.5 L Volkswagen turbodiesel I4 88 kilowatts (118 hp) at 4200 rpm
- Transmission: Aisin AX15 5-speed manual 4-speed automatic
- Accessories:
- Thermal or infrared sight
- Laser rangefinder
- Digital aiming with fire calculator
- MVS-800 night vision system
- NVG-50 system (Driver)
- Sources:
FV-101 Scorpion
- Description:
- Light tank of British origin, in Chile it began to operate in 1993 with the Marine Corps, later in 2008 Spain sold a batch of these vehicles to Chile at a symbolic price but which differs from the original in that the new FV-101 Scorpion were repowered with the new 200 HP Perkins T6/3544 six-cylinder diesel engine, they also have a laser rangefinder, night vision scopes and electronic calculator.
- Year:
- 2008
- Crew:
- 3 (driver, gunner and commander)
- Armament:
- Primary: BAE Land Systems L23A1 76mm low-pressure gun
- Secondary: FN MAG L37A2 on top, 7.62 x 51mm L43A1 coaxial machine gun and two quadruple smoke launchers.
- Dimensions:
- Length: 4.7m
- Width: 2.2m
- Height: 2.1 m
- Weight: Combat weight 8 tons
- Maneuverability:
- Engine: Perkins T6/3544, six-cylinder diesel, 200 hp
- Max. speed: 80km/hr
- Power to weight ratio: 23.54 bhp/ton
- Transmission: semi-automatic with seven forward and seven reverse gears
- Autonomy: 900 kilometers
- Suspension: torsion bars
- Wading capacity: 1 meter
- Vertical obstacle: 0.5 meters
- Horizontal obstacle: 2 meters
- Slope: 45%
- Side slope: 31%
- Rolling: Tractor tracks with five rolling wheels on each side, rear idler wheel and front drive wheel
- Accessories:
- Laser rangefinder
- Night vision
- Electronic calculator
- Sources:
M41A1 Walker Bulldog
- Description:
- The first M41 Walker Bulldogs arrived in Chile in 1964 in the A1 variant and with a total of 10, through the PAM (Military Aid Pact), later in 1970 40 more units of this tank were received between versions A1 and A3. Same as present in the game.
- Year:
- 1970
- Crew:
- 4 (Commander, Driver, Loader, Gunner)
- Armament:
- Primary: 76 mm M32 gun
- Secondary: .50 Browning HB on top, coaxial .30 Browning M1919A4
- Dimensions:
- Length: 8.21 m (5.81m without gun)
- Width: 3.2 m
- Height: 3.07 m
- Weight: battle ready 23.5 tons
- Maneuverability:
- Engine: Continental AOS 895-3, 6 opposed cylinders of 500 hp, air cooled
- Max. speed: 72 km/h
- Suspensions: Torsion bars
- Sources:
M24 HVMS Super Chaffee
- Description:
- Chilean M24 armed with the Israeli IMI HVMS 60 mm cannon capable of firing APFSDS-T ammunition, mount for an extra 7.62 mm Browning M1919 machine gun, new Detroit Diesel 6V53T engine 6-cylinder turbodiesel that developed 275 HP at 2,800 rpm, new Allison HT 700 5-speed automatic transmission, new fire control system and new gyro stabilizer. The weight increased to 22 tons.
- Year:
- 1983
- Crew:
- 5 (Commander, gunner, loader, driver, bow-gunner)
- Armament:
- Primary: 60 mm IMI HVMS (Hyper Velocity Medium Support) Gun
- Secondary: .50 Browning HB in cupola, Browning M1919 7.62mm machine gun in cupola, .30 Browning M1919A4 coaxial
- Dimensions:
- Length: 7.06m
- Width: 3m
- Height: 2.77m
- Weight: battle ready 22 tons
- Maneuverability:
- Engine: Detroit 53T6V 275 hp diesel with 420 liters tank
- Max. speed: 56 km/h
- Suspension: torsion bars
- Autonomy: 350 km
- Armour:
- 25 mm frontal and sides hull and 19 mm rear. 38 mm mantlet, 25 mm front, sides and rear of the turret.
- Sources:
M-50 HVMS Super Sherman
- Description:
- M-50 purchased from Israel by Chile and armed with the Israeli 60 mm IMI HVMS cannon capable of firing APFSDS-T ammunition, in Chile they were modified to have a semi-automatic reloading system that allowed it to fire 12 shots per minute, new and more powerful 535 hp V-8 Detroit Diesel 8V-71T engine, new engine platform and new exhaust outlet, new Passive IR (Infra-Red) periscope, new rotating periscope for the driver, ballistic computer, commander’s periscope was replaced by a thermal sight.
- Year:
- 1983
- Crew:
- 5 (Commander, gunner, loader, driver, bow-gunner)
- Armament:
- Primary: 60 mm IMI HVMS (Hyper Velocity Medium Support) Gun, 12 shots per minute
- Secondary: Coaxial .30 Cal (7.62mm) machine gun, .30 Cal (7.62mm) machine gun on top
- Dimensions:
- Length: 6.15 m
- Width: 2.42 m
- Height: 2.24 m
- Weight: 35 Tons (32 tonnes) Total weight, battle ready
- Maneuverability:
- Engine: 535 hp V-8 Detroit Diesel 8V-71T
- Max. speed: Aprx. 40-45 km/h
- Suspensions: Horizontal Volute Springs Suspensions (HVSS)
- Armour:
- Hull nose and turret 70, sides 40, bottom 15, rooftop 15 mm
- Accessories:
- simple vertical breech block system that allowed for a rate of fire of 12 shots per minute
- passive IR (Infra-Red) periscope
- thermal Sight
- ballistic computer
- Sources:
- M-60 Sherman (M-50 with 60mm HVMS Gun) - Tank Encyclopedia
- The Sherman in the Chilean Army Written by Tom Gannon
- M4 Sherman – Serie Terrestre #2 by Juan Carlos Cicalesi & Hugo Bianucci.
- Jane’s Armoured Fighting Vehicle Retrofit Systems 1993 94 : Free Download, Borrow, and Streaming : Internet Archive
- http://www.memoriachilena.gob.cl/archivos2/pdfs/MC0067618.pdf
- M-50 HVMS Super Sherman - The Ultimate Sherman
G6
- Description:
- Self-propelled artillery of South African origin that was assembled in Chile by Cardoen industries, despite not having much information about it, there are images that demonstrate it as a newspaper of the time where you can see the G6 in Chile.
- Year:
- 1989
- Crew:
- 6
- Armament:
- Primary: 155 mm G6 L/45 cannon
- Dimensions:
- Length: 9.20 m
- Width: 3.40 m
- Height: 3.20 m
- Weight: 46 t
- Maneuverability:
- Engine: Magirus Deutz Model FL 413 F/FR air-cooled diesel
- Max. speed: 86 km/h
- Engine power: 525 hp
- Sources:
Rank 5
YPR-765
- Description:
- Dutch infantry fighting vehicle which is an improved M113, it is also known as the Armored Infantry Fighting Vehicle (AIFV) but in Netherlands it was called YPR-765. It has a 25 mm Oerlikon KBA-B02 automatic cannon, this cannon allows it to confront aircraft flying at low altitude or other vehicles with little armor, has two turret-mounted triple smoke grenade launchers, It also has additional front armor.
- Year:
- 2006
- Crew:
- 3 (driver, gunner and commander, plus seven soldiers.)
- Armament:
- Primary: Turret and Oerlikon KBA-B02 25mm autocannon (570 rounds per minute)
- Secondary: two turret-mounted triple smoke grenade launchers.
- Dimensions:
- Length: 5.2m
- Width: 2.8m
- Height: 2.7m
- Weight: Combat weight 13.6 tons
- Maneuverability:
- Engine: Detroit Diesel 6V-53T that develops a power of 264 hp at 2,800 rpm
- Top speed: 61.2km/hr
- Transmission: Allison TX-100-1A automatic with three forward gears and one reverse
- Power to Weight Ratio: 13.69
- Suspension: torsion bars
- Fuel capacity: 416 liters
- Autonomy: 490 kilometers
- Slope: 60%
- Side slope: 30%
- Vertical obstacle: 0.6 meters
- Ditch clearance: 1.6 meters
- Rolling: Tractor tracks with five rolling wheels on each side, rear idler wheel and front drive wheel
- Sources:

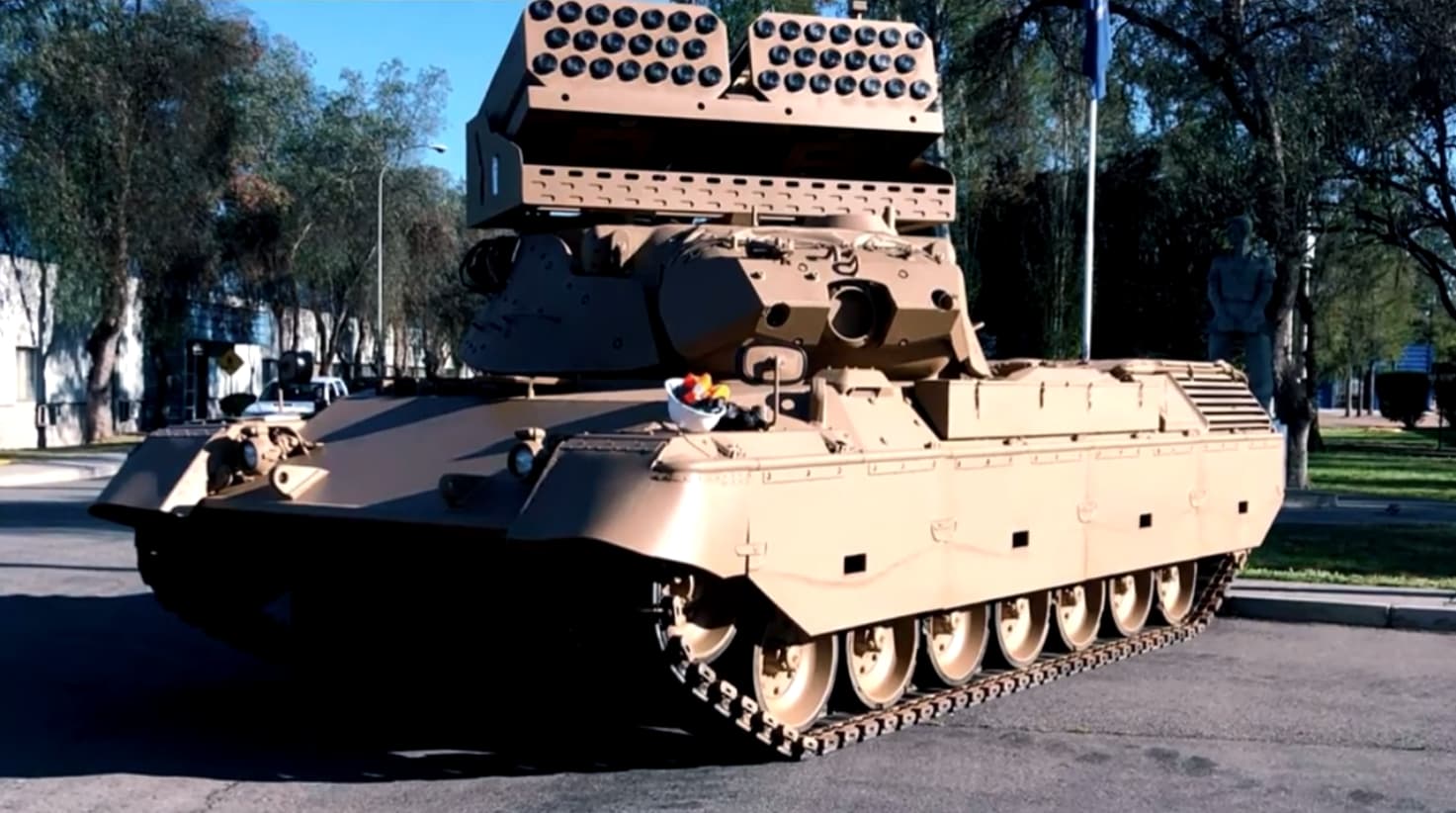

Marder 1A3 SLM
- Description:
- Prototype of a Marder 1A3 from Chile that had the 20 mm MK 20 Rh 202 cannon removed and replaced by a 70 mm Tralcan rocket launcher developed and built in Chile by Famae, it has 20 ready-to-fire rockets and 20 more to be recharged, the 70 mm Tralcan rocket has similar characteristics to a Hydra 70 rocket.
- Year:
- 2022
- Crew:
- 3 (Driver, gunner and commander)
- Armament:
- Primary: 70mm Tralcan rocket launcher, 20 Tralcan rockets ready to fire and 20 rockets to recharge inside the vehicle
- Secondary: 7.62 x 51 mm Rheinmetall MG-3 coaxial machine gun and a smoke launcher with six 76 mm grenades, 5,000 7.62 x 51 mm projectiles
- Dimensions:
- Length: 6.8 m
- Width: 3.3 m
- Height: 3 m (above the turret)
- Empty weight: 29.9 tons
- Combat weight: 33.5 tons
- Maneuverability:
- Engine: MTU MB 833 Ea-500 6-cylinder diesel that develops a maximum power of 600 hp at 2,200 rpm
- Transmission: Renk HSWL 194 with four forward and two reverse gears, integral steering and braking system
- Maximum speed: 65 km/hr
- Autonomy: 500 kilometers
- Fuel capacity: 652 liters
- Wading capacity: 1 meter without preparation
- Wading without preparation: 2.25 meters
- Vertical obstacle: 1 meter
- Trench clearance: 2.5 meters
- Slope: 60%
- Side slope: 30%
- Suspension: torsion bars
- Armour:
- Shielding type: steel
- Accessories:
- NBC System: Yes
- Sighting system: PERI-Z11 for anti-tank and anti-aircraft use of the MK 20 Rh 202
- Night vision system: WBG-X thermal camera from Carl Zeiss (today Hensoldt)
- Gun stabilization system: electrohydraulic
- Sources:
- https://www.infodefensa.com/texto-diario/mostrar/3551379/famae-exhibe-fidae-slm-tralcan-70-mm-sobre-carro-marder-1a3
- https://www.infodefensa.com/texto-diario/mostrar/3073278/marder-1a3-companero-leopard-2-chileno
- https://www.infodefensa.com/texto-diario/mostrar/3125545/famae-realizara-pruebas-finales-slm-tralcan-cuarto-trimestre-2020
- http://www.famae.cl/pdf/fichas/cohetes-y-misiles/Cohete_Tralcan_70mm.pdf
Cardoen Piraña 6x6 LAU-97
- Description:
- Mowag Piranha built under license in Chile by Cardoen industries, this version was fitted with a LAU-97 rocket launcher capable of firing up to 40 FZ49 rockets that penetrate up to 350 mm of armor, which gives this version great anti-tank capability.
- Year:
- 1980
- Crew:
- 3 (driver, gunner, commander)
- Armament:
- Primary: LAU-97 70mm rocket launcher, 40 rockets (FZ-100 6.2 kg cargo warhead capable of penetrating up to 105 mm of conventional steel armour plate, FZ-49 3 kg anti-armour capable of piercing more than 350 mm of conventional steel armour plate, FZ-71 4.3 kg anti-personnel which forms more than 8,000 fragments on detonation and is lethal to between 18 and 21 m radius)
- Dimensions:
- Length: 5.97 m
- Width: 2.5 m
- Height: 1.85 m (without weapons)
- Weight: Total combat weight: 10.500 kg, plus the weight of the rocket launcher
- Maneuverability:
- Engine: Detroit diesel 6V-53T
- Horse Power: 300 HP/2800 RPM
- Max. speed on roads: 100 km/h
- Speed in water: 10.5 km/h
- Gear box: Allison MT-653
- Type: Automatic
- Gears: 5+1
- Fuel tank capacity: 400 lts.
- Range: 1,200 km.
- Max. gradient: 70%
- Lateral inclination: 30%
- Maximum obstacle height: 0,5 ms
- Turning circle: 11,3 ms
- Additional system: fire extinguishing system that is activated in the engine once it exceeds a certain temperature. Amphibious capability.
- Sources:
- http://www.memoriachilena.gob.cl/archivos2/pdfs/MC0067618.pdf
- Famae-Cardoen Piraña (1981)
- Janes Land-Based Air Defence 1992-93 by Tony Cullen, Christopher F. Foss
- Janes AA 1991-92 p.293
M41 Repotenciado
- Description:
- M41 from Chile modernized by Israeli companies, the Nimda company changed the original engine for a Detroit Diesel 8V-71T and modified the engine area by eliminating the 2 original engine exhaust outlets, the Elbit and Elop companies added the fire control system Lan-Sadot added new optics for the commander and gunner, a ballistic computer and a laser rangefinder to the tank. Finally, the Chilean army added 4 smoke launchers to some of these tanks.
- Year:
- 1984
- Crew:
- 4 (Commander, Gunner, Loader, Driver)
- Armament:
- Primary: 76 mm M32 cannon
- Secondary: .50 Browning HB on top, coaxial .30 Browning M1919A4, 4x smoke launchers
- Dimensions:
- Length: 8.21 m (5.81m without gun)
- Width: 3.2 m
- Height: 3.07 m
- Weight: 23.1 t
- Maneuverability:
- Engine: Detroit Diesel 8V-71T, 470 hp at 2300 rpm
- Max. speed: 70 km/h
- Accesories:
- Laser rangefinder
- Ballistic computer
- Night vision
- Sources:
- http://www.memoriachilena.gob.cl/archivos2/pdfs/MC0067618.pdf
- M41A1 - War Thunder Wiki
- https://www.nimda.co.il/wp-content/uploads/2021/05/M41_Repowering_Program-NXPowerLite-Copy.pdf
- https://web.archive.org/web/20040710044234/http://www.elbitsystems.com:80/data/LanSadot.pdf
- https://www.cia.gov/readingroom/docs/CIA-RDP04T00990R000100390001-8.pdf (page 3)
M41 HVMS
- Description:
- Prototype of an M41 walker bulldog from Chile to which a 60 mm Israeli IMI HVMS cannon capable of firing APFSDS-T ammunition was installed.
- Year:
- 1983
- Crew:
- 4 (Commander, Driver, Loader, Gunner)
- Armament:
- Primary: 60 mm IMI HVMS (Hyper Velocity Medium Support) Gun, 12 shots per minute
- Secondary: cal.50 M2 (12.7 mm) on top, cal.30 (7.62 mm) Browning M1919A4 coaxial
- Dimensions:
- Length: 8.21m (5.81m without gun)
- Width: 3.13m
- Height: 3.07m
- Weight: battle ready 23.5 tons
- Maneuverability:
- Engine: Continental AOS 895-3, 6 opposed cylinders of 500 hp, air cooled
- Max. speed: 72 km/h
- Suspensions: Torsion bars
- Sources:
Famae Piraña 8x8 CSE 90LP
- Description:
- Mowag Piranha built under license in Chile by Famae, this 8x8 version uses a CSE 90LP turret with a Cockerill MK III cannon capable of firing APFSDS-T ammunition, has a laser rangefinder and ballistics computer.
- Year:
- 1983
- Crew:
- 3 (driver, gunner, commander)
- Armament:
- Primary: Cockerill 90 mm Mk III gun (APFSDS-T, HEAT-T, HESH-T, HE-T)
- Secondary: 7.62 mm MG coaxial, 7.62 mm MG anti-aircraft. 2 octuple smoke grenade launchers
- Dimensions:
- Length: 6.37 m
- Width: 2.5 m
- Height: 1.85 m (without weapons)
- Weight: Total combat weight: 13.000 kg, plus the weight of the turret 2100 kg with ammunition
- Maneuverability:
- Engine: Detroit diesel 6V-53T turbocharged
- Horse Power: 275 HP/2800 RPM
- Max. speed on roads: 100 km/h
- Speed in water: 10 km/h
- Gear box: Allison MT-653
- Type: Automatic
- Gears: 5+1
- Range: 660 km.
- Max. gradient: 60%
- Lateral inclination: 30%
- Maximum obstacle height: 0,5 m
- Turning circle: 15.5 m
- Additional system: fire extinguishing system that is activated in the engine once it exceeds a certain temperature.
- Accesories:
- Wide range of sight and fire control system options, Day/night (I2 or TI)
- Laser range finder
- Ballistic computer
- Sources:
- Janes_AA_1993-94_p.229_cr4
- Janes_Armour_and_Artillery_Upgrades_2006-2007
- Jane’s Military Vehicles and Logistics. 1994-95. Ed. T. Gander & C. F. Foss
- https://johncockerill.com/wp-content/uploads/2020/04/John-Cockerill_Defense_CSE90_EN.pdf
- http://www.memoriachilena.gob.cl/archivos2/pdfs/MC0067618.pdf
Cardoen Piraña 6x6 HVMS
- Description:
- Mowag Piranha built under license in Chile by Cardoen industries, this version uses the Israeli IMI HVMS 60 mm cannon capable of firing APFSDS-T ammunition. This Chilean variant also has a turret designed by IMI for the M113 which had 2 different loading systems, one semi-automatic and the other automatic. It is unknown which of the 2 systems this prototype used. In the game it would be very similar or almost the same as the Italian AUBL/74 HVG but this version would be Chilean/Israeli.
- Year:
- 1983
- Crew:
- 3 (driver, commander, gunner)
- Armament:
- Primary: 60 mm IMI HVMS (Hyper Velocity Medium Support) Gun
- Secondary: a pintle-mounted 7.62mm machine gun, two sextuple launchers of smoke grenades.
- Dimensions:
- Length: 5.97m
- Width: 2.5m
- Height: 1.85m (without weapons)
- Weight: Total combat weight: 10.500 kg, plus the weight of the turret and gun (2,200 kg + 700 kg).
- Maneuverability :
- Engine: Detroit diesel 6V-53T
- Horse Power: 300 HP/2800 RPM
- Max. speed on roads: 100 km/h
- Speed in water: 10.5 km/h
- Power to weight ratio: 28,6 HP/TON
- Gear box: Allison MT-653
- Type: Automatic
- Gears: 5+1
- Max. gradient: 70%
- Lateral inclination: 30%
- Maximum obstacle height: 0,5 ms
- Turning circle: 11,3 ms
- Fuel tank capacity: 400 lts.
- Range: 1.200 kms.
- Additional system: fire extinguishing system that is activated in the engine once it exceeds a certain temperature. Amphibious capability.
- Sources:
- https://drive.google.com/file/d/1CwmpoTWov1lzWXGkvDCqGenuWXuKRDzR/view
- M24 Chaffee with 60 HVMS - Tank Encyclopedia
- https://drive.google.com/file/d/1CwmpoTWov1lzWXGkvDCqGenuWXuKRDzR/view?usp=sharing
- Tank Encyclopedia - The Online Tank Museum
- Jane’s Armoured Fighting Vehicle Retrofit Systems 1993 94 : Free Download, Borrow, and Streaming : Internet Archive
- Janes_Armour_and_Artillery_Upgrades_2003-2004
- Janes_A&A_1993-94_p.229_cr2
- https://forum.warthunder.com/t/pirana-6x6-hvms-the-chilean-israeli-version-of-the-italian-aubl-74-hvg/11251
AMX-30B
- Description:
- AMX-30B purchased under threat of war with Chile’s neighboring countries, 50 were purchased but only 20 would arrive due to the military government that existed in Chile at that time, so the rest were requisitioned, in later years the rest of the pending AMX-30Bs were delivered by France, this new batch of AMX-30Bs had an easily visible infrared reflector in the front of the turret on the side of the 20 mm cannon.
- Year:
- 1980
- Crew:
- 4 (commander, gunner, loader and driver)
- Armament:
- Primary: 105 mm CN-105-F1 cannon, 47 rounds
- Reload: 6.7 s
- Vertical guidance: -8° / 20°
- Secondary: 20 mm 20F2 automatic cannon (coaxial) 1000 rounds, 7.62 mm A-A-F1N machine gun 2100 rounds, 4 x 76mm smoke grenade launchers
- Dimensions:
- Length: 9.5 m with gun, 6.6 m hull
- Width: 3.1 m
- Height: 2.8 m
- Weight: 36.0 t
- Maneuverability :
- Engine: Hispano-Suiza HS-110 diesel 720 hp
- Power-to-weight ratio: 20.0 hp/t
- Number of gears: 5 forward, 5 back
- Max. speed: 66 km/h
- Range: 650 km
- Gradient: 60%
- Side slope: 30%
- Vertical step: 0.93 m
- Trench: 2.9 m
- Fording: 1.3 m
- Fording (with preparation): 4 m
- Accessories:
- Night vision device
- Sources:
Grenadier MRS-80
- Description:
- Mowag Grenadier model acquired by Chile in 1978 under the threat of a war with Argentina, this variant for Chile was unique as it had 2 Oerlikon Typ 3Z 8Dla launchers capable of launching anti-tank grenades, its low profile and size made it perfect for ambushes.
- Year:
- 1978
- Crew:
- 2 (driver, commander)
- Armament:
- Primary: 2x Oerlikon Typ 3Z 8Dla launcher
- Dimensions:
- Length: 4.84 m
- Width: 2.3 m
- Height: 2.12 m
- Weight: 6.1 ton weight combat
- Maneuverability:
- Engine: 8-cylinder diesel; 202 hp at 3900 rpm
- Max. speed: 100 km/h
- Speed in water: 9 km/h
- Vertical obstacle: 0.4 m
- Gradient: 60%
- Operational Range: 550 km
- Additional system: Amphibious capability.
- Armour:
- 8 mm
- Accessories:
- Optional night vision equipment
- Sources:
- https://aquellasarmasdeguerra.wordpress.com/2013/01/23/algunas-armas-utilizadas-durante-el-conflicto-del-beagle-la-guerra-que-no-fue-1978/
- Jane’s pocket book modern military trucks
- “la armada de chile, una historia de dos siglos en conmemoración del bicentenario de la armada de chile (1817-2017). tomo II”

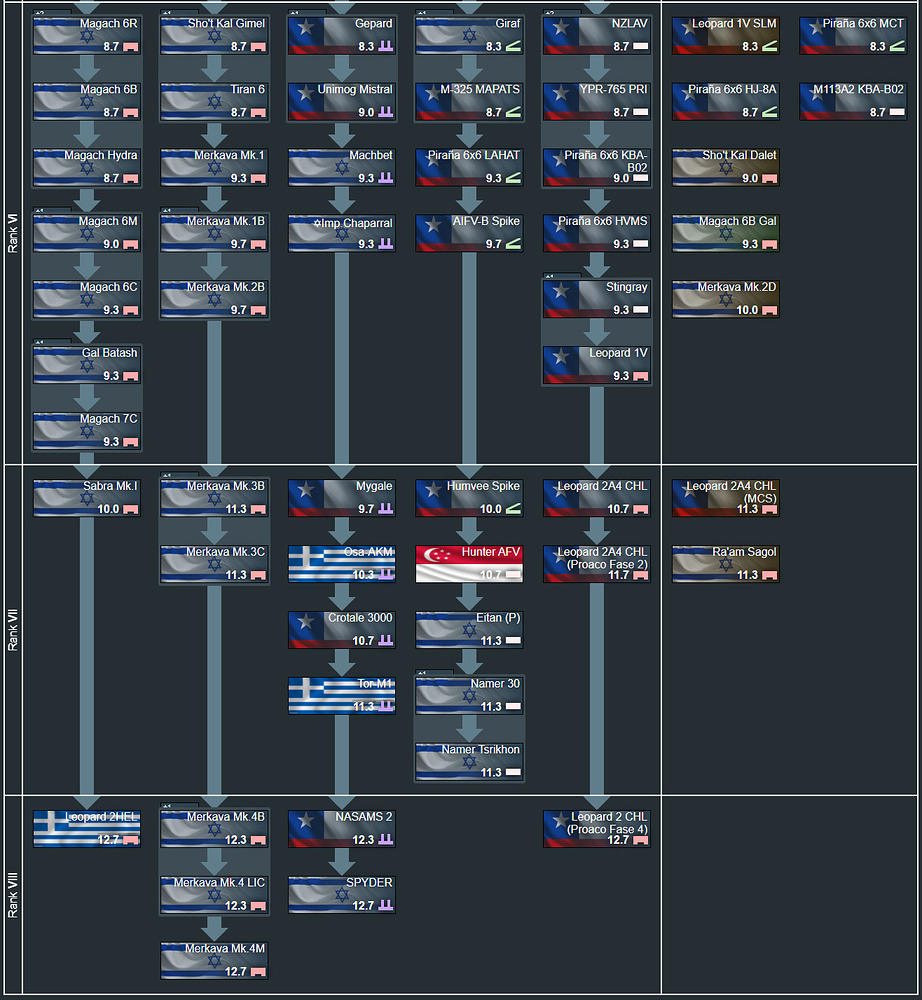

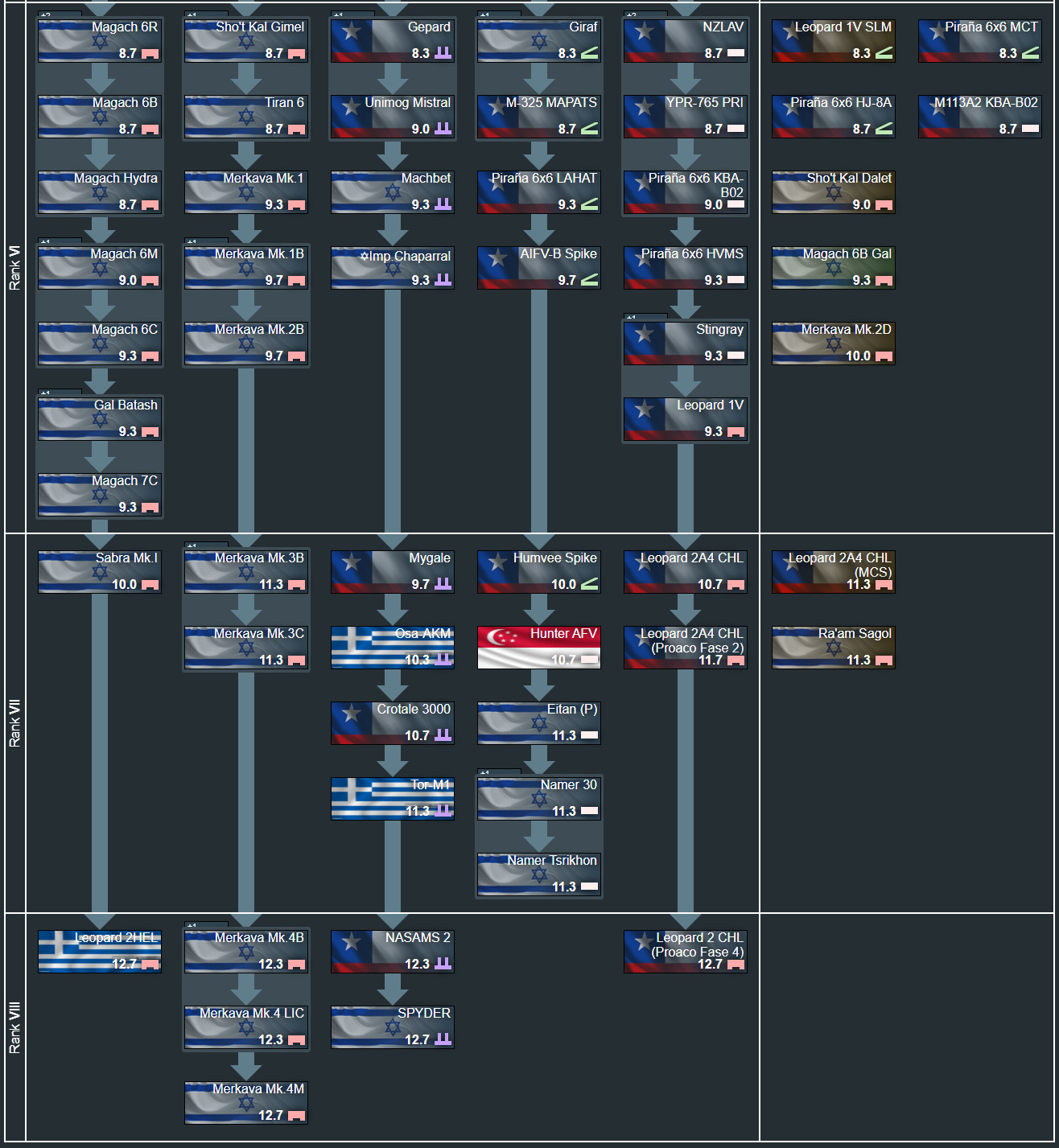

Rank 6

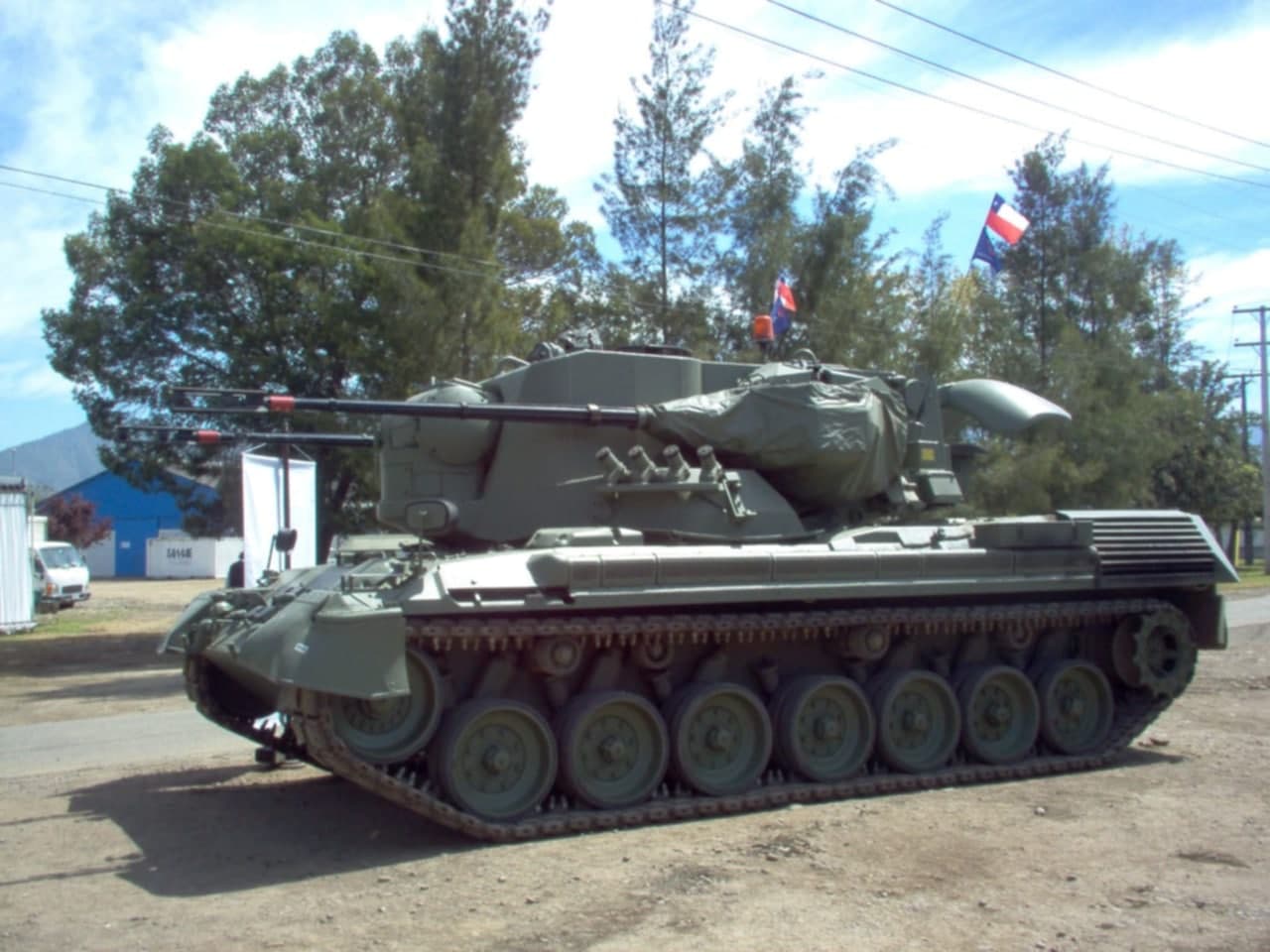

Gepard 1A1
- Description:
- In 2008, the first 5 Gepard 1A1s arrived in Chile out of a total of 30 that had initially been planned to be purchased from Germany. These Gepards had laser rangefinders and for this reason they had the name A1. They lasted a few years in Chile until they were returned to Germany due to to the state they were in and that it would be too expensive to modernize them.
- Year:
- 2008
- Crew:
- 3 (Commander, Gunner, Driver)
- Armament:
- Primary: 2x 35 mm Oerlikon KDA cannon
- Dimensions:
- Length: 7.26 m
- Width: 3.25 m
- Height: 3.07 m
- Weight: 45 t
- Maneuverability:
- Engine: Mercedes Benz V 10 polyfuel 830 hp
- Suspension: torsion bars
- Max. Speed: 66 km/h
- Accesories:
- Laser Rangefinder
- Sources:
- http://www.memoriachilena.gob.cl/archivos2/pdfs/MC0067618.pdf
- https://www.infodefensa.com/texto-diario/mostrar/3148747/ejercito-chileno-recibe-primeros-blindados-antiaereos-gepard
- https://www.lacapital.com.ar/edicion-impresa/llegaron-chile-los-primeros-5-30-blindados-adquiridos-alemania-n776098.html
- https://www.emol.com/noticias/nacional/2008/11/21/331936/chile-adquiere-cinco-blindados-antiaereos-alemanes-gepard-1.html
- https://web.archive.org/web/20110716035817/http://www.segurancaedefesa.com/Gepard_ECh_Devolve.html
Cardoen Piraña 6x6 Blowpipe
- Description:
- Mowag Piranha built under license in Chile by Cardoen industries, this version has a mix of anti-aircraft and anti-tank weapons, having 4 blowpipe missiles for anti-aircraft defense and 2 Mamba anti-tank missiles. This special variant was seen during military parades in Chile and due to its variety of weapons, it is quite versatile depending on the situation.
- Year:
- 1980
- Crew:
- 4 (driver, gunner, loader, commander)
- Armament:
- Primary: 4 blowpipe missiles for anti-aircraft defense
- Type: two-stage low altitude
- Weight of missile: 11 kg
- Propulsion: dual-base solid propellant booster and sustainer rocket motors
- Guidance: IR auto-gathering, then command to line-of-sight (MCLOS)
- Warhead: 2.2 kg HE dual fragmentation shaped charge with impact and proximity fuzing
- Max. speed: Mach 1.5 (1837 km/h, 510 m/s)
- Max. effective range: about 3500 m
- Min. effective range: about 700 m
- Max. effective altitude: 2500 m
- Min. effective altitude: 10 m
- Launcher: manportable single round with grip-stock
- Secondary: 2 Mamba anti-tank missiles
- Mass: 11.2 kg (Mamba)
- Length: 995 mm (Mamba)
- Diameter: 120 mm (Mamba)
- Effective firing range: 300 m to 2,000 m (Mamba)
- Detonationmechanism: 2.5 kg HEAT or HEAT-fragmentation (Mamba)
- Penetration: 350 mm
- Maximum speed: 140 m/s (504 km/h)
- Guidance system: MCLOS system
- Dimensions:
- Length: 5.97m
- Width: 2.5m
- Height: 1.85m (without weapons)
- Weight: Total combat weight 10.500 kg
- Maneuverability:
- Engine: Detroit diesel 6V-53T
- Max. speed on roads: 100 km/h
- Horse Power: 300 HP/2800 RPM
- Gear box: Allison MT-653
- Type: Automatic
- Gears: 5+1
- Speed in water: 10.5 km/h
- Power to weight ratio: 28,6 HP/TON
- Max. gradient: 70%
- Lateral inclination: 30%
- Maximum obstacle height: 0,5 ms
- Turning circle: 11,3 ms
- Fuel tank capacity: 400 lts.
- Range: 1.200 kms.
- Additional system: fire extinguishing system that is activated in the engine once it exceeds a certain temperature. Amphibious capability.
- Sources:
- Blowpipe 지대공미사일 발사기를 장착한 칠레육군 Mowag 6x6 Mamba 장갑차 : 네이버 블로그
- https://www.zona-militar.com/foros/threads/misil-cobra-y-mamba.3990/
- http://www.military-today.com/missiles/blowpipe.htm
- Cobra (missile) - Wikipedia
- Janes Land-Based Air Defence 1992-93 by Tony Cullen, Christopher F. Foss
- http://www.memoriachilena.gob.cl/archivos2/pdfs/MC0067618.pdf
- https://forum.warthunder.com/t/pirana-6x6-mamba-blowpipe-the-anti-tank-anti-aircraft/16542
Peugeot P4 Aspic
- Description:
- Short-range surface-to-air missile system that was acquired by Chile from France, consists of 4 Mistral anti-aircraft missiles mounted on a system called Aspic on a Peugeot P4 and 4 missiles ready to reload. Within the game it would have a performance similar to the Japanese Type 93.
- Year:
- 1990
- Crew:
- 2 (driver, gunner)
- Armament:
- Primary: 4 surface-to-air mistral missiles, another four missiles are stored in the rear of the vehicle
- Type: two-stage low altitude
- Wight missile: 18.4 kg
- Propulsion: solid fuel ejector rocket motor with solid fuel sustainer rocket motor
- Guidance: infra-red/ultra-violet passive homing
- Warhead: 2.95 kg HE-fragmentation with contact and active laser proximity fuzes
- Max. speed: Mach 2.6
- Max. effective range: 4-6000 m depending upon target type
- Min. effective range: 300 m
- Max. altitude: 4500 m
- Min. altitude: 15 m
- Dimensions:
- Length: 4.2 - 4.6m
- Width: 1.7m
- Height: 1.9m
- Weight: empty 1.75 t, Maximum load: 0.5 t
- Maneuverability:
- Engine: Peugeot XN8 petrol
- Engine power: 78 hp
- Max. road speed: 108 - 118 km/h
- Range: ~ 600 km
- Gradient: 70%
- Side slope: 30%
- Vertical step: ~ 0.5 m
- Trench : 0.5 m
- Fording: 0.6 m
- Sources:
- Sistemas de Defensa Aérea en las FAS de Chile, poder de disuasión -noticias, defensa.com - Noticias Defensa Contenido Editorial
- http://www.military-today.com/trucks/peugeot_p4.htm
- Janes Land-Based Air Defence 1992-93 by Tony Cullen, Christopher F. Foss
- Aspic anti-aircraft missile system | Missilery.info
- https://forum.warthunder.com/t/peugeot-p4-aspic-the-french-light-anti-aircraft/16544
Cardoen Piraña 6x6 HJ-8
- Description:
- Mowag Piranha built under license in Chile by Cardoen industries, this version carries 4 Chinese Red Arrow 8 anti-tank missiles, it is believed that only 1 prototype was built since information or photos of this variant can only be found in specialized books such as the from Jane.
- Year:
- 1980
- Crew:
- 5 (driver, a commander, a gunner, an ammunition man and a radio operator)
- Armament:
- Primary: Four Red Arrow 8 anti-tank missiles
- Type: wire-guided SACLOS
- Warhead: 3 kg
- Range: 100-3000 m
- Armour penetration: 800 mm
- Speed: 200-220 m/s
- Secondary: Two launchers with two 76mm smoke grenades each
- Dimensions:
- Length: 5.97m
- Width: 2.5m
- Height: 1.85m (without weapons)
- Weight: Total combat weight: 10.500 kg
- Maneuverability :
- Engine: Detroit diesel 6V-53T
- Horse Power: 300 HP/2800 RPM
- Max. speed on roads: 100 km/h
- Speed in water: 10.5 km/h
- Power to weight ratio: 28,6 HP/TON
- Gear box: Allison MT-653
- Type: Automatic
- Gears: 5+1
- Max. gradient: 70%
- Lateral inclination: 30%
- Maximum obstacle height: 0,5 ms
- Turning circle: 11,3 ms
- Fuel tank capacity: 400 lts.
- Range: 1.200 kms.
- Additional system: fire extinguishing system that is activated in the engine once it exceeds a certain temperature, Amphibious capability.
- Sources:
AIFV-B Spike
- Description:
- Armored Infantry Fighting Vehicle based on the M113 chassis, it was sold to Chile by Belgium, it has additional frontal armor and Chile equipped it with the Israeli Spike LR anti-tank missile.
- Year:
- 2006
- Crew:
- 3 (driver, gunner and commander), plus seven soldiers.
- Armament:
- Primary: Spike LR missile
- Range of fire: 200-4000 m
- Flight Speed: 130-180 m/s
- Armor-piermeable: 700 mm
- Diameter TPK: 170 mm
- Weight of the rocket in the TPC: 13.5 kg
- Alert time: 30 s
- Recharging time: 15 s
- Temperature range of combat application: between -32 and +49 C
- Storage Temperature: between -45 and +71 C
- Missile length: 1.2m
- Missile diameter: 0.11m
- Warhead type: Tandem HEAT
- Guidance: Infrared imaging
- Secondary: 12.7 x 99mm machine gun, 2 triple smoke grenade launchers
- Dimensions:
- Length: 5.2m
- Width: 2.8m
- Height: 2.7m
- Weight: Combat weight 13.6 tons
- Maneuverability
- Engine: Detroit Diesel 6V-53T that develops a power of 264 hp at 2,800 rpm
- Top speed: 61.2km/hr
- Power to Weight Ratio: 13.69
- Transmission: Allison TX-100-1A automatic with three forward gears and one reverse
- Fuel capacity: 416 liters
- Autonomy: 490 kilometers
- Slope: 60%
- Side slope: 30%
- Vertical obstacle: 0.6 meters
- Ditch clearance: 1.6 meters
- Rolling: Tractor tracks with five rolling wheels on each side, rear idler wheel and front drive wheel
- Suspension: torsion bars
- Sources:
Humvee Spike
- Description:
- The Chilean army has used humvees for all kinds of tasks for at least 10 years, it has been seen carrying a 40 mm Mk-19 grenade launcher or a 12.7 x 99 mm Browning M2 HB heavy machine gun, but also the powerful long-range Israeli missile Spike ER mounted on the top of the vehicle, this configuration has been seen in military parades for several years and recently in 2022 a training was carried out in the northern area of Chile where the aimers of this missile achieved hit targets 8 km away. The vehicle is capable of carrying up to 4 missiles, inside the vehicle there are 2 receptacles that can house 2 missiles, and in the upper part of the vehicle there is another receptacle for an extra missile and the fourth missile is the one that is loaded in the launcher
- Year:
- 2022
- Crew:
- 4 (driver, gunner, plus 2 companions)
- Armament:
- Primary: Spike ER missile
- Range of fire: 400-8000 m
- Length: 1450 mm
- Diameter: 150 mm
- Wingspan: 400 mm
- Weight of the rocket in the TPC: 33 kg
- Guidance: IR
- Flight speed: 180 m/s
- Armor penetration: 1000 mm
- Dimensions:
- Length: 4.7m
- Width: 2.12m
- Height: 1.75m
- Weight: Weight (curb) 2.34 t, Maximum load 1.25 t
- Maneuverability:
- Engine: Detroit Diesel 6.2-liter diesel
- Engine power: 130 hp
- Maximum road speed: 105 - 112 km/h
- Range: over 500 km
- Gradient: 60%
- Side slope: 40%
- Vertical step: 0.6 m
- Trench: 0.5 m
- Fording: 0.75 m
- Fording (with preparation): 1.5 m
- Sources:
- https://www.infodefensa.com/texto-diario/mostrar/3635146/ejercito-chile-efectua-disparo-misiles-antiblindaje-spike-er-arica
- https://www.zona-militar.com/2022/05/13/el-ejercito-de-chile-realiza-practica-de-tiro-con-misiles-spike/
- https://wiki.warthunder.com/Spike_ER
- https://www.militarytoday.com/trucks/hmmwv.htm
Cardoen Piraña 6x6 LAHAT
- Description:
- Mowag Piranha built under license in Chile by Cardoen industries and Famae, this version uses an octuple launcher of Israeli LAHAT anti-tank missiles. This prototype was seen in the desert north of Chile carrying out test shots. There is also a video where you can see a Leopard 1V from Chile firing this missile.
- Year:
- unknown
- Crew:
- 3+6 (driver, gunner, commander, 6 infantry)
- Armament:
- Primary: 8 LAHAT missiles
- Diameter: 105mm (adaptable to 120mm)
- Length: 1 m
- Weight: 12.5 kg
- Warhead Weight: 2.5 kg
- Speed: 285 m/s
- Range: 8 km
- Penetration: 800mm RHA after ERA
- Accuracy: CEP > 0.7 m
- Guidance: Semi-Active Laser Beam Riding
- Dimensions:
- Length: 5.97m
- Width: 2.5m
- Height: 1.85m (without weapons)
- Weight: Total combat weight 10.500 kg
- Maneuverability:
- Engine: Detroit diesel 6V-53T
- Horse Power: 300 HP/2800 RPM
- Max. speed on roads: 100 km/h
- Speed in water: 10.5 km/h
- Power to weight ratio: 28,6 HP/TON
- Gear box: Allison MT-653
- Type: Automatic
- Gears: 5+1
- Max. gradient: 70%
- Lateral inclination: 30%
- Maximum obstacle height: 0,5 ms
- Turning circle: 11,3 ms
- Fuel tank capacity: 400 lts.
- Range: 1.200 kms.
- Additional system: fire extinguishing system that is activated in the engine once it exceeds a certain temperature.
- Sources:
- https://www.iai.co.il/p/lahat
- https://www.iai.co.il/sites/default/files/2021-03/LAHAT Land - Brochure.pdf
- https://web.archive.org/web/20140222041936/http://www.defense-update.com/directory/lahat.htm
- https://www.army-technology.com/projects/laser-homing-attack-missile/
- http://www.army-guide.com/eng/product2079.html
- http://www.memoriachilena.gob.cl/archivos2/pdfs/MC0067618.pdf
NZLAV
- Description:
- In 2022, Chile acquired 22 NZLAVs from New Zealand, which belong to the LAV III model, armed with a Northrop Grumman M242 Bushmaster 25mm automatic cannon, giving them the ability to both confront other light vehicles and helicopters, added to their great mobility.
- Year:
- 2022
- Crew:
- 3 (commander, gunner and driver), and seven fully equipped soldiers
- Armament:
- Primary: Northrop Grumman M242 Bushmaster 25mm autocannon
- Ammo capacity: 420 rounds
- Effective range of fire: 2400 m
- Secondary: Two 7.62 x 51mm FN Herstal Mag machine guns, one mounted coaxial to the barrel and the other in the turret, Eight HE or smoke grenade launchers for self-defense.
- Dimensions:
- Length: 6.98m
- Width: 2.83m
- Height: 2.87m
- Weight: Between 19 to 21 tons depending on the configuration
- Maneuverability:
- Engine: Caterpillar 3126 HEUI diesel engine, developing 350 hp
- Suspension: hydropneumatic
- Max. road speed: 109 km/h
- Range: 450 km
- Gradient: 60%
- Side slope: 30%
- Vertical step: 0.6 m
- Trench: 2 m
- Fording: 1.2 m
- Additional systems: reinforced undercarriage to improve mine protection and automatic fire extinguishing systems and CBRN protection.
- Sources:
- http://www.military-today.com/apc/nzlav.htm
- https://www.infodefensa.com/texto-diario/mostrar/3897354/infanteria-marina-armada-chile-incorpora-primeros-carros-nzlav-8x8
- https://www.infodefensa.com/texto-diario/mostrar/3557570/chile-compra-nueva-zelanda-22-carros-nzlav-8x8-infanteria-marina
- https://www.infodefensa.com/texto-diario/mostrar/4077370/infanteria-marina-armada-chile-exhibe-carro-nzlav-8x8-visita-usmc
- https://www.defensa.com/chile/llegan-ultimos-blindados-nzlav-para-infanteria-marina-armada
Marder 1A3 Spike
- Description:
- Marder 1A3 from Chile to which the ability to fire Israeli Spike LR missiles was added
- Year:
- 2022
- Crew:
- 3 (Driver, gunner and tank commander, plus squad commander and five riflemen)
- Armament:
- Primary: Rheinmetall MK 20 Rh 202 20mm gun, Spike LR missile (5 missiles in total)
- Missile characteristics:
- Range of fire: 200-4000 m
- Flight Speed: 130-180 m/s
- Armor-piermeable: more than 700mm
- Diameter TPK: 170 mm
- Weight of the rocket in the TPC: 13.5 kg
- Alert time: 30 s
- Recharging time: 15 s
- Temperature range of combat application: between -32 and +49 C
- Storage Temperature: between -45 and +71 C
- Missile length: 1.2m
- Missile diameter: 0.11m
- Warhead type: Tandem HEAT
- Guidance: Infrared imaging
- Secondary: 7.62 x 51 mm Rheinmetall MG-3 coaxial machine gun and a smoke launcher with six 76 mm grenades.
- Ammunition: 1,250 projectiles of 20 mm and 5,000 of 7.62 x 51 mm.
- Dimensions:
- Length: 6.8m
- Width: 3.3m
- Height: 3m (above the turret)
- Weight: Combat weight 33.5 t
- Maneuverability:
- Engine: MTU MB 833 Ea-500 6-cylinder diesel developing a maximum power of 600 hp at 2,200 rpm
- Max. speed: 65km/hr
- Power/weight ratio: 18 hp/ton
- Transmission: Renk HSWL 194 with four forward and two reverse gears, integral steering and braking system
- Fuel capacity: 652 liters
- Autonomy: 500 kilometers
- Slope: 60%
- Side slope: 30%
- Wading capacity: 1 meter without preparation
- Wading without preparation: 2.25m
- Vertical obstacle: 1 meter
- Ditch clearance: 2.5 meters
- Rolling: tractor tracks with six double rubber wheels with a toothed wheel at the front and the guide wheel at the rear.
- Suspension: reinforced torsion bars
- Accessories:
- NBC system: Yes
- Sight system: PERI-Z11 for anti-tank and anti-aircraft use of the MK 20 Rh 202
- Night vision system: Carl Zeiss (today Hensoldt) WBG-X thermal camera
- Barrel stabilization system: electro-hydraulic
- Sources:
- https://www.infodefensa.com/texto-diario/mostrar/4051681/ejercito-chile-dispara-misil-antibilindaje-spike-ejercicio-puno-acero
- https://www.infodefensa.com/texto-diario/mostrar/3073278/marder-1a3-companero-leopard-2-chileno
- https://en.missilery.info/missile/spike-lr
- http://www.military-today.com/missiles/spike_lr.htm
- https://militaryanalizer.com/anti-tank-missile-spike/
- http://www.memoriachilena.gob.cl/archivos2/pdfs/MC0067618.pdf
Leopard 1V
- Description:
- In 1997, Chile acquired 202 Leopard 1V combat tanks belonging to the Netherlands. These had a series of improvements which were a hydraulic turret stabilization system from the manufacturer Honeywell, appliqué-type spaced armor on the tank tower from the German manufacturer Blohm + Voss, side skirts on the hull and the EMES-12A3 AFSL-2 fire control system produced by Honeywell and Zeiss (today Hensoldt), so after this improvement process they received the designation 1V of Verbeterd or Improved. Before being received by Chile, the Panzer-Ziel night image intensification system und Beobachtungsgerät PZB 200 from AEG-Telefunken was added, a search light was also added to the top of the tank. Currently these tanks use Israeli IMI M413 Hetz-7 (APFSDS-T), IMI M156 (HESH) ammunition and the LAHAT anti-tank missile was also tested. There is also evidence of the use of the multispectral blanket of the Israeli company Fibrotex.
- Year:
- 1997
- Crew:
- 4 (commander, gunner, ammunition man, driver).
- Armament:
- Primary: Royal Ordnance (now BAE Systems) 105mm L7A3 rifled gun.
- Ammunition: 53 projectiles of 105 mm (APFSDS-T IMI M413 Hetz-7, HEP-T IMI M156) and 5,500 of 7.62 x 51 mm, launch of israeli LAHAT missile was tested
- Secondary: 7.62 x 51mm FN Herstal MAG coaxial machine gun, 7.62 x 51mm FN Herstal MAG anti-aircraft machine gun and 2 x 76mm sextuple smoke launchers.
- Dimensions:
- Length: 9.54m
- Width: 3.37m
- Height: 2.62m
- Weight: Total weight, battle ready 42 tons
- Maneuverability:
- Engine: MTU MB 838 CaM 500 10-cylinder polyfuel 830 hp at 2,200 rpm
- Max. speed: 65 km/h
- Transmission: ZF 4HP250 from ZF Friedrichshafen AG with four forward and two reverse gears
- Weight/power: 19,8 hp/t
- Suspension: torsion bars
- Autonomy: 600 km
- Slope: 60%
- Side slope: 30%
- Wading capacity: 2.25m
- Vertical obstacle: 1.15m
- Horizontal obstacle: 3m
- Accesories:
- Fire control system: EMES-12A3 AFSL-2 by Hoynewell/Carl Zeiss (today Hensoldt)
- NBC system: Yes
- Night vision system: Panzer-Ziel und Beobachtungsgerät PZB 200 light intensifier from AEG-Telefunken
- Barrel stabilization system: Electro-hydraulic
- Laser rangefinder
- Sources:
Rank 7
Crotale P4R
- Description:
- Low-altitude surface-to-air missile system developed by France and South Africa. Chile acquired some of these launch systems during the 1970s in the face of a possible war with Argentina. It consists of a launch vehicle called P4R and has a single target tracking radar with a range of 17 km, the missiles fired are the Crotale R440 which are large and heavy but incredibly fast.
- Year:
- 1978
- Crew:
- 2 (gunner and driver)
- Armament:
- Primary: Four R440 Crotale missiles
- Lenght: 2.89 m
- Span: 0.54 m
- Diameter: 0.15 m
- Missile weight: 84 kg
- Explosive mass: 15 kg HE
- Lethal radius: 8 m
- Activation: infra-red proximity fuze (the fuze is commanded to activate 350 m before interception) or backup contact fuze
- Propulsion: SNPE Lens III rocket motor with 25.45 kg of solid propellant powder
- Max. speed: 930 m/s in 2.8 seconds
- Dimensions:
- Length: 6.22 m
- Width: 2.72 m
- Height: 3.41 (max)
- Weight: 14.95 ton combat weight
- Maneuverability:
- Engine: Specific creation of the Hotchkiss brand, Electric motor, Lift on hydraulic cylinders in position
- Max. road speed: 70 km/h
- Wheelbase: 3.6 m
- Max. range: 600 km
- Fording: 0.68 m
- Gradient: 40% at 2 km/h, 10% at 25 km/h
- Vertical obstacle: 0.3 m
- Armour:
- 3-5 mm
- Sources:
- https://www.fach.mil.cl/images/biblioteca/rojo.pdf (page 251-252)
- Janes Land-Based Air Defence 1992-93 by Tony Cullen, Christopher F. Foss
- https://artillerie.asso.fr/cesane/Texte/DocumentsMemorial/5.67.CROTALE_(FR).pdf
- https://forum.warthunder.com/t/crotale-series-3000-p4r-the-grandfather-of-the-finnish-ito-90m/16543
Famae SLM
- Description:
- Multiple rocket launcher system that was initially developed in collaboration with Israel Military Industries (IMI) and the Chilean company Desarrollos de Automatización (DESA), later built by Famae in Chile. It consists of a MAN 6x6 truck capable of firing 160 and 306 mm rockets, these being the Israeli Accular, Lar 160 and Extra rockets.
- Year:
- 2014
- Crew:
- 2 Minimum ( driver, gunner)
- Armament:
- Primary: 10 x 160mm rockets (Lar 160 or Accular) and 4 x 306mm rockets (EXTRA) or 24 x 160mm rockets (Lar 160 or Accular) or 8 x 306 mm rockets (EXTRA)
- 306 mm EXTRA: 120 kg unitary warhead
- 160 mm Accular: 35 kg warhead
- Dimensions:
- Length: 8.62 m
- Width: 2.5 m
- Height: ~ 2.9 m
- Total weight, battle ready: 13.7 Tons
- Performance:
- Engine: V8, MAN Diesel 3.800 cc, 230 CV
- Max. speed: 120 km/h
- Autonomy: 650 km
- Transmission: Electro-hydraulic
- Armor: Ultra-light composite alloy steel.
- Sources:
- https://archive.ph/20140329215553/http://www.defensenews.com/article/20140328/DEFREG02/303280024/FIDAE-FAMAE-Unveils-Son-Rayo
- Desarrollo y Defensa: Sistema Lanzacohetes Multiple FAMAE
- NOTICIAS FFAA CHILE: FAMAE Está en El Desarrollo Final del SLM Tralcan
- FIDAE: FAMAE offers new rocket artillery | Shephard
- Famae moderniza e incrementa la eficiencia del SMCF Nekulpan del LAR 160 del Ejército de Chile
- MAN KAT 1 6x6 General Utility Truck | MilitaryToday.com
- https://elbitsystems.com/media/elbit-systems-land-rocket-artillery-catalog.pdf
- https://forum.warthunder.com/t/famae-slm-the-306mm-rocket-launcher/11688
Leopard 2A4 CHL
- Description:
- In 2007 Chile bought 234 Leopard 2A4 tanks from Germany. The new tanks were given the CHL designation by their manufacturer KMW because they have a series of modifications, including a communications system from Elbit’s Tadiran company and the installation of a special kit on the turbochargers of the 12-cylinder MTU MB 873 Ka 501 4 engines , which allows them to operate without overheating problems at 4,300 meters above sea level. The Leopard 2A4CHL use in their 120 mm L/44 smoothbore guns HEAT DM 12 multipurpose ammunition, DM 33A2 and IM HE-T. They are currently in the process of modernization by Aselsan.
- 2007
- Crew:
- 4 (Commander, Gunner, Loader, Driver)
- Armament:
- Primary: Rheinmetall 120mm L/44 smoothbore gun
- HEAT DM 12, IM HE-T, KE DM 33 A2
- Secondary: 7.62 x 51mm Rheinmetall MG-3 coaxial machine gun, 7.62 x 51mm Rheinmetall MG-3 anti-aircraft machine gun and 2 x 76mm Wegmann octuple smoke launchers.
- Dimensions:
- Length: 7.72m
- Width: 3,7m
- Height: 2.6m
- Weight: combat weight 55 tons
- Maneuverability:
- Engine: MTU MB 873 Ka 501 4 12-cylinder polyfuel that develops a maximum power of 1,500 hp at 2,600 rpm
- Max. speed: 68 km/h
- Average ground speed: 51km/h
- Power to weight ratio: 27.27 hp/ton
- Transmission: Renk HSWL 354 with four forward and two reverse gears
- Fuel capacity: 1,200 liters
- Autonomy: 550 kilometers
- Slope: 60%
- Side slope: 30%
- Vertical obstacle: 1 meter
- Horizontal obstacle: 3 meters
- Wading capacity: 2.25 meters
- Suspension: torsion bars
- Accessories:
- NBC system: yes
- Fire control system: EMES-15 from Atlas Electronics
- Night vision system: WBG-X thermal camera from Carl Zeiss (today Hensoldt)
- Sources:
- El Leopard 2A4 CHL, la respuesta chilena al desierto y la altura
- Rheinmetall ofrece su munición al Ejército de Chile
- Chile organiza un simposio internacional sobre el futuro de armas y municiones
- http://www.memoriachilena.gob.cl/archivos2/pdfs/MC0067618.pdf
- https://www.gd-ots.com/munitions/large-caliber-ammunition/120mm-imhet/
- https://forum.warthunder.com/t/leopard-2a4chl-the-chilean-leopard/9285
Leopard 2A4 CHL (MCS)
- Description:
- In 2015, a FibroTex package was installed in a Leopard 2A4CHL of the Chilean army. The kit tested was called “multispectral cloak” and was intended to be deployed on mobile and static platforms. The kit does not protect against attack but provides electro-optic mimicry and protection against electromagnetic detection, which helps make the tank much more difficult to detect and therefore not as easily prey to anti-tank missiles or other infrared-guided devices (SWIR) or thermal systems. This new version of the Chilean Leopard also includes the most powerful Israeli M322 ammunition that penetrates up to 589 mm.
- Year:
- 2015
- Crew:
- 4 (Commander, Gunner, Loader, Driver)
- Armament:
- Primary: Rheinmetall 120mm L/44 smoothbore gun
- HEAT DM 12, IM HE-T, DM 33 A2, M322
- Secondary: 7.62 x 51mm Rheinmetall MG-3 coaxial machine gun, 7.62 x 51mm Rheinmetall MG-3 anti-aircraft machine gun and 2 x 76mm Wegmann octuple smoke launchers.
- Dimensions:
- Length: 7.72m
- Width: 3,7m
- Height: 2.6m
- Weight: combat weight 55 tons
- Maneuverability:
- Engine: MTU MB 873 Ka 501 4 12-cylinder polyfuel that develops a maximum power of 1,500 hp at 2,600 rpm
- Max. speed: 68 km/h
- Average ground speed: 51km/h
- Power to weight ratio: 27.27 hp/ton
- Transmission: Renk HSWL 354 with four forward and two reverse gears
- Fuel capacity: 1,200 liters
- Autonomy: 550 kilometers
- Slope: 60%
- Side slope: 30%
- Vertical obstacle: 1 meter
- Horizontal obstacle: 3 meters
- Wading capacity: 2.25 meters
- Suspension: torsion bars
- Accessories:
- NBC system: yes
- Fire control system: EMES-15 from Atlas Electronics
- Night vision system: WBG-X thermal camera from Carl Zeiss (today Hensoldt)
- Multispectral cloak (electro-optic mimicry and protection against electromagnetic detection)
- Sources:
- El Leopard 2A4 CHL, la respuesta chilena al desierto y la altura
- Rheinmetall ofrece su munición al Ejército de Chile
- Chile organiza un simposio internacional sobre el futuro de armas y municiones
- http://www.memoriachilena.gob.cl/archivos2/pdfs/MC0067618.pdf
- https://www.gd-ots.com/munitions/large-caliber-ammunition/120mm-imhet/
- Mobile – Fibrotex Inc.
- La Infantería de Marina de Chile compra redes de mimetismo de Fibrotex
- https://forum.warthunder.com/t/leopard-2a4chl-the-chilean-leopard/9285
Rank 8
Leopard 2 CHL (Proaco)
- Description:
- In 2023, Chile signed a contract with Turkey’s Aselsan for the modernization of Chilean Leopard 2A4 tanks under the Proaco Project. Work began in 2024 and the first images of the turret of a modernized Chilean Leopard 2A4 were seen during a TRT World report. The modernization includes a new Volkan-II fire control system, last generation periscopes for the commander and gunner, last generation thermal sights, new driver’s vision system, 360⁰ Situational Awareness System, Laser Warning Receiver, SARP Remote Controlled Weapon Station, Electric Gun & Turret Drive System, these would be the confirmed improvements, We will have to wait for more images to be revealed to confirm if some type of additional armor and even an APS will be integrated, but everything seems to indicate that these last 2 improvements would be added that will increase the survivability of the tank.
- Year:
- 2024
- Crew:
- 4 (Commander, Gunner, Loader, Driver)
- Armament:
- Primary: Rheinmetall 120mm L/44 smoothbore gun
- HEAT DM 12, IM HE-T, DM 33 A2, M322
- Secondary: 7.62 x 51mm Rheinmetall MG-3 coaxial machine gun, 7.62 x 51mm Rheinmetall MG-3 anti-aircraft machine gun and 2 x 76mm Wegmann octuple smoke launchers.
- Dimensions:
- Length: 7.72m
- Width: 3,7m
- Height: 2.6m
- Weight: combat weight 55 tons
- Maneuverability:
- Engine: MTU MB 873 Ka 501 4 12-cylinder polyfuel that develops a maximum power of 1,500 hp at 2,600 rpm
- Max. speed: 68 km/h
- Average ground speed: 51km/h
- Power to weight ratio: 27.27 hp/ton
- Transmission: Renk HSWL 354 with four forward and two reverse gears
- Fuel capacity: 1,200 liters
- Autonomy: 550 kilometers
- Slope: 60%
- Side slope: 30%
- Vertical obstacle: 1 meter
- Horizontal obstacle: 3 meters
- Wading capacity: 2.25 meters
- Suspension: torsion bars
- Accessories:
- VOLKAN-II Fire Control System
- KARTALGÖZÜ-200 Gunner’s Sight
- ATS-65 Commander’s Independent Thermal Viewer
- GÖREN-200 Driver’s Vision System
- YAMGÖZ-100 360⁰ Situaitonal Awarness System
- LIAS-400 Laser Warning Receiver
- SARP Remote Controlled Weapon Station
- EGTDS Electric Gun & Turret Drive System
- Sources:
- El Leopard 2A4 CHL, la respuesta chilena al desierto y la altura
- https://turdef.com/article/modernised-leopard-2a4-mbt-turret-for-chile-spotted
- https://www.ulusavunma.com/aselsan-sili-ordusu-icin-modernize-edilen-leopard-2a4-kulesi/
- https://x.com/SavunmaSanayiST/status/1789966012311376363
- https://www.infodefensa.com/texto-diario/mostrar/4639757/leopard-2a4-ejercito-chile-incorporaran-sistema-accionamiento-electrico-torreta
- https://www.zona-militar.com/2024/05/12/salen-a-la-luz-imagenes-de-la-modernizacion-del-leopard-2-de-aselsan-similar-a-la-propuesta-para-el-ejercito-de-chile/
- https://www.infodefensa.com/texto-diario/mostrar/4377167/famae-adjudica-aselsan-modernizacion-leopard-2a4-ejercito-chile
- https://www.youtube.com/watch?v=DpULRla0zks&ab_channel=TRTWorld
Chilean tank camouflages and decals:
Carden-Loyd Mk.VI
M3A1 Stuart
M4A1E9
M24 Repotenciado
AMX MK I F3
Piraña 6x6 TCM-20
M113A2 ABL KUKA
Piraña 6x6 KUKA
M-51 Proyecto-T
M41A1
M24 HVMS
YPR-765
M-50 HVMS
M41 Repotenciado
AMX-30B
Gepard 1A1
AIFV-B Spike
Leopard 1V
Marder 1A3 Spike
Leopard 2A4 CHL
Thank you very much to see!!
