RSO/1 mit 2 cm Gebirgsflak 38 L/65

[Would you like to see this in-game?]
  • Yes
  • No
0 voters

I would like to sugges the Raupenschlepper Ost/1 armed with a 2 cm Gebirgsflak 38 L/65.
This would add one of many of the armed versions (2 cm - 15 cm) and be a fun fully tracked mid war
this quite basic vehicle would add a fun array of usabel to derpy and usable guns to the lower Brs.
It would show the need of the German army to specifically develop a vehicle for the eastern Front as well as to arm every and each vehicle possible to get more guns mobile.

The RSO was a specifically designed for the Eastern front, all tracked transport vehicle from December 1942 which was produced 1000 a year and came in 3 basic versions.

The /1 was the first standart vehicle with a fully enclosed cabin and Ottomotor.
The /2 which was the classc Open and often armored variant with a 7,5 cm Pak 40 L/46
and the /3 was used in trails for a wide array of guns, including this 15 cm s.I.G. 33 L/12, furthermore the /3 as a vehicle itself was equipped with a half open simplefied cabin and a new Dieselmotor which was more accessable as well as reliable at the cold temperatures of the eastern front.

In the Trails the RSO/1 was still used for the 2 cm Gebirgsflak 38 L/65 while generally the future was the /2 and /3, however gameplay wise this will make little difference as the /1 is a bit smaller, lighter and has a stronger Otto Engine.
The results of the Trails of a couple of guns are sadly lost to history (or i didnt find them)
But the only 2 versions that went into full production were the 7,5 cm Pak 40 and 2 cm Gebirgsflak 38 armed ones, the /2 and /3.

This vehicle uses the standart ealy fully cabin /1 version.

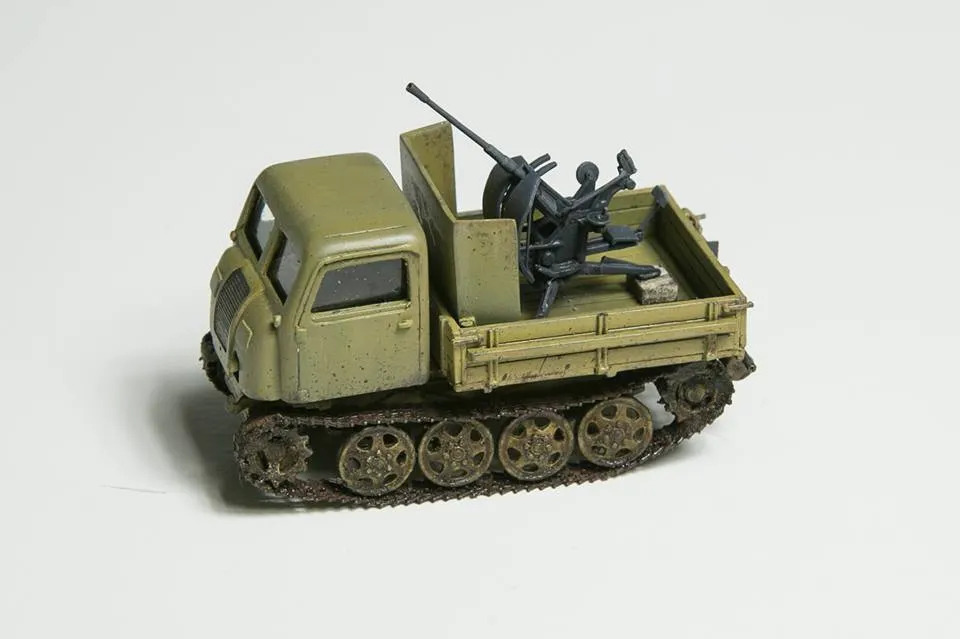

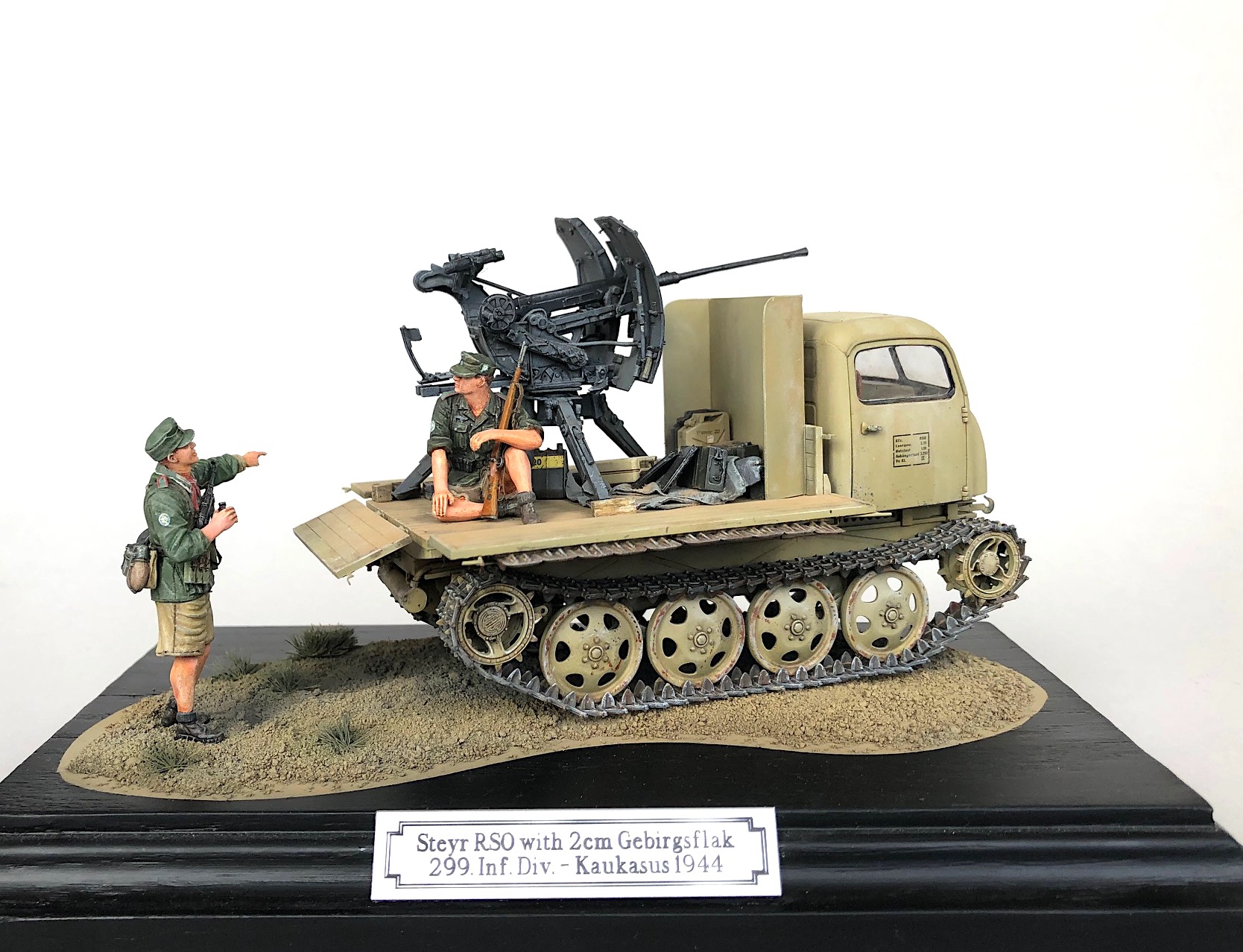

Pictures:(Click to show)



The Gun:
2 cm Gebirgsflak 38 L/65
20 Round mags 480 Rpm, unknown ammo amount
-22° to +90° elevation and 360° traverse

Pzgr. L`Spur. o.Zerl. (ApI-T) 0,148kg 830m/s 0g 40mm/10m


Pzgr. L'Spur zerl. (Aphe-T Sd) 0,148 kg 830m/s 2,4g Pent 37mm/10m


NOTE: It does NOT have a fuze, the filler is for self destruction, in game it would also explode upon impact when shattering, like the japanese 30mm Aphe.

Pzgr. 40 L`Spur. o.Zerl. (HVAP-T) 0,100kg 1050m/s 62g core 12mm 50mm/10m


Pzsprgr. L'Spur m.Zerl. (Aphe-T Sd) 0,121 kg 900m/s 3,6g Pent 33mm/10m

(This last picture is an adaption for the Mg151/20 and uses a different shorter tracer, which results in it beeing also a bit lighter)

Sprgr. L`Spur. o.Zerl. (Hefi-T) 0,120kg 900m/s 6,2g Pent (10,54g) 5mm/10m


Brsprgr. o.L'Spur. o.Zerl. (He-I) 0,120kg 900m/s 20g H.5 and Zink (7g H.5 13g Zink (calculated by Killakiwi))

Screenshot 2023-09-06 122928

The Vehicle:
RSO/1 Early
Dimensions: 4,425 m / 1,99 m / 2,53 m
Weight: 3,7 t + 395 kg (gun)
Engine: V8 Steyr Ottomotor 85 Ps / 3000 RPM
Speed: 30 km/h
Armor: Hull 3mm Steel

RSO Manual

Munition der 2 cm Waffen
Die Gebirgsflak 38

1 Like
