German WW2 SPAAG Flaks 15-50mm and their Ammunition

Here I created an Index of Self propelled and used german WW2 Flaks and their ammunition. Going from small (15mm) to the biggest automatic (50mm) Flak which where used in a self propelled form.

Also make shure to check out my other 2 Posts about Tank, Anti Tank and other Guns as well as Aircraft Armarments.


These rounds would also be available to choose from when Custom Belts get added some day.


Inside of the folder i will add special info about the ammo and usage (if there are dedicated ones).

(I leave most Üb (practice) out of the list.)

Visible destinction of ammo types:

Yellow: He and He-I
Blue: Incendary with nose fuze
Black: Ap

Black with a blue band at the shoulder: Ap-I

Black with a yellow band at the shoulder: Aphe

Black with a blue and a yellow band at the shoulder: Aphe-I

Black with a white tip: HVAP/APCR

Light red band above the driving band: Leuchtspur (tracer for day use)

Dark red band above the driving band: Glimmspur (tracer for night use)

Stencil letters on the body of the projectile:

M: Minengeschoss/M-Geschoss → Thin walled with high bursting charge

Ph: Incendary filler is phosphorus

E: Incendary filler is thermite/Elektron

German_armor_piercing_aircraft_shells_color_code
German_explosive_aircraft_shells_color_code


Round nameing nomenclature:

Here i break appart how the names of the rounds come together:

First a short list of what the words are, their short forms and english translation.

M, Minen → High capacity (in this context)

H, Hochgeschwindigkeits → High velocity (but it also sayes that it has an Tungsten core)

Pz, Panzer → Armor/Armorpiercing (in this context)

Br, Brant → Incendary

Spr, Spreng → High explocive

L`Spur, Leucht Spur → Tracer (day)

Gl`Spur, Glimm Spur → Tracer (night)

o.Zerl, ohne Zerleger → non Selfdestruct

m.Zerl, mit Zerleger → Selfdestruct

gr., Granate → Grenade/round (in this context)

gesch., Geschoss → Round

Patr., Patrone → Caseing

These shortforms are put together to descripe the round, but there are some rules:

The pattern is the following: x-xxxxxxxxx. x`Spur x.Zerl

The first letter shows the general Type it ca be an M- or an H- or noting, in wich case it is normal.

Then the next descripe the effect, which have an hirachy:

  1. Pz 2. Br 3. Spr

Another rule is that Br is only in the name when a dedicated incendary material (for example Electron Thermite or Phosphorus), but not if only the He filler has an certain incenday effect like HA 41 or HTA.

Also if it is M- it wont get the Spr addition.

Then comes the gr. or in the case if it is only an M- round without dedicated Pz or Br an Gesch. comes instead of gr.

If the round has an Incenday effect the type is written in ( ) behind gr. if it has an own fuzeing (In Ap rounds), but not if the incenday effect is set free with detonation of the main charge (for example in the 3 cm Pzbrsprgr. L`Spur o.Zerl.)

Next If it has a tracer it is written and which type L or Gl if none then it is simply left out.

After that comes o.Zerl. or m.Zerl., but that is unique to every round, because allmost all rounds (except Ap rounds) have both self destruct and non self destruct fuzes available.

If you are talking about the whole round with caseing an additional Patr. comes after gr./gesch.

Here are some examples, of course the caliber comes infront of the name:

H-Pzgr. L`Spur o.Zerl

M-Pzgr. L`Spur o.Zerl

Pzgr. L`Spur o.Zerl

M-Gesch. o.Zerl

M-Brgr. o.Zerl

Sprgr. Gl`Spur o.Zerl

Pzbrsprgr. L`Spur o.Zerl

Common He filler and their aquivalent:

PENT: x1,7 HTA: x1,2 HA 41: x1,6


15mm Mg 151/15
Pictures:(Click to show)


Caliber: 15mm

Ammo: 15x96mm

Fire Rate: 700-750-800 rpm (Syncronized)

Beltfed

Muzzle velocity: 850-1050 m/s

Weight: 37kg

Ammo Types:


AP:


Pzgr. L`Spur. o.Zerl. (Ap-T) 0,072kg 850m/s 0g filler 33mm/10m



Pzbrgr. o.Zerl. (Ap-I) 0,059kg 960m/s 0g filler 35mm/10m



H-Pzgr. o.Zerl. (HVAP) 0,052kg 1050m/s 39g core 9,5mm 51mm/10m

Note: Only against heavyer armored Ground targets, incendary effect duo to melting of Magnesium-Aluminuim carrier.
Another version of 54,5g with 1040m/s also exists.


Sprgr. L'Spur m.Zerl Üb. (Saphe-T / Phe-T) 0,057 kg 960m/s 1,1g Pent (1,87g) Some penetration

Screenshot 2024-04-05 135847


He:


Brsprgr. L`Spur o.Zerl (HeI-T) 0,057kg 960m/s 1,9g Pent + 1,3g Thermite (3,23g)

(Could only find the m.Zerl version, o.Zerl is the same just without the little hole between charge and tracer)


Brsprgr. Gl`Spur. o.Zerl. (HeI-T night) 0,057kg 960m/s 1,9g Pent + 1,3g Thermite (3,23g)



Sprgr. L`Spur. o.Zerl. (He-T) 0,057kg 960m/s 2,8g Pent (4,76g)
(Early on replaced by the Br.Sprgr.)


Sprgr. Gl`Spur. o.Zerl. (He-T night) 0,057kg 960m/s 2,8g Pent (4,76g
(Early on replaced by the Br.Sprgr.)


Incendary:


Brgr. L`Spur/Gl'Spur. o.Zerl. 0,057kg 960m/s 0,6g Pent (1,02)

(Could only find the m.Zerl version, o.Zerl is the same just without the little hole between charge and tracer)


20mm Mg 151/20
Pictures:(Click to show)


Caliber: 20mm

Ammo: 20x82mm

Fire Rate: 700-750-800 rpm (Syncronized)

Beltfed

Muzzle velocity: 720-790 m/s

Weight: 37kg

Ammo Types:

Generally 3 Categories:

1.Ap rounds, base designe Ap, other types are the same round only replacing the filler from Pressstoff (bakelite) → Phosphorus → Pent and chaning the bottom screw to a bottom fuze so the performance is the same of all types.

2.Nose Fuze rounds same rounds made to the same characteristics of the Ap round with different fillers:

3.High capacity thinn walled Minengeschosse. M-Geschoss are multiple on the same principal with Mv of 790m/s with Self destruct and without of He He-I and with I.


Ap: (Early rounds were 0,115kg, which were increased to 0,117kg)


Pzgr. o.Zerl. (Ap) 0,117kg 720m/s 27mm/10m



Pzbrgr. (E.) o.Zerl. (Ap-I) 0,117kg 720m/s 27mm/10m

6,2g Thermite (Electron) and Incendary mix, after penetrating 4mm Shipsteel, it is shot out the back.
Used against Trading ships and other light War Vehicles.


Pzbrgr. (Ph.) o.Zerl (Ap-I) 0,117kg 720m/s 27mm/10m

3,6g Phosphor filling in Aluminium shell. Goes into action after shattering.
Used in Airfights against especially armored planes and against light tanks, Trucks, Trains and others.
Screenshot 2024-04-20 114033


Pzbrgr. L'Spur (or Gl'Spur) (Ph.) (ApI-T) 0,117kg 27mm/10m

2,5g Phosphor filling in Aluminium shell. Goes into action after shattering.
Same use as Tracerless version, but with tracer.
Screenshot 2024-04-20 113346


Pzsprgr. o.Zerl. (Aphe) 0,117kg 720m/s 5,1g Pent (8,67g) 27mm/10m

Note: Against Ships, Iron protected targets as well as light ground targets.
Bottum Fuze active after 3mm Steel.


Pzsprgr. L`Spur. o.Zerl. (Aphe-T) 0,117kg 720m/s 3g Pent (5,1g) 27mm/10m



Pzsprgr. Gl´Spur. o.Zerl. (Aphe-T night) 0,117kg 720m/s 3g Pent (5,1g) 27mm/10m

Screenshot 2024-04-20 113338


He: (Early rounds were 0,115kg, which were increased to 0,117kg)


Sprgr. L`Spur. m.Zerl. (He-T) 0,117kg 720m/s 4,3g Pent (7,31g)

Note: Against Air and ground targets, replaced by Br.Sprgr. early on.
(Could only find the m.Zerl version, o.Zerl is the same just without the little hole between charge and tracer)


Brsprgr. L`Spur. m.Zerl. (HeI-T) 0,117kg 720m/s 2,3g Pent (3,91g)

Also with Gl’Spur.
Screenshot 2024-05-03 152331


Incendary: (Early rounds were 0,115kg, which were increased to 0,117kg)


Brgr. L`Spur. o.Zerl. (I-T) 0,117kg 720m/s Some AP capability, duo solid nose designe

Also with Gl’Spur and without Sd.


Brgr. o.Zerl. (I) 0,117kg 720m/s

Highly compressed Incendary mix of Bariumnitrat-Aluminium-Magnesium-Alloy.
Screenshot 2024-04-20 115024


Minengeschoss:


M-Gesch. o.Zerl. 0,095kg 790m/s 18g HA 41 (29,76g)



M-Gesch. X m.Zerl 0,104kg 750m/s 25g HA 41 (40g)



Vehicle:

Sd.Kfz.251/21


Sd.Kfz 251/17 HDL 151





Pz I Ausf. B mit Mg 151 Drilling


Unlike on the 251/21 this uses the land mount with shoulder pats and no seat, because the space is much smaller.


20mm Mg FF/M
Picture:(Click to show)


Caliber: 20mm

Ammo: 20x80mm

Fire Rate: 520 rpm (Unsyncronized)

Drumfed 60-90 rpg

Muzzle velocity: 585-695 m/s

Weight: 28kg

Ammo Types:


Ap: (Early rounds were 0,115kg, which were increased to 0,117kg)


Pzgr. o.Zerl. (Ap) 0,117kg 585m/s 20mm/10m



Pzbrgr. (E.) o.Zerl. (Ap-I) 0,117kg 585m/s 20mm/10m

6,2g Thermite (Elektron) and Incendary mix, after penetrating 4mm Shipsteel, it is shot out the back.
Used against Trading ships and other light War Vehicles.


Pzbrgr. (Ph.) o.Zerl (Ap-I) 0,117kg 585m/s 20mm/10m

3,6g Phosphor filling in Aluminium shell. Goes into action after shattering.
Used in Airfights against especially armored planes and against light tanks, Trucks, Trains and others.
Screenshot 2024-04-20 114033


Pzsprgr. o.Zerl. (Aphe) 0,117kg 585m/s 5,1g Pent (8,67g) 20mm/10m

Note: Against Ships, Iron protected targets as well as light ground targets.
Bottum Fuze active after 3mm Steel.


He: (Early rounds were 0,115kg, which were increased to 0,117kg)


Sprgr. L`Spur. m.Zerl. (He-T) 0,117kg 585m/s 4,3g Pent (7,31g)

Note: Against Air and ground targets, replaced by Br.Sprgr. early on.
(Could only find the m.Zerl version, o.Zerl is the same just without the little hole between charge and tracer)


Brsprgr. L`Spur. m.Zerl. (HeI-T) 0,117kg 585m/s 2,3g Pent (3,91g)

Also with Gl’Spur.
Screenshot 2024-05-03 152331


Incendary: (Early rounds were 0,115kg, which were increased to 0,117kg)


Brgr. L`Spur. o.Zerl. (I-T) 0,117kg 585m/s Some AP capability, duo solid nose designe

Also with Gl’Spur and without Sd.


Minengeschoss:


M-Gesch. o.Zerl. 0,092kg 718m/s 18g HA 41 (29,76g)



Mountings:

Pintel

Vehicles:

Kübelwagen MG FF/M

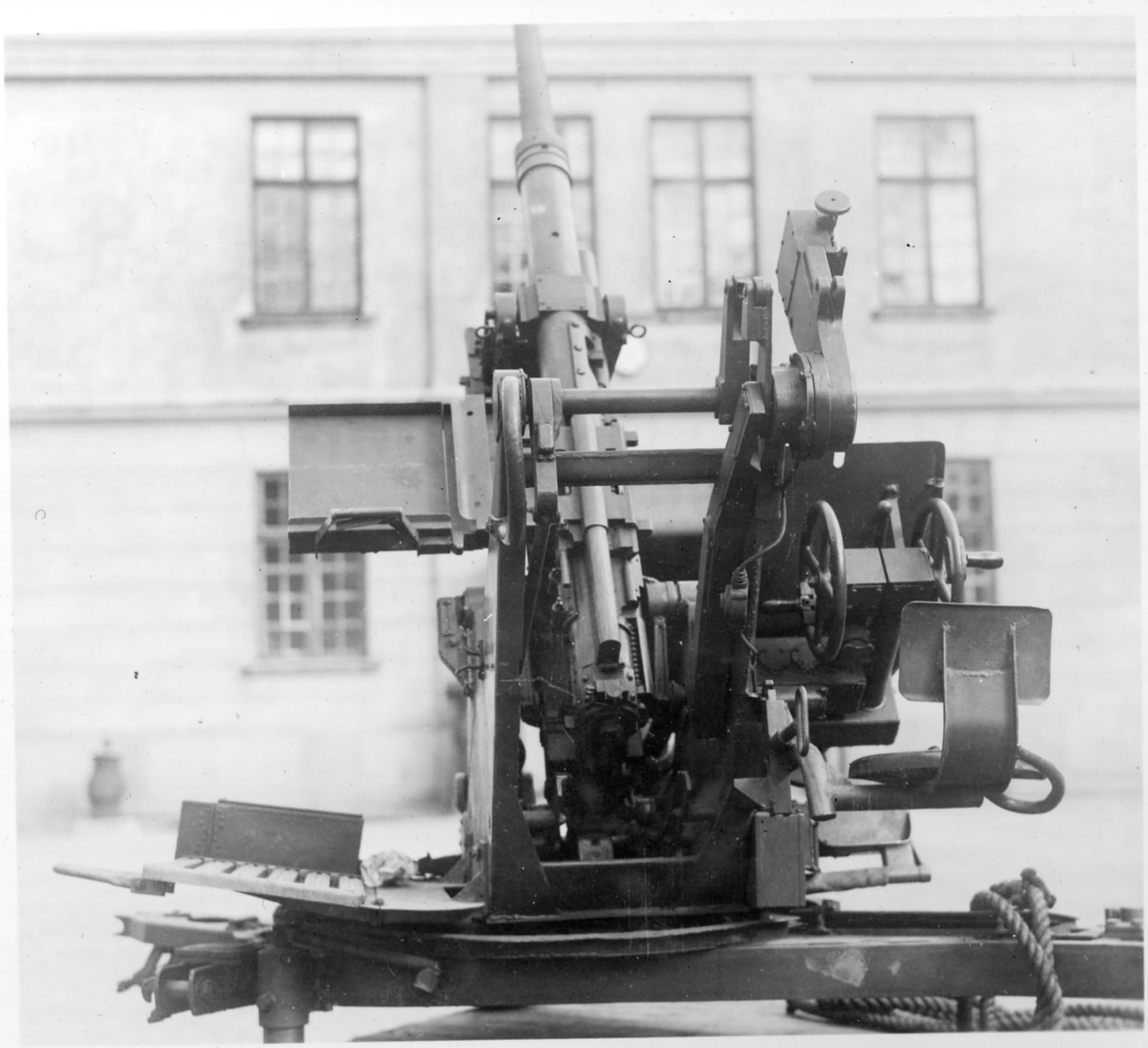

20mm Flak 30/38 L/65
Picture Flak 30:


Picture Flak 38:

Picture Gebirgsflak 38:

The Gebirgsflak 38 is a lightweight version, which can be disassebled into 3 pieces to carry it by 3 solders.

The Mounting is also lightweight and has increased vertical traverse for fighting in the mountains.


Picture Flakvierling 38:


Ill put these 2 together cince they have the same L/65 barrle and the same 20x138mm ammo.

Caliber: 20mm

Ammo: 20x138mm

Fire Rate: 280 rpm (30) 480 rpm (38)

Magazinfed 20 rounds

Muzzle velocity: 830-1050 m/s

Weight: 450kg (30) 405(38) (around 64 and 56 kg KwK (30 and 38) alone)
1509kg (Vierling with trailer)

Mounts:
Flak 30 Lafette: -12°/-10° to +90°
Flak 38 Lafette: -20° to +90°
Flakvierling 38: -10° to +100°

Ammo Types: ApI-T, Aphe-T, APCR-T, He-I, HeI-T and HeI-T (m) (And self destruct)


AP:

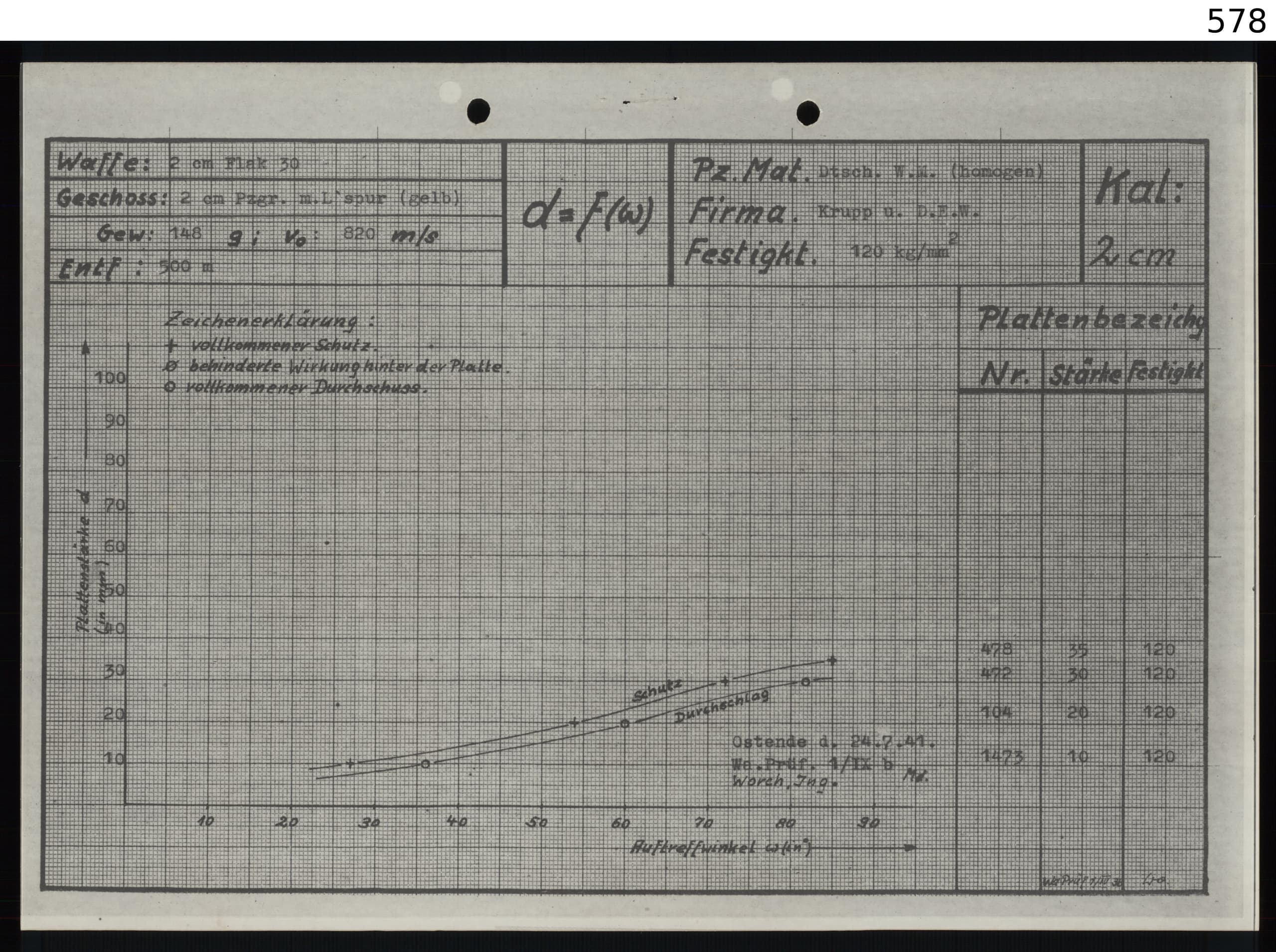

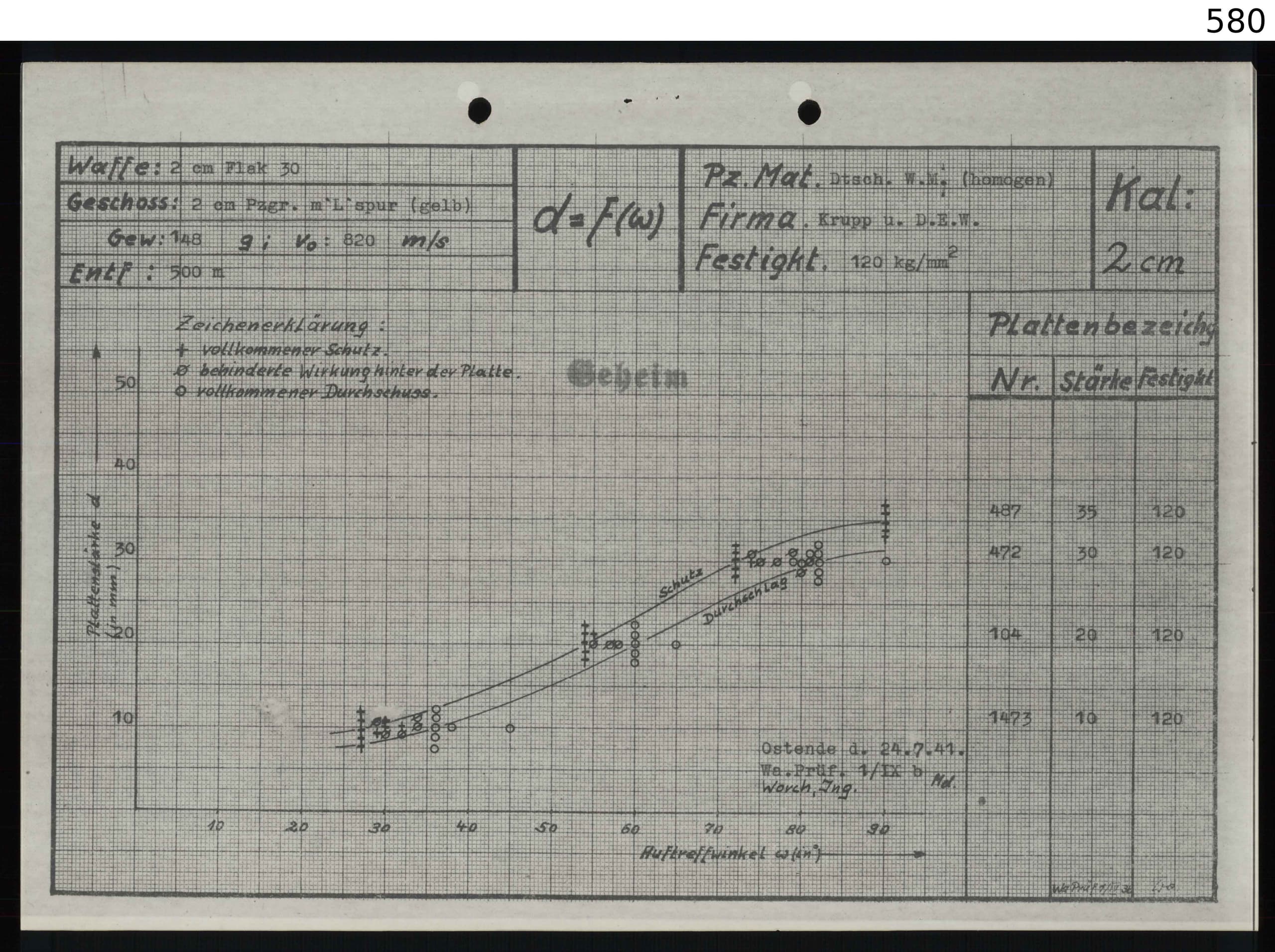

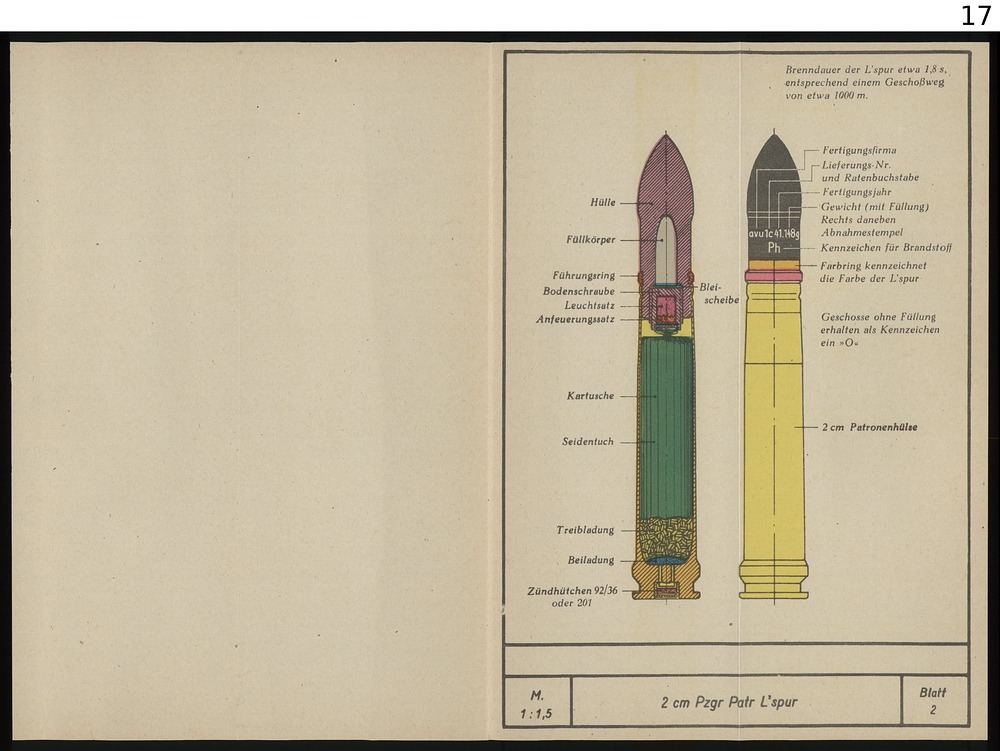

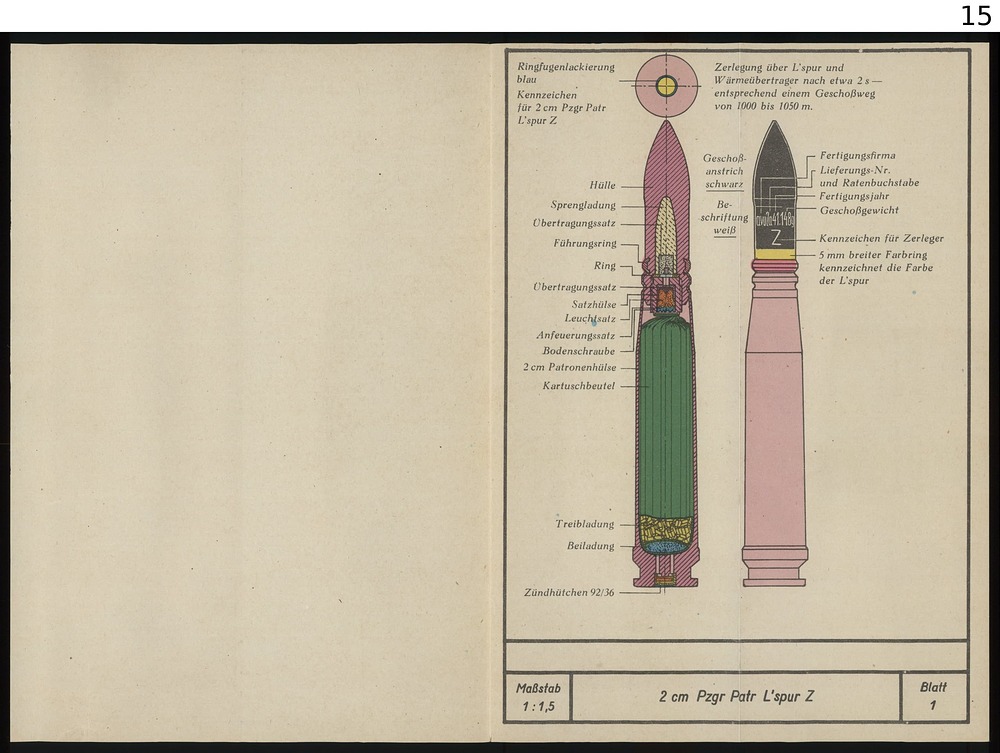

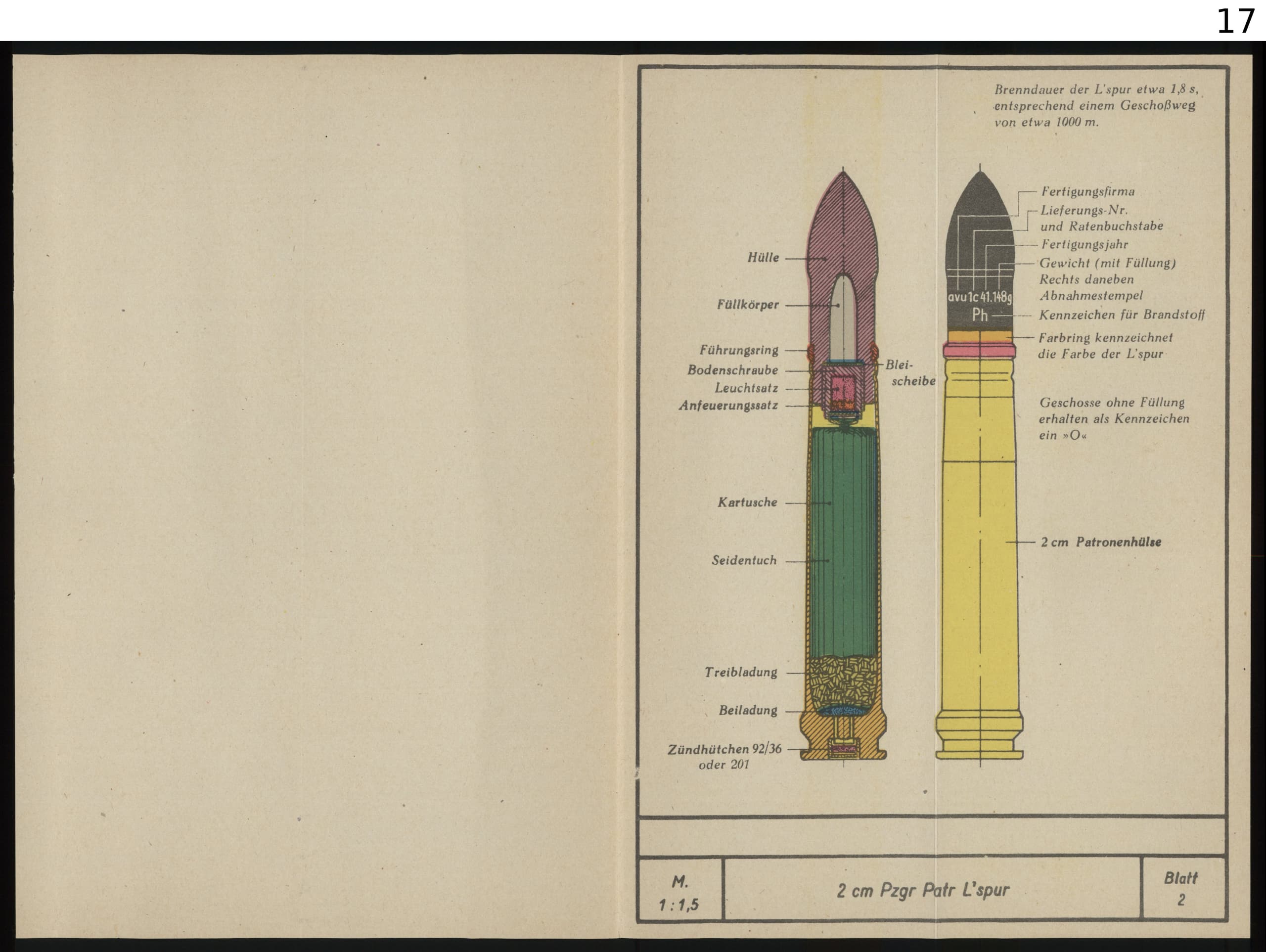

Pzgr. L`Spur. o.Zerl. (Ph.) (ApI-T) 0,148kg 830m/s 40mm/10m

Note: Used against ground targets. Soft and armored. 3g White Phosphor Core.
Were fully replaced by the empty ones and later .Zerl in the Desert and other hot places, as the Phostphor had a nasty tendicy to self ignite in hot weather.
The Ph. marked ones were standart with the filler, however they also existed with an O. which indicated they didnt have a filler and were only 143g (and 835-840m/s).


Pzgr. L'Spur zerl. (Aphe-T Sd) 0,148 kg 830m/s 2,4g Pent 37mm/10m

NOTE: Against ground and air tragets. Soft and armored.
It does NOT have a fuze, the filler is for self destruction, in game it would also explode upon impact when shattering, like the japanese 30mm Aphe.
Screenshot 2024-04-19 134646


Pzgr. 40 L`Spur. o.Zerl. (HVAP-T) 0,100kg 1050m/s 62g core 12mm 50mm/10m

Note: Only used against heavy armored targets, where the standart Ap ammo does not penetrate.
Screenshot 2024-04-19 134609
Screenshot 2024-04-19 134620


Pzsprgr. L'Spur o.Zerl. (Aphe-T) 0,148 kg 830m/s 3,6g Pent 35mm/10m

Note: Mainly (?) used by the Navy and only against ground targets.


Screenshot 2024-04-08 201437

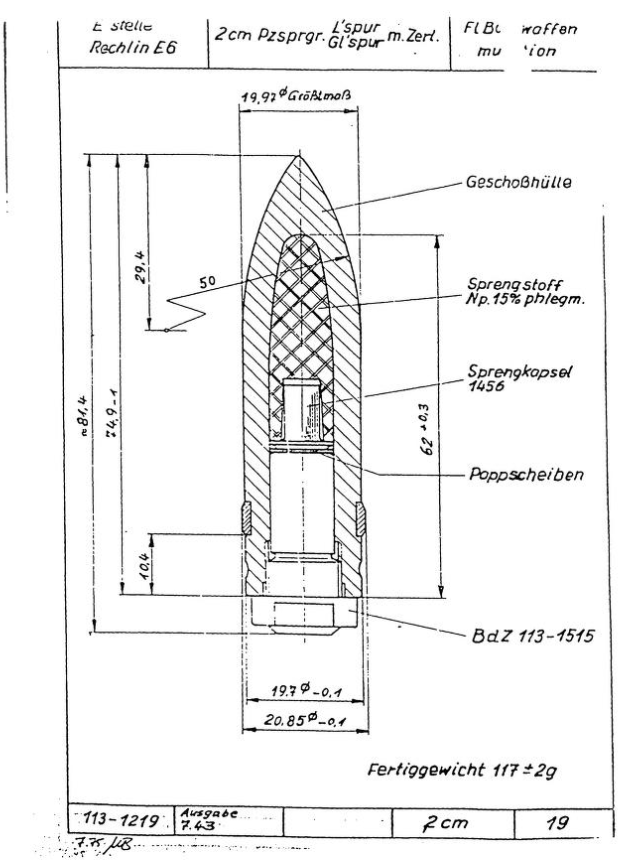

Pzsprgr. L'Spur m.Zerl. (Aphe-T Sd) 0,121 kg 900m/s 3,6g Pent 33mm/10m

Note: Mainly (?) used by the Navy and against ground and air targets.
Screenshot 2024-04-19 134808
Screenshot 2024-04-19 134804



(This last picture is an adaption for the Mg151/20 and uses a different shorter tracer, which results in it beeing also a bit lighter)


He:

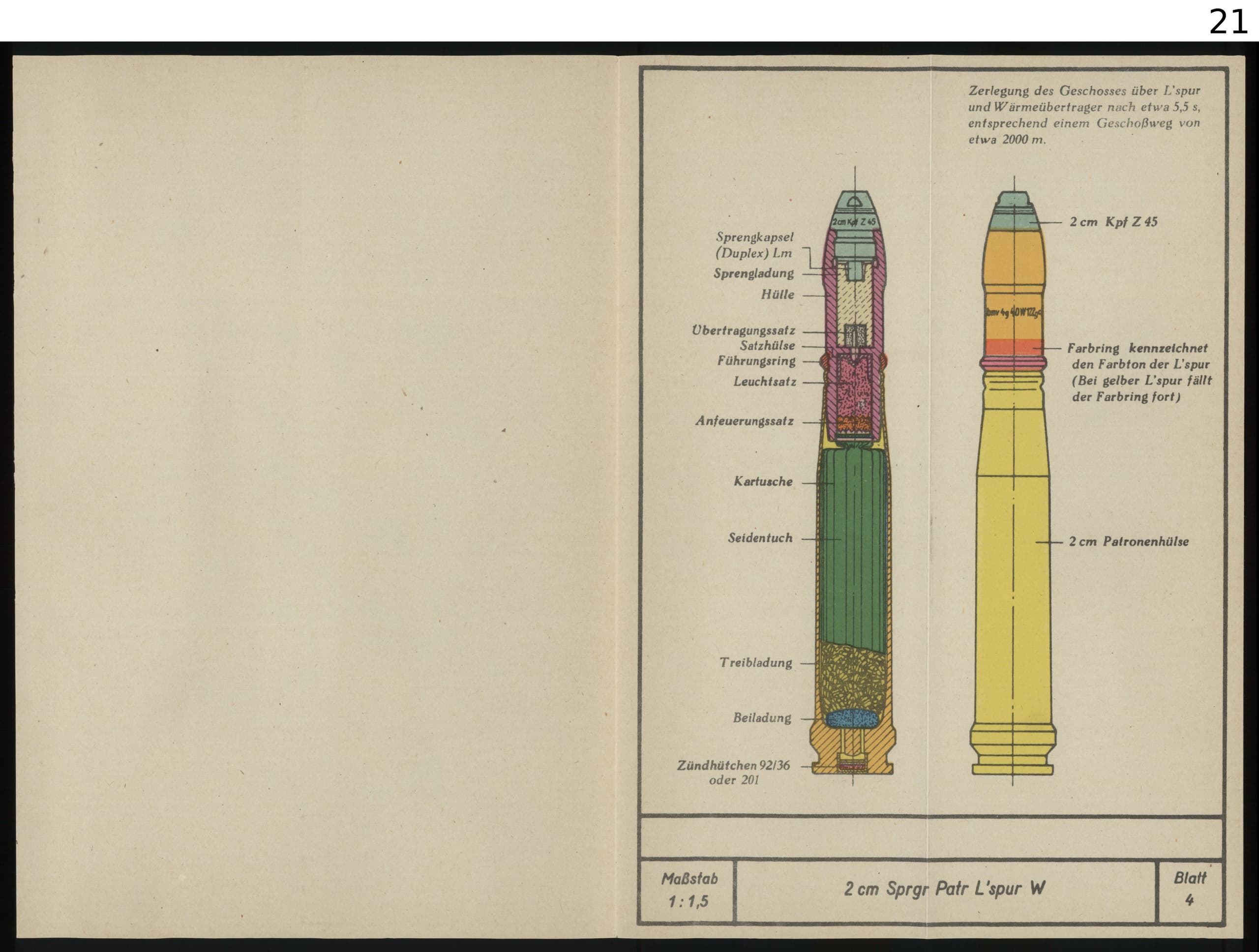

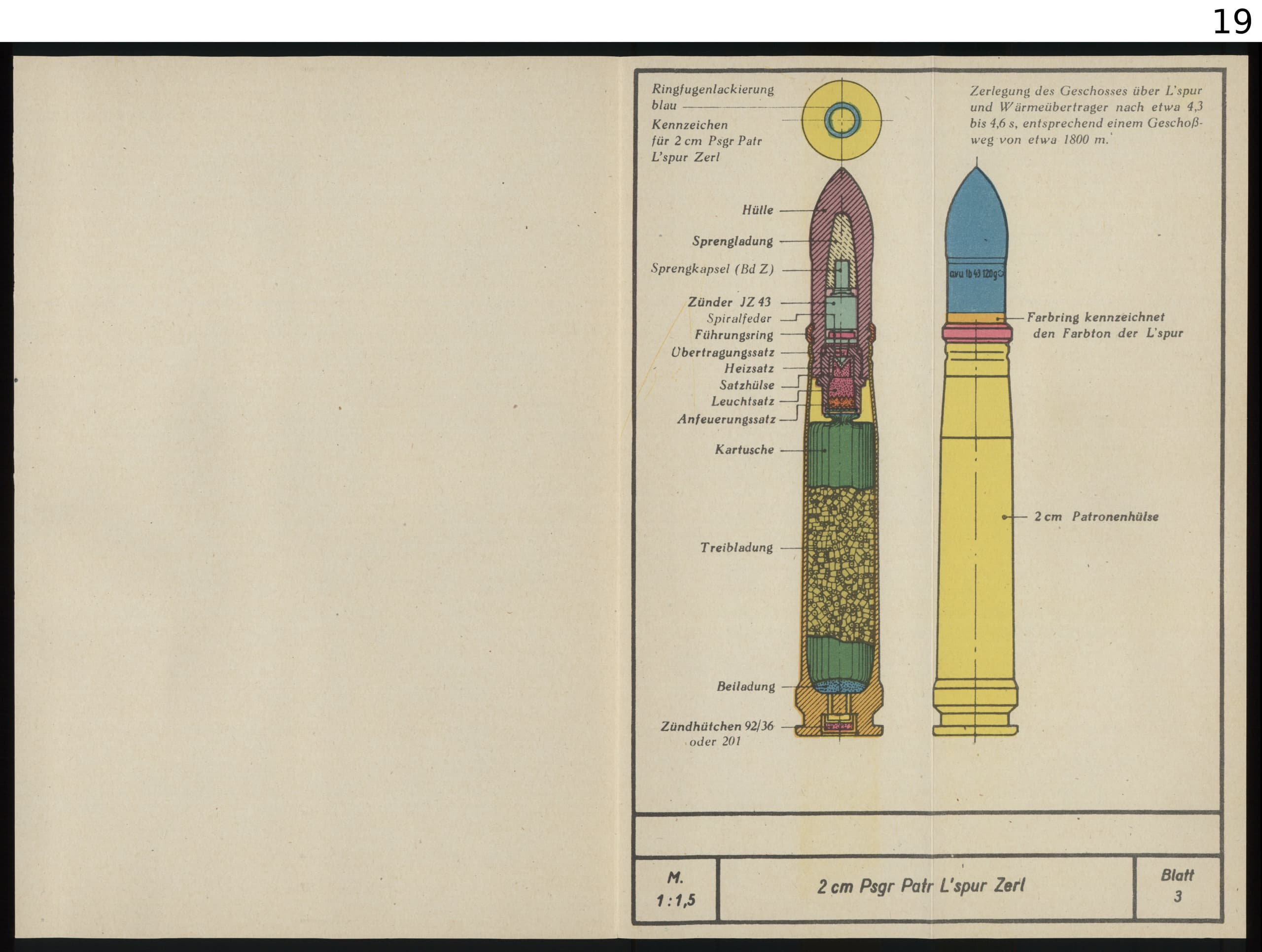

Sprgr. L`Spur. m.Zerl. (Hefi-T Sd.) 0,120kg 900m/s 6,2g Pent (10,54g) 5mm/10m

Zeichn_04
Screenshot 2024-05-10 000937


Sprgr. Erd. o.L'Spur. o.Zerl. (He) 0,120kg 900m/s 11g Pent (18,7g)

Note: Only against groundtargets.
(Couldnt find the correct drawing, the Br.Sprgr. o.L’Spur is basically the same, just different filler with Zink.
Screenshot 2023-09-06 122928
sprgr erd

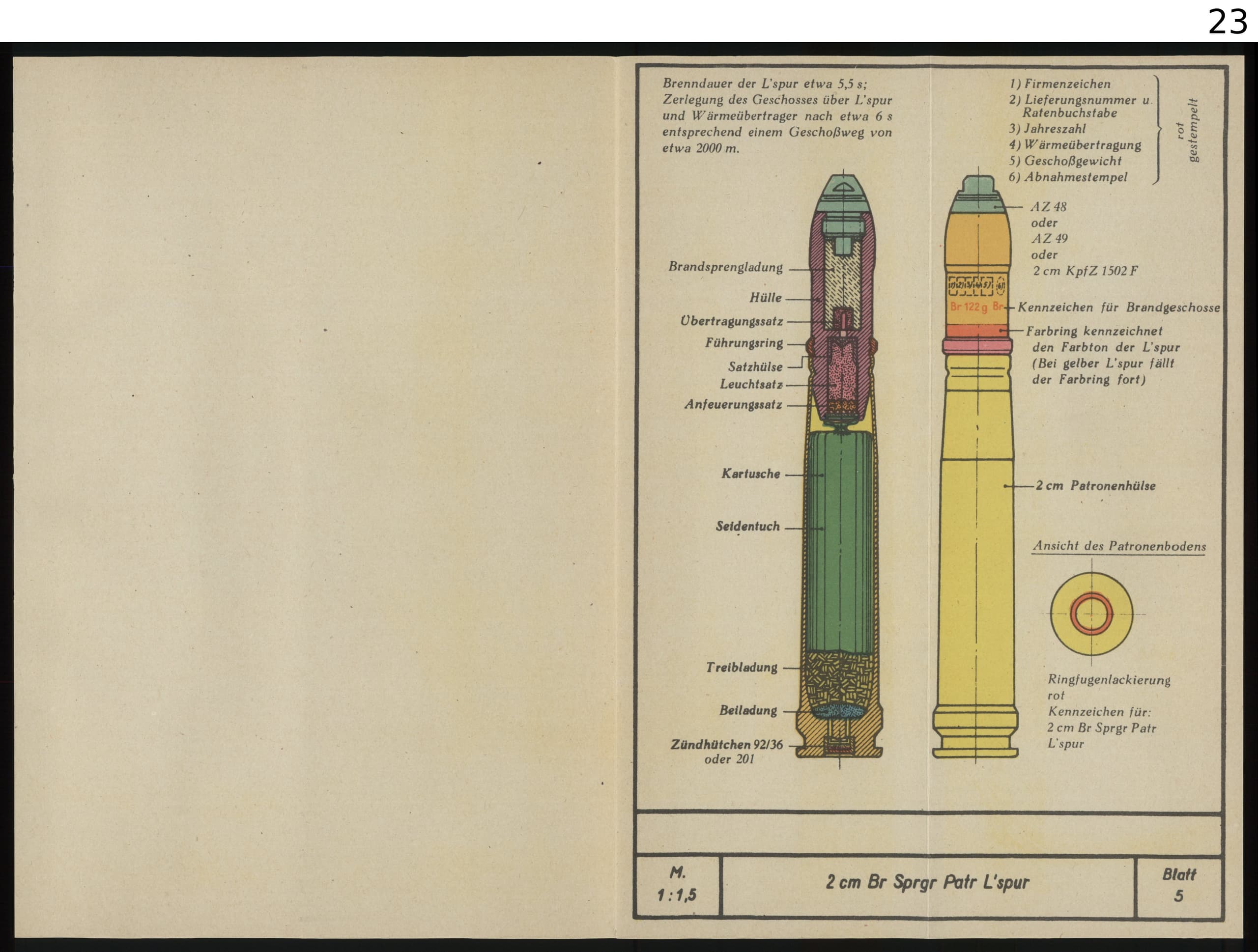

Brsprgr. L'Spur m.Zerl. (Hefi-T Sd.) 0,120kg 900m/s 6,6g H.5 and Aluminium

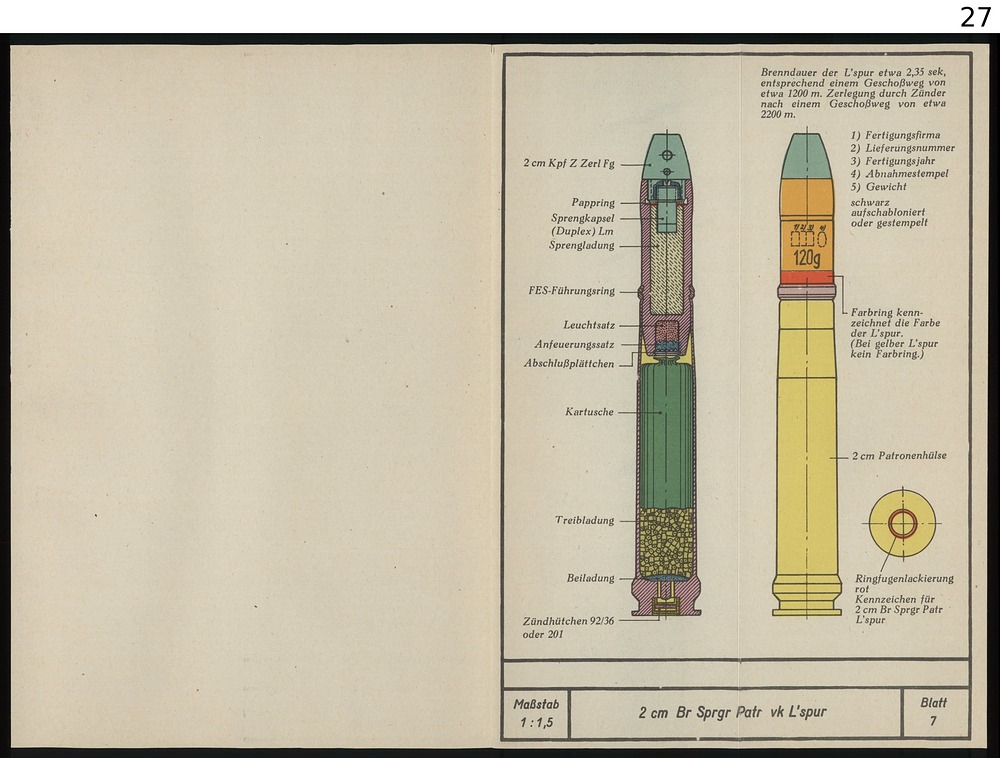

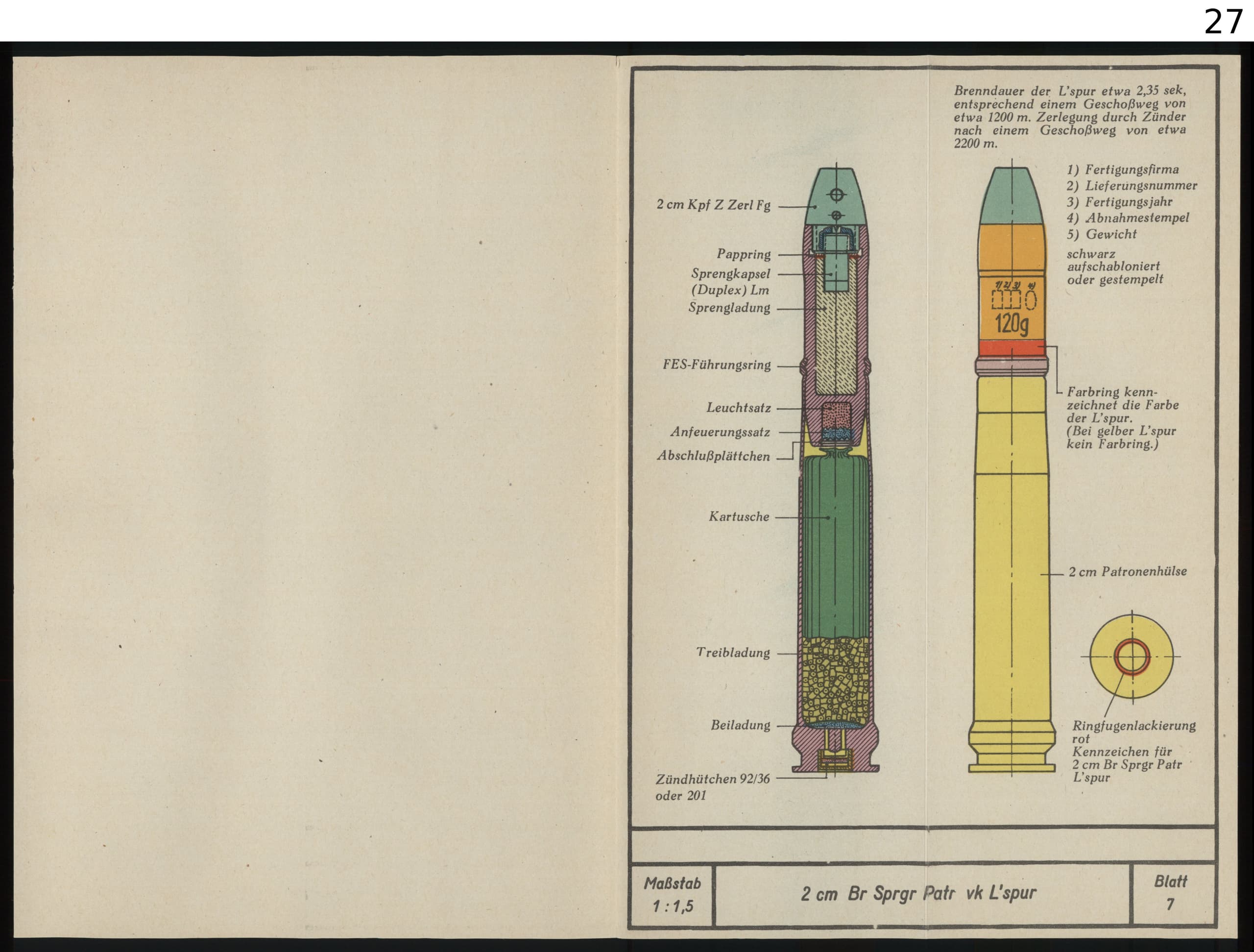

Brsprgr. vk. L'Spur m.Zerl (Hefi-T Sd.) 0,120kg 900m/s 19g H.5 and Aluminium

Note: Against Air and Ground targets, reduced tracer length for increased filler. The full feight of the H.5 and Al mixture is 19g, not the pure He filler.
Screenshot 2024-04-19 134851

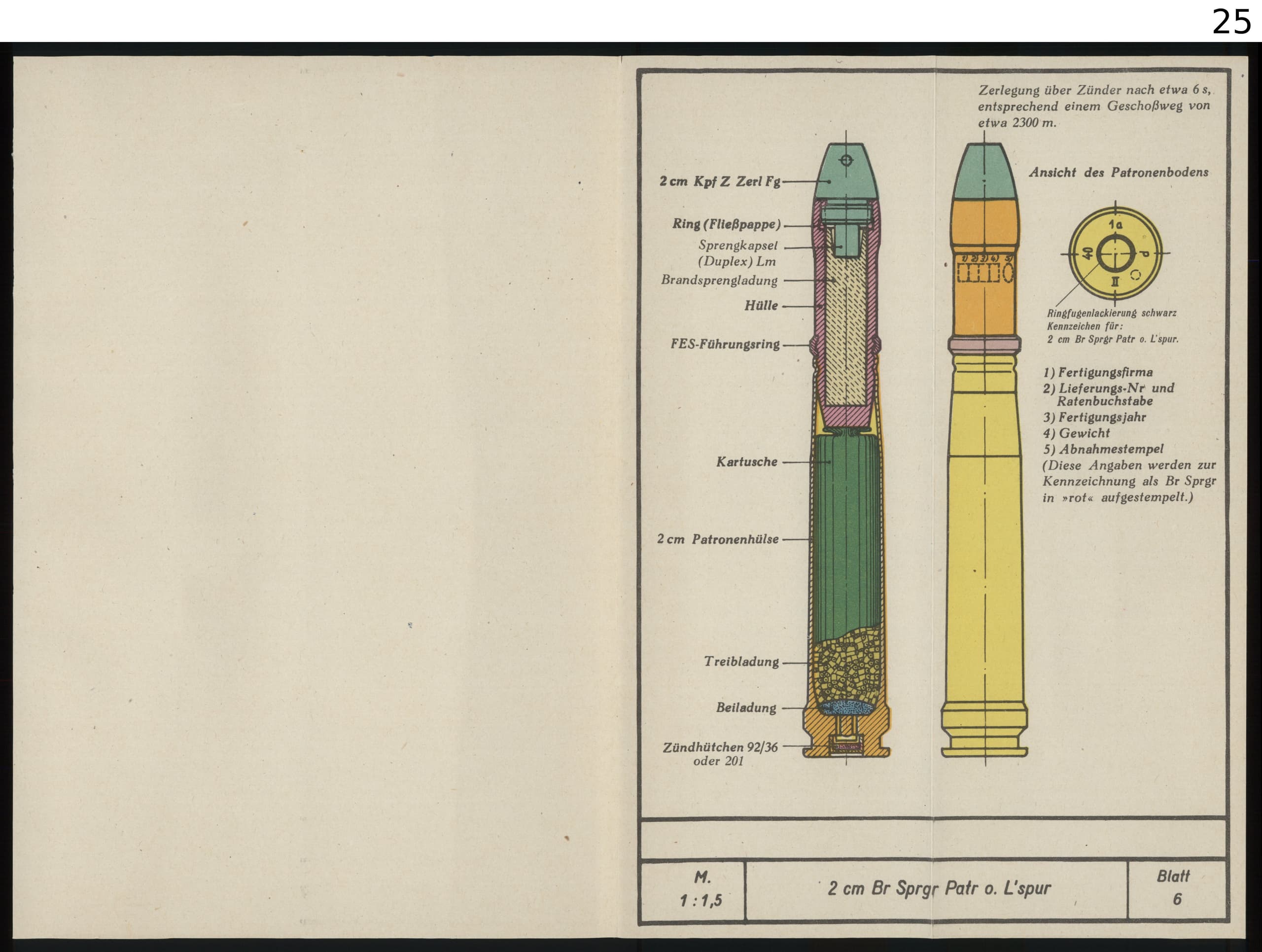

Brsprgr. o.L'Spur. m.Zerl. (Hef-I Sd.) 0,120kg 900m/s 20g H.5 and Zink (7g H.5 13g Zink)

Note: Against ground and air targets. No tracer at all to have a fully capacity He and Incendary mix, however uses Zink instead of Aluminium, because its cheaper(?). (Weight calculated by Killakiwi)
Screenshot 2023-09-06 122928
Screenshot 2024-04-19 134832


Minengeschoss:


M-Gesch. X m.Zerl (He-I (m) Sd.) 0,104kg 950m/s 25g HA 41 (40g)

Screenshot 2024-04-19 132439


M-Gesch. X L'Spur m.Zerl (HeI-T (m) Sd.) 0,109kg 950m/s 24g HTA

Screenshot 2024-04-19 134912


Vehicles:

Flakpanzer I, Flakpanzer 38, Wibelwind, Möbelwagen


30mm Flak 103/38
Pictures:(Click to show)


Caliber: 30mm

Ammo: 30x184mm

Fire Rate: 450 rpm (Syncronized)

Beltfed 50-60 rpg box

Muzzle velocity: (700) 800-960 m/s

Weight: 105kg

Mountings:

3 cm Flaklafette 103/38: -20° to +90°

(Simply a 2 cm Flaklaffette 38 with a 3 cm Mk 103 in it.)



3 cm Flakvierling 103/38: -10° to +100°

(Simply a 2 cm Flakvierling 38 with 4x 3 cm Mk 103s on it.)


Baumaffe (Treemonkey) and Sockellafette


Ammo Types: Ap-I, Aphe-T, Apihecbc-T, HVAP-T, He-T, He

Similar principal to the Mg 151/20


AP:


Pzbrgr. (E.) o.Zerl. (Ap-I) 0,5kg 800m/s 58mm/10m

Note: Used against Trading ships and other light War Vehicles/Vessels. Contains a 9g Thermite (Elektron) filling.
After penetrating 6mm of Ship construction steel, over a path of 2m it ejects the Thermite filling, multiple penetrations create a permament fire source.
(Reduced Charge to reduce gun wear later to 725m/s.)


Pzsprgr. L`Spur. o.Zerl. (Aphe-T) 0,5kg 800m/s 14g Pent (23,8g) 58mm/10m

Note: Primary against Iron/Steel protected or armored Ground targets.
5mm Fuze Sensitivity and 0,75m (+/-0,25m) Fuze Delay.
2 Versions existed with different Bottum Fuzes (BdZ. 1583 and BdZ. 1584) with 500g or 530g weight (resulting also in a 25m/s velocity difference)
(Reduced Charge to reduce gun wear later to 700m/s and 725m/s.)
Was later replaced by the Pzbrsprgr. L’Spur as it was ligher (reducing wear), offered increased penetration and double effect of HE and Incendary instead of only He.)
(Like the ammo of the Mg 151/20 this is build like the Pzbrgr but with Pent filling and a Bottomfuze instead of Thermite filling.)


Pzbrsprgr. L`Spur. o.Zerl. (ApI-T / ApheIcbc-T) 0,455kg 800m/s 5,2g Pent (8,84g) 58mm/10m

Note: Against Iron/Steel protected and Armored ground targets. Against Locomotives and heavily armored Planes. Was to replace the Pzsprgr. L’Spur.
Apcbc round. 5mm Fuze sensitivity and 0,75m +/- 0,25m Fuze Delay.


H-Pzgr. L`Spur. o.Zerl. (HVAP-T) 0,356kg 960m/s 16mm 231g core 81mm/10m

Note: Only against Heavily armored Tanks. The Al-Mg-Cu Alloy Carrier has an incendary effect upon melting on impact.


He:


Sprgr. L`Spur. o.Zerl. (He-T) 0,44kg 800m/s 27g Pent (45,9g)

Note: Against Air and Ground Targets. Fully replaced by the M-Geschoss L’Spur o.Zerl.


Minengeschoss:


M-Gesch. Ausf.C L`Spur. o.Zerl. (Hei-T (m)) 0,33kg 900m/s 70g HTA 5g Pent (92,5g)

Note: Against Air and Ground Targets. Fully replaced the Sprgr. L’Spur.
(Existed both with full 900m/s charge and reduced wear charge of 860m/s.)
(I couldnt find the normal one, so instead the Üb. versions, along with the full drawing.)
Screenshot 2024-04-25 180000


M-Gesch. Ausf.A o.Zerl. (Hei (m)) 0,33kg 900m/s 85g HTA (102g)

Note: Against Air and Ground Targets. Fully replaced the Sprgr. L’Spur.
(Existed both with full 900m/s charge and reduced wear charge of 860m/s.)


Brgr. o.L'Spur o.Zerl (I) 0,33kg 900m/s 140g Incendary mix & 0,6g Pent (1,02g)

Screenshot 2024-05-03 161911


Vehicles:(Click to show)

Steyr 2000A


Zerstörer 45


Kugelblitz

Sd.Kfz. 70


(couldnt find the one with the Mk 103)

Bergepanzer 38(t) and Grille Ausf.M


37mm Flak 18/36/37 L/57
Pictures:(Click to show)



Caliber: 37mm

Ammo: 37x265mm

Fire Rate: 160 rpm

Loading Tray 6 round Rahmen (Frame)

Muzzle velocity: 770-1170m/s

Weight: 274 kg(Flak 18)

Ammo Types: Aphe, Hvap-T, He-T, HeI-T, He-I, HeI-T(m)


Ap:


Pzgr. 18 L`Spur (Aphe) 0,685 kg 770/820m/s 13g Pent (22,1g) 49-54mm/10m

Note: Against Ground and Air Targets.
Bottum Fuze after 7mm active.


Pzgr. L’Spur (Naval) (Apcbc) 0,7 kg 815m/s solid 67mm/10m


M-Pzgr. 18 L`Spur. o.Zerl. (Aphe) 0,710 kg 783M/s 90g HTA (108g) 42mm/10m

Note: Mainly against Air Targets, as well as ground targets and ships. (Propably didnt go into service.)
Bottum Fuze active after 5mm
Screenshot 2024-05-03 160342


H-Pzgr. L`Spur. o.Zerl. (Apcr) 0,405 kg 1150/1170m/s 231g core(16,1mm) 110-113mm/10m

Note: Only against Tanks, where other Ap rounds cant penetrate. The Carrier has an Incendary effect when melting upon impact.
Another version is 0,410kg heavy.
Screenshot 2024-05-03 161328


He:


Sprgr. 18 L`Spur. (umg.) (He-T) 0,62 kg 820/845m/s 29g Pent (49,3g) 7mm/10m



Br.Sprgr. L'Spur (Hei-T) 0,644kg 820m/s 30g H.5 and Aluminium

Note: Against Air and Ground targets.


Brsprgr. vk L'Spur. (HeI-T) 0,644kg 820m/s 40g H.5 and Aluminium

Note: Against Air and Ground targets, shortened Tracer for increased He and Incendary effect.


Brsprgr. o.L'Spur (HEI) 0,62kg 820/845m/s 90g H.5 und Zink

Note: Against Air and ground targets.
(Filler of 35,5g H.5 and 54,5g Zink, calculated by Killakiwi)
Zeichn_05


Minengeschoss:


M-Gr. 18 L`Spur. o.Zerl. (Fi-T) 0,55kg 914m/s 90g HTA (108g) 7mm/10m



Mountings:

Flaklafette 36

Vehicles:

Sd.Kfz 6/2 (5t)

Sd.Kfz 7/2 (8t)

Pz I Ausf. B mit 3,7 cm Flak 37


37mm Flak 43 L/57
Pictures:(Click to show)


Caliber: 37mm

Ammo: 37x265mm

Fire Rate: 250 rpm

Loading Tray 8 round Rahmen (Frame)

Muzzle velocity: 770-1170m/s

Weight: <274 kg(Flak 18), 2780kg in Fire position

Ammo Types: Aphe, Hvap-T, He-T, HeI-T, He-I, HeI-T(m)


Ap:


Pzgr. 18 L`Spur (Aphe) 0,685 kg 770/820m/s 13g Pent (22,1g) 49-54mm/10m

Note: Against Ground and Air Targets.
Bottum Fuze after 7mm active.


Pzgr. L’Spur (Naval) (Apcbc) 0,7 kg 815m/s solid 67mm/10m


M-Pzgr. 18 L`Spur. o.Zerl. (Aphe) 0,710 kg 783M/s 90g HTA (108g) 42mm/10m

Note: Mainly against Air Targets, as well as ground targets and ships. (Propably didnt go into service.)
Bottum Fuze active after 5mm
Screenshot 2024-05-03 160342


H-Pzgr. L`Spur. o.Zerl. (Apcr) 0,405 kg 1150/1170m/s 231g core(16,1mm) 110-113mm/10m

Note: Only against Tanks, where other Ap rounds cant penetrate. The Carrier has an Incendary effect when melting upon impact.
Another version is 0,410kg heavy.
Screenshot 2024-05-03 161328


He:


Sprgr. 18 L`Spur. (umg.) (He-T) 0,62 kg 820/845m/s 29g Pent (49,3g) 7mm/10m



Br.Sprgr. L'Spur (Hei-T) 0,644kg 820m/s 30g H.5 and Aluminium

Note: Against Air and Ground targets.


Brsprgr. vk L'Spur. (HeI-T) 0,644kg 820m/s 40g H.5 and Aluminium

Note: Against Air and Ground targets, shortened Tracer for increased He and Incendary effect.


Brsprgr. o.L'Spur (HEI) 0,62kg 820/845m/s 90g H.5 und Zink

Note: Against Air and ground targets.
(Filler of 35,5g H.5 and 54,5g Zink, calculated by Killakiwi)
Zeichn_05


Minengeschoss:


M-Gr. 18 L`Spur. o.Zerl. (Fi-T) 0,55kg 914m/s 90g HTA (108g) 7mm/10m



Mountings:

Flaklafette 43
Flaklafette 44 (Zwilling)

Vehicles:

Ostwind

Ostwind II (Flakzwilling)

3,7 cm Flak 43 auf s.W.S




50mm Flak 41 L/67
Pictures:(Click to show)




Caliber: 50mm

Ammo: 50x345mm

Fire Rate: 130 rpm (or 180rpm by multiple sources)

Traverse:

Horizontal: 360°

Vertical: -10° +90°

Loading Tray 5 round Rahmen (Frame)

Muzzle velocity: 830-840-(>=)920m/s

Weight: 3100 kg (Combat Position)

Ammo Types: Apcbc, He-T, Hei-T, HeI-T (m)


AP:


Pzgr. 42 L`Spur. (Apcbc) 2,23Kg 830m/s 17g Pent (28,9g) 113mm/10m

Bottom Fuze active after 7mm (Note all Ap rounds starting from 37mm use the Bd.Z. d. 3,7 cm Pzgr.)


He:


Sprgr. 41 L`Spur. (He-T*) 2,195Kg 840m/s 90g Pent (153g)



Br.Sprgr. 41 L'Spur (HeI-T*) 2,195Kg 840m/s 96g 80% Np.10 & 20% Al-Powder (153,6g)



Minengeschoss:


M-Gesch. L`Spur. m.Zerl. (He-T (m)*) 1,52Kg >=920m/s 335g HTA (420g)



Vehicles:

DB 4500A




Sd.Kfz. 7


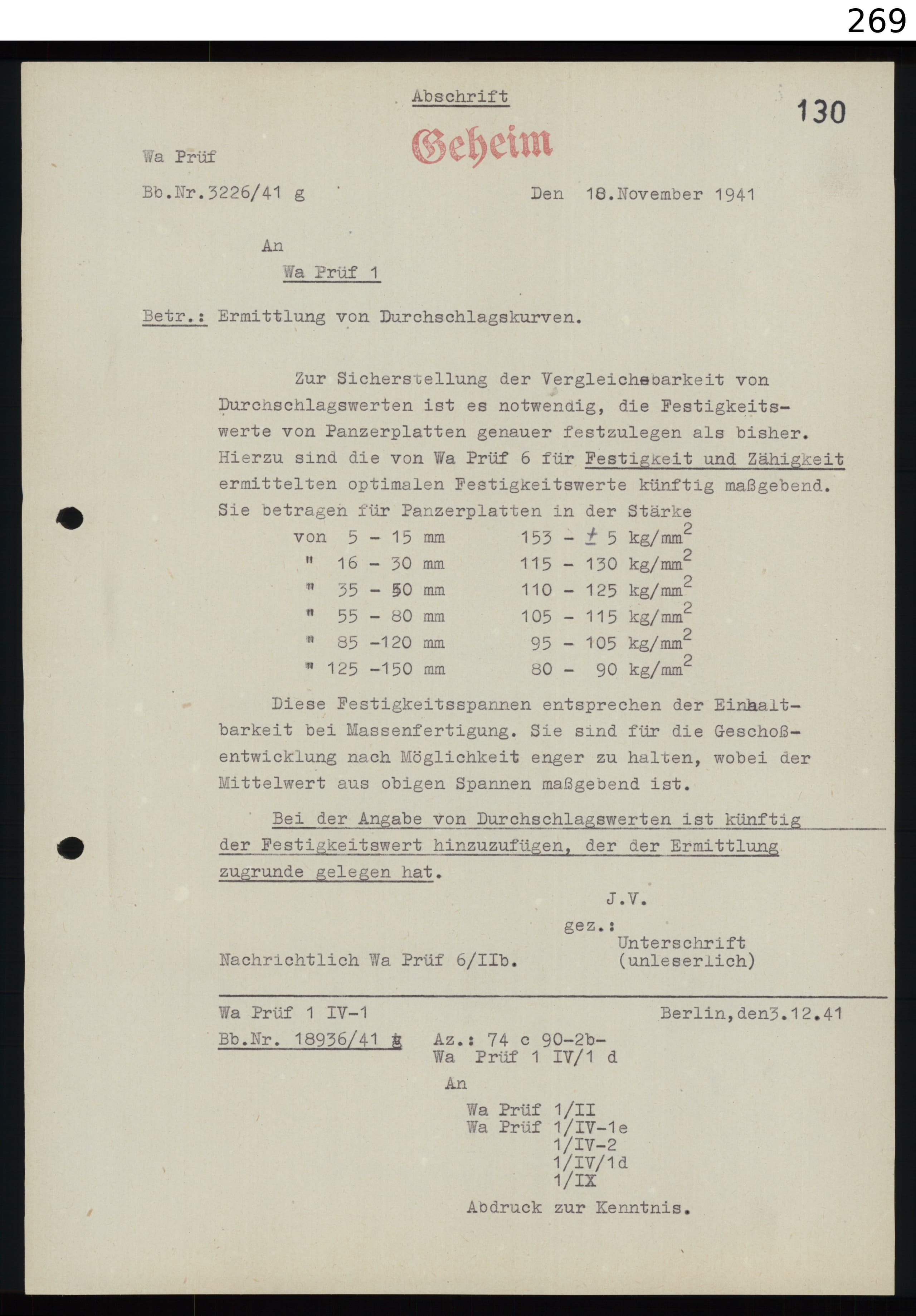

Sources:

Handbuch der Flugzeugbordwaffenmunition 1936-1945

Captured ammunition Bulletin

German light anti-aircraft and anti-tank guns The War Office Dec 1942

German Antiaircraft Artillery, military intelligence service special series 10 Feb. 1943

4402/2 Mun. d. 2 cm Flak 30,38 und Flakvierling 38
Munition der 2 cm Waffen

4402/4 Mun. d. 5 cm Flak 41

9 Likes

Would also be neat to see the 5.5cm gerät 58 on here. Though I can see why it isnr given that non of the vehicles proposed to mount it where ever built in full.

1 Like

Excellent article. Very comprehensive and detailed! Wonderful!

2 Likes

Ty, i will continue to work on it, using spoilers and i will add an 2,5 cm Flak (f) to it. If you know more guns that can be added, feel free to post it preferably with a picture. Im planning to also create a seperat (because of max post size) post for after war Flaks such as Rh 202 or 35 mm KDA.
Also feel free to add an heart to it, so that more people can find out about it.
Regarding the 5,5 cm Gerät 58, it hasnt really a place here, cince it only had He/Minen rounds and wasnt put on any vehicle.

2 Likes

I had heard thay many rounds including a modified flak 41 ap round where tested on it. Still though i get why you havent implanted it.

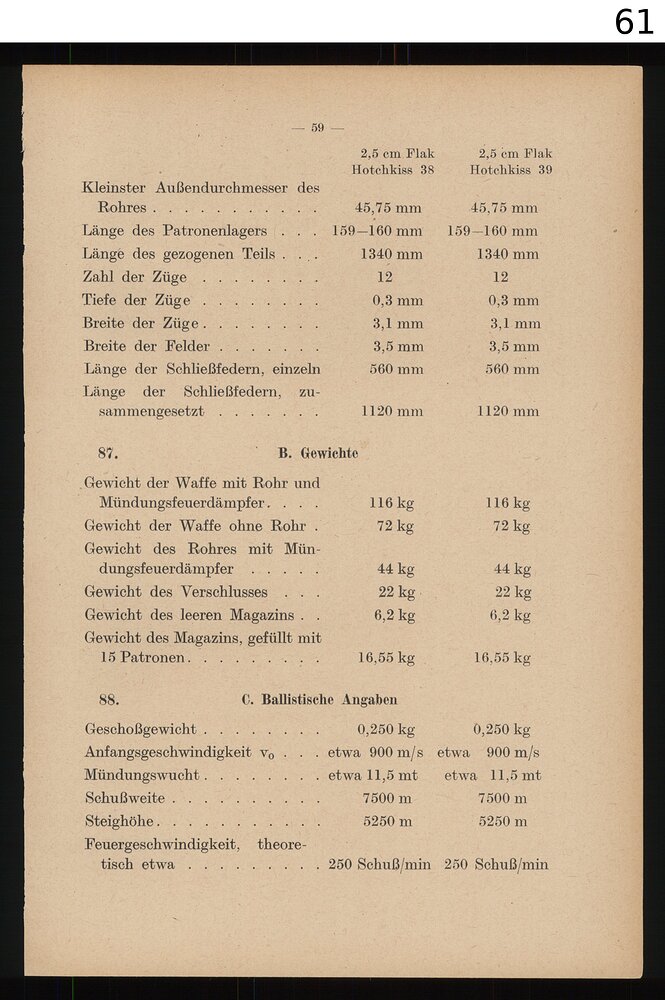

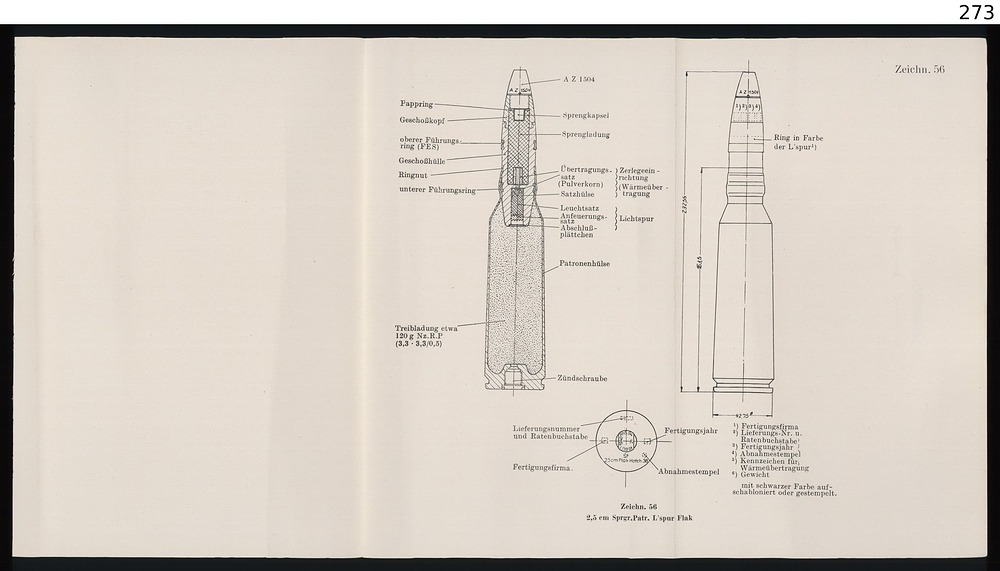

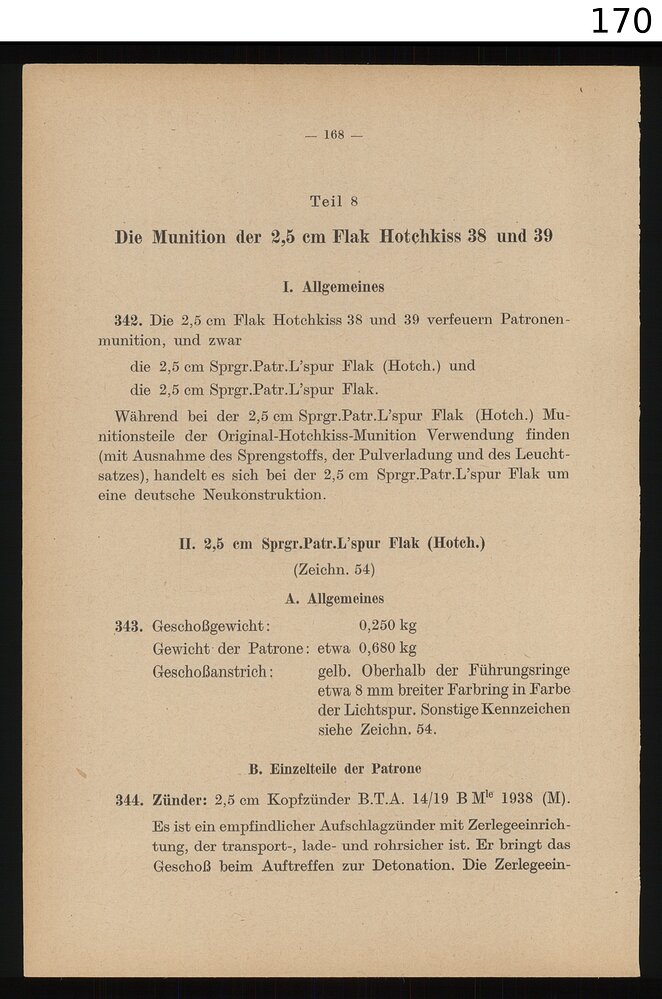

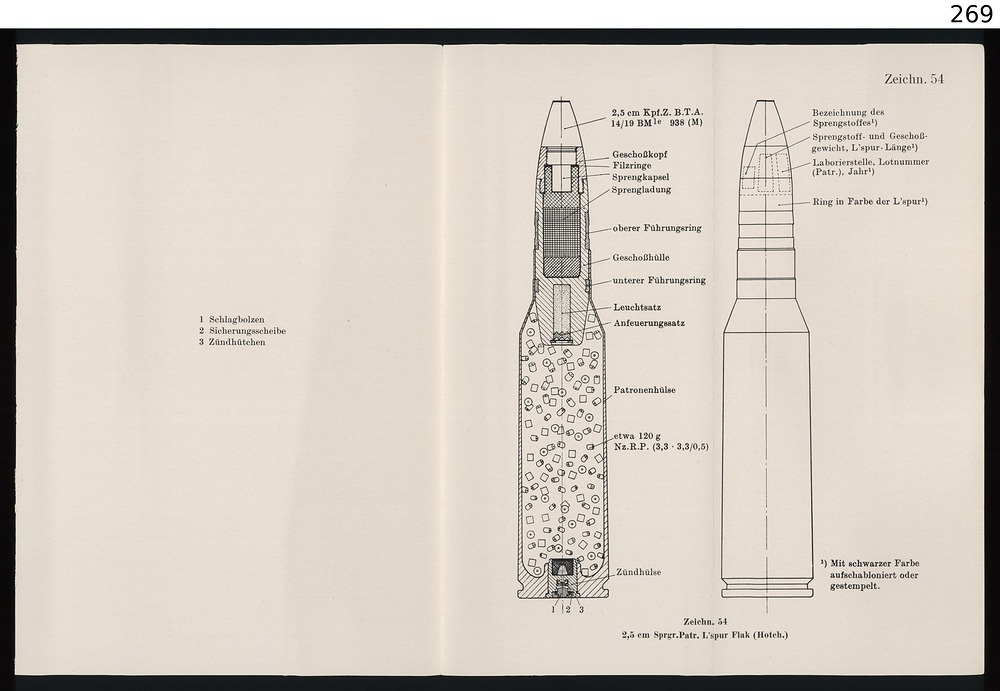

2,5 cm Flak Hotchkiss (f)

1 Like

Can 20mm Flak use Minengeschoss like the Mg 151/20 and Mg FF/M

Not that i know of, however i have seen the stating of use of the 117-119 g Pzbrgr and Pzsprgr in the 20x138mm case with 900m/s to better fight against armored Aircraft such as the IL-2 but i only saw one source a rather long time ago, so idk.

HOWEVER there was aparently also a tracerless higher capacity He round iirc.

While this is the Brsprgr., the same was also as just Sprgr. This has 20g Hex 5. (Aka H.5 as found allready in game)

2 Likes

20g the in game Sprgr. have only 10.2g so basically wirbelwind is missing a stronger shell

Well, yes, of course its a tradeoff to having no tracer. Ill make a report tomorrow and look for a bit more detail and add it to this page, i think i forgot it here.

1 Like

Good luck with the report.

And there is this shell too but not sure if it does exist or not i don’t trust wiki but it worth the try.

Minengeschosspatrone X L’spur mit Zerleger:
shell type: HEI-T (M)

total: wight 109g

explosive filler: 24,5 - 25 g HE HA 41 (RDX + (Aluminium) powder + wax)

vilocity: 950 m/s

1 Like

No. It’s 20g of H.5 with a huge amount of zinc powder based on the weight of the filling.
The Br.Sprgr. with tracer actually uses the body of the regular HEF-T. The weight increased from 115g to 120g by just switching the filling from Np. 10 to H. 5 with zinc powder.

Zinc is as heavy as steel and has more than 3 times the density of explosives.
A 70:30 mixture would result in a density of basically twice that of regular explosves, thus instead of 6.2g Np. 10 you get 11.2g of 70:30 H.5 and zinc.
So a regular 20x139mm HEF would hold roughly 11g of PETN or 20g of H.5 with zinc.

That of course means that the HEI-T actually holds less H.5 than the HEF-T holds with just Np. 10 and that the HEI without tracer holds less than 11g of PETN.

According to ChatGPT (already too late do figuring out the math myself) the 20g mixture would contain around 7g of pure H. 5. Which would be the equivalent of 12g TNT and practically the same as the HEFI-T we have in-game.

Now of course this shell would be a lot more effective in reality because of the incendiary effect against fuel, but I think for the game it will make very little difference.

Then again it would be any SPAA players dream to fire shells without tracer.

1 Like

What about this type of shells

Minengeschosspatrone X L’spur mit Zerleger:
shell type: HEI-T (M)

total: wight 109g

explosive filler: 24,5 - 25 g HE HA 41 (RDX + (Aluminium) powder + wax)

vilocity: 950 m/s

Does it exists do you have informations about it

Nope. Never heard of it.

Might have been a late-war development. I think the FlaK units showed some interest in adopting Mineshells themself.

From the attack angle, Mineshells actually make the most sense, since you’re most likely to hit the wings. A fragmentation round will have almost no effect when it hits a wing. Only when fragments hit some imporant modules.

Then again, a 20mm Mineshell would still have very little effect on the plane while a single HEF round might actually knock out the pilot or damage the engine with fragmentation.

So I’m not sure, if using 20mm Mineshells would really be better compared to a 20mm HEFI.

Never mind i found it op actually mentioned it in the mg 151/20 section so basically it’s real and been used and it’s used on mg 151/20 then i believe it’s been used on the flak 20/38 too

Oh, well i understood that it has 20g H.5 + xg Zink, anyway 7g of H.5 at x1,7 to 12g Aquivalent with additional Incendary effect and without Tracer is absolutly worth the effort. Its still an absolut win.

Well no mineshell are not just HE that are supposed to explode on the surface the mineshell designed with a fuse delay that allow it to penetrate then explode on the inside sending alot of shrapnel to the other side while creating abig hole of impact on the side where it entered look at this

15 cm Flak 33 L/12? ;D
jbgcgfc

1 Like

Yeah that video is unfortunetaly complete bogus.
Almost nothing he says is grounded in reality and he makes a ton of mistakes.

A plane is made light material like wood or aluminum alloys, they don’t posses the weight which would turn them into effective fragments from a blast.
The destrutive power of an explosive rounds comes mainly from the fragments.

A plane comprises of a number of vital components, which are:

  • The engine (including cooling system)
  • Fuel tanks
  • Pilot
  • Structure (includes controls and surfaces)

Mineshells are designed to down a plane by targeting the structure since it’s the biggest area of a plane. They are however not as efficent in knocking out the other systems compared to regular fragmentation rounds.

They can be very effective, as long as they are destructive enough to the airframe since that combines the biggest target area with the least amount of shells to shoot the plane down.
However when planes grow in size, so does their structure making them less effective compared to shells that rely more on fragmentation.

2 Likes

Actually I’m wrong about that. Unlike the Brandsprenggranate o. L’Spur the one with Tracer uses the body of the HEF-T with heat sensitive self-destruct mechanism, and uses an unkown explosive with aluminum powder. So the weight of the shell without the added aluminum was already 120g.
Which of course doesn’t change the fact that the amount of explosive must be lower than 6.2g PETN.
