Multi-Vehicle SPAA Mega List

RemoveCASfromGRB · December 16, 2024, 12:32am

To Add or Not to Add - That is the Question

With Gaijin announcing that they are exploring the path of Multi-Vehicle SPAA’s system, it is time to compile a list of them.

This List Will Include

Known Multi-System SPAAs
All-In-One Systems that can technically operate without a standalone radar
Large Multi-Vehicle Air Defense Systems

Please check out my High Tier - Top Tier SPAA Mega List

This list is to compile possible Multi-Vehicles SPAAs and future ones into a single thread. Its not about if it should be added, its to bring attention to a systems existence outside of digging through suggestions. If you have information on any of these, please share it so I can update with the appropriate information.

USA:

Spoiler

1. Patriot

Additional Source #1 + Additional Source #1 + Additional Source #3

Missiles:
MIM-104D/E PAC-2
Range: 160 km

Spoiler

Caliber: 400mm
Mass: 900 kg
Max Speed: Mach 3.5+ (1190 m/s)
Guidance Type: TVM
Max Overload: n/a
Warhead: 84 kg
Warhead Type: Proxy Fuse

MIM-104F PAC-3
Range: 80 km

Spoiler

Caliber: 255mm
Mass: 320 kg
Max Speed: Mach 5+ (1700+ m/s)
Guidance Type: ARH
Max Overload: n/a
Warhead: 8.2 kg
Warhead Type: KKV

Radar:
AN/MPQ-53 PAC-2
Range: 150+ km

Radar Trailer

Tracking Amount: 100
Engagement Amount: 9
Frequency Band: C & G/H Bands

AN/MPQ-65 PAC-3
Range: 150+ km

Radar Trailer

Tracking Amount: 100
Engagement Amount: 9
Frequency Band: C & G/H Bands

Ammo
Vehicle Ammo - 4x PAC-2 / 16x PAC-3
Stowed Ammo - n/a

2. M1097 SL-AMRAAM

AIO Capable

jyyhepprysy61

Missiles:
AIM-120A-C (In-Game)
Range: 16 km

Spoiler

Caliber: 178mm
Mass: 147.87 kb
Max Speed: Mach 4 (1,372 m/s)
Guidance Type: ARH / IOG / DL
Max Overload: 35 G
Guidance Time: 80s
TNT equivalent: 9.81 kg

AIM-9X Block 2
Range: 15-16 km

Spoiler

Caliber: 127mm
Mass: 84.37 kg
Max Speed: Mach 2.5+ (857.5 m/s)
Guidance Type: IR
Max Overload: Estimated 60 G
Guidance Time: n/a
Warhead: 9.36 kg

SL-AMRAAM ER (AIM-120B or Cs with booster motor)
Range: 40 km

Spoiler

Caliber: 178mm (Booster 254mm)
Mass: n/a
Max Speed: Mach 4 (1,372 m/s)
Guidance Type: ARH
Max Overload: 35 G
Guidance Time: 80s
TNT equivalent: 9.81 kg

Radar:
AN/MPQ-64
Range: 75 km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: X Band

sentinel_anmpq-64_001

Ammo
Vehicle Ammo - 4 and 5x
Stowed Ammo - n/a

3. FMTV MML (Multi-Mission Launcher) / IPFC Inc 2-I

Additional Source #1

Enduring Shield

Missiles:
FIM-92 Stingers (In-Game 92K)
Range: 6 km

Spoiler

Caliber: 70mm
Mass: 10.1 kg
Max Speed: Mach 1.95 (670 m/s)
Guidance Type: IR
Max Overload: 13 G (Should be 20)
Guidance Time: 15s
TNT equivalent: 540 g

Missiles:
AGM-114L
Range: 9.5km

Spoiler

Caliber: 180mm
Mass: 45.7 kg
Max Speed: Mack 1.3 (475 m/s) (In-Game 114K)
Guidance Type: MMW ARH
Max Overload: n/a
Guidance Time: 45s (In-Game 114K)
TNT equivalent: 9.43 kg (In-Game 114K)

AIM-9X Block 2
Range: 15-16 km

Spoiler

Caliber: 127mm
Mass: 84.37 kg
Max Speed: Mach 2.5+ (857.5 m/s)
Guidance Type: IR
Max Overload: Estimated 60 G
Guidance Time: n/a
Warhead: 9.36 kg

Tamir Interceptor
Range: 10 - 15 km

Spoiler

Caliber: 160mm
Mass: 90 kg
Max Speed: Mack 2.2 (754.6 m/s)
Guidance Type: E/O (Unconfirmed)
Max Overload: n/a
Guidance Time: n/a
Warhead: 11 kg

Radar:
Sentinel A4 (AN/MPQ-64A4)
Range: 120+ km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: 60
Frequency Band: X Band

Ammo
Vehicle Ammo - 15x
Stowed Ammo - n/a

3. Enduring Shield

Additional Source #1

Missiles:
AIM-9X Block 2
Range: 15-16 km

Spoiler

Caliber: 127mm
Mass: 84.37 kg
Max Speed: Mach 2.5+ (857.5 m/s)
Guidance Type: IR
Max Overload: Estimated 60 G
Guidance Time: n/a
Warhead: 9.36 kg

Radar:
Sentinel A4 (AN/MPQ-64A4)
Range: 120+ km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: 60
Frequency Band: X Band

Ammo
Vehicle Ammo - 18x
Stowed Ammo - n/a

4. M727 HAWK

Missiles:
MIM-23 Hawk
Range: 50 km

Spoiler

Caliber: 370mm
Mass: 590 kg
Max Speed: Mach 2.4 (823.2 m/s)
Guidance Type: S-ARH
Max Overload: n/a
Guidance Time: n/a
Warhead: 54 kg
Warhead Type: Blast-Frag

Missiles:
MIM-23B I-Hawk
Range: 50 km

Spoiler

Caliber: 370mm
Mass: 590 kg
Max Speed: Mach 2.4 (823.2 m/s)
Guidance Type: S-ARH
Max Overload:n/a
Warhead: 74 kg
Warhead Type: Blast-Frag

Radar:
its easier to just paste this image from Wikipedia then try and explain everything. HAWK and I-HAWK require 4 or 6 radars.

Ammo
Vehicle Ammo - 3x
Stowed Ammo - n/a

5. HAWK XXI

m02006112500116

Missiles:
MIM-23K
Range: 50 km

Spoiler

Caliber: 370mm
Mass: 590 kg
Max Speed: Mach 2.4 (823.2 m/s)
Guidance Type: S-ARH
Max Overload: n/a
Warhead: 74 kg
Warhead Type: Blast-Frag

AIM-120C-7 SL-AMRAAM
Range: 16 km

Spoiler

Caliber: 178mm
Mass: 147.87 kg
Max Speed: Mach 4 (1,372 m/s)
Guidance Type: ARH / IOG / DL
Max Overload: 35 G
Guidance Time: 80s
TNT equivalent: 9.81 kg

Radar:
AN/MPQ-64
Range: 75 km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: X Band

sentinel_anmpq-64_001

AN/MPQ-61
Range: 120+ km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: 12
Frequency Band: n/a

Ammo
Vehicle Ammo - 8x
Stowed Ammo - n/a

Germany:

Spoiler

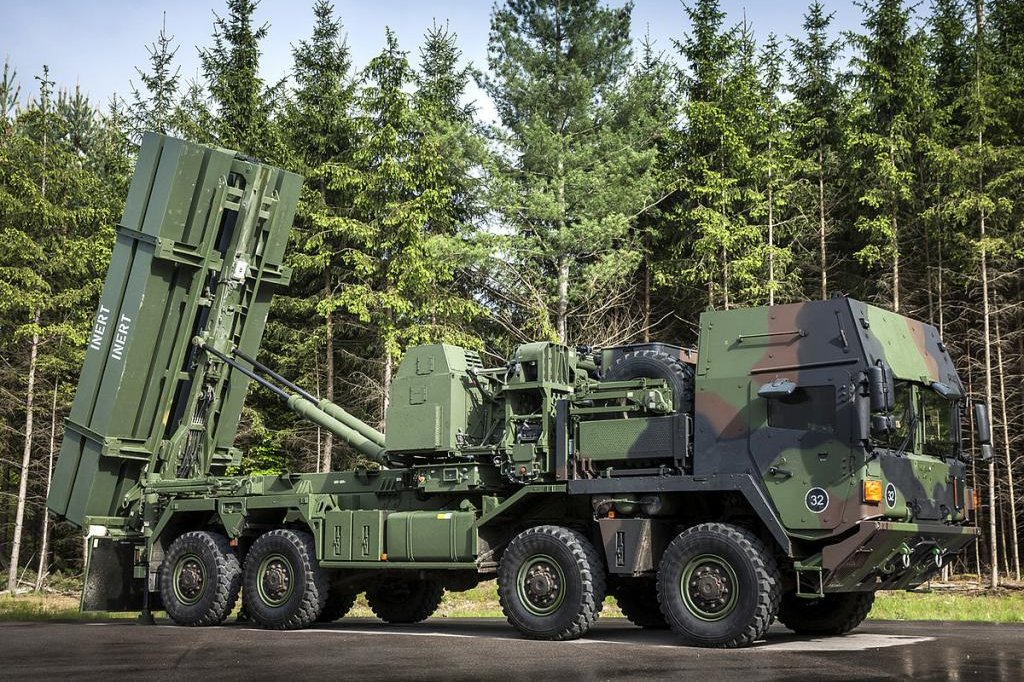

1. IRIS-T SL-M

Additional Source #1 + Additional Source #2

IRIS-T

Missiles
IRIS-T AAM
Range: 25 km

Spoiler

Caliber: 127mm
Mass: 87.4 kg
Max Speed: Mack 3 (1,029 m/s)
Guidance Type: IR
Max Overload: 60 G
Guidance Time: n/a
TNT equivalent: 11.4 kg

IRIS-T SLS
Range: 12 km

Spoiler

Caliber: 127mm
Mass: 87.4 kg
Max Speed: Mack 2 (686 m/s)
Guidance Type: IR
Max Overload: 60 G
Guidance Time: n/a
TNT equivalent: 11.4 kg

IRIS-T SLM
Range: 40 km

Spoiler

Caliber: 177.8mm
Mass: 140 kg
Max Speed: Mack 2 (686 m/s)
Guidance Type: IR
Max Overload: 60 G
Guidance Time: n/a
TNT equivalent: 11.4 kg

IRIS-T SLX
Range: 40 km

Spoiler

Caliber: n/a
Mass: n/a
Max Speed: n/a
Guidance Type: n/a
Max Overload: n/a
Guidance Time: n/a
TNT equivalent: n/a

Radar:
TRML-4D
Range: 250+ km

Radar Trailer

Tracking Amount: 1500
Engagement Amount: n/a
Frequency Band: C-Band
Elevation Coverage: -2° to 70° | Tracking up to 90°

IRIS-T_SLM_short-range_air_defense_missile_system_Diehl_Defense_Germany_925_001

Ammo
Vehicle Ammo - 8x
Stowed Ammo - n/a

2. Patriot

Additional Source #1 + Additional Source #1 + Additional Source #3

Missiles:
MIM-104D/E PAC-2
Range: 160 km

Spoiler

Caliber: 400mm
Mass: 900 kg
Max Speed: Mach 3.5+ (1190 m/s)
Guidance Type: TVM
Max Overload: n/a
Warhead: 84 kg
Warhead Type: Proxy Fuse

MIM-104F PAC-3
Range: 80 km

Spoiler

Caliber: 255mm
Mass: 320 kg
Max Speed: Mach 5+ (1700+ m/s)
Guidance Type: ARH
Max Overload: n/a
Warhead: 8.2 kg
Warhead Type: KKV

Radar:
AN/MPQ-53 PAC-2
Range: 150+ km

Radar Trailer

Tracking Amount: 100
Engagement Amount: 9
Frequency Band: C & G/H Bands

AN/MPQ-65 PAC-3
Range: 150+ km

Radar Trailer

Tracking Amount: 100
Engagement Amount: 9
Frequency Band: C & G/H Bands

Ammo
Vehicle Ammo - 4x PAC-2 / 16x PAC-3
Stowed Ammo - n/a

3. TLVS/MEADS

Additional Source #1 + Additional Source #2

Missiles:
MIM-104F PAC-3
Range: 80 km

Spoiler

Caliber: 255mm
Mass: 320 kg
Max Speed: Mach 5+ (1700+ m/s)
Guidance Type: ARH
Max Overload: n/a
Warhead: 8.2 kg
Warhead Type: KKV

Radar:
MFCR
Range: n/a km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: X-Band

MFCR_multifunction_fire_control_radar_MEADS_Medium_Extended_Air_Defense_Systems_United_States_details_002

SR
Range: n/a km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: n/a

SR_surveillance_radar_SR_vehicle_MEADS_Medium_Extended_Air_Defense_Systems_United_States_details_003

Ammo
Vehicle Ammo - 8x
Stowed Ammo - n/a

Russia:

Spoiler

1. 9K37 Buk

Additional Source #1 + Additional Source #2 + Additional Source #3

Missiles:
9M38
Range: 25-30 km

Spoiler

Caliber: 400mm
Launch Mass: 690 kg
Max Speed: Mach 2.48 (850 m/s)
Guidance Type: SARH
Max Overload: n/a
Guidance Time: n/a
Warhead: 70 kg

Radar:
9S35
Range: 80-100 km

Radar Trailer

Tracking Amount: 1
Engagement Amount: 1
Frequency Band: H/I Bands
Guidance Range: 42 km

9S18M1
Range: 100-150 km

Radar Trailer

Tracking Amount: 75
Engagement Amount: n/a
Frequency Band: n/a

Ammo
Vehicle Ammo - 4x
Stowed Ammo - n/a

2. 2K12 Kub

Additional Source #1 + Additional Source #2 + Additional Source #3

SA-6_Gainful_2K12_Kub_mobile_medium-range_air_defense_missile_system_on_tracked_vehicle_Russia_925_001

Missiles:
3M9
Range: 23 km

Spoiler

Caliber: 340mm
Launch Mass: 600 kg
Max Speed: Mach 2.8 (960.4 m/s)
Guidance Type: S-ARH
Max Overload: n/a
Guidance Time: n/a
Warhead: 59 kg

Radar:
1S91
Range: 50 km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: C and I-Band

img06-011-01s

Ammo
Vehicle Ammo - 3x
Stowed Ammo - n/a

3. S-300P

Additional Source #1

Missiles:
5V55K
Range: 45 km

Spoiler

Caliber: 510mm
Launch Mass: 1640 kg
Max Speed: Mach 5.8 (2000 m/s)
Guidance Type: Command
Max Overload: n/a
Guidance Time: n/a
Warhead: 133 kg
Warhead Type: High Explosive - Frag

5V55R
Range: 75 km

Spoiler

Caliber: 510mm
Launch Mass: 1640 kg
Max Speed: Mach 5.8 (2000 m/s)
Guidance Type: TVM
Max Overload: n/a
Guidance Time: n/a
Warhead: 130 kg
Warhead Type: High Explosive - Frag

48N6
Range: 150 km

Spoiler

Caliber: 520mm
Launch Mass: 1800 kg
Max Speed: Mach 5.5 (1900 m/s)
Guidance Type: n/a
Max Overload: n/a
Guidance Time: n/a
Warhead: 143 kg
Warhead Type: High Explosive - Frag

5N63 Engagement Radar
Range: n/a km

Radar Trailer

Tracking Amount: 100
Engagement Amount: 12
Frequency Band: n/a

S-300P_5N63_30N6_Flap_Lid_engagement_fire_control_radar_925_001

36D6 Surveillance Radar
Range: n/a km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: S-Band

S-300P_36D6_Tin_Shield_3-D_S-band_surveillance_radar_Russia_925_001

Ammo
Vehicle Ammo - 4x
Stowed Ammo - n/a

4. S-300V

Additional Source #1 + Additional Source #2 + Additional Source #3 + Additional Source #4

9P82+9P83-TELARs-MiroslavGyurosi-1S

Missiles
9M82
Range: 100 km

Spoiler

Caliber: 1460mm
Launch Mass: 5,800 kg
Max Speed: Mach 5.24 (1,800 m/s)
Guidance Type: n/a
Max Overload: 20 G
Guidance Time: n/a
Warhead: 150 kg

9M83
Range: 75 km

Spoiler

Caliber: 915mm
Launch Mass: 3,600 kg
Max Speed: Mach 3.49(1,200 m/s)
Guidance Type: n/a
Max Overload: 20 G
Guidance Time: n/a
Warhead: 150 kg

9S15M Acquisition
Range: 330 (Cross Section Dependent) km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: F-Band

9S32 Engagement
Range: 250 km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: 6
Frequency Band: X-Band

ad_radar_9s32_p01

Ammo
Vehicle Ammo - 4x 9M83 | 2x 9M82
Stowed Ammo - n/a

5. S-400

Additional Sources #1 + Additional Sources #2 + Additional Sources #3

Missiles
9M96E
Range: 40 km

Spoiler

Caliber: 240mm
Launch Mass: 333 kg
Max Speed: Mach 2.6 (900 m/s)
Guidance Type: ARH
Max Overload: n/a
Guidance Time: n/a
Warhead: 24 kg

48N6E2
Range: 120 km

Spoiler

Caliber: 240mm
Launch Mass: 1835 kg
Max Speed: Mach 5.9 (2,000 m/s)
Guidance Type: S-ARH
Max Overload: n/a
Guidance Time: n/a
Warhead: 180 kg

48N6DM
Range: 200 km

Spoiler

Caliber: 515mm
Launch Mass: 1835 kg
Max Speed: Mach 5.9 (2,000 m/s)
Guidance Type: S-ARH
Max Overload: n/a
Guidance Time: n/a
Warhead: 180 kg

40N6E
Range: 380 km

Spoiler

Caliber: 515mm
Launch Mass: 1890 kg
Max Speed: Mach 3.5 (1,190 m/s)
Guidance Type: S-ARH | ARH
Max Overload: n/a
Guidance Time: n/a
Warhead: n/a

9S15M Acquisition
Range: 330 km (Cross Section Dependent)

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: F-Band

9S32 Engagement
Range: 250 km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: 6
Frequency Band: X-Band

ad_radar_9s32_p01

Ammo
Vehicle Ammo - 4x | 16x 9M96E/E2
Stowed Ammo - n/a

UK:
India - South Africa

Spoiler

1. EMADS - Sky Sabre/Land Ceptor

Additional Source #1 + Additional Source #2 + Additional Source #3 + Additional Source #4 + Additional Source #5

AIO Capable

Missiles:
CAMM
Range: 25 km

Spoiler

Caliber: 166mm
Launch Mass: 99 kg
Max Speed: Mach 3+ (1,029 m/s)
Guidance Type: ARH
Max Overload: 50 G
Guidance Time: n/a
Warhead: 10 kg

CAMM-ER
Range: 45 km

Spoiler

Caliber: 190mm
Launch Mass: 166 kg
Max Speed: Mach 3+ (1,029 m/s)
Guidance Type: ARH
Max Overload: 50 G
Guidance Time: n/a
Warhead: 10 kg

Radar:
Giraffe Agile Multibeam (G-AMB)
Range: 120 km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: C-Band
Band Range: 5.4 to 5.9 GHz
Elevation Coverage: +70 Degrees

Ammo
Vehicle Ammo - 8x
Stowed Ammo - n/a

2. Rapier 2000

Additional Source #1

jernas

Missiles:
Rapier Mk.2
Range: 7-8 km

Spoiler

Caliber: 127mm
Mass: 43 kg
Max Speed: Mack 2.5 (857.5 m/s)
Guidance Type: SACLOS
Max Overload: n/a
Guidance Time: n/a
TNT equivalent: n/a

Radar:
Dagger
Range: 20 km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: S-Band
Band Range: 10 to 20 GHz

rapir3

Blindfire 2000
Range: 12 km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: n/a

1336187736_26

Ammo
Vehicle Ammo - 8x
Stowed Ammo - n/a

India -

1. Akash

Additional Source #1 + Additional Source #2

Akash

Missiles:
Akash
Range: 25-30 km

Spoiler

Caliber: 304.8 - 355.6mm
Launch Mass: 720 kg
Max Speed: Mach 1.8 - 2.5 (617 - 857.5 m/s)
Guidance Type: ARH
Max Overload: n/a
Guidance Time: n/a
Warhead: 60 kg

Rajendra
Range: 60 km

Radar Trailer

Tracking Amount: 64
Engagement Amount: n/a
Frequency Band: n/a

3D-Central Acquisition Radar
Range: 150+ km

Radar Trailer

Tracking Amount: 200
Engagement Amount: n/a
Frequency Band: S-Band

Ammo
Vehicle Ammo - 3 or 4x
Stowed Ammo - n/a

2. QRSAM

Additional Source #1 + Additional Source #2 + Additional Source #3 + Additional Source #4

drdo-qrsam-quick-reaction-surface-to-air-missile-v0-6nwlww4lyz8c1

Missiles:
QRSAM
Range: 30 km

Spoiler

Caliber: 220mm
Launch Mass: 270 kg
Max Speed: Mach 4.7 (1612.1 m/s)
Guidance Type: ARH
Max Overload: n/a
Guidance Time: n/a
Warhead: 32 kg

Surveillance Radar
Range: 120 km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: X-Band

EmuEvWIUUAA9zWK

Ammo
Vehicle Ammo - 4 or 6x
Stowed Ammo - n/a

3. MR-SAM

Additional Source #1 + Additional Source #2

Missiles:
Barak 8 / MR-SAM
Range: 150 km

Spoiler

Caliber: 225mm (540mm Booster)
Launch Mass: n/a
Max Speed: Mach 3 (1029 m/s)
Guidance Type: ARH | IR
Max Overload: n/a
Guidance Time: n/a
Warhead: 60 kg

Missiles:
LR-SAM
Range: 100 km

Spoiler

Caliber: 225mm
Launch Mass: 275 kg
Max Speed: Mach 2 (686 m/s)
Guidance Type: ARH | IR
Max Overload: n/a
Guidance Time: n/a
Warhead: 60 kg

EL/M-2084
Range: 100 km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: S-Band

elta_madr

Ammo
Vehicle Ammo - 8x
Stowed Ammo - n/a

South Africa -

1. Umkhonto GBL

Additional Source #1 + Additional Source #2

UMKHONTO_GBL

Missiles:
Umkhonto-IR Mk.2
Range: 15-20 km

Spoiler

Caliber: 180mm
Launch Mass: 130 kg
Max Speed: Mach 2 (686 m/s)
Guidance Type: All-aspect IR
Max Overload: 40g
Guidance Time: n/a
Warhead: 23 kg

Umkhonto-R
Range: 60 km

Spoiler

Caliber: 180mm
Launch Mass: 130 kg
Max Speed: Mach 2 (686 m/s)
Guidance Type: ARH
Max Overload: 40g
Guidance Time: n/a
Warhead: 23 kg

Umkhonto-ER-IR
Range: 35 km

Spoiler

Caliber: 180mm
Launch Mass: 130 kg
Max Speed: Mach 2 (686 m/s)
Guidance Type: All-aspect IR
Max Overload: 40g
Guidance Time: n/a
Warhead: 23 kg

Radar:
Giraffe Agile Multibeam (G-AMB)
Range: 120 km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: C-Band
Band Range: 5.4 to 5.9 GHz
Elevation Coverage: +70 Degrees

Ammo
Vehicle Ammo - 8x
Stowed Ammo - n/a

Japan:

Spoiler

1. Type 11 Tan-SAM Kai II

Missiles:
Type 11
Range: 15 km

Spoiler

Caliber: 160mm
Launch Mass: 103 kg
Max Speed: n/a
Guidance Type: ARH
Max Overload: n/a
Guidance Time: n/a
Warhead: n/a

Radar:
Type 81 FCV
Range: 30 km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: n/a
Band Range: n/a
Elevation Coverage: n/a

JGSDF_Type_11_SAM_20140429-13

Ammo
Vehicle Ammo - 4x
Stowed Ammo - n/a

2. Type 03 Chu-SAM + Additional Source #1 + Additional Source #2

Missiles:
Chu-SAM
Range: 50 km

Spoiler

Caliber: 320mm (Estimated)
Launch Mass: 570 kg
Max Speed: Mach 2.5 (857.5 m/s)
Guidance Type: Active AESA Radar Homing
Max Overload: n/a
Guidance Time: n/a
Warhead: 73 kg

Radar:
Chu-SAM Radar Vehicle
Range: n/a km

Radar Trailer

Tracking Amount: 100
Engagement Amount: 12
Frequency Band: n/a
Band Range: n/a
Elevation Coverage: n/a

ad_sam_chusam_v3

Ammo
Vehicle Ammo - 6x
Stowed Ammo - n/a

China:
Taiwan - Pakistan

Spoiler

1. HQ-6 / LY-60

Additional Source #1

Missiles:
HQ-6D SAM
Range: 18 km

Spoiler

Caliber: 203mm
Launch Mass: 220 kg
Max Speed: Mach 3 (1,029 m/s)
Guidance Type: SARH / ARH
Max Overload: n/a
Guidance Time: n/a
Warhead: 33 kg

Radar:
HQ-6 Battery
Range: n/a km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: n/a
Band Range: n/a
Elevation Coverage: n/a

hq6abattery

Ammo
Vehicle Ammo - 4x
Stowed Ammo - n/a

2. HQ-16A / LY-80

Additional Source #1 + Additional Source #2

HQ16__28C_29f6cf

Missiles:
LY-80
Range: 40 km

Spoiler

Caliber: 340mm
Launch Mass: 620 kg
Max Speed: Mach 3 (1029 m/s)
Guidance Type: SARH / ARH
Max Overload: 25g
Guidance Time: n/a
Warhead: 70 kg
Warhead Type: HE-Frag Proxy

Radar:
HQ-16 Battery
Range: 85 km

Radar Trailer

Tracking Amount: 6
Engagement Amount: 4
Frequency Band: L-Band
Band Range: n/a
Elevation Coverage: n/a

rls-on

Ammo
Vehicle Ammo - 6x
Stowed Ammo - n/a

Taiwan / RoC -

1. TC-2

Additional Source #1 + Additional Source #2

TC2

Missiles:
TC-2 - Sky Sword II
Range: 15 km

Spoiler

Caliber: 190 mm
Launch Mass: 184 kg
Max Speed: Mach 6? (2058 m/s)
Guidance Type: DL | ARH | ECCM
Max Overload: n/a
Guidance Time: n/a
Warhead: 22 kg

Radar:
CS/MPQ-90 Bee Eye
Range: 55 km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: n/a
Band Range: n/a
Elevation Coverage: n/a

Ammo
Vehicle Ammo - 4x
Stowed Ammo - n/a

Pakistan -

1. LY-80 / HQ-16A

Additional Source #1

nq-16a

Missiles:
HQ-16A LY-80
Range: 40 km

Spoiler

Caliber: 340 mm
Launch Mass: 615 kg
Max Speed: Mach 3.49 (1200 m/s)
Guidance Type: SARH
Max Overload: n/a
Guidance Time: n/a
Warhead: 70 kg

Radar:
Search Radar Vehicle
Range: 85 km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: 8
Frequency Band: L-Band
Band Range: n/a
Elevation Coverage: n/a

HQ-16A_LY-80_searching_radar_vehicle_ground-to-air_defence_missile_system_China_Chinese-army_defence_industry_military_technology_002

Ammo
Vehicle Ammo - 6x
Stowed Ammo - n/a

Italy:

Spoiler

1. ASTER SAMP/T

Additional Source #1 + Additional Source #2 + Additional Source #3

Missiles:
Aster 15
Range: 30 km

Spoiler

Caliber: 180mm
Launch Mass: 310 kg
Max Speed: Mach 3 (1,000 m/s)
Guidance Type: Active RF Seeker
Max Overload: n/a
Guidance Time: n/a
Warhead: 15 kg

Aster 30
Range: 120 km

Spoiler

Caliber: 180mm
Launch Mass: 450 kg
Max Speed: Mach 4.5 (1,400 m/s)
Guidance Type: Active RF Seeker
Max Overload: n/a
Guidance Time: n/a
Warhead: 15 kg

Radar:
Kronos
Range: 300 km

Radar Trailer

Tracking Amount: 500
Engagement Amount: n/a
Frequency Band: C-Band

Ammo
Vehicle Ammo - 8x
Stowed Ammo - n/a

2. Indigo MEI SAM

Additional Source #1 + Additional Source #2

MEI_SYSTEM

Missiles:
INDIGO
Range: 10 km

Spoiler

Caliber: n/a
Launch Mass: 120 kg
Max Speed: Mach 2.47 (850 m/s)
Guidance Type: Optical RF
Max Overload: 30 G | 7 G @ 10 km
Guidance Time: n/a
Warhead: 22 kg

Radar:
Indigo FCS
Range: n/a km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: n/a

51303-22c34677f6ffaf206954a3311ce8d706

LPD 20
Range: n/a km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: n/a

51302-cf4850d07925c8e109b2734f27482b85

Ammo
Vehicle Ammo - 6x
Stowed Ammo - n/a

3. EMADS - Grifo (UK Sky Sabre/Land Ceptor)

Additional Source #1 + Additional Source #2 + Additional Source #3 + Additional Source #4

AIO Capable

Missiles:

CAMM
Range: 25 km

Spoiler

Caliber: 166mm
Launch Mass: 99 kg
Max Speed: Mach 3+ (1,029 m/s)
Guidance Type: ARH
Max Overload: 50 G
Guidance Time: n/a
Warhead: 10 kg

CAMM-ER
Range: 45 km

Spoiler

Caliber: 190mm
Launch Mass: 166 kg
Max Speed: Mach 3+ (1,029 m/s)
Guidance Type: ARH
Max Overload: 50 G
Guidance Time: n/a
Warhead: 10 kg

Radar:
Giraffe Agile Multibeam (G-AMB)
Range: 120 km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: C-Band
Band Range: 5.4 to 5.9 GHz
Elevation Coverage: +70 Degrees

Ammo
Vehicle Ammo - 8x
Stowed Ammo - n/a

4. SPADA 2000

Additional Source #1 + Additional Source #2 + Additional Source #3 + Additional Source #4

Missiles:
Aspide
Range: 20-25 km

Spoiler

Caliber: 234mm
Launch Mass: 220 kg
Max Speed: Mach 4 (1,372 m/s)
Guidance Type: Monopulse SAS
Max Overload: n/a
Guidance Time: n/a
Warhead: 35 kg

Radar:
RAC-3D
Range: 100 km

Radar Trailer

Tracking Amount: 100
Engagement Amount: 4
Frequency Band: G/H-Band

Falco Plus Illumination Radar
Range: 50 km

Radar Trailer

Tracking Amount: 100
Engagement Amount: 4
Frequency Band: I-Band
Elevation Coverage: 0° to 70° Degrees

stancija-navedenija-spada

Ammo
Vehicle Ammo - 2x | 4x | 6x Variants
Stowed Ammo - n/a

France:
BeNeLux

Spoiler

1. ASTER SAMP/T

Additional Source #1 + Additional Source #2 + Additional Source #3

SAMPT-2

Missiles:
Aster 15
Range: 30 km

Spoiler

Caliber: 180mm
Launch Mass: 310 kg
Max Speed: Mach 3 (1,000 m/s)
Guidance Type: Active RF Seeker
Max Overload: n/a
Guidance Time: n/a
Warhead: 15 kg

Aster 30
Range: 120 km

Spoiler

Caliber: 180mm
Launch Mass: 450 kg
Max Speed: Mach 4.5 (1,400 m/s)
Guidance Type: Active RF Seeker
Max Overload: n/a
Guidance Time: n/a
Warhead: 15 kg

Radar:
Kronos
Range: 300 km

Radar Trailer

Tracking Amount: 500
Engagement Amount: n/a
Frequency Band: C-Band

Ammo
Vehicle Ammo - 8x
Stowed Ammo - n/a

2. VL MICA

Additional Source #1 + Additional Source #2

VLMICA

Missiles:
VL MICA-IR
Range: 20 km

Spoiler

Caliber: 160mm
Launch Mass: 112 kg
Max Speed: Mach 4 (1,372 m/s)
Guidance Type: All-aspect IR
Max Overload: 50 G @ 7 km | 30 G @ 12 km
Guidance Time: n/a
Warhead: 12 kg
Warhead Type: Focused Frag Proxy

VL MICA-RF
Range: 20 km

Spoiler

Caliber: 160mm
Launch Mass: 112 kg
Max Speed: Mach 4 (1,372 m/s)
Guidance Type: ARH
Max Overload: 50 G @ 7 km | 30 G @ 12 km
Guidance Time: n/a
Warhead: 12 kg
Warhead Type: Focused Frag Proxy

Radar:
TRML-3D/32-6
Range: 200 km

Radar Trailer

Tracking Amount: 400
Engagement Amount: n/a
Frequency Band: C-Band

Ammo
Vehicle Ammo - 4x
Stowed Ammo - n/a

Sweden:
Norway

Spoiler

1. Patriot

Sweden_officially_introduces_US_Patriot_PCA-3_MSE_air_defense_missile_system_into_service_925_001

MIM-104D/E PAC-2
Range: 160 km

Spoiler

Caliber: 400mm
Mass: 900 kg
Max Speed: Mach 3.5+ (1190 m/s)
Guidance Type: TVM
Max Overload: n/a
Warhead: 84 kg
Warhead Type: Proxy Fuse

MIM-104F PAC-3
Range: 80 km

Spoiler

Caliber: 255mm
Mass: 320 kg
Max Speed: Mach 5+ (1700+ m/s)
Guidance Type: ARH
Max Overload: n/a
Warhead: 8.2 kg
Warhead Type: KKV

Radar:
AN/MPQ-53 PAC-2
Range: 150+ km

Radar Trailer

Tracking Amount: 100
Engagement Amount: 9
Frequency Band: C & G/H Bands

AN/MPQ-65 PAC-3
Range: 150+ km

Radar Trailer

Tracking Amount: 100
Engagement Amount: 9
Frequency Band: C & G/H Bands

Ammo
Vehicle Ammo - 4x PAC-2 / 16x PAC-3
Stowed Ammo - n/a

2. RBS 23 BAMSE

Additional Source #1

AIO Vehicle Exists

rbs-23

Missiles:
RBS 23 / Luftvärnsrobot 23
Range: 20 km

Spoiler

Caliber: 108mm (Booster 210mm)
Launch Mass: 85 kg
Max Speed: Mach 3+ (930 m/s)
Guidance Type: ACLOS / Radar beam-riding / SACLOS
Max Overload: n/a
Guidance Time: n/a
Warhead: n/a

Radar:
Giraffe Agile Multibeam (G-AMB)
Range: 120 km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: C-Band
Band Range: 5.4 to 5.9 GHz
Elevation Coverage: +70 Degrees

Ammo
Vehicle Ammo - 6x
Stowed Ammo - n/a

Norway -

1. NASAMS MML

Additional Source #1

Missiles:
AIM-120A-C (In-Game)
Range: 16 km

Spoiler

Caliber: 178mm
Mass: 147.87 kg
Max Speed: Mach 4 (1,372 m/s)
Guidance Type: ARH / IOG / DL
Max Overload: 35 G
Guidance Time: 80s
TNT equivalent: 9.81 kg

AIM-9X Block 2
Range: 15-16 km

Spoiler

Caliber: 127mm
Mass: 84.37 kg
Max Speed: Mach 2.5+ (857.5 m/s)
Guidance Type: IR
Max Overload: Estimated 60 G
Guidance Time: n/a
Warhead: 9.36 kg

SL-AMRAAM ER (AIM-120B or Cs with booster motor)
Range: 40 km

Spoiler

Caliber: 178mm (Booster 254mm)
Mass: n/a
Max Speed: Mach 4 (1,372 m/s)
Guidance Type: ARH
Max Overload: 35 G
Guidance Time: 80s
TNT equivalent: 9.81 kg

Radar:
AN/MPQ-64
Range: 75 km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: X-Band

MPQ-64_F1_3D_radar_unit_vehicle_NASAMS_Norwegian_Advanced_Surface_to_Air_defense_Missile_System_Norway_Norwegian_army_002

Ammo
Vehicle Ammo - 6x
Stowed Ammo - n/a

Israel:

Spoiler

1. SPYDER-SR

Additional Source #1 + Forum Suggestion + Additional Source #2

AIO Capable

Missiles:
Python 5
Range: 20 km

Spoiler

Caliber: 160mm
Launch Mass: 103.6 kg
Max Speed: Mach 4 (1,372 m/s)
Guidance Type: LOAL | IR E/O
Max Overload: n/a
Guidance Time: n/a
Warhead: 11 kg

I-Derby ER
Range: 50 km

Spoiler

Caliber: 160mm
Launch Mass: n/a
Max Speed: Mach 4 (1,372 m/s)
Guidance Type: ARH
Max Overload: n/a
Guidance Time: n/a
Warhead: 23 kg

Radar:
IAI Elta EL/M-2106 ATAR
Range: 100+ km

Radar Trailer

Tracking Amount: 500
Engagement Amount: n/a
Frequency Band: L-Band

1197

Ammo
Vehicle Ammo - 4x
Stowed Ammo - n/a

2. SPYDER-MR

AIO Capable

Missiles:
Python MR
Range: 20 km

Spoiler

Caliber: 160mm (Booster n/a)
Launch Mass: n/a
Max Speed: Mach 4 (1,372 m/s)
Guidance Type: LOAL | IR E/O
Max Overload: n/a
Guidance Time: n/a
Warhead: 11 kg

Derby MR
Range: 50 km

Spoiler

Caliber: 160mm (Booster n/a)
Launch Mass: n/a
Max Speed: Mach 4 (1,372 m/s)
Guidance Type: ARH
Max Overload: n/a
Guidance Time: n/a
Warhead: 23 kg

Radar:
IAI Elta EL/M-2106 ATAR
Range: 100+ km

Radar Trailer

Tracking Amount: 500
Engagement Amount: n/a
Frequency Band: L-Band

1197

Ammo
Vehicle Ammo - 4x or 8x
Stowed Ammo - n/a

Misc:
S. Korea - Poland - Turkey

Spoiler

South Korea -

Spoiler

1. KM-SAM Cheolmae-2

Additional Source #1 + Additional Source #2 + Additional Source #3

Missiles:
KM-SAM Block 1
Range: 40 km

Spoiler

Caliber: 275mm
Launch Mass: 400 kg
Max Speed: Mach 4.5 - 5 (1,530 - 1,700 m/s)
Guidance Type: ARH + DL
Max Overload: n/a
Guidance Time: n/a
Warhead: n/a

Radar:
Chonggun MFR
Range: 100 km

Radar Trailer

Tracking Amount: 40
Engagement Amount: n/a
Frequency Band: X-Band

m-sam-image02

Ammo
Vehicle Ammo - 8x
Stowed Ammo - n/a

Poland -

Spoiler

1. Mala NAREW

Additional Source #1

Missiles:
CAMM
Range: 25 km

Spoiler

Caliber: 166mm
Launch Mass: 99 kg
Max Speed: Mach 3+ (1,029 m/s)
Guidance Type: ARH
Max Overload: 50 G
Guidance Time: n/a
Warhead: 10 kg

Radars:
SOLA
Range: 60 or 20 km

Radar Trailer

Tracking Amount: 99
Engagement Amount: n/a
Frequency Band: S-Band and C-Band
Elevation Angle: 0° to +55°

56923a29-db58-11e7-83d7-0cc47a3456be

SAJNA
Range: 180 km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: C-Band
Band Range: 4 - 8 GHz

99344

Ammo
Vehicle Ammo - 8x
Stowed Ammo - n/a

Turkey -

Spoiler

1. Hisar-O / O+

HISAR-O_medium-range_air_defense_missile_system_Turkey_Turkish_army_defense_industry_001

Missiles:
Hisar-O
Range: 25 km

Spoiler

Caliber: n/a
Launch Mass: n/a
Max Speed: n/a
Guidance Type: IIR | RF Possible
Max Overload: n/a
Guidance Time: n/a
Explosive Mass: n/a

Radar:
KALKAN
Range: 100+ km

Radar Trailer

Tracking Amount: n/a
Engagement Amount: n/a
Frequency Band: X-Band
Elevation Angle: -10° to +55°

Bahrain_shows_interest_to_acquire_Turkish-made_Kalkan-II_search_and_track_radar_925_001

Ammo
Vehicle Ammo - 6x
Stowed Ammo - n/a

Please provide any suggestions and or corrected information. This list will be a work in progress. to additions will be added over time.

RemoveCASfromGRB · December 16, 2024, 12:33am

Placeholder.

SidewaysCube946 · December 16, 2024, 12:41am

Good job! I have two things for the USA you may or may not want to include, they’re both very similar to what is already here.

Here is the “Lavraam” (not official, just what it is known as commonly)

Just an SL-AMRAAM on the Lav chassis

The second is an AMRAAM based FMTV MML, which can just be added under the missiles list you already have for it

Keep up the good work!
