Hello everyone :), what I would like to introduce today is FB-6C.

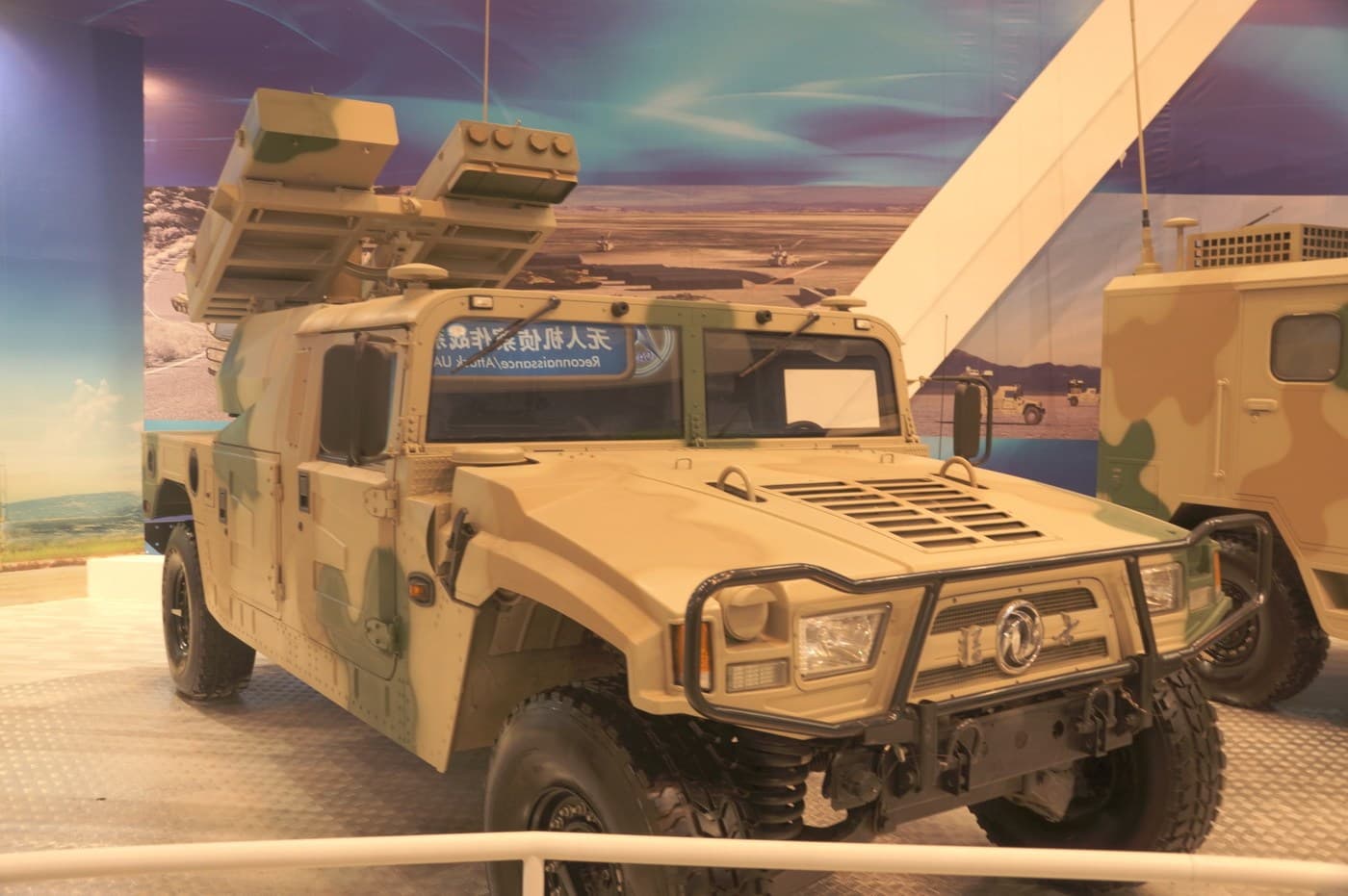

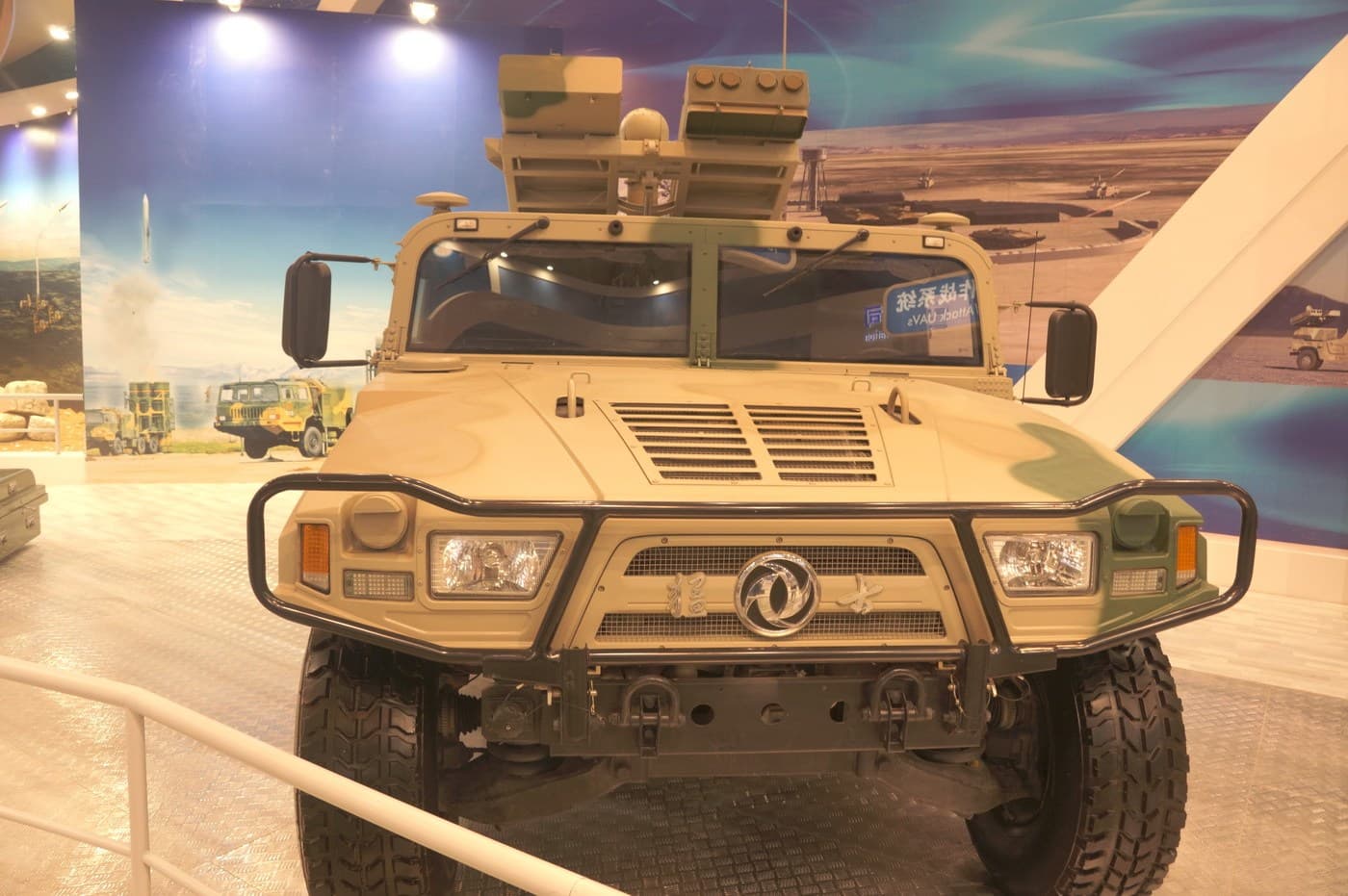

FB-6C is a short-range interception air defense vehicle that made its debut at the Zhuhai Air Show in 2014. The vehicle integrates functions such as target detection, command, launch control, and missile launch. The main weapon is 8 FN-16 missiles, which can intercept low altitude flying objects within a slant range of 500-6000 meters, with a maximum altitude of 4000 meters. The main interception targets include helicopters, fixed wings, cruise missiles, drones, etc.

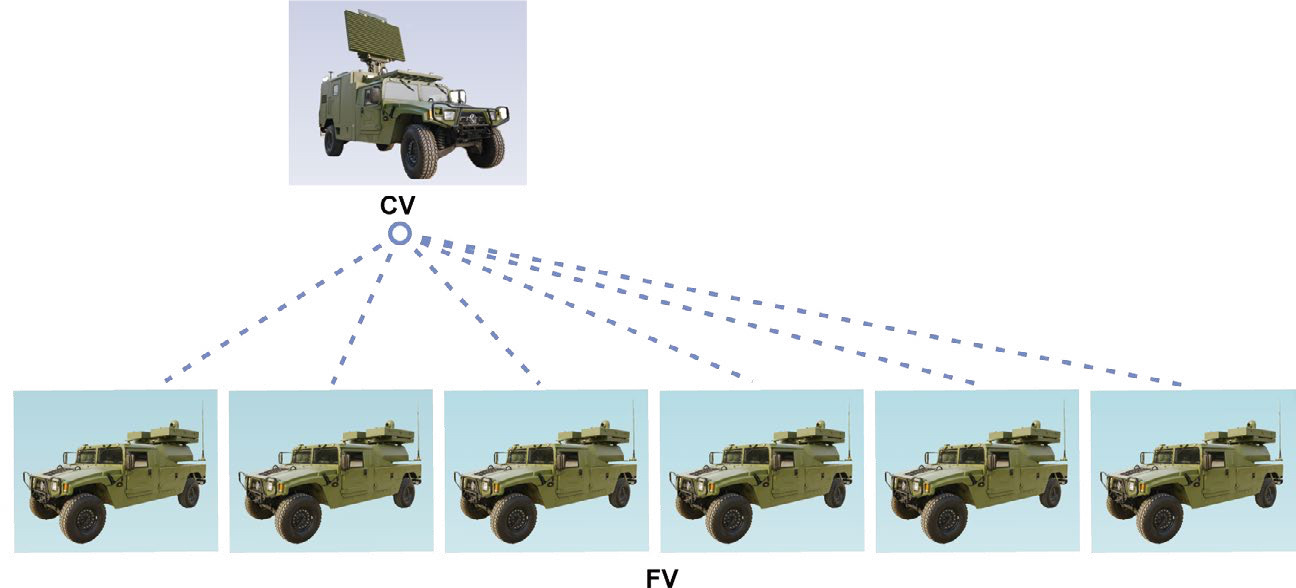

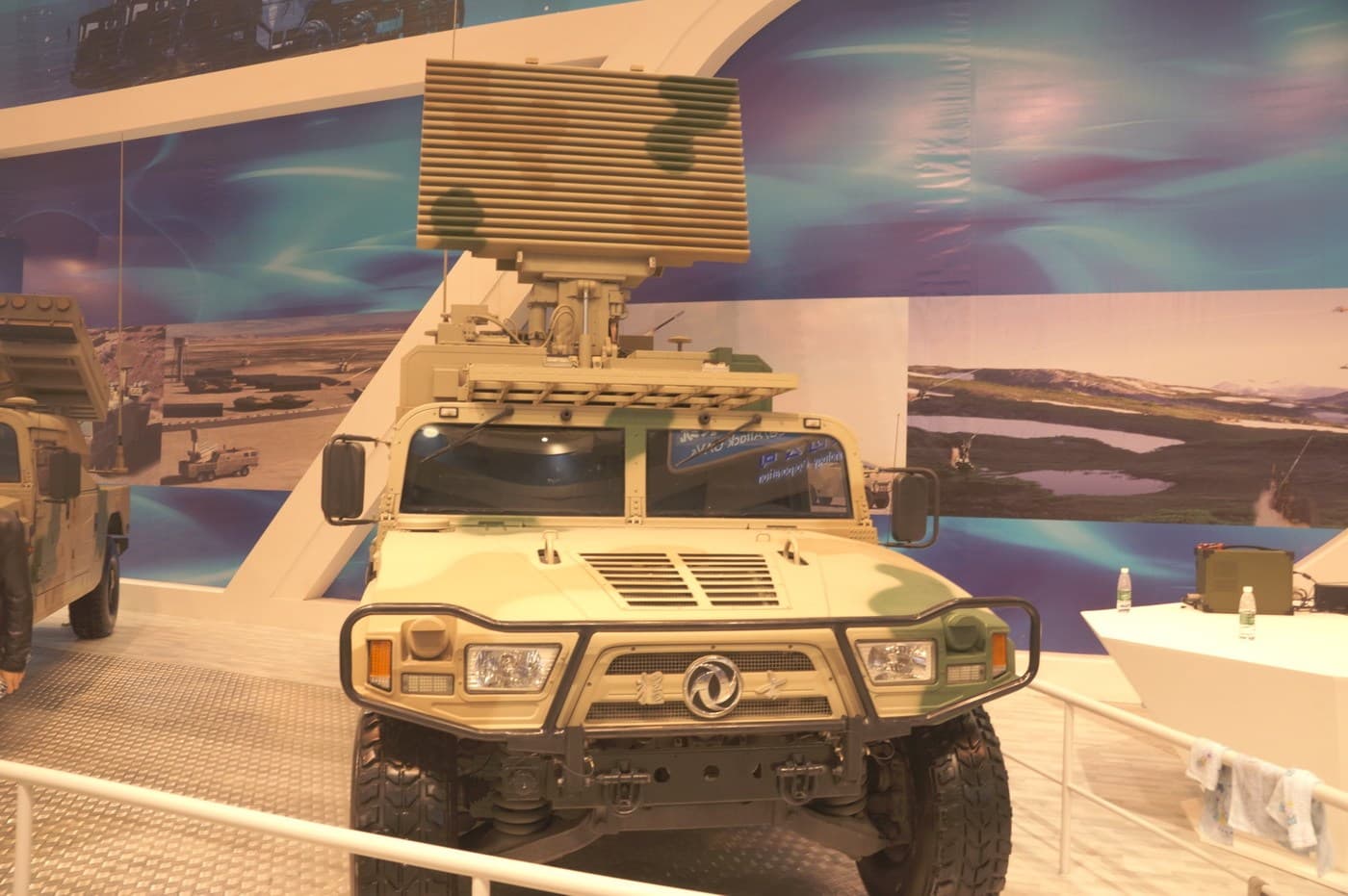

When establishing a network for air defense positions, a command vehicle connects six launch vehicles through a data link. Mainly providing air defense protection for mobile forces and important facilities. When engaging in single vehicle combat outside the battlefield, the onboard computer uses the photoelectric probe in the middle of the launch turret to search for enemies. It can be launched while traveling.
The chassis is Dongfeng Mengshi EQ2050, four-wheel full-time drive, and the highway top speed can reach 120km/h. All components of its engine compartment are equipped with super waterproof impregnation requirements. The water depth can reach 0.75m, and after installing auxiliary devices, it can drive for a long time within a water depth range of 1.2m. When off-road driving through complex terrain, the vertical obstacle height that can be overcome is 450mm.
FB-6C is an efficient air defense vehicle with strong maneuverability and a large amount of ammunition. It can hide in corners and sneak attack enemy planes in the game It can rely on high mobility to quickly transfer positions. A total of 8 rounds of ammunition can also provide good firepower sustainability. Suggested BR is 9.3.Its technology tree position can be placed in front of PGZ04A.
- Crew:2
- Weight:5t
- Main weapon:8 x FN-16 missile
- Ammor:
- Engine:EQB150-20，150hp
- Max speed:120km/h
FN-16

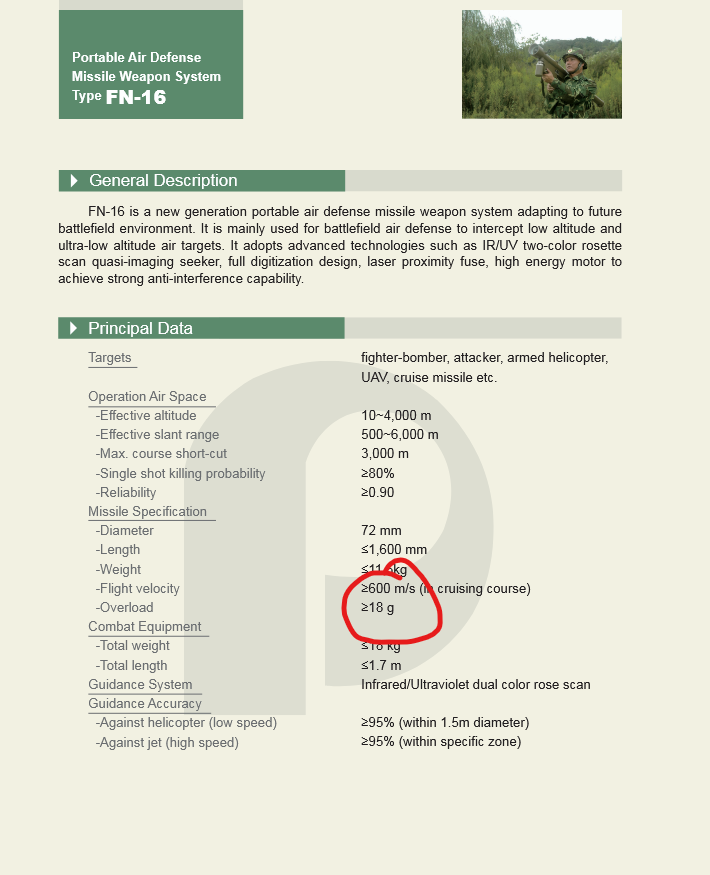

FN-16 is a new generation of individual air defense missile that uses infrared/ultraviolet imaging guidance heads, which can attack in all directions. It has the ability to ignore launch, high accuracy, and strong anti-interference ability. It is mainly used for field air defense, intercepting fixed wing aircraft, helicopters, cruise missiles, and drones invading at low and ultra-low altitudes.This is the foreign trade version of HN-6B, so the performance is almost the same.
- Missile diameter: 72mm
- Weight: 16kg
- Max speed：750m/s
- Range: 500-6000 meters
- Max G load:18G
- Guidance Mode:Infrared / Ultraviolet dual color rosette scanning homing guidance
- Fuze: Laser proximity fuse,1m
