Indonesian Sub-tree: Bhinneka Tunggal Ika!

Yontzee · July 20, 2023, 2:45am

Would you like Indonesia in-game?

Yes
No

0 voters

Indonesian Sub-tree: Bhinneka Tunggal Ika!

Flag of the Republic of Indonesia.

Insignia of the Indonesian Army.

Insignia of the Indonesian Marine Corps.

In-game:
- Description:
  - The country of the Republic of Indonesia is a massive country located in Southeast Asia. Indonesia is a powerhouse of economic development due to it being a G20 member, and recently classified as a newly industrialized country as well as having the 4th largest population in the world at 275 million people. According to Global Firepower, the Indonesian military as a whole is ranked 15th in the world, with 400,000 active duty personnel and over 2,000 land-based vehicles to assert it’s security and sovereignty. The current budget of the military sits around $9.3 billion, allowing Indonesia to meet it’s own security needs. Indonesia has a newly developing arms industry such as PT Pindad, that is able to develop indigenous vehicles and new technology that is able to compete with modern technology of developed arms industries. Indonesia’s arms industry is rapidly modernizing due to its partnerships with established companies such as Turkey’s FNSS, France’s Renault or MBDA, or Belgium’s John Cockerill which allows them to share some specifics on technology. Due to this, Indonesia has developed several unique vehicles ranging from the Harimau Medium Tank to the smaller Komodo 4x4, which would have a unique place in the game War Thunder.

Tree layout, note there are some gaps in Rank I and Rank V that can be addressed in future updates.

One of the issues with the Indonesian Sub-tree is the beginning 3 ranks and rank 5. This is due to the Indonesian utilizing vehicles from other countries like the US, the USSR, and France. The issue is that there would be some copy and paste, however, if combined with a tree that already utilizes the vehicles, then the only thing to do is add Indonesian military camouflage to those vehicles that exist in the tree already.
The location of this sub-tree is up for debate. The Indonesian military draws a lot of their vehicles from France, and Germany, with newer vehicles developed in coordination with Turkey’s FNSS as well as Belgium’s John Cockerill. There is a lot of different options for this Sub-tree. One option is that this sub-tree could also be used to amplify potential ground tree’s such as an ASEAN tree of Turkish tree. The closest however would most likely be with Turkey due to their continuing development of armored vehicles with many more to come. To summarize, this sub-tree would be best to be implemented in support of a minor nation to provide more vehicles to use as well as draw on future potential since more vehicles are being developed. Please comment below on where you think this tree should go!
- List of vehicles included in this tree:
  - Leopard 2RI
  - Harimau Hitam
  - Komodo CPWS Gen 2 (25) - Premium
  - Cobra IFV
  - Komodo Mistral ATLAS
  - AMX-13/Yonkav 2
  - Badak

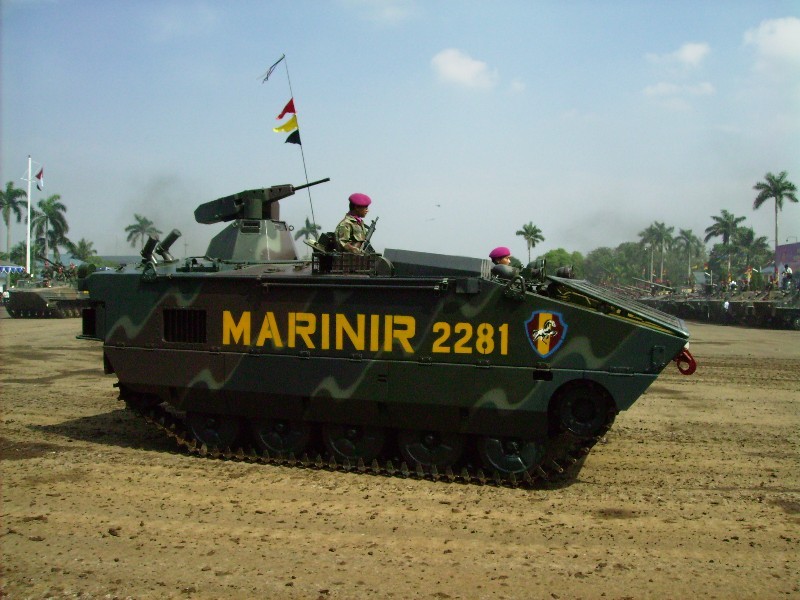

  - AMX-10P Marine

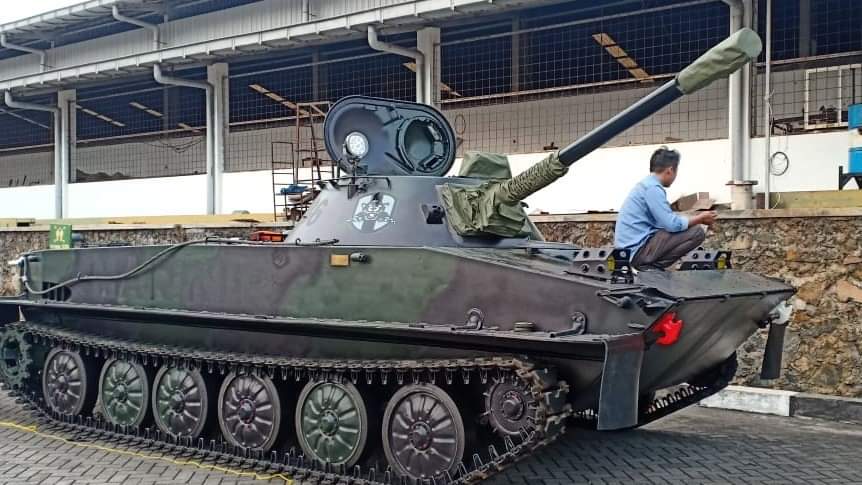

  - PT-76(M)
  - E.B.R. model 1951
  - M4A3(75)W Sherman
  - M3A3 Stuart
- Vehicles not listed in this suggestion but could be considered and/or are a WIP for this Sub-tree:
  - Leopard 2A4+ (MBT)
  - Cobra 8x8 FSV
  - Marder Medium Tank RI
  - Marder 1A3 (IFV)
  - Propad SHORAD Grom (VSHORAD)
  - Komodo Starstreak (VSHORAD)
  - Sherpa MPCV (VSHORAD)
  - VAMTAC ST5 RapidRanger (VSHORAD)
  - M109A4-BE (SPH)
  - BMP-3F (IFV)
  - BVP-2 (IFV)
  - BTR-4M BAU (APC)
  - AMX-13/105 Modèle 58 FL-12 (LT)
  - AMX Mk 61 (SPH)
  - Tarantula 6x6 (FSV)
  - FV101 Scorpion 90 (LT)
  - V-150 FSV (FSV)
  - AMX-13/75 Modèle 52 (LT)
  - FV601 Saladin (LT)
  - Isuzu NPS75 (ZSU-23-2)
  - Type 97 Chi-Ha (LT)
  - Humber Mark IV AC
Disclaimer:
- If any information is incorrect or better sources are located, or other vehicles I’m sure I have missed, please comment them and I’ll be happy to correct it and tag your name in the correction.
- This suggestion is just to provide a blueprint for an Indonesian Sub-tree and is not final. Vehicles such as the Leopard 2RI can be added or removed, depending on what is necessary for inclusion of the tree.

Sub-tree Vehicles:

Leopard 2RI MBT

Spoiler

A Leopard 2RI during an exercise.

Basic Description:
- The Leopard 2RI (Republic Indonesia) is a heavily upgraded Leopard 2A4 for the Indonesian Army. The upgraded vehicle, touted as Rheinmetall’s Revolution package, was first presented at the Eurosatory 2014. The Leopard 2RI is a complete modernization by Germany’s Rheinmetall that is tailored to Indonesia’s environment to include AMAP armor covering the turret and hull, new/modern electronics for all crew members, a new gun brake to allow for firing of high-pressure APFSDS-T rounds like the DM53, fire control system capable of firing programmable HE rounds, A/C modifications, and many other upgrades. The Indonesian Army currently operates 63 Leopard 2RI’s as well as 40 Leopard 2A4’s for a total of 103 Leopard 2’s.
Specifications:
- Role: Main Battle Tank
- Origin/Manufacturer:
  - Germany - Krauss-Maffei
    - Note: Features technology developed from the Indonesian Defense Industry.
- Armament:
  - Primary: Rheinmetall 120mm L/44 Smoothbore Gun
    - Ammunition:
      - APFSDS-T
      - HEAT-T
      - HE-T
    - Feed System:
      - Manual Loader
  - Coaxial: 7.62x51mm Machine Gun
  - Roof Mount: 7.62x51mm Machine Gun
- Dimensions:
  - Length: 7.7m (9.6m w/ Gun Forward)
  - Width: 3.7m
  - Height: 2.8m
  - Weight: ~65t
- Mobility:
  - Engine: 1,500hp - MTU MB 873 Diesel Engine
  - Max Speed: ~70km/h
  - Transmission: RENK HSWL Automatic (8-Forward, 4-Reverse)
  - Suspension: Torsion Bar
Crew:
- Commander
- Gunner
- Loader
- Driver
Modifications:
- 3rd generation-Thermal Imagers
  - User(s):
    - Gunner
    - Commander
    - Driver
- Laser Rangefinder
- Optional Laser Warning System (LWS)
- Armor:
  - AMAP-B Modular Armor
    - Rated at STANAG 4569 Level 5+.
- 16x 76mm Smoke Grenades
In-game:
- The Leopard 2RI is a highly specialized Leopard 2A4 that features improved armor, upgraded gun (capable of firing higher-pressure APFSDS-T rounds like the DM53 and more), and upgraded electronics allowing it to compete very well with other tanks of its rank. The AMAP composite armor takes the best parts of the Leopard 2PL turret and combines them with similar armor values of the Strv 122A/B hull (covering more area), allowing extreme survivability in the front.
- Due to its capabilities, this tank would sit at Battle Rating 11.0+.
Sources:
Imagery:

Leopard 2RI’s and a Leopard 2A4 during exercises.

Leopard 2RI outside of Rheinmetall’s factory.

A Leopard 2RI in Rheinmetall’s factory.

https://www.youtube.com/watch?v=SKY0gxwDbDk

Video of the Leopard 2RI.

Harimau Hitam MT

Spoiler

Purwarupa_Harimau_MT_saat_FAT_(Factory_A

A PT Pindad provided image of the Harimau Medium Tank during acceptance trials.

Basic Description:
- The Harimau (Tiger), also known as the Kaplan or MMWT, is a medium tank developed and produced by both Turkey(FNSS) and Indonesia(Pindad). It is equipped with a Cockerill 3105 turret which features a 105mm High-pressure gun capable of firing GL-ATGM’s. It is also equipped with some of the latest electronics and can be upgraded with APS systems. The Hull armor meets STANAG 4569 Level 4 and can be equipped with modular armor to meet level 5. Due to its weight, it is capable of traversing many roads and bridges as well as the rough Indonesian terrain. This medium tank is being produced for the Indonesian Army with 4 other potential operators including the Philippines, Brunei, and Bangladesh.
Specifications:
- Role: Medium Tank
- Origin/Manufacturer:
  - Indonesia/Turkey - PT Pindad/FNSS
- Armament:
  - Primary: Cockerill 105mm High-pressure Gun
    - Ammunition:
      - APFSDS-T
      - HEAT-T
      - HESH-T
      - HEP-T
      - Canister
      - SMK-WP-T
      - GL-ATGM (Falarick 105)
    - Feed System:
      - 12rd-ready Autoloader
  - Coaxial: 7.62x51mm Machine Gun
  - Roof Mount: 7.62x51mm Machine Gun
- Dimensions:
  - Length: 7.0m (9.1m w/ Gun Forward)
  - Width: 3.2m
  - Height: 2.7m
  - Weight: 32t (35t w/ addon armor)
- Mobility:
  - Engine: 711hp - Caterpillar C13 Diesel Engine
  - Max Speed: 70km/h
  - Transmission: Allison/Caterpillar X300 Automatic (4-Forward, 2-Reverse)
  - Suspension: Torsion Bar
Crew:
- Commander
- Gunner
- Driver
Modifications:
- 3rd generation-Thermal Imagers
  - User(s):
    - Gunner
    - Commander
- Night Vision Device (NVD)
  - User(s):
    - Driver
- Laser Rangefinder
- Optional Laser Warning System (LWS)
- Armor:
  - STANAG 4569 Level 4 Armor
    - Capable of withstanding 14.5mm projectiles and 155mm shell splinters.
  - STANAG 4569 Level 5 Modular Armor
    - Capable of withstanding 25-30mm projectiles.
  - Underbelly mine protection.
- 8x 76mm Smoke Grenades
In-game:
- The Harimau is a medium tank that would add a unique spin to top ranked vehicle play by adding a highly effective vehicle mounting a modern 105mm gun capable of firing a variety of ammunition including ATGM’s. The Harimau can equip modular armor similar to many vehicles already implemented in game and would fit well as a Tier IV modification alongside the ATGM.
- Due to its capabilities, it would sit around Battle Rating 10.0.
Sources:
Imagery:

A Harimau prototype on parade in Indonesia.

indonesian-army-harimau-medium-tank-succ

A series of images from PT Pindad showing the Harimau MT undergoing acceptance trials.

342793046_CockerillTurret.jpg.bd3c78c20d

Layout of the Cockerill 3105 turret used on the Harimau MT.

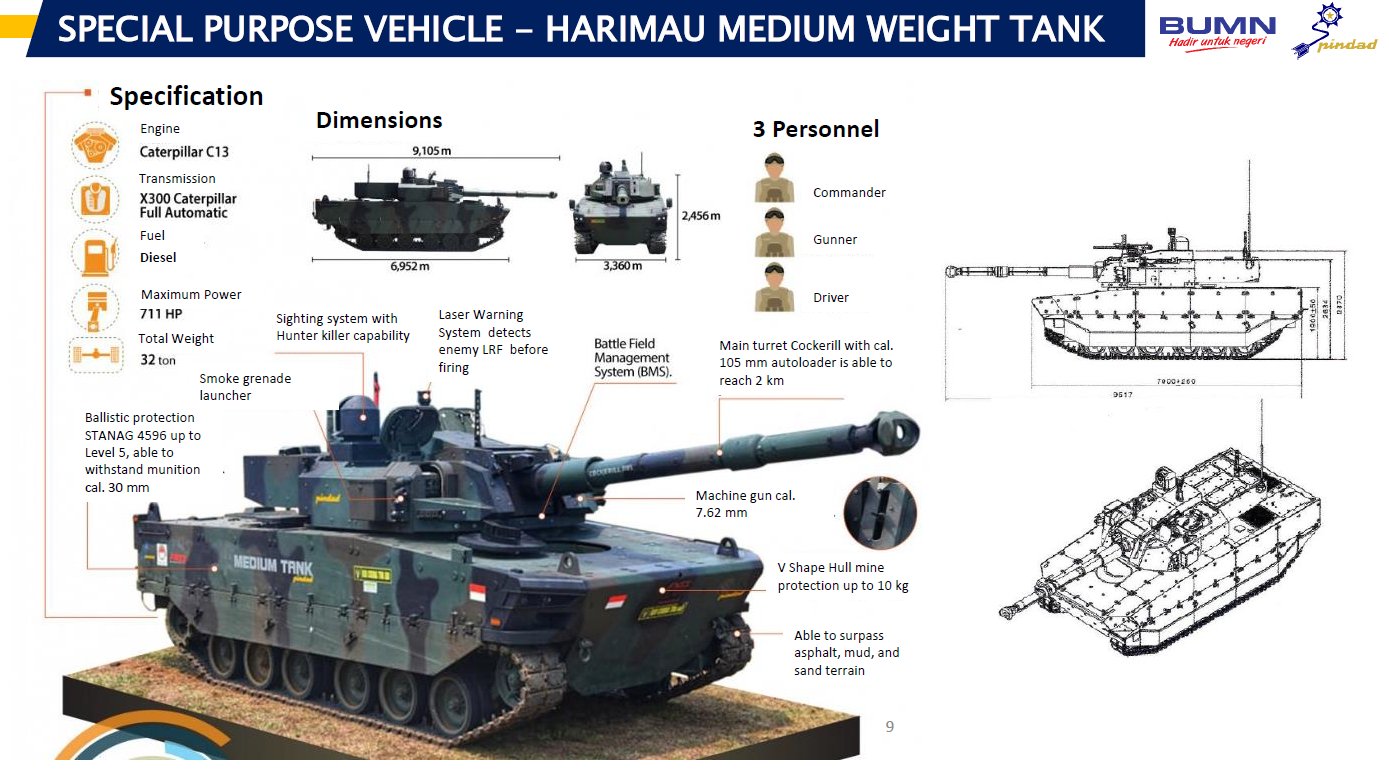

Layout of the Harimau MT.

https://youtu.be/7UggKN71arY

Video of the Harimau MT.

https://youtu.be/rsr46TX0Gzw

https://youtu.be/Wg0OP2wgfsE

Videos of Indo Defence 2018 showing operation of the Harimau MT.

Komodo CPWS Gen. 2 (25)

Spoiler

IndoDefence_2018_PT_Pindad_and_CMI_Defen

Komodo CPWS Gen. 2 (25) on display during Indo Defence 2018.

Basic Description:
- During Indo Defence 2018, a Pindad Komodo 4x4 was revealed on the 2nd day featuring the Cockerill SPWS Gen.2 Turret equipped with a 25mm M242 Bushmaster as well as 2 100mm Alcotán-100 un-guided anti-tank missiles. This vehicle features improved crew survivability by allowing the crew to reload the main gun from the inside of the vehicle as well as the ability to equip the 25mm M242 Chain Gun, a 30mm M230LF Chain Gun, as well as a variety of ATGM’s depending on the ordering country’s needs. As of now, there are no Komodo’s equipped with the CPWS Gen. 2 in service, however are available for purchase through PT Pindad and John Cockerill Defense.
Specifications:
- Role: APC/Anti-Tank
- Origin/Manufacturer:
  - Indonesia - PT Pindad/John Cockerill Defense
- Armament:
  - Primary: 25mm M242 Chain Gun
    - Ammunition:
      - APFSDS-T
      - APDS-T
      - HEI-T
    - Feed System:
      - Dual-Belt Fed
  - Coaxial: 7.62x51mm Machine Gun
  - ATM: Alcotán-100
    - Missile Types:
      - ALOCOTAN-AT
      - ALOCOTAN-BIV
      - ALOCOTAN-ABK
      - ALOCOTAN-MP

Dimensions:
- Length: 5.9m
- Width: 2.3m
- Height: 2.5m
- Weight: ~10.5t
- Mobility :
  - Engine: 215hp - Renault Inline 6cyl Diesel Engine with Turbo Charger Intercooler
  - Max Speed: 70-80km/h
  - Transmission: Manual (6-Forward, 1-Reverse)
  - Suspension: 4x4
Crew:
- Commander
- Gunner
- Driver
Modifications:
- 3rd generation-Thermal Imagers
  - User(s):
    - Gunner
    - Commander (Commander’s Independent Viewer)
- Night Vision Device (NVD)
  - User(s):
    - Driver
- Laser Rangefinder
- Optional Laser Warning System (LWS)
- Armor:
  - STANAG 4569 Level 3
- 12x 76mm Smoke Grenades
In-game:
- This is a fast, highly capable vehicle capable of using a powerful M242 Chain gun like the one on the M3A3 Bradley as well as Spanish ATGM’s able to knock out MBT. With it’s high speed, this vehicle would be able to flank tanks and either using its ATGM’s to knock the vehicle out or it’s chain gun with APFSDS-T able to knock out modules, it would make an excellent flanker, scout, ambush vehicle, or point capturer. One thing to note is the Alcotán-100’s are very limited in range, 600m for the Anti-Tank warhead, ~1km for airburst/area affect and would require this vehicle to get uncomfortably close to targets in some cases. Low flying aircraft/helicopters however could be very vulnerable due to the fragmented airburst capabilities.
- Due to its capabilities, it would sit around Battle Rating 9.0-9.3.
Sources:
Imagery:

Pindad_Komodo_dengan_CPWS_generasi_2_di_

Komodo CPWS Gen. 2 (25) ATGM during a maneuver at Indo Defence 2018.

Komodo CPWS Gen. 2 (25) ATGM on display.

https://youtu.be/uxcQK9tVmD8

Indo Defence 2018 views of the Komodo CPWS Gen. 2 (25) ATGM.

Cobra IFV

Spoiler

A PT Pindad Cobra 8x8 IFV on display.

Basic Description:
- The Cobra IFV is an Austrian Pandur II produced under license by PT Pindad featuring the unmanned Elbit System’s U30Mk.II turret using the 30mm Bushmaster II and 7.62mm Machine Guns. A contract was issued in 2019 to order 22 vehicles with an estimated total future purchase of up to 250 vehicles for the Indonesian Army. The Cobra IFV was designed to be amphibious and to cross the terrain and wetlands of the Indonesian countryside. The Cobra IFV features some of the latest equipment such as the Elbit System’s U30MK.II unmanned turret which significantly increases crew survivability, the Pillar V which is designed to locate bearings (and possible range based on triangulation) to locate incoming fire, an optional Laser Warning System, as well as the latest generation Thermal Imagers for the Commander and Gunner. The engine is located in the front of the vehicle and crew compartment in the rear. The driver is located next to the engine. The Cobra IFV’s standard armor meets STANAG 4569 Level I, however Rafael of Israel produces addon armor that allows the vehicle to survive against 14.5mm projectiles, effectively bringing the vehicle to STANAG 4569 Level IV. The Cobra IFV’s inclusion alongside other vehicles like the Harimau MT significantly increases the capabilities of the modern Indonesian Army.
Specifications:
- Role: Infantry Fighting Vehicle
- Origin/Manufacturer:
  - Austria - PT Pindad/Multiple
- Armament:
  - Primary: 30mm Bushmaster II
    - Ammunition:
      - APFSDS-T
      - AP-I
      - SAPHEI-T
      - HEI-T
    - Feed System:
      - Dual-Belt Fed
  - Coaxial: 7.62x51mm Machine Gun
- Dimensions:
  - Length: 7.8m
  - Width: 3.3m
  - Height: 3.3m
  - Weight: 22.6t
- Mobility:
  - Engine: 455hp - Cummins EURO III Turbo-Intercooled Diesel Engine
  - Max Speed: 80km/h on Road - 8km/h in Water
  - Transmission: ZF 6HP602c Automatic (6-Forward, 2-Reverse)
  - Suspension: Wheeled 8x8
Crew:
- Commander
- Gunner
- Driver
Modifications:
- 3rd generation-Thermal Imagers
  - User(s):
    - Gunner
    - Commander
- Night Vision Device (NVD)
  - User(s):
    - Driver
- Laser Rangefinder
- Metravib Pillar V Crew Warning System
  - Can detect incoming gunfire and will provide bearing of origin.
- Armor:
  - Hull: STANAG 4569 Level I
    - Addon passive armor by Rafael can be applied to meet STANAG 4569 Level IV.
  - Turret: STANAG 4569 Level III
- 8x 76mm Smoke Grenades
- Amphibious
In-game:
- The Cobra 8x8 IFV would easily be able to prove itself as a highly capable vehicle, being able to maneuver quickly as well as use its Pillar V to (relatively) locate enemy vehicles. Using its 30mm cannon, it will be able to easily take out targets and retreat without much notice.
- Due to its capabilities, it would sit around Battle Rating 9.0.
Sources:
Imagery:

Different views of the Cobra IFV on display.

Pillar V promotional image.

The Pillar V Crew Warning System utilizes multiple microphones to locate enemy fire.

Komodo Mistral Atlas SPAA

Spoiler

Pindad Komodo Mistal Atlas anti-aircraft vehicle during a parade.

Basic Description:
- The Komodo Mistral ATLAS is a VSHORAD vehicle developed between PT PINDAD and MBDA of France. The Komodo 4x4 platform itself, developed by Indonesia is loosely based on the French Renault Sherpa vehicle. The Komodo 4x4 was designed to meet local requirements by being well protected, cheap, and modular, allowing multiple weapon platforms to be equipped suiting the needs of the Indonesian Army or export customers. In this case, the Indonesian Army equipped the Komodo 4x4 with the MBDA Mistral ATLAS platform, a dual Mistral launcher with enhanced electronics allowing the operator to target aircraft, drones, or helicopters up to 7.5km depending on the type of Mistral missile used. The platform requires the gunner to be seated on the missile launcher, exposing the gunner to enemy fire. The Mistral ATLAS can receive targeting data from Mistral Co-ordination Posts (MCP) which featuring a search RADAR to target incoming threats or fire independently through 3rd-generation electro-optical sighting equipment located on the ATLAS launcher. The Komodo Mistral ATLAS is currently in use with the Indonesian Army with over a 100 Komodo 4x4’s of different variants in service.
Specifications:
- Role: Very Short Range Air Defense (VSHORAD)
- Origin/Manufacturer: Indonesia/France - PT Pindad/MBDA
- Armament:
  - Primary: Mistral ATLAS Dual-missile System
    - Mistral 2
      - Speed: 930m/s (up to 30G’s)
      - Tracking: Fire-and-Forget, IR, All-Aspect
      - Weight: 19.7kg
      - Length: 1.86m
      - Diameter: 90mm
      - Maximum Intercept Range: 6.5km
      - Minimum Intercept Range: 500m
      - Maximum Altitude: 3km
      - Reaction Time: 2 Seconds
    - Mistral 3
      - Speed: 930m/s (up to 30G’s)
      - Tracking: Fire-and-Forget, IR, All-Aspect
      - Weight: ~20kg
      - Length: 1.86m
      - Diameter: 90mm
      - Maximum Intercept Range: 7.5km
      - Minimum Intercept Range: 500m
      - Maximum Altitude: 3km
      - Reaction Time: 2 Seconds
      - Note: The Mistral 3 has an improved seeker that provides significant capabilities over the Mistral 2.
    - Feed System:
      - Manual Reload
- Dimensions:
  - Length: 6.3m
  - Width: 2.3m
  - Height: 2.4m
  - Weight: ~7.5t
- Mobility :
  - Engine: 215hp - Renault Inline 6cyl Diesel Engine with Turbo Charger Intercooler
  - Max Speed: 80km/h
  - Transmission: Manual (6-Forward, 1-Reverse)
  - Suspension: 4x4
Crew:
- Commander
- Gunner
- Loader
- Driver
Modifications:
- Mistral ATLAS System
  - 3rd-Generation Optical Sight:
    - User(s):
      - Gunner
- Night Vision Device (NVD):
  - User(s):
    - Commander
    - Driver
- Armor
  - STANAG 4569 Level 3
In-game:
- The Komodo ATLAS Mistral features the powerful Mistral 3 anti-aircraft missile that is capable of 7.5km of range. Its capabilities allow excellent tracking to eliminate anything from helicopters to aircraft without being detected utilizing its optical sight. The main drawback is its gunner is exposed to enemy fire which will require the player to stay completely out of sight unless trying to capture a point quickly. Having a crew of 4 however, will allow players to make a comeback if there gunner is killed.
- Due to its capabilities (powerful missile, maneuverability, and over-exposed gunner), it would sit around Battle Rating 9.0.
Sources:
Imagery :

Imagery provided by the manufacturer, PT Pindad.

Rear view of the Komodo ATLAS Mistral vehicle.

View of the launcher.

View of the commander’s station as well as driver.

AMX-13/Yonkav 2 LT

Spoiler

Yonkav 2 featuring enhanced armor.

Basic Description:
- The Yonkav 2, also known as the AMX-13 Refit is a light tank originating from France that has been upgraded by the Indonesian Defense Industry. The Yonkav 2 underwent two modernizations, one in 1995 featuring a new Detroit Diesel engine and Automatic Transmission, and the Dunlostrut Suspension to increase off-road performance. Another modernization was conducted in 2014 which added a newer 320hp diesel engine by Navistar (which required the hull to be extended), improved armor on the LFP, and UFP, as well as addon armor for the turret in urban operations. Another part of this upgrade included a new Fire Control System featuring 3rd-generation thermal viewers, new 105mm main gun, and a thermal imager/FLIR camera for the driver. The new FCS is designed to further offset the aiming of the unstabilized main gun. The idea of this upgrade was to prolong the life of the Yonkav 2 until newer vehicles such as the Harimau MT are produced in quantity. The Yonkav 2 is still in use by the Indonesian Army and around 250 different models of AMX-13 remain in serivce.
- For this suggestion, this version of the Yonkav 2 is the 2014 refit.
Specifications:
- Role: Light Tank
- Origin/Manufacturer: France/Indonesia - Multiple
- Armament:
  - Primary: 105mm Smoothbore Gun
  - Note: A replacement gun was provided during the 2014 refit, unknown if its the same model of gun or new production.
    - Ammunition:
      - APFSDS-T
      - HEAT-T
      - HE-T
    - Feed System:
      - Autoloader
  - Coaxial: 7.62x51mm Machine Gun
  - Roof Mount: 7.62x51mm Machine Gun
- Dimensions:
  - Length: ~6.50-6.55m
  - Width: 2.51m
  - Height: 2.35m
  - Weight: 15-16t
- Mobility:
  - Engine: 320hp - Navistar Diesel Engine
  - Max Speed: 60km/h+
  - Transmission: ZF 5WG-180 Automatic Transmission (5-Forward, 2-Reverse)
  - Suspension: Torsion Bar
Crew:
- Commander
- Gunner
- Driver
Modifications:
- 3rd generation-Thermal Imagers
  - Users:
    - Gunner
    - Driver
- Night Vision Device:
  - User(s):
    - Commander
- Laser Rangefinder
- Armor:
  - Unknown values of urban armor kit.
  - Unknown values of UFP/LFP post-modernization.
- 6x 76mm Smoke Grenades
In-game:
- The Yonkav 2 would be the epitome of the AMX-13 series vehicles found in-game. Featuring new armor, thermal imagery, enhanced FCS for more accurate shots, this vehicle would be a quick shoot-n-scoot vehicle capable of scouting and capturing ahead of the main group. This vehicle would still suffer from the same fate of all oscillating turreted vehicles, an unstabilized gun/turret uncapable of firing effectively on the move.
- Due to the capabilities of this vehicle, it would best sit around Battle Rating 8.7.
Sources:
- AMX-13 Retrofit TNI AD: Tetap Andalkan Meriam dengan Kubah Osilasi
- AMX-13 Indonesia - TankNutDave.com
- Redirecting...
- AMX-13 - Wikipedia
- The French AMX-13-105 Tank (Medium Tank AMX-13/105)
- Army Guide
  - Disclaimer: Sources are limited on vehicle. If more information is available, please post in comments with sources. Thank you!
Imagery:

Yonkav 2 on display.

Rear view of the Yonkav 2.

https://youtu.be/KWO15TOuNcA

Tank driver of the Yonkav 2 showing the turning capabilities of the vehicle.

https://youtu.be/_ywBKMmg4cI

Video describing the Yonkav 2.

Badak FSV

Spoiler

A Pindad Badak Fire Support Vehicle (FSV).

Description:
- The Badak is a fire support vehicle (FSV) developed by PT Pindad of Indonesia that entered service with the Indonesian Army in 2021. Development began in the late 2000’s, with the mounting of the Alvis AC Turret with the Cockerill 90mm MkIII M-A1 Low-pressure Gun on the 6x6 Anoa APC to provide Indonesia with a lightweight FSV capable of navigating the hostile mountainous terrain. In 2014, a complete version of the Badak was displayed at the Indo Defense & Aerospace of 2014 which featured the two-person CMI Defense CSE 90LP turret equipped with the Cockerill 90mm MkIII M-A1 Low-pressure Rifled Gun, Laser Warning System, and more. The turret armor meets STANAG 4569 Level 1 protection that can be upgraded to level 4. The Badak hull is armored with STANAG 4569 Level 3 protection which protects against 12.7mm caliber rounds. It also utilizes a 6x6 dual-wishbone suspension that differentiates itself from the Anoa APC which it was based on. This suspension system increases stability while firing the main gun. On the inside, the driver is placed on the right side next to the engine on the left. The turret with the gunner and commander are placed in the middle and behind them is storage for ammunition. This design is pretty typical of similar fire support vehicles (FSV) that enhances protection and crew survivability. Originally 50 Badak FSV’s were ordered, however the order was reduced to 14. As of January 2022, 7 have been delivered.
Specifications:
- Role: Fire Support Vehicle (FSV)
- Origin/Manufacturer: Indonesia/PT Pindad
- Armament:
  - Primary: Cockerill 90mm MkIII M-A1 Low-pressure Rifled Gun
    - Ammunition:
      - APFSDS-T
      - HEAT-T
      - HESH-T
      - HE-T
      - Canister
      - SMK-WP-T
  - Coaxial: 7.62x51mm Machine Gun
  - Roof Mount: 7.62x51mm Machine Gun
- Dimensions:
  - Length: 6.0m
  - Width: 2.5m
  - Height: 2.9m
  - Weight: ~16.5 tons
- Mobility:
  - Engine: 340hp – Turbo-charged Intercooler Diesel Engine
  - Max Speed: ~80km/h
  - Transmission: ZF S6HP502 Automatic Transmission (6-Forward, 1-Reverse)
  - Suspension: Double-wishbone 6x6
Crew:
- Commander
- Gunner
- Driver
Modifications:
- 3rd generation-Thermal Imagers
  - Users:
    - Gunner
    - Commander
- Laser Rangefinder
- Optional Laser Warning System (LWS)
- STANAG 4569 Level 3 Armor
  - Note: Turret is rated STANAG 4569 Level 1 protection but can be upgraded to STANAG 4569 Level 4.
- 8x 76mm Smoke Grenades
In-game:
- The vehicle would operate similarly to the PTL-02/WMA301 with less firepower however can withstand heavier punishment. It features a wide variety of ammunition for different circumstances. It is a light, highly capable vehicle than can be used as a light tank or tank destroyer.
- Based on its capabilities (i.e. APFSDS-T, Armor, Electronics) it would most likely be based suited around the battle rating 8.0-8.3.
Sources:
Imagery:

An early version of the Badak FSV.

Late version of the Badak FSV used by the Indonesian Army.

Badak FSV being offloaded from a transport vehicle.

https://youtu.be/p4oxaeXAox4

News video describing the late version of the Badak FSV.

AMX-10P PAC 90

Spoiler

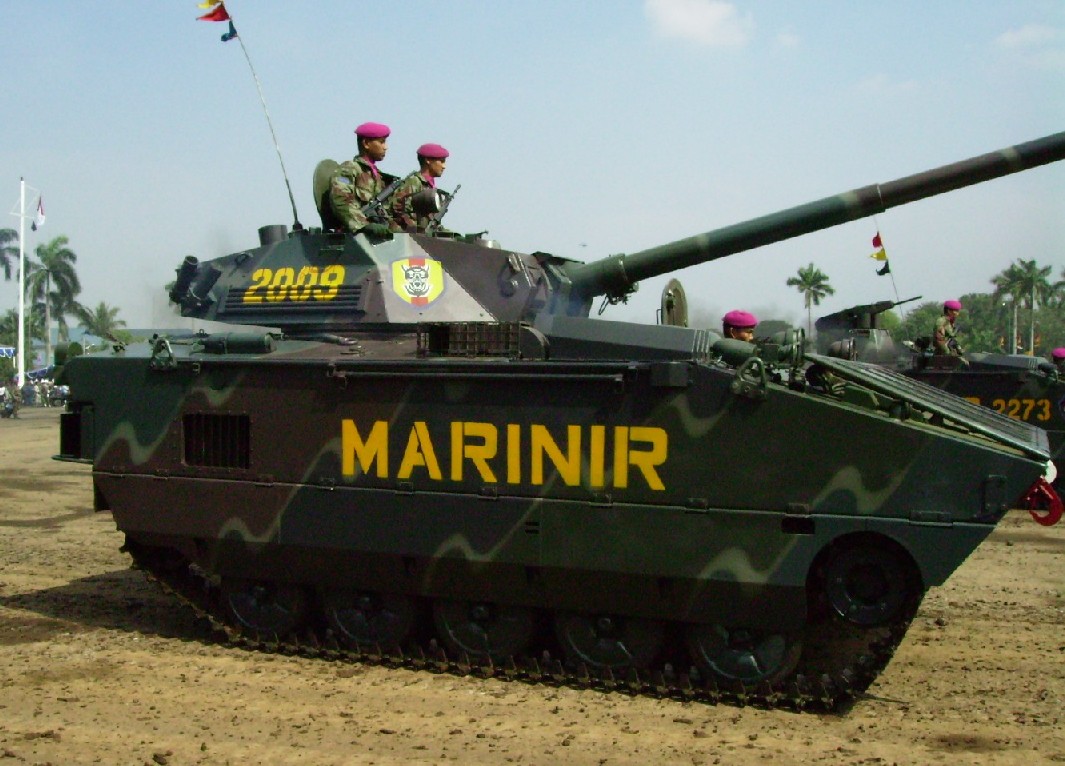

An AMX-10P PAC 90 of the Indonesian Marine Corp during exercises.

Description:
- The AMX-10P PAC 90, or AMX-10P Marine, is a fire support variant of the AMX-10P infantry fighting vehicle of France’s GIAT Industries, also known as NEXTER Systems. The AMX-10P PAC 90 originally began production in 1979 and was the mating of the TS90 with the CN40 F4 90mm gun to the AMX-10P chassis to provide a cheap, export variant of the AMX-10P designed for amphibious assault purposes. The AMX-10P PAC 90 has service with a few countries such as in the Indonesian Marine Corp or the Singaporean Army. As of 2022, the Indonesian received modernized AMX-10P PAC 90’s that feature enhanced electronics as well as improved amphibious capabilities that will continue to serve in the Indonesian Marine Corp for years to come.
Specifications:
- Role: Amphibious Light Amphibious Tank
- Origin/Manufacturer: France - GIAT Industries
- Armament:
  - Primary: 90mm CN40 F4 HV Rifled Gun
    - Ammunition:
      - APFSDS-T
      - HEAT-T
      - HE
      - Smoke
  - Coaxial: 7.62mm Machine Gun
  - Roof Mounted: 7.62mm Machine Gun
- Dimensions:
  - Length: 5.87m
  - Width: 2.83m
  - Height: 2.73m
  - Weight: ~16t
- Mobility:
  - Engine: 280hp - Hispano Suiza HS 115 Diesel Engine
  - Max Speed: 65km/h (8km/h in Water)
  - Transmission: Automatic Transmission (4-Forward, 1-Reverse)
  - Suspension: Torsion Bar
Crew:
- Commander
- Gunner
- Driver
Modifications:
- Night Vision Device(s) (NVD)
  - Users:
    - Gunner
    - Driver
    - Commander
- Laser Rangefinder
- Amphibious
- 4x 76mm Smoke Grenade Launchers
In-game:
- Based on its capabilities and unstabilized main gun, it would most likely be best suited around the Battle Rating 8.0.
Sources:
Imagery:

AMX-10P_PAC_90.jpg.0ce0336ebdb33dc3bb838

An AMX-10P PAC 90 on display.

pac90_03.jpg.842605e4f7f7c58b009dffecf33

Layout of the AMX-10P PAC 90.

https://youtu.be/j7jPfiZnp4g

Video depicting the AMX-10P PAC 90.

PT-76(M) LT

Spoiler

A PT-76(M) during maintenance.

Description:
- The PT-76(M) is an Indonesian upgrade to the Soviet PT-76 that were acquired in 1962 alongside the BTR-50. In the 1990’s, Indonesia upgraded there PT-76’s to the designation PT-76(M) featuring several upgrades including a new Cockerill 90mm MKIII Low-pressure Gun, new Detroit Diesel Engine coupled to the original transmission, several fire control modifications, as well as other upgrades that bring the PT-76 to modern levels. These new PT-76(M)'s were used in service with the Indonesian Marine Corp, conducting amphibious operations during the Insurgency of Aceh in the early 2000’s and continue to serve today. In 2020, another upgrade program was initiated with Ukraine through Ukrspetsexport which includes an APS system, a new Cummins Diesel Engine, and the possible inclusion of the Falarick 90 GL-ATGM. Modifications will have to be made to the gun due to the muzzle brake preventing certain ammunition from being fired such as APFSDS-T. It is unknown if the upgrades took place or are delayed due to recent events.
Specifications:
- Role: Amphibious Light Tank
- Origin/Manufacturer: U.S.S.R./Indonesia - Kirov Factory/PT Pindad
- Armament:
  - Primary: Cockerill 90mm MkIII Low-pressure Gun
    - Ammunition:
      - HEAT-T
      - HESH-T
  - Coaxial: FN MAG 7.62x51mm Machine Gun
- Dimensions:
  - Length: 7.6m
  - Width: 3.14m
  - Height: 2.3m
  - Weight: ~15t
- Mobility:
  - Engine: 300hp - Detroit Diesel 6V-92T Diesel Engine
  - Max Speed: 58km/h (9km/h in Water)
  - Transmission: Manual Transmission (4-Forward, 1-Reverse)
  - Suspension: Torsion Bar
Crew:
- Commander
- Gunner
- Driver
Modifications:
- Night Vision Device(s) (NVD)
  - Users:
    - Gunner
    - Driver
    - Commander
- Laser Rangefinder
- Amphibious
In-game:
- The PT-76(M) is an excellent light tank of the Indonesian Marines. Capable of amphibious operations as well as a more powerful gun than the standard PT-76’s, this vehicle would excel at water based maps and flatter terrain. However, with its light armor and lack of smoke grenades, players will have to plan their shots accordingly.
- Based on its capabilities, it would most likely be best suited around the Battle Rating 6.3-6.7.
Sources:
Imagery:

Multiple images of the PT-76(M).

https://youtu.be/UkT7uBop3dQ

Video depicting the PT-76(M).

E.B.R. model 1951 AC

Spoiler

q90tfxh4cim71.jpg?auto=webp&s=89ebb4449b

An Indonesian Army Panhard EBR model 1951 in the Satria Mandala Museum.

Description:
- The Panhard E.B.R. model 1951 is an Armored Car that was in service with the Indonesian Army. Not much is known on the history or the quantity used in Indonesia, however, the were believed to be retired in the early 1960’s. Two can be found in Indonesia today, one at the Satria Mandala Museum in South Jakarta and one on a monument in South Bandung near the Indonesian Army School (SESKOAD).
- Since this vehicle is already in-game and exhibits the same values, I will not go into detail.
Sources:
Imagery:

hq720.jpg?sqp=-oaymwEhCK4FEIIDSFryq4qpAx

More images of the Panhard EBR model 1951 in the Satria Mandala Museum.

Panhard EBR model 1951 in South Bandung.

https://youtu.be/vDpa4vg47iU

Walkaround of the Indonesian Panhard E.B.R.

M4A3(75)W Sherman MT

Spoiler

M4A3(75)W Sherman’s of the KKO Tank Battalion.

Basic Description:
- The M4A3(75)W Sherman is a development of the M4 Sherman used during WWII as well as Post-War engagements. The M4A3(75)W Sherman’s in Indonesia were originally used by the British before being turned over to the Dutch. After Indonesia declared Independence on August 17th, 1945, the Dutch used them against Indonesian Independence Forces until the Netherlands recognized the Independence of Indonesia in 1949 after 4 years of intense warfare. Following negotiations, the Netherlands donated the M4A3(75)W’s to the newly formed Indonesian Army. The M4A3(75)W Sherman’s were seen in use into the early 1960’s with the inauguration of the KKO Tank Battalion of the Indonesian Marine Corps, back then the Korps Komando (KKO).
- This vehicle is not in-game however, it is a combination of the M4A2(75) turret and the hull of the M4A3(76)W with shared values in-game.
Sources:
- https://www.indomiliter.com/m4a3-sherman-sejarah-tank-pertama-korps-marinir-tni-al/
Imagery:

Layout of the M4A3(75)W Sherman.

Former U.S. Army M4A3(75)W Sherman used as a reference.

M3A3 Stuart LT

Spoiler

An Indonesian Army M3A3 Stuart in the Satria Mandala Museum.

Description:
- The M3A3 Stuart was a . The M3A3 Stuarts were used by the Dutch against Indonesian Independence forces from 1945 until 1949. After the Dutch recognized the Independence of Indonesia, M3A3 Stuarts were adopted by the newly formed Indonesian Army and used in several engagements from 1950 until 1965. There is one M3A3 Stuart (unit 240-32) in operation of the Indonesian Army today for ceremonial purposes, featuring all original parts with the exception of a fire extinguisher and a decorative communications antenna.
- With the M3A3 Stuart in-game, this M3A3 would match the values of the in-game variant.
Sources:
Imagery:

Another view of the M3A3 Stuart in the Satria Mandala Museum.

M3A3 Stuart of the Pusdikav.

Indonesian_military_M3A3_and_M3_Stuart,_

Indonesian Army M3A3’s and M3A1’s in Bandung, 1950.

https://youtu.be/h3H8tYXWuI8

Walkaround of the M3A3 Stuart of the Indonesian Army in the Satria Mandala Museum.

Thanks for viewing!

DarkFlameMasterx · August 1, 2023, 11:06pm

+1

Merkko · August 2, 2023, 12:06am

+1, can’t see it implemented rn. Perhaps when Turkey is going to be added.

Optical_Ilyushin · August 2, 2023, 12:49am

+1, ideally I’d love to see an ASEAN tree, and of course Indonesia would provide quite a strong core for such a prospect.

RaMocca · October 4, 2023, 8:56am

Here Some Picture of indonesian Vehicle that Using Starstreak

Spoiler

image1080×607 60.5 KB

image1080×607 76 KB

image1440×737 120 KB

RaMocca · October 4, 2023, 9:21am

Harimau At PT Pindad

Spoiler

Some Picture of indonesian Leopard 2 RI

Spoiler

M109A4

Spoiler

Leopard 2A4 during Super Garuda Shield 2023

Spoiler

NFrost51 · November 6, 2023, 10:15pm

Very nice, here are some additional vehicles & small info+images that can be added to the sub-tree as well:

MML (Mobile Missile Launcher) Poprad (Grom)

Spoiler

The vehicle fires Grom missiles, which has a weight of 10.5kg (16.5kg with the launcher) with a diameter of 72mm, and 1,566mm in lenght. Has a Firing range from 5,5 km horizontal to 3-4km vertical, with a minimum firing range of 10m. It can chase targets up to speeds of 650m/s. The missile is a fire-and-forget missile with infrared guidance

Its a part of the “Kobra” defense system, but it can function alone without the need of additional battery command vehicles, as the commander is the one who operates the weapon, sitting beside the driver (2 crew). The components are mounted upon a lengthened 6×6 Land Rover Defender chassis (Polish modification Huzar). The vehicle carries 4 missiles in the tube and 4 additional missiles in storage.

360 view: https://www.youtube.com/watch?app=desktop&v=lSGOCoktxTM
Source:
Grom: Arhanud TNI AD Main Missile [Translated]
Poprad Users (Indonesia)

- Identical vehicles from other tech-trees

M3A1

Spoiler

Indonesia inherited both the A3 and the A1 versions of the Stuart from the KNIL

M8 Greyhound

Spoiler

was primarily used by the Indonesian Police

PT-76B (stock/pre-upgrade)

Spoiler

Used by the Indonesian Marine Corps during the Maluku sectarian conflict and Invasion of East Timor

BTR-80A

Spoiler

Used by the Indonesian Marine Corps and currently with INDOBATT on the UNIFIL mission in Lebanon

AMX-13/75 (FL-10)

Spoiler

Modèle 51, used to be the main tanks of the Indonesian Armed Forces, totaling over 120+

AMX-10P Marine (20mm)

Spoiler

armed with the 20 mm F2/M693 autocannon

BVP-2

Spoiler

Czechoslovak-produced version of BMP-2, pretty much identical

- Identical vehicles from other nations that have not been added to the game yet

Sherpa MPCV (Mistral)

Spoiler

The platform is the station wagon variant, the launcher with four Mistrals is operated manually or using RCWS (remote control weapon system) within the cabin of the vehicle. In addition, this launcher model is fitted with a 12.7 mm caliber heavy machine gun

Sherpa Light Specifications

Manufacturing: Renault Trucks

Crew: 4 or 5

Dimensions: 5.43 x 2.36 x 2.13 meters

Wheel base: 3.54 meters

Internal volume: 7m3

Max speed: 110 km per hour (on roads)

Cruising range: 1,000 km at an average speed of 60 km per hour

source : Renault Sherpa Light: Commander Of The Mistral RCWS Missile Arhanud TNI AD [Translated]

AMX-13/105 (FL-12)

Spoiler

Modèle 58, Fitted with a CN 105-57 105 mm Gun in an FL-12 turret, not to be confused with the Yonkav 2 (AMX-13/105 Retrofit) which is a 2014 upgrade of the AMX-13 fleet

- Other variants/versions of vehicles present in other tech-trees

M109A4 (BE)

Spoiler

Improved versions of M109A2/A3s for nuclear, chemical, and biological protection, in addition the traversing mechanism’s clutch was changed from electric to hydraulic and gained a second hydraulic filter and more reliable engine

BMP-3F

Spoiler

Similar in function to the stock BMP-3, designed for prolonged use at sea with the dozer removed and with the addition of a lightweight anti-surge vane on the turret

might add more if i find anything on a later date.

for the identical vehicles, maybe it can be marked with " ⬠ " to differentiate it with the others, since that’s the main roundel of both the Air Force and the Armed Forces

Spoiler

AspandaIV · November 7, 2023, 12:25am

+1

NFrost51 · November 10, 2023, 11:59pm

here are some more videos of the aforementioned vehicles:

M3A1 Stuart

Spoiler

https://www.youtube.com/watch?v=evDIgQwS5IQ

PT-76B

Spoiler

https://www.youtube.com/watch?v=JQdX6rRgzos

BMP-3F

Spoiler

https://www.youtube.com/watch?v=Tlg88jvPars

Marder 1A3

Spoiler

https://www.youtube.com/watch?v=XVDr_mEatsk

Leopard 2RI

Spoiler

https://www.youtube.com/watch?v=Aulss3MiIV4

Komodo Mistral Atlas SPAA

Spoiler

https://www.youtube.com/watch?v=pWIPwjFo_KY
https://www.youtube.com/watch?v=E9tZIvEd2V8

SmørentheBustard · November 11, 2023, 12:01am

Looks like another copy paste. Not very interesting.

NFrost51 · November 11, 2023, 2:57am

well that’s why this would be better off as a sub-tree rather than a full tech tree. And it could function similarly to Norway in-game where only a few vehicles are put in rather than the whole lot

AspandaIV · November 11, 2023, 3:32am

Even though this is a suggestion for Indonesian ground sub TT I feel like posting some Indonesian Aircraft more specifically AT-33’s & F-51’s here

t-33-04

You can tell by both images that Indonesia used different secondary weapon loadouts for said aircraft like the Oerlikon 80cm rockets found on the Israeli Spitfires and Swiss Hunters as well as a different Napalm Bomb

Kingtiez · November 11, 2023, 6:54am

Perhaps, an option for Japan? I’m not exactly sure.

SmørentheBustard · November 11, 2023, 8:30am

That good idea, but what would be the point though. It is still just copy and paste right? Truth of the matter is, many modern tanks build on the same proven designs, it would be so much cooler to see more unique desings, for that I believe you have to go back to ealier development of tanks than the Mid/late cold war

Xermaz · November 11, 2023, 9:42am

well asking a nation to spend half(exaggeration here) of their annual spending just to make a new tank is rather difficult right?
it’s easier to spend less by buying an already tested and tried platform. rather than making new scheme, prototyping, testing, producing.

NFrost51 · November 11, 2023, 9:43am

for Indonesia specifically I think it would be hard to find earlier designs purely because the nation only gained “proper” independence in 1949, and even after that they are still fighting wars with many different rebellions and nations, such as the british, dutch, and CIA to a lesser extent, so they didnt have a lot of time to develop vehicles, instead they mostly imported AFVs and light tanks.

In addition heavy tanks is generally not really the focus, as the philosophy is more on being light for amphibious operations. This excerpt is pretty good at explaining the situation:

Spoiler

Indonesian army always operate the light tank weighing not more than 20 tones due to the limitation of our road infrastructure and the nature of Indonesian wet soil. TNI still operates AMX-13 and Scorpions, while Marine Corps rely on the old Sovyet era, the amphibious PT-76. They had acquire the more modern BMP-2 from Ukraine and still waiting for the delivery of 20 BMP-3F from Russia.

Indonesia doesn’t face those kind of threat [near-peer war with other nations]. The only possible land invasion could be from Malaysia’s North Borneo, Sabah and Serawak States. But they must cope with the Kalimantan’s dense forest and swamp, an environment not suitable for a main battle tank. The other land border is in Papua with the worse condition of mountainous terrain and the thickest tropical jungle.

Most of Indonesian terrain does not support the concept of main battle tank. Even the light tank still can only operates on the normal road if they don’t want to be stuck in the paddy field’s mud or swamp. Indonesian Army doesn’t need full scale MBT but it needs a special lightweight tank to sustain such MBT role, engaging any enemy’s MBT threat in the jungle, swamp, paddy fields or in the middle of palm plantation around Sumatera and Kalimantan island.

reference: Indonesian Battle Tank | Sandya Kala ning ...

NFrost51 · November 11, 2023, 9:44am

and that factor too yes

SmørentheBustard · November 11, 2023, 9:54am

right, that is exactly what i am talking about. That is my point. So what do you mean to say? Do you want more vehciles that are the same but has a different flag slapped to the side of it?

NFrost51 · November 11, 2023, 10:31am

yeah they also have quite an extensive air vehicles that can help with the sub-tree as well, surprised not to see that one in the forum though

Here are some planes+helicopters (BR and image is just placeholder):

Spoiler

Xermaz · November 11, 2023, 10:43am

it is a copy paste because a real world situation. you complaining about copy and paste is irrelevant because German and Sweden gonna have similar tank Leo 2A7/8 and Strv 122, oh hey they also have T-80 there. you complaining here. make 0 impact.
