While similar in appearance to the original M113, the new vehicle was modified heavily for its new purpose. The troop compartment was completely removed. The same 6 cylinder General Motors engine which was on the M113 was placed at the rear. The crew compartment was at the front of the vehicle, and housed the driver, the commander and the observer. It was described as cramped. While the suspension from the M113 was kept, one roadwheel was eliminated, leaving only four on each side.
The aluminum armor was also taken from the M113, with a maximum thickness of 1.75 in (44.5 mm) on the lower front part, and a minimum of 0.75 in (19 mm). While these thicknesses may seem large, aluminum does not offer the same level of protection as steel. The armor could only protect the crew from machine-gun fire and shrapnel. An easy way to differentiate the M113 ½ from the M114 is that the front of the former is 3-sided, while that of the latter is a simple slope.
The Lynx was narrower (2.4 m vs 2.68 m), shorter (4.6 vs 4.86 m) and significantly lower (2.17 vs 2.52 m) than the M113. Of course, this also meant that the vehicle was lighter (8700 vs 11,300 kg). It retained the amphibious capabilities of its forerunner, but necessitated some quick preparations. A trim vane had to be erected (a part at the front which kept water from coming over the vehicle), bilge pumps started (remove water from inside the vehicle) and some covers put in place. Once in the water, the vehicle was propelled by the movement of its tracks, being able to reach a modest 6 km/h (4 mph).
Also, being significantly lighter, the 6 cylinder 212 hp diesel engine allowed it to reach speeds of up to 71 km/h (44 mph). The range, when going only on roads, was above 500 km (325 mi).
The Netherlands was the first customer for the new vehicle, buying 250 vehicles. In Dutch service, these were known as the M113 C&V (Commando & Verkenningen, literally Command & Reconnaissance). Sometimes, they are also called C&R. The driver was seated in the front left of the vehicle, with an infrared periscope mounted on his hatch and four normal ones on the roof of the vehicle. To his right sat the radio-operator, who also had four periscopes at his disposal. The commander was seated at the back, under a large cupola.
A 12.7 mm (0.5 in) M2TTHB machine-gun was mounted on top of the vehicle, being operated by the commander. Another 7.62 mm (0.3 in) machine-gun could be mounted in front of the radio-operator’s hatch.
However, in 1974, the Dutch army decided to replace the commander’s cupola and armament with an Oerlikon Contraves GBD-AOA turret, armed with a 25 mm (0.98 in) KBA-B cannon. The C&V was eventually replaced by the Fennek.
Some of the Dutch vehicles have been sold off to Bahrain (35) and Chile (8).
T-80UA Russian MBT that was accepted into service in 2005, basically was T-80U tank with overall improved FCS and Shtora system. Prototype had PN-5 NVG for gunner, while serial tanks, just like serial T-80U-E1 recieved Plisa 2nd gen thermal.
Hopefully gonna end up in tech tree after T-80U and before T-80BVM at 12.0 with 3BM60, really dont like how only 1 T-80U rn is TT with all other being not.
Due to the SLM being shown in the trailer, I decided to make an updated suggestion for the Umkhonto GBL. Can fire Umkhonto-IR (Block 1 12km, Block 2 15km, Block 3 20km, although the “Block” designation isnt used by Denel), Umkhonto-EIR with 30km range and Umkhonto-R with 35km range, as well as being radar guided and also having an IR seeker.
It needs a seperate truck too like the SLM, with the radar either being a SAAB Giraffe AMB or a Reutech RSR 320
It should be, well not the version i showed, the model in the trailer is a joint project with the US and Norway. Kongsberg developed the majority of the system so its surprising they are only giving it to the US. I guess the better version can come at a later date, honestly im just happy to see it.

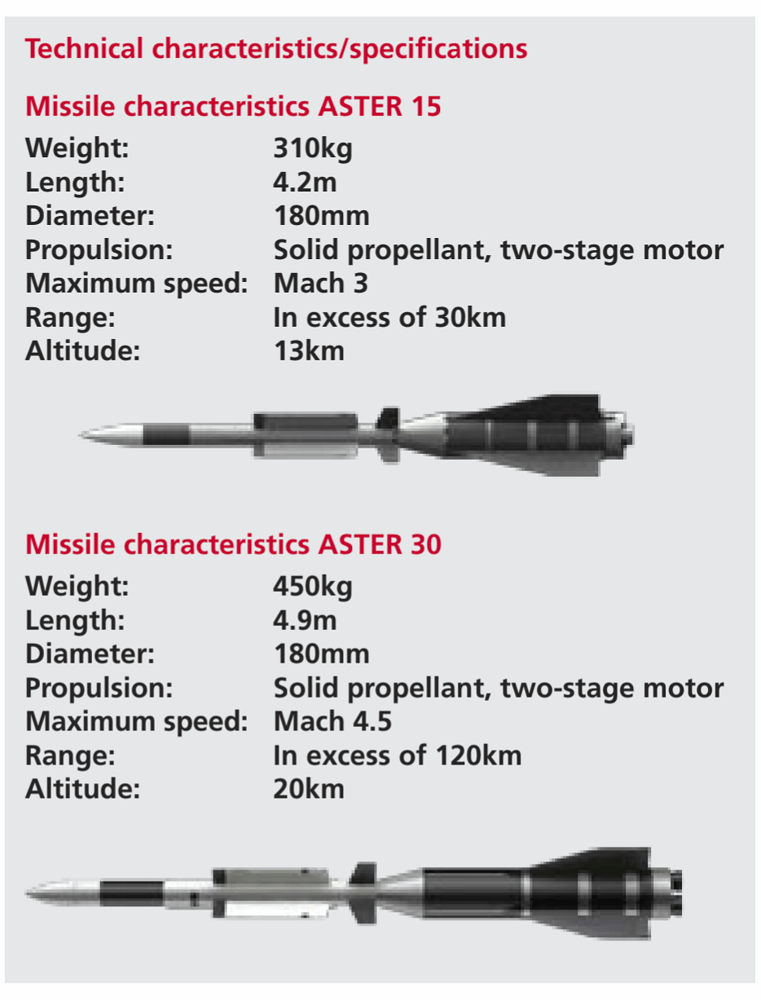

15 and 30 are very similar, but can be distinguished by booster length
Although you’re right, i’m not sure SAMP/T carries Aster 15, i thought it was only for ships
Fair enough if it’s carried
Although i’m going to call BS on the 30km range. On a 310kg missile and considering the Aster 15 NG is claimed to be 60km, i’m going to guess it’s an other instance of MBDA understating the real range
Well i guess if you have source about it it would be great then, because when i searched on internet i couldn’t find an aster 15 being used by a samp/t it was always aster 15 for sea and only aster 30 used by it.
I have to admit that I’m starting to have doubts. I have an article that talks about it, but not much more. I’m going to continue to find out a little more to be sure.
