K-17 Bumerang: The Wheeled Kurganets

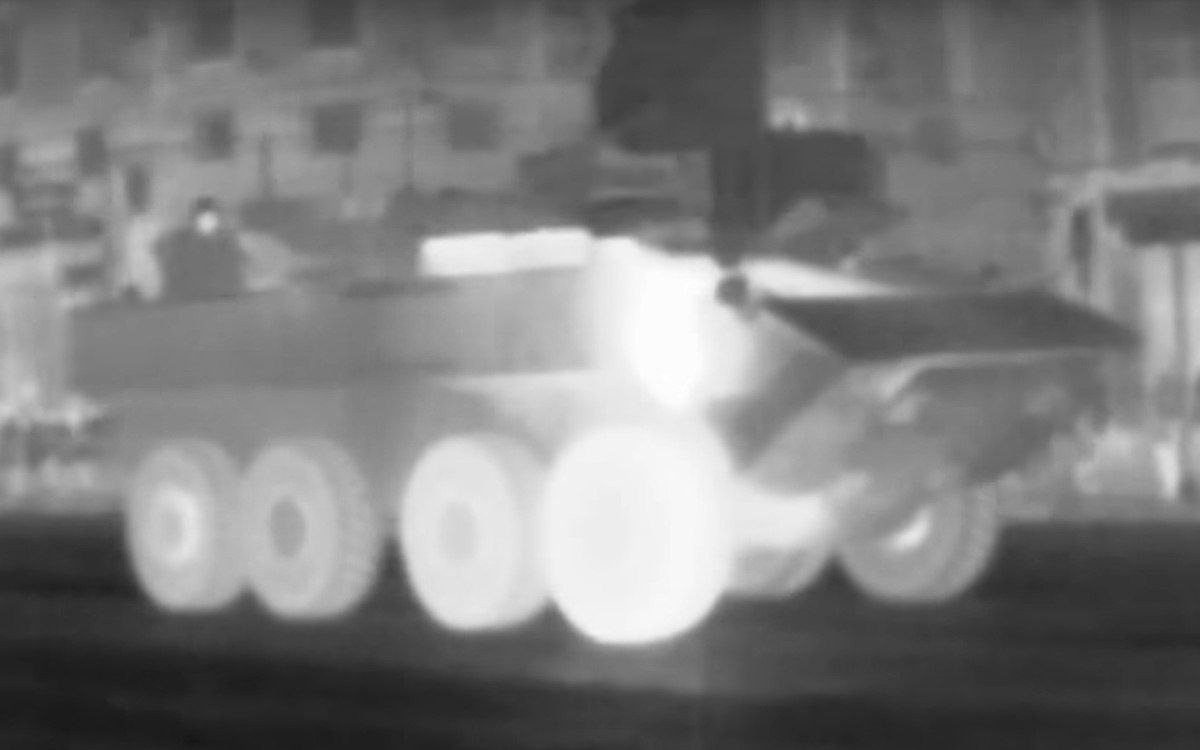

K-17 Bumerang during a Military Parade rehearsal.

K-17 Bumerang during a Military Parade rehearsal. Note the waterjets allowing for Amphibious capabilities.

Imagery/Media

K-17 alternate camouflage.

Commander Station.

Gunner Station.

Squad display console for situational awareness.

Bumerang-BM Turret w/ Afghanit Active Protection System.

Bumerang-BM turret cutout.

Kornet ATGM’s.

K-18 Bumerang interior. Note the 8-passenger seats for troop movement.

The K-17 featuring a BMP-2M turret including the Smoke Grenades and Grenade Launcher.

https://youtu.be/ZWIpDM6bfbo

https://youtu.be/HHqVxvItUqo

Videos of K-17 Bumerang firing ATGM’s.

https://youtu.be/YUlNU-uziF4

Video of Afghanit Active Protection System Capabilities versus APFSDS rounds.

• Description :
  • The K-17 Bumerang is a wheeled Infantry Fighting Vehicle being developed for the Russian Army. Development began in 2011 by the Military Industrial Company LLC when the Russian Ministry of Defense requested a new wheeled APC to replace the BTR series of vehicles. Alongside this development was the request to build a wheeled IFV. The vehicle family ended up being designated the VPK-7829 Bumerang. The Bumerang was first seen in public in 2015 during rehearsals for the Moscow Victory Day Parade. Multiple modifications of the vehicle have occurred with some models seen with a BMP-2M turret and later models being developed with the Bumerang-BM turret seen on the Kurganets-25 Infantry Fighting Vehicle. Another upgrade was the 510hp UTD-32TR Turbocharged Diesel Engine being replaced with the 750hp YaMZ-780 Turbocharged Diesel Engine. This vehicle is equipped with a lot of firepower featuring a 30mm 2A42 30mm Automatic Gun as well as 2x Dual Kornet Launchers, launching the new 9M133 Kornet-EM ATGM with a new warhead as well as fire-and-forget capabilities. This vehicle can also be equipped with the Afghanit Active Protection System. It has been seen with the model of Afghanit that locates all equipment into the turret only without the Multi-Spectral Smoke Launchers. Testing is due to be finished at the end of 2021 with more deliveries possibly scheduled for 2022+.
• Armament:
  • Main Weapon: Unmanned Bumerang-BM Turret w/ 2A42 30mm Automatic Cannon (w/ 500rds)
    • Rounds:
      • 3UBR11 30mm APDSDS-T
      • 3UBR8 30mm APDS
      • 3UBR6 30mm APBC-T
      • 3UOR8 30mm HEI
      • 3UOR6 30mm HE-T
    • Additional Rounds with Unknown Status:
      • 3UBR10 30mm APBC-T (Service Data Unclear, can be fired from 2A42)
    • Depression/Elevation: −8/+74 Degrees
  • Additional Weapons:
    • Coaxial: 7.62mm PKTM Machine Gun (w/ 2,000rds)
    • Tertiary: 2x Dual 9M133 Kornet ATGM Launchers (4x ATGM’s Ready-to-Fire/4 Total)
      • 9M133 Kornet-EM
        • 1,300mm Penetration vs RHA behind ERA.
• Maneuverability:
  • Engine: 750hp YaMZ-780 Turbocharged Diesel Engine
  • Transmission: 6-Speed Automatic Hydromechanical Transmission
  • Chassis: 8 x 8 w/ 450mm of Ground Clearance
  • Max Speed: 100km/h (10km/h Afloat)
• Dimensions:
  • Length: 8.8m
  • Width: 3.18m
  • Height: 3.18m
  • Weight: 28.6t Combat Loadout
• Crew (3x):
  • Commander
  • Driver
  • Gunner
  • 8 Passengers (1 Squad)
• Features:
  • Ceramic Addon Armor:
    • Sources claim that frontal protection can withstand 30mm APDS rounds.
    • Protection against small arms, shrapnel, and low-caliber APDS rounds.
  • Amphibious
  • Optics (Scout Capability):
    • Gunner: Optical-TV (Believed to be 3rd Generation Thermal Viewer)
    • Commander: Optical-TV (Believed to be 3rd Generation Thermal Viewer)
    • Driver: Thermal Imager/TBD
  • Laser Rangefinder
  • Afghanit APS Capable
• Reason for Implementation:
  • The K-17 Bumerang is a heavily armored Infantry Fighting Vehicle that would sit comfortably at top tier levels. It would have high mobility, allowing it to capture points and relocate around the field to take out tanks, light vehicles, and helicopters with ease. The Kornet-EM’s, with their 1,300mm of penetration behind ERA, would allow the Bumerang to knock out any Main Battle Tank in-game. It also can be equipped with the Afghanit Hard-Kill/Soft-Kill APS. This vehicle shouldn’t be added to the game until other countries receive similar technology such as the French EBRC Jaguar for example.
  • Estimated BR: 10.3-10.7
• Sources:
  • VPK-7829 Bumerang - Wikipedia - General Data
  • https://www.army-technology.com/projects/boomerang-k-17-infantry-fighting-vehicle/ - General Data
  • https://www.armyrecognition.com/russia_russian_army_wheeled_armoured_vehicle_uk/k-17_bumerang_ifv_8x8_boomerang_armored_infantry_fighting_vehicle_technical_data_sheet_specifications_information_pictures_video_intelligence_identifica.html - General Data
  • https://milindcom.ru/EN/catalog/voennaya-produktsiya/bmp-k-17-na-unifitsirovannoy-mezhvidovoy-kolesnoy-bronirovannoy-platforme-bumerang/ - General Data
  • http://www.military-today.com/apc/bumerang.htm - General Data
  • Army Guide - General Data
  • Bumerang [Boomerang] - General Data
  • Russia's New Bumerang Infantry Fighting Vehicle Is Getting Ready for War - The National Interest - News Article
  • https://ru.wikipedia.org/wiki/Афганит_(активная_защита)#Интеграция_систем_«Афганита»_с_электродинамическим_бронированием - Afghanit Active Protection Systen
  • 9M133M Kornet-M - Wikipedia - Kornet-EM
  • https://www.army-technology.com/projects/kornet-em-anti-tank-guided-missile-system/ - Kornet-EM

[Thug Shaker Actual]

@Yontzee

Additional Rounds with Unknown Status:

• 3UBR11 30mm APDSDS-T (Service Data Unclear, can be fired from 2A42)
• 3UBR10 30mm APBC-T (Service Data Unclear, can be fired from 2A42)

+1 but not without ammo that is unknown to have been fired from it.

Its a frustrating and slippery slope. Russia has been catered to in the past with the BMP-2M. Gaijin has already stated they will not add the CIWS HVAP to the M163, and same goes for other vehicles. I am all for it if Gaijin is willing to open the door on other nations, but as of right now that seems unfair, unless there is solid information the ammunition was used

[Yontzee]

The round is expected to be adopted for this platform, however, the 3UBR6 APBC-T and (in lesser cases) the 3UBR8 APDS are a lot more widely used in the RGF. There was also problems with the 2A42 autocannon in firing the 3UBR8 (and likely the 3UBR11) resulting in accuracy issues due to a high volume in spreading, however this was likely rectified as a solution was brought up in boring out more of the Muzzle Brake.

[Kingtiez-live]

+1, USSR is lacking in wheeled platforms and this would be nice to see, especially for those top tier lines ups.

[Yontzee]

Agreed, but just wait until my BTR-22 suggestion drops.

BTR-22 (BTR-82A Improved)

Also here’s some other fun boiz…

BTR-82A

BTR-82A: Cornerstone of the Russian Army

poll BTR-82A: Cornerstone of the Russian Army [BTR-82A_-_TankBiathlon14part2-60.jpg] The BTR-82A, the latest version of the BTR-80-series in service with Russia. Description : The BTR-82A is an 8x8 Armored Personnel Carrier that was developed from the BTR-80A. Development of the BTR-82A began in between 2009 and 2010 by Arzamas Machine-Building Plant (AMZ) that featured multiple improvements over the original BTR-80A. This included an turbo-charged 8-cylinder 4-stroke V-shaped Diesel Eng…

BTR-82AT (BPPU)

BTR-82AT (BTR-BM)

BTR-82AT: Heavy-duty Firepower

poll BTR-82AT: Heavy-duty Firepower [image][c7csuimrapl71.jpg] The BTR-82AT featuring a BTR-BM Combat Module (bottom) and BPPU Combat Module (top). Description : The BTR-82A is an 8x8 Armored Personnel Carrier that was developed from the BTR-80A. Development of the BTR-82A began in between 2009 and 2010 by Arzamas Machine-Building Plant (AMZ) that featured multiple improvements over the original BTR-80A. This included an turbo-charged 8-cylinder 4-stroke V-shaped Diesel Engine, named the…

BTR-87

BTR-87: BTR Redux

poll BTR-87: BTR Redux Disclaimer : Limited information is available on the BTR-87. As more information is released, this suggestion will be updated. [cyuy4drx6h871.jpg] The BTR-87, modernized by VPK with a completely new layout. Description : The BTR-87 is a revolutionary design that was developed by Russia’s Voyenno-Promishlennaya Kompaniya, or VPK in the early 2010’s based off of the BTR-80. The BTR-87 made its debut in 2015 during ARMY-2015, a military exhibition held in Russia, fea…

BTR-90 ‘Rostok’

BTR-90 'Rostok': Russian Fast Mover

[ZETeyDerussifier]

@Thug Shaker Actual

CIWS HVAP

This is typical Russian bias! Whenever it comes to upgrading Western equipment that could challenge the “tanks of the great and mighty Russia,” which dominate the ranks starting from Rank III BR.

[Kingtiez-live]

BTR-90M with the Berezhok module is popular too.

[Yontzee]

Agreed.

• I think the BTR-90 should be BR 9.0 and the BTR-90 ‘Berezhok’ at BR 10.0-10.3.
• BTR-90 ‘Rostok’ could utilize 3UBR8 APDS and essentially would play as a BMP-2. I want this vehicle badly since it’s been actively used.
• BTR-90 ‘Berezhok’ would be just like the BMP-2M with the Kornet’s, AG-17, and 3UBR11 APFSDS-T rounds.

BTR-90 ‘Berezhok’

BTR-90 Berezhok

poll [1636568772_1-hdpic-club-p-tank-btr-3] This will be a suggestion for the BTR-90 fitted with the B05Ya01 Berezhok Combat Module. This is the same turret that, as of this post, is only on the BMP-2M in-game. This turret features a 30 mm autocannon, four 9M133 Kornet ATGMs, an AGS-30 grenade launcher, a 7.62 mm PKMT machine gun, thermal imaging, and a modern FCS all on the chassis of the BTR-90. In-game, it would play similarly to a BMP-2M on wheels, meaning it is much faster on flat surface…

[Yontzee]

This in reality could come now. It’s honestly just a large BMP-2M on wheels. It doesn’t have Afghanit APS.

Edit: Also edited the post, included a placeholder BR of 10.3-10.7.

[Vash2269-live]

i loved it in arma reforger good makeshift aa gun tbh
