BTR-82AT: Heavy-duty Firepower

Yontzee · July 20, 2023, 2:14am

[Would you like to see this in-game?]

Yes
No

0 voters

125px-Flag_of_Russia_svg.png.cc1107743f2

BTR-82AT: Heavy-duty Firepower

The BTR-82AT featuring a BTR-BM Combat Module (bottom) and BPPU Combat Module (top).

Description :
- The BTR-82A is an 8x8 Armored Personnel Carrier that was developed from the BTR-80A. Development of the BTR-82A began in between 2009 and 2010 by Arzamas Machine-Building Plant (AMZ) that featured multiple improvements over the original BTR-80A. This included an turbo-charged 8-cylinder 4-stroke V-shaped Diesel Engine, named the KamAZ-740.14-300 that produced 300hp which provided a significant increase in maneuverability and reliability. This was coupled to a new manual transmission that featured a 5-to-1 gear ratio which allowed for a maximum speed of 80km/h. One of the main features of the vehicle however is the increased in crew survivability. The BTR-82A features 12.7mm frontal protection and 7.62mm all around protection, however equipped with a kevlar-lining, significantly improving survivability against IED’s, mines, and artillery shrapnel. It is also equipped with 360-degree Bar armor to protect against HEAT-shaped charges as well as additional ballistic armor covering the frontal arc. The BTR-82AT however, is a further development of the BTR-82A, either retaining the renown BPPU Combat Module or by mating the DUBM BTR-BM Combat Module.
- The BPPU Combat Module which features a fully stabilized 2A72 30mm Automatic Cannon capable of a rate of firing of 330rpm with 300rds ready to fire. It can also fire all rounds of the 30x165 cartridge. The BPPU Combat Module also is equipped with a PKTM 7.62mm machine gun for additional self-defense purposes. To fire the main gun, the Gunner previously utilized the TKN-4GA-02 day/night fire control system to engage targets in day or night conditions through the use of passive IR sighting. Later on however, the Russian army upgraded the sights on some BPPU Combat Modules. This was the TKN-4GA-03 thermal imaging fire control system featuring a clearer, uncooled thermal camera installed within the sight which further increased the Gunner’s capabilities. The TKN-4GA-03 Thermal Imager became standard on the BTR-82AT variant. The BPPU module can also mount an ATGM launcher on the rear of the turret, but must be operated from outside the vehicle.
- The DUBM BTR-BM Combat Module, also known as the ‘Ballista’, is developed by Voyenno-promyshlennaya kompaniya, or VPK, to the BTR-82A hull resulting in significantly increased anti-tank capabilities. Making its debut in 2021 at the Army-2021 military exhibition, the BTR-BM Combat Module comes equipped with the 2A42 30mm autocannon that utilizes the 30x165 cartridge. Also equipped is two anti-tank guided missile (ATGM) launchers on both sides of the turret that can fire the 9M133M Konkurs-M missile capable of penetrating modern main battle tanks. These weapons can be fired by the Gunner using a new advanced fire-control system equipped with a 3rd-generation thermal camera as well as an integrated laser rangefinder for target ranging as well as providing guidance for the ATGM’s. The thermal imager increases overall effectiveness at night to around 3km. For equipping the Konkurs-M ATGM launchers, some space in the rear of the vehicle for personnel was reduced in order to provide additional storage space for extra Konkurs missiles.
- Other than the Gunner, other sights include the Commander’s TKN-AI combined day/night periscope with rangefinder capable of locating targets for the Gunner. The Driver is equipped with the TVN-4E Passive IR periscope. The BTR-82AT crew is also equipped with the VHF (Very High Frequency) R-168-25-U2 Radio Station, enabling long distance, secure communications. The BTR-82AT features the same hull, drivetrain, and armor capabilities of the BTR-82A and can provide valuable fire support for mobile infantry. Two main differences between the BTR-82A and BTR-82AT is the installation of a mount for a Kornet ATGM launcher and tripod within the vehicle, and the 360-degree Bararmor. The BTR-82AT is a better protected variant of the BTR-82A, and has already been integrated into the Russian Army with the BPPU combat module. The BTR-BM combat module’s status in service remains unknown.
Role : Infantry Fighting Vehicle
Origin/Manufacturer:
- Russia/Arzamas Machine-Building Plant (AMZ)
Armament :
- BTR-BM ‘Ballista’ Combat Module :
  - Primary: 2A42 30mm Autocannon (300rds)
    - Cartridge: 30x165
      - Ammunition:

        3UBR11 APFSDS-T

        3UBR8 APDS-T (BP)

        3UBR6 AP-T (BT)

        3UOR6 HEF-I (OFZ)

        3UOF8 F-T (OT)
      - Feed System:

        Dual-belt Fed
      - Depression/Elevation: -5/+70 Degrees

        Traverse/Elevation Speed:

        Max: 3.6

        Min: 0.05
      - Stabilizer: Electro-mechanical, Two-plane
  - Coaxial: PKTM 7.62mm Machine Gun (2,000rds)
  - Tertiary:
    - 2x Konkurs-M ATGM Launchers
      - Guidance:

        Wire-guided/SALCOS
      - Missiles:

        9M113M Konkurs-M

        Warhead: Tandem HEAT

        Penetration: 750-800mm behind ERA

        Diameter: 135mm

        Weight: 14.5kg (Missile only)

        Propulsion: Single-Stage Solid Propellant Rocket Motor (and Booster)

        Range: 75-4,000m(3,500m Passively)

        Speed:

        Average: 208m/s

        Max: 300m/s
- BPPU Combat Module:
  - Primary: 2A72 30mm Autocannon (300rds)
    - Cartridge: 30x165
      - Ammunition:

        3UBR8 APDS-T (BP)

        3UBR11 APFSDS-T

        3UBR6 AP-T (BT)

        3UOR6 HEF-I (OFZ)

        3UOF8 F-T (OT)
    - Feed System:
      - Dual-belt Fed
    - Depression/Elevation: -5/+70 Degrees
      - Traverse/Elevation Speed:

        Max: 6.0

        Min: 0.1
  - Coaxial: PKTM 7.62mm Machine Gun (2,000rds)
  - Stabilizer: Electro-mechanical, Two-plane
Maneuverability:
- Engine: 300hp - KamAZ-740.14-300 Turbo Diesel Engine
  - Auxiliary Power Unit (APU)
- Transmission: Manual (5-Forward, 1-Reverse)
- Chassis: 8x8, 4-axle
  - Ground Clearance: 475mm
  - Suspension: Torsion Bar
- Max Speed: 75km/h (8km/h on water)
Dimensions:
- Length: 7.580m
- Width: 2.985m
- Height:
  - BPPU Module: 2.725m
  - BTR-BM Module: ~2.9m
- Weight:
  - BPPU Module: 15.4t
  - BTR-BM Module: ~16t
Crew (3x):
- Commander
- Gunner
- Driver
Features:
- 6x 81mm 902V ‘Tucha’ Smoke Grenade Launchers
- ESS
- Laser Rangefinder
- Unmanned Turret
  - BPPU Combat Module:
    - Gunner’s Sight:
      - TKN-4GA-03: 3rd-generation Thermal Imager
  - BTR-BM Combat Module:
    - Gunner’s Sight:
      - 3rd-generation Thermal Imager/TBD
- OU-3GA2M IR Searchlight
- Amphibious
- Armor:
  - Frontal Arc: Up to 12.7mm rounds.
  - Side and Rear: Up to 7.62mm rounds.
  - Turret: Up to 12.7mm rounds.
  - Kevlar-lined for shrapnel protection.
    - Armor Package:
      - Additional ballistic armor on frontal arc.
      - Bar armor.
- Other Optics:
  - Driver: TVN-4E (IR Passive NV)
  - Commander: TKN-AI (IR Passive NV)
In-game :
- The BTR-82AT is a powerful IFV that relies on speed and firepower to knock out its targets. Featuring little to no armor, only capable of protecting against 7.62mm up to 12.7mm rounds and artillery shrapnel thanks to its kevlar-lining, the BTR-82AT is quite fragile but can be equipped with additional ballistic plating and Bar armor at the cost of its amphibious capabilities to increase its protection against HEAT-shaped charges. This also helps protect the vehicle from hull-breaking mechanics. The BTR-82AT’s features a rapid firing 30mm autocannon with the capability to fire the 3UBR11 APFSDS-T rounds that can make very quick work of vehicles ranging from light tanks and IFV’s, to main battle tanks and modules. The vehicle is also equipped with a highly capable Gunner’s 3rd-generation Thermal Imager to engage targets at night as well as, if the BTR-BM Combat Module is equipped, the very effective Konkurs-M ATGM capable of penetrating main battle tanks with ease. One thing to note is that the BTR-82AT cannot fire the Konkurs-M on the move. Operators are recommended to take advantage of its unmanned turret and remain in hull down positions if required to engage targets head on.
- Estimated Battle Rating:
  - BTR-BM Combat Module: 9.7
  - BPPU Combat Module: 9.3
Sources:

Imagery:

Spoiler

BTR-BM Combat Module Variant

EgdDsPhWkAA0lUb?format=jpg&name=4096x409

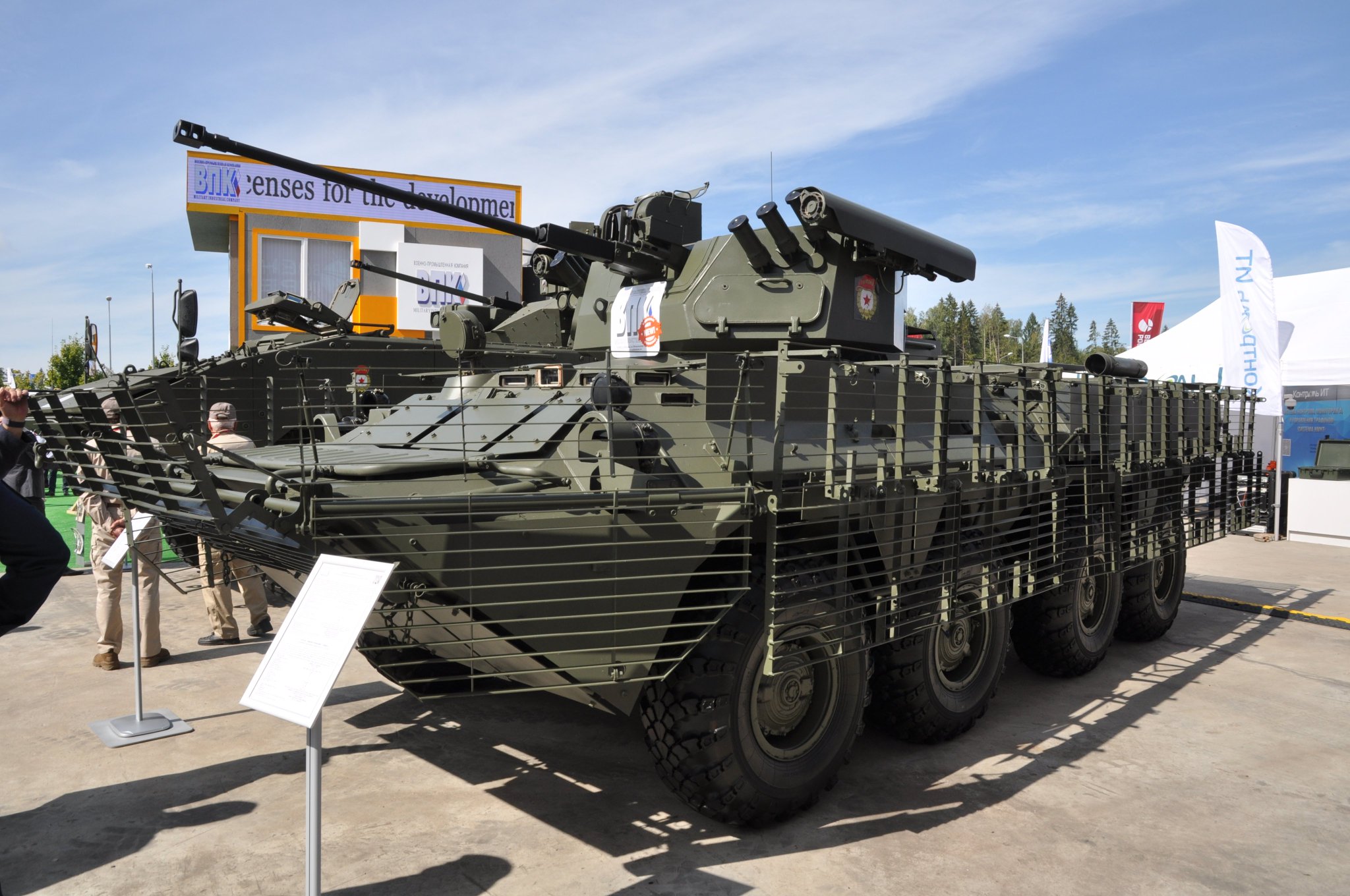

Different angles of the BTR-82AT.

View of the BTR-BM Combat Module.

Specification sheet of the BTR-82AT/BTR-BM Combat Module.

Interior view of the BTR-82AT.

The 2A42 Shipunov autocannon used by the BTR-82AT.

The PKTM Coaxial Machine Gun of the BTR-82AT.

The 9M113M Konkurs-M missile fired by the BTR-82AT.

TKN-AI combined day/night sight for the Commander.

R-168-25-U2 Radio Station for long-range communications.

The KamAZ 740.14-300 Diesel Engine used by the BTR-82AT.

https://youtu.be/GvuVtyRWT7Q

Video of the BTR-82AT.

BPPU Combat Module Variant

Different views of the BPPU-equipped variant.

The 2A72 30mm autocannon as found on the BPPU module.

Underneath the BPPU Combat Module.

View of the Gunner’s Thermal Sight.

Comparison chart of the BTR-82A and BTR-82AT.

Yontzee · August 16, 2024, 8:11pm

Post is updated to reflect the BPPU or BTR-BM Combat Modules. The BTR-82AT itself is the same vehicle as this one, it’s just whether or not the vehicle has the BPPU or BTR-BM combat modules installed.

Currently, the BTR-82AT with the BPPU Combat Module is in Russian service.

Stay tuned for my BTR-22 post that’s currently pending which can use the two exact combat modules above.

Yontzee · August 25, 2024, 12:16am

The BTR-82AT with supports for the gun to aid in accuracy. The 2A72 tends to have issues with excessive barrel wobble.
