Type16 Maneuver Combat Vehicle/16式機動戦闘車

[tanuki10]

Description
The Type16 Maneuver Combat Vehicle was developed as a wheeled fighting vehicle with the mobility, firepower, protection, and command and control functions necessary for short deployment and leading combat missions in island combat and guerrilla response, and was equipped in 2016.

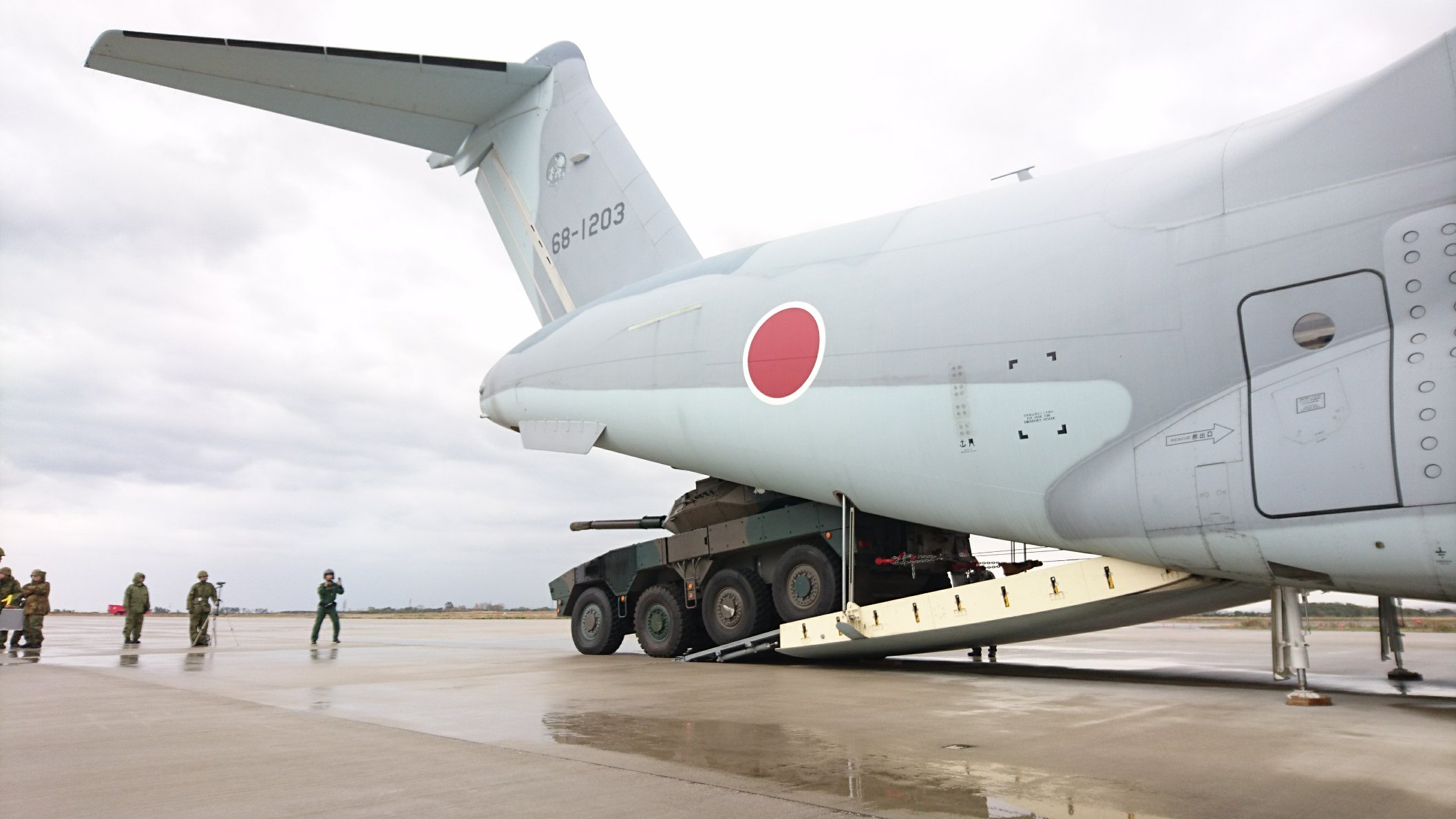

The main gun is a JSW modified version of the British 105mm L7 gun with reduced recoil.With its 570 hp 4VA engine, it can reach a top speed of 100 km/h. Its light weight of 26 tons allows it to be transported by air on a C-2 transport plane.
By the end of FY2022, 197 vehicles have been acquired, and a total of 260 vehicles will be procured.

装備品紹介　16式機動戦闘車

Spoiler

https://youtu.be/oYuprSsCQh4?si=PkVj_-1a8-r3Uti2
https://youtu.be/2XSELk_p2g0?si=zyi_6o1y009haZ1S

Armament
◎Main gun:L52 105mm Rifled Gun
◎Coaxial machine gun:Type 74 7.62mm machine gun
◎machine gun:M2HB 12.7mm machine gun

Spoiler

Maneuverability
◎Engine:Mitsubishi 4VA 570hp 4-cycle water-cooled diesel engine
・Size: length 1.16m, width 0.89m, height 0.88m
・Dry weight: 1240kg
・Displacement: 11.3 liters
◎Transmission:Planetary gear automatic transmission with torque converter - forward 6 speed. Rearward 1 speed
◎Chassis 8x8
◎Max Speed:~100km/h

Dimensions
◎Length:8450mm
◎Width:2980mm
◎Height:2550mm
◎Weight:26t

Crew
◎Commander/車長
◎Gunner/砲手
◎Loader/装填手
◎Driver/操縦手

Spoiler

Commander

Gunner

Features
◎8x 76mm Smoke Granades
◎Laser Rangefineder
◎2x AN/AVR-2 Laser Warning Receiver

Spoiler

76mm smoke grenade launcher
◎Weight:30kg

76mm smoke grenade
◎Length:172mm
◎diameter:76mm
◎Weight:1.3kg

FCS
◎It is possible to lock on to a target and automatically take deviation

NVD
◎Commander:Thermal Imager
◎Gunner:Thermal Imager
◎Loader:N/A
◎Driver: Thermal Imager

Prototype
I will introduce Type16 prototype in the order in which they appeared.

Prototype Phase Ⅰ/試作(その1)
Hull #1
This hull was manufactured to investigate the recoil of gunfire and is not powered, so it cannot run.

Photo by コミント人

Prototype Phase Ⅱ/試作(その2)
Hull #2 +Turret #1 or Hull #2 +Turret #2
This vehicle to be powered and ready to run, it was equipped with two types of turrets and tested.
The gunner’s sights and the commander gunner’s sights are adapted from those mounted on Type 10 tanks

prototype

Spoiler

“防衛産業委員会特報 290 16式機動戦闘車”

Prototype Phase Ⅲ/試作(その3)
Prototype 99-0292
Hull #3 +Turret #3

99-0292

Prototype Phase Ⅳ/試作(その4)
Prototype #1 99-0299

Prototype #2 99-0300
winch is available.

Prototype #3 99-0292
This vehicle is a refurbished Prototype Phase Ⅲ vehicle

Prototype #4 99-0291
This vehicle is a refurbished Prototype Phase Ⅱ vehicle

Practical Test/実用試験
Practical Test Vehicle/実用試験車両 25-4202
RWS is tested and infantry can be boarded in the rear

Production
Air-conditioned cars were introduced in lot C4, and cars with winches in lot C5

【教えて！16（ヒトロク）式機動戦闘車のこと】陸上自衛官が解説します！

derived type
Common Tactical Vehicle

Common Tactical Wheeled Vehicle/共通戦術装輪車

[image] Description The Common Tactical Wheeled Vehicle has its roots in an Type16 Maneuver Combat Vehicle. Six derivatives of the Type 16 Maneuver Combat Vehicle (16MCV) were planned. These were called the Common Tactical Wheeled Vehicle, and included the Infantry Combat Vehicle (ICV), Reconnaissance and Combat Vehicle (RCV), Maneuver Morter Combat Veheicle (MMCV), Maneuver Armored Vehicle (MPV), Medical Evacuation Vehicle (MEV), and Command Vehicle (CV), all but the ICV, RCV and MMCV were …

Suggestions

Maneuver Combat Vehicle PhaseⅡ Prototype

poll poll [image] [image] Description The Type16 Maneuver Combat Vehicle was developed as a wheeled fighting vehicle with the mobility, firepower, protection, and command and control functions necessary for short deployment and leading combat missions in island combat and guerrilla response, and was equipped in 2016. The main gun is a JSW modified version of the British 105mm L7 gun with reduced recoil.With its 570 hp 4VA engine, it can reach a top speed of 100 km/h. Its light weight of 26 t…

Maneuver Combat Vehicle Prototype #1 99-0299

poll poll [image] [image] Photo by JGSDF, Motor-Fan

Spoiler

<a class="lightbox" href="https://forum-en-cdn.warthunder.com/original/3X/9/1/911beb7b3c19408d2e6c6e75b45ecf8c31dff88a.jpeg" data-download-href="/uploads/short-url/kHH3aSdOFZx3MUSc6b7mwLsgQXg.jpeg?dl=1" title="image" rel="noopener nofollow ugc">[image]</a> <a class="lightbox" href="https://forum-en-cdn.warthunder.com/or…

Maneuver Combat Vehicle Prototype #2 99-0300

poll poll [image] Photo by ふにに [image] Photo by 陸自調査団

Spoiler

<a class="lightbox" href="https://forum-en-cdn.warthunder.com/original/3X/1/e/1e2d076f5d395442fe3d1e821fa7f6b426ccbccc.jpeg" data-download-href="/uploads/short-url/4iWNv1sFXFCGebkmbI5knySw7Ao.jpeg?dl=1" title="image" rel="noopener nofollow ugc">[image]</a> <a class="lightbox" href="https://forum-en-cdn.warthunder.com…

Maneuver Combat Vehicle Prototype #4 99-0291

poll poll [image] [image]

Spoiler

<a class="lightbox" href="https://forum-en-cdn.warthunder.com/original/3X/a/1/a1a3edc8e3ce0820440384f922e66ece545edaa1.jpeg" data-download-href="/uploads/short-url/n3W5uS33XTp9diox0Wt5FkRDxnP.jpeg?dl=1" title="image" rel="noopener nofollow ugc">[image]</a> <a class="lightbox" href="https://forum-en-cdn.warthunder.com/original/3X/c/f/cf5aa8c3ec89cf…

Maneuver Combat Vehicle (Practical Test Vehicle) 25-4202

poll poll [image] [image] Photo by MoD.ALTA Description The Type16 Maneuver Combat Vehicle was developed as a wheeled fighting vehicle with the mobility, firepower, protection, and command and control functions necessary for short deployment and leading combat missions in island combat and guerrilla response, and was equipped in 2016. The main gun is a JSW modified version of the British 105mm L7 gun with reduced recoil.With its 570 hp 4VA engine, it can reach a top speed of 100 km/h. Its …

Type 16 MCV (C5)

poll Type 16 MCV (C5), Light Tank, Japan, Rank 7 [image] Procurement of the Type 16 Maneuver Combat Vehicle began in the fiscal year 2016, and deployment is ongoing nationwide in the Ground Self-Defense Force. With eight large-diameter tires, it achieves a top speed of approximately 100 km/h and is equipped with a domestically produced 105mm gun known for its accuracy. Serving as the core of the Rapid Deployment Regiment that rushes in promptly during emergencies, the Type 16 enhances its pres…

Bug report list

Spoiler

Not applied
・Type16(P) driver camera cover
・transmission gear
・crew viewpoint

acknowledged
・Type16 engines are reversed front and rear
・Remove additional ammunition rack from Type16(P)
・exhaust ports shourd be black
・engine position

fixed
・driver thermal imaging camera
・driver camera cover
・4VA engine model

Submitted as a suggestion
・

Sources
◎Web Sources
・16式機動戦闘車 - Wikipedia
・https://rikuzi-chousadan.com
・ 豊和工業株式会社
◎TRDI Specifications
・4-A-23036 防衛省技術研究本部試作仕様書 機動戦闘車(その4)
◎JGSDF Specifications
・GV-Y120003 16式機動戦闘車
・GV-Y120003C 16式機動戦闘車
・GW-Y120019B 105mm施線砲砲座付き
(from x.com)
・C2540 75式105mm粘着りゅう弾2弾
・C2564 91式105mm 多目的対戦車りゅう弾
・C2565 93式105mm装弾筒付翼安定徹甲弾
◎Other
・防衛産業委員会特報 290 16式機動戦闘車

This article is still incomplete. Please contact @tanuki10 if you would like me to add anything or if you need any corrections.

[Fireraid233]

Awesome work on listing the prototypes hope to see them all one day.

[Fireraid233]

Extended storage?

[JoshX9706]

I noticed this in the old forum, and wondered if there was any additional information about this, or if its even legit

[Fireraid233]

its real and since the Type 16s hull is from the same one shown in those pics only slightly modified ofc it might be possible for the Type 16 to use that package. and if not at least the new IFV and RCV can use it since it’s the exact same hull.

Spoiler

[ホモと見る野獣先輩最高の瞬間]

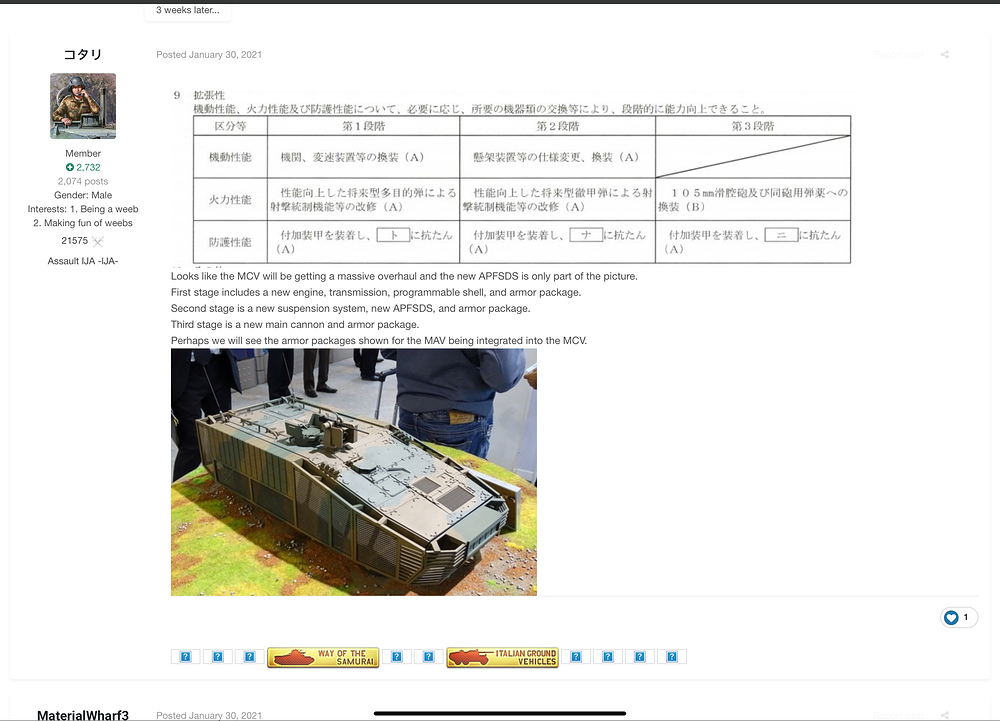

Documents released by the Ministry of Defense have confirmed that the armor of Prototype 99-0291 of the Type 16MCV is the Increased Armor Type III.
