[ron_23]

@putcheeseonit

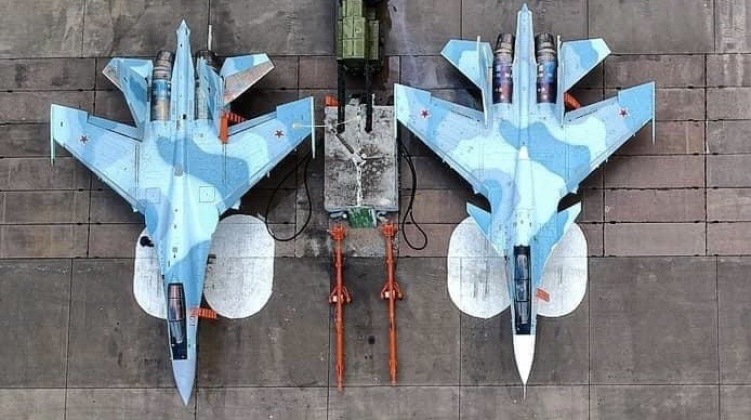

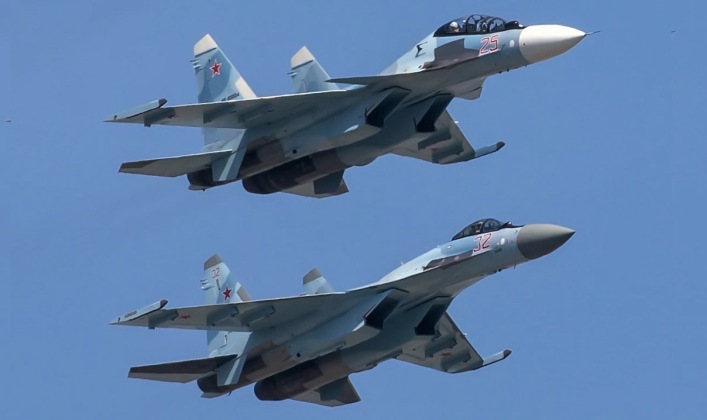

you can see very well in this picture that the radome of the Su-30 starts tapering sooner than in the Su-35

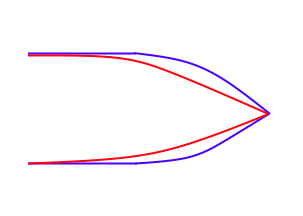

basically like this:

(red symbolizing Su-30 and blue the Su-35)

the IRBIS needs that extra space to move a round freely

[putcheeseonit]

Yeah, still don’t see it

[DarKBird]

Would be funny if they did fit Irbis, but did not changed raddome to accommodate, relying on digital scan to compensate restricted mechanical

[kizvy]

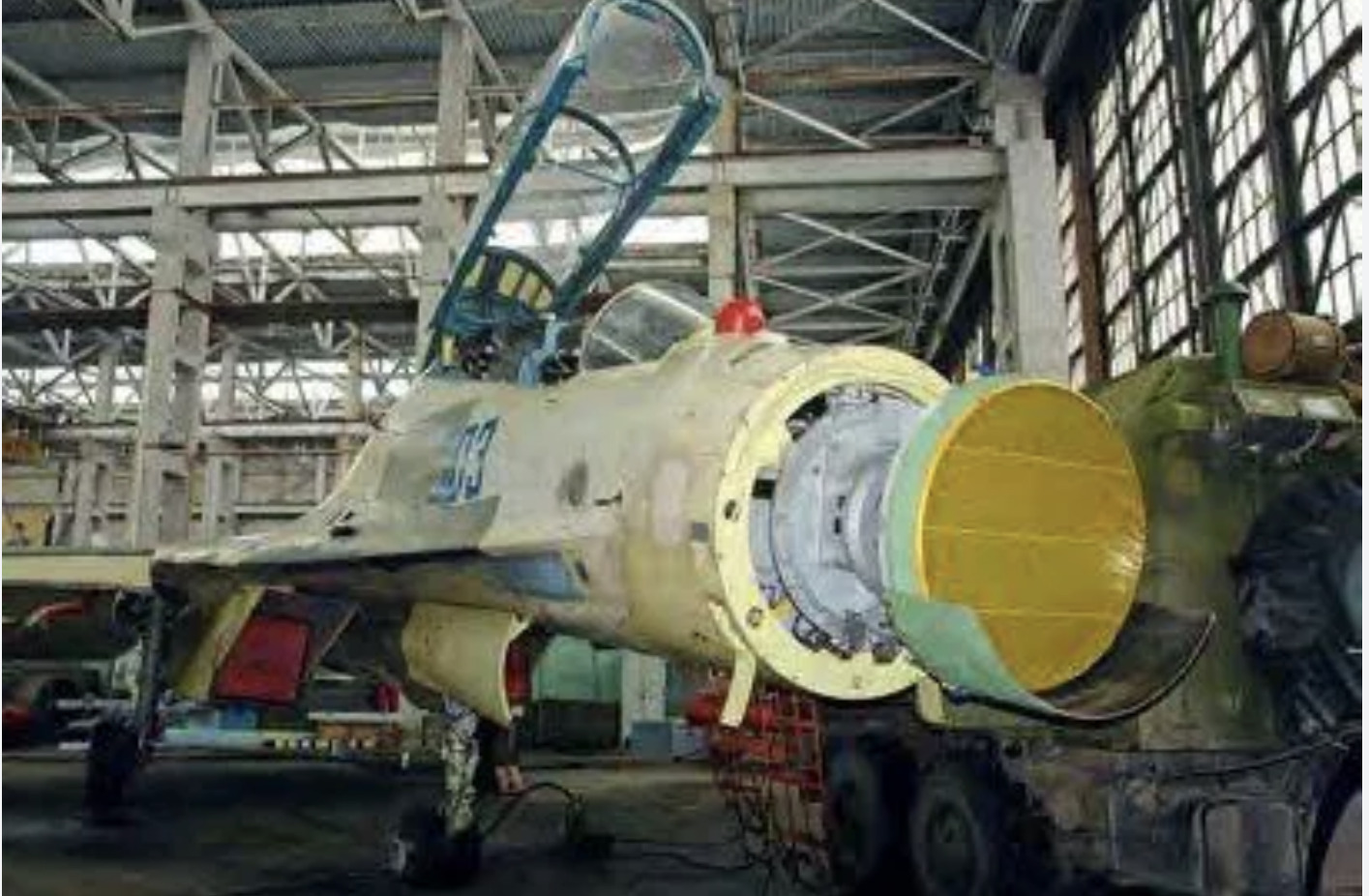

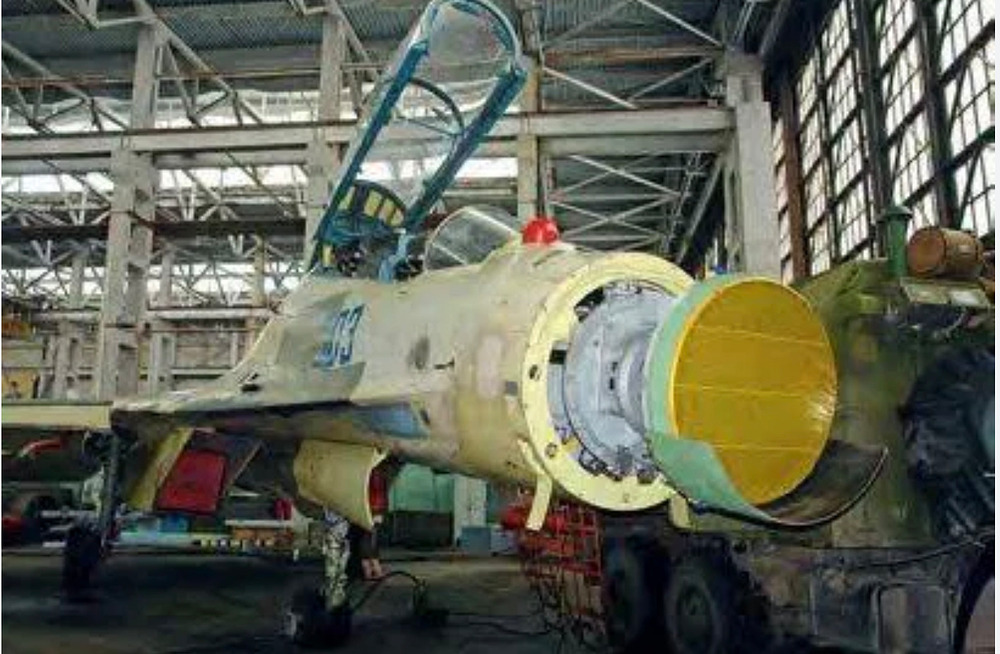

Here is irbis on su30mk bort number 503

[racimazzedine]

@ron_23 just leave that dude he is prob just us main slop who is hating for nothing

[ron_23]

[racimazzedine]

su27ub (joke)

[kizvy]

Okay fairs

[ron_23]

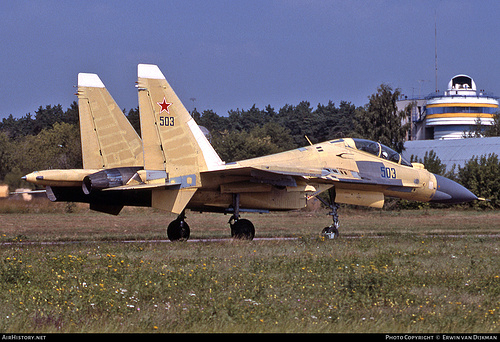

@kizvy

image1500×1026 920 KB

interesting that the radome is clored like on the chinese flankers

[kizvy]

Su-30mkk prototype that’s why (that was used as flying laboratory later on in life)

[ron_23]

so the 30MKK premium should get the IRBIS then

[kizvy]

Here is a better look at its radome, does it look like the su35 radome or more like su30sm one?

[GitGood]

Well, MK2 and MK in terms of airframe itself are identical anyway

[kizvy]

China bias

[ron_23]

[kizvy]

Epic embed success

[ron_23]

for some reason it dosent work in a spoiler

[kizvy]

Low k I wonder if someone would unironically try to report that

[Balta779517-live]

do they mention engines at any point in this ?

[putcheeseonit]

@ron_23

basically like this:

They literally terminate at the same angle, 40 degrees
