Sukhoi Company Su-57 Felon - Russia's Stealth Apex Predator

Suggestions Aircraft
370

Thanks

371

Is there pg 83? If yes pls share

372

what’s difference between pak fa and su 57

1 Like
373

Just going through the su-57 book by Piotr Butowski and another one by hugh, just posting some interesting images
Aerodynamic Config

Spoiler

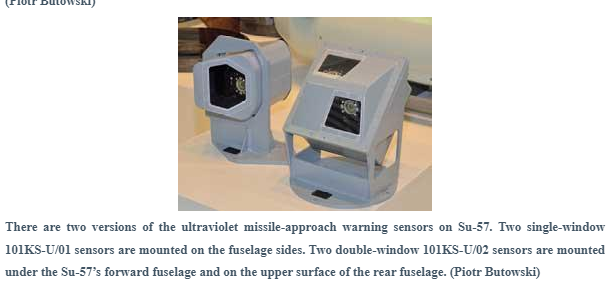

MAWS

Spoiler

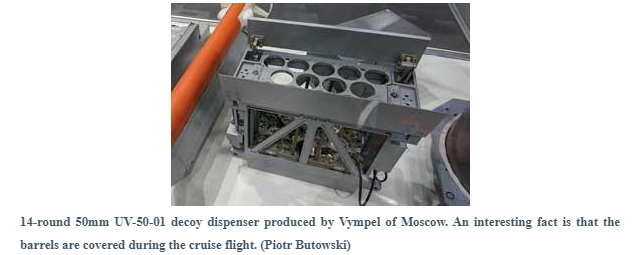

CMs

Spoiler

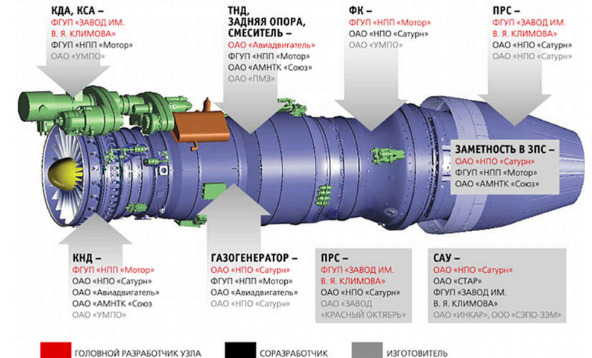

Izd 30

Spoiler

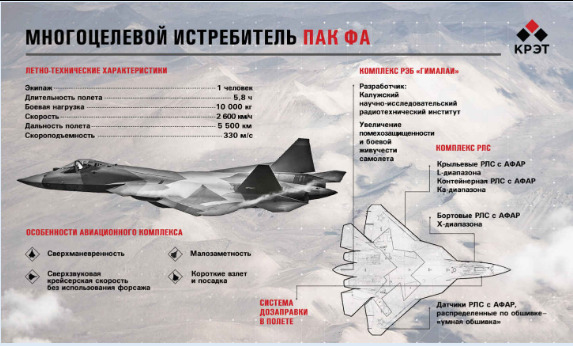

basic info (i would take this with a huge grain of salt)

Spoiler

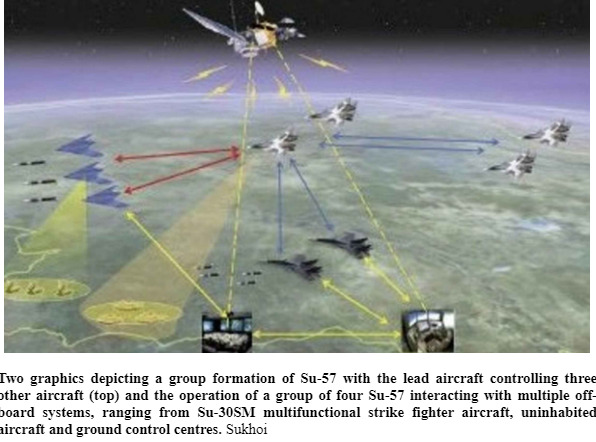

some sort of link 16 rip off?

Spoiler


r-77/1 can be fired from weapons bay? tf?

Spoiler


1 Like
374

only 24,000 ? F14 and F15E make 22,000 to 25,000 sounds like another SU30SM sounds underpowered

375

yes, early su-57 is underpowered. that’s fixed by m1 update

1 Like
376

arent those the new engines no ?

377

Looks like the grid fins are folded before firing.

1 Like
378

this is around the same (slightly less) as f-22 engines (dry)… which are more powerful than the f-15e engines… f-15e engines are around 17800 not 24000. also f-14 makes much less power than that.

1 Like
379

Ngl did not know they can fold

1 Like
380

B model makes 22,000LBF with GE engines in Afterburner big problem is TVC as it causes a lot channel loss which is why the SU30SM is so underpowered

381

which ge engines specifically? I can’t find those values… 132 for example does 19000 lbf. 129 makes even less

1 Like
382

F14B GE F110s make IRL 28,000LBF full burner installed but because of channel loss in game which F14s is exaggerated its around 22,000LBF full burner

383

also SU57 gonna have a massive heat sig as the blue afterburner makes it real hot compared to F22 with a orange

384

the color of the afterburner dosent corelate to heat
the F-14A has orange afterburners and has hotter engines than the Su-27SM with blue after burners

1 Like
385

and it wont help gaijin for some reason cant model heat signatures right like F117s with heat reduction are some how hotter than a F5 on full after burner

386

yes it does the SU27SM has a bigger heat signuature BLUE FIRE is hotter than orrange fire
illustration of physics and chemistry, Color temperature, The flames of ...

387

so this engine is hotter than the one in the base flanker?

1 Like
388

TF30 is massive inefficient engine and is modeled wrong its heat sig is higher than it should be

389

we are talking about afterburners and not candels

1 Like
