Regarding the Hull Armor of the M1A2 SEP V3

[SPANISH_AVENGER]

A great contribution from @SpeclistMain1 ! Unfortunately they can’t post in the Forums because they didn’t play in a while, but I am here to give them a voice :P

@SpeclistMain1

(Btw let me know if me sending this message (or others, potentially) is wanted by you. I figure you’re just the best person to send things to in order to get added to the main Hull Armor thread or other threads.)
(Also I won’t be able to respond for a few hours at least.)

DU turret weight increase

@Stona_WT

For example, the switch to depleted uranium increased the weight of the M1A1 turret by 2.5 tons

This unclassified source (https://www.gao.gov/assets/nsiad-90-57.pdf) explains some weight saving measures that were planned for the M1A2, which is evidence weight isn’t directly proportional to protection.

Proposed weight savings for M1A2

Swedish Trials, again :/

@Stona_WT

An experimental testbed with a possible increase in hull dimensions for the Swedish tender.

In the Greek Trials the package proposed to Sweden was worse than the domestic package since they didn’t want to export DU, so Sweden tried some very ad-hoc improvements (of which adding additional plates isn’t the only possible form of improvement, it’s just what Sweden did). I don’t have the original website link for the image, sadly.

“No confirmation of [hull improvements]”

@Stona_WT

In each instance however, no confirmation of these claims could be reasonably ascertained.

My own timeline of Abrams hull armor improvements: M1A2 series…turret armor - #9 by SpeclistMain1

Hull Seam

@Stona_WT

Another weld seam is visible on the hull

The source they link to doesn’t have the image, that’s really the only thing of note here other than saying that changes to armor can happen without changing the weld seam.

On the Scales

@Stona_WT

Changes in weight across various Abrams variants.

Again, weight-saving measures were done. Look at the timeline or the earlier GAO document. I think it’s also interesting to note the increase in weight from the M1A1DU to M1A1SA due to the M1A1SA’s “increased frontal and turret side armor protection”, the new (and unspecified) armor package in the budget justifications, and the removal of the DU hull limits in August 2006.

@Stona_WT

Weight placard data for the turrets of certain variants. Source :

Again, they don’t link the correct sources.

@Stona_WT

Weight was saved in one area while being added in another.

And now they literally admit that weight savings have been done.

@Stona_WT

A good example of this is that the transition to heavier torsion bars was accompanied by the replacement of steel road wheel arm brackets with lighter aluminum ones, which partially offset the added weight. The SEP V3 also received massive tow pintle hooks, reinforced brackets for mine protection, and new APU armor, all of which increased the weight.

@Stona_WT

Looking at the combat weight data compiled for various Abrams variants and the weight of their turrets, the estimated change in hull weight is roughly 500 kilograms. Within the fixed finite dimensions of the hull front and working with such a limited weight budget, it is impossible to achieve a tangible increase in protection to a degree where modern kinetic weapons would be negated.

Not showing the specific calculations and estimated component weights here is very disingenuous. Using the turret weights to say that the hull couldn’t have had weight savings to account for additional armor isn’t logical. The source they mention also proves that the lightweight tracks were implemented, which means at minimum half a non-metric ton of weight savings.

@Stona_WT

In order to protect the hull from APFSDS rounds that emerged after the mid-1980s (while retaining the same hull geometry, which is a fixed restraint), the entire available space would have to be filled with thick steel plates or other heavy fill materials. This can be calculated, and a package would have added no less than 2 tonnes, and no such increase is present.

Even going off of just the GAO report from earlier (assuming only 50% of the ceramic weight-savings went to the hull, and not including the ammunition racks or aluminum race ring), 2.04 metric tons of weight-savings were possible for the base M1A2 hull.

@Stona_WT

Adding several tonnes of weight in this area critically reduces the service life of the first road wheels, torsion bars, swing arms, and other components of the suspension structure. For such an alteration to be logistically possible, engineers would have to redesign the entire suspension system, and provably no redesign was undertaken.

Again, that assumes that no weight-saving measures were taken to compensate for the additional armor. But, the funny thing is that the Abrams’ suspension was overhauled when going from the M1A1 to the M1A2 (and for upgraded M1A1s, like the M1A1 SA).

Critical Technology Events in the Development of the Abrams Tank: https://apps.dtic.mil/sti/pdfs/ADA476340.pdf

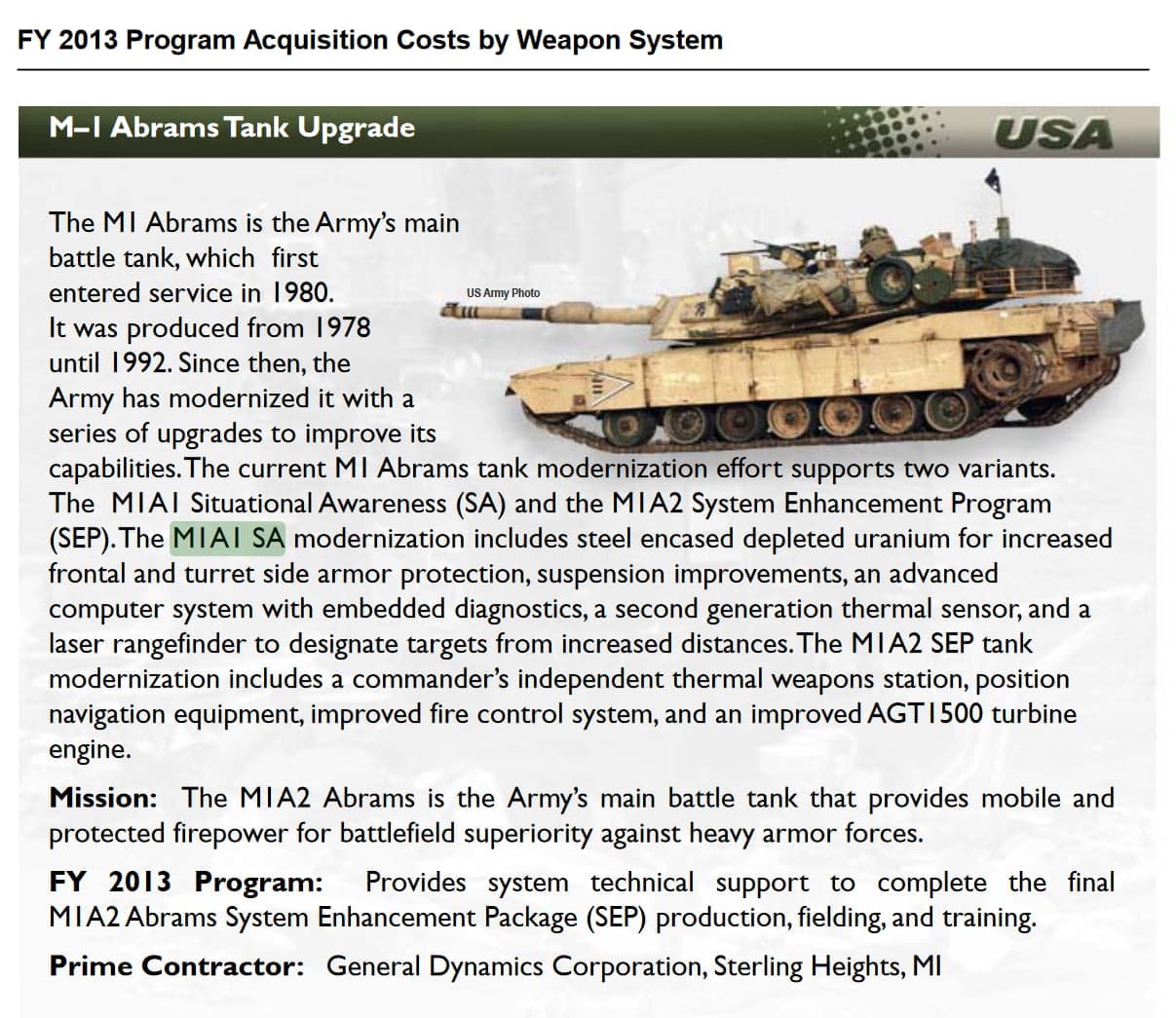

FY 2013 Program Acquisition Costs by Weapon System:

Weight Budget

@Stona_WT

As the exact particulars of this work are not defined, the only assumption we can make is that the modifications made to the armor package must have been made within the specified weight budget, and within that budget, protection against modern kinetic energy penetrators is unachievable.

Gaijin cannot assume that weight-savings were not done, as they obviously were. The minimal “assumed” change in hull weight from the turret-only DU Abrams to the first group of likely-improved-hull Abrams’ (the M1A1 SA, SEPv2, and potentially SEP, with the SEPv3 featuring a second, further improvement to the hull) just shows that they have similar hulls - not that no improvements were done, only that the improvements were shared amongst the M1A1 SA and SEPv2.

@Stona_WT

The main focal point here is that while improvements against kinetic rounds could have been made in theory, the provable constraints of the space would mean that even though protection could be improved, it would be impossible to improve it to the extent that the armor would be able to defeat rounds it previously couldn’t within typical engagement ranges. Therefore, spending the extra weight budget on this kind of protection, while possible, would not lead to any tangible improvement to justify the alteration.

This directly contradicts the earlier statement that “the entire available space would have to be filled with thick steel plates or other heavy fill materials.”

@Stona_WT

Any alterations to the armor have to be logistically and functionally justifiable. Because of this, it is much more likely that any potential improvement in protection would be geared more towards defeating shaped charge (HEAT) threats, which in real life have been the primary threat to tanks over the past 40 years, in which improvement would be tangible within the constraints.

The alterations to the armor are both logistically and functionally justifiable. The BRL report shows that it was technically feasible to produce DU hull armor, the various documents showing weight-savings (including the source Gaijin themselves use in this post) show that weight-savings were possible, and Gaijin themselves state that newer, more effective APFSDS rounds emerged after the initial generation of Abrams:

@Stona_WT

In order to protect the hull from APFSDS rounds that emerged after the mid-1980s (while retaining the same hull geometry, which is a fixed restraint), the entire available space would have to be filled with thick steel plates or other heavy fill materials.

Conclusion

@Stona_WT

This improvement is in line with what the engineers would be able to achieve without redesigning the entire vehicle from scratch.

Redesigning the entire vehicle from scratch is unnecessary. Gaijin’s own sources in this very devblog explain how >2 metric tons of weight-savings were possible when going from the M1A1 to M1A2.

TL;DR:

1. Increases in armor protection is not directly proportional to weight increases.
2. Weight-savings have been proposed and implemented many times, the it is a terrible assumption to say that no weight-savings were done on the hull between the M1A2 and SEPv3 (or the M1A1 to M1A1 SA and M1A2 SEPv2).
3. There are several sources explaining improvements to the Abrams’ hull armor, specifically on the M1A1 SA and M1A2 SEPv2.
4. A lack of transparency on the exact calculations made regarding the change in hull weight (after literal years of denying Abrams hull armor improvements) is very telling on how Gaijin wants to treat the Abrams.
