Mitsubishi G4M2 Model 22 Otsu (一式陸上攻撃機二二乙型)
The Mitsubishi G4M2 Model 22 Otsu is the last production version of the G4M2 Model 22 aircraft. A total of 49 of these planes were built and were put into service in November 1944.
History
In 1944, American air dominance was constantly growing, so the Japanese Navy began modifying the defensive armament of its bombers. For this purpose, the Mitsubishi G4M2 Model 22 and G4M2a Model 24 bombers first received the Ko (more information about G4M2 Model 22 Ko) modification into production, which meant installing the 20mm Type 99 Model 1 gun in the side windows (and adding radar, which helped avoid fighters). However, thanks to the increased production of the 20mm Type 99 Model 2 guns, a new upgrade was introduced in mid-1944. It was decided that a Type 99 Model 2 gun with better ballistic performance than Model 1 would be installed in the tail and top turret, improving the aircraft’s defensive capabilities. The 20mm Type 99 Model 2 gun used in G4M2 Model 22 Otsu bombers was a modified gun that was normally permanently mounted in fighters, but it didn’t have the classic pistol grip like the Type 99 Model 1. Therefore, it was only installed in the top and tail turrets. Modified to the Otsu version, the G4M2 Model 22 started reaching units in November 1944, and since the production of the G4M2 Model 22 was being phased out in favor of the better G4M2a Model 24 (more information about the G4M2a Model 24 and G4M2a Model 24 Otsu), only 49 G4M2 Model 22 Otsu were made, although older G4M2 Model 22s were probably modified to this variant. These bombers, in various forms (day bombers, night bombers, patrol or reconnaissance planes), served until the end of the war.

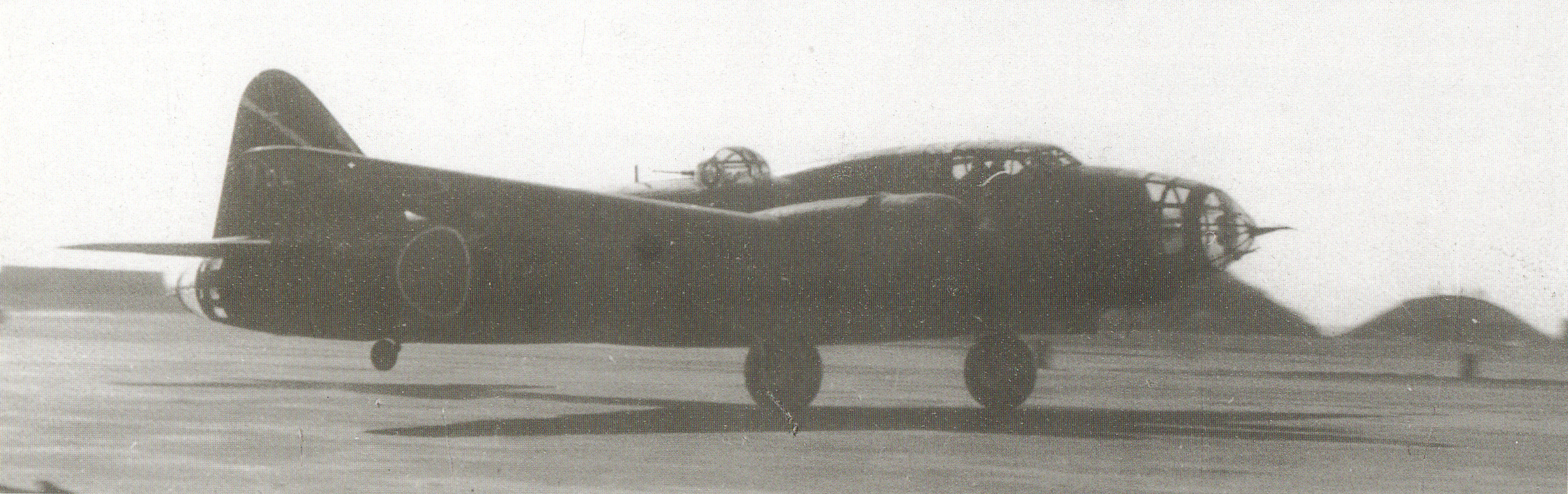

Photos for Mitsubishi G4M2 Model 22 Otsu

scan0134
scan01342689×848 1.4 MB

Art about Mitsubishi G4M2 Model 22 Otsu

scan0133
scan01332560×1689 346 KB

02112

Construction description
The Mitsubishi G4M2 model 22 Otsu bomber is structurally identical to the G4M2 Model 22 Ko bomber. The only difference is the defensive armament used. The dorsal and tail turrets were equipped with a Type 99 model 2 20 mm cannon instead of the Type 99 model 1 cannon.

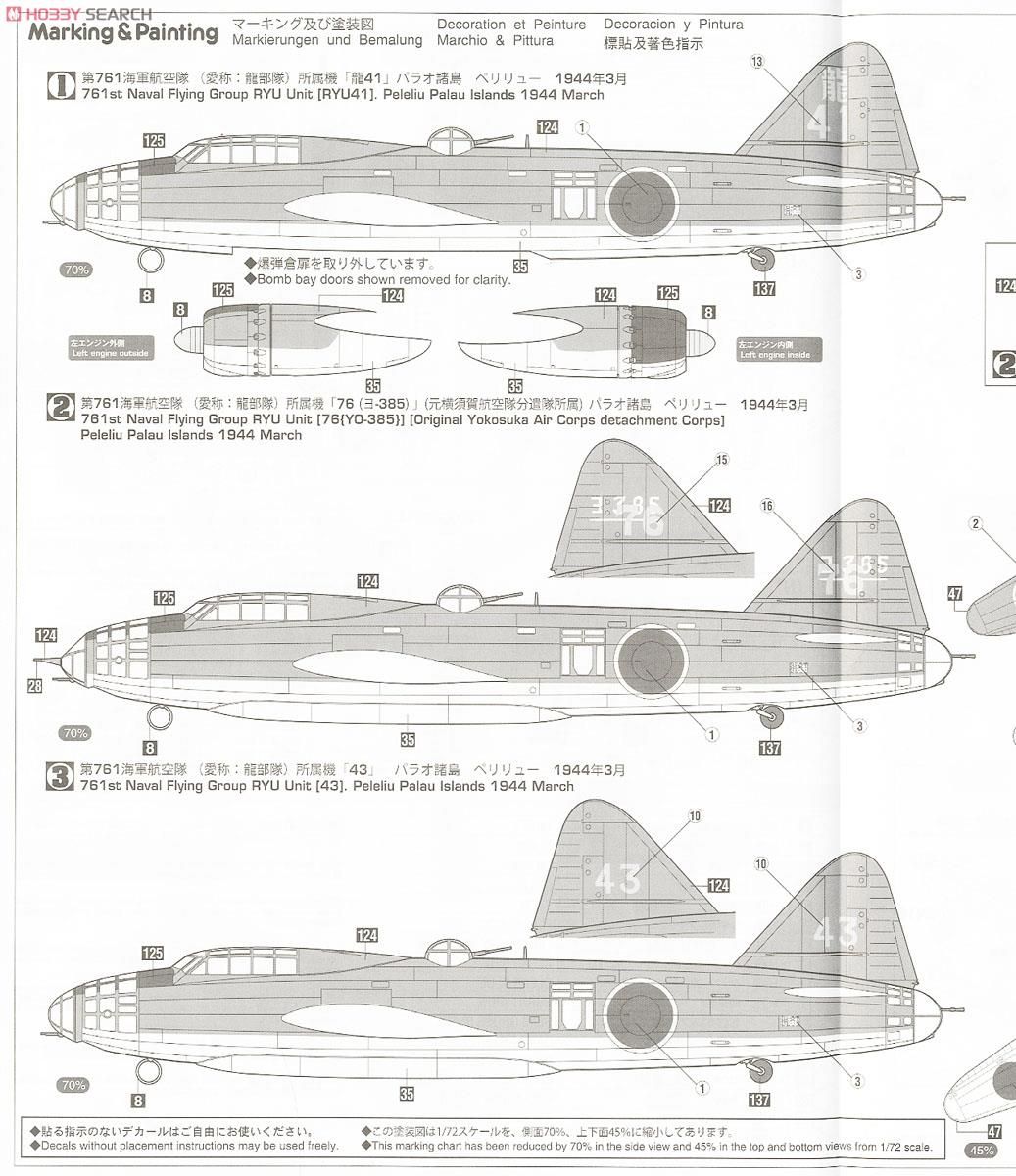

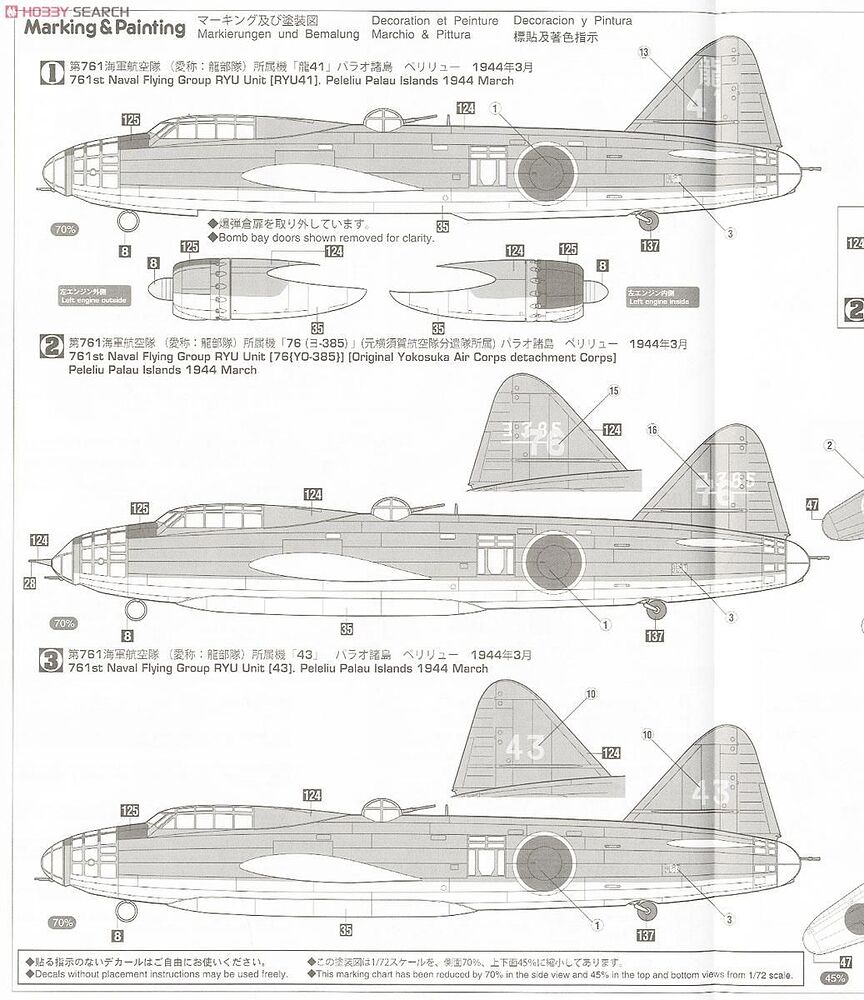

Technical sketches

54d10b26678ed5bd96414da2b97f02ed
54d10b26678ed5bd96414da2b97f02ed1037×1200 174 KB

General characteristics

  • Crew: 7-8
  • Length: 19,63 m
  • Wingspan: 24,89 m
  • Height: 4,80 m
  • Wing area: 78,125 m2
  • Empty weight: 8160 kg (?)
  • Gross weight: 12000 kg (?)
  • Maximum Take-off Weight: 15395 kg
  • Powerplant: 2 x Mitsubishi MK4P Kasei 21 with take-off power of 1,324 kW (1,800 hp)
  • Propellers: four-bladed fixed speed propeller with a diameter of 3,400 mm

Performance

  • Maximum speed: 437 km/h (?)
  • Cruising speed: 315 km/h (?)
  • Range: 4720 km
  • Maximum Range: 6060 km
  • Service ceiling: 8950 m
  • Climb Rate: ?
  • Rate of climb: 13,34 min to 5000 m

Armament

  1. Guns:
  • 1 x Type 92 7.7 mm movable machine gun on the tip of the nose (582 rounds)
  • 2 x Type 92 movable machine gun caliber 7.7 mm on the sides of the nose (582 rounds)(optional)
  • 2 x 20mm Type 99 Model 1 movable cannon behind the wings on the sides of the fuselage
  • 1 x Type 92 7,7 mm movable machine gun in the left side near fuselage 20mm gun window (optional)
  • 1 x Type 99 Model 2 20mm Dorsal Turret Mobile Cannon
  • 1 x Type 99 Model 2 20mm Tail Turret Mobile Cannon
  1. Bombs
  • 1 x 800 kg bombs
  • 2 x 500 kg bombs
  • 4 x 250 kg bombs
  • 12 x 60 kg bombs
  • 1 x Type 91 aerial torpedo (all versions)

Armour

  • 30 mm rubber cover on the underside of the wing fuel tanks
  • 10 mm armor plate to protect behind the upper turret
  • Probably also armored pilots’ seats

Radar equipment

  • 1 x H6 Radar in the Nose

Special thanks

Summary
The Mitsubishi G4M2 Model 22 Otsu is an interesting bomber for Japan in War Thunder. This bomber can complement the range of Japanese bombers really well, offering very good defensive armament (4 x 20 mm cannons and 4 x 7.7 mm machine guns). The G4M2 Model 22 Otsu could be added to the folder with other G4M2 Model 22 versions or serve as a supplement to the already existing G4M1 in the game. This plane could become a tech tree aircraft, a premium plane, an event plane, or even a modification for the G4M2 Model 22. I encourage you to discuss in the comments and to share your own knowledge on this subject.
Finally, I apologize for the linguistic and logical errors because unfortunately English is not my main language and I had to use google translator.

Internet sources

一式陸上攻撃機 - Wikipedia
Mitsubishi G4M - Wikipedia
一式陸上攻撃機/三菱Mitsubishi G4M | 大日本帝国軍 主要兵器
Mitsubishi G4M
Mitsubishi G4M Betty
Уголок неба ¦ Mitsubishi G4M

Book sources

fun
Thank you for reading the suggestion, see you in the next one. Good luck pilots
