Mirage M-5MA Elkan


History:

The history of these Chilean mirages begins many years before being acquired by FACH. Starting in 1967, S.A.B.C.A/SONACA built under license 63 Mirage 5BA, 16 Mirage 5BD and 27 Mirage 5BR aircraft (106 aircraft in total). When the construction of these mirages finished, the Mirage 5BAs were delivered to the Belgian air force. In 1984 they received an upgrade with the AN/ALQ-178(V)2 Rapport II electronic countermeasure system which included a RWR, a chaff and flare launcher and a radar jammer. Later, before the arrival of the F-16A to the BAF, they are withdrawn from service in 1989 and are stored at the Koksijde Air Base.

Mirage 5BA No. BA-37 of the Belgian air force

The MirSIP project (Mirage System Improvement Program)

In 1985 the Belgian air force was looking for a replacement for their mirage but at that time they did not have a large budget, for that reason SABCA presented a project to modernize the 63 operational mirages, calling the program MirSIP.

This project consisted of a series of structural modifications that decreased its takeoff run and improved its maneuvering performance at various angles of attack (Canards flaps, reinforced wing ribs), new wiring, new navigation and communication equipment (UHF, VHF, IFF, TACAN), liquid oxygen system, fuel loading system to pressure, improvement of equipment for the mission (CDU, a larger HUD provided by Ferranti , HDD, Sagem MAESTRO, INS, NAV/Attack system, HOTAS, FLIR, laser designator and ECR), redesign of its cockpit that integrated two MFDs, new Martin Baker Mk.10 ejection seat and other improvements. The heart of its navigation and attack system was based on the SAGEM UTR-90 processing equipment, the SAGEM ULISS 92 inertial navigation system (INS) and a Thomson-CSF TMV630 laser rangefinder.

However, in 1992 the project was aborted due to budget cuts and the number of aircraft to be modified was reduced to 20 units and finally to 10. Despite the prototype (BA 60), it was presented at Le Bourget in 1993, and gave the opportunity so that the chilean air force was interested in the project and financed the modifications to some extra mirages.

The different improvements of the Mirage MirSIP

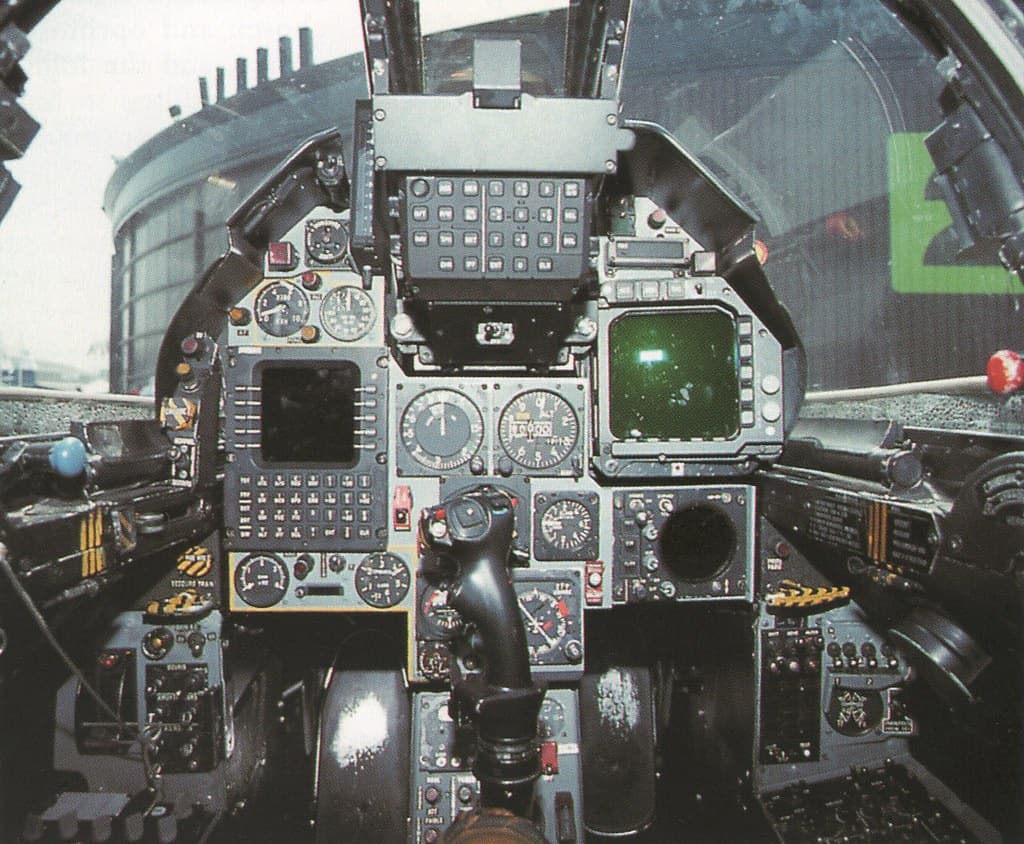

Detail of the modernized cockpit


Service in the Chilean Air Force

In 1994, Chile purchased 25 Mirage 5 aircraft from Belgium, 15 of them corresponding to MirSIP Mirage 5MA, 5 MirSIP Mirage 5MD dual control, 4 non-modernized Mirage 5BR and one Mirage 5BD. The M-5MA aircraft were registered from 701 to 715 and the M-5MD from 716 to 720, while the 5BR from 721 to 724 and the 5BD with the number 725. When they were acquired by Chile they were renamed Mirage M-5MA “Elkan” for the single-seater version (Guardian in Mapudungun). Starting in 1995, the fleet approved the Griffin laser-guided bomb delivery system from the Israeli IAI, which allowed the use of Mk.82, Mk.83 and Mk.84 bombs, improving the effectiveness of the pilots of Aviation Group No. 8 in dropping bombs with a CEP of 8 meters. In 1996 they are shown to the press in Chile carrying the LGB Griffin (Laser Guided Bomb) and holding the DEFA 552 cannons and the Sidewinder AIM-9P missiles. Finally in 2006 they were decommissioned as they were replaced by the F-16. They are currently stored at the El Bosque air base. They can also be seen in the aeronautical museum of Chile.

Mirage M-5MA Elkan insignia, RWR antenna, ECM dispenser and laser designator


The Mirage MirSIP BA-62, with the insignia designed to commemorate the seal of the commercial pact between the Belgian Air Force and the Chilean Air Force.


Some images of the Mirage Elkan with its weapons



Specifications:

  • Crew:
    • 1
  • Armament:
    • Primary: 30-mm cannons DEFA 552A with 125 rounds
    • Secondary: Up to 8,800 lb of externally-held ordnance across five hardpoints encompassing:
      • Missiles: AIM-9P Sidewinder.
      • Bombs: conventional drop bombs (Mk.82, Mk.83 and Mk.84 bombs), Griffin LGB, Snakeeye bombs, fuel drop tanks.
  • Dimensions:
    • Lenght: 15.55 m
    • Wingspan: 8.22 m
    • Height: 4.50 m
    • Wing area: 35.00 m²
    • Empty weight: 6,600 kg
    • Weight maximum take-off: 13,500 kg
  • Performance:
    • Powerplant: 1x SNECMA Atar 09C
    • Maximum speed: in altitude 2350 km/h, on sea level 1220 km/h
    • Cruising speed: 956 km/h
    • Service ceiling: normal 18000 m, with booster 23000 m
    • Rate of climb: 3700 m/min
    • Ferry range: 4000 km

Photos:



pZFXFP4.jpg oE8n6Zr.jpg wNF7xgv.jpg kKWULCA.jpg

Sources:

6 Likes

+1 but i would personally prefer the original Belgian MirSIP in a Benelux tree

2 Likes

I think that in weapons they change one version with another, could you tell me the weapons that this mirage had when it was from Belgium?

3 Likes

They would have to finally model the kfirs radar the Elta better too.

This jet would be very welcomed. But for what nation?

2 Likes

I see 3 options, for now, the first would be for France obviously, the second for a future Latin American tree and the third for the Benelux tree (Belgium, Netherlands & Luxembourg) that was suggested in the forum since this one from Chile has A little better weapons than the original from Belgium, I am assuming this since I have no information about what weapons they carried in their service in Belgium and I asked but they did not answer me.

3 Likes

Whats the rate of climb in feet a min for the Jet my math is off.

If I had any power of suggestion, would you be opposed if it came to the French tree if it meant coming very soon? Tech tree or Event? Or God forbid some would say a Premium?

They are 186 m/s, according to my book of the Chilean mirage

3 Likes

Pretty much instant +1/YES vote for me.
I luv me Mirages, I luv me Mirage mods, and luv me Chilean vehicles, simple as

(Sidenote: Hole smokes that cockpit is fantastic! Genuinely a dream-come-true for modded Mirages lol)

2 Likes

Some time ago I got these excellent images of when the plane was in Argentina for some exercises years ago, and thank you very much for your support.






1 Like

These are fantastic!

Also, no problem! After looking into a bit of Chile’s history with aviation, I’d love to see them in-game somehow (TT, sub tree, premiums/events, squadron, however they can be added)

1 Like

If you liked the Chilean planes it would be great if you saw my suggestion of a Chilean sub tree, I think you will like it a lot my friend, so you can see the oldest ones too.

1 Like

Never enough Mirage variants.

2 Likes

This is the modernized version of the Mirage 5BA from Belgium that they recently added to the game, it has many improvements and in Chile it was armed with Israeli weapons, so it could be BR 10.7

3 Likes

We really need a Mirage III/5/50 variant at that Br.

1 Like
