DAIRCM for AH1Z and AH6M

Machinery of War Discussion Helicopter
75

I feel like electro optical might refer to the way it detects and tracks the missiles

76

“The AAQ-45 incorporates multiple technologies developed by Sarkady’s IRCM Systems Section in collaboration with the Applied Optics Branch of the Optical Sciences Division: including two-color IR Focal Plane Arrays for the threat sensor, missile, and hostile fire detection algorithms, jamming techniques, quantum cascade lasers, and IR fiber optic cables capable of transmitting high optical power.”

1 Like
77

I mean I’m not sure but all the LDIRCM systems like the CIRCM use a turret that point a laser to defeat enemy missiles, while the DAIRCM replaces the AAR-47 MWS and doesn’t seem to use any turrets so understood it that it wouldn’t be able to shine a laser at a specific point?

78

Theres informnation in my sources that explain how it works. It does in fact use and IR laser. And it is directed through the sensor/beam directors. There is at least 4 of them and the laser can feed all 4 beam directors.

1 Like
79

Someone else that’s more knowledgeable than me should make a bug report lol

123

Ah64e too

124

This is a different system there is no evidence that ah64e has been installed with DAIRCM as of yet.

125

what is even the diffrence of circm and daircm. i could see in the dev server that it has the wing mounted circm pods but not that they actually worked…

1 Like
126

DAIRCM means Direct Aperture IRCM. Its how it works essintaly. Its a fairly new system that uses a single laser that focuses it through these sensor/bean directors that a computer controls to make the most effective defense against missiles.

127

Isnt this literally what circm is ??? Like the northrup grumman video?

128

they are different systems

129

So dircm is just built in and circm is a simpler verison mounted on pilons?

133

Thats one thing thats different yeah. DAIRCM is also newer and smart(has a computer)

135

im fairly sure circm is daircm(its not apparently only leonardo has a design thats in service rn of daircm). there are some figures on the laser wattage going on the internet and its pretty high, but is there even a difference betwen LDIRCM and DAIRCM? like as far as i know the term LDIRCM isnt used outside of WT

136

there wouldnt be a distinction between built in the airframe and installable

139

Please stay on topic.

140

Not exactly, they are functionally similar systems that use different mounting solutions.

The CIRCM is mounted to the Wingtip station, which prevents other systems (such as a Sidewinder, ATAS or other sensors / uplinks from being mounted).

The DAIRCM, replaces the AAR-47 UV MAWS in their cheek / aft blister(s), and still provides at least equivalent functionality for the Countermeasure suite.

1 Like
141

AH-1Z should have the APR-39D RWR

AH-1Z missing AAQ-45 DAIRCM (laser DIRCM)

1 Like
142

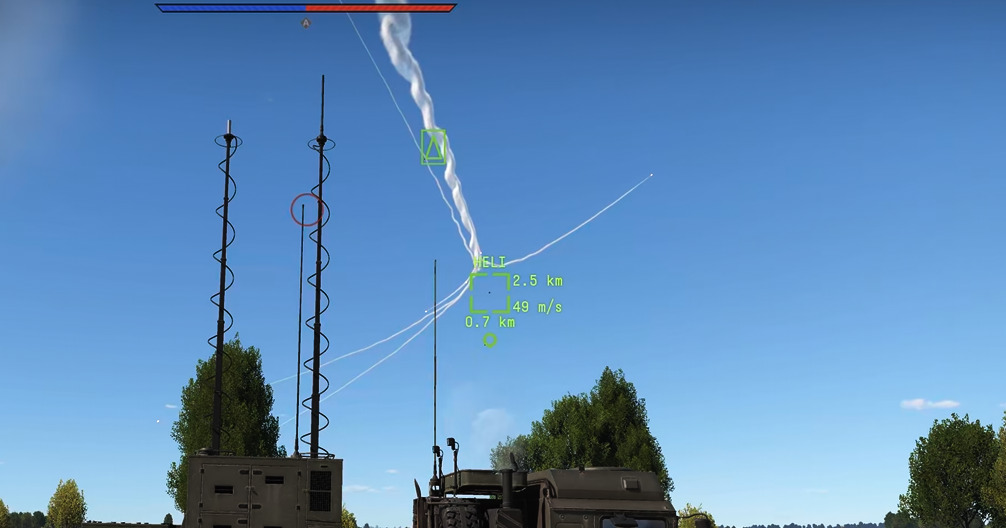

image1006×528 89.2 KB

can confirm that the AH-64E currently has the same magical shield as Mi-28NM Ka52 and Z10ME
let’s see how long it takes before they make it realistic now!

2 Likes
143

im not sure if they are gonna make it realistic, if the new russian AA was IR they would have already fixed it but because its ARH idk if they are gonna bother
