BTR-3E1: 8-wheeled Assault Platform

[Would you like to see this in-game?]
  • Yes
  • No
0 voters

Lesser_Coat_of_Arms_of_Ukraine2_svg.png. BTR-3E1: 8-wheeled Assault Platform


The BTR-3E1 during a military parade.

  • Basic Description:
    • The BTR-3 is an Armored Personnel Carrier developed in 2000 that can be equipped with many different modules/variants to serving different needs. Some of these variants include an ARV, which is equipped with a dozer blade, crane, and winch, the BTR-3E 90 equipped with the 90mm Cockerill turret for direct-fire needs, or one of the newest variants, the BTR-3E1 equipped with the BM-3M “Shturm-M” module. This version is a relatively new model, launched in 2007, features the ZTM-1 30mm Autocannon, the KT-7.62mm Coaxial Machine Gun, a KBA-117 grenade launcher, and a dual Barrier ATGM launcher/system. The turret also is equipped with an electro-optical sighting system and 360-degree Panoramic camera for the Gunner and Commander through the Track-M Fire Control System that offers 3rd-generation thermal imagery and tracking capabilities. This gives the BTR-3 all the capabilities of a modern IFV, with the option of engaging main battle tanks should the need arise. The BTR-3E1 chassis is a standard 8x8 found on many types of APC’s. This chassis is reinforced with Kevlar providing the crew with 360-degree protection from small-caliber weapons and can be fitted with addon armor to protect against 12.7mm rounds. The BTR-3E1 can carry up to 9 personnel, including the 3 required to operate the vehicle, the driver, commander, and gunner. One feature that’s different from the standard BTR-3 and the BTR-3E1 is the new MTU 6R106TD21 Diesel Engine capable of 326hp capable of achieving speeds of over 100km/h. The BTR-3E1 is capable of attaching Bar Armor.
    • In terms of ammunition, the ZTM-1 (2A72) and ZTM-2 (2A42) utilize the 30x165 cartridge which allows both cannons to use the same ammunition. The Precision Mechanic Plant in Western Ukraine launched serial-production of Soviet 30x165 ammunition including the 3UBR8 Armor Piercing Discarding Sabot round with Tracer (APDS-T) round, 3UBR6 Armor Piercing round with Tracer (AP-T) round, 3UOR6 High-Explosive Incendiary Fragmentation round with Tracer (F-T) and the 3UOF8 High Explosive Incendiary round (HEF-I).
    • Currently, the two main country’s operating the BTR-3E1 is Thailand and Ukraine.
  • Specifications:
    • Role: Assault Reconnaissance Vehicle
    • Origin/Manufacturer:
      • Ukraine - KMDB
    • Armament:
      • Primary: ZTM-1 30mm Autocannon
        • Cartridge: 30x165
        • Ammunition:
          • 3UBR8 APDS-T (BP)
          • 3UBR6 AP-T (BT)
          • 3UOR6 HEF-I (OFZ)
          • 3UOF8 F-T (OT)
        • Feed System:
          • Dual-belt Fed
      • Coaxial: KT-7.62mm Machine Gun
      • Roof-Mounted: KBA-117 30mm Grenade Launcher
      • Tertiary: Dual Barrier ATGM Launcher
        • Missile:
          • RK-2S Missile
            • Warhead: Tandem-HEAT
            • Caliber: 130mm
            • Range: out to 5km
            • Penetration: at least 800mm of RHA behind ERA.
            • Guidance: Semi-Active Laser
          • RK-2OF
            • Warhead: HE-FRAG
            • Caliber: 130mm
            • Range: out to 5km
            • Penetration: at least 60mm of RHA.
            • Guidance: Semi-Active Laser
    • Dimensions:
      • Length: 7.850m
      • Width: 2.900m
      • Height: 2.774m
      • Weight: 16-25t
    • Mobility :
      • Engine: 326hp - MTU 6R106TD21 Diesel Engine
      • Max Speed: 100km/h (~8km/h in water)
      • Transmission: Allison MD3066 Fully-automatic Transmission (6-Forward, 1-Reverse)
      • Suspension: 8 x 8
  • Crew:
    • Commander
    • Gunner
    • Driver
  • Features:
    • Laser Rangefinder
    • 6x 902V 81mm Smoke Grenade Launchers
    • ESS
    • Amphibious
    • Unmanned Turret
      • Commander and Gunner can both operate turret.
    • Armor:
      • Kevlar Lined
      • 7.62mm all-around protection.
      • Up to 12.7mm frontally.
      • 360-degree Cage Armor
    • Optics:
      • Gunner: Track-M Opto-electronic Sighting System (Thermal Imager)
      • Commander: Panorama-2P CITV (Thermal Imager)
      • Driver: TVNE-4BM (Night Vision Device )
  • In-game :
    • The BTR-3E1 is a powerful 8x8 chassis that is capable of destroying all targets it comes across. Whether its light vehicles, low flier’s or MBT, the BTR-3E1 has the ordinance to target them all.
    • Estimated Battle Rating: 9.0-9.3.
  • Sources:
    1. https://www.armyrecognition.com/ukraine_ukrainian_army_wheeled_armoured_vehicle/btr-3e1_wheeled_armoured_vehicle_personnel_carrier_technical_data_sheet_specifications_pictures.html
    2. https://www.army-technology.com/projects/btr-3e1-apc/
    3. BTR-3 - Wikipedia
    4. Бронетранспортер БТР-3Е1 — КБТЗ
    5. https://www.ukrspecexport.com/uploads/files/Categories/pdf_5/be2e23.pdf
    6. 404 Error Page
    7. https://kbmia.com/production-en/army-en/combat-module-bm-3m-shturm-m/
    8. Army Guide
    9. https://www.globalsecurity.org/military/world/ukraine/btr-3e1.htm
    10. https://uk.wikipedia.org/wiki/Бар’єр_(ПТРК)
    11. Glavcom: Ukrainian combat module BM-3M Shturm-M
    12. https://odin.tradoc.army.mil/mediawiki/index.php/RK-2_Barrier_(Bar’er-V)Ukranian_Anti-Tank_Guided_Missile(ATGM)
    13. http://www.military-today.com/missiles/skif.htm
    14. https://thesovietarmourblog.blogspot.com/p/30x165mm-cartridges.html#:~:text=3UOR6 is a high-explosive,670M nose fuze is used.

Imagery:

Spoiler


BTR-3E1’s on parade in Kyiv, 2018.


BTR-3E1 front view.

full

BTR-3E1 in active service, Ukraine.

_0001622_foto.ico.jpg _0001623_foto.ico.jpg _0001624_foto.ico.jpg _0001625_foto.ico.jpg _0001636_foto.ico.jpg

A series of images from KBTZ.

ukrainian-btr3.jpg?w=584

Newly prepared BTR-3E1’s.

EE-a0hpXoAASc_i.jpg:large

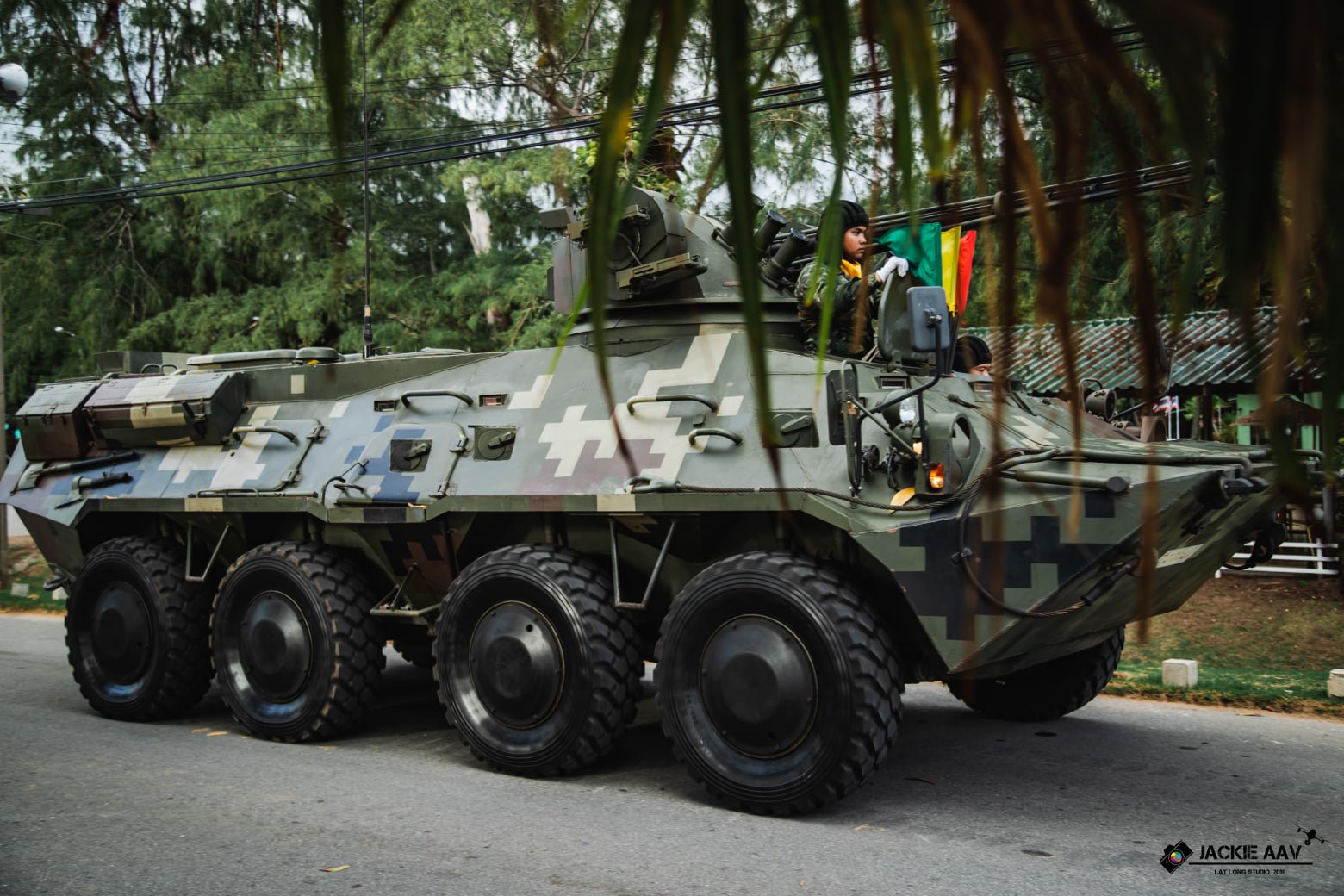

Side view of the BTR-3E1 operated by the Royal Thai Army.


Specifications of the BTR-3E1.

680093170_BTR-3E1Combat.jpg.38159d5b8211

A battle-damaged BTR-3E1 that was used in combat. Note the attachable bar armor.

60732924_BarArmor.jpg.953e5d896837c3a315

Bar Armor Kit offered for the BTR-3E1 and other APC’s.

Ukrainian+combat+module+BM-3M+Shturm-M_1

Another image utilizing the Cage/Bar armor.

https://youtu.be/APsMvs7mSB4

Video of the BTR-4E and BTR-3E1.

Day-Time.jpg.c749bc5dce0314a440ae99cda17

319172184_NightVision.jpg.ed7e8de2154e2b

Optics of the Ukrainian Army.


BM-3M Shturm-M Combat Module found on the BTR-3E1.

Ukrainian+combat+module+BM-3M+Shturm-M_9

View of the Shturm Combat Modules electronics.

Ukrainian+combat+module+BM-3M+Shturm-M_3

Ukrainian+combat+module+BM-3M+Shturm-M_2

Gunner and Commander locations in the BTR-3E1.

Ukrainian+combat+module+BM-3M+Shturm-M_5

Ukrainian+combat+module+BM-3M+Shturm-M_6

BM-3M ‘Shturm’ Combat Modules being assembled.

Ukrainian+combat+module+BM-3M+Shturm-M_1

Ukrainian+combat+module+BM-3M+Shturm-M_1

‘Shturm’ module characteristics.

Ukrainian+combat+module+BM-3M+Shturm-M_1

Inside the Combat Module.

Ukrainian+combat+module+BM-3M+Shturm-M_2

Tracking setup for the Gunner.

Ukrainian+combat+module+BM-3M+Shturm-M_2

Commander’s optical sight, Panorama-2P.

Ukrainian+combat+module+BM-3M+Shturm-M_2

Commander and Gunner stations.

Ukrainian+combat+module+BM-3M+Shturm-M_3

Combat Module layout.

Ukrainian+combat+module+BM-3M+Shturm-M_2

Barrier Missile System characteristics.

Ukrainian+combat+module+BM-3M+Shturm-M_3

Missile stowage in the BTR-3E1.

trekm_62353051-1.jpg.d56c66f1d2fe089194a

The electronics used to guide the main weapons.

panorama2p_212576999-1.jpg.1174867261c6e

Panorama-2P sight system used by the Commander.

4 Likes

What would the gun depression be for this turret?

Recently i found this information.

Range of targeting angles, deg

  • in vertical plane…

-5…+45

  • in horizontal plane…

360

Targeting speed, deg/sec, not less:

  • in vertical plane…

0,02…6

  • in horizontal plane…

0,02…6

Transferring speed, deg/s,

  • in vertical plane…

35

  • in horizontal plane…

35
