ARMORED CARS

---

---

Simms' Motor War Car

General
Name(s):	Motor War Car
Type:	Armored car
Status:	Prototype
Derived From:	None
Derivatives:	None
Produced:	1	Production Date:	1899-1902
Producer(s):	United Kingdom	1	1899-1902
	Vickers, Sons & Maxim	1	1899-1902
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	5.5 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	8.53 m	2.43 m	3.05 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Q.F. 1-pr. Mk. I (???)	Pedestal, Manual, -/+???° @ ??°/s	Manual, -??°/+??° @ ??°/s	300 rpm
2 x	Maxim .303-in (???)	Pedestal, Manual, -/+???° @ 60°/s	Manual, -??°/+??° @ 60°/s	600 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
1-pr. Gun
	Q.F., 1-pr., Steel Shell, Mk. I	SAPHE	0.454 kg/13 g Pistol Powder, 22 mm @ 550 m/s
	Q.F., 1-pr., Common Shell, Mk. I	HE	0.454 kg/22 g Pistol Powder, 4 mm @ 550 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 1-pr.

Protection
Location	Thickness	Type
Frontwards
Front	6 mm @ ??°	Vickers steel
Gunshields*	??? mm @ ??°	Vickers steel
Sidewards
Side	??? mm @ ??°	Vickers steel
Wheel covers	6 mm @ ??°	Chainmail
Rearwards
Rear	6 mm @ ??°	Vickers steel
Gunshields*	??? mm @ ??°	Vickers steel

*Gunshields were removed in 1903.

Crew
4	Total
1	Commander, Driver
1	Gunner, Gun Loader
2	Machine Gunners, Machine Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Cannstatt-Daimler
	Type:	Gasoline
	Horsepower:	12 kW
	@ RPM	700
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	Cannstatt 4-speed	4	1
Steering:	Ackerman worm gear
Brakes:	Mechanical

Suspension
Type:	Leaf spring semi-elliptical (rear), spiral spring (front)
Road wheels:	4x2
	Type:	Wooden spoke wheel-iron tire
	Steering:	Front

Mobility
Maximum Forward Speed:	40.0* km/h
Maximum Reverse Speed:	40.0* km/h
Power-to-Weight Ratio:	2.1 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	322 km
	Mileage:	??? l/100 km

40.0 km/h is entirely theoretical, in testing it only managed 14.0 km/h on road despite the transmission rated for higher.

Summary
The Simms’ Motor War Car is considered to be have been the first armored car ever produced. While it wasn’t the first armored car to be proposed, it was the first to be produced and was a rather ambitious design. It was ordered in 1899 and was intended to see use during the Second Boer War, but delays in production meant that it wasn’t produced in 1902 when the war had just come to an end. The Car was exhibited to the public but with no military exhibition or backing, the project was a failure and the first produced armored car faded into obscurity.

Variants & Changes:

• 1902: Vehicle presented with gunshields for all guns.
• 1903: Gunshields were removed.

Variant Images

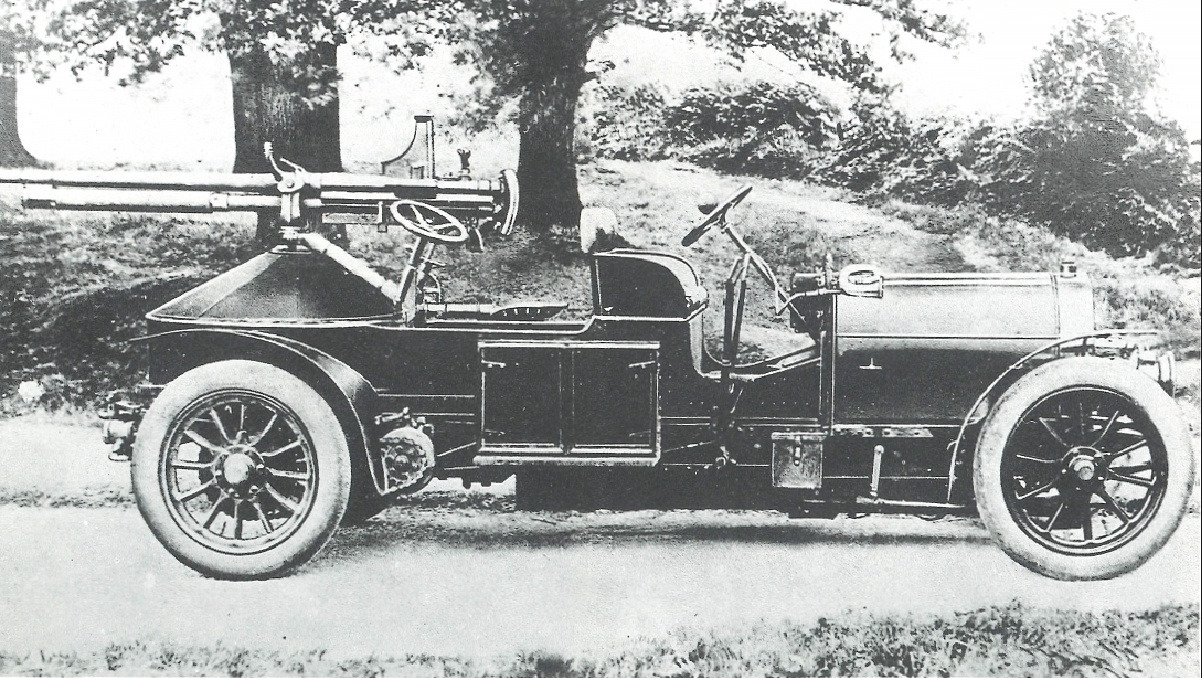

Motor War Car on public exhibition, with gunshields for all of the guns.

Motor War Car with the gunshields removed.

---

---

Rolls-Royce

General
Name(s):	???
Type:	Armored car
Status:	Prototype
Derived From:	Rolls-Royce Mk. I Pattern 1914
Derivatives:	None
Produced:	48	Production Date:	04/1915-06/1915
Producer(s):	United Kingdom	48	04/1915-06/1915
	Wolseley Motors Ltd.	48	04/1915-06/1915
Used:	1	Service Date:	???
User(s):	Royal Naval Air Service	???

Full User(s) List

–	Unit	Date	Status
User(s):	Royal Naval Air Service
	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	4.93 m	1.93 m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Q.F. 1-pr. Mk. I (???)	Pedestal, Manual, -/+???° @ ??°/s	Manual, -??°/+??° @ ??°/s	300 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
1-pr. Gun
	Q.F., 1-pr., Steel Shell, Mk. I	SAPHE	0.454 kg/13 g Pistol Powder, 22 mm @ 550 m/s
	Q.F., 1-pr., Common Shell, Mk. I	HE	0.454 kg/22 g Pistol Powder, 4 mm @ 550 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 1-pr.

Protection
Location	Thickness	Type
Frontwards
Front	12 mm @ ??°	RHA
Sidewards
Side	12 mm @ ??°	RHA
Rearwards
Rear	12 mm @ ??°	RHA
Upwards
Roof	??? mm @ ??°	RHA

Crew
3	Total
1	Commander
1	Driver
1	Gunner, Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	59 kW
	@ RPM	???
	Cylinder:	6
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	Mechanical

Suspension
Type:	Leaf spring
Road wheels:	4x2
	Type:	Spoked
	Steering:	???

Mobility
Maximum Forward Speed:	72.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	240 km
	Mileage:	??? l/100 km

Summary
The Rolls-Royce Mk. I were one of the prevalent armored cars within the British military. In an effort to uparm them, once was converted by replacing the turret with a 1-pr. with a gunshield on an open pedestal mount. Evidently, this was not successful since it was a one-off prototype.

Variants & Changes:

None

---

---

Pierce-Arrow

General
Name(s):	???
Type:	Armored lorry
Status:	Production
Derived From:	Pierce-Arrow 5-ton
Derivatives:	None
Produced:	2	Production Date:	1916
Producer(s):	United Kingdom	2	1916
	W. G. Allen & Sons	2	1916
Used:	2	Service Date:	1916-1918
User(s):	Royal Naval Air Service	1916-1918

Full User(s) List

–	Unit	Date	Status
User(s):	Royal Naval Air Service
	Royal Naval Armoured Car Division	1916-???	???

Dimensions
Weight:	9.1* t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

*Weight was reduced in 1916-1917 by removal of the turret, though it’s not listed by how much.

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1916 Lorry
1 x	Q.F. 3-pr. 5-cwt. Vickers Mk. I (???)	Turret, Manual, -/+150° @ ??°/s	Manual, -??°/+??° @ ??°/s	20 rpm
1916-1917 Lorry
1 x	Q.F. 3-pr. 5-cwt. Vickers Mk. I (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -??°/+??° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
3-pr. 5-cwt. Gun
	Q.F., 6-pr., Hotchkiss, Steel Shell, Mk. II	SAPHE	1.5 kg/49.6 g Black Powder F.G., 62 mm @ 785 m/s
	Q.F., 6-pr., Hotchkiss, Common Shell, Mk. II	SAPHE	1.5 kg/39 g Black Powder F.G., 66 mm @ 785 m/s
	Q.F., 6-pr., Hotchkiss, H.E. Shell, Mk. V	HE	1.587 kg/120.5 g Lyddite & 5.3 g TNT, 11 mm @ 785 m/s
	Q.F., 6-pr., Hotchkiss, H.E. Shell, Mk. II	HE	1.5 kg/120 g Lyddite, 10 mm @ 785 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 3-pr. 5-cwt.

Protection
Location	Thickness	Type
Frontwards
Front	9 mm @ ??°	RHA
Sidewards
Side	9 mm @ ??°	RHA
Rearwards
Rear	9 mm @ ??°	RHA
Upwards
Roof	??? mm @ ??°	RHA

Crew
5	Total
1	Commander
1	Driver
1	Gunner
2	Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	22 kW
	@ RPM	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	Mechanical

Suspension
Type:	Leaf spring
Road wheels:	4x2
	Type:	Spoked
	Steering:	???

Mobility
Maximum Forward Speed:	40.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	2.4* kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

*Power-to-weight ratio was increased in 1916-1917 by removal of the turret, though it’s not listed by how much.

Summary
The two lorries were produced in 1916, on the same chassis that had previously already been used for an anti-aircraft lorry. Both were sent to Russia as a part of the expeditionary forces, where they then had their turrets removed due to their weight dragging them down in the Russian terrain with their worryingly underpowered engines.

Variants & Changes:

1916: Produced with a turret.
1916-1917: Turrets were removed due to weight issues in Russia and replaced by open pedestal mounts with gunshields. The now-open sides were replaced by flat armored plates.

Variant Images

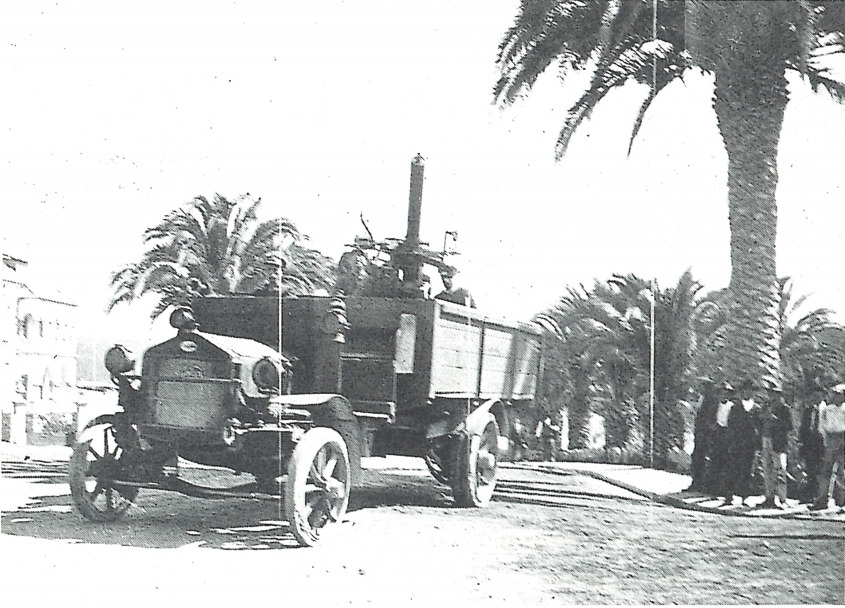

Serial lorry.

One of two lorries with the turret replaced by an open mount.

---

---

Seabrook

General
Name(s):	???
Type:	Armored lorry
Status:	Production
Derived From:	Seabrook 5-ton
Derivatives:	None
Produced:	30	Production Date:	1915
Producer(s):	United Kingdom	30	1915
	Portholme Aerodrome Ltd.	30	1915
Used:	30	Service Date:	1915-???
User(s):	Royal Naval Air Service	1915-???
	British Army	???

Full User(s) List

–	Unit	Date	Status
User(s):	Royal Naval Air Service
	Royal Naval Armoured Car Division	1915-???	???
	British Army
	???

Dimensions
Weight:	10.16 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	7.3 m	2.1 m	1.8 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Q.F. 3-pr. 5-cwt. Vickers Mk. I (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -5°/+30° @ ??°/s	20 rpm
4* x	Vickers .303-in Mk. I (???)	Pedestal, Manual, -/+???° @ 60°/s	Manual, -??°/+??° @ 60°/s	450 rpm
1 x	Q.F. 3-pr. 5-cwt. Vickers Mk. I (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -5°/+30° @ ??°/s	20 rpm
4* x	Maxim .303-in (???)	Corner Pedestals, Manual, -/+???° @ 60°/s	Manual, -??°/+??° @ 60°/s	600 rpm

*Could vary between 1 to 4.

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
3-pr. 5-cwt. Gun
	Q.F., 6-pr., Hotchkiss, Steel Shell, Mk. II	SAPHE	1.5 kg/49.6 g Black Powder F.G., 62 mm @ 785 m/s
	Q.F., 6-pr., Hotchkiss, Common Shell, Mk. II	SAPHE	1.5 kg/39 g Black Powder F.G., 66 mm @ 785 m/s
	Q.F., 6-pr., Hotchkiss, H.E. Shell, Mk. V	HE	1.587 kg/120.5 g Lyddite & 5.3 g TNT, 11 mm @ 785 m/s
	Q.F., 6-pr., Hotchkiss, H.E. Shell, Mk. II	HE	1.5 kg/120 g Lyddite, 10 mm @ 785 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 3-pr. 5-cwt.

Protection
Location	Thickness	Type
Frontwards
Front	8 mm @ ??°	RHA
Sidewards
Side	8 mm @ ??°	RHA
Rearwards
Rear	8 mm @ ??°	RHA
Upwards
Roof	??? mm @ ??°	RHA

Crew
6	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader
1	Machine Gunner
1	Machine Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Continental
	Type:	Gasoline
	Horsepower:	24 kW
	@ RPM	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	Brown Lipe selective 4-speed or 3-speed	4 or 3	1
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	4x2
	Type:	Spoked
	Steering:	???

Mobility
Maximum Forward Speed:	32.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	2.3 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	160 km
	Mileage:	??? l/100 km

Summary
The Seabrook were the most numerous group of cannon armored lorries in British service during the war. They were intended to serve as support for machine gun cars in the RNACD Squadrons with three in each, but were instead grouped into separate six-car squadrons due to problems posed by their overweight chassis. Most of them would be deployed in France, but at least one would also be deployed to Egypt. Sometime later, they were all transferred to the British Army after the disbandment of the RNAS RNACD.

Variants & Changes:

1915: Some cars produced with a 3-speed instead of a 4-speed transmission.
1915-1916: Some cars produced without gunshields or removed during service.

Variant Images

Two Seabrook without their gunshields.

---

---

---

HEAVY TANKS

---

---

Mark I

General
Name(s):	Tank, Mark I
Type:	Heavy tank
Status:	Production
Derived From:	None
Derivatives:	Mark II
Produced:	150+1 (all models)	Production Date:	1916
Producer(s):	United Kingdom	150+1	1916
	Metropolitan Carriage Wagon & Finance Co.	125+1	1916
	William Foster & Co.	25	1916
Used:	151	Service Date:	1916-1918
User(s):	British Army	1916-1918

Full User(s) List

–	Unit	Date	Status
User(s):	British Army
	Heavy Section, Machine Gun Corps	01/05/1916-11/1916	↓Renamed↓
	Heavy Branch, Machine Gun Corps	11/1916-07/1917	↓Reorganized↓
	Tank Corps	07/1917-???	???

Dimensions
Weight:	28.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	9.91 m	4.19 m	2.49 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
2 x	Q.F. Hotchkiss 6-pr. 8-cwt. Mk. II (???)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	20 rpm
3 x	.303-in Hotchkiss Mk. I (???)	Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
6-pr. 8-cwt. Gun
	Q.F., 6-pr., M.D., Steel Shell, Mk. XIII	SAPHE	2.72 kg/15 g Lyddite, 57 mm @ 554 m/s
	Q.F., 6-pr., M.D., Common Shell, Mk. III	HE	2.72 kg/160 g TNT, 5 mm @ 554 m/s

Devices
# of - Name	Type	Effect, Location/for
2 x - telescopic	Sight	2-3.5x zoom, for 6-pr. 8-cwt.

Protection
Location	Thickness	Type
Frontwards
All front	12 mm @ ??°	RHA
Sidewards
All side	12 mm @ ??°	RHA
Rearwards
All rear	12 mm @ ??°	RHA
Upwards
Roof	8 mm @ ??°	RHA
Downwards
Floor	6 mm @ ??°	RHA

Crew
8	Total
1	Commander, Assistant Driver
1	Driver, Machine Gunner, Machine Gun Loader
2	Mechanics
2	Gunners
2	Gun Loaders, Machine Gunners, Machine Gun Loaders

Automotive
Fuel Capacity:	230 l
Engine(s):	1 x - Daimler-Knight
	Type:	Gasoline
	Horsepower:	78 kW
	@ RPM	1,000
	Cylinder:	6
	Capacity:	13 l
		Foward	Reverse
Transmission:	3-speed	2	1
Steering:	Clutch-break
Brakes:	Mechanical

Suspension
Type:	None
Road wheels:	26
	Type:	Rigid non-spaced
	Idlers:	Adjustable front track
Return rollers:	10
	Type:	Top track
Drive Sprockets:	2
	Type:	Rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	???
	Length:	??? cm
	Width:	??? cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	6.0 km/h
Maximum Reverse Speed:	1.2 km/h
Power-to-Weight Ratio:	2.8 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	38 km
	Mileage:	605 l/100 km

Summary
The Mark I was the first mass-production tank ever developed and the first to see action during the First World War. However, as with most new things, issues with it were immediately noticed when it was first deployed in combat in 1916. Namely, regarding its mobility. Due to that, all Mark I and Mark II tanks were placed in training duties the following year and for the remainder of the war, with all Mark I tanks being decommissioned by the end of the war due to the abundance of later Mark V.

Variants & Changes:

• “Mother” prototype: Identical to production versions, but was made of mild steel instead of bulletproof steel.
  • Later 1916: “Mother” was refitted with a Daimler-based petrol-electric drive system, but was rejected in favor of the Wilkinson system experimented on the Mk. II. This increased the engine’s standard rpm from 1,000 to 1,400.
• Several modifications to the roof, including:
  • 1916~: A net was installed atop of a few Mark Is.
  • 1916~: Bar holders were installed atop of a few Mark Is in order to stow the sponson guns during transport.
  • 1916~: A triangular anti-grenade mesh was installed atop of some Mark Is.
• 1917~: The steering tail was removed from all Mark Is, this decreased the length to 7.75 m.

Variant Images

“Mother” during the Hatfield trials.

Early Mk. I tank with the steering tank and the anti-grenade mesh.

---

---

Mark II

General
Name(s):	Tank, Mark II
Type:	Heavy tank
Status:	Production
Derived From:	Mark I
Derivatives:	Mark III
Produced:	50 (all models)	Production Date:	1916-1917
Producer(s):	United Kingdom	50	1916-1917
	Metropolitan Carriage Wagon & Finance Co.	50	1916-1917
Used:	50	Service Date:	1916-???
User(s):	British Army	1916-???

Full User(s) List

–	Unit	Date	Status
User(s):	British Army
	Heavy Branch, Machine Gun Corps	11/1916-07/1917	↓Reorganized↓
	Tank Corps	07/1917-???	???

Dimensions
Weight:	28.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	7.75 m	??? m	2.49 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
2 x	Q.F. Hotchkiss 6-pr. 8-cwt. Mk. II (???)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	20 rpm
3 x	.303-in Hotchkiss Mk. I (???)	Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
6-pr. 8-cwt. Gun
	Q.F., 6-pr., M.D., Steel Shell, Mk. XIII	SAPHE	2.72 kg/15 g Lyddite, 57 mm @ 554 m/s
	Q.F., 6-pr., M.D., Common Shell, Mk. III	HE	2.72 kg/160 g TNT, 5 mm @ 554 m/s

Devices
# of - Name	Type	Effect, Location/for
2 x - telescopic	Sight	2-3.5x zoom, for 6-pr. 8-cwt.

Protection
Location	Thickness	Type
Frontwards
All front	12 mm @ ??°	Mild steel
Sidewards
All side	12 mm @ ??°	Mild steel
Rearwards
All rear	12 mm @ ??°	Mild steel
Upwards
Roof	8 mm @ ??°	Mild steel
Downwards
Floor	6 mm @ ??°	Mild steel

Crew
8	Total
1	Commander, Assistant Driver
1	Driver, Machine Gunner, Machine Gun Loader
2	Mechanics
2	Gunners
2	Gun Loaders, Machine Gunners, Machine Gun Loaders

Automotive
Fuel Capacity:	230 l
Engine(s):	1 x - Daimler-Knight
	Type:	Gasoline
	Horsepower:	78 kW
	@ RPM	1,000
	Cylinder:	6
	Capacity:	13 l
		Foward	Reverse
Transmission:	3-speed	2	1
Steering:	Clutch-break
Brakes:	Mechanical

Suspension
Type:	None
Road wheels:	26
	Type:	Rigid non-spaced
	Idlers:	Adjustable front track
Return rollers:	10
	Type:	Top track
Drive Sprockets:	2
	Type:	Rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	???
	Length:	??? cm
	Width:	??? cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	6.0 km/h
Maximum Reverse Speed:	1.2 km/h
Power-to-Weight Ratio:	2.8 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	38 km
	Mileage:	605 l/100 km

Summary
While work on an improved model was underway, the Mark II and III were produced as interim to keep the factories running. The Mark II differed from the early Mark I largely only superficially, with the hatches revised, the cabin narrowed, internal stowage altered, the removal of the steering tail, and the addition of a “grouser” track shoe at every sixth link in order to improve mobility. All of the tanks were made out of mild steel and were never intended to see combat, nonetheless they were deployed alongside Mark I and subsequently decimated due to their unarmored hulls being able to be penetrated by basic rifle shots. They were withdrawn from frontline service as soon as possible and served the rest of the war as training tanks.

Variants & Changes:

• 1917~: Some tanks were produced without the “grouser” track shoes.
• 03/1917: Three tanks were used as testbeds for various transmissions, including:
  • Wilson Epicyclic transmission: Won the contest and was installed starting from Mark V tanks.
  • Westinghouse Petrol-Electric transmission
  • Wilkin’s Multiple Clutch transmission

---

---

Mark III

General
Name(s):	Tank, Mark III
Type:	Heavy tank
Status:	Production
Derived From:	Mark II
Derivatives:	Mark IV
Produced:	50 (all models)	Production Date:	1917
Producer(s):	United Kingdom	50	1917
	Metropolitan Carriage Wagon & Finance Co.	50	1917
Used:	50	Service Date:	1917-1940
User(s):	British Army	1917-1940

Full User(s) List

–	Unit	Date	Status
User(s):	British Army
	Heavy Branch, Machine Gun Corps	11/1916-07/1917	↓Reorganized↓
	Tank Corps	07/1917-18/10/1923	↓Reorganized↓
	Royal Tank Corps	18/10/1923-???	???

Dimensions
Weight:	28.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	7.75 m	??? m	2.49 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
2 x	Q.F. Hotchkiss 6-pr. 8-cwt. Mk. II (???)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	20 rpm
3 x	.303-in Lewis Mk. I (???)	Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	600 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
6-pr. 8-cwt. Gun
	Q.F., 6-pr., M.D., Steel Shell, Mk. XIII	SAPHE	2.72 kg/15 g Lyddite, 57 mm @ 554 m/s
	Q.F., 6-pr., M.D., Common Shell, Mk. III	HE	2.72 kg/160 g TNT, 5 mm @ 554 m/s

Devices
# of - Name	Type	Effect, Location/for
2 x - ??? telescopic	Sight	2-3.5x zoom, for 6-pr. 8-cwt.

Protection
Location	Thickness	Type
Frontwards
All front	12 mm @ ??°	Mild steel
Sidewards
All side	12 mm @ ??°	Mild steel
Rearwards
All rear	12 mm @ ??°	Mild steel
Upwards
Roof	8 mm @ ??°	Mild steel
Downwards
Floor	6 mm @ ??°	Mild steel

Crew
8	Total
1	Commander, Assistant Driver
1	Driver, Machine Gunner, Machine Gun Loader
2	Mechanics
2	Gunners
2	Gun Loaders, Machine Gunners, Machine Gun Loaders

Automotive
Fuel Capacity:	230 l
Engine(s):	1 x - Daimler-Knight
	Type:	Gasoline
	Horsepower:	78 kW
	@ RPM	1,000
	Cylinder:	6
	Capacity:	13 l
		Foward	Reverse
Transmission:	3-speed	2	1
Steering:	Clutch-break
Brakes:	Mechanical

Suspension
Type:	None
Road wheels:	26
	Type:	Rigid non-spaced
	Idlers:	Adjustable front track
Return rollers:	10
	Type:	Top track
Drive Sprockets:	2
	Type:	Rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	???
	Length:	??? cm
	Width:	??? cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	6.0 km/h
Maximum Reverse Speed:	1.2 km/h
Power-to-Weight Ratio:	2.8 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	38 km
	Mileage:	605 l/100 km

Summary
Like the Mark II, the Mark III was also intended to be a training tank. Unlike the Mark II, the Mark III actually only served in that capacity and remained in England for the entire duration of the war. The most significant changes from the Mark II was that the sponsons were slimmed and that all of the Hotchkiss machine guns were replaced by Lewis machine guns. At least two tanks would survive up to the Second World War, where they were then scrapped.

Variants & Changes:

None

---

---

Mark IV

General
Name(s):	Tank, Mark IV
Type:	Heavy tank
Status:	Production
Derived From:	Mark III
Derivatives:	Mark V
Produced:	1,220 (all models)	Production Date:	3/1917-10/1918
Producer(s):	United Kingdom	1,220	3/1917-10/1918
	Metropolitan Carriage Wagon & Finance Co.	820	???
	William Foster & Co.	100	???
	Sir W G Armstrong Whitworth Co. Ltd.	100	???
	Coventry Ordnance Works Ltd.	100	???
	Mirlees Watson Co.	50	???
	William Beardmore Co.	50	???
Used:	1,220	Service Date:	1917-1940~
User(s):	British Army	1917-1940~

Full User(s) List

–	Unit	Date	Status
User(s):	British Army
	Heavy Branch, Machine Gun Corps	???-07/1917	↓Reorganized↓
	Tank Corps	07/1917-18/10/1923	↓Reorganized↓
	Royal Tank Corps	18/10/1923-???	???

Dimensions
Weight:	28.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	8.05* m	4.12 m	2.49 m
Ground Clearance:	??? cm

*“Tadpole tails” would increase the length to 10.79 m.

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
Original
2 x	Q.F. Hotchkiss 6-pr. 6-cwt. Mk. I/II (???)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	20 rpm
3 x	.303-in Lewis Mk. I (???)	Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	600 rpm
Tadpole Support
2 x	Q.F. Hotchkiss 6-pr. 6-cwt. Mk. I/II (???)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	20 rpm
3 x	.303-in Lewis Mk. I (???)	Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	600 rpm
1 x	M.L. 3-in Stokes Mk. I (???)	Rear, ???, -/+???° @ ??°/s	???, -??°/+??° @ ??°/s	25 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
Original
6-pr. 6-cwt. Gun
	Q.F., 6-pr., M.D., Steel Shell, Mk. XIII	SAPHE	2.72 kg/15 g Lyddite, 37 mm @ 411 m/s
	Q.F., 6-pr., M.D., Common Shell, Mk. III	HE	2.72 kg/160 g TNT, 5 mm @ 411 m/s
Tadpole Support
6-pr. 6-cwt. Gun
	Q.F., 6-pr., M.D., Steel Shell, Mk. XIII	SAPHE	2.72 kg/15 g Lyddite, 37 mm @ 411 m/s
	Q.F., 6-pr., M.D., Common Shell, Mk. III	HE	2.72 kg/160 g TNT, 5 mm @ 411 m/s
3-in Mortar
	M.L., 3-in, H.E., Mk. I	HE	5.3 kg/1,020 g Nitrostarch or TNT, 35 mm @ 198 m/s

Devices
# of - Name	Type	Effect, Location/for
2 x - ??? telescopic	Sight	2-3.5x zoom, for 6-pr. 6-cwt.

Protection
Location	Thickness	Type
Frontwards
Lower frontal glacis	16 mm @ 61° (LoS 33 mm)	RHA
Lowest frontal glacis	16 mm @ 69° (LoS 45 mm)	RHA
Upper frontal glacis	16 mm @ 44° (LoS 22 mm)	RHA
Tower front	16 mm @ 0°	RHA
Sponson front	16 mm @ 30° (LoS 18 mm)	RHA
Sidewards
All side	12 mm @ 0°	RHA
Sponson lower side	12 mm @ 38° (LoS 15 mm)	RHA
Exhaust side	12 mm @ 34° (LoS 14 mm)	RHA
Rearwards
All rear	12 mm @ 0°	RHA
Tower rear	12 mm @ 34° (LoS 14 mm)	RHA
Sponson rear	12 mm @ 15° (LoS 12 mm)	RHA
Exhaust rear	12 mm @ 28° (LoS 14 mm)	RHA
Rear cover	12 mm @ 26° (LoS 13 mm)	RHA
Upwards
Roof	8 mm @ 0°	RHA
Front roof	8 mm @ 82°	RHA
Exhaust roof	8 mm @ 74°	RHA
Upper rear roof	8 mm @ 82°	RHA
Lower rear roof	12 mm @ 73°	RHA
Downwards
Floor	6 mm @ 0°	RHA
Inwards
Inner track-sponson	12 mm	RHA
Sponson stowage	12 mm	RHA
Engine wall	12 mm	RHA
Transmission cover	12 mm	RHA

Crew
8	Original
1	Commander, Assistant Driver
1	Driver, Machine Gunner, Machine Gun Loader
2	Mechanics
2	Gunners
2	Gun Loaders, Machine Gunners, Machine Gun Loaders
??	Tadpole Support
1	Commander, Assistant Driver
1	Driver, Machine Gunner, Machine Gun Loader
2	Mechanics
2	Gunners
2	Gun Loaders, Machine Gunners, Machine Gun Loaders
??	Mortar Crew

Automotive
Fuel Capacity:	265 l
Engine(s):	1 x - Daimler-Foster
	Type:	Gasoline
	Horsepower:	78 or 93* kW
	@ RPM	1,000 or 1,250*
	Cylinder:	6
	Capacity:	16 l
		Foward	Reverse
Transmission:	3-speed	2	1
Steering:	Clutch-break
Brakes:	Mechanical

*Later Mk. IV were uprated to 93 kW @ 1,250 RPM, though most of these were modified to tank tenders afterwards.

Suspension
Type:	None
Road wheels:	26
	Type:	Rigid non-spaced
	Idlers:	Adjustable front track
Return rollers:	10
	Type:	Top track
Drive Sprockets:	2
	Type:	Rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	90
	Length:	22.23 cm
	Width:	52.07 cm
	Pitch:	19.05 cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	6.1 km/h
Maximum Reverse Speed:	1.2 km/h
Power-to-Weight Ratio:	2.8 or 3.3* kW/t
Maximum Grade:	???°
Maximum Trench:	3.5* m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	56 km
	Mileage:	590 l/100 km

*Later Mk. IV were uprated to 93 kW @ 1,250 RPM, though most of these were modified to tank tenders afterwards.
*An installed “tadpole tail” increased their maximum trench to 4.25 m.

Summary
The Mark IV was the first truly mass-produced and, considered by the British Army, acceptable version of their First World War heavy tanks. It would form the largest component of the British tank force and see service from 1917 to 1918 on the frontlines of the conflict, and continue to see service up to 1940 as a training vehicle. Their first mass action was at the Battle of Cambrai where 460 Mark IV participated, proving the functionality of tanks, and three Mark IV would be a part of the first tank battle in history when they faced off against an A7V at Villers-Bretonneux. Captured examples, of at least 40 in number, would be used by Germany during the war, and after it a single Mark IV was imported to Japan.

They would serve up until at least 1940, before the last operational Mark IV, in training capacity, was damaged by a passing car.

Variants & Changes:

• 1917~: A “silencer” for their exhaust was installed on Mark IV tanks starting from early on in their production.
• 1917~: Unditching blocks were installed on the rear of tanks and positioned above the tracks. When necessary, they would be freed which would allow the tracks to carry them down and use them as additional traction against muddy ground.
  • 1917-1918~: The unditching blocks were replaced by a singular unditching beam that stretched between both of the tracks once this modification became formalized.
    • 1917-1918~: A single Mark IV was outfitted with Renold’s roller chains that were installed interior of the horns. These would deploy the unditching beam automatically by activating the roller chains from the interior of the tank rather than someone having to go outside to deploy it as normal from the tracks.
• 1917: Fascine bundles were installed on the front of tanks to assist in trench crossing during Cambrai. They weighed 30 cwt. (1,524 kg) and decreased the power-to-weight ratio from 2.8 kW/t to 2.6 kW/t.
• 1917-1918~: A single Mark IV had an Invicta mineroller installed on the front horns.
• 06/1917-10/1917: Several tanks were experimentally fitted with heavier tracks with better grip and a ramp on its front horns. It was intended to be used as a spearhead tank during the Operation Hush amphibious landings.
• 1917: In an attempt to improve their trench crossing abilities, “tadpole tails” were developed. These were installed to the rear tank horns and would increase their length to 10.79 m and their maximum trench from 3.5 m to 4.25 m, which would have been enough to overcome the larger anti-tank trenches being dug by the Germans. Despite 100 of these “tadpole tails” being made, none would be operationally used due to the introduction of the Mark V*.
  • 1918~: A single “tadpole tail” Mark IV was experimentally modified to carry a 6-in. mortar in the rear between the horns.
• 1918~: The engine was uprated to 93 kW (125 hp) on later tanks which increased the power-to-weight ratio to 3.3 kW/t. However, most of these modified tanks were also converted to tank tenders due to the unreliability of the uprated engine.
• 1918: At least three tanks lengthened by means of cutting them behind the sponsons and then installing extra plating to increase the length by 6 ft, to 9.88 m. This served as the inspiration for the later Mk. V*.

Variant Images

A “stock” Mark IV.

A Mark IV with an unditching beam.

*A Mark IV with Renold’s roller chains to deploy an unditching beam.

Several Mark IV with fascine bundles installed.

*A Mark IV modified with an Invicta mineroller on the front horns.

A Mark IV modified with heavier tracks and a front ramp for Operation Hush.

A Mark IV with a “tadpole tail.”

---

---

Mark V

General
Name(s):	Tank, Mark V
Type:	Heavy tank
Status:	Production
Derived From:	Mark IV
Derivatives:	Mark V*
Produced:	400 (all models)	Production Date:	1917-1918
Producer(s):	United Kingdom	400	1917-1918
	Metropolitan Carriage Wagon & Finance Co.	400	???
Used:	340~	Service Date:	1917-1940
User(s):	British Army	1917-1940

Full User(s) List

–	Unit	Date	Status
User(s):	British Army
	Tank Corps	1918-18/10/1923	↓Reorganized↓
	Royal Tank Corps	18/10/1923-???	???

Dimensions
Weight:	30.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	8.0* m	4.1 m	2.64 m
Ground Clearance:	??? cm

*“Tadpole tails” would increase the length to 10.74 m.

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
Male
2 x	Q.F. Hotchkiss 6-pr. 6-cwt. Mk. I/II (282)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	20 rpm
4 x	.303-in Hotchkiss Mk. I (6,000)	Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	450 rpm
Hermaphrodite
1 x	Q.F. Hotchkiss 6-pr. 6-cwt. Mk. I/II (282)	Right/Left Sponson, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	20 rpm
5 x	.303-in Hotchkiss Mk. I (6,000)	Left/Right Sponsons, Mechanical, -/+52.5° @ 15°/s	Manual, -6°/+12° @ 60°/s	450 rpm
		Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
6-pr. 6-cwt. Gun
	Q.F., 6-pr., M.D., Steel Shell, Mk. XIII	SAPHE	2.72 kg/15 g Lyddite, 37 mm @ 411 m/s
	Q.F., 6-pr., M.D., Common Shell, Mk. III	HE	2.72 kg/160 g TNT, 5 mm @ 411 m/s

Devices
# of - Name	Type	Effect, Location/for
2 x - ??? telescopic	Sight	2-3.5x zoom, for 6-pr. 6-cwt.

Protection
Location	Thickness	Type
Frontwards
Lower frontal glacis	16 mm @ 61° (LoS 33 mm)	RHA
Lowest frontal glacis	16 mm @ 69° (LoS 45 mm)	RHA
Upper frontal glacis	16 mm @ 44° (LoS 22 mm)	RHA
Towers front	16 mm @ 0°	RHA
Sponson front	16 mm @ 30° (LoS 18 mm)	RHA
Sidewards
All side	12 mm @ 0°	RHA
Sponson lower side	12 mm @ 38° (LoS 15 mm)	RHA
Rearwards
All rear	12 mm @ 0°	RHA
Tower rear	12 mm @ 34° (LoS 14 mm)	RHA
Sponson rear	12 mm @ 15° (LoS 12 mm)	RHA
Rear glacis	12 mm @ 72° (LoS 39 mm)	RHA
Upwards
Roof	8 mm @ 0°	RHA
Front roof	8 mm @ 82°	RHA
Upper rear roof	8 mm @ 82°	RHA
Lower rear roof	12 mm @ 74°	RHA
Downwards
Floor	6 mm @ 0°	RHA
Inwards
Inner track-sponson	12 mm	RHA
Sponson stowage	12 mm	RHA
Engine wall	12 mm	RHA
Transmission cover	12 mm	RHA

Crew
8	Male
1	Commander, Assistant Driver
1	Driver, Machine Gunner, Machine Gun Loader
1	Mechanic, Machine Gunner, Machine Gun Loader
1	Mechanic
2	Gunners
2	Gun Loaders, Machine Gunners, Machine Gun Loaders
8	Hermaphrodite
1	Commander, Assistant Driver
1	Driver, Machine Gunner, Machine Gun Loader
1	Mechanic, Machine Gunner, Machine Gun Loader
1	Mechanic
1	Gunner
1	Gun Loader, Machine Gunner, Machine Gun Loader
2	Machine Gunners, Machine Gun Loaders

Automotive
Fuel Capacity:	420 l
Engine(s):	1 x - Ricardo
	Type:	Gasoline
	Horsepower:	110 kW
	@ RPM	1,200
	Cylinder:	6
	Capacity:	19 l
		Foward	Reverse
Transmission:	Wilson epicyclic 4-speed	4	1
Steering:	Wilson epicyclic clutch-break
Brakes:	Mechanical

Suspension
Type:	None
Road wheels:	26
	Type:	Rigid non-spaced
	Idlers:	Adjustable front track
Return rollers:	10
	Type:	Top track
Drive Sprockets:	2
	Type:	30-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	90
	Length:	22.23 cm
	Width:	52.07 or 67.31* cm
	Pitch:	19.05 cm
	Depth:	??? cm
Ground Contact:	??? m

Later productions introduced the newer 26.5-in tracks.

Mobility
Maximum Forward Speed:	7.7 km/h
Maximum Reverse Speed:	1.4 km/h
Power-to-Weight Ratio:	3.7 kW/t
Maximum Grade:	???°
Maximum Trench:	3.5* m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	72 km
	Mileage:	583 l/100 km

*An installed “tadpole tail” increased their maximum trench to 4.25 m.

Summary
The Mark V was introduced to fix the poor mobility that the prior Marks had. This was solved by introducing the Wilkinson transmission, allowing for the drivers to easily switch gears which allowed for far better mobility on average. It also introduced a stronger engine and replaced the machine guns with superior Hotchkiss. While not the most prominent tank of the war, they were the most widely used as they saw service within the American and Canadian tank forces, and would also be imported to Russia and subsequently captured by the Soviet Union.

Variants & Changes:

• 1918: Some female tanks were converted into hermaphrodites by replacing one female sponson with a male sponson. The replaced sponson could appear on either side, leading to two variations of the hermaphrodite.
• 09/1918: “Cribs” were installed on the front of tanks to assist in trench crossing during the attack on the Hindenburg Line. They weighed 12 cwt. (610 kg) and decreased the power-to-weight ratio from 3.7 kW/t to 3.6 kW/t.
• 1917: In an attempt to improve their trench crossing abilities, “tadpole tails” were developed. These were installed to the rear tank horns and would increase their length to 10.74 m and their maximum trench from 3.5 m to 4.25 m, which would have been enough to overcome the larger anti-tank trenches being dug by the Germans. Despite 100 of these “tadpole tails” being made, none would be operationally used due to the introduction of the Mark V*.
• 1918: Some later production tanks were produced with the newer 26.5-in tracks instead of the older 20.5-in tracks.
• Mark V*: See below.

Variant Images

A “stock” Mark V.

Several Estonian Mark V hermaphrodites.

Several Mark V with “cribs” installed.

---

---

Mark V*

General
Name(s):	Tank, Mark V*
Type:	Heavy tank
Status:	Production
Derived From:	Mark V
Derivatives:	Mark V**
Produced:	632 (all models)	Production Date:	1918-3/1919
Producer(s):	United Kingdom	632	1918-3/1919
	Metropolitan Carriage Wagon & Finance Co.	632	1918-3/1919
Used:	340~	Service Date:	1918-1930
User(s):	British Army	1918-1930

Full User(s) List

–	Unit	Date	Status
User(s):	British Army
	Tank Corps	1918-18/10/1923	↓Reorganized↓
	Royal Tank Corps	18/10/1923-???	???

Dimensions
Weight:	33.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	9.88 m	4.1 m	2.64 m
Ground Clearance:	??? cm

*“Tadpole tails” would increase the length to 13.4 m.

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
2 x	Q.F. Hotchkiss 6-pr. 6-cwt. Mk. I/II (???)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	20 rpm
4 x	.303-in Hotchkiss Mk. I (???)	Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
6-pr. 6-cwt. Gun
	Q.F., 6-pr., M.D., Steel Shell, Mk. XIII	SAPHE	2.72 kg/15 g Lyddite, 37 mm @ 411 m/s
	Q.F., 6-pr., M.D., Common Shell, Mk. III	HE	2.72 kg/160 g TNT, 5 mm @ 411 m/s

Devices
# of - Name	Type	Effect, Location/for
2 x - ??? telescopic	Sight	2-3.5x zoom, for 6-pr. 6-cwt.

Protection
Location	Thickness	Type
Frontwards
Lower frontal glacis	16 mm @ 61° (LoS 33 mm)	RHA
Lowest frontal glacis	16 mm @ 69° (LoS 45 mm)	RHA
Upper frontal glacis	16 mm @ 44° (LoS 22 mm)	RHA
Towers front	16 mm @ 0°	RHA
Sponson front	16 mm @ 30° (LoS 18 mm)	RHA
Sidewards
All side	12 mm @ 0°	RHA
Sponson lower side	12 mm @ 38° (LoS 15 mm)	RHA
Rearwards
All rear	12 mm @ 0°	RHA
Tower rear	12 mm @ 34° (LoS 14 mm)	RHA
Sponson rear	12 mm @ 15° (LoS 12 mm)	RHA
Rear glacis	12 mm @ 72° (LoS 39 mm)	RHA
Upwards
Roof	8 mm @ ??°	RHA
Downwards
Floor	6 mm @ 0°	RHA
Inwards
Inner track-sponson	12 mm	RHA
Sponson stowage	12 mm	RHA
Engine wall	12 mm	RHA
Transmission cover	12 mm	RHA

Crew
8	Total
1	Commander, Assistant Driver
1	Driver, Machine Gunner, Machine Gun Loader
1	Mechanic, Machine Gunner, Machine Gun Loader
1	Mechanic
2	Gunners
2	Gun Loaders, Machine Gunners, Machine Gun Loaders

Automotive
Fuel Capacity:	420 l
Engine(s):	1 x - Ricardo
	Type:	Gasoline
	Horsepower:	110 kW
	@ RPM	1,200
	Cylinder:	6
	Capacity:	19 l
		Foward	Reverse
Transmission:	Wilson epicyclic 4-speed	4	1
Steering:	Wilson epicyclic clutch-break
Brakes:	Mechanical

Suspension
Type:	None
Road wheels:	???
	Type:	Rigid non-spaced
	Idlers:	Adjustable front track
Return rollers:	???
	Type:	Top track
Drive Sprockets:	2
	Type:	30-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	???
	Length:	22.23 cm
	Width:	52.07* or 67.31 cm
	Pitch:	19.05 cm
	Depth:	??? cm
Ground Contact:	??? m

Early productions retained the older 20.5-in tracks.

Mobility
Maximum Forward Speed:	7.7 km/h
Maximum Reverse Speed:	1.4 km/h
Power-to-Weight Ratio:	3.3 kW/t
Maximum Grade:	???°
Maximum Trench:	4.25 m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	72 km
	Mileage:	583 l/100 km

Summary
As the war progressed, the Germans started to produce larger and larger trenches. The “tadpole tails” were an attempt to rectify that issue, but they proved too fragile. So, the Mark V was lengthened in its Mark V* version. However, since neither the tracks nor engine were modified, the heavier weight and the lengthened chassis reduced its mobility. Despite that, more versions of the lengthened tanks were produced than the original, and they would see service up until 1930 when the last tanks were decommissioned and placed in storage. They would also see service within the American, French, and Canadian militaries.

Variants & Changes:

• 1918: Some early production tanks were produced with the older 20.5-in tracks instead of the newer 26.5-in tracks.
• 1918: A single Mark V* was modified with a “tadpole tail.” This extended the tank to a length of 44 feet, making it the longest produced tank of the war, but it was nearly impossible to turn due to that and the “tadpole tail” was thusly removed.
• Mark V**: See below.

Variant Images

A “stock” Mark V*.

Artist depiction of the “tadpole tail” Mark V*.

---

---

Mark V**

General
Name(s):	Tank, Mark V**
Type:	Heavy tank
Status:	Production
Derived From:	Mark V*
Derivatives:	None
Produced:	25	Production Date:	1918-1919
Producer(s):	United Kingdom	25	1918-1919
	Metropolitan Carriage Wagon & Finance Co.	25	1918-1919
Used:	25	Service Date:	1918-???
User(s):	British Army	1918-???

Full User(s) List

–	Unit	Date	Status
User(s):	British Army
	Tank Corps	1918-18/10/1923	↓Reorganized↓
	Royal Tank Corps	18/10/1923-???	???

Dimensions
Weight:	33.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	9.88 m	4.1 m	2.64 m
Ground Clearance:	??? cm

*“Tadpole tails” would increase the length to 13.4 m.

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
2 x	Q.F. Hotchkiss 6-pr. 6-cwt. Mk. I/II (???)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	20 rpm
4 x	.303-in Hotchkiss Mk. I (???)	Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
6-pr. 6-cwt. Gun
	Q.F., 6-pr., M.D., Steel Shell, Mk. XIII	SAPHE	2.72 kg/15 g Lyddite, 37 mm @ 411 m/s
	Q.F., 6-pr., M.D., Common Shell, Mk. III	HE	2.72 kg/160 g TNT, 5 mm @ 411 m/s

Devices
# of - Name	Type	Effect, Location/for
2 x - ??? telescopic	Sight	2-3.5x zoom, for 6-pr. 6-cwt.

Protection
Location	Thickness	Type
Frontwards
All front	16 mm @ ??°	RHA
Sidewards
All side	12 mm @ ??°	RHA
Rearwards
All rear	12 mm @ ??°	RHA
Upwards
Roof	8 mm @ ??°	RHA
Downwards
Floor	6 mm @ ??°	RHA

Crew
8	Total
1	Commander, Assistant Driver
1	Driver, Machine Gunner, Machine Gun Loader
1	Mechanic, Machine Gunner, Machine Gun Loader
1	Mechanic
2	Gunners
2	Gun Loaders, Machine Gunners, Machine Gun Loaders

Automotive
Fuel Capacity:	420 l
Engine(s):	1 x - Ricardo
	Type:	Gasoline
	Horsepower:	165 kW
	@ RPM	???
	Cylinder:	6
	Capacity:	??? l
		Foward	Reverse
Transmission:	Wilson epicyclic 4-speed	4	1
Steering:	Wilson epicyclic clutch-break
Brakes:	Mechanical

Suspension
Type:	None
Road wheels:	???
	Type:	Rigid non-spaced
	Idlers:	Adjustable front track
Return rollers:	???
	Type:	Top track
Drive Sprockets:	2
	Type:	30-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	???
	Length:	22.23 cm
	Width:	67.31 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	8.4 km/h
Maximum Reverse Speed:	1.4 km/h
Power-to-Weight Ratio:	5.0 kW/t
Maximum Grade:	???°
Maximum Trench:	4.25 m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The Mark V** was the most advanced version of the heavy tank produced during the war. Albeit, produced “during” is a bit of a misnomer, as only one was completed before the end of the war. Due to that, the original order of 700 tanks was cancelled after only 25 had been made. It fixed the problems introduced by the lengthening of its previous Mark by reducing the pitch of the tracks which allowed more of the track to reach the ground, thus reducing the ground pressure. Combined with the uprated engine, it proved to be more mobile than its predecessor.

Variants & Changes:

None

---

---

Mark VII

General
Name(s):	Tank, Mark VII
Type:	Heavy tank
Status:	Production
Derived From:	Experimental Machine D
Derivatives:	None
Produced:	3	Production Date:	1918
Producer(s):	United Kingdom	3	1918
	Brown Brothers	3	1918
Used:	N/A	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	33.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	8.96 m	3.91 m	2.62 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
2 x	Q.F. Hotchkiss 6-pr. 6-cwt. Mk. I/II (???)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	20 rpm
4 x	.303-in Hotchkiss Mk. I (???)	Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
6-pr. 6-cwt. Gun
	Q.F., 6-pr., M.D., Steel Shell, Mk. XIII	SAPHE	2.72 kg/15 g Lyddite, 37 mm @ 411 m/s
	Q.F., 6-pr., M.D., Common Shell, Mk. III	HE	2.72 kg/160 g TNT, 5 mm @ 411 m/s

Devices
# of - Name	Type	Effect, Location/for
2 x - ??? telescopic	Sight	2-3.5x zoom, for 6-pr. 6-cwt.

Protection
Location	Thickness	Type
All	??? mm @ ??°	RHA

Crew
8	Total
1	Commander, Assistant Driver
1	Driver, Machine Gunner, Machine Gun Loader
1	Mechanic, Machine Gunner, Machine Gun Loader
1	Mechanic
2	Gunners
2	Gun Loaders, Machine Gunners, Machine Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Ricardo
	Type:	Gasoline
	Horsepower:	110 kW
	@ RPM	???
	Cylinder:	6
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	Williams-Janney hydraulic
Brakes:	Mechanical

Suspension
Type:	None
Road wheels:	???
	Type:	Rigid non-spaced
	Idlers:	Adjustable front track
Return rollers:	???
	Type:	Top track
Drive Sprockets:	2
	Type:	Rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	???
	Length:	22.23 cm
	Width:	67.31 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	6.4 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	3.3 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The Mark VII was the final development of three in implementing the Williams-Janney hydraulic system onto a production tank. Previously, it had been tested on a Mark II and a Mark V in 1917 and 1918, respectively, but the Mark VII was meant to be a production tank alongside the Mark V and had an order of 75 placed. However, due to the end of the war, only 3 of 75 were built and none of them would officially enter service in the British Army, probably due to the Mark VIII being the Mark V**'s likely successor.

Variants & Changes:

None

---

---

Mark VIII

General
Name(s):	Tank, Mark VII
Type:	Heavy tank
Status:	Production
Derived From:	None
Derivatives:	None
Produced:	24+1	Production Date:	1918
Producer(s):	United Kingdom	24+1	1918
	Brown Brothers	24+1	1918
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	33.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	8.96 m	3.91 m	2.62 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
2 x	Q.F. Hotchkiss 6-pr. 6-cwt. Mk. I/II (208)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	20 rpm
7 x	.303-in Hotchkiss Mk. I (21,000)	Large Ballports, Manual, -/+???° @ 60°/s	Manual, -??°/+??° @ 60°/s	450 rpm
		Small Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
6-pr. 6-cwt. Gun
	Q.F., 6-pr., M.D., Steel Shell, Mk. XIII	SAPHE	2.72 kg/15 g Lyddite, 37 mm @ 411 m/s
	Q.F., 6-pr., M.D., Common Shell, Mk. III	HE	2.72 kg/160 g TNT, 5 mm @ 411 m/s

Devices
# of - Name	Type	Effect, Location/for
2 x - ??? telescopic	Sight	2-3.5x zoom, for 6-pr. 6-cwt.

Protection
Location	Thickness	Type
Frontwards
Lower frontal glacis	12 mm @ ??°	RHA
Lowest frontal glacis	16 mm @ ??°	RHA
Upper frontal glacis	12 mm @ ??°	RHA
Towers front	16 mm @ 0°	RHA
Driver’s turret	10 mm @ ??°	RHA
Sponson front	16 mm @ ??°	RHA
Sidewards
All side	12 mm @ 0°	RHA
Tower side	16 mm @ 0°	RHA
Wing-skirting plates	10 mm @ 0°	RHA
Sponson lower side	12 mm @ ??°	RHA
Rearwards
All rear	12 mm @ 0°	RHA
Tower rear	12 mm @ ??°	RHA
Gasoline rear	16 mm @ ??°	RHA
Upwards
Roof	6 mm @ 90°	RHA
Gasoline roof	10 mm @ ??°	RHA
Downwards
Floor	6 mm @ 90°	RHA
Sponson floor	8 mm @ 90°	RHA
Inwards
Engine wall	12 mm	RHA

Crew
12	Total
1	Commander, Machine Gunner, Machine Gun Loader
1	Driver
1	Mechanic
2	Gunners
2	Gun Loaders
5	Machine Gunners, Machine Gun Loaders

Automotive
Fuel Capacity:	908 l
Engine(s):	1 x - Rolls-Royce* or Ricardo
	Type:	Gasoline
	Horsepower:	221 kW
	@ RPM	???
	Cylinder:	12
	Capacity:	??? l
		Foward	Reverse
Transmission:	Epicyclic 2-speed	2	2
Steering:	Epicyclic clutch-break
Brakes:	Mechanical

*Mild steel pilot used a 221 kW Rolls-Royce.

Suspension
Type:	None
Road wheels:	29
	Type:	Rigid spaced (14), non-spaced (15)
	Idlers:	Adjustable front track
Return rollers:	1
	Type:	Top track
Drive Sprockets:	2
	Type:	35-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	78
	Length:	??? cm
	Width:	67.31 cm
	Pitch:	28.33 cm
	Depth:	??? cm
Ground Contact:	2.59 m

Mobility
Maximum Forward Speed:	7.7 km/h
Maximum Reverse Speed:	1.4 km/h
Power-to-Weight Ratio:	5.7 kW/t
Maximum Grade:	40°
Maximum Trench:	4.88 m
Maximum Wall:	1.4 m
Maximum Fording:	86 cm
Minimum Turning Diameter:	12.3 m
Cruising Range:	64 km
	Mileage:	1,418 l/100 km

Summary
The Mark VIII was a collective British-American-French development to create an international heavy tank for use in the planned 1919 offensives. However, due to the end of the war and delays in its development, the initial order for 1,450 was made, but ultimately only 24, plus the mild steel prototype, would be completed, and of that only 5 saw trails at Bovington with the rest being scrapped. The French Mark VIII was never constructed, their factory laying dormant, while the Americans produced 100 Mark VIII. These differed mostly in armament, with the British retaining all original machine guns and positions while the Americans opted to remove two of the positions, reducing the crew from twelve to ten, and rearming them with native Brownings.

Variants & Changes:

• 1918: The mild steel prototype had its hull assembled in England and its armaments and automotive assembled in America. This included a Liberty 12 engine and a rear-side exhaust, but was otherwise identical to later British productions.
• 1919: First British mild steel tank produced with a Rolls-Royce engine.
  • 1919: Reengined with a Ricardo engine.
• 1919: All later 24 productions produced with a Ricardo engine.

Variant Images

Mild steel prototype.

Production tank under British trials.

---

---

---

SELF-PROPELLED GUNS

---

---

Maudslay

General
Name(s):	???
Type:	Self-propelled gun on lorry
Status:	Prototype
Derived From:	Maudslay 1909
Derivatives:	None
Produced:	1	Production Date:	1909
Producer(s):	United Kingdom	1	1909
	???
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	37-mm McClean Mk. III (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -??°/+??° @ ??°/s	100 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
	???	SAPHE	0.493 kg/11.8 g Black Powder, 30 mm @ 650 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for ???

Protection
Location	Thickness	Type
All	N/A	None

Crew
2	Total
1	Commander, Driver
1	Gunner, Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	??? kW
	@ RPM	???
	Cylinder:	4
	Capacity:	3.3 l
		Foward	Reverse
Transmission:	4-speed	4	1
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	4x2
	Type:	Spoked
	Steering:	Rear

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
In 1909, the McClean Mk. III was sent to Britain and mounted on a car in a final attempt to sell the gun to a buyer. However, the design was rejected and ended the commercial ventures of the Mk. III, until it was further redesigned in 1916 and sold to Russia.

Variants & Changes:

None

---

---

Lothian

General
Name(s):	???
Type:	Self-propelled gun on lorry
Status:	Production
Derived From:	Lothian 3-ton
Derivatives:	None
Produced:	???	Production Date:	???
Producer(s):	United Kingdom	???	???
	???
Used:	???	Service Date:	???
User(s):	British Army	???

Full User(s) List

–	Unit	Date	Status
User(s):	British Army
	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	???* (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -??°/+??° @ ??°/s	??? rpm

*The type of gun is not specified and what can be seen of its appearance matches the description of several types of guns, including: 3-pr. Vickers, 3-pr. Hotchkiss, 6-pr. Hotchkiss, and 6-pr. Nordenfelt.

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
??? Gun
	???

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for ???

Protection
Location	Thickness	Type
All	N/A	None

Crew
5	Total
1	Commander
1	Driver
1	Gunner
2	Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Tylor
	Type:	Gasoline
	Horsepower:	37 kW
	@ RPM	1,300
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	Chain gear 4-speed	4	1
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	4x2
	Type:	Spoked
	Steering:	Rear

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
At least one Lothian 3-ton was converted to a gun carrier, but information on it is scarce.

Variants & Changes:

None

---

---

AEC B Type

General
Name(s):	???
Type:	Self-propelled gun on lorry
Status:	Production
Derived From:	AEC B Type
Derivatives:	None
Produced:	1	Production Date:	1914
Producer(s):	United Kingdom	1	1914
	???
Used:	1	Service Date:	1914-???
User(s):	Royal Naval Air Service	1914-???

Full User(s) List

–	Unit	Date	Status
User(s):	Royal Naval Air Service
	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Q.F. 3-pr. 5-cwt. Vickers Mk. I (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -5°/+30° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
3-pr. 5-cwt. Gun
	Q.F., 6-pr., Hotchkiss, Steel Shell, Mk. II	SAPHE	1.5 kg/49.6 g Black Powder F.G., 62 mm @ 785 m/s
	Q.F., 6-pr., Hotchkiss, Common Shell, Mk. II	SAPHE	1.5 kg/39 g Black Powder F.G., 66 mm @ 785 m/s
	Q.F., 6-pr., Hotchkiss, H.E. Shell, Mk. V	HE	1.587 kg/120.5 g Lyddite & 5.3 g TNT, 11 mm @ 785 m/s
	Q.F., 6-pr., Hotchkiss, H.E. Shell, Mk. II	HE	1.5 kg/120 g Lyddite, 10 mm @ 785 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 3-pr. 5-cwt.

Protection
Location	Thickness	Type
Frontwards
Gunshield	??? mm @ ??°	???
Sidewards
Side interior	??? mm @ ??°	Mild steel
Side exterior	??? mm @ ??°	Wood
Rearwards
Side interior	??? mm @ ??°	Mild steel
Side exterior	??? mm @ ??°	Wood

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	18 kW
	@ RPM	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	Silent chain 4-speed	4	1
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	4x2
	Type:	Spoked
	Steering:	???

Mobility
Maximum Forward Speed:	18.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
A single AEC B Type, alongside a 5-ton Mercedes, were converted into 3-pr. lorries by the RNAS in order to support machine gun armored cars during 1914. Afterwards, information on their whereabouts is lost.

Variants & Changes:

None

---

---

Mercedes-Daimler

General
Name(s):	???
Type:	Self-propelled gun on lorry
Status:	Production
Derived From:	Mercedes-Daimler Typ DM
Derivatives:	None
Produced:	1	Production Date:	1914
Producer(s):	United Kingdom	1	1914
	???
Used:	1	Service Date:	1914-???
User(s):	Royal Naval Air Service	1914-???

Full User(s) List

–	Unit	Date	Status
User(s):	Royal Naval Air Service
	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	7.3 m	2.1 m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Q.F. 3-pr. 5-cwt. Vickers Mk. I (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -5°/+30° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
3-pr. 5-cwt. Gun
	Q.F., 6-pr., Hotchkiss, Steel Shell, Mk. II	SAPHE	1.5 kg/49.6 g Black Powder F.G., 62 mm @ 785 m/s
	Q.F., 6-pr., Hotchkiss, Common Shell, Mk. II	SAPHE	1.5 kg/39 g Black Powder F.G., 66 mm @ 785 m/s
	Q.F., 6-pr., Hotchkiss, H.E. Shell, Mk. V	HE	1.587 kg/120.5 g Lyddite & 5.3 g TNT, 11 mm @ 785 m/s
	Q.F., 6-pr., Hotchkiss, H.E. Shell, Mk. II	HE	1.5 kg/120 g Lyddite, 10 mm @ 785 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 3-pr. 5-cwt.

Protection
Location	Thickness	Type
Frontwards
Cab front	6.35 mm @ ??°	???
Gunshield	??? mm @ ??°	???
Sidewards
Cab side	6.35 mm @ ??°	???

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Daimler
	Type:	Gasoline
	Horsepower:	16 kW
	@ RPM	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	Mercedes 4-speed	4	1
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	4x2
	Type:	Spoked
	Steering:	Rear

Mobility
Maximum Forward Speed:	18.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
A single 5-ton Mercedes, alongside a AEC B Type, were converted into 3-pr. lorries by the RNAS in order to support machine gun armored cars during 1914. Afterwards, information on their whereabouts is lost.

Variants & Changes:

None

---

---

Gunn Carrier Mark I

General
Name(s):	Gun Carrier, Mark I
Type:	Gun carrier
Status:	Production
Derived From:	None
Derivatives:	None
Produced:	48+1	Production Date:	07/1917-03/1918
Producer(s):	United Kingdom	48+1	07/1917-03/1918
	Kitson & Co.	???	???
	Metropolitan Carriage Wagon & Finance Co.	???	???
Used:	48	Service Date:	1917-???
User(s):	British Army	1917-???

Full User(s) List

–	Unit	Date	Status
User(s):	British Army
	???

Dimensions
Weight:	31.0 or 35.0 t*
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	13.0 m	3.0 m	3.0 m
Ground Clearance:	??? cm

*31 t with the 60-pr. and 35 t with the 6-in.

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
60-pr. Gun Carrier
1 x	B.L. 60-pr. Mk. I (64)	Open, Mechanical, -/+4° @ ??°/s	Mechanical, -5°/+21.5° @ ??°/s	2 rpm
6-in Gun Carrier
1 x	B.L. 6-in 26-cwt. Mk. I (64)	Open, Mechanical, -/+4° @ ??°/s	Mechanical, -0°/+45° @ ??°/s	2 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
60-pr. Gun
	B.L., 60-pr., Lyddite, Common Shell, Mk. III	HE	27.22 kg/2,722 g Lyddite & 120 g Picric, 39 mm @ 630 m/s
6-in 26-cwt. Gun
	B.L., 6-in, C.P. Shell, Mk. XIIA	HE	45.36 kg/4,961 g Lyddite, 46 mm @ 430 m/s

Devices
# of - Name	Type	Effect, Location/for
60-pr. Gun Carrier
1 x - ???	Sight	???x zoom, for 60-pr.
6-in Gun Carrier
1 x - ???	Sight	???x zoom, for 6-in 26-cwt.

Protection
Location	Thickness	Type
All	??? mm @ ??°	RHA

Crew
12	Total
1	Commander, Assistant Driver
1	Driver
2	Mechanics
1	Artillery Officer
2	Gunners
5	Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Daimler-Knight
	Type:	Gasoline
	Horsepower:	78 kW
	@ RPM	1,000
	Cylinder:	12
	Capacity:	13 l
		Foward	Reverse
Transmission:	3-speed	2	1
Steering:	Clutch-break
Brakes:	Mechanical

Suspension
Type:	None
Road wheels:	???
	Type:	???
	Idlers:	???
Return rollers:	???
	Type:	???
Drive Sprockets:	???
	Type:	???

Tracks
Type:	Continuous linked steel
	Shoes:	???
	Length:	??? cm
	Width:	??? cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	6.0 km/h
Maximum Reverse Speed:	1.2 km/h
Power-to-Weight Ratio:	2.3 or 2.5 kW/t*
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	37.8 km
	Mileage:	??? l/100 km

*2.5 kW/t with the 60-pr. and 2.3 kW/t with the 6-in.

Summary
Early on, it was recognized that larger guns were becoming more and more difficult to tow by horse and that increasingly powerful automobiles and tractors were serving as their replacements. However, few vehicles would easily keep up with infantry during the advances during trench warfare where the ground became muddied and battered with craters. To rectify this, based on the development of the Mark I tank, the Gun Carrier of the same Mark was developed. They would see service starting from 1917 and to the end of the war, where they excelled in transporting artillery that would be far less mobile otherwise. However, their intended use as artillery units themselves was oftentimes replaced by simply being a transport for artillery and ammunition, especially during the later parts of the war.

Variants & Changes:

• 1917: Prototype constructed with open driver and brakesman positions.
• 1917-1918: Constructed with both 60-pr. and 6-in capability.
  • 1918: Steering tails removed.

Variant Images

Gun Carrier with 60-pr.

Gun Carrier with 6-in.

---

---

---

ANTI-AIRCRAFT VEHICLES

---

---

Austin

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on lorry
Status:	Production
Derived From:	Austin 3-ton
Derivatives:	None
Produced:	1	Production Date:	1914
Producer(s):	United Kingdom	1	1914
	???
Used:	1	Service Date:	1914-???
User(s):	Royal Naval Air Service	1914-???

Full User(s) List

–	Unit	Date	Status
User(s):	Royal Naval Air Service
	Royal Naval Volunteer Reserve	1914-???	↓Transferred↓
	Royal Naval Anti-Aircraft Squadron	???	???

Dimensions
Weight:	4.35 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Q.F. 1-pr. Mk. I (???)	Pedestal, Manual, -/+???° @ ??°/s	Manual, -??°/+??° @ ??°/s	300 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
1-pr. Gun
	Q.F., 1-pr., Steel Shell, Mk. I	SAPHE	0.454 kg/13 g Pistol Powder, 22 mm @ 550 m/s
	Q.F., 1-pr., Common Shell, Mk. I	HE	0.454 kg/22 g Pistol Powder, 4 mm @ 550 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 1-pr.

Protection
Location	Thickness	Type
All	N/A	None

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	22 kW
	@ RPM	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	4x2
	Type:	Spoked
	Steering:	Rear

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	5.1 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
As a part of early attempts to combat zeppelin raids and other aircraft over Britain, two Austin 3-ton were converted to air defense vehicles. One was fitted with a searchlight and the other with a 1-pr. “pom-pom” to act as a battery, and they were initially deployed to London. However, they were later recalled and deployed to France to deploy the coast since the 1-pr. wasn’t capable of reaching the later zeppelins. Furthermore, their age made them unsuitable for frontline deployment where their gun might actually see some use. Records on them are lost after their French deployment.

Variants & Changes:

None

---

---

Albion A10

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on lorry
Status:	Production
Derived From:	Albion A10 3-ton
Derivatives:	None
Produced:	1	Production Date:	???
Producer(s):	United Kingdom	1	???
	???
Used:	1	Service Date:	???
User(s):	???	???

Full User(s) List

–	Unit	Date	Status
User(s):	???
	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	5.49 m	2.44 m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Q.F. 2-pr. Mk. II (???)	Pedestal, Manual, -/+???° @ ??°/s	Manual, -??°/+??° @ ??°/s	200 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
2-pr. Gun
	???	AP	0.91 kg, 42 mm @ 585 m/s
	???	SAPHE	0.91 kg/23 g ???, 36 mm @ 585 m/s
	???	HE	0.91 kg/71 g ???, 6 mm @ 585 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 2-pr.

Protection
Location	Thickness	Type
All	N/A	None

Crew
??	Total
??	???

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	24 kW
	@ RPM	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	4-speed	4	??
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	4x2
	Type:	Spoked
	Steering:	Rear

Mobility
Maximum Forward Speed:	25.7km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
Albion A10 were widely used by the British during the Second World War, so it’s no surprise that at least one was converted as a self-propelled anti-aircraft gun. However, aside from the sole picture of it, its details aren’t known.

Variants & Changes:

None

---

---

Pierce-Arrow AA

General
Name(s):	???
Type:	Anti-aircraft armored lorry
Status:	Production
Derived From:	Pierce-Arrow 5-ton
Derivatives:	None
Produced:	48	Production Date:	04/1915-06/1915
Producer(s):	United Kingdom	48	04/1915-06/1915
	Wolseley Motors Ltd.	48	04/1915-06/1915
Used:	48	Service Date:	1915-???
User(s):	Royal Marines	1915-???
	Royal Naval Air Service	1915-???

Full User(s) List

–	Unit	Date	Status
User(s):	Royal Marines
	Royal Marine Artillery Anti-Aircraft Brigade	1915-???	???
	Royal Naval Air Service
	Royal Naval Armoured Car Division	???	???

Dimensions
Weight:	6.1 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	5.2 m	2.08 m	1.57 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Q.F. 2-pr. Mk. II (???)	Pedestal, Manual, -/+???° @ ??°/s	Manual, -??°/+??° @ ??°/s	200 rpm
1 x	Vickers .303-in Mk. I (???)	Port, Manual, -/+???° @ 60°/s	Manual, -??°/+??° @ 60°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
2-pr. Gun
	???	AP	0.91 kg, 42 mm @ 585 m/s
	???	SAPHE	0.91 kg/23 g ???, 36 mm @ 585 m/s
	???	HE	0.91 kg/71 g ???, 6 mm @ 585 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 2-pr.

Protection
Location	Thickness	Type
Original
Frontwards
Front	5 mm @ ??°	RHA
Sidewards
Side	5 mm @ ??°	RHA
Rearwards
Rear	5 mm @ ??°	RHA
Upwards
Roof	??? mm @ ??°	RHA
Uparmored
Frontwards
Front	8 mm @ ??°	RHA
Sidewards
Side	8 mm @ ??°	RHA
Rearwards
Rear	8 mm @ ??°	RHA
Upwards
Roof	??? mm @ ??°	RHA

Crew
6	Total
1	Commander
1	Driver
1	Gunner
3	Gun Loaders
1	Machine Gunner, Machine Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	22 kW
	@ RPM	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	Mechanical

Suspension
Type:	Leaf spring
Road wheels:	4x2
	Type:	Spoked
	Steering:	???

Mobility
Maximum Forward Speed:	40.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	3.6 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The Pierce-Arrow were the most epidemic armored lorries found during the First World War. They served in both anti-ground and anti-air capacities, with the anti-aircraft version first finding use by the Royal Marines being immediately deployed to France to ward off German aircraft. Later, at least one of the lorries would be sent with the RNAS as a part of the expeditionary force in Russia.

Variants & Changes:

1915: Initial 32 lorries produced with 5 mm thick armor
1915: Last 16 lorries produced with 8 mm thick armor.

---

---

Lancia 1Z

General
Name(s):	???
Type:	Self-propelled gun on lorry
Status:	Production
Derived From:	Lancia 1Z
Derivatives:	None
Produced:	???	Production Date:	???
Producer(s):	United Kingdom	???	???
	???
Used:	???	Service Date:	???
User(s):	Royal Naval Air Service	???

Full User(s) List

–	Unit	Date	Status
User(s):	Royal Naval Air Service
	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	7.3 m	2.1 m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Q.F. 3-pr. 5-cwt. Vickers Mk. II (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -5°/+50° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
3-pr. 5-cwt. Gun
	Q.F., 6-pr., Hotchkiss, Steel Shell, Mk. II	SAPHE	1.5 kg/49.6 g Black Powder F.G., 62 mm @ 785 m/s
	Q.F., 6-pr., Hotchkiss, Common Shell, Mk. II	SAPHE	1.5 kg/39 g Black Powder F.G., 66 mm @ 785 m/s
	Q.F., 6-pr., Hotchkiss, H.E. Shell, Mk. V	HE	1.587 kg/120.5 g Lyddite & 5.3 g TNT, 11 mm @ 785 m/s
	Q.F., 6-pr., Hotchkiss, H.E. Shell, Mk. II	HE	1.5 kg/120 g Lyddite, 10 mm @ 785 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 3-pr. 5-cwt.

Protection
Location	Thickness	Type
All	N/A	None

Crew
6	Total
1	Commander
1	Driver
2	Gunners
2	Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Lancia tipo 61
	Type:	Gasoline
	Horsepower:	26 kW
	@ RPM	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	4-speed	4	1
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	4x2
	Type:	Spoked
	Steering:	???

Mobility
Maximum Forward Speed:	60.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The Lancia 1Z was used as the basis for a fleet of self-propelled anti-aircraft guns manned by the RNAS.

Variants & Changes:

None

---

---

Packard

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on lorry
Status:	Production
Derived From:	???
Derivatives:	None
Produced:	???	Production Date:	???
Producer(s):	United Kingdom	???	???
	???
Used:	???	Service Date:	???
User(s):	British Army	???

Full User(s) List

–	Unit	Date	Status
User(s):	British Army
	Royal Garrison Artillery	???	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Q.F. 13-pr. 6-cwt. Mk. III (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -0°/+70° @ ??°/s	??? rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
13-pr. 6-cwt. Gun
	Q.F., 13-pr., H.E. Shell, Mk. II	HE	??? kg/262 g Amatol, 14 mm @ 490 m/s
	Q.F., 13-pr., Shrapnel Shell, Mk. III	Sh-TF	??? kg/35.44 g F.G. Powder & 236 Balls, ??? mm @ 490 m/s
	Q.F., 13-pr., Shrapnel Shell, Mk. II	Sh-TF	5.7 kg/35.44 g F.G. Powder & 234 Balls, ??? mm @ 490 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 13-pr. 6-cwt.

Protection
Location	Thickness	Type
All	N/A	None

Crew
??	Total
??	???

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	??? kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	???
	Type:	???
	Steering:	???

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
Thorneycroft and Daimler were the norm for 13-pr. gun carriers during the war, so the appearance of a Packard as one is odd and it’s reflected in the utter lack of information about this type outside of a few pictures.

Variants & Changes:

None

---

---

Daimler Mk. III

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on lorry
Status:	Production
Derived From:	Daimler Mk. III
Derivatives:	None
Produced:	???	Production Date:	???
Producer(s):	United Kingdom	???	???
	???
Used:	???	Service Date:	???
User(s):	British Army	???

Full User(s) List

–	Unit	Date	Status
User(s):	British Army
	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Q.F. 13-pr. 6-cwt. Mk. III (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -0°/+70° @ ??°/s	??? rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
13-pr. 6-cwt. Gun
	Q.F., 13-pr., H.E. Shell, Mk. II	HE	??? kg/262 g Amatol, 14 mm @ 490 m/s
	Q.F., 13-pr., Shrapnel Shell, Mk. III	Sh-TF	??? kg/35.44 g F.G. Powder & 236 Balls, ??? mm @ 490 m/s
	Q.F., 13-pr., Shrapnel Shell, Mk. II	Sh-TF	5.7 kg/35.44 g F.G. Powder & 234 Balls, ??? mm @ 490 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 13-pr. 6-cwt.

Protection
Location	Thickness	Type
All	N/A	None

Crew
5	Total
1	Commander
1	Driver
1	Gunner
2	Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Daimler
	Type:	Gasoline
	Horsepower:	??? kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	4x2
	Type:	Spoked
	Steering:	Rear

Mobility
Maximum Forward Speed:	20.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
Early during the First World War, few countries had true anti-aircraft guns. Of those that did, the majority were improvised from normal field guns. The 13-pr. 6-cwt. was one of those and was fitted on both Thornycroft J Type and Daimler Mk. III lorries. However, the poor velocity of the guns quickly relegated them to minor usage after the 13-pr. 9-cwt. and 3-in 20-cwt. guns started to appear. All 13-pr. 6-cwt. were converted back into normal field guns at the end of the war, presumably all Thornycroft and Daimler were also converted back to normal lorries.

Variants & Changes:

None

---

---

Thornycroft J Type

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on lorry
Status:	Production
Derived From:	Thornycroft J Type
Derivatives:	None
Produced:	???	Production Date:	???
Producer(s):	United Kingdom	???	???
	???
Used:	???	Service Date:	???
User(s):	British Army	???

Full User(s) List

–	Unit	Date	Status
User(s):	British Army
	???

Dimensions
Weight:	4.52 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
9-cwt. Mk. III/IV Carrier
1 x	Q.F. 13-pr. 9-cwt. Mk. I (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -0°/+80° @ ??°/s	8 rpm
6-cwt. Mk. IV Carrier
1 x	Q.F. 13-pr. 6-cwt. Mk. IV (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -0°/+85° @ ??°/s	??? rpm
6-cwt. Mk. I/II Mount
1 x	Q.F. 13-pr. 6-cwt. Mk. III (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -0°/+70° @ ??°/s	??? rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
13-pr. 9-cwt. Mk. I Gun
	Q.F., 13-pr., H.E. Shell, Mk. II	HE	??? kg/262 g Amatol, 14 mm @ 670 m/s
	Q.F., 13-pr., Shrapnel Shell, Mk. III	Sh-TF	??? kg/35.44 g F.G. Powder & 236 Balls, ??? mm @ 670 m/s
	Q.F., 13-pr., Shrapnel Shell, Mk. II	Sh-TF	5.7 kg/35.44 g F.G. Powder & 234 Balls, ??? mm @ 670 m/s
13-pr. 6-cwt. Mk. IV Gun
	Q.F., 13-pr., H.E. Shell, Mk. II	HE	??? kg/262 g Amatol, 14 mm @ 488 m/s
	Q.F., 13-pr., Shrapnel Shell, Mk. III	Sh-TF	??? kg/35.44 g F.G. Powder & 236 Balls, ??? mm @ 488 m/s
	Q.F., 13-pr., Shrapnel Shell, Mk. II	Sh-TF	5.7 kg/35.44 g F.G. Powder & 234 Balls, ??? mm @ 488 m/s
13-pr. 6-cwt. Mk. III Gun
	Q.F., 13-pr., H.E. Shell, Mk. II	HE	??? kg/262 g Amatol, 14 mm @ 490 m/s
	Q.F., 13-pr., Shrapnel Shell, Mk. III	Sh-TF	??? kg/35.44 g F.G. Powder & 236 Balls, ??? mm @ 490 m/s
	Q.F., 13-pr., Shrapnel Shell, Mk. II	Sh-TF	5.7 kg/35.44 g F.G. Powder & 234 Balls, ??? mm @ 490 m/s

Devices
# of - Name	Type	Effect, Location/for
9-cwt. Mk. III/IV Carrier
1 x - ???	Sight	???x zoom, for 13-pr. 9-cwt.
6-cwt. Mk. I/II/IV Carrier
1 x - ???	Sight	???x zoom, for 13-pr. 6-cwt.

Protection
Location	Thickness	Type
All	N/A	None

Crew
5	Total
1	Commander
1	Driver
1	Gunner
2	Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Thornycroft I-4
	Type:	Gasoline
	Horsepower:	33 kW
	@ RPM	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	4-speed	4	1
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	4x2
	Type:	???
	Steering:	???

Mobility
Maximum Forward Speed:	19.3 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	7.3 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
Early during the First World War, few countries had true anti-aircraft guns. Of those that did, the majority were improvised from normal field guns. The 13-pr. 6-cwt. was one of those and was fitted on both Thornycroft J Type and Daimler Mk. III lorries. However, the poor velocity of the guns quickly relegated them to minor usage after the 13-pr. 9-cwt. and 3-in 20-cwt. guns started to appear. All 13-pr. 6-cwt. were converted back into normal field guns at the end of the war, presumably all Thornycroft and Daimler were also converted back to normal lorries.

The 13-pr. 9-cwt. were far more successful and became a staple across the major theatres.

Variants & Changes:

• 6-cwt., Mk. I Mount: Some Thornycroft produced with 13-pr. 6-cwt. Mk. III guns on Mk. I mounts.
• 6-cwt., Mk. II Mount: Some Thornycroft produced with 13-pr. 6-cwt. Mk. III guns on Mk. II mounts.
• 6-cwt. Mk. IV: At least one Thornycroft produced with the slightly shorter but higher-angle 13-pr. 6-cwt. Mk. IV gun.
• 9-cwt., Mk. III Mount: Some Thornycroft produced with 13-pr. 9-cwt. Mk. I guns on Mk. III mounts.
• 9-cwt., Mk. IV Mount: Majority of Thornycroft produced with 13-pr. 9-cwt. Mk. I guns on Mk. IV mounts.

Variant Images

Thornycroft with 13-pr. 6-cwt. on Mk. II mounting.

Thornycroft with 13-pr. 6-cwt. Mk. IV gun.

Thornycroft with 13-pr. 9-cwt. on Mk. IV mounting.

---

---

Peerless TC-4

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on lorry
Status:	Production
Derived From:	Peerless TC-4
Derivatives:	None
Produced:	???	Production Date:	???
Producer(s):	United Kingdom	???	???
	???
Used:	???	Service Date:	???
User(s):	British Army	???

Full User(s) List

–	Unit	Date	Status
User(s):	British Army
	???

Dimensions
Weight:	7.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
20-cwt. Carrier
1 x	Q.F. 3-in 20-cwt. Mk. I/* (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -10°/+90° @ ??°/s	16 rpm
9-cwt. Type A Carrier
1 x	Q.F. 13-pr. 9-cwt. Mk. I (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -10°/+90° @ ??°/s	8 rpm
9-cwt. Mk. IV Carrier
1 x	Q.F. 13-pr. 9-cwt. Mk. I (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -0°/+80° @ ??°/s	8 rpm
6-cwt. Carrier
1 x	Q.F. 13-pr. 6-cwt. Mk. IV (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -0°/+85° @ ??°/s	??? rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
3-in 20-cwt. Mk. I/* Gun
	???	HE	7.26 kg/530 g TNT, 20 mm @ 640 m/s
	Q.F., 3-in, Shrapnel Shell, Mk. II	Sh-TF	??? kg/35.44 g F.G. Powder & 83 Balls, ??? mm @ 762 m/s
	Q.F., 3-in, Shrapnel Shell, Mk. I	Sh-T-TF	5.7 kg/35.44 g F.G. Powder & 79 Balls, ??? mm @ 762 m/s
13-pr. 9-cwt. Mk. I Gun
	Q.F., 13-pr., H.E. Shell, Mk. II	HE	??? kg/262 g Amatol, 14 mm @ 670 m/s
	Q.F., 13-pr., Shrapnel Shell, Mk. III	Sh-TF	??? kg/35.44 g F.G. Powder & 236 Balls, ??? mm @ 670 m/s
	Q.F., 13-pr., Shrapnel Shell, Mk. II	Sh-TF	5.7 kg/35.44 g F.G. Powder & 234 Balls, ??? mm @ 670 m/s
13-pr. 6-cwt. Mk. IV Gun
	Q.F., 13-pr., H.E. Shell, Mk. II	HE	??? kg/262 g Amatol, 14 mm @ 488 m/s
	Q.F., 13-pr., Shrapnel Shell, Mk. III	Sh-TF	??? kg/35.44 g F.G. Powder & 236 Balls, ??? mm @ 488 m/s
	Q.F., 13-pr., Shrapnel Shell, Mk. II	Sh-TF	5.7 kg/35.44 g F.G. Powder & 234 Balls, ??? mm @ 488 m/s

Devices
# of - Name	Type	Effect, Location/for
20-cwt. Carrier
1 x - ???	Sight	???x zoom, for 3-in 20-cwt.
9-cwt. Mk. IV/Type A Carrier
1 x - ???	Sight	???x zoom, for 13-pr. 9-cwt.
6-cwt. Carrier
1 x - ???	Sight	???x zoom, for 13-pr. 6-cwt.

Protection
Location	Thickness	Type
All	N/A	None

Crew
5	Total
1	Commander
1	Driver
1	Gunner
2	Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Peerless
	Type:	Gasoline
	Horsepower:	29 kW
	@ RPM	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	4-speed	4	??
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	4x2
	Type:	Spoked
	Steering:	???

Mobility
Maximum Forward Speed:	25.7 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	4.2 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
Peerless were one of the staple lorries used for anti-aircraft purposes during the First World War, though they came later than the earlier Thornycroft and Daimlers. Due to that, they used the latest 13-pr. and 3-in guns and their respective mountings, along with at least one modification of a 13-pr. gun on the mounting of a 3-in gun.

Variants & Changes:

• 13-pr. 6-cwt. Mk. IV: Few Peerless produced with 13-pr. 6-cwt. Mk. IV guns.
• 13-pr. 9-cwt., Mk. IV Mounting: Most Peerless produced with 13-pr. 9-cwt. Mk. I guns on Mk. IV mounts.
• 13-pr. 9-cwt., Type A Mounting: Few Peerless produced with 13-pr. 9-cwt. Mk. I guns on Type A mounts, taken from 3-in guns.
• 3-in 20-cwt.: Few Peerless produced with 3-in 20-cwt. guns.

Variant Images

Peerless with 13-pr. 6-cwt. Mk. IV gun.

Peerless with 13-pr. 9-cwt. on Type A mounting.

Peerless with 3-in 20-cwt. gun.

---

---

Daimler

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on lorry
Status:	Production
Derived From:	???
Derivatives:	None
Produced:	???	Production Date:	???
Producer(s):	United Kingdom	???	???
	???
Used:	???	Service Date:	???
User(s):	British Army	???

Full User(s) List

–	Unit	Date	Status
User(s):	British Army
	???

Dimensions
Weight:	7.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Q.F. 3-in 20-cwt. Mk. I/* (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -10°/+90° @ ??°/s	16 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
3-in 20-cwt. Mk. I/* Gun
	???	HE	7.26 kg/530 g TNT, 20 mm @ 640 m/s
	Q.F., 3-in, Shrapnel Shell, Mk. II	Sh-TF	??? kg/35.44 g F.G. Powder & 83 Balls, ??? mm @ 762 m/s
	Q.F., 3-in, Shrapnel Shell, Mk. I	Sh-T-TF	5.7 kg/35.44 g F.G. Powder & 79 Balls, ??? mm @ 762 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 3-in 20-cwt.

Protection
Location	Thickness	Type
All	N/A	None

Crew
??	Total
??	???

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Peerless
	Type:	Gasoline
	Horsepower:	??? kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	4-speed	4	??
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	???
	Type:	Spoked
	Steering:	???

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
At least one Daimler, though the exact model isn’t known, was used as a carrier for a 3-in 20-cwt. gun.

Variants & Changes:

None

---

---

---

[Wiggly_Armed_Man]

I’m calling it. The Mark I will ironically be the best of the British First World War heavy tanks in the game due to it retaining the long Hotchkiss and using RHA. It’s mobility will be utter trash, but the 57 mm of penetration would actually be able to effectively deal with tanks like the A7V that the short Hotchkiss cannot penetrate frontally at all beyond 300 meters.

[Spr4yz]

Sorry. I’m only partly reading about the eastern front so I don’t have much information at the moment.

[Narachu]

I see, well I will be looking forward to it man. Also make sure you use background remover tools, that way it looks a bit more polished, there’s a good few that works well. Here are my suggestions!

Background remover : https://www.remove.bg/

Image hosting platform (for anybody who uses the WT tech tree creator site and wants to upload their own custom image. ) : https://jumpshare.com/

These websites are free to use

[Wiggly_Armed_Man]

Jump to Main Post

Japan
Empire of Great Japan
± State of Manchuria/Empire of Great Manchuria [Subtree]

Japanese Vehicles

---

---

LIGHT TANKS

---

---

Renault FT

General
Name(s):	Runō sensha (ルノー戦車)	1919-1930
	Runō kō gata sensha ( ルノー甲型戦車)	1930-
Type:	Light tank
Status:	Imported
Derived From:	None
Derivatives:	None
Produced:	3,728 (all models)	Production Date:	7/1918-10/10/1918
Producer(s):	French Republic	3,728	1917-1919
	Renault S.A	1,850~	???
	Berliet	800~	???
	SOMUA	600~	???
	Delaunay-Belleville	280~	???
Used:	20~	Service Date:	1919-???
User(s):	Dai-Nippon Teikoku Rikugun	1919-???

Full User(s) List

–	Unit	Date	Status
User(s):	Dai-Nippon Teikoku Rikugun
	Rikugun Kihei Gakkō	???	???
	Hohei Gakkō Senshatai	???	???
	Rinji Haken Dai 1 Senshatai	1931	Disbanded

Dimensions
Weight:	6.7 t
Ground Pressure:	0.5 kg/cm²
	Length	Width	Height
Vehicle:	5.0 m	1.74 m	2.14 m
Ground Clearance:	43 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
Original
1 x	37 S.A. mle 1918 (233)	Turret, Mechanical, -/+360° @ ??°/s	Mechanical, -2°/+35° @ ??°/s	20 rpm
Infantry
1 x	Type 11 [37 mm] (233)	Turret, Mechanical, -/+360° @ ??°/s	Mechanical, -2°/+35° @ ??°/s	20 rpm
Sniper
1 x	Sniper [37 mm] (233)	Turret, Mechanical, -/+360° @ ??°/s	Mechanical, -2°/+35° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm S.A. mle 1918 Gun
	OR 37 mle 1892	APHE	0.5 kg/15 g F3, 14 mm @ 388 m/s
	OE 37 mle 1916	HE	0.56 kg/30 g Melinite, 6 mm @ 365 m/s
	OE 37 mle 1888M	HE	0.455 kg/22 g F3, 5 mm @ 402 m/s
Type 11 [37 mm] Gun
	Type 94 AP	APHE	0.7 kg/10 g TNP, 23 mm @ 437 m/s
	Type 12 AP	SAPHE	0.65 kg/48 g TNT, 18 mm @ 450 m/s
	Type 11 AP	SAPHE	??? kg/??? g ???, ??? mm @ ??? m/s
	Type 94 HE	HE	0.645 kg/20 g TNP & 38.5 g TNT, 5 mm @ 451 m/s
Sniper [37 mm] Gun
	Sniper AP	APHE	0.71 kg/35 g TNP, 25 mm @ 530 m/s

Devices
# of - Name	Type	Effect, Location/for
Original
1 x - ??? telescopic	Sight	??x zoom, for 37 S.A. mle 1918
Infantry
1 x - ??? telescopic	Sight	??x zoom, for Type 11
Sniper
1 x - ??? telescopic	Sight	??x zoom, for Sniper

Protection
Location	Thickness	Type
Frontwards
All front	16 mm @ ???°	RHA
Turret front	22 mm @ ???°	RHA
Sidewards
All side	16 mm @ ???°	RHA
Turret front	22 mm @ ???°	RHA
Rearwards
All rear	16 mm @ ???°	RHA
Turret front	22 mm @ ???°	RHA
Upwards
Roof	8 mm @ ???°	RHA
Downwards
Floor	6 mm @ ???°	RHA

Crew
2	Total
1	Commander, Gunner, Gun Loader
1	Driver

Automotive
Fuel Capacity:	95 l
Engine(s):	1 x - Renault
	Type:	Gasoline
	Horsepower:	29 kW
	@ RPM	1,500
	Cylinder:	4
	Capacity:	4.5 l
		Foward	Reverse
Transmission:	Sliding 4-speed	4	1
Steering:	Clutch-break
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	9/4
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	6
	Type:	Rigid spaced
Drive Sprockets:	2
	Type:	15-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	32
	Length:	??? cm
	Width:	34 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	2 m

Mobility
Maximum Forward Speed:	8.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	4.3 kW/t
Maximum Grade:	26.5°
Maximum Trench:	1.35 m
Maximum Wall:	0.6 m
Maximum Fording:	70 cm
Minimum Turning Diameter:	??? m
Cruising Range:	60 km
	Mileage:	158 l/100 km

Summary
The Renault FT, alongside a Whippet A, were the first tanks imported to Japan. However, the tanks were noted as having “bullet holes” in them, so they required repair before being used. They first saw service as training vehicles and in 1925, they had native Japanese machine guns and cannons installed, the latter of which came in two variations. Their last active combat action would be in 1931 when they took part in the Manchurian Incident, where a further 20~ Chinese Renault FT would be captured and incorporated into the newly formed army of Great Manchuria.

Variants & Changes:

• 1925: French weapons replaced by either a 6.5 mm Type 3 machine gun, or a Type 11 infantry gun or 37 mm sniper gun.

---

---

Manchurian Vehicles

---

---

LIGHT TANKS

---

---

Renault FT

NO IMAGES

General
Name(s):	???
Type:	Light tank
Status:	Captured
Derived From:	None
Derivatives:	None
Produced:	3,728 (all models)	Production Date:	7/1918-10/10/1918
Producer(s):	French Republic	3,728	1917-1919
	Renault S.A	1,850~	???
	Berliet	800~	???
	SOMUA	600~	???
	Delaunay-Belleville	280~	???
Used:	???	Service Date:	1932-???
User(s):	Mǎnzhōuguó Jūn (Manchurian Imperial Army)	1932-???

Full User(s) List

Spoiler

–	Unit	Date	Status
User(s):	Mǎnzhōuguó Jūn (Manchurian Imperial Army)
	???

Dimensions
Weight:	6.7 t
Ground Pressure:	0.5 kg/cm²
	Length	Width	Height
Vehicle:	5.0 m	1.74 m	2.14 m
Ground Clearance:	43 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Type 14 [37 mm] (233)	Turret, Mechanical, -/+360° @ ??°/s	Mechanical, -2°/+35° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
	Sniper AP	APHE	0.71 kg/35 g TNP, 25 mm @ 530 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for Type 14

Protection
Location	Thickness	Type
Frontwards
All front	16 mm @ ???°	RHA
Turret front	22 mm @ ???°	RHA
Sidewards
All side	16 mm @ ???°	RHA
Turret side	22 mm @ ???°	RHA
Rearwards
All rear	16 mm @ ???°	RHA
Turret rear	22 mm @ ???°	RHA
Upwards
Roof	8 mm @ ???°	RHA
Downwards
Floor	6 mm @ ???°	RHA

Crew
2	Total
1	Commander, Gunner, Gun Loader
1	Driver

Automotive
Fuel Capacity:	95 l
Engine(s):	1 x - Renault
	Type:	Gasoline
	Horsepower:	29 kW
	@ RPM	1,500
	Cylinder:	4
	Capacity:	4.5 l
		Foward	Reverse
Transmission:	Sliding 4-speed	4	1
Steering:	Clutch-break
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	9/4
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	6
	Type:	Rigid spaced
Drive Sprockets:	2
	Type:	15-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	32
	Length:	??? cm
	Width:	34 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	2 m

Mobility
Maximum Forward Speed:	8.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	4.3 kW/t
Maximum Grade:	26.5°
Maximum Trench:	1.35 m
Maximum Wall:	0.6 m
Maximum Fording:	70 cm
Minimum Turning Diameter:	??? m
Cruising Range:	60 km
	Mileage:	158 l/100 km

Summary
After the collapse of the Beijing government, most of the Renault FT fell into the hands of the Nationalist government. However, they largely remained in Manchuria where most of them would be captured by the Japanese in the wake of the Manchurian incident, where Japan then occupied the region and organized the puppet Manchurian government. Since the tanks were already outdated, the captured Chinese Renault FT were handed over to the Manchurian Imperial Army.

Variants & Changes:

None

---

---

[Wiggly_Armed_Man]

Jump to Main Post

China
[Beijing] Republic of China (1912-1928) - [Nationalist] Republic of China (1925-1948)

Chinese Vehicles

---

---

LIGHT TANKS

---

---

Renault FT

General
Name(s):	???
Type:	Light tank
Status:	Imported
Derived From:	None
Derivatives:	None
Produced:	3,728 (all models)	Production Date:	7/1918-10/10/1918
Producer(s):	French Republic	3,728	1917-1919
	Renault S.A	1,850~	???
	Berliet	800~	???
	SOMUA	600~	???
	Delaunay-Belleville	280~	???
Used:	30~	Service Date:	1924-???
User(s):	Ān Guó Jūn	1924-1928
	Guómín Gémìng Jūn	1928-???

Full User(s) List

Spoiler

–	Unit	Date	Status
User(s):	Ān Guó Jūn
	???
	Guómín Gémìng Jūn
	???

Dimensions
Weight:	6.7 t
Ground Pressure:	0.5 kg/cm²
	Length	Width	Height
Vehicle:	5.0 m	1.74 m	2.14 m
Ground Clearance:	43 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Type 14 [37 mm] (233)	Turret, Mechanical, -/+360° @ ??°/s	Mechanical, -2°/+35° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
	Sniper AP	APHE	0.71 kg/35 g TNP, 25 mm @ 530 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for Type 14

Protection
Location	Thickness	Type
Frontwards
All front	16 mm @ ???°	RHA
Turret front	22 mm @ ???°	RHA
Sidewards
All side	16 mm @ ???°	RHA
Turret side	22 mm @ ???°	RHA
Rearwards
All rear	16 mm @ ???°	RHA
Turret rear	22 mm @ ???°	RHA
Upwards
Roof	8 mm @ ???°	RHA
Downwards
Floor	6 mm @ ???°	RHA

Crew
2	Total
1	Commander, Gunner, Gun Loader
1	Driver

Automotive
Fuel Capacity:	95 l
Engine(s):	1 x - Renault
	Type:	Gasoline
	Horsepower:	29 kW
	@ RPM	1,500
	Cylinder:	4
	Capacity:	4.5 l
		Foward	Reverse
Transmission:	Sliding 4-speed	4	1
Steering:	Clutch-break
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	9/4
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	6
	Type:	Rigid spaced
Drive Sprockets:	2
	Type:	15-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	32
	Length:	??? cm
	Width:	34 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	2 m

Mobility
Maximum Forward Speed:	8.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	4.3 kW/t
Maximum Grade:	26.5°
Maximum Trench:	1.35 m
Maximum Wall:	0.6 m
Maximum Fording:	70 cm
Minimum Turning Diameter:	??? m
Cruising Range:	60 km
	Mileage:	158 l/100 km

Summary
It’s unclear how many Renault FT were sent to China, but it is believed to be somewhere around 30. They were all modified with domestic machine guns and cannons, the latter of which were modified by the Fengtian Clique to fit Type 14 37 mm, a local Manchurian copy of the sniper gun used in Japan’s own Renault FTs. By 1928, all Renault FTs would fall into Republican hands due to the collapse of the Beijing-aligned Cliques as a result of the Northern Expedition, with the tanks serving up till the Manchurian Incident where most were captured by Japan and incorporated into the army of Great Manchuria. However, Renault FT would continue to be used by China in the training capacity at least until 1945, if not later.

Variants & Changes:

None

---

---

[Wiggly_Armed_Man]

Jump to Main Post

Italy
Kingdom of Italy
± Kingdom of Romania [Subtree]

Italian Vehicles

---

---

LIGHT TANKS

---

---

Renault FT

General
Name(s):	Carro armato leggero Renault FT
Type:	Light tank
Status:	Imported
Derived From:	None
Derivatives:	None
Produced:	3,728 (all models)	Production Date:	7/1918-10/10/1918
Producer(s):	French Republic	3,728	1917-1919
	Renault S.A	1,850~	???
	Berliet	800~	???
	SOMUA	600~	???
	Delaunay-Belleville	280~	???
Used:	4	Service Date:	1924-???
User(s):	Regio Esercito	1918-???

Full User(s) List

–	Unit	Date	Status
User(s):	Regio Esercito
	???

Dimensions
Weight:	6.7 t
Ground Pressure:	0.5 kg/cm²
	Length	Width	Height
Vehicle:	5.0 m	1.74 m	2.14 m
Ground Clearance:	43 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	37 S.A. mle 1918 (233)	Turret, Mechanical, -/+360° @ ??°/s	Mechanical, -2°/+35° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
	OR 37 mle 1892	APHE	0.5 kg/15 g F3, 14 mm @ 388 m/s
	OE 37 mle 1916	HE	0.56 kg/30 g Melinite, 6 mm @ 365 m/s
	OE 37 mle 1888M	HE	0.455 kg/22 g F3, 5 mm @ 402 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for 37 S.A. mle 1918

Protection
Location	Thickness	Type
Frontwards
All front	16 mm @ ???°	RHA
Turret front	22 mm @ ???°	RHA
Sidewards
All side	16 mm @ ???°	RHA
Turret side	22 mm @ ???°	RHA
Rearwards
All rear	16 mm @ ???°	RHA
Turret rear	22 mm @ ???°	RHA
Upwards
Roof	8 mm @ ???°	RHA
Downwards
Floor	6 mm @ ???°	RHA

Crew
2	Total
1	Commander, Gunner, Gun Loader
1	Driver

Automotive
Fuel Capacity:	95 l
Engine(s):	1 x - Renault
	Type:	Gasoline
	Horsepower:	29 kW
	@ RPM	1,500
	Cylinder:	4
	Capacity:	4.5 l
		Foward	Reverse
Transmission:	Sliding 4-speed	4	1
Steering:	Clutch-break
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	9/4
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	6
	Type:	Rigid spaced
Drive Sprockets:	2
	Type:	15-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	32
	Length:	??? cm
	Width:	34 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	2 m

Mobility
Maximum Forward Speed:	8.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	4.3 kW/t
Maximum Grade:	26.5°
Maximum Trench:	1.35 m
Maximum Wall:	0.6 m
Maximum Fording:	70 cm
Minimum Turning Diameter:	??? m
Cruising Range:	60 km
	Mileage:	158 l/100 km

Summary
Four Renault FT, two with the Renault turret and two with the Berliet-Girod turret, were brought for trials in 1917 and arrived in Italy in 1918. After successful tests, Italy ordered more, but the end of the war saw France cancelling their orders, leading to the creation of the later Fiat 3000. Of the imported Renault FT, only one had a cannon which is pictured above. They continued to serve within the Italian military after the end of the war.

Variants & Changes:

None

---

---

Fiat 3000B

General
Name(s):	Carro armato leggero Fiat 3000 modello 1930	1921-1940
	Carro armato L 5/30	1940-
Type:	Light tank
Status:	Production
Derived From:	None
Derivatives:	None
Produced:	40~ (all models)	Production Date:	1930
Producer(s):	Kingdom of Italy	40~	1930
	???
Used:	40~	Service Date:	1930-1943
User(s):	Regio Esercito	1930-1943

Full User(s) List

–	Unit	Date	Status
User(s):	Regio Esercito
	???	???	↓Reorganized↓
	1ª Compagnia	1940-1943	Disbanded
	2ª Compagnia	1940-1943	Disbanded
	3ª Compagnia	1940-1943	Disbanded
	4ª Compagnia	1940-1943	Disbanded
	5ª Compagnia	1940-1943	Disbanded

Dimensions
Weight:	5.1 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	4.29 m	1.65 m	2.20 m
Ground Clearance:	35 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Vickers-Terni 37/40 modello 1918 (68)	Turret, Mechanical, -/+360° @ ??°/s	Mechanical, -10°/+20° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
	GP 37	APHE	0.7 kg/23 g TNT, 35 mm @ 640 m/s
	G 37	HE	??? kg/??? g ???, ??? mm @ ??? m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for Vickers-Terni 37/40 modello 1918

Protection
Location	Thickness	Type
Frontwards
All front	16 mm @ ???°	RHA
Sidewards
All side	8 mm @ ???°	RHA
Rearwards
All rear	8 mm @ ???°	RHA
Upwards
Turret Roof	8 mm @ ???°	RHA
Hull Roof	6 mm @ ???°	RHA
Downwards
Floor	6 mm @ ???°	RHA

Crew
2	Total
1	Commander, Gunner, Gun Loader
1	Driver

Automotive
Fuel Capacity:	89.5 l
Engine(s):	1 x - FIAT tipo 304
	Type:	Gasoline
	Horsepower:	47 kW
	@ RPM	1,700
	Cylinder:	4
	Capacity:	6.236 l
		Foward	Reverse
Transmission:	3-speed	3	1
Steering:	Clutch-break
Brakes:	Mechanical

Suspension
Type:	Vertical spring
Road wheels:	8/4
	Type:	???
	Idlers:	Front track
Return rollers:	5
	Type:	???
Drive Sprockets:	2
	Type:	Rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	52
	Length:	??? cm
	Width:	28 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	22.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	9.2 kW/t
Maximum Grade:	51°
Maximum Trench:	1.8 m
Maximum Wall:	0.6 m
Maximum Fording:	110 cm
Minimum Turning Diameter:	??? m
Cruising Range:	88 km
	Mileage:	102 l/100 km

Summary
Four Renault FT were brought for trials in 1917 and arrived in Italy in 1918. After successful tests, Italy ordered more, but the end of the war saw France cancelling their orders, leading to the creation of the later Fiat 3000. Of the imported Renault FT, only one had a cannon which is pictured above. They continued to serve within the Italian military after the end of the war.

Variants & Changes:

• 1930: Commander tanks were fitted with RF CR radios.

Variant Images

Fiat 3000 modello 1930 with radio and cannon.

---

---

---

MEDIUM TANKS

---

---

Schneider CA1

General
Name(s):	Carro armato medio Schneider CA1
Type:	Medium tank
Status:	Production
Derived From:	None
Derivatives:	None
Produced:	400 (all models)	Production Date:	1916-08/1918
Producer(s):	French Republic	400	1916-08/1918
	SOMUA	400	1916-08/1918
Used:	1	Service Date:	1917-1936
User(s):	Regio Esercito	1917-1936

Full User(s) List

–	Unit	Date	Status
User(s):	Regio Esercito
	???	???-1918	↓Transferred↓
	Reparto marcia del 1º Parco trattrici	1918-1920	???
	???

Dimensions
Weight:	12.5 t
Ground Pressure:	0.72 kg/cm²
	Length	Width	Height
Vehicle:	6.32 m	2.05 m	2.30 m
Ground Clearance:	41 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	75 BS (90)	Sponson, Mechanical, -/+30° @ ??°/s	Mechanical, -10°/+30° @ ??°/s	??? rpm
2 x	8 Hotchkiss mle 1914 (3,840)	Ballports, Mechanical, -/+53° @ 60°/s	Mechanical, -45°/+20° @ 60°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
75 mm Gun
	???	HE	5.3 kg/795 g TNT, 12 mm @ 200 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for 75 BS

Protection
Location	Thickness	Type
Frontwards
All front	11.4 mm @ ???°	RHA
Sidewards
All side	11.4 mm @ ???°	RHA
Rearwards
All rear	11.4 mm @ ???°	RHA
Upwards
Roof	5.5 mm @ ???°	RHA
Downwards
Floor	??? mm @ ???°	RHA

Crew
6	Total
1	Commander, Driver
1	Mechanic, Machine Gun Loader
1	Gunner, Gun Loader
2	Machine Gunners
1	Machine Gun Loaders

Automotive
Fuel Capacity:	220 l
Engine(s):	1 x - Schneider
	Type:	Gasoline
	Horsepower:	44 kW
	@ RPM	1,200
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	3-speed	3	1
Steering:	Clutch-break
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	7/2
	Type:	???
	Idlers:	Front track
Return rollers:	0
	Type:	N/A
Drive Sprockets:	2
	Type:	Rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	34
	Length:	??? cm
	Width:	??? cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	8.1 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	3.5 kW/t
Maximum Grade:	29°
Maximum Trench:	1.75 m
Maximum Wall:	0.79 m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	80 km
	Mileage:	275 l/100 km

Summary
The Schneider CA1 was the first tank used by Italy. It was trialed in 1917 and a decision was almost reached to purchase at least 20 of the tanks, but strategical changes in the Alps made it unnecessary and impractical. The sole Schneider would never see combat and be relegated to parade usage, before being interned in a museum in 1936 and then being lost over the Second World War.

Variants & Changes:

None

---

---

---

HEAVY TANKS

---

---

Fiat 2000

General
Name(s):	Carro armato pesante Fiat 2000
Type:	Heavy tank
Status:	Prototype
Derived From:	None
Derivatives:	None
Produced:	2	Production Date:	1917-1918
Producer(s):	Kingdom of Italy	2	1917-1918
	FIAT	2	1917-1918
Used:	2	Service Date:	1918-1934
User(s):	Regio Esercito	1918-1934

Full User(s) List

–	Unit	Date	Status
User(s):	Regio Esercito
	???	???-1918	↓Transferred↓
	1ª Batteria autonoma carri d’assalto	1918-1919	Transferred
	8º Reggimento artiglieria pesante	???-1924	↓Transferred↓
	Reparto Carri Armati	1924-???	???
	???

Dimensions
Weight:	38.78 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	7.4 m	3.2 m	3.8 m
Ground Clearance:	54 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
Prototype No. 1*
1 x	65/17 modello 1908/1913 (90)	Turret, Mechanical, -/+360° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	??? rpm
8 x	FIAT-Revelli 6.5 modello 1914 (3,840)	Sponsons, Manual, -/+55° @ 60°/s	Manual, -??°/+??° @ 60°/s	500 rpm
Prototype No. 2
1 x	65/17 modello 1908/1913 (90)	Turret, Mechanical, -/+360° @ ??°/s	Mechanical, -10°/+75° @ ??°/s	??? rpm
7 x	FIAT-Revelli 6.5 modello 1914 (3,840)	Sponsons, Manual, -/+55° @ 60°/s	Manual, -??°/+??° @ 60°/s	500 rpm
		Ballports, Manual, -/+55° @ 60°/s	Manual, -??°/+??° @ 60°/s	500 rpm
1934 Remodel
1 x	65/17 modello 1908/1913 (90)	Turret, Mechanical, -/+360° @ ??°/s	Mechanical, -10°/+75° @ ??°/s	12 rpm
2 x	Vickers-Terni 37/40 modello 1918 (68)	Sponsons, Mechanical, -/+???° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	20 rpm
4 x	FIAT-Revelli 6.5 modello 1914 (3,840)	Sponsons, Manual, -/+55° @ 60°/s	Manual, -??°/+??° @ 60°/s	500 rpm
		Ballports, Manual, -/+55° @ 60°/s	Manual, -??°/+??° @ 60°/s	500 rpm

*The No. 1 prototype was never armed before its apparent dismantlement. These were only its planned weapons.

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
65 mm Gun
	G 65	HE	4.22 kg/223 g TNT, 8 mm @ 355 m/s
	???	Sh	4.5 kg/??? g ???, ??? mm @ 355 m/s
37 mm Gun
	GP 37	APHE	0.7 kg/23 g TNT, 35 mm @ 640 m/s
	G 37	HE	??? kg/??? g ???, ??? mm @ ??? m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for 75 BS

Protection
Location	Thickness	Type
Frontwards
All front	20 mm @ ???°	Vanadium
Sidewards
All side	20 mm @ ???°	Vanadium
Rearwards
All rear	15 mm @ ???°	Vanadium
Upwards
Roof	??? mm @ ???°	Vanadium
Downwards
Floor	??? mm @ ???°	Vanadium

Crew
10	Prototype No. 1
1	Commander
1	Driver
1	Gunner, Gun Loader
7	Machine Gunners, Machine Gun Loaders
8	Prototype No. 2
1	Commander, Machine Gunner, Machine Gun Loader
1	Driver
1	Gunner, Gun Loader
5	Machine Gunners, Machine Gun Loaders
8	1934 Remodel
1	Commander, Machine Gunner, Machine Gun Loader
1	Driver
3	Gunners, Gun Loaders
3	Machine Gunners, Machine Gun Loaders

Automotive
Fuel Capacity:	600 l
Engine(s):	1 x - FIAT A12
	Type:	Gasoline
	Horsepower:	184 kW
	@ RPM	1,400
	Cylinder:	6
	Capacity:	21.2 l
		Foward	Reverse
Transmission:	4-speed	4	2
Steering:	Clutch-break
Brakes:	???

Suspension
Type:	Leaf spring
Road wheels:	??/4
	Type:	???
	Idlers:	???
Return rollers:	???
	Type:	???
Drive Sprockets:	???
	Type:	???

Tracks
Type:	Continuous linked steel
	Shoes:	???
	Length:	??? cm
	Width:	??? cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	7.5 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	3.5 kW/t
Maximum Grade:	40°
Maximum Trench:	3.5 m
Maximum Wall:	1.0 m
Maximum Fording:	100 cm
Minimum Turning Diameter:	??? m
Cruising Range:	75 km
	Mileage:	800 l/100 km

Summary
The Fiat 2000 was developed as a contemporary to the British heavy tanks of the First World War. However, production meant the first prototype wasn’t completed until 1918 and that the second wasn’t completed until 1919. Both were deployed to Libya in 1919, but only the second prototype returned to Rome. The first prototype remained in Tripoli until 1924, when all records of it are then lost and it was presumably scrapped. The second prototype remained in active service until 1934 when it appeared one final time at an exhibition with Vickers-Terni guns. After that, it was interned as a memorial and then lost over the course of the Second World War.

Variants & Changes:

• 1917-1918: First prototype constructed. It used a flat-topped cylindrical turret and had no sponson guns, instead having the machine guns situated with two in the front, two in the sides, and three in the rear. Normal crew was 10. The first prototype was never armed.
  • 1920s(?): Small covers over drive and idler wheels are removed.
• 1918: Second prototype constructed. It used a spherical turret and had only seven machine guns instead of eight, with four in the sponsons, two in the sides, and one in the rear. Normal crew was evidently 8.
  • 1934: Forward sponson machine guns replaced by Vickers-Terni 37/40 modello 1918 guns.

Variant Images

Prototype No. 1 under testing, with the covers over the drive and idler wheels visible.

Prototype No. 2 while in Libya.

Prototype No. 2 in 1934 with the Vickers-Terni 37/40 visible in the front sponsons.

---

---

---

ANTI-AIRCRAFT VEHICLES

---

Autocannone 75/27 C.K. Itala X

General
Name(s):	Autocannone da 75/27 C.K. su Itala X
Type:	Self-propelled anti-aircraft gun
Status:	Production
Derived From:	Itala X
Derivatives:	None
Produced:	72	Production Date:	1915-???
Producer(s):	Kingdom of Italy	72	1915-???
	Arsenale Regio Esercito di Napoli	72	???
Used:	72	Service Date:	1915-1927
User(s):	Regio Esercito	1915-1927

Full User(s) List

–	Unit	Date	Status
User(s):	Regio Esercito
	???

Dimensions
Weight:	7.5 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	75/27 C.K. (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -0°/+70° @ ??°/s	15 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
75/27 C.K. Gun
	???	HE-TF	??? kg/??? g ???, ??? mm @ 510 m/s
	???	HE	??? kg/??? g ???, ??? mm @ 510 m/s
	???	Sh-TF	??? kg/??? g ??? & 360 or 290 Balls, ??? mm @ 510 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 75/27 C.K.

Protection
Location	Thickness	Type
All	N/A	None

Crew
??	Total
??	???

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	33 kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	???
	Type:	Spoked
	Steering:	???

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	4.4 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The 75/27 C.K. was designed from the start as a truck-based anti-aircraft gun. However, due to the Alps campaign turning into a static slog over mountains, the necessities of a mobile anti-aircraft gun became fewer and so production lagged. Ultimately, 93 fixed or trailer-based guns would be built, while a further 72 truck-based guns on the Itala X truck would be built. They would serve until 1927, when the guns were then taken off and moved onto more modern Ceirano 50 CMA.

Variants & Changes:

None

---

Autocannone 75/27 A.V. Lancia 1Z

General
Name(s):	Autocannone da 75/27 A.V. su Lancia 1Z
Type:	Self-propelled anti-aircraft gun
Status:	Production
Derived From:	Lancia 1Z
Derivatives:	None
Produced:	???	Production Date:	???
Producer(s):	Kingdom of Italy	???	???
	???
Used:	???	Service Date:	???
User(s):	Regio Esercito	???

Full User(s) List

–	Unit	Date	Status
User(s):	Regio Esercito
	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	75/27 A.V. (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -5°/+80° @ ??°/s	15 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
75/27 A.V. Gun
	???	HE-TF	??? kg/??? g ???, ??? mm @ 510 m/s
	???	HE	??? kg/??? g ???, ??? mm @ 510 m/s
	???	Sh-TF	??? kg/??? g ??? & 360 or 290 Balls, ??? mm @ 510 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 75/27 A.V.

Protection
Location	Thickness	Type
All	N/A	None

Crew
??	Total
??	???

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Lancia tipo 61
	Type:	Gasoline
	Horsepower:	51 kW
	@ RPM	???
	Cylinder:	4
	Capacity:	4.49 l
		Foward	Reverse
Transmission:	4-speed	4	1
Steering:	???
Brakes:	Mechanical

Suspension
Type:	Leaf spring
Road wheels:	???
	Type:	Spoked
	Steering:	???

Mobility
Maximum Forward Speed:	60.0 km/h km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The Lancia 1Z was used as the basis for a series of self-propelled anti-aircraft guns aimed at defending the cities and borders from Austro-Hungarian harassment. While the gun was acceptable, the chassis was not and showed itself to be overloaded by the gun.

Variants & Changes:

None

---

---

Autocannone 76/30 R.M. Fiat BLR

General
Name(s):	Autocannone da 76/30 R.M. su Fiat BLR
Type:	Self-propelled anti-aircraft gun
Status:	Production
Derived From:	FIAT BLR
Derivatives:	None
Produced:	14	Production Date:	???
Producer(s):	Kingdom of Italy	14	???
	???
Used:	14	Service Date:	???-1940s
User(s):	Regia Marina	???-1940s

Full User(s) List

–	Unit	Date	Status
User(s):	Regia Marina
	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	76/30 R.M. (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -5°/+75° @ ??°/s	15 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
75/30 R.M. Gun
	Granata da 76/40 C.A.	HE-TF	6.016 kg/650 g TNT, 10 mm @ 550 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 76/30 R.M.

Protection
Location	Thickness	Type
All	N/A	None

Crew
??	Total
??	???

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - FIAT tipo 64DA
	Type:	Gasoline
	Horsepower:	29 kW
	@ RPM	1,300
	Cylinder:	4
	Capacity:	5.654 l
		Foward	Reverse
Transmission:	4-speed	4	1
Steering:	???
Brakes:	Mechanical

Suspension
Type:	Semi-elliptic leaf spring
Road wheels:	4x2
	Type:	Cast steel spoked w/ rubber half-tires
	Steering:	Rear

Mobility
Maximum Forward Speed:	25.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The 76/30 R.M. was a shortened version of the 76/40 modello 1897 and was initially used for smaller ships. During the last years of the war, it was used to equip trucks in order to create air defenses for their ports, with two batteries being constructed during the war and an additional battery being constructed sometime during the 1920s. They would see service until the Second World War, where all 14 of them had their guns removed and replaced onto Lancia 3 Ro trucks.

Variants & Changes:

None

---

---

---

Romanian Vehicles

---

---

LIGHT TANKS

---

---

Renault FT

General
Name(s):	Tanc ușor Renault FT
Type:	Light tank
Status:	Imported
Derived From:	None
Derivatives:	None
Produced:	3,728 (all models)	Production Date:	7/1918-10/10/1918
Producer(s):	French Republic	3,728	1917-1919
	Renault S.A	1,850~	???
	Berliet	800~	???
	SOMUA	600~	???
	Delaunay-Belleville	280~	???
Used:	76	Service Date:	1919-???
User(s):	Forțele Terestre Române	1919-???

Full User(s) List

–	Unit	Date	Status
User(s):	Forțele Terestre Române
	???

Dimensions
Weight:	6.7 t
Ground Pressure:	0.5 kg/cm²
	Length	Width	Height
Vehicle:	5.0 m	1.74 m	2.14 m
Ground Clearance:	43 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	37 S.A. mle 1918 (233)	Turret, Mechanical, -/+360° @ ??°/s	Mechanical, -2°/+35° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
	OR 37 mle 1892	APHE	0.5 kg/15 g F3, 14 mm @ 388 m/s
	OE 37 mle 1916	HE	0.56 kg/30 g Melinite, 6 mm @ 365 m/s
	OE 37 mle 1888M	HE	0.455 kg/22 g F3, 5 mm @ 402 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for 37 S.A. mle 1918

Protection
Location	Thickness	Type
Frontwards
All front	16 mm @ ???°	RHA
Turret front	22 mm @ ???°	RHA
Sidewards
All side	16 mm @ ???°	RHA
Turret side	22 mm @ ???°	RHA
Rearwards
All rear	16 mm @ ???°	RHA
Turret rear	22 mm @ ???°	RHA
Upwards
Roof	8 mm @ ???°	RHA
Downwards
Floor	6 mm @ ???°	RHA

Crew
2	Total
1	Commander, Gunner, Gun Loader
1	Driver

Automotive
Fuel Capacity:	95 l
Engine(s):	1 x - Renault
	Type:	Gasoline
	Horsepower:	29 kW
	@ RPM	1,500
	Cylinder:	4
	Capacity:	4.5 l
		Foward	Reverse
Transmission:	Sliding 4-speed	4	1
Steering:	Clutch-break
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	9/4
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	6
	Type:	Rigid spaced
Drive Sprockets:	2
	Type:	15-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	32
	Length:	??? cm
	Width:	34 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	2 m

Mobility
Maximum Forward Speed:	8.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	4.3 kW/t
Maximum Grade:	26.5°
Maximum Trench:	1.35 m
Maximum Wall:	0.6 m
Maximum Fording:	70 cm
Minimum Turning Diameter:	??? m
Cruising Range:	60 km
	Mileage:	158 l/100 km

Summary
As a part of the Entente, Romania would receive seventy-six Renault FT between 1919. The majority of these were cannon tanks, which would serve as as Romania’s only tank until the 1930s. All of these tanks had the Berliet-Girod cylindrical omnibus turrets.

Variants & Changes:

None

---

---

---

[Wiggly_Armed_Man]

Jump to Main Post

France
[Third] French Republic (1870-1940) - French State
± Kingdom of Belgium [Subtree]
± Kingdom of the Netherlands [Subtree]

French Vehicles

---

---

ARMORED CARS

---

---

AM Renault

General
Name(s):	Auto-mitrailleuse Renault (AM Renault)
Type:	Armored car
Status:	Production
Derived From:	Renault type ED
Derivatives:	None
Produced:	100~	Production Date:	1914-1915
Producer(s):	French Republic	100~	1914-1915
	Renault	???	1914
	CAMA Vincennes	???	1915
Used:	100~	Service Date:	1914-1930
User(s):	Armée de terre	1914-1930

Full User(s) List

–	Unit	Date	Status
User(s):	Armée de terre
	1er Gr. A/C Marine	29/09/1914-01/03/1916	Disbanded/↓Reorganized↓
	1er GAMAC	03/1916-???	???
	2e Gr. A/C Marine	29/09/1914-23/03/1916	Disbanded/↓Reorganized↓
	2e GAMAC	15/04/1916-???	???
	3e Gr. A/C Marine	09/1914-28/03/1916	Disbanded/↓Reorganized↓
	3e GAMAC	04/1916-???	???
	4e Gr. A/C Marine	1914-01/03/1916	Disbanded/↓Reorganized↓
	4e GAMAC	05/1916-???	???
	5e Gr. A/C Marine	1914-01/03/1916	Disbanded/↓Reorganized↓
	5e GAMAC	1916-???	???
	6e Gr. Mixte A/C	12/1914-01/03/1916	Disbanded/↓Reorganized↓
	6e GAMAC	05/1916-???	???
	7e Gr. Mixte A/C	???-01/03/1916	Disbanded/↓Reorganized↓
	7e GAMAC	05/1916-???	???
	8e Gr. Mixte A/C	1914-01/03/1916	Disbanded/↓Reorganized↓
	8e GAMAC	1916-???	???
	9e Gr. Mixte A/C	???-01/03/1916	Disbanded/↓Reorganized↓
	9e GAMAC	05/1916-???	???
	10e Gr. Mixte A/C	???-01/03/1916	Disbanded/↓Reorganized↓
	10e GAMAC	05/1916-???	???
	11e Gr. Mixte A/C	???-01/03/1916	Disbanded/↓Reorganized↓
	11e GAMAC	06/1916-???	???
	12e Gr. Mixte A/C	???-01/03/1916	Disbanded/↓Reorganized↓
	12e GAMAC	???	???
	13e Gr. Mixte A/C	1914-01/03/1916	Disbanded/↓Reorganized↓
	14e GAMAC	22/05/1916-???	???
	15e Gr. Mixte A/C	1914-01/03/1916	Disbanded/↓Reorganized↓
	15e GAMAC	1916-???	???
	Ba. A/C M Drouet	10/1916-???	↓Reorganized↓
	18e GAMAC	15/06/1916-01/07/1916	↓Reorganized↓
	16e GAMAC	01/07/1916-???	???
	17e Gr. Mixte A/C	07/07/1915-01/03/1916	Disbanded/↓Reorganized↓
	17e GAMAC	28/04/1916-???	???

Dimensions
Weight:	3.5 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	4.84 m	1.75 m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
Mle 1914 AM Car
1 x	Saint-Étienne 8 mle 1907 (???)	Pedestal (Pedestal*), Manual, -/+180° @ ??°/s (60°/s)	Manual, -??°/+??° (-??°/+90°) @ 60°/s	600 rpm
Mle 1915 AM Car
1 x	Saint-Étienne 8 mle 1907 (???)	Pedestal (Ball**), Manual, -/+180° @ ??°/s (60°/s)	Manual, -??°/+??° (-??°/+90°) @ 60°/s	600 rpm
Mle 1915 AM Car (1918)
1 x	Hotchkiss 8 mle 1914 (???)	Pedestal (Ball**), Manual, -/+180° @ ??°/s (60°/s)	Manual, -??°/+??° (-??°/+90°) @ 60°/s	450 rpm
Mle 1915 AC Car
1 x	37 T.R. mle 1916 (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -??°/+??° @ ??°/s	20 rpm

*With shield removed, the gun could be converted for anti-aircraft usage.
**Gun could be removed from shield and mounted atop the shield via ball mount for anti-aircraft usage.

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
	OR 37 mle 1892	APHE	0.5 kg/15 g F3, 14 mm @ 388 m/s
	OE 37 mle 1916	HE	0.56 kg/30 g Melinite, 6 mm @ 365 m/s
	OE 37 mle 1888M	HE	0.455 kg/22 g F3, 5 mm @ 402 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 37 T.R. mle 1916

Protection
Location	Thickness	Type
Mle 1914
Frontwards
All front	??? mm @ ??°	???
Sidewards
All side	??? mm @ ??°	???
Rearwards
All rear	??? mm @ ??°	???
Upwards
Roof	??? mm @ ??°	???
Downwards
Floor	??? mm @ ??°	???
Mle 1915
Frontwards
All front	5 mm @ ??°	Chrome steel
Sidewards
All side	5 mm @ ??°	Chrome steel
Rearwards
All rear	5 mm @ ??°	Chrome steel
Upwards
Roof	??? mm @ ??°	Chrome steel
Downwards
Floor	??? mm @ ??°	Chrome steel

Crew
4	AM Car
1	Commander
1	Driver
1	Machine Gunner
1	Machine Gun Loader
4	AC Car
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	80 l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	13 kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	???
	Type:	???
	Steering:	???

Mobility
Maximum Forward Speed:	30.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	3.8 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The AM Renault were France’s first armored cars alongside the AC Peugot. Whereas the latter was intended to serve as the cannon cars, the former were intended to serve as the machine gun cars to protect them. Sixty of the model 1914 AM Renault were produced in 1914 before deficiencies in its protection required its redesign, resulting in the model 1915. Around a hundred of the cars would be made, with at least some of them serving in AC capacity via the installation of a 37 mm gun in place of the machine gun due to losses of the Peugeot cars. They would see service until 1930.

Variants & Changes:

• Modèle 1914: The first 60 armored cars were produced with flat gunshields and poor armor.
  • Autocannon: Some cars were modified as self-propelled cannons with a 37 T.R. mle 1916 gun in place of the machine gun.
  • 1915-1918: Cars were gradually modified with a rear driver seat to use the reverse gear as a forward gear. They can be differentiated from unmodified cars by the slit in their rear for the rear driver.
• Modèle 1915: 5 mm chrome steel armor was introduced; along with a gunshield with angled sides to cover the flanks and shutters for the radiator where the previous model left it unarmored. Most prior mle 1914 were converted into mle 1915.
  • Autocannon: Some cars were modified as self-propelled cannons with a 37 T.R. mle 1916 gun in place of the machine gun.
    • 1915-1918: Cars were gradually modified with a rear driver seat to use the reverse gear as a forward gear. They can be differentiated from unmodified cars by the slit in their rear for the rear driver.
  • 1915-1918: Cars were gradually modified with a rear driver seat to use the reverse gear as a forward gear. They can be differentiated from unmodified cars by the slit in their rear for the rear driver.
  • 1918: The Saint-Étienne 8 mle 1907 were replaced by the Hotchkiss 8 mle 1914.

Variant Image(s)

Mle 1914 armored car.

Mle 1914 armored car in anti-aircraft configuration.

Mle 1914 armored car with a 37 mm gun.

Mle 1915 armored car, without armament.

Rear of mle 1915 armored car with a machine gun in anti-aircraft configuration.

Mle 1915 armored with a 37 mm gun.

---

---

AC Peugeot

General
Name(s):	Auto-canon Peugeot (AC Peugeot)
Type:	Armored car
Status:	Production
Derived From:	Peugeot type 153
Derivatives:	None
Produced:	270	Production Date:	1914-1915
Producer(s):	French Republic	270	1914-1915
	Peugeot	270	1914-1915
Used:	270	Service Date:	1914-1939
User(s):	Armée de terre	1914-1939

Full User(s) List

–	Unit	Date	Status
User(s):	Armée de terre
	1er Gr. A/C Marine	29/09/1914-01/03/1916	Disbanded/↓Reorganized↓
	1er GAMAC	03/1916-???	???
	2e Gr. A/C Marine	29/09/1914-23/03/1916	Disbanded/↓Reorganized↓
	2e GAMAC	15/04/1916-???	???
	3e Gr. A/C Marine	09/1914-28/03/1916	Disbanded/↓Reorganized↓
	3e GAMAC	04/1916-???	???
	4e Gr. A/C Marine	1914-01/03/1916	Disbanded/↓Reorganized↓
	4e GAMAC	05/1916-???	???
	5e Gr. A/C Marine	1914-01/03/1916	Disbanded/↓Reorganized↓
	5e GAMAC	1916-???	???
	6e Gr. Mixte A/C	12/1914-01/03/1916	Disbanded/↓Reorganized↓
	6e GAMAC	05/1916-???	???
	7e Gr. Mixte A/C	???-01/03/1916	Disbanded/↓Reorganized↓
	7e GAMAC	05/1916-???	???
	8e Gr. Mixte A/C	1914-01/03/1916	Disbanded/↓Reorganized↓
	8e GAMAC	1916-???	???
	9e Gr. Mixte A/C	???-01/03/1916	Disbanded/↓Reorganized↓
	9e GAMAC	05/1916-???	???
	10e Gr. Mixte A/C	???-01/03/1916	Disbanded/↓Reorganized↓
	10e GAMAC	05/1916-???	???
	11e Gr. Mixte A/C	???-01/03/1916	Disbanded/↓Reorganized↓
	11e GAMAC	06/1916-???	???
	12e Gr. Mixte A/C	???-01/03/1916	Disbanded/↓Reorganized↓
	12e GAMAC	???	???
	13e Gr. Mixte A/C	1914-01/03/1916	Disbanded/↓Reorganized↓
	14e GAMAC	22/05/1916-???	???
	15e Gr. Mixte A/C	1914-01/03/1916	Disbanded/↓Reorganized↓
	15e GAMAC	1916-???	???
	Ba. A/C M Drouet	10/1916-???	↓Reorganized↓
	18e GAMAC	15/06/1916-01/07/1916	↓Reorganized↓
	16e GAMAC	01/07/1916-???	???
	17e Gr. Mixte A/C	07/07/1915-01/03/1916	Disbanded/↓Reorganized↓
	17e GAMAC	28/04/1916-???	???

Dimensions
Weight:	5.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	4.8 m	1.8 m	2.8 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
Type 153 AM Car
1 x	Hotchkiss 8 mle 1914 (???)	Pedestal, Manual, -/+180° @ 60°/s	Manual, -??°/+??° @ 60°/s	450 rpm
Type 153 AC Car
1 x	37 Hotchkiss mle 1885 (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -??°/+??° @ 60°/s	10 rpm
Type 146/148 AM Car
1 x	Hotchkiss 8 mle 1914 (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -??°/+??° @ 60°/s	450 rpm
Type 146/148 AC Car
1 x	37 Hotchkiss mle 1885 (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -??°/+??° @ ??°/s	10 rpm
Type 146/148 AC Car (1916)
1 x	37 T.R. mle 1916 (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -??°/+??° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
	OR 37 mle 1892	APHE	0.5 kg/15 g F3, 14 mm @ 388 m/s
	OE 37 mle 1916	HE	0.56 kg/30 g Melinite, 6 mm @ 365 m/s
	OE 37 mle 1888M	HE	0.455 kg/22 g F3, 5 mm @ 402 m/s

Devices
# of - Name	Type	Effect, Location/for
1914 Car
1 x - ???	Sight	???x zoom, for 37 Hotchkiss mle 1885
1916 Car
1 x - ???	Sight	???x zoom, for 37 T.R. mle 1916

Protection
Location	Thickness	Type
Type 153 “type 1” Car
Frontwards
Cab front	5.5 mm @ ??°	Chrome steel
Sidewards
All side	5.5 mm @ ??°	Wood
Rearwards
All rear	??? mm @ ??°	Wood
Gunshield	??? mm @ ??°	Chrome steel
Upwards
Roof	5.5 mm @ ??°	Chrome steel
Downwards
Floor	??? mm @ ??°	???
Type 153 “type 2” Car
Frontwards
Cab front	5.5 mm @ ??°	Chrome steel
Sidewards
All side	5.5 mm @ ??°	Wood
Rearwards
All rear	??? mm @ ??°	Wood
Gunshield	??? mm @ ??°	Chrome steel
Upwards
Roof	5.5 mm @ ??°	Chrome steel
Downwards
Floor	??? mm @ ??°	???
Type 153 “type 3” Car
Frontwards
Cab front	5.5 mm @ ??°	Chrome steel
Sidewards
Cab side	5.5 mm @ ??°	Chrome steel
Rear side	5.5 mm @ ??°	Wood
Rearwards
All rear	??? mm @ ??°	Wood
Gunshield	??? mm @ ??°	Chrome steel
Upwards
Roof	5.5 mm @ ??°	Chrome steel
Downwards
Floor	??? mm @ ??°	???
Type 153 “type 4” Car
Frontwards
Cab front	5.5 mm @ ??°	Chrome steel
Sidewards
Cab side	5.5 mm @ ??°	Chrome steel
Rear side	5.5 mm @ ??°	Wood
Rearwards
All rear	??? mm @ ??°	Wood
Gunshield	??? mm @ ??°	Chrome steel
Upwards
Roof	5.5 mm @ ??°	Chrome steel
Downwards
Floor	??? mm @ ??°	???
Type 146/148 Car
Frontwards
Frontwards
All front	5.5 mm @ ??°	Chrome steel
Sidewards
All side	5.5 mm @ ??°	Chrome steel
Rearwards
All rear	5.5 mm @ ??°	Chrome steel
Gunshield	??? mm @ ??°	Chrome steel
Upwards
Roof	??? mm @ ??°	???
Downwards
Floor	??? mm @ ??°	???

Crew
3	AM Car
1	Commander
1	Driver
1	Machine Gunner, Machine Gun Loader
4	AC Car
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Peugeot
	Type:	Gasoline
	Horsepower:	13 kW
	@ RPM	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	4x2
	Type:	???
	Steering:	???

Mobility
Maximum Forward Speed:	40.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	2.6 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The AM Renault were France’s first armored cars alongside the AC Peugot. Whereas the latter was intended to serve as the cannon cars, the former were intended to serve as the machine gun cars to protect them. Initially, 120 Peugeots were produced on the type 153 chassis, but due to the lack of protection, production was switched to the 146 and 148 chassis with a new all-armored design. AM versions of the type 146/148 cars were made, though rarely. At least 20 would see service until 1918 and 3 would see service until 1939, where they were lost during the German invasion.

Variants & Changes:

• Type 153: The first 120 cars were produced in both AM and AC versions on the Peugeot type 153 chassis and were only partially armored.
  • 1915 “type 1”: First three cars produced with armor on the front and top of the cab with space in between. A gunshield was used, and the gun only had the capability to fire rearwards and sidewards due to the cab blocking the frontwards arc.
    • 1915 “type 2”: Gun was slightly for frontwards capability and an armor plate was attached to the rear of the truck.
      • 1915: Some cars produced with angular additions to the gunshield, enlarging it.
      • 1915 “type 3”: Angular gunshield now standard. The cab is now fully armored with side armor added with the capability to fold the sides down for better sightlines.
        • 1915: The ability to fold down the sides of the cab was removed in later production.
        • 1915 “type 4”: Additional cab side armor to cover crew legs, with a triangular cover over the windshield visor ports. A stowage box was installed on the left side.
• Type 146: The last 150 cars were produced in both AM and AC versions on the Peugeot type 146 chassis and were fully armored.
  • Type 148: Type 146 production was supplemented by nearly identical Peugeot type 148 chassis.
    • 1916: The 37 Hotchkiss mle 1885 were replaced by the 37 T.R. mle 1916.
  • 1916: The 37 Hotchkiss mle 1885 were replaced by the 37 T.R. mle 1916.

Variant Images

Peugeot with type 153 chassis “type 1” and 37 Hotchkiss mle 1885.

Peugeot with type 153 chassis “type 2” and 37 Hotchkiss mle 1885.

Peugeot with type 153 chassis “type 3” and 37 Hotchkiss mle 1885.

Peugeot with type 153 chassis “type 4” and 37 Hotchkiss mle 1885.

Peugeot with type 146 or 148 chassis and 37 Hotchkiss mle 1885.

Peugeot with type 146 or 148 chassis and 37 T.R. mle 1916.

---

---

AM De Dion Bouton

General
Name(s):	Auto-mitrailleuse De Dion Bouton (AM De Dion Bouton)
Type:	Armored car
Status:	Prototype
Derived From:	De Dion Bouton type GO
Derivatives:	None
Produced:	1	Production Date:	1915-1916
Producer(s):	French Republic	1	1915-1916
	Puteax	1	1915-1916
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	6.95 or 7.0* t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

*The original version was 6.95 t, this was increased to 7.0 t following the rearmament.

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
Original
1 x	37 S.A. d’aviation (???)	Turret, Manual, -/+180° @ ??°/s	Manual, -??°/+??° @ ??°/s	25 rpm
1 x	Saint-Étienne 8 mle 1907 (???)	Turret, Manual, -/+180° @ ??°/s	Manual, -??°/+??° @ 60°/s	600 rpm
Rearmed
1 x	47 S.A. d’aviation (???)	Turret, Manual, -/+180° @ ??°/s	Manual, -??°/+??° @ ??°/s	25 rpm
3 x	Hotchkiss 8 mle 1914 (???)	Turret, Manual, -/+180° @ ??°/s	Manual, -??°/+??° @ 60°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
	OR 37 mle 1892	APHE	0.5 kg/15 g F3, 14 mm @ 388 m/s
	OE 37 mle 1916	HE	0.56 kg/30 g Melinite, 6 mm @ 365 m/s
	OE 37 mle 1888M	HE	0.455 kg/22 g F3, 5 mm @ 402 m/s
47 mm Gun
	OR 47 mle 1892G	APHE	1.48 kg/50 g Black Powder, 42 mm @ 600 m/s
	OE 37 type D	HE	1.25 kg/100 g ???, ??? mm @ 600 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 37 S.A. mle 1918

Protection
Location	Thickness	Type
Frontwards
All front	8 mm @ ??°	???
Sidewards
All side	8 mm @ ??°	???
Rearwards
All rear	8 mm @ ??°	???
Upwards
Roof	??? mm @ ??°	???
Downwards
Floor	??? mm @ ??°	???

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader, Machine Gunner, Machine Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	29 kW
	@ RPM	???
	Cylinder:	8
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	???
	Type:	???
	Steering:	???

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	4.2 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The AM De Dion Bouton was Puteax’s attempt to make an armored car. It was made in 1916 and further modified the same year, but the car was rejected due to issues concerning its weight and the lack of reverse steering.

Variants & Changes:

• 1916: The original 37 mm gun turret was switched to an enlarged one housing a 47 mm gun and an additional two machine guns in the rear, two mounted side-by-side on either corner and one mounted on a high-angle configuration in the roof.

Variant Images

The rearmed car.

---

---

AM White

General
Name(s):	Auto-mitrailleuse White (AM White)	1918-???
	Automitrailleuses de Combat (AMC White)	???-1931
	Automitrailleuse de Découverte White (AMD White)	1931-1941
Type:	Armored car
Status:	Production
Derived From:	White
Derivatives:	None
Produced:	250	Production Date:	1918-1919
Producer(s):	French Republic	250	1918-1919
	Ségur & Lorfeuvre	250	1918-1919
Used:	250	Service Date:	1918-1941
User(s):	Armée de terre	1918-1941

Full User(s) List

–	Unit	Date	Status
User(s):	Armée de terre
	???

Dimensions
Weight:	6.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	5.6 m	2.1 m	2.75 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	37 S.A. mle 1918 (198)	Turret, Manual, -/+180° @ ??°/s	Manual, -??°/+??° @ ??°/s	20 rpm
1-2* x	Hotchkiss 8 mle 1914 (5,550)	Turret, Manual, -/+180° @ ??°/s	Manual, -??°/+??° @ 60°/s	450 rpm

*An additional machine gun could be mounted on the left side of the vehicle for anti-aircraft purposes. Unclear on how it would be operated.

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
	OR 37 mle 1892	APHE	0.5 kg/15 g F3, 14 mm @ 388 m/s
	OE 37 mle 1916	HE	0.56 kg/30 g Melinite, 6 mm @ 365 m/s
	OE 37 mle 1888M	HE	0.455 kg/22 g F3, 5 mm @ 402 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 37 S.A. mle 1918

Protection
Location	Thickness	Type
Frontwards
All front	??? mm @ ??°	???
Sidewards
All side	??? mm @ ??°	???
Rearwards
All rear	??? mm @ ??°	???
Upwards
Roof	??? mm @ ??°	???
Downwards
Floor	??? mm @ ??°	???

Crew
4	Total
1	Commander, Rear Driver
1	Front Driver
1	Gunner, Machine Gunner
1	Gun Loader, Machine Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	26 kW
	@ RPM	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	4x2
	Type:	Spoked or solid* with rubber tire
	Steering:	Rear

*Spoked wheels replaced by solid wheels in 1923.

Mobility
Maximum Forward Speed:	45.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	4.3 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	250 km
	Mileage:	??? l/100 km

Summary
The AM White produced the new standard for French armored cars. Whereas the earlier Peugeot and Renault cars separated themselves into AM and AC versions, the White combined them both into a cannon and machine gun car. However, due to the static pace of trench warfare, the production of it stalled until 1918, where only a few were constructed and put into service before the end of the war. They would participate in the subsequent occupation of the Rhineland and in the numerous colonial conflicts that plagued France during the interwar period. A portion of them would be modernized into the AMD 50 Laffly, though unmodified, then AMD White, cars would remain in service all the way up till 1941 during the Syrian campaign. Any further Whites were then modified into the AM Dodge-White.

AM White would also see service within the Brazilian and Republican Spanish armies.

Variants & Changes:

• 1915: Panhard K14 prototype made, can find no information or photographs of it.
• 1923: Spoked wheels replaced by solid wheels.
• AMD 50 Laffly-White: AMD White rebuilt on a Laffly LC 2 chassis.
• AM Dodge-White: Combination of the AMD White and the AMD Panhard TOE with the chassis of a Dodge T110 truck.

Variant Images

An AM White with spoked wheels.

An AMC White with solid wheels.

---

---

---

LIGHT TANKS

---

---

Char Renault FT

General
Name(s):	Char d’assaut Renault FT	1917-???
	Char léger Renault FT	???
Type:	Light tank
Status:	Production
Derived From:	None
Derivatives:	Renault FT 75 BS, 75 Renault, 105 Renault, Renault STAV, Renault STA
Produced:	3,728 (all models)	Production Date:	7/1917-10/10/1918
Producer(s):	French Republic	3,728	7/1917-10/10/1918
	Renault S.A	1,850~	???
	Berliet	800~	???
	SOMUA	600~	???
	Delaunay-Belleville	280~	???
Used:	3,600~	Service Date:	30/8/1918-1942
User(s):	Armée de terre	30/8/1918-1940
	Armée de l’Armistice	1940-1942

Full User(s) List

–	Unit	Date	Status
User(s):	Armée de terre
	???
	Armée de l’Armistice
	???

Dimensions
Weight:	6.7 t
Ground Pressure:	0.5 kg/cm²
	Length	Width	Height
Vehicle:	5.0 m	1.74 m	2.14 m
Ground Clearance:	43 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	37 S.A. mle 1918 (233)	Turret, Mechanical, -/+360° @ ??°/s	Mechanical, -2°/+35° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
	OR 37 mle 1892	APHE	0.5 kg/15 g F3, 14 mm @ 388 m/s
	OE 37 mle 1916	HE	0.56 kg/30 g Melinite, 6 mm @ 365 m/s
	OE 37 mle 1888M	HE	0.455 kg/22 g F3, 5 mm @ 402 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for 37 S.A. mle 1918

Protection
Location	Thickness	Type
Girod-Renault
Frontwards
All front	16 mm @ ???°	RHA
Sidewards
All side	16 mm @ ???°	RHA
Rearwards
All rear	16 mm @ ???°	RHA
Upwards
Roof	8 mm @ ???°	RHA
Downwards
Floor	6 mm @ ???°	RHA
Renault
Frontwards
All front	16 mm @ ???°	RHA
Sidewards
All side	16 mm @ ???°	RHA
Rearwards
All rear	16 mm @ ???°	RHA
Upwards
Roof	8 mm @ ???°	RHA
Downwards
Floor	6 mm @ ???°	RHA
Berliet-Girod
Frontwards
All front	16 mm @ ???°	RHA
Turret front	22 mm @ ???°	RHA
Sidewards
All side	16 mm @ ???°	RHA
Turret side	22 mm @ ???°	RHA
Rearwards
All rear	16 mm @ ???°	RHA
Turret rear	22 mm @ ???°	RHA
Upwards
Roof	8 mm @ ???°	RHA
Downwards
Floor	6 mm @ ???°	RHA

Crew
2	Total
1	Commander, Gunner, Gun Loader
1	Driver

Automotive
Fuel Capacity:	95 l
Engine(s):	1 x - Renault
	Type:	Gasoline
	Horsepower:	29 kW
	@ RPM	1,500
	Cylinder:	4
	Capacity:	4.5 l
		Foward	Reverse
Transmission:	Sliding 4-speed	4	1
Steering:	Clutch-break
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	9/4
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	6
	Type:	Rigid spaced
Drive Sprockets:	2
	Type:	15-tooth or wheeled* rear drive

*Kégresse suspension used a flat drive sprocket.

Tracks
Type:	Continuous linked steel or rubber*
	Shoes:	32
	Length:	??? cm
	Width:	34 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	2 m

*Kégresse suspension used rubber tracks.

Mobility
Maximum Forward Speed:	8.0 or 13.0* km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	4.3 kW/t
Maximum Grade:	26.5°
Maximum Trench:	1.35 m
Maximum Wall:	0.6 m
Maximum Fording:	70 cm
Minimum Turning Diameter:	??? m
Cruising Range:	60 km
	Mileage:	158 l/100 km

*13.0 was possible with Kégresse suspension.

Summary
The Renault FT was the first turreted tank. It was also the most mass-produced tank of the war – albeit, only by number, as the volume of the British heavy tanks eclipsed it. They served alongside Schneider CA1 and Saint-Chamond tanks during the war, but became the mainstay French tank after the end of it. It was widely exported, the most widely exported of any of the First World War tanks, and would see service within France itself up to Second World War. Unfortunately, they were woefully outdated by that time, their last French usage was during Operation Torch where they hopelessly fought against M3 Stuarts and M4 Shermans.

Variants & Changes:

• 1917: Original Renault machine gun turret was replaced by the Girod-Renault cylindrical omnibus turret. Only around 150 to 300 of these were made and can be differentiated from the later Berliet-Girod turrets by the “cheekbones” on the front of the turret.
• 1917-1918: Girod-Renault turrets were replaced by Berliet-Girod cylindrical omnibus turrets in Berliet, SOMUA, and Delaunay-Belleville productions. This removed the cheekbones for a smooth face and uparmored to 22 mm thick. This was the most common type used and was produced alongside the Renault turret.
• 1917-1918: Girod-Renault turrets were replaced by Renault riveted omnibus turrets in Renault productions. This can be easily differentiated by the riveting and flat armor plates. This was installed approximately 1,147 tanks and was produced alongside the Berliet-Girod turret.
• 1925: Twenty-six tanks were modified with Kégresse suspension and an additional front wheel. This increased their speed to 13 km/h, but the track became too fragile and difficult to replace in the process.
• Renault FT 75 BS: See below.
• 75 Renault: See below.
• 105 Renault: See below.
• Renault STAV: See below.
• Renault STA: See below.

Variant Images

A close-up view of the Girod-Renault turret with the “cheekbones” clearly visible.

All three omnibus turrets in order from left to right: Girod-Renault, Renault, and Berliet-Girod.

A Renault FT with Kégresse suspension during the Rif War.

---

---

Char Peugeut

General
Name(s):	Char d’assaut Peugeot
Type:	Light tank
Status:	Prototype
Derived From:	None
Derivatives:	None
Produced:	1	Production Date:	1918
Producer(s):	French Republic	1	1918
	Peugeot	1	1918
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	75 BS (???)	Casemate, Mechanical, -/+???° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
75 mm Gun
	???	HE	5.3 kg/795 g TNT, 12 mm @ 200 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for 75 BS

Protection
Location	Thickness	Type
Frontwards
All front	??? mm @ ???°	RHA
Sidewards
All side	??? mm @ ???°	RHA
Rearwards
All rear	??? mm @ ???°	RHA
Upwards
Roof	??? mm @ ???°	RHA
Downwards
Floor	??? mm @ ???°	RHA

Crew
??	Total
??	???

Automotive
Fuel Capacity:	??? l
Engine(s):	?? x - ???
	Type:	Gasoline
	Horsepower:	??? kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	???
	Type:	???
	Idlers:	???
Return rollers:	???
	Type:	???
Drive Sprockets:	???
	Type:	???

Tracks
Type:	Continuous linked steel
	Shoes:	???
	Length:	??? cm
	Width:	??? cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The Peugeot was a late contender to the Renault FT. After seeing the success of the tank, Peugeot developed their own though with notable and obvious differences. Namely, its lacking turret so it could fit the far more powerful gun and the thicker cast armor. However, it was too little too late; with the Renault FT in mass-production and the end of the war looming, the prototype was rejected.

Variants & Changes:

None

---

---

---

MEDIUM TANKS

---

---

Char Schneider CA1

General
Name(s):	Char d’assaut Schneider CA1
Type:	Medium tank
Status:	Production
Derived From:	None
Derivatives:	None
Produced:	400	Production Date:	1916-08/1918
Producer(s):	French Republic	400	1916-08/1918
	SOMUA	400	1916-08/1918
Used:	400~	Service Date:	1916-1918
User(s):	Armée de terre	1916-1918

Full User(s) List

–	Unit	Date	Status
User(s):	Armée de terre
	???

Dimensions
Weight:	12.5 or 13.5* t
Ground Pressure:	0.72 kg/cm²
	Length	Width	Height
Vehicle:	6.32 m	2.05 m	2.30 m
Ground Clearance:	41 cm

*Weight rose to 13.5 t with the additional armor.

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	75 BS (90)	Sponson, Mechanical, -/+30° @ ??°/s	Mechanical, -10°/+30° @ ??°/s	??? rpm
2 x	8 Hotchkiss mle 1914 (3,840)	Ballports, Manual, -/+53° @ 60°/s	Manual, -45°/+20° @ 60°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
75 mm Gun
	???	HE	5.3 kg/795 g TNT, 12 mm @ 200 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for 75 BS

Protection
Location	Thickness	Type
Original
Frontwards
All front	11.4 mm @ ???°	RHA
Sidewards
All side	11.4 mm @ ???°	RHA
Rearwards
All rear	11.4 mm @ ???°	RHA
Upwards
Roof	5.5 mm @ ???°	RHA
Downwards
Floor	??? mm @ ???°	RHA
Uparmored
Frontwards
All front	11.4+4+5.5 mm @ ???°	RHA+Air+RHA
Sidewards
All side	11.4+4+5.5 mm @ ???°	RHA+Air+RHA
Rearwards
All rear	11.4 mm @ ???°	RHA
Upwards
Roof	5.5 mm @ ???°	RHA
Downwards
Floor	??? mm @ ???°	RHA

Crew
6	Total
1	Commander, Driver
1	Mechanic, Machine Gun Loader
1	Gunner, Gun Loader
2	Machine Gunners
1	Machine Gun Loader

Automotive
Fuel Capacity:	220 l
Engine(s):	1 x - Schneider
	Type:	Gasoline
	Horsepower:	44 kW
	@ RPM	1,200
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	3-speed	3	1
Steering:	Clutch-break
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	7/2
	Type:	???
	Idlers:	Front track
Return rollers:	0
	Type:	N/A
Drive Sprockets:	2
	Type:	Rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	34
	Length:	??? cm
	Width:	??? cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	8.1 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	3.3* or 3.5 kW/t
Maximum Grade:	29°
Maximum Trench:	1.75 m
Maximum Wall:	0.79 m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	80 km
	Mileage:	275 l/100 km

*Power-to-weight ratio fell to 3.3 kW/t with the additional armor.

Summary
The Schneider CA1 was the competitor against the Saint-Chamond and ultimately a disappointment. They were first deployed in 1917 and were already considered obsolete in 1918, but would still serve until the last day of the war nonetheless. However, due to their production being suspended to focus on the production of the Renault FT and their obsolescence, they were decommissioned just after the war. However, they would see service within the Italian and Spanish armies up until the mid 1930s.

Variants & Changes:

• 1917: After the 210th vehicle, 5.5 mm plates, separated 4 mm from the hull, were installed on the front and sides of the tank to make them immune to German rifle armor-piercing projectiles. Earlier vehicles were retrofitted.
  • 1917: Some retrofitted tanks had additional 5.5 mm plates on the front UFP and a rectangular shield around the 75 mm gun barrel.
• 1917: A signaling shield was installed on tanks, usually attached to the rear of the roof. However, both the shape and the location of the shield could be different between tanks.
• 1917~: Engine ventilation moved from a skyline slit on the mid hull to a ventilation grid on the nose of the tank.
• 1917~: Armored plate installed to the bottom to prevent the buildup of dirt.
• 1917: One tank modified with a radio and a twelve-meter wire antenna.
  • 18/08/1917: The twelve-meter wire antenna was replaced by a fourteen-meter one.
    • 1917: Two command tanks were modified with antennas and Émitteur 10 ter radios.
• 1917-1918: After the 245th vehicle, the manual engine starter was replaced by an automatic starter.
• 1917-1918: Fuel tanks were reinforced with self-sealing double-walled tanks and moved to outside of the hull but still under armored plates. An additional exit was also constructed on the left side of the tank.
• 1917-1918~: Periscope sight, exhaust pipe, and speaking tubes installed sometime later.

Variant Images

An original Schneider CA1.

A uparmored Schneider CA1.

A later Schneider CA1 with additional armor and visible exhaust.

---

---

---

HEAVY TANKS

---

---

Char Saint-Chamond

General
Name(s):	Char d’assaut Saint-Chamond
Type:	Heavy tank
Status:	Production
Derived From:	None
Derivatives:	None
Produced:	400	Production Date:	1917-1918
Producer(s):	French Republic	400	1917-1918
	FAMH	400	1917-1918
Used:	400	Service Date:	1917-1918
User(s):	Armée de terre	1917-1918

Full User(s) List

–	Unit	Date	Status
User(s):	Armée de terre
	31er Artillerie Spéciale	???	???
	32e Artillerie Spéciale	???	???
	33e Artillerie Spéciale	???	???
	34e Artillerie Spéciale	???	???
	35e Artillerie Spéciale	???	???
	36e Artillerie Spéciale	???	???
	37e Artillerie Spéciale	???	???
	38e Artillerie Spéciale	???	???
	39e Artillerie Spéciale	???	???
	40e Artillerie Spéciale	???	???
	41er Artillerie Spéciale	???	???
	42e Artillerie Spéciale	???	???

Dimensions
Weight:	22.0 t
Ground Pressure:	0.79 kg/cm²
	Length	Width	Height
Vehicle:	8.9 m	2.7 m	2.4 m
Ground Clearance:	41 cm

*Weight rose to 13.5 t with the additional armor.

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
Original
1 x	75 mle 1915 Saint-Chamond (90)	Sponson, Mechanical, -/+2° @ 15°/s	Mechanical, -10°/+11° @ 4°/s	15 rpm
4 x	8 Hotchkiss mle 1914 (8,000)	Ballports, Manual, -/+39° @ 60°/s	Manual, -5°/+5° @ 60°/s	450 rpm
Rearmed
1 x	75 mle 1897 (90)	Sponson, Mechanical, -/+2° @ 15°/s	Mechanical, -10°/+11° @ 4°/s	15 rpm
4 x	8 Hotchkiss mle 1914 (8,000)	Ballports, Manual, -/+39° @ 60°/s	Manual, -5°/+5° @ 60°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
75 mm mle 1915 Gun
	OR 75 mle 1910M	APHE	6.4 kg/90 g TNT, 77 mm @ 570 m/s
	OE 75 mle 1915	HE	5.55 kg/740 g TNT, 11 mm @ ??? m/s
	OE 75 mle 1900	HE	5.3 kg/695 g TNT, 11 mm @ 400 m/s
	OA 75 mle 1897	Sh	7.24 kg/110 g Black Powder & 250 Balls, ??? mm @ 535 m/s
75 mm mle 1897 Gun
	OR 75 mle 1910M	APHE	6.4 kg/90 g TNT, 77 mm @ 570 m/s
	OE 75 AL R/2 SR	SAPHE	7.98 kg/285 g TNT, 60 mm @ 505 m/s
	OE 75 mle 1915	HE	5.55 kg/740 g TNT, 11 mm @ ??? m/s
	OE 75 mle 1900	HE	5.3 kg/695 g TNT, 11 mm @ 400 m/s
	OA 75 mle 1897	Sh	7.24 kg/110 g Black Powder & 250 Balls, ??? mm @ 535 m/s

Devices
# of - Name	Type	Effect, Location/for
Original
1 x - ??? telescopic	Sight	??x zoom, for 75 mle 1915 Saint-Chamond
Rearmed
1 x - ??? telescopic	Sight	??x zoom, for 75 mle 1897

Protection
Location	Thickness	Type
Original
Frontwards
Lowest pike	8.5 mm @ 70° (LoS 25 mm)	RHA
Lower frontal glacis	11 mm @ 52° (LoS 18 mm)	RHA
Upper frontal glacis	11 mm @ 36° (LoS 14 mm)	RHA
Front MG ball	8 mm @ 0-40° (LoS 8-10 mm)	RHA
Towers front	??? mm @ ??°	RHA
Sidewards
All side	8.5 mm @ 90°	RHA
Towers side	??? mm @ ??°	RHA
Side MG balls	8 mm @ 0-40° (LoS 8-10 mm)	RHA
Rearwards
Lower rear	8.5 mm @ 25° (LoS 9 mm)	RHA
Upper rear	8.5 mm @ 50° (LoS 13 mm)	RHA
Rear hatch	8 mm @ 50° (LoS 12 mm)	RHA
Rear MG ball	8 mm @ 0-40° (LoS 8-10 mm)	RHA
Upwards
Roof	5.4 mm @ ??°	RHA
Downwards
Inner floor	8.5 mm @ 0°	RHA
Outer floor	5 mm @ 0°	RHA
Sloped roof
Frontwards
Lowest pike	8.5 mm @ 70° (LoS 25 mm)	RHA
Lower frontal glacis	11 mm @ 52° (LoS 18 mm)	RHA
Upper frontal glacis	11 mm @ 36° (LoS 14 mm)	RHA
Front MG ball	8 mm @ 0-40° (LoS 8-10 mm)	RHA
Tower front	8.5 mm @ 0°	RHA
Front radiator roof	5.4 mm @ 45° (LoS 8 mm)	RHA
Left rear roof step	5.4 mm @ 35° (LoS 7 mm)	RHA
Sidewards
All side	8.5 mm @ 90°	RHA
Lower tower side	8.5 mm @ 0°	RHA
Upper tower side	5 mm @ 37° (LoS 6 mm)	RHA
Side MG balls	8 mm @ 0-40° (LoS 8-10 mm)	RHA
Side radiator roof	5.4 mm @ 34° (LoS 7 mm)	RHA
Rearwards
Lower rear	8.5 mm @ 25° (LoS 9 mm)	RHA
Upper rear	8.5 mm @ 50° (LoS 13 mm)	RHA
Rear hatch	8 mm @ 50° (LoS 12 mm)	RHA
Rear MG ball	8 mm @ 0-40° (LoS 8-10 mm)	RHA
Rear radiator roof	5.4 mm @ 45° (LoS 8 mm)	RHA
Front roof step	5.4 mm @ 40° (LoS 7 mm)	RHA
Upwards
Front roof	5.4 mm @ 85°	RHA
Tower roof	5 mm @ 85°	RHA
Mid roof	5.4 mm @ 77°	RHA
Radiator roof	5.4 mm @ 77°	RHA
Left rear roof	5.4 mm @ 86°	RHA
Right rear roof	5.4 mm @ 77°	RHA
Downwards
Inner floor	8.5 mm @ 0°	RHA
Outer floor	5 mm @ 0°	RHA
Uparmored
Frontwards
Lowest pike	8.5 mm @ 70° (LoS 25 mm)	RHA
Lower frontal glacis	11 mm @ 52° (LoS 18 mm)	RHA
Upper frontal glacis	11 mm @ 36° (LoS 14 mm)	RHA
Front MG ball	8 mm @ 0-40° (LoS 8-10 mm)	RHA
Tower front	8.5 mm @ 0°	RHA
Front radiator roof	5.4 mm @ 45° (LoS 8 mm)	RHA
Left rear roof step	5.4 mm @ 35° (LoS 7 mm)	RHA
Sidewards
All side	8.5+8.5 mm @ 90°	RHA
Lower tower side	8.5 mm @ 0°	RHA
Upper tower side	5 mm @ 37° (LoS 6 mm)	RHA
Side MG balls	8 mm @ 0-40° (LoS 8-10 mm)	RHA
Side radiator roof	5.4 mm @ 34° (LoS 7 mm)	RHA
Rearwards
Lower rear	8.5 mm @ 25° (LoS 9 mm)	RHA
Upper rear	8.5 mm @ 50° (LoS 13 mm)	RHA
Rear hatch	8 mm @ 50° (LoS 12 mm)	RHA
Rear MG ball	8 mm @ 0-40° (LoS 8-10 mm)	RHA
Rear radiator roof	5.4 mm @ 45° (LoS 8 mm)	RHA
Front roof step	5.4 mm @ 40° (LoS 7 mm)	RHA
Upwards
Front roof	5.4 mm @ 85°	RHA
Tower roof	5 mm @ 85°	RHA
Mid roof	5.4 mm @ 77°	RHA
Radiator roof	5.4 mm @ 77°	RHA
Left rear roof	5.4 mm @ 86°	RHA
Right rear roof	5.4 mm @ 77°	RHA
Downwards
Inner floor	8.5 mm @ 0°	RHA
Outer floor	5 mm @ 0°	RHA

Crew
8	Total
1	Commander, Driver
1	Mechanic
1	Gunner
1	Gun Loaders
4	Machine Gunners, Machine Gun Loaders

Automotive
Fuel Capacity:	265 l
Engine(s):	1 x - Panhard-Levassor
	Type:	Gasoline
	Horsepower:	66 kW
	@ RPM	1,450
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	Crochat Colardeau electric	-	-
Steering:	Controlled differential
Brakes:	Mechanical

Suspension
Type:	Vertical spring
Road wheels:	8/3
	Type:	???
	Idlers:	Front track
Return rollers:	0
	Type:	N/A
Drive Sprockets:	2
	Type:	Rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	36
	Length:	??? cm
	Width:	32.4 or 41.2 or 50* cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	??? m

*32.4 cm tracked were initially used, which was then replaced by 41.2 cm tracks and finally 50 cm tracks on the last 100 tanks.

Mobility
Maximum Forward Speed:	12.0 km/h
Maximum Reverse Speed:	12.0 km/h
Power-to-Weight Ratio:	3.0 kW/t
Maximum Grade:	39°
Maximum Trench:	2.0 m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	60 km
	Mileage:	442 l/100 km

Summary
The Saint-Chamond was the competitor against the Schneider CA1. They were first deployed in 1917 as a part of special artillery groups where their flaws immediately became apparent. Due to their long length and relatively short tracks for that length, they were prone to becoming stuck in trenches or craters. The gun was also faulty, a problem that would later be fixed by replacing it. It went through numerous changes in order to improve the protection and mobility during the war, but, like the Schneider CA1, it was seen as a failure compared to the Renault FT. Consequently, all Saint-Chamond would be decommissioned following the end of the war.

Variants & Changes:

• 1917: After the 150th vehicle, the roof was changed to a slope with the three towers being replaced by a single hatch.
  • 1917: This hatch was later replaced by a single tower, prior models were retrofitted with this.
• 1917: After the 210th vehicle, the 75 mle 1915 Saint-Chamond was replaced by the 75 mle 1897. As the Saint-Chamond gun started to break due to its weak recoil devices, prior tanks were repaired with the 75 mle 1897.
• 1917-1918: Sometime during the inter-year, rollers were added to the front and rear of the tank to prevent it from getting the “pike” nose stuck in trenches.
• 1917-1918: The 32.4 cm tracks were replaced by 41.2 cm tracks.
  • 1918: The 41.2 cm tracks were replaced by 50 cm tracks.
• 1918: After the 300th vehicle, additional 8.5 mm armor plating was installed on the sides in order to protect the tank against German rifle armor-piercing projectiles.

Variant Images

An original Saint-Chamond.

A mid-production Saint-Chamond with the sloped roof and the 75 mle 1915 Saint-Chamond gun.

A final production Saint-Chamond, commonly referred to as the “M2” or “mle 1918.”

---

---

Char Mark V*

General
Name(s):	Char d’assaut Mark V*
Type:	Heavy tank
Status:	Imported
Derived From:	Mark V
Derivatives:	Mark V**
Produced:	632 (all models)	Production Date:	1918-3/1919
Producer(s):	United Kingdom	632	1918-3/1919
	Metropolitan Carriage Wagon & Finance Co	632	1918-3/1919
Used:	100	Service Date:	1918-???
User(s):	Armée de terre	1918-???

Full User(s) List

–	Unit	Date	Status
User(s):	Armée de terre
	???

Dimensions
Weight:	33.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	9.88 m	4.1 m	2.64 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
2 x	Q.F. Hotchkiss 6-pr. 6-cwt. Mk. II (282)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	20 rpm
4 x	.303-in Hotchkiss Mk. I (6,000)	Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
6-pr. 6-cwt. Gun
	Q.F., 6-pr., M.D., Steel Shell, Mk. XIII	SAPHE	2.7 kg/15 g Lyddite, 37 mm @ 411 m/s
	Q.F., 6-pr., M.D., Common Shell, Mk. III	HE	2.7 kg/160 g TNT, 5 mm @ 411 m/s

Devices
# of - Name	Type	Effect, Location/for
2 x - ??? telescopic	Sight	??x zoom, for 6-pr. 6-cwt.

Protection
Location	Thickness	Type
Frontwards
Lower frontal glacis	16 mm @ 61° (LoS 33 mm)	RHA
Lowest frontal glacis	16 mm @ 69° (LoS 45 mm)	RHA
Upper frontal glacis	16 mm @ 44° (LoS 22 mm)	RHA
Towers front	16 mm @ 0°	RHA
Sponson front	16 mm @ 30° (LoS 18 mm)	RHA
Sidewards
All side	12 mm @ 0°	RHA
Sponson lower side	12 mm @ 38° (LoS 15 mm)	RHA
Rearwards
All rear	12 mm @ 0°	RHA
Tower rear	12 mm @ 34° (LoS 14 mm)	RHA
Sponson rear	12 mm @ 15° (LoS 12 mm)	RHA
Rear glacis	12 mm @ 72° (LoS 39 mm)	RHA
Upwards
Roof	8 mm @ 0°	RHA
Front roof	8 mm @ 82°	RHA
Upper rear roof	8 mm @ 82°	RHA
Lower rear roof	12 mm @ 74°	RHA
Downwards
Floor	6 mm @ 0°	RHA
Inwards
Inner track-sponson	12 mm	RHA
Sponson stowage	12 mm	RHA
Engine wall	12 mm	RHA
Transmission cover	12 mm	RHA

Crew
8	Total
1	Commander, Assistant Driver
1	Driver, Machine Gunner, Machine Gun Loader
1	Mechanic, Machine Gunner, Machine Gun Loader
1	Mechanic
2	Gunners
2	Gun Loaders, Machine Gunners, Machine Gun Loaders

Automotive
Fuel Capacity:	420 l
Engine(s):	1 x - Ricardo
	Type:	Gasoline
	Horsepower:	110 kW
	@ RPM	1,200
	Cylinder:	6
	Capacity:	19 l
		Foward	Reverse
Transmission:	Wilson epicyclic 4-speed	4	1
Steering:	Wilson epicyclic clutch-break
Brakes:	Mechanical

Suspension
Type:	None
Road wheels:	26
	Type:	Rigid non-spaced
	Idlers:	Adjustable front track
Return rollers:	10
	Type:	Top track
Drive Sprockets:	2
	Type:	30-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	90
	Length:	22.23 cm
	Width:	67.31 cm
	Pitch:	19.05 cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	7.7 km/h
Maximum Reverse Speed:	1.4 km/h
Power-to-Weight Ratio:	3.3 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	72 km
	Mileage:	583 l/100 km

Summary
The Mark V* was lengthened in order to cross the larger anti-tank trenches that were being dug out during the later part of 1918. Over a hundred were given to France late 1918, but none of the crews completed their training with them before they could be sent to the front due to the end of the war.

Variants & Changes:

• 1918: some tanks were produced with older 20.5-in tracks instead of the newer 26.5-in tracks.

---

---

Char FCM 1A

General
Name(s):	Char d’assaut 1A
Type:	Heavy tank
Status:	Prototype
Derived From:	None
Derivatives:	None
Produced:	1	Production Date:	1917
Producer(s):	French Republic	1	1917
	???
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	41.4 t
Ground Pressure:	0.6 kg/cm²
	Length	Width	Height
Vehicle:	8.27 m	2.84 m	3.0 m
Ground Clearance:	40 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
Original
1 x	105 Schneider (122)	Turret, Mechanical, -/+180° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	??? rpm
2 x	8 Hotchkiss mle 1914 (12,500)	Ballports, Manual, -/+???° @ 60°/s	Manual, -??°/+??° @ 60°/s	450 rpm
Rearmed
1 x	??? (???)	Turret, Mechanical, -/+180° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	??? rpm
2 x	8 Hotchkiss mle 1914 (12,500)	Ballports, Manual, -/+???° @ 60°/s	Manual, -??°/+??° @ 60°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
105 mm Gun
	???	APHE	15.7 kg/4,000 g TNT, 40 mm @ 240 m/s
??? mm Gun
	???

Devices
# of - Name	Type	Effect, Location/for
Original
1 x - ??? telescopic	Sight	??x zoom, for 105 Schneider
Rearmed
1 x - ??? telescopic	Sight	??x zoom, for ???

Protection
Location	Thickness	Type
Frontwards
All front	35 mm @ ??°	RHA
Sidewards
All side	21 mm @ ??°	RHA
Turret side	35 mm @ ??°	RHA
Rearwards
All rear	21 mm @ ??°	RHA
Turret rear	35 mm @ ??°	RHA
Upwards
Roof	15 mm @ ??°	RHA
Downwards
Floor	15 mm @ ??°	RHA

Crew
7	Original
1	Commander, Gunner
1	Driver
1	Mechanic
1	Gun Loader, Machine Gunner, Machine Gun Loader
2	Gun Loaders
1	Machine Gunner, Machine Gun Loader
6	Rearmed
1	Commander, Gunner
1	Driver
1	Mechanic
1	Gun Loader, Machine Gunner, Machine Gun Loader
1	Gun Loader
1	Machine Gunner, Machine Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Renault
	Type:	Gasoline
	Horsepower:	162 kW
	@ RPM	1,200
	Cylinder:	12
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	Clutch-break
Brakes:	Mechanical

Suspension
Type:	Leaf spring
Road wheels:	???
	Type:	???
	Idlers:	Front track
Return rollers:	7
	Type:	???
Drive Sprockets:	2
	Type:	Front drive

Tracks
Type:	Continuous linked steel
	Shoes:	???
	Length:	??? cm
	Width:	60 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	12.0 km/h
Maximum Reverse Speed:	12.0 km/h
Power-to-Weight Ratio:	3.9 kW/t
Maximum Grade:	33°
Maximum Trench:	3.5 m
Maximum Wall:	1.0 m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The Saint-Chamond was the competitor against the Schneider CA1. They were first deployed in 1917 as a part of special artillery groups where their flaws immediately became apparent. Due to their long length and relatively short tracks for that length, they were prone to becoming stuck in trenches or craters. The gun was also faulty, a problem that would later be fixed by replacing it. It went through numerous changes in order to improve the protection and mobility during the war, but, like the Schneider CA1, it was seen as a failure compared to the Renault FT. Consequently, all Saint-Chamond would be decommissioned following the end of the war.

Variants & Changes:

• 1918: Prototype rearmed with an unidentified 47 mm or 75 mm gun. The cupola was replaced and one of the hull gun loaders were removed.

Variant Images

The original 1A.

The rearmed 1A.

---

---

---

SELF-PROPELLED GUNS

---

---

37 Ford-T

General
Name(s):	???
Type:	Self-propelled gun
Status:	Production
Derived From:	???
Derivatives:	None
Produced:	???	Production Date:	???
Producer(s):	French Republic	???	???
	???
Used:	???	Service Date:	???
User(s):	Armée de terre	???

Full User(s) List

–	Unit	Date	Status
User(s):	Armée de terre
	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	37 Hotchkiss mle 1885 (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -??°/+??° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
47 mm Gun
	OR 47 mle 1892G	APHE	1.48 kg/50 g Black Powder, 42 mm @ 600 m/s
	OE 37 type D	HE	1.25 kg/100 g ???, ??? mm @ 600 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 37 Hotchkiss mle 1885

Protection
Location	Thickness	Type
Armored
All	None	N/A

Crew
2	Total
1	Commander, Driver
1	Gunner, Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Ford-T
	Type:	Gasoline
	Horsepower:	16.5 kW
	@ RPM	1,800
	Cylinder:	???
	Capacity:	2.896 l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	???
	Type:	???
	Steering:	???

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
Several Ford Model T were used as the basis for 37 mm self-propelled guns in French Polynesia. These were intended to attack German naval batteries across the German Pacific colonies, but were evidently ineffective in that task.

Variants & Changes:

None

---

---

Renault FT 75 BS Casemate

General
Name(s):	???
Type:	Support tank
Status:	Prototype
Derived From:	None
Derivatives:	None
Produced:	1	Production Date:	1918
Producer(s):	French Republic	1	1918
	???
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	75 BS (???)	Casemate, Mechanical, -/+???° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
75 mm Gun
	???	HE	5.3 kg/795 g TNT, 12 mm @ 200 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for 75 BS

Protection
Location	Thickness	Type
Frontwards
All front	??? mm @ ???°	RHA
Turret front	??? mm @ ???°	RHA
Sidewards
All side	??? mm @ ???°	RHA
Rearwards
All rear	??? mm @ ???°	RHA
Upwards
Roof	??? mm @ ???°	RHA
Downwards
Floor	??? mm @ ???°	RHA

Crew
2	Total
1	Commander, Gunner, Gun Loader
1	Driver

Automotive
Fuel Capacity:	95 l
Engine(s):	1 x - Renault
	Type:	Gasoline
	Horsepower:	29 kW
	@ RPM	1,500
	Cylinder:	4
	Capacity:	4.5 l
		Foward	Reverse
Transmission:	Sliding 4-speed	4	1
Steering:	Clutch-break
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	9/4
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	6
	Type:	Rigid spaced
Drive Sprockets:	2
	Type:	15-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	32
	Length:	??? cm
	Width:	34 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	2 m

Mobility
Maximum Forward Speed:	8.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The Renault FT was an exceptional tank for the time, but it did have a pressing issue. The 37 mm gun was a small caliber, compared to the larger 57 mm guns used by the A7V and the British Marks or the 75 mm guns used by the Schneider CA1 and the Saint-Chamond. It was suitable for light fortifications which were commonly encountered at the trenches, but faltered against the heavier fortifications they could face. To rectify this, the 75 BS, originally fitted onto the Schneider CA1, was fitted onto the Renault FT in two variations. The first prototype was this, the turret removed and the hull’s superstructure wildly reconfigured in order to house the gun in a casemate. However, the Renault FT’s suspension is clearly still visible. For obvious reasons, this prototype was rejected in favor of the more conventional prototype that would become the Renault FT 75 BS, seen below.

Variants & Changes:

None

---

---

Renault FT 75 BS

General
Name(s):	???
Type:	Support tank
Status:	Production
Derived From:	None
Derivatives:	None
Produced:	29	Production Date:	1918-1919
Producer(s):	French Republic	29	1918-1919
	???
Used:	29	Service Date:	1918-1942
User(s):	Armée de terre (Army of Land)	1918-1940
	Armée de l’Armistice (Army of the Armistice)	1940-1942

Full User(s) List

–	Unit	Date	Status
User(s):	Armée de terre (Army of Land)
	???
	Armée de l’Armistice (Army of the Armistice)
	???

Dimensions
Weight:	6.9 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	5.0 m	1.74 m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	75 BS (35)	Casemate, Mechanical, -/+30° @ ??°/s	Mechanical, -10°/+30° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
75 mm Gun
	???	HE	5.3 kg/795 g TNT, 12 mm @ 200 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for 75 BS

Protection
Location	Thickness	Type
Frontwards
All front	16 mm @ ???°	RHA
Turret front	??? mm @ ???°	RHA
Sidewards
All side	16 mm @ ???°	RHA
Turret side	??? mm @ ???°	RHA
Rearwards
All rear	16 mm @ ???°	RHA
Turret rear	??? mm @ ???°	RHA
Upwards
Roof	8 mm @ ???°	RHA
Downwards
Floor	6 mm @ ???°	RHA

Crew
2	Total
1	Commander, Gunner, Gun Loader
1	Driver

Automotive
Fuel Capacity:	95 l
Engine(s):	1 x - Renault
	Type:	Gasoline
	Horsepower:	29 kW
	@ RPM	1,500
	Cylinder:	4
	Capacity:	4.5 l
		Foward	Reverse
Transmission:	Sliding 4-speed	4	1
Steering:	Clutch-break
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	9/4
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	6
	Type:	Rigid spaced
Drive Sprockets:	2
	Type:	15-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	32
	Length:	??? cm
	Width:	34 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	2 m

Mobility
Maximum Forward Speed:	8.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	4.2 kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The Renault FT was an exceptional tank for the time, but it did have a pressing issue. The 37 mm gun was a small caliber, compared to the larger 57 mm guns used by the A7V and the British Marks or the 75 mm guns used by the Schneider CA1 and the Saint-Chamond. It was suitable for light fortifications which were commonly encountered at the trenches, but faltered against the heavier fortifications they could face. To rectify this, the 75 BS, originally fitted onto the Schneider CA1, was fitted onto the Renault FT in two variations. The first, a casemated hull, was a failure, and was rejected in favor of the second prototype that installed a fixed casemate in place of the turret. It was intended that this would be mass-produced to serve alongside normal Renault FT and such mass production was underway, but the end of the war saw an end to that. Of the vehicles that would be produced, they would see service all the way up to the Second World War with the last two being encountered in Vichy service during Operation Torch in 1942.

Variants & Changes:

• 1918-1919: Late-productions dropped the hitchpoints and wire rope channels that were intended to haul and place bridges.

Spoiler

An early-production with the wire rope channel visible atop the turret.

An early-production with the wire rope in place, attached to the front via hitch and hanging over the superstructure via the wire rope channel atop the turret.

A later production with the wire rope channel visibly removed.

---

---

75 Renault

General
Name(s):	???
Type:	Self-propelled gun
Status:	Prototype
Derived From:	None
Derivatives:	None
Produced:	1	Production Date:	1918
Producer(s):	French Republic	1	1918
	Renault S.A	1	1918
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	75 mle 1897 (40)	Sponson, Mechanical, -/+0° @ ??°/s	Mechanical, -4°/+24° @ ??°/s	15 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
75 mm Gun
	OR 75 mle 1910M	APHE	6.4 kg/90 g TNT, 77 mm @ 570 m/s
	OE 75 AL R/2 SR	SAPHE	7.98 kg/285 g TNT, 60 mm @ 505 m/s
	OE 75 mle 1915	HE	5.55 kg/740 g TNT, 11 mm @ ??? m/s
	OE 75 mle 1900	HE	5.3 kg/695 g TNT, 11 mm @ 400 m/s
	OA 75 mle 1897	Sh	7.24 kg/110 g Black Powder & 250 Balls, ??? mm @ 535 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for 75 mle 1897

Protection
Location	Thickness	Type
Frontwards
All front	??? mm @ ???°	RHA
Sidewards
All side	??? mm @ ???°	RHA
Rearwards
All rear	??? mm @ ???°	RHA
Upwards
Roof	??? mm @ ???°	RHA
Downwards
Floor	??? mm @ ???°	RHA

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Renault
	Type:	Gasoline
	Horsepower:	29 kW
	@ RPM	1,500
	Cylinder:	4
	Capacity:	4.5 l
		Foward	Reverse
Transmission:	Sliding 4-speed	4	1
Steering:	Clutch-break
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	9/4
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	6
	Type:	Rigid spaced
Drive Sprockets:	2
	Type:	15-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	32
	Length:	??? cm
	Width:	34 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	2 m

Mobility
Maximum Forward Speed:	8.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The battered and muddy terrain of the western front prompted the development of tracked self-propelled guns. The Saint-Chamond, while intended to be a tank, found itself being used in this capacity, but there was still a need for a dedicated self-propelled gun. This was found in taking the Renault FT and stripping it of its turret and superstructure so that a gun can be placed into it. The first of these were the 75 Renault which was found to be suitably mobile and stable, but failed to carry enough ammunition or to have comfortable enough crew ergonomics in order to satisfy French requirements, thus it was rejected.

Variants & Changes:

• 105 Renault: See below.

---

---

105 Renault

General
Name(s):	???
Type:	Self-propelled gun
Status:	Prototype
Derived From:	None
Derivatives:	None
Produced:	1	Production Date:	1918
Producer(s):	French Republic	1	1918
	Renault S.A	1	1918
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	105 mle 1913 (??)	Sponson, Mechanical, -/+???° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	8 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
105 mm Gun
	???	HE	15.5 kg/2,200 g Melinite, 20 mm @ ??? m/s
	???	Sh	16.985 kg/23 g Black Powder & 495 12 g Balls, ??? mm @ ??? m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for 105 mle 1913

Protection
Location	Thickness	Type
Frontwards
All front	??? mm @ ???°	RHA
Sidewards
All side	??? mm @ ???°	RHA
Rearwards
All rear	??? mm @ ???°	RHA
Upwards
Roof	??? mm @ ???°	RHA
Downwards
Floor	??? mm @ ???°	RHA

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Renault
	Type:	Gasoline
	Horsepower:	29 kW
	@ RPM	1,500
	Cylinder:	4
	Capacity:	4.5 l
		Foward	Reverse
Transmission:	Sliding 4-speed	4	1
Steering:	Clutch-break
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	9/4
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	6
	Type:	Rigid spaced
Drive Sprockets:	2
	Type:	15-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	32
	Length:	??? cm
	Width:	34 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	2 m

Mobility
Maximum Forward Speed:	8.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
Either due to the failure of the 75 Renault or simply being a private venture, a 105 mm gun was experimentally fitted to a Renault FT chassis. The results of its testing isn’t known.

Variants & Changes:

None

---

---

Renault STAV

General
Name(s):	???
Type:	Self-propelled gun
Status:	Prototype
Derived From:	None
Derivatives:	None
Produced:	1	Production Date:	1918
Producer(s):	French Republic	1	1918
	Renault S.A	1	1918
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	75 mle 1897 (120)	Sponson, Mechanical, -/+180° @ ??°/s	Mechanical, -8°/+40° @ ??°/s	15 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
75 mm Gun
	OR 75 mle 1910M	APHE	6.4 kg/90 g TNT, 77 mm @ 570 m/s
	OE 75 AL R/2 SR	SAPHE	7.98 kg/285 g TNT, 60 mm @ 505 m/s
	OE 75 mle 1915	HE	5.55 kg/740 g TNT, 11 mm @ ??? m/s
	OE 75 mle 1900	HE	5.3 kg/695 g TNT, 11 mm @ 400 m/s
	OA 75 mle 1897	Sh	7.24 kg/110 g Black Powder & 250 Balls, ??? mm @ 535 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for 75 mle 1897

Protection
Location	Thickness	Type
Frontwards
All front	??? mm @ ???°	RHA
Sidewards
All side	??? mm @ ???°	RHA
Rearwards
All rear	??? mm @ ???°	RHA
Upwards
Roof	??? mm @ ???°	RHA
Downwards
Floor	??? mm @ ???°	RHA

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Renault
	Type:	Gasoline
	Horsepower:	29 kW
	@ RPM	1,500
	Cylinder:	4
	Capacity:	4.5 l
		Foward	Reverse
Transmission:	Sliding 4-speed	4	1
Steering:	Clutch-break
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	9/4
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	6
	Type:	Rigid spaced
Drive Sprockets:	2
	Type:	15-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	32
	Length:	??? cm
	Width:	34 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	2 m

Mobility
Maximum Forward Speed:	8.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
After the rejection of the 75 Renault, both STAV and STA were appointed to make their own designs based on the Renault, with both of them ultimately being constructed by Renault. The STAV prototype utilized a Gramme naval mounting to rectify the poor firing angles of the prior prototype. This allowed the gun to fire in all directions, albeit it couldn’t fire any less than 10° towards the rear. However, both the STAV and the STA prototypes failed for no fault of their own. French high command simply became too divided over the argument of either using self-propelled gun or retaining older style towed guns, an argument that wouldn’t be settled until after the war was over at which point the Renault FT chassis was considered too obsolete to use as a self-propelled gun chassis again.

Variants & Changes:

None

---

---

Renault STA

General
Name(s):	???
Type:	Self-propelled gun
Status:	Prototype
Derived From:	None
Derivatives:	None
Produced:	1	Production Date:	1918
Producer(s):	French Republic	1	1918
	Renault S.A	1	1918
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	75 mle 1897 (90)	Sponson, Mechanical, -/+5.5° @ ??°/s	Mechanical, -5°/+41° @ ??°/s	15 rpm
1 x	Hotchkiss 8 mle 1914 (???)	Pedestal, Manual, -/+???° @ ??°/s	Manual, -??°/+90° @ ??°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
75 mm Gun
	OR 75 mle 1910M	APHE	6.4 kg/90 g TNT, 77 mm @ 570 m/s
	OE 75 AL R/2 SR	SAPHE	7.98 kg/285 g TNT, 60 mm @ 505 m/s
	OE 75 mle 1915	HE	5.55 kg/740 g TNT, 11 mm @ ??? m/s
	OE 75 mle 1900	HE	5.3 kg/695 g TNT, 11 mm @ 400 m/s
	OA 75 mle 1897	Sh	7.24 kg/110 g Black Powder & 250 Balls, ??? mm @ 535 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for 75 mle 1897

Protection
Location	Thickness	Type
Frontwards
All front	??? mm @ ???°	RHA
Sidewards
All side	??? mm @ ???°	RHA
Rearwards
All rear	??? mm @ ???°	RHA
Upwards
Roof	??? mm @ ???°	RHA
Downwards
Floor	??? mm @ ???°	RHA

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Renault
	Type:	Gasoline
	Horsepower:	29 kW
	@ RPM	1,500
	Cylinder:	4
	Capacity:	4.5 l
		Foward	Reverse
Transmission:	Sliding 4-speed	4	1
Steering:	Clutch-break
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	9/4
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	6
	Type:	Rigid spaced
Drive Sprockets:	2
	Type:	15-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	32
	Length:	??? cm
	Width:	34 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	2 m

Mobility
Maximum Forward Speed:	8.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
After the rejection of the 75 Renault, both STAV and STA were appointed to make their own designs based on the Renault, with both of them ultimately being constructed by Renault. The STA prototype was largely similar to the 75 Renault in principle, but it built up the chassis far more and utilized a larger rear platform to allow the gun crew to properly manage it. The driver was also moved so that he would no longer be in danger of the gun’s blast. However, both the STAV and the STA prototypes failed for no fault of their own. French high command simply became too divided over the argument of either using self-propelled gun or retaining older style towed guns, an argument that wouldn’t be settled until after the war was over at which point the Renault FT chassis was considered too obsolete to use as a self-propelled gun chassis again.

Variants & Changes:

None

---

---

ANTI-AIRCRAFT VEHICLES

---

---

47 Berliet

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun
Status:	Production
Derived From:	???
Derivatives:	None
Produced:	???	Production Date:	???
Producer(s):	French Republic	???	???
	???
Used:	???	Service Date:	???
User(s):	Armée de terre	???

Full User(s) List

–	Unit	Date	Status
User(s):	Armée de terre
	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	47 Hotchkiss mle 1885 (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -??°/+??° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
47 mm Gun
	OR 47 mle 1892G	APHE	1.48 kg/50 g Black Powder, 42 mm @ 600 m/s
	OE 37 type D	HE	1.25 kg/100 g ???, ??? mm @ 600 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 47 Hotchkiss mle 1885

Protection
Location	Thickness	Type
Armored
All	None	N/A

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	16 kW
	@ RPM	1,250
	Cylinder:	4
	Capacity:	4.5 l
		Foward	Reverse
Transmission:	3-speed	3	1
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	4x2
	Type:	???
	Steering:	Rear

Mobility
Maximum Forward Speed:	25.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
At least one Berliet truck was used for a self-propelled anti-aircraft gun with a 47 Hotchkiss mle 1885 in a high-angle mount.

Variants & Changes:

None

---

---

AC 47 Renault

General
Name(s):	Auto-canon de 47 Renault (AC de 47 Renault)
Type:	Self-propelled anti-aircraft gun
Status:	Production
Derived From:	Renault type ED
Derivatives:	None
Produced:	8	Production Date:	1914-1915
Producer(s):	French Republic	8	1914-1915
	Renault	8	1914-1915
Used:	8	Service Date:	1915-1919
User(s):	Armée de terre	1915-1919

Full User(s) List

–	Unit	Date	Status
User(s):	Armée de terre
	???

Dimensions
Weight:	6.5* t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	4.7 m	1.7 m	1.7 m
Ground Clearance:	??? cm

*Weight of the armored autocannons.

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
Initial Mount
1 x	47 Hotchkiss mle 1885 (???)	Pedestal, Manual, -/+135° @ ??°/s	Manual, -10°/+13° @ ??°/s	20 rpm
Fauconneau Mount
1 x	47 Hotchkiss mle 1885 (???)	Pedestal, Manual, -/+135° @ ??°/s	Manual, -10°/+70° @ ??°/s	20 rpm
Unarmored Cars*
1 x	47 Hotchkiss mle 1885 (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -10°/+70° @ ??°/s	20 rpm

*The unarmored cars, while using a variety of mounts, did not have the armored cab in the way that prevented the gun from traversing all the way around.

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
47 mm Gun
	OR 47 mle 1892G	APHE	1.48 kg/50 g Black Powder, 42 mm @ 600 m/s
	OE 37 type D	HE	1.25 kg/100 g ???, ??? mm @ 600 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 47 Hotchkiss mle 1885

Protection
Location	Thickness	Type
Armored
Frontwards
All front	7 mm @ ??°	RHA
Sidewards
All side	7 mm @ ??°	RHA
Rearwards
All rear	7 mm @ ??°	RHA
Upwards
Roof	7 mm @ ??°	RHA
Downwards
Floor	??? mm @ ??°	???
Unarmored
Frontwards
All front	??? mm @ ??°	???
Sidewards
All side	??? mm @ ??°	???
Rearwards
All rear	??? mm @ ??°	???
Upwards
Roof	??? mm @ ??°	???
Downwards
Floor	??? mm @ ??°	???

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Renault
	Type:	Gasoline
	Horsepower:	12 kW
	@ RPM	1,600
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	Mechanical

Suspension
Type:	Leaf spring
Road wheels:	4x2
	Type:	Spoked wheel w/ rubber tire
	Steering:	???

Mobility
Maximum Forward Speed:	20.0*km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	1.8** kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

*The regulator could be removed to push the vehicle to 22.5 kmh at 1,400 RPM, or 50.0 km/h at 3,700 RPM. This modification was exclusive to the armored cars.
*Power-to-weight ratio of the armored autocannons.

Summary
The AC 47 Renault were produced in order to fulfil the need for a self-propelled gun – which, immediately after, became unneeded due to the static nature of the war. Due to that, only four out of the original order of a hundred would be made, while a further four unarmored cars would also be made since there were twelve 47 mm guns that had been requisitioned. They were divided into two groups and saw conflict as anti-aircraft vehicles in the western front, though notably the armored versions suffered mobility issues due to the woefully underpowered engine. They were used in both the anti-aircraft, anti-ground, and anti-tank capacity during the war. Probably due to that, after the war the groups would be disbanded and the self-propelled guns presumably dismantled.

Variants & Changes:

• 1914: The first group of armored autocannons are constructed.
  • 1915: Aside from the first, the armored cars were equipped with the Fauconneau mount.
    • 1917-1918: The first car replaced the initial mount with the Fauconneau mount.
  • 1914-1915: During travel, the engine regulator was removed in order to reach higher speeds. They achieved 22.5 km/h at 1,400 RPM and an astonishing 50.0 km/h at 3,700 RPM; but both of these speeds strained the engine heavily and the underpowered chassis made the speeds difficult to reach in the first place. This field modification isn’t noted to have been done to the unarmored versions.
• 1915: The second group of unarmored autocannons are constructed. They were identical to the armored versions, except for the lack of said armor.
  • 1915: First car produced with a mle 1887 mount.
  • 1915: Three other cars produced with a Fauconneau mount.
    • 1915-1918: First and second cars had their mount support bases shortened to lessen the strain of the recoil shocks on the chassis.

Variant Images

One of the armored cars of the 1er Gr.

One of the unarmored cars of the 2e Gr. in the background.

---

---

---

Belgian Vehicles

---

---

ARMORED CARS

---

---

ACM Mors

General
Name(s):	Auto-canon mitrailleuse Mors (ACM Mors)
Type:	Armored car
Status:	Production
Derived From:	Mors
Derivatives:	None
Produced:	13	Production Date:	1915
Producer(s):	French Republic	13	1915
	Carrosserie Kellner	13	1915
Used:	13	Service Date:	1915-1918
User(s):	Armée Belge	1915-1918

Full User(s) List

–	Unit	Date	Status
User(s):	Armée de terre
	???

Dimensions
Weight:	4.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	37 T.R. Hotchkiss L/35 (???)	Pedestal, Manual, -/+???° @ ??°/s	Manual, -??°/+??° @ ??°/s	25 rpm
1 x	Hotchkiss 8 mle 1914 (???)	Pedestal, Manual, -/+???° @ ??°/s	Manual, -??°/+??° @ ??°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
	???	???	??? kg/??? g ???, ??? mm @ 700 m/s
	???	Sh	??? kg/??? g ???, ??? mm @ 550 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 37 T.R. Hotchkiss L/35

Protection
Location	Thickness	Type
All	3-8 mm @ ??°	???

Crew
4	Total
1	Commander
1	Driver
1	Gunner, Machine Gunner
1	Gun Loader, Machine Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Minerva
	Type:	Gasoline
	Horsepower:	15 kW
	@ RPM	???
	Cylinder:	4
	Capacity:	4.4 l
		Foward	Reverse
Transmission:	Mors 4-speed	4	1
Steering:	???
Brakes:	Mechanical

Suspension
Type:	Leaf spring
Road wheels:	4x2
	Type:	???
	Steering:	Front

Mobility
Maximum Forward Speed:	60.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	3.6 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The Mors were contracted to be built in France by the time that Belgium had been largely overrun by the German invasion. They were built in both machine gun and cannon versions with thirteen being built in total. However, like most armored cars, they were quickly found to be useless in the mostly static trench warfare of the western front and were thusly sent to the eastern front, with the Belgian expeditionary to Russia, as a result. All of the cars would either be destroyed or left in Russia when the expeditionary was recalled.

Variants & Changes:

None

---

---

AC Peugeot

General
Name(s):	Auto-canon Peugeot (AC Peugeot)
Type:	Armored car
Status:	Production
Derived From:	Mors
Derivatives:	None
Produced:	2	Production Date:	1915
Producer(s):	French Republic	2	1915
	Peugeot	2	1915
Used:	2	Service Date:	1915-1918
User(s):	Armée Belge	1915-1918

Full User(s) List

–	Unit	Date	Status
User(s):	Armée de terre
	???

Dimensions
Weight:	4.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	37 T.R. Hotchkiss L/35 (???)	Pedestal, Manual, -/+???° @ ??°/s	Manual, -??°/+??° @ ??°/s	25 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
	???	???	??? kg/??? g ???, ??? mm @ 700 m/s
	???	Sh	??? kg/??? g ???, ??? mm @ 550 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 37 T.R. Hotchkiss L/35

Protection
Location	Thickness	Type
All	4 mm @ ??°	???

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Peugeot
	Type:	Gasoline
	Horsepower:	13 kW
	@ RPM	???
	Cylinder:	???
	Capacity:	3.177 l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	???
	Type:	???
	Steering:	???

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	3.3 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
Two Peugeot-based armored cars were built in 1915 to supply the expeditionary in Russia. Of them, only one was a cannon car while the other was built as a machine gun car. Like the Mors, it was left in Russia when the Belgian expeditionary was recalled.

Variants & Changes:

None

---

---

---

LIGHT TANKS

---

---

Renault FT

General
Name(s):	???
Type:	Light tank
Status:	Imported
Derived From:	None
Derivatives:	None
Produced:	3,728 (all models)	Production Date:	7/1917-10/10/1918
Producer(s):	French Republic	3,728	7/1917-10/10/1918
	Renault S.A	1,850~	???
	Berliet	800~	???
	SOMUA	600~	???
	Delaunay-Belleville	280~	???
Used:	48	Service Date:	1919-1938
User(s):	Armée Belge	1919-1936
	Gendarmerie	1936-1938

Full User(s) List

–	Unit	Date	Status
User(s):	Armée Belge
	???
	Gendarmerie
	???

Dimensions
Weight:	6.7 t
Ground Pressure:	0.5 kg/cm²
	Length	Width	Height
Vehicle:	5.0 m	1.74 m	2.14 m
Ground Clearance:	43 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	37 S.A. mle 1918 (233)	Turret, Mechanical, -/+360° @ ??°/s	Mechanical, -2°/+35° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
	OR 37 mle 1892	APHE	0.5 kg/15 g F3, 14 mm @ 388 m/s
	OE 37 mle 1916	HE	0.56 kg/30 g Melinite, 6 mm @ 365 m/s
	OE 37 mle 1888M	HE	0.455 kg/22 g F3, 5 mm @ 402 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for 37 S.A. mle 1918

Protection
Location	Thickness	Type
Renault
Frontwards
All front	16 mm @ ???°	RHA
Sidewards
All side	16 mm @ ???°	RHA
Rearwards
All rear	16 mm @ ???°	RHA
Upwards
Roof	8 mm @ ???°	RHA
Downwards
Floor	6 mm @ ???°	RHA
Berliet-Girod
Frontwards
All front	16 mm @ ???°	RHA
Turret front	22 mm @ ???°	RHA
Sidewards
All side	16 mm @ ???°	RHA
Turret side	22 mm @ ???°	RHA
Rearwards
All rear	16 mm @ ???°	RHA
Turret rear	22 mm @ ???°	RHA
Upwards
Roof	8 mm @ ???°	RHA
Downwards
Floor	6 mm @ ???°	RHA

Crew
2	Total
1	Commander, Gunner, Gun Loader
1	Driver

Automotive
Fuel Capacity:	95 l
Engine(s):	1 x - Renault
	Type:	Gasoline
	Horsepower:	29 kW
	@ RPM	1,500
	Cylinder:	4
	Capacity:	4.5 l
		Foward	Reverse
Transmission:	Sliding 4-speed	4	1
Steering:	Clutch-break
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	9/4
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	6
	Type:	Rigid spaced
Drive Sprockets:	2
	Type:	15-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	32
	Length:	??? cm
	Width:	34 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	2 m

Mobility
Maximum Forward Speed:	8.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	4.3 kW/t
Maximum Grade:	26.5°
Maximum Trench:	1.35 m
Maximum Wall:	0.6 m
Maximum Fording:	70 cm
Minimum Turning Diameter:	??? m
Cruising Range:	60 km
	Mileage:	158 l/100 km

Summary
The Renault FT was Belgium’s first and, for the entirety of the 1920s, only tank. Forty-eight, along with a single radio tank, were delivered in both Berliet-Girod and Renault turreted versions with either machine guns or cannons. They would serve in the military until 1936 when they were declared hopelessly outdated and given to the Gendarmerie where they were then placed in storage. They would be captured during the German invasion of Belgium in the opening year of the Second World War.

Variants & Changes:

• 1917-1918: Girod-Renault turrets were replaced by Berliet-Girod cylindrical omnibus turrets in Berliet, SOMUA, and Delaunay-Belleville productions. This removed the cheekbones for a smooth face and uparmored to 22 mm thick. This was the most common type used and was produced alongside the Renault turret.
• 1917-1918: Girod-Renault turrets were replaced by Renault riveted omnibus turrets in Renault productions. This can be easily differentiated by the riveting and flat armor plates. This was installed approximately 1,147 tanks and was produced alongside the Berliet-Girod turret.

Variant Images

All three omnibus turrets in order from left to right: Girod-Renault, Renault, and Berliet-Girod.

---

---

---

Dutch Vehicles

---

---

ARMORED CARS

---

Ehrhardt Potkachel

General
Name(s):	???
Type:	Armored car
Status:	Captured
Derived From:	Artillerie-Kraftzugmaschine Krupp-Daimler M1913
Derivatives:	None
Produced:	156	Production Date:	1914-1915
Producer(s):	German Empire	156	1914-1915
	Daimler-Motoren-Gesselschuft	57	1914-1915
	Rhinmetall AG	99	1914-1918
Used:	1	Service Date:	1927-1940
User(s):	Koninklijke Landmacht (Royal Netherlands Army)	1927-1940

Full User(s) List

–	Unit	Date	Status
User(s):	Koninklijke Landmacht (Royal Netherlands Army)
	???

Dimensions
Weight:	8.3 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	??? (???)	Pedestal, Mechanical, -/+???° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	??? rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
??? mm Gun
	???

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for 57mm 6 tl

Protection
Location	Thickness	Type
Frontwards
All	12 mm @ ??°	Boiler Plate
Sidewards
All	6 mm @ ??°	Boiler Plate
Rearwards
All	6 mm @ ??°	Boiler Plate
Upwards
All	??? mm @ ??°	Boiler Plate
Downwards
All	??? mm @ ??°	Boiler Plate

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	60 kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	4x4
	Type:	Spoked
	Steering:	All wheels

Mobility
Maximum Forward Speed:	50.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	7.1 kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
In 1927-1930, a single captured Ehrhardt was converted into an armored car by the installation of additional plating and the conversion of the high-angle gun into an armored low-angle mount. However, it was largely a failure with the chassis being overloaded and the car so unwieldy that it’s said that only a grand three people were qualified to drive it at any one time. When new modern armored cars were acquired in 1938, it was intended to retire the Ehrhardt but that did not happen, and so the car was consequently found by the Germans in 1940 and then disappeared, presumably scrapped.

Variants & Changes:

None

---

---

---

ANTI-AIRCRAFT VEHICLES

---

---

Thornycroft J Type

NO IMAGES

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on lorry
Status:	Imported
Derived From:	Thornycroft J Type
Derivatives:	None
Produced:	???	Production Date:	???
Producer(s):	United Kingdom	???	???
	???
Used:	3	Service Date:	1916-1940
User(s):	Koninklijke Landmacht (Royal Netherlands Army)	1916-1940

Full User(s) List

–	Unit	Date	Status
User(s):	Koninklijke Landmacht (Royal Netherlands Army)
	???

Dimensions
Weight:	4.52 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	76,2mm 8 tl (???)	Pedestal, Manual, -/+180° @ ??°/s	Manual, -0°/+80° @ ??°/s	8 rpm

*Dutch name for the Q.F. 13-pr. 9-cwt. Mk. I gun.

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
76.2 mm Gun
	Q.F., 13-pr., H.E. Shell, Mk. II	HE	??? kg/262 g Amatol, 14 mm @ 670 m/s
	Q.F., 13-pr., Shrapnel Shell, Mk. III	Sh-TF	??? kg/35.44 g F.G. Powder & 236 Balls, ??? mm @ 670 m/s
	Q.F., 13-pr., Shrapnel Shell, Mk. II	Sh-TF	5.7 kg/35.44 g F.G. Powder & 234 Balls, ??? mm @ 670 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	???x zoom, for 76,2mm 8 tl

Protection
Location	Thickness	Type
All	N/A	None

Crew
5	Total
1	Commander
1	Driver
1	Gunner
2	Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Thornycroft I-4
	Type:	Gasoline
	Horsepower:	33 kW
	@ RPM	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	4-speed	4	1
Steering:	???
Brakes:	Mechanical

Suspension
Type:	???
Road wheels:	4x2
	Type:	???
	Steering:	???

Mobility
Maximum Forward Speed:	19.3 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	7.3 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
While the Dutch were neutral during the First World War, they did limited collaboration with the Entente in case that Germany decides to cross their borders. One of these was the purchase of three Thornycroft-based anti-aircraft guns which were delivered in 1916. They would see service all the way up to 1940.

Variants & Changes:

None

---

---

Ehrhardt

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on artillery tractor
Status:	Captured
Derived From:	Artillerie-Kraftzugmaschine Krupp-Daimler M1913
Derivatives:	None
Produced:	156	Production Date:	1914-1915
Producer(s):	German Empire	156	1914-1915
	Daimler-Motoren-Gesselschuft	57	1914-1915
	Rhinmetall AG	99	1914-1918
Used:	1	Service Date:	1924-1927
User(s):	Koninklijke Landmacht (Royal Netherlands Army)	1924-1927

Full User(s) List

–	Unit	Date	Status
User(s):	Koninklijke Landmacht (Royal Netherlands Army)
	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	57mm 6 tl (???)	Pedestal, Mechanical, -/+180° @ ??°/s	Mechanical, -??°/+72° @ ??°/s	3 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
57 mm Gun
	???	HE	3.2 kg/??? g ???, ??? mm @ 450 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for 57mm 6 tl

Protection
Location	Thickness	Type
All	3.5-5 mm @ ??°	RHA

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	60 kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	4x4
	Type:	Spoked
	Steering:	All wheels

Mobility
Maximum Forward Speed:	60.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	8.5 kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
During the end of the First World War, German forces tried to take the fastest way back into Germany as they could. One path was to pass through Limburg rather than going around it, which the Dutch allowed with the stipulation that all weapons had to be turned over. At least one of these acquired weapons was an Ehrhardt truck with a 7,7cm gun, which was then immediately placed in storage. It was remodeled with the 5,7cm 6 tl gun while in storage before being displayed in Dutch exercises during 1924. However, this configuration was short-lived as by 1927-1930 it was uparmored into a dedicated armored car.

Variants & Changes:

• Ehrhardt Potkachel: See above.

---

---

---

[Wiggly_Armed_Man]

The Schneider CA1 might be completely unworkable. The only shell I could find it uses is a high-explosive that would only be marginally more powerful than its contemporary 75 mm high-explosive shells, while its utterly trash velocity means its kinetic penetration would be even lower than the high-explosive penetration. Which isn’t that surprising given it’s a literal trench mortar, they were meant to fling high-explosive shells at short arcs and the tank gun certainly shows that.

[Spr4yz]

The filler amount is actually pretty good for overpressure, with about 12mm pen. From another post I made:

Schneider CA

Indeed. The rounds for the 75mm Blockhaus-Schneider are pretty much equally as potent. This source, which is a scan from a 1918 manual, provides data on two HE-rounds. The M1900N with 775 grams of filler. The filler type is most likely Melinite (Picric Acid, 1.1x TNTe), for an equivalent of 852.5 grams of TNT, which can pen 12mm of RHA with overpressure. The M1915PN/GN with 740 grams of filler. Unknown what the PN and GN designation is exactly, but it uses the 24/31 dual-action fuze with both…

So I definitely think we could use it in the game.

[Wiggly_Armed_Man]

I suppose so, but that’ll still right on the edge of unusable. 12 mm of high-explosive penetration would be barely enough to penetrate any of the British heavy tanks with their 12 mm armor, it’ll be forced to go for roof shots on A7V (albeit A7V would be the best WW1 tank alongside the FCM 1A imo) and the Renault FT & derivatives, and would only barely be capable of penetrating itself or the Saint-Chamond.

It would absolutely nuke any armored cars and self-propelled guns, though.

[Wiggly_Armed_Man]

Jump to Main Post

Sweden
Kingdom of Sweden
± Republic of Finland [Subtree]

Swedish Vehicles

---

---

LIGHT TANKS

---

---

Strv Renault FT

General
Name(s):	Stridsvagn Renault FT (strv Renault FT)
Type:	Light tank
Status:	Imported
Derived From:	None
Derivatives:	None
Produced:	3,728 (all models)	Production Date:	7/1917-10/10/1918
Producer(s):	French Republic	3,728	7/1917-10/10/1918
	Renault S.A	1,850~	???
	Berliet	800~	???
	SOMUA	600~	???
	Delaunay-Belleville	280~	???
Used:	1	Service Date:	30/8/1918-1926
User(s):	Svenska Armén	25/7/1921-1926

Full User(s) List

–	Unit	Date	Status
User(s):	Svenska Armén
	Kungliga Positionsartilleriregementet	25/7/1921-???	Disbanded
	???

Dimensions
Weight:	6.7 t
Ground Pressure:	0.5 kg/cm²
	Length	Width	Height
Vehicle:	5.0 m	1.74 m	2.14 m
Ground Clearance:	43 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	37 S.A. mle 1918 (233)	Turret, Mechanical, -/+360° @ ??°/s	Mechanical, -2°/+35° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
	OR 37 mle 1892	APHE	0.5 kg/15 g F3, 14 mm @ 388 m/s
	OE 37 mle 1916	HE	0.56 kg/30 g Melinite, 6 mm @ 365 m/s
	OE 37 mle 1888M	HE	0.455 kg/22 g F3, 5 mm @ 402 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for 37 S.A. mle 1918

Protection
Location	Thickness	Type
Frontwards
All front	16 mm @ ???°	RHA
Sidewards
All side	16 mm @ ???°	RHA
Rearwards
All rear	16 mm @ ???°	RHA
Upwards
Roof	8 mm @ ???°	RHA
Downwards
Floor	6 mm @ ???°	RHA

Crew
2	Total
1	Commander, Gunner, Gun Loader
1	Driver

Automotive
Fuel Capacity:	95 l
Engine(s):	1 x - Renault
	Type:	Gasoline
	Horsepower:	29 kW
	@ RPM	1,500
	Cylinder:	4
	Capacity:	4.5 l
		Foward	Reverse
Transmission:	Sliding 4-speed	4	1
Steering:	Clutch-break
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	9/4
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	6
	Type:	Rigid spaced
Drive Sprockets:	2
	Type:	15-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	32
	Length:	??? cm
	Width:	34 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	2 m

Mobility
Maximum Forward Speed:	8.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	4.3 kW/t
Maximum Grade:	26.5°
Maximum Trench:	1.35 m
Maximum Wall:	0.6 m
Maximum Fording:	70 cm
Minimum Turning Diameter:	??? m
Cruising Range:	60 km
	Mileage:	158 l/100 km

Summary
A single Renault FT with the Renault riveted turret was delivered to Sweden in 1921 and was used for trials until 1926. From 1924 to 1925, the tank was used as a mobile radio station. In 1926, it was used as a range target and subsequently dismantled once 13 mm, 20 mm, and 37 mm guns, and grenade bundles were tested against it.

Variants & Changes:

• 1924: Gun was removed to accommodate the installation of a radio, which was also later removed when the tank was converted into a range target.

Variant Images

The tank turned into a mobile radio station.

---

---

Finnish Vehicles

---

---

LIGHT TANKS

---

---

Psv Renault FT

General
Name(s):	???
Type:	Light tank
Status:	Production
Derived From:	None
Derivatives:	None
Produced:	3,728 (all models)	Production Date:	7/1917-10/10/1918
Producer(s):	French Republic	3,728	7/1917-10/10/1918
	Renault S.A	1,850~	???
	Berliet	800~	???
	SOMUA	600~	???
	Delaunay-Belleville	280~	???
Used:	34	Service Date:	26/08/1919-1943
User(s):	Maavoimat	26/08/1919-1943

Full User(s) List

–	Unit	Date	Status
User(s):	Maavoimat
	???

Dimensions
Weight:	6.7 t
Ground Pressure:	0.5 kg/cm²
	Length	Width	Height
Vehicle:	5.0 m	1.74 m	2.14 m
Ground Clearance:	43 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	37 S.A. mle 1918 (233)	Turret, Mechanical, -/+360° @ ??°/s	Mechanical, -2°/+35° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
	OR 37 mle 1892	APHE	0.5 kg/15 g F3, 14 mm @ 388 m/s
	OE 37 mle 1916	HE	0.56 kg/30 g Melinite, 6 mm @ 365 m/s
	OE 37 mle 1888M	HE	0.455 kg/22 g F3, 5 mm @ 402 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for 37 S.A. mle 1918

Protection
Location	Thickness	Type
Renault
Frontwards
All front	16 mm @ ???°	RHA
Sidewards
All side	16 mm @ ???°	RHA
Rearwards
All rear	16 mm @ ???°	RHA
Upwards
Roof	8 mm @ ???°	RHA
Downwards
Floor	6 mm @ ???°	RHA
Berliet-Girod
Frontwards
All front	16 mm @ ???°	RHA
Turret front	22 mm @ ???°	RHA
Sidewards
All side	16 mm @ ???°	RHA
Turret side	22 mm @ ???°	RHA
Rearwards
All rear	16 mm @ ???°	RHA
Turret rear	22 mm @ ???°	RHA
Upwards
Roof	8 mm @ ???°	RHA
Downwards
Floor	6 mm @ ???°	RHA

Crew
2	Total
1	Commander, Gunner, Gun Loader
1	Driver

Automotive
Fuel Capacity:	95 l
Engine(s):	1 x - Renault
	Type:	Gasoline
	Horsepower:	29 kW
	@ RPM	1,500
	Cylinder:	4
	Capacity:	4.5 l
		Foward	Reverse
Transmission:	Sliding 4-speed	4	1
Steering:	Clutch-break
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	9/4
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	6
	Type:	Rigid spaced
Drive Sprockets:	2
	Type:	15-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	32
	Length:	??? cm
	Width:	34 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	2 m

Mobility
Maximum Forward Speed:	8.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	4.3 kW/t
Maximum Grade:	26.5°
Maximum Trench:	1.35 m
Maximum Wall:	0.6 m
Maximum Fording:	70 cm
Minimum Turning Diameter:	??? m
Cruising Range:	60 km
	Mileage:	158 l/100 km

Summary
Finland received thirty-two Renault FT in 1919 and an additional two in 1920, for a total of thirty-four overall. They were Finland’s main tank for all of the 1920s and most of the 1930s, being before replaced in that capacity by imported Vickers. They briefly saw service during the Winter War, mostly as bunker emplacements, before being relegated to training duties and finally being declared totally obsolete and scrapped in 1943.

Variants & Changes:

• 1917-1918: Girod-Renault turrets were replaced by Berliet-Girod cylindrical omnibus turrets in Berliet, SOMUA, and Delaunay-Belleville productions. This removed the cheekbones for a smooth face and uparmored to 22 mm thick. This was the most common type used and was produced alongside the Renault turret.
• 1917-1918: Girod-Renault turrets were replaced by Renault riveted omnibus turrets in Renault productions. This can be easily differentiated by the riveting and flat armor plates. This was installed approximately 1,147 tanks and was produced alongside the Berliet-Girod turret.

Variant Images:

Variant Images

All three omnibus turrets in order from left to right: Girod-Renault, Renault, and Berliet-Girod.

---

---

[Wiggly_Armed_Man]

Jump to Main Post

Israel
State of Israel

Israeli Vehicles

---

---

---

---

[Wiggly_Armed_Man]

Jump to Main Post

USA
United States of America

American Vehicles

---

---

LIGHT TANKS

---

---

Renault FT

General
Name(s):	Tank, Light, Renault FT
Type:	Light tank
Status:	Imported
Derived From:	None
Derivatives:	Tank, Light, M1917
Produced:	3,728 (all models)	Production Date:	7/1918-10/10/1918
Producer(s):	French Republic	3,728	1917-1919
	Renault S.A	1,850~	???
	Berliet	800~	???
	SOMUA	600~	???
	Delaunay-Belleville	280~	???
Used:	144	Service Date:	30/8/1918-???
User(s):	United States Army	30/8/1918-???

Full User(s) List

–	Unit	Date	Status
User(s):	United States Army
	326th Tank Battalion (Light)	1918-???	Removed
	327th Tank Battalion (Light)	1918-???	Removed
	331st Tank Battalion (Light)	1918-???	Removed
	344th Tank Battalion (Light)	1918-???	Removed
	345th Tank Battalion (Light)	1918-???	Removed

Dimensions
Weight:	6.7 t
Ground Pressure:	0.5 kg/cm²
	Length	Width	Height
Vehicle:	5.0 m	1.74 m	2.14 m
Ground Clearance:	43 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	37 S.A. mle 1918 (233)	Turret, Mechanical, -/+360° @ ??°/s	Mechanical, -2°/+35° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
	OR 37 mle 1892	APHE	0.5 kg/15 g F3, 14 mm @ 388 m/s
	OE 37 mle 1916	HE	0.56 kg/30 g Melinite, 6 mm @ 365 m/s
	OE 37 mle 1888M	HE	0.455 kg/22 g F3, 5 mm @ 402 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for 37 S.A. mle 1918

Protection
Location	Thickness	Type
Renault
Frontwards
All front	16 mm @ ???°	RHA
Sidewards
All side	16 mm @ ???°	RHA
Rearwards
All rear	16 mm @ ???°	RHA
Upwards
Roof	8 mm @ ???°	RHA
Downwards
Floor	6 mm @ ???°	RHA
Berliet-Girod
Frontwards
All front	16 mm @ ???°	RHA
Turret front	22 mm @ ???°	RHA
Sidewards
All side	16 mm @ ???°	RHA
Turret side	22 mm @ ???°	RHA
Rearwards
All rear	16 mm @ ???°	RHA
Turret rear	22 mm @ ???°	RHA
Upwards
Roof	8 mm @ ???°	RHA
Downwards
Floor	6 mm @ ???°	RHA

Crew
2	Total
1	Commander, Gunner, Gun Loader
1	Driver

Automotive
Fuel Capacity:	95 l
Engine(s):	1 x - Renault
	Type:	Gasoline
	Horsepower:	29 kW
	@ RPM	1,500
	Cylinder:	4
	Capacity:	4.5 l
		Foward	Reverse
Transmission:	Sliding 4-speed	4	1
Steering:	Clutch-break
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	9/4
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	6
	Type:	Rigid spaced
Drive Sprockets:	2
	Type:	15-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	32
	Length:	??? cm
	Width:	34 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	2 m

Mobility
Maximum Forward Speed:	8.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	4.3 kW/t
Maximum Grade:	26.5°
Maximum Trench:	1.35 m
Maximum Wall:	0.6 m
Maximum Fording:	70 cm
Minimum Turning Diameter:	??? m
Cruising Range:	60 km
	Mileage:	158 l/100 km

Summary
The Renault FT was the first turreted and mass-produced tanks. The United States intended to copy it as the M1917 for their armored divisions, but due to their production lagging behind the intended date, Renault FT were used to arm the light tank battalions in Europe, instead. Both Girod-Renault and Renault turreted tanks were used.

Variants & Changes:

• 1918: Girod-Renault turrets were replaced by Berliet-Girod cylindrical omnibus turrets in Berliet, SOMUA, and Delaunay-Belleville productions. This removed the cheekbones for a smooth face and uparmored to 22 mm thick. This was the most common type used and was produced alongside the Renault turret.
• 1918: Girod-Renault turrets were replaced by Renault riveted omnibus turrets in Renault productions. This can be easily differentiated by the riveting and flat armor plates. This was installed approximately 1,147 tanks and was produced alongside the Berliet-Girod turret.

Variant Images

All three omnibus turrets in order from left to right: Girod-Renault, Renault, and Berliet-Girod.

---

---

M1917 Light

General
Name(s):	Tank, Light, M1917
Type:	Light tank
Status:	Production
Derived From:	Tank, Light, Renault FT
Derivatives:	Tank, Light, M1917A1
Produced:	950 (all models)	Production Date:	1918-1919
Producer(s):	United States of America	950	1918-1919
	Van Dorn Iron Works	???	???
	Maxwell Motor Company	???	???
	C.L. Best Company	???	???
Used:	950	Service Date:	1918-1941
User(s):	United States Army	1918-1941

Full User(s) List

–	Unit	Date	Status
User(s):	United States Army
	326th Light Tank Battalion	1918-???	Disbanded
	327th Light Tank Battalion	1918-???	Disbanded
	331st Light Tank Battalion	1918-???	Disbanded
	344th Light Tank Battalion	1918-???	Disbanded
	345th Light Tank Battalion	1918-???	Disbanded

Dimensions
Weight:	6.7 t
Ground Pressure:	0.48 kg/cm²
	Length	Width	Height
Vehicle:	5.0 m	1.8 m	2.3 m
Ground Clearance:	41.1 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	37-mm M1916 (238)	Turret, Mechanical, -/+360°/30° (Mantlet) @ ??°/s	Mechanical, -??°/+56° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
	37-mm Mk. II	HE/-BF	0.5 kg/27 g TNT, 5 mm/8 mm @ 367 m/s
	37-mm M1	Cn	??? kg/38 balls, ??? mm @ 367 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - M1918 telescopic	Sight	??x zoom, for 37-mm M1916

Protection
Location	Thickness	Type
Frontwards
Gun shield	15.24 mm @ 0°	RHA
Turret front	15.24 mm @ 12° (LoS 16 mm)	RHA
Driver’s cupola	15.24 mm @ 17° (LoS 16 mm)	RHA
Driver’s cupola	15.24 mm @ 17° (LoS 16 mm)	RHA
Driver’s doors	7.874 mm @ 70° (LoS 23 mm)	RHA
Upper glacis	15.24 mm @ 30° (LoS 18 mm)	RHA
Lower glacis	15.24 mm @ 30° (LoS 18 mm)	RHA
Sidewards
All side	15.24 mm @ 0°	RHA
Turret side	15.24 mm @ 12° (LoS 16 mm)	RHA
Rearwards
Turret rear	15.24 mm @ 12° (LoS 16 mm)	RHA
Upper rear	7.874 mm @ 65° (LoS 19 mm)	RHA
Lower rear	15.24 mm @ 0°	RHA
Upwards
Roof	7.874 mm @ 90°	RHA
Downwards
Floor	6.35 mm @ 90°	RHA

Crew
2	Total
1	Commander, Gunner, Gun Loader
1	Driver

Automotive
Fuel Capacity:	113 l
Engine(s):	1 x - Buda HU
	Type:	Gasoline
	Horsepower:	31 kW
	@ RPM	1,460
	Cylinder:	4
	Capacity:	4.5 l
		Foward	Reverse
Transmission:	Sliding 4-speed	4	1
Steering:	Clutch-break
Brakes:	Mechanical

Suspension
Type:	Coil-leaf spring
Road wheels:	9/2
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	6
	Type:	Rigid spaced
Drive Sprockets:	2
	Type:	15-tooth rear drive

Tracks
Type:	Single-pin cast steel
	Shoes:	32
	Length:	??? cm
	Width:	33.973 cm
	Pitch:	25 cm
	Depth:	??? cm
Ground Contact:	2 m

Mobility
Maximum Forward Speed:	8.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	4.3 kW/t
Maximum Grade:	35°
Maximum Trench:	2.1 m
Maximum Wall:	0.91 m
Maximum Fording:	61 cm
Minimum Turning Diameter:	6.1 m
Cruising Range:	48 km
	Mileage:	235 l/100 km

Summary
The M1917 was intended to be America’s premiere light tank in Europe alongside the Mk. VIII Liberty as their heavy tank, but due to production delays neither would see action. Instead, the tank was only delivered after the war had already ended. It continued service into the 1930s, when it was then largely replaced by more modern tanks like the M1 combat car and the M2 light tank.

Variants & Changes:

• M1917A1: See below.

---

---

M1917A1 Light

General
Name(s):	Tank, Light, M1917A1
Type:	Light tank
Status:	Limited Production
Derived From:	Tank, Light, M1917
Derivatives:	None
Produced:	7	Production Date:	1929-1931
Producer(s):	United States of America	7	1929-1931
	???	7	???
Used:	7	Service Date:	1930-1941
User(s):	United States Army	1930-1941

Full User(s) List

–	Unit	Date	Status
User(s):	United States Army
	???

Dimensions
Weight:	6.7 t
Ground Pressure:	0.47 kg/cm²
	Length	Width	Height
Vehicle:	5.28 m	1.8 m	2.3 m
Ground Clearance:	41.1 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	37-mm M1916 (238)	Turret, Mechanical, -/+360°/30° (Mantlet) @ ??°/s	Mechanical, -??°/+56° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
	37-mm Mk. II	HE/-BF	0.5 kg/27 g TNT, 5 mm/8 mm @ 367 m/s
	37-mm M1	Cn	??? kg/38 balls, ??? mm @ 367 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - M1918 telescopic	Sight	??x zoom, for 37-mm M1916

Protection
Location	Thickness	Type
Frontwards
Gun shield	15.24 mm @ 0°	RHA
Turret front	15.24 mm @ 12° (LoS 16 mm)	RHA
Driver’s cupola	15.24 mm @ 17° (LoS 16 mm)	RHA
Driver’s cupola	15.24 mm @ 17° (LoS 16 mm)	RHA
Driver’s doors	7.874 mm @ 70° (LoS 23 mm)	RHA
Upper glacis	15.24 mm @ 30° (LoS 18 mm)	RHA
Lower glacis	15.24 mm @ 30° (LoS 18 mm)	RHA
Sidewards
All side	15.24 mm @ 0°	RHA
Turret side	15.24 mm @ 12° (LoS 16 mm)	RHA
Rearwards
Turret rear	15.24 mm @ 12° (LoS 16 mm)	RHA
Upper rear	7.874 mm @ ???°	RHA
Lower rear	15.24 mm @ 0°	RHA
Upwards
Roof	7.874 mm @ 90°	RHA
Downwards
Floor	6.35 mm @ 90°	RHA

Crew
2	Total
1	Commander, Gunner, Gun Loader
1	Driver

Automotive
Fuel Capacity:	113 l
Engine(s):	1 x - Franklin series 145
	Type:	Gasoline
	Horsepower:	76 kW
	@ RPM	3,100
	Cylinder:	4
	Capacity:	4.5 l
		Foward	Reverse
Transmission:	Sliding 4-speed	4	1
Steering:	Clutch-break
Brakes:	Mechanical

Suspension
Type:	Coil-leaf spring
Road wheels:	9/2
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	6
	Type:	Rigid spaced
Drive Sprockets:	2
	Type:	15-tooth rear drive

Tracks
Type:	Single-pin cast steel
	Shoes:	32
	Length:	??? cm
	Width:	33.973 cm
	Pitch:	25 cm
	Depth:	??? cm
Ground Contact:	2 m

Mobility
Maximum Forward Speed:	14.5 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	11.0 kW/t
Maximum Grade:	35°
Maximum Trench:	2.1 m
Maximum Wall:	0.91 m
Maximum Fording:	61 cm
Minimum Turning Diameter:	6.1 m
Cruising Range:	48 km
	Mileage:	235 l/100 km

Summary
Starting from 1927, numerous designs tried to replace the M1917 in service. Among these was the M1917 itself, which took to enlarging the engine in an attempt to solve its mobility problems. However, it still wasn’t enough and while a limited production run of M1917A1 was constructed, Christie’s designs ultimately won out as the new standard.

Variants & Changes:

None

---

---

HEAVY TANKS

---

---

Holt Gas-Electric

General
Name(s):	Tank, Holt Gas-Electric
Type:	Tank
Status:	Prototype
Derived From:	None
Derivatives:	None
Produced:	1	Production Date:	1917-1918
Producer(s):	United States of America	1	1917-1918
	Holt Manufacturing Company	1 (with General Electric)	1917-1918
	General Electric Company	1 (with Holt Manufacturing)	1917-1918
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	25.4 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	5.03 m	2.76 m	2.37 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	2.95-in Vickers-Maxim (???)	Casemate, Mechanical, -/+???° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	14 rpm
2 x	7.62-mm M1917 (???)	Sponsons, Mechanical, -/+???° @ ??°/s	Manual, -??°/+??° @ ??°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
2.95 in Gun
	Common Steel 12 1/2 lbs	SAPHE	5.67 kg/195 g TNT, 22 mm @ 280 m/s
	Cast Iron 12 1/2 lbs	HE	5.67 kg/343 g Blackpowder, 5 mm @ 280 m/s
	Shrapnel 12 1/2 lbs	Sh-TF	0.455 kg/212 balls, 5 mm @ 402 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for 2.95-in Vickers-Maxim

Protection
Location	Thickness	Type
All	15.4-6.35 mm @ ???°	RHA

Crew
6	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader
2	Machine Gunners, Machine Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Holt
	Type:	Gasoline
	Horsepower:	67 kW
	@ RPM	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	Petrol-electric, vertical spring
Road wheels:	10
	Type:	???
	Idlers:	???
Return rollers:	???
	Type:	???
Drive Sprockets:	2
	Type:	Rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	???
	Length:	??? cm
	Width:	??? cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	2 m

Mobility
Maximum Forward Speed:	9.6 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	2.6 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The Holt Gas-Electric was America’s first native tank and took its name from the gasoline-electric system that powered its tracks, similar to the system that the French Saint-Chamond also used. However, it was rejected due to being too heavy and too underpowered of a design.

Variants & Changes:

None

---

---

Wheeled Steam Tank

General
Name(s):	Tank, Steam (Wheeled)
Type:	Steam tank
Status:	Prototype
Derived From:	None
Derivatives:	None
Produced:	1	Production Date:	1917-2/1918
Producer(s):	United States of America	1	1917-2/1918
	Holt Manufacturing Company	1	1917-2/1918
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	17 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	6.78 m	3.07 m	3.0 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
2 x	Q.F. Hotchkiss 6-pr. 6-cwt. Mk. II (???)	Sponsons, Mechanical, -/+???° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	20 rpm
2 x	7.62-mm M1917 (???)	Ballports, Manual, -/+???° @ 60°/s	Manual, -??°/+??° @ 60°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
6-pr. 6-cwt. Gun
	Q.F., 6-pr., M.D., Steel Shell, Mk. XIII	SAPHE	2.7 kg/15 g Lyddite, 37 mm @ 411 m/s
	Q.F., 6-pr., M.D., Common Shell, Mk. III	HE	2.7 kg/160 g TNT, 5 mm @ 411 m/s

Devices
# of - Name	Type	Effect, Location/for
2 x - ??? telescopic	Sight	2-3.5x zoom, for 6-pr. 6-cwt.

Protection
Location	Thickness	Type
All	15.4-6.35 mm @ ???°	RHA

Crew
6	Total
1	Commander, Machine Gunner, Machine Gun Loader
1	Driver, Machine Gunner, Machine Gun Loader
2	Gunners
2	Gun Loaders

Automotive
Fuel Capacity:	95 l
Engine(s):	2 x - Doble
	Type:	Steam
	Horsepower (Total):	55 (110) kW
	@ RPM	???
	Cylinder:	N/A
	Capacity:	N/A
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	3x1
	Type:	Solid
	Steering:	Front uni

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	6.5 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The Wheeled Steam Tank was one of two steam tank designs produced during the war by the United States. It was the first of them and rejected along the grounds of poor mobility on account of it getting bogged down too easily.

Variants & Changes:

None

---

---

Mark V

General
Name(s):	Tank, Heavy, Mark V
Type:	Heavy tank
Status:	Imported
Derived From:	Mark IV
Derivatives:	Mark V*
Produced:	400 (all models)	Production Date:	1917-1918
Producer(s):	United Kingdom	400	1917-1918
	Metropolitan Carriage Wagon & Finance Co	400	1917-1918
Used:	60~	Service Date:	1918-???
User(s):	United States Army	1918-???

Full User(s) List

–	Unit	Date	Status
User(s):	United States Army
	1st Separate Tank Battalion	1918	↓Renamed↓
	41st Tank Battalion	1918	↓Renamed↓
	301st Tank Battalion (Heavy)	1918-1920/1921	Removed
	302nd Tank Battalion (Heavy)	1918-???	Removed
	303rd Tank Battalion (Heavy)	1918-???	Removed
	304th Tank Battalion (Heavy)	1918-???	Removed
	305th Tank Battalion (Heavy)	1918-???	Removed
	306th Tank Battalion (Heavy)	1918-???	Removed
	307th Tank Battalion (Heavy)	1918-???	Removed
	308th Tank Battalion (Heavy)	1918-???	Removed

Dimensions
Weight:	30.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	8.0 m	4.1 m	2.64 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
2 x	Q.F. Hotchkiss 6-pr. 6-cwt. Mk. II (282)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	20 rpm
4 x	.303-in Hotchkiss Mk. I (6,000)	Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
6-pr. 6-cwt. Gun
	Q.F., 6-pr., M.D., Steel Shell, Mk. XIII	SAPHE	2.7 kg/15 g Lyddite, 37 mm @ 411 m/s
	Q.F., 6-pr., M.D., Common Shell, Mk. III	HE	2.7 kg/160 g TNT, 5 mm @ 411 m/s

Devices
# of - Name	Type	Effect, Location/for
2 x - ??? telescopic	Sight	??x zoom, for 6-pr. 6-cwt.

Protection
Location	Thickness	Type
Frontwards
Lower frontal glacis	16 mm @ 61° (LoS 33 mm)	RHA
Lowest frontal glacis	16 mm @ 69° (LoS 45 mm)	RHA
Upper frontal glacis	16 mm @ 44° (LoS 22 mm)	RHA
Towers front	16 mm @ 0°	RHA
Sponson front	16 mm @ 30° (LoS 18 mm)	RHA
Sidewards
All side	12 mm @ 0°	RHA
Sponson lower side	12 mm @ 38° (LoS 15 mm)	RHA
Rearwards
All rear	12 mm @ 0°	RHA
Tower rear	12 mm @ 34° (LoS 14 mm)	RHA
Sponson rear	12 mm @ 15° (LoS 12 mm)	RHA
Rear glacis	12 mm @ 72° (LoS 39 mm)	RHA
Upwards
Roof	8 mm @ 0°	RHA
Front roof	8 mm @ 82°	RHA
Upper rear roof	8 mm @ 82°	RHA
Lower rear roof	12 mm @ 74°	RHA
Downwards
Floor	6 mm @ 0°	RHA
Inwards
Inner track-sponson	12 mm	RHA
Sponson stowage	12 mm	RHA
Engine wall	12 mm	RHA
Transmission cover	12 mm	RHA

Crew
8	Total
1	Commander, Assistant Driver
1	Driver, Machine Gunner, Machine Gun Loader
1	Mechanic, Machine Gunner, Machine Gun Loader
1	Mechanic
2	Gunners
2	Gun Loaders, Machine Gunners, Machine Gun Loaders

Automotive
Fuel Capacity:	420 l
Engine(s):	1 x - Ricardo
	Type:	Gasoline
	Horsepower:	110 kW
	@ RPM	1,200
	Cylinder:	6
	Capacity:	19 l
		Foward	Reverse
Transmission:	Wilson epicyclic 4-speed	4	1
Steering:	Wilson epicyclic clutch-break
Brakes:	Mechanical

Suspension
Type:	None
Road wheels:	26
	Type:	Rigid non-spaced
	Idlers:	Adjustable front track
Return rollers:	10
	Type:	Top track
Drive Sprockets:	2
	Type:	30-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	90
	Length:	22.23 cm
	Width:	52.07 cm
	Pitch:	19.05 cm
	Depth:	??? cm
Ground Contact:	2 m

Mobility
Maximum Forward Speed:	7.7 km/h
Maximum Reverse Speed:	1.4 km/h
Power-to-Weight Ratio:	3.7 kW/t
Maximum Grade:	???°
Maximum Trench:	3.5 m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	72 km
	Mileage:	583 l/100 km

Summary
The Mark V was America’s first tank in the European theatre. Due to its weight, relative to the Renault FT, it was designated a heavy and was used as such within the 301st; the only heavy tank battalion that saw action during the war. Later, they were replaced by Mark VIII Liberties.

Variants & Changes:

• Mark V*: See below.

---

---

Mark V*

General
Name(s):	Tank, Heavy, Mark V*
Type:	Heavy tank
Status:	Imported
Derived From:	Mark V
Derivatives:	Mark V**
Produced:	632 (all models)	Production Date:	1918-3/1919
Producer(s):	United Kingdom	632	1918-3/1919
	Metropolitan Carriage Wagon & Finance Co	632	1918-3/1919
Used:	60~	Service Date:	1918-???
User(s):	United States Army	1918-???

Full User(s) List

–	Unit	Date	Status
User(s):	United States Army
	1st Separate Tank Battalion	1918	↓Renamed↓
	41st Tank Battalion	1918	↓Renamed↓
	301st Tank Battalion (Heavy)	1918-1920/1921	Removed
	302nd Tank Battalion (Heavy)	1918-???	Removed
	303rd Tank Battalion (Heavy)	1918-???	Removed
	304th Tank Battalion (Heavy)	1918-???	Removed
	305th Tank Battalion (Heavy)	1918-???	Removed
	306th Tank Battalion (Heavy)	1918-???	Removed
	307th Tank Battalion (Heavy)	1918-???	Removed
	308th Tank Battalion (Heavy)	1918-???	Removed

Dimensions
Weight:	33.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	9.88 m	4.1 m	2.64 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
2 x	Q.F. Hotchkiss 6-pr. 6-cwt. Mk. II (282)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	20 rpm
4 x	.303-in Hotchkiss Mk. I (6,000)	Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
6-pr. 6-cwt. Gun
	Q.F., 6-pr., M.D., Steel Shell, Mk. XIII	SAPHE	2.7 kg/15 g Lyddite, 37 mm @ 411 m/s
	Q.F., 6-pr., M.D., Common Shell, Mk. III	HE	2.7 kg/160 g TNT, 5 mm @ 411 m/s

Devices
# of - Name	Type	Effect, Location/for
2 x - ??? telescopic	Sight	??x zoom, for 6-pr. 6-cwt.

Protection
Location	Thickness	Type
Frontwards
Lower frontal glacis	16 mm @ 61° (LoS 33 mm)	RHA
Lowest frontal glacis	16 mm @ 69° (LoS 45 mm)	RHA
Upper frontal glacis	16 mm @ 44° (LoS 22 mm)	RHA
Towers front	16 mm @ 0°	RHA
Sponson front	16 mm @ 30° (LoS 18 mm)	RHA
Sidewards
All side	12 mm @ 0°	RHA
Sponson lower side	12 mm @ 38° (LoS 15 mm)	RHA
Rearwards
All rear	12 mm @ 0°	RHA
Tower rear	12 mm @ 34° (LoS 14 mm)	RHA
Sponson rear	12 mm @ 15° (LoS 12 mm)	RHA
Rear glacis	12 mm @ 72° (LoS 39 mm)	RHA
Upwards
Roof	8 mm @ 0°	RHA
Front roof	8 mm @ 82°	RHA
Upper rear roof	8 mm @ 82°	RHA
Lower rear roof	12 mm @ 74°	RHA
Downwards
Floor	6 mm @ 0°	RHA
Inwards
Inner track-sponson	12 mm	RHA
Sponson stowage	12 mm	RHA
Engine wall	12 mm	RHA
Transmission cover	12 mm	RHA

Crew
8	Total
1	Commander, Assistant Driver
1	Driver, Machine Gunner, Machine Gun Loader
1	Mechanic, Machine Gunner, Machine Gun Loader
1	Mechanic
2	Gunners
2	Gun Loaders, Machine Gunners, Machine Gun Loaders

Automotive
Fuel Capacity:	420 l
Engine(s):	1 x - Ricardo
	Type:	Gasoline
	Horsepower:	110 kW
	@ RPM	1,200
	Cylinder:	6
	Capacity:	19 l
		Foward	Reverse
Transmission:	Wilson epicyclic 4-speed	4	1
Steering:	Wilson epicyclic clutch-break
Brakes:	Mechanical

Suspension
Type:	None
Road wheels:	26
	Type:	Rigid non-spaced
	Idlers:	Adjustable front track
Return rollers:	10
	Type:	Top track
Drive Sprockets:	2
	Type:	30-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	90
	Length:	22.23 cm
	Width:	67.31 cm
	Pitch:	19.05 cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	7.7 km/h
Maximum Reverse Speed:	1.4 km/h
Power-to-Weight Ratio:	3.3 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	72 km
	Mileage:	583 l/100 km

Summary
The Mark V* was lengthened in order to cross the larger anti-tank trenches that were being dug out during the later part of 1918. They also formed the bulk of the American heavy tank battalions, both during the war and the in the immediate aftermath. Later, they were replaced by Mark VIII Liberties.

Variants & Changes:

• 1918: some tanks were produced with older 20.5-in tracks instead of the newer 26.5-in tracks.

---

---

Mark VIII

General
Name(s):	Tank, Heavy, Mark VIII
Type:	Heavy tank
Status:	Production
Derived From:	None
Derivatives:	None
Produced:	125 (all models)	Production Date:	1918-3/1919
Producer(s):	United Kingdom	25	11/1918-1919
	North British Locomotive Co	25	11/1918-1919
	United States of America	100	1919-1920
	Rock Island Arsenal	100	1919-1920
Used:	100	Service Date:	1920-25/10/1932
User(s):	United States Army	1920-25/10/1932

Full User(s) List

–	Unit	Date	Status
User(s):	United States Army
	301st Tank Battalion (Heavy)	1920-22/6/1921	↓Renamed↓
	17th Tank Battalion (Heavy)	22/6/1921-1/9/1929	↓↓Merged↓↓
	19th Tank Battalion (Heavy)	24/3/1923-1/9/1929	↓Merged↓
	2nd Tank Regiment (Heavy)	1/9/1929-25/10/1932	Removed

Dimensions
Weight:	39.4 t
Ground Pressure:	1.13 kg/cm²
	Length	Width	Height
Vehicle:	10.41 m	3.56 m	3.12 m
Ground Clearance:	52.8 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
First Pilot, Second Pilot Early
2 x	Q.F. Hotchkiss 6-pr. 6-cwt. Mk. II (208)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	20 rpm
7 x	.303-in Hotchkiss Mk. I (21,000)	Large Ballports, Manual, -/+???° @ 60°/s	Manual, -??°/+??° @ 60°/s	450 rpm
		Small Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	450 rpm
Second Pilot Late
2 x	Q.F. Hotchkiss 6-pr. 6-cwt. Mk. II (208)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	20 rpm
7 x	7.62-mm M1917 (21,000)	Large Ballports, Manual, -/+???° @ 60°/s	Manual, -??°/+??° @ 60°/s	450 rpm
		Small Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	450 rpm
Production
2 x	Q.F. Hotchkiss 6-pr. 6-cwt. Mk. II (208)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	20 rpm
5 x	7.62-mm M1919 (15,100)	Large Ballports, Manual, -/+???° @ 60°/s	Manual, -??°/+??° @ 60°/s	500 rpm
		Small Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	500 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
6-pr. 6-cwt. Gun
	Q.F., 6-pr., M.D., Steel Shell, Mk. XIII	SAPHE	2.7 kg/15 g Lyddite, 37 mm @ 411 m/s
	Q.F., 6-pr., M.D., Common Shell, Mk. III	HE	2.7 kg/160 g TNT, 5 mm @ 411 m/s

Devices
# of - Name	Type	Effect, Location/for
2 x - Telescope 15 Mk. I	Sight	2-3.5x zoom, for 6-pr. 6-cwt.

Protection
Location	Thickness	Type
Frontwards
Lower frontal glacis	12 mm @ ??°	RHA
Lowest frontal glacis	16 mm @ ??°	RHA
Upper frontal glacis	12 mm @ ??°	RHA
Towers front	16 mm @ 0°	RHA
Driver’s turret	10 mm @ ??°	RHA
Sponson front	16 mm @ ??°	RHA
Sidewards
All side	12 mm @ 0°	RHA
Tower side	16 mm @ 0°	RHA
Wing-skirting plates	10 mm @ 0°	RHA
Sponson lower side	12 mm @ ??°	RHA
Rearwards
All rear	12 mm @ 0°	RHA
Tower rear	12 mm @ ??°	RHA
Gasoline rear	16 mm @ ??°	RHA
Upwards
Roof	6 mm @ 90°	RHA
Gasoline roof	10 mm @ ??°	RHA
Downwards
Floor	6 mm @ 90°	RHA
Sponson floor	8 mm @ 90°	RHA
Inwards
Engine wall	12 mm	RHA

Crew
10	Total
1	Commander, Machine Gunner, Machine Gun Loader
1	Driver
1	Mechanic
2	Gunners
2	Gun Loaders
3	Machine Gunners, Machine Gun Loaders

Automotive
Fuel Capacity:	908 l
Engine(s):	1 x - Liberty 12
	Type:	Gasoline
	Horsepower:	221 kW
	@ RPM	1,400
	Cylinder:	12
	Capacity:	27 l
		Foward	Reverse
Transmission:	Epicyclic 2-speed	2	2
Steering:	Epicyclic clutch-break
Brakes:	Mechanical

Suspension
Type:	None
Road wheels:	29
	Type:	Rigid spaced (14), non-spaced (15)
	Idlers:	Adjustable front track
Return rollers:	1
	Type:	Top track
Drive Sprockets:	2
	Type:	35-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	78
	Length:	??? cm
	Width:	67.31 cm
	Pitch:	28.33 cm
	Depth:	??? cm
Ground Contact:	2.59 m

Mobility
Maximum Forward Speed:	7.7 km/h
Maximum Reverse Speed:	1.4 km/h
Power-to-Weight Ratio:	5.7 kW/t
Maximum Grade:	40°
Maximum Trench:	4.88 m
Maximum Wall:	1.4 m
Maximum Fording:	86 cm
Minimum Turning Diameter:	12.3 m
Cruising Range:	64 km
	Mileage:	1,418 l/100 km

Summary
The Mark VIII was a collaborative effort between the United Kingdom, the United States, and the France in an effort to create a new “international” heavy tank for the planned 1919 offensive. However, the end of the war meant that this never occurred. As a result, the French Mark VIII factory ultimately produced no tanks, the British factories ultimately only produced 25 out of an original order of 1,450 due to their production no longer being necessary, and, like the M1917, American production lagged far behind and would only begin nearly a full half a year after the end of the war. Ultimately, an American Mark VIII wouldn’t be completed until 1920 with 100 being produced by the end of the year. The American version differed from the British version in a number of ways, including: the elimination of the sidewall tower machine guns, the usage of the 7.62-mm M1919 in place of the .303-in Hotchkiss Mk. I, the installation of a semaphore mast, a bullet deflector plate on the rear of the tank, and a canvas cover over stored tanks.

They would see service until 1932 as America’s only in-service heavy tank until the later part of the Second World War.

Variants & Changes:

• November 1918: first mild steel pilot with seven .303-in Hotchkiss machine guns and a faulty exhaust system
• March 1919: second mild steel pilot with a semaphore and seven .303-in Hotchkiss machine guns
  • May 1919: .303-in Hotchkiss machine guns replaced by 7.62-mm M1917 machine guns
• 1919~: sidewall machine guns removed in production models
• 1925: strobe vision dome installed on one tank, reverted the same year
• 1932: air-cooling system for engine installed on one tank

Variant Images

First mild steel pilot.

Second mild steel pilot, with .303-in Hotchkiss.

Second mild steel pilot, with 7.62-mm M1917.

Strobe vision dome.

Air-cooling system for Liberty engine, red is the grille and blue is the enlarged fan.

---

---

ANTI-AIRCRAFT VEHICLES

---

---

Balloon Destroyer

General
Name(s):	Balloon Destroyer
Type:	Self-propelled anti-balloon gun
Status:	Prototype
Derived From:	Cadillac
Derivatives:	None
Produced:	2	Production Date:	1910
Producer(s):	United States	2	1910
	Davidson & Northwestern Military Academy	2	1910
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
2 x	7.62-mm M1895 (???)	Turret, Manual, -/+???° @ ??°/s	Manual, -??°/+??° @ ??°/s	450 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
Converted
7.62 mm Gun
	???

Devices
# of - Name	Type	Effect, Location/for
??? x - iron sight	Sight	???x zoom, for 7.62-mm M1895

Protection
Location	Thickness	Type
All	None	N/A

Crew
4	Total
1	Commander, Machine Gunner
1	Driver, Machine Gun Loader
1	Machine Gunner
1	Machine Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Cadillac
	Type:	Gasoline
	Horsepower:	??? kW
	@ RPM	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	???
	Type:	???
	Steering:	???

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
Davidson was a prolific inventor of unarmored and armored combat vehicles during the 1910s and 1920s. He is responsible for works such as the Machine Gun Car, an earlier creation based on the same Cadillac that the Balloon Destroyer is built off of, and his later Armored Car. The Balloon Destroyer, as the name suggests, was meant to take down observation balloons with its high-angle machine guns. This did not see any success beyond the two prototypes constructed, albeit two Radio-Machine Gun Cars would be made to accompany them the following year.

Variants & Changes:

None

---

---

[Wiggly_Armed_Man]

Jump to Main Post

Germany
German Reich [Empire] (1871-1918) - [Weimar] German Reich (1918-1933) - [Third] German Reich (1933-1945)
± Austro-Hungarian Monarchy [Subtree]

German Vehicles

---

---

ARMORED CARS

---

---

Minerva

General
Name(s):	Panzerwagen Minerva (Beute) (Pzw. Minerva (Beute))
Type:	Armored car
Status:	Captured
Derived From:	Minerva 16CV
Derivatives:	None
Produced:	30~	Production Date:	1914
Producer(s):	Kingdom of Belgium	30	1914
	Cockerill-Sambre	30~	1914
Used:	3	Service Date:	1914-6/1919
User(s):	Duetches Heer (German Army)	1914-11/1918
	Freikorps (Free Corps)	12/1918-6/1919

Full User(s) List

–	Unit	Date	Status
User(s):	Duetches Heer (German Army)
	???
	Freikorps (Free Corps)
	Kommando der Kampfwagen (Kokampf)	12/1918-6/1919	Disbanded

Dimensions
Weight:	4.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	4.9 m	1.75 m	2.3 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
Original
1 x	8 Hotchkiss mle 1909 (???)	Turret, Manual, -/+360° @ ??°/s	Manual, -??°/+??° @ ??°/s	400 rpm
Converted
1 x	2cm Becker K. M2 (300~)	Turret, Manual, 360° @ ??°/s	Manual, -??°/+??° @ ??°/s	325 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
Converted
20 mm Gun
	2cm Pz. Gß. L’Spur. M2	AP-T	0.145 kg, 18 mm @ 490 m/s
	2cm Pz. Gß. L’Spur. M1	AP-T	0.145 kg, 18 mm @ 490 m/s
	2cm Sp. Gß. M2	HE	0.137 kg/5 g TNT, 1 mm @ 495 m/s
	2cm Sp. Gß. M1	HE	0.137 kg/5.5 g TNT+0.5 g Pieretic, 1 mm @ 495 m/s
	2cm L’Spur. Br. Gß.	I-T	0.144 kg/11 g Shellac, 14 mm @ 490 m/s
	2cm Br. Gß.	I	0.137 kg/12 g Incendiary, 13 mm @ 490 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - iron sight	Sight	1x zoom, for 2cm Becker

Protection
Location	Thickness	Type
???	4 mm @ ??°	RHA

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Minerva
	Type:	Gasoline
	Horsepower:	30 kW
	@ RPM	2,500
	Cylinder:	4
	Capacity:	8 l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	Leaf spring
Road wheels:	4x2
	Type:	Spoke
	Steering:	Front wheels

Mobility
Maximum Forward Speed:	40.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	7.5 kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	150 km
	Mileage:	??? l/100 km

Summary
The Minerva were the first deployed armored cars of the First World War and among the first to be captured by German forces during their invasion of Belgium in the opening stages of it. Three were captured, which would later be used during the invasion of Romania in 1916, and at least one would survive up until 1919 when it formed a part of the “Kokampf” Friekorps during the German Revolution. It was later turned over to Entente forces due to the restrictions of the Treaty of Versailles.

Variants & Changes:

• 1914-1916: captured Minerva converted to use a 2cm Becker K. M2 in place of the 8 Hotchkiss mle 1909

---

---

Packard

General
Name(s):	Panzerwagen Packard (Beute) (Pzw. Packard (Beute))
Type:	Armored car
Status:	Captured
Derived From:	Packard 3 t
Derivatives:	None
Produced:	2	Production Date:	1914-3/1915
Producer(s):	Russian Empire	2	1914-3/1915
	Izhorskij Zavod	2	1914-3/1915
Used:	2	Service Date:	1918-6/1919
User(s):	Duetches Heer (German Army)	1918-11/1918
	Freikorps (Free Corps)	12/1918-6/1919

Full User(s) List

–	Unit	Date	Status
User(s):	Duetches Heer (German Army)
	???
	Freikorps (Free Corps)
	Kommando der Kampfwagen (Kokampf)	12/1918-6/1919	Disbanded

Dimensions
Weight:	5.76 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
Original
1 x	37-mm Maxim-Nordenfelt (1,200)	Turret, Manual, -/+300° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	300 rpm
1 x	7,62-mm PM obr. 1910 g. (8,000)	Moveable, Manual, -/+360° @ 60°/s	Manual, -10°/+70° @ 60°/s	600 rpm
Converted
1 x	2cm Becker K. M2 (2,400)	Turret, Manual, -/+300° @ ??°	Mechanical, -??°/+??° @ ??°/s	325 rpm
3 x	M. G. 08 (???)	Front Turret, Manual, ???° @ 60°/s	Manual, -??°/+??° @ 60°/s	500 rpm
		Right Pintle, Manual, ???° @ 60°/s	Manual, -??°/+??° @ 60°/s	500 rpm
		Rear Pintle, Manual, ???° @ 60°/s	Manual, -??°/+??° @ 60°/s	500 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
Original
37 mm Gun
	3,7cm L’Spur.-Gr. L/2,5 (St.)	AP-T	0.465 kg, 26 mm @ 550 m/s
	3,7cm Sprg. L/2,5 (Kz.)	HE/-BF	0.47 kg/42 g Pieretic, 7/16 mm @ 550 m/s
Converted
20 mm Gun
	2cm Pz. Gß. L’Spur. M2	AP-T	0.145 kg, 18 mm @ 490 m/s
	2cm Pz. Gß. L’Spur. M1	AP-T	0.145 kg, 18 mm @ 490 m/s
	2cm Sp. Gß. M2	HE	0.137 kg/5 g TNT, 1 mm @ 495 m/s
	2cm Sp. Gß. M1	HE	0.137 kg/5.5 g TNT+0.5 g Pieretic, 1 mm @ 495 m/s
	2cm L’Spur. Br. Gß.	I-T	0.144 kg/11 g Shellac, 14 mm @ 490 m/s
	2cm Br. Gß.	I	0.137 kg/12 g Incendiary, 13 mm @ 490 m/s

Devices
# of - Name	Type	Effect, Location/for
Original
1 x - ???	Sight	??x zoom, for 37-mm Maxim-Nordenfelt
Converted
1 x - iron sight	Sight	1x zoom, for 2cm Becker

Protection
Location	Thickness	Type
Frontwards
All front	5 mm @ ??°	Chrome-nickel
Sidewards
All side	4 mm @ ??°	Chrome-nickel
Turret side	5 mm @ ??°	Chrome-nickel
Rearwards
All rear	4 mm @ ??°	Chrome-nickel
Turret rear	5 mm @ ??°	Chrome-nickel
Upwards
Roof	4 mm @ ??°	Chrome-nickel

Crew
7	Original
1	Commander
1	Driver
1	Gunner
2	Gun Loader
1	Machine Gunners
1	Machine Gun Loader
10	Converted
1	Commander
1	Driver
1	Gunner
2	Gun Loader
2	Machine Gunners
2	Machine Gun Loader
1	Machine Gunner, Machine Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Packard
	Type:	Gasoline
	Horsepower:	24 kW
	@ RPM	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	Leaf spring
Road wheels:	4x2
	Type:	Solid
	Steering:	Front wheels

Mobility
Maximum Forward Speed:	50.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	4.1 kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
In response to the effectiveness of cannon armored cars in 1914, further cannon armored cars were ordered. One model selected were based on Packard trucks and completed by 1915. Due to the chaos of the Russian Revolution and proceeding Civil War, both of the two built armored cars were captured and converted to be 2cm gun carriers. As a part of the “Kokampf,” they were deployed in Berlin during the German Revolution and later turned over to Entente forces due to the restrictions of the Treaty of Versailles.

Variants & Changes:

• 1918: captured Packard converted to use a 2cm Becker K. M2 in place of the 37-mm Maxim-Nordenfelt, and three M. G. 08 in place of the single 7,62-mm PM-10

Variant Images

Before modification upon capture.

After modification in 1918.

---

---

Pierce-Arrow

General
Name(s):	Panzerwagen Pierce-Arrow (Beute) (Pzw. Pierce-Arrow (Beute))
Type:	Armored car
Status:	Produced
Derived From:	Pierce-Arrow 5 t
Derivatives:	None
Produced:	2	Production Date:	1916
Producer(s):	Russian Empire	2	1916
	Izhorskij Zavod	2	1916
Used:	2	Service Date:	1918-1919
User(s):	Duetches Heer (German Army)	1918
	Freikorps (Free Corps)	12/1918-6/1919

Full User(s) List

–	Unit	Date	Status
User(s):	Duetches Heer (German Army)
	???
	Freikorps (Free Corps)
	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
Original
1 x	76.2-mm obr. 1904 g. (???)	Turret, Mechanical, -/+???° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	6 rpm
2 x	7,62-mm PM obr. 1910 g. (???)	Sponsons, Mechanical, -/+???° @ ??°/s	Manual, -??°/+??° @ 60°/s	600 rpm
Converted
1 x	76.2-mm obr. 1904 g. (???)	Turret, Mechanical, -/+???° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	6 rpm
2 x	M. G. 08 (???)	Sponsons, Mechanical, -/+???° @ ??°/s	Manual, -??°/+??° @ 60°/s	600 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
76.2 mm Gun
	Grenade 76,2-mm	HE	6.4 kg/785 g TNT, 24 mm @ 290 m/s
	Shrapnel 76,2-mm	Sh	6.5 kg/85 g TNT, ??? mm @ 290 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for 76.2-mm obr. 1904 g.

Protection
Location	Thickness	Type
Frontwards
All front	4.5 mm @ ??°	RHA
Sidewards
All side	4.5 mm @ ??°	RHA
Rearwards
All rear[/u]	4.5 mm @ ??°	RHA
Upwards[/u]
Roof	4.5 mm @ ??°	RHA

Crew
6[/u]	Total
1	Commander
1	Driver
1	Gunner
2	Gun Loaders
2	Machine Gunners, Machine Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	??? kW
	@ RPM:	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	Leaf spring
Road wheels:	4x2
	Type:	Solid
	Steering:	Front wheels

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
A single Pierce-Arrow was captured from the Russians in 1918. After being repaired, it saw service in the rear areas before being deployed in Berlin as a part of the Freikorps during the German revolution. It was presumably turned over to the Entente after the Treaty of Versailles.

Variants & Changes:

None

---

---

Garford

General
Name(s):	Panzerwagen Garford (Beute) (Pzw. Garford (Beute))
Type:	Armored car
Status:	Captured
Derived From:	Garford HtK 68
Derivatives:	None
Produced:	30	Production Date:	3/1915-28/9/1915
Producer(s):	Russian Empire	30	3/1915-28/9/1915
	Putilovskij Zavod	30	3/1915-28/9/1915
Used:	3	Service Date:	1916/1918-1919
User(s):	Duetches Heer (German Army)	1916/1918-11/1918
	Freikorps (Free Corps)	12/1918-6/1919

Full User(s) List

–	Unit	Date	Status
User(s):	Duetches Heer (German Army)
	???
	Freikorps (Free Corps)
	Kommando der Kampfwagen (Kokampf)	12/1918-6/1919	Disbanded

Dimensions
Weight:	8.6 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	5.7 m	2.3 m	2.8 m
Ground Clearance:	30 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
Original
1 x	76,2-mm obr. 1910 g. (44)	Turret, Mechanical, -/+260° @ 12.8°/s	Mechanical, -5°/+15° @ 3.2°/s	15 rpm
3 x	7,62-mm PM obr. 1910 g. (6,000)	Coaxial, Manual, -/+5° @ 60°/s	Manual, -5°/+15° @ 60°/s	600 rpm
		Sponsons, Manual, -/+81° @ 60°/s	Manual, -4°/+10° @ 60°/s	600 rpm
Converted
1 x	76,2-mm obr. 1910 g. (44)	Turret, Mechanical, -/+260° @ 12.8°/s	Mechanical, -5°/+15° @ 3.2°/s	15 rpm
3 x	M. G. 08 (6,000)	Coaxial, Manual, -/+5° @ 60°/s	Manual, -5°/+15° @ 60°/s	500 rpm
		Sponsons, Manual, -/+81° @ 60°/s	Manual, -4°/+10° @ 60°/s	500 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
76.2 mm Gun
	Grenade 76,2-mm	HE	6.4 kg/785 g TNT, 24 mm @ 381 m/s
	Shrapnel 76,2-mm	Sh	6.5 kg/85 g TNT, 18 mm @ 381 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	1-3.5x zoom, for 76,2-mm obr. 1910 g.

Protection
Location	Thickness	Type
Frontwards
All front	6.5 mm @ 0°	RHA
Sponson	5 mm @ 0°	RHA
Hood	5 mm @ 61° (LoS 10 mm)	RHA
Exhaust cover	3 mm @ 45° (LoS 4 mm)	RHA
Sidewards
All side	6.5 mm @ 0°	RHA
Sponson	5 mm @ 0°	RHA
Rear upper panel	5 mm @ 45° (LoS 7 mm)	RHA
Rear lower panel	6.5 mm @ 35° (LoS 8 mm)	RHA
Turret side	6.5 mm @ 20° (LoS 7 mm)	RHA
Rearwards
All rear	6.5 mm @ 0°	RHA
Turret front	6.5 mm @ 23° (LoS 7 mm)	RHA
Lower	3 mm @ 0°	RHA
Upwards
Roof	3 mm @ 0°	RHA
Downwards
Floor	3 mm @ 0°	RHA

Crew
8	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader
2	Machine Gunners
2	Machine Gun Loaders

Automotive
Fuel Capacity:	132.4 l
Engine(s):	1 x - Putilov
	Type:	Gasoline
	Horsepower:	22 kW
	@ RPM	2,500
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	Putilov 4-speed	4	4
Steering:	???
Brakes:	???

Suspension
Type:	Leaf spring
Road wheels:	4x2
	Type:	Spoked
	Steering:	Front wheels

Mobility
Maximum Forward Speed:	18.0 km/h
Maximum Reverse Speed:	18.0 km/h
Power-to-Weight Ratio:	2.6 kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	120 km
	Mileage:	??? l/100 km

Summary
Garford-Putilov formed the largest type of armored cars in the Russian Empire. During the last two years of the First World War, Germany captured five of the thirty cars and converted at least three to use M. G. 08. However, they wouldn’t see much action until the German Revolution, where they were used as a part of the “Kokampf” and later turned over to Entente forces due to the restrictions of the Treaty of Versailles.

Variants & Changes:

• 1916-1918: at least three captured Garford converted to use M. G. 08 in place of the 7,62-mm obr. 1918 g.

Variant Images

A modified Garford a part of the Freikorps “Kokampf.”

---

---

Bussing A5P

General
Name(s):	Panzerwagen Bussing A5P (Pzw. Bussing A5P)
Type:	Armored car
Status:	Prototype
Derived From:	None
Derivatives:	None
Produced:	1	Production Date:	1915
Producer(s):	German Empire	1	1915
	Daimler-Motoren-Gesselschuft	40	1915
Used:	40	Service Date:	???
User(s):	Duetches Heer (German Army)	1915-11/1918

Full User(s) List

–	Unit	Date	Status
User(s):	Duetches Heer (German Army)
	???

Dimensions
Weight:	10.25 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	9.5 m	2.1 m	3.5 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	2cm Becker K. M2 (???)	Port*, Manual, ???° @ ??°/s	Manual, -??°/+??° @ ??°/s	325 rpm
2 x	M. G. 08 (16,700)	Port*, Manual, -/+???° @ 60°/s	Manual, -??°/+??° @ 60°/s	500 rpm

*Guns have no fixed positions and can be placed in any of twelve gun ports, including: four in the cylindrical tower with one on each side, two in the front and the rear, and two one each side with one of them located on the doors.

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
20 mm Gun
	2cm Pz. Gß. L’Spur. M2	AP-T	0.145 kg, 18 mm @ 490 m/s
	2cm Pz. Gß. L’Spur. M1	AP-T	0.145 kg, 18 mm @ 490 m/s
	2cm Sp. Gß. M2	HE	0.137 kg/5 g TNT, 1 mm @ 495 m/s
	2cm Sp. Gß. M1	HE	0.137 kg/5.5 g TNT+0.5 g Pieretic, 1 mm @ 495 m/s
	2cm L’Spur. Br. Gß.	I-T	0.144 kg/11 g Shellac, 14 mm @ 490 m/s
	2cm Br. Gß.	I	0.137 kg/12 g Incendiary, 13 mm @ 490 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for 2cm Becker K. M2

Protection
Location	Thickness	Type
Frontwards
All front	7.5 mm @ ??°	Chrome Nickel
Sidewards
All front	5.5 mm @ ??°	Chrome Nickel
Rearwards
All front	7.5 mm @ ??°	Chrome Nickel
Upwards
All front	3.5 mm @ ??°	Chrome Nickel
Downwards
All front	??? mm @ ??°	Chrome Nickel

Crew
10	Total
1	Commander
1	Front Driver
1	Rear Driver
1	Gunner
2	Gun Loaders
2	Machine Gunners
2	Machine Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Bussing typ Otto
	Type:	Gasoline
	Horsepower:	66 kW
	@ RPM	850
	Cylinder:	6
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	4x4
	Type:	???
	Steering:	???

Mobility
Maximum Forward Speed:	35.0 km/h
Maximum Reverse Speed:	35.0 km/h
Power-to-Weight Ratio:	6.5 kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	240 km
	Mileage:	??? l/100 km

Summary
The Bussing A5P was Bussing’s competitor against Ehrhardt’s and Daimler’s design for an armored car, but lost against the Ehrhardt due to its excessive weight. Despite that, it and the Daimler were used throughout the First World War. In 1916, due to the static nature of the western front, the armored car was sent to the Romanian front, but by 1917 was relegated to training duties. During this period the Becker gun was tested and found unsatisfactory. It last saw service in Ukraine before the end of the war, where it then briefly ended up in the hands of the Freikorps before being decommissioned as a part of the Treaty of Versailles.

Variants & Changes:

None

---

---

DZR 19

General
Name(s):	Panzerwagen Daimler Typ 19 (Pzw. DZR 19)
Type:	Armored car
Status:	Production
Derived From:	None
Derivatives:	Panzerwagen Daimler Typ 21 (Pz. Wg. DZVR 21)
Produced:	40	Production Date:	1919
Producer(s):	German Empire	40	1918-1919
	Daimler-Motoren-Gesselschuft	40	1918-1919
Used:	40	Service Date:	???
User(s):	Duetches Heer (German Army)	1918-11/1918
	Freikorps (Free Corps)	1919-6/1919
	Sicherheitspolizei (Security Police)	1919-???
	Reichswehr (Realm Defense)	1919-16/3/1935
	Wehrmacht (Defense Force)	16/3/1935-???

Full User(s) List

–	Unit	Date	Status
User(s):	Duetches Heer (German Army)
	???
	Freikorps (Free Corps)
	Bayerische Schützenbrigade 21	1919-6/1919	Disbanded
	Sicherheitspolizei (Security Police)
	???
	Reichswehr (Realm Defense)
	???
	Wehrmacht (Defense Force)
	???

Dimensions
Weight:	12.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	3,7cm Ta. K. 18 L/21,8 (120~)	Turret, Mechanical, -/+360° @ 25°/s	Mechanical, -??°/+??° @ ??°/s	??? rpm
5 x	M. G. 08 (6,000)	Rear Turret, Manual, -/+???° @ 60°/s	Manual, -??°/+??° @ 60°/s	500 rpm
		Sides, Manual, -/+???° @ 60°/s	Manual, -??°/+??° @ 60°/s	600 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
		3,7cm Pzgr.	APHE-T
		3,7cm L’Spur.-Gr. L/2,5	AP-T
		3,7cm L’Spur.-Gr. L/2,5 (St.)	AP-T
		3,7cm Sprgr. L/2,5 (Kz.) M2	HE-BF
		3,7cm Sprgr. L/2,5 (Kz.) M1	HE

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for 3,7cm Ta. K. 18

Protection
Location	Thickness	Type
All	4-12 mm @ ??°	RHA

Crew
12	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader, Machine Gunner, Machine Gun Loader
4	Machine Gunners
4	Machine Gun Loaders

Automotive
Fuel Capacity:	200 l
Engine(s):	1 x - Mercedes
	Type:	Gasoline
	Horsepower:	75 kW
	@ RPM	1,200
	Cylinder:	6
	Capacity:	??? l
		Foward	Reverse
Transmission:	8-speed	8	2
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	4x4
	Type:	Spoked
	Steering:	All wheels

Mobility
Maximum Forward Speed:	65.0 km/h
Maximum Reverse Speed:	8.5 km/h
Power-to-Weight Ratio:	6.2 kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The DZR 19 was one of the numerous armored cars constructed during the revolutionary period. It first saw service within the Freikorps, up until their abolishment, and then in the Sicherheitspolizei as armored police cars. While not allowed to own them by treaty, they were sometimes loaned to the Reichswehr for usage. They survived up until the 1930s.

Variants & Changes:

None

---

---

LIGHT TANKS

---

---

LK II

General
Name(s):	Leichter Kampfwagen II (L. K. II)
Type:	Light tank
Status:	Production
Derived From:	Leichter Kampfwagen I
Derivatives:	Leichter Kampfwagen III
Produced:	24	Production Date:	7/1918-10/10/1918
Producer(s):	German Empire	24	7/1918-10/10/1918
	Daimler-Motoren-Gesellschaft	24	7/1918-10/10/1918
Used:	1	Service Date:	30/8/1918-9/1918
User(s):	Duetches Heer (German Army)	30/8/1918-9/1918

Full User(s) List

–	Unit	Date	Status
User(s):	Duetches Heer (German Army)
	Schwere Kampfwagen-Abteilung (A7V) Nr. 3	12/1917-11/1918	Disbanded

Dimensions
Weight:	9.7 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	5.7 m	2.05 m	2.52 m
Ground Clearance:	40 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
Prototype
1 x	Belg. 5,7cm K. (300~)	Casemate, Mechanical, -/+???° @ ??°/s	Mechanical, -10°/+15° @ ??°/s	15 rpm
Production
1 x	L. M. G. 08/15 (6,000)	Turret, Mechanical, -/+360° @ ??°/s	Manual, -??°/+??° @ 60°/s	500 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
57 mm Gun
	5,7cm Gr. m. P.	APHE	3.1 kg/120 g Fp. 02, 40 mm @ 487 m/s
	5,7cm Gr.	HE	2.8 kg/160 kg Fp. 02, 6 mm @ 487 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	2-3.5x zoom, for Belg. 5,7cm K.

Protection
Location	Thickness	Type
Frontwards
All front	14 mm @ ???°	RHA
Sidewards
All side	14 mm @ ???°	RHA
Rearwards
All rear	12 mm @ ???°	RHA
Upwards
Roof	8 mm @ ???°	RHA
Downwards
Floor	3 mm @ ???°	RHA
Inwards
Fuel tank cover	8 mm	RHA

Crew
3	Total
1	Commander
1	Driver
1	Gunner, Gun Loader

Automotive
Fuel Capacity:	300 l
Engine(s):	1 x - Daimler-Benz M1910
	Type:	Gasoline
	Horsepower:	45 KW
	@ RPM	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	4-speed	4	??
Steering:	???
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	???/4
	Type:	???
	Idlers:	???
Return rollers:	???
	Type:	???
Drive Sprockets:	2
	Type:	???

Tracks
Type:	Continuous linked steel
	Shoes:	???
	Length:	??? cm
	Width:	25 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	16.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	5.0 kW/t
Maximum Grade:	???°
Maximum Trench:	3.04 m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	70 km
	Mileage:	429 l/100 km

Summary
The L. K. II was Germany’s answer to the British Whippet, and also an attempt to solve the issue of their lackluster industrial capability that had been lagging the production of the A7V for over a year by that point. Two vehicles were meant to be made: a “female” machine gun tank and a “male” cannon tank. The first two prototypes were “males,” armed with the 5,7cm cannon found on A7Vs, but due to the intense kickback of the gun it was planned to install a 3,7cm cannon on production tanks. However, all production tanks that were made by the end of the war were “females.” They would never be operationally deployed before the end of the war and would either be scrapped or sold to comply with the Treaty of Versailles.

Variants & Changes:

• Prototype: armed with a 5,7cm gun in a casemate
• Production: armed with a machine gun in a turret

Variant Images

One of two prototypes.

Production vehicle.

---

---

Renault FT

General
Name(s):	Panzerkampfwagen 18R 730 (f) (Pz. Kpfw. 18R 730 (f))
Type:	Light tank
Status:	Captured
Derived From:	None
Derivatives:	None
Produced:	3,728 (all models)	Production Date:	7/1917-10/10/1918
Producer(s):	French Republic	3,728	7/1917-10/10/1918
	Renault S.A	1,850~	???
	Berliet	800~	???
	SOMUA	600~	???
	Delaunay-Belleville	280~	???
Used:	???	Service Date:	1940-1945
User(s):	Wehrmacht (Defense Force)	1940-1945

Full User(s) List

–	Unit	Date	Status
User(s):	Wehrmacht (Defense Force)
	???

Dimensions
Weight:	6.7 t
Ground Pressure:	0.5 kg/cm²
	Length	Width	Height
Vehicle:	5.0 m	1.74 m	2.14 m
Ground Clearance:	43 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	3,7 cm Kw. K. 144 (f) (233)	Turret, Mechanical, -/+360° @ ??°/s	Mechanical, -2°/+35° @ ??°/s	20 rpm

*German designation for the 37 S.A. mle 1918.

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
37 mm Gun
	OR 37 mle 1892	APHE	0.5 kg/15 g F3, 14 mm @ 388 m/s
	OE 37 mle 1916	HE	0.56 kg/30 g Melinite, 6 mm @ 365 m/s
	OE 37 mle 1888M	HE	0.455 kg/22 g F3, 5 mm @ 402 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ??? telescopic	Sight	??x zoom, for 3,7 cm Kw. K. 144 (f)

Protection
Location	Thickness	Type
Renault
Frontwards
All front	16 mm @ ???°	RHA
Sidewards
All side	16 mm @ ???°	RHA
Rearwards
All rear	16 mm @ ???°	RHA
Upwards
Roof	8 mm @ ???°	RHA
Downwards
Floor	6 mm @ ???°	RHA
Berliet-Girod
Frontwards
All front	16 mm @ ???°	RHA
Turret front	22 mm @ ???°	RHA
Sidewards
All side	16 mm @ ???°	RHA
Turret side	22 mm @ ???°	RHA
Rearwards
All rear	16 mm @ ???°	RHA
Turret rear	22 mm @ ???°	RHA
Upwards
Roof	8 mm @ ???°	RHA
Downwards
Floor	6 mm @ ???°	RHA

Crew
2	Total
1	Commander, Gunner, Gun Loader
1	Driver

Automotive
Fuel Capacity:	95 l
Engine(s):	1 x - Renault
	Type:	Gasoline
	Horsepower:	29 kW
	@ RPM	1,500
	Cylinder:	4
	Capacity:	4.5 l
		Foward	Reverse
Transmission:	Sliding 4-speed	4	1
Steering:	Clutch-break
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	9/4
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	6
	Type:	Rigid spaced
Drive Sprockets:	2
	Type:	15-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	32
	Length:	??? cm
	Width:	34 cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	2 m

Mobility
Maximum Forward Speed:	8.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	4.3 kW/t
Maximum Grade:	26.5°
Maximum Trench:	1.35 m
Maximum Wall:	0.6 m
Maximum Fording:	70 cm
Minimum Turning Diameter:	??? m
Cruising Range:	60 km
	Mileage:	158 l/100 km

Summary
Germany made extensive use of captured vehicles during the Second World War. Even captured Renault FT, which were still in service in France by that time, saw service as training vehicles and rear security vehicles against partisans. Captured Renault and Berliet-Girod turreted tanks were used.

Variants & Changes:

• 1917-1918: Girod-Renault turrets were replaced by Berliet-Girod cylindrical omnibus turrets in Berliet, SOMUA, and Delaunay-Belleville productions. This removed the cheekbones for a smooth face and uparmored to 22 mm thick. This was the most common type used and was produced alongside the Renault turret.
• 1917-1918: Girod-Renault turrets were replaced by Renault riveted omnibus turrets in Renault productions. This can be easily differentiated by the riveting and flat armor plates. This was installed approximately 1,147 tanks and was produced alongside the Berliet-Girod turret.

Variant Images

All three omnibus turrets in order from left to right: Girod-Renault, Renault, and Berliet-Girod.

---

---

MEDIUM TANKS

---

---

Treffas-Wagen

General
Name(s):	Treffas-Wagen
Type:	Wheeled tank
Status:	Prototype
Derived From:	None
Derivatives:	None
Produced:	1	Production Date:	9/1916-2/1917
Producer(s):	German Empire	1	9/1916-2/1917
	Hansa-Lloyd Werke AG	1	9/1916-2/1917
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	18.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	6.0 m	??? m	3.0 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
2 x	T. G. 18 (???)	???, ???, -/+???° @ ??°/s	???, -??°/+??° @ ??°/s	12 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
13 mm Gun
	13mm S.	Ball	??? kg, ??? mm @ ??? m/s
	13mm S. m. K.	AP	0.515 kg, 27 mm @ 785 m/s
	13mm P. m. K.	API	??? kg/??? g, ??? mm @ ??? m/s

Devices
# of - Name	Type	Effect, Location/for
2 x - ???	Sight	??x zoom, for T. G. 18

Protection
Location	Thickness	Type
All	??? @ ??°	???

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	???
	Type:	???
	Horsepower:	??? kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	???	???
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	3x1
	Type:	Solid
	Steering:	Rear uni

Mobility
Maximum Forward Speed:	10.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The Treffas-Wagen was one of Germany’s first attempts at creating a tank. It was developed and constructed by Hansa-Lloyd at the direction of the OHL, and having no experience in creating even an armored fighting vehicle and much less a tank, the wildly unconventional, even for the time, Treffas-Wagen was the model produced. However, after being tested against the mockup A7V, it was decided to cancel the project entirely due to it being a clearly insufficient model, and it was consequently scrapped by October of 1918.

Variants & Changes:

None

---

---

HEAVY TANKS

---

---

Mark IV

General
Name(s):	Sturmkampfwagen (Beute) (St. Kw. (Beute))	1/1918-8/1918
	schwerer Kampfwagen (Beute) (s. Kw. (Beute))	8/1918-
Type:	Heavy tank
Status:	Captured
Derived From:	Tank, Mark III
Derivatives:	Tank, Mark V
Produced:	1,220 [Females & Males]	Production Date:	3/1917-10/1918
Producer(s):	United Kingdom	1,220	3/1917-10/1918
	Metropolitan Carriage Wagon & Finance Co	820	???
	William Foster & Co.	100	???
	Sir W G Armstrong Whitworth Co. Ltd.	100	???
	Coventry Ordnance Works Ltd.	100	???
	Mirlees Watson Co.	50	???
	William Beardmore Co.	50	???
Used:	40~ [Females & Males]	Service Date:	1/1918-6/1919
User(s):	Duetches Heer (German Army)	1/1918-11/1918
	Freikorps (Free Corps)	12/1918-6/1919

Full User(s) List

–	Unit	Date	Status
User(s):	Duetches Heer (German Army)
	Kraftfahr-Ersatzabteilung Nr. 1	???	Disbanded
	Sturm-Panzer-Kraftwagen-Abteilung Nr. 12	8/3/1918-2/10/1918	↓Renamed↓
	Schwere Kampfwagen-Abteilung (Beute) Nr. 11	10/1918-11/1918	Disbanded
	Sturm-Panzer-Kraftwagen-Abteilung Nr. 12	13/3/1918-2/10/1918	↓Renamed↓
	Schwere Kampfwagen-Abteilung (Beute) Nr. 12	2/10/1918-11/1918	Disbanded
	Sturm-Panzer-Kraftwagen-Abteilung Nr. 13	5/2/1918-2/10/1918	↓Renamed↓
	Schwere Kampfwagen-Abteilung bayer. Nr. 13	2/10/1918-11/1918	Disbanded
	Sturm-Panzer-Kraftwagen-Abteilung Nr. 14	7/5/1918-2/10/1918	↓Renamed↓
	Schwere Kampfwagen-Abteilung (Beute) Nr. 14	2/10/1918-11/1918	Disbanded
	Sturm-Panzer-Kraftwagen-Abteilung Nr. 15	8/1918-2/10/1918	↓Renamed↓
	Schwere Kampfwagen-Abteilung (Beute) Nr. 15	2/10/1918-11/1918	Disbanded
	Sturm-Panzer-Kraftwagen-Abteilung Nr. 16	8/1918-2/10/1918	↓Renamed↓
	Schwere Kampfwagen-Abteilung (Beute) Nr. 16	2/10/1918-11/1918	Disbanded
	Bayerischer Armee-Kraftwagen-Park Nr. 20	1/1918-11/1918	Disbanded
	Freikorps (Free Corps)
	Freiwillinge Landjägerkorps	14/12/1918-6/1919	Merged

Dimensions
Weight:	28.0 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	8.05 m	4.12 m	2.49 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
Converted Female*
2 x	T. G. 18 (???)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Manual, -6°/+12° @ 60°/s	12 rpm
3 x	M. G. 08 (???)	Fore Ballport, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	500 rpm
		Sponsons, Mechanical, -/+105° @ 60°/s	Manual, -10°/+10° @ 60°/s	500 rpm
Male
2 x	Q.F., Hotchkiss, 6-pr. 6-cwt., Mk. I/II (282)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	20 rpm
3 x	.303-in Lewis Mk. I (4,500)	Fore Ballport, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	600 rpm
		Side Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	600 rpm
Converted Male #1**
2 x	Belg. 5,7cm K. (282)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	15 rpm
3 x	M. G. 08 (4,500)	Fore Ballport, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	500 rpm
		Side Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	500 rpm
Converted Male #2***
2 x	Belg. 5,7cm K. (282)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	15 rpm
3 x	.303-in Lewis Mk. I (4,500)	Fore Ballport, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	600 rpm
		Side Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	600 rpm
Converted Male #3****
2 x	Belg. 5,7cm K. (282)	Sponsons, Mechanical, -/+52.5° @ 15°/s	Mechanical, -6°/+12° @ 4°/s	15 rpm
1 x	T. G. 18 (???)	Fore Ballport, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	12 rpm
2 x	M. G. 08 (3,000)	Side Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	500 rpm

*No photo evidence, but British after-action reports claimed a converted female with T. G. 18 in forward sponsons.
**Most common alteration.
***Some kept the Lewis machine due to existing German captured stocks.
****Few installed a T. G. 18 in place of the forward machine gun.

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
6-pr. 6-cwt. Gun
	Q.F., 6-pr., M.D., Steel Shell, Mk. XIII	SAPHE	2.7 kg/15 g Lyddite, 37 mm @ 411 m/s
	Q.F., 6-pr., M.D., Common Shell, Mk. III	HE	2.7 kg/160 g TNT, 5 mm @ 411 m/s
57 mm Gun
	5,7cm Gr. m. P.	APHE	3.1 kg/120 g Fp. 02, 40 mm @ 487 m/s
	5,7cm Gr.	HE	2.8 kg/160 kg Fp. 02, 6 mm @ 487 m/s
13 mm Gun
	13mm S.	Ball	??? kg, ??? mm @ ??? m/s
	13mm S. m. K.	AP	0.515 kg, 27 mm @ 785 m/s
	13mm P. m. K.	API	??? kg/??? g, ??? mm @ ??? m/s

Devices
# of - Name	Type	Effect, Location/for
Converted Female
2 x - ???	Sight	??x zoom, for T. G. 18
Male
2 x - ???	Sight	2-3.5x zoom, for 6-pr. 6-cwt.
Converted Male #1/2
2 x - ???	Sight	2-3.5x zoom, for Belg. 5,7cm K.
Converted Male #3
2 x - ???	Sight	2-3.5x zoom, for Belg. 5,7cm K.
1 x - ???	Sight	??x zoom, for T. G. 18

Protection
Location	Thickness	Type
Frontwards
Lower frontal glacis	16 mm @ 61° (LoS 33 mm)	RHA
Lowest frontal glacis	16 mm @ 69° (LoS 45 mm)	RHA
Upper frontal glacis	16 mm @ 44° (LoS 22 mm)	RHA
Tower front	16 mm @ 0°	RHA
Sponson front	16 mm @ 30° (LoS 18 mm)	RHA
Sidewards
All side	12 mm @ 0°	RHA
Sponson lower side	12 mm @ 38° (LoS 15 mm)	RHA
Exhaust side	12 mm @ 34° (LoS 14 mm)	RHA
Rearwards
All rear	12 mm @ 0°	RHA
Tower rear	12 mm @ 34° (LoS 14 mm)	RHA
Sponson rear	12 mm @ 15° (LoS 12 mm)	RHA
Exhaust rear	12 mm @ 28° (LoS 14 mm)	RHA
Rear cover	12 mm @ 26° (LoS 13 mm)	RHA
Upwards
Roof	8 mm @ 0°	RHA
Front roof	8 mm @ 82°	RHA
Exhaust roof	8 mm @ 74°	RHA
Upper rear roof	8 mm @ 82°	RHA
Lower rear roof	12 mm @ 73°	RHA
Downwards
Floor	6 mm @ 0°	RHA
Inwards
Inner track-sponson	12 mm	RHA
Sponson stowage	12 mm	RHA
Engine wall	12 mm	RHA
Transmission cover	12 mm	RHA

Crew
7	Converted Female
1	Commander, Assistant Driver
1	Driver, Front Machine Gunner & Loader
1	Mechanic
2	Sponson Anti-Tank Riflemen
2	Sponson Anti-Tank Rifle Loaders, Side Machine Gunners & Loaders
7	Male & Converted Male #1/2
1	Commander, Assistant Driver
1	Driver, Front Machine Gunner & Loader
1	Mechanic
2	Sponson Gunners
2	Sponson Gun Loaders, Side Machine Gunners & Loaders
7	Converted Male #3
1	Commander, Assistant Driver
1	Driver, Front Anti-Tank Rifleman & Loader
1	Mechanic
2	Sponson Gunners
2	Sponson Gun Loaders, Side Machine Gunners & Loaders

Automotive
Fuel Capacity:	265 l
Engine(s):	1 x - Daimler-Foster
	Type:	Gasoline
	Horsepower:	78 kW
	@ RPM	1,000
	Cylinder:	6
	Capacity:	16 l
		Foward	Reverse
Transmission:	3-speed	2	1
Steering:	Clutch-brake
Brakes:	Mechanical

Suspension
Type:	None
Road wheels:	26
	Type:	Rigid non-spaced
	Idlers:	Adjustable front track
Return rollers:	10
	Type:	Top track
Drive Sprockets:	2
	Type:	30-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	90
	Length:	22.23 cm
	Width:	52.07 cm
	Pitch:	19.05 cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	6.1 km/h
Maximum Reverse Speed:	1.2 km/h
Power-to-Weight Ratio:	2.8 kW/t
Maximum Grade:	??°
Maximum Trench:	3.5 m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	56 km
	Mileage:	590 l/100 km

Summary
Mark IV tanks were first encountered by Germany on the 7th of June, 1917, when they were deployed on an assault on Messines Ridge. However, the battle of Cambrai is when they first managed to capture some examples of the tank. It wouldn’t be until nearing the end of the year that they would be repaired by the Bayer. Armee-Kraftwagen-Park Nr. 20, where they would then first be deployed with German units starting from February of 1918; but, operational use of them wouldn’t start until months afterwards. They formed the bulk of the German tank force due to the insufficient production of A7Vs and were rearmed, at the very least with the cannons replaced by German cannons, but otherwise unchanged.

Two females would even see service as far as the German Revolution of 1919, where they a part of the Freiwillinge Landjägerkorps. They remained the last tanks in German control before the Treaty of Versailles banned them from having tanks.

Variants & Changes:

• 1917-1918: captured Mark IV rearmed with two Belg. 5,7cm K., and in various other secondary armament configurations

Variant Images

Mark IV undergoing modification at the Bayer. Armee-Kraftwagen-Park Nr. 20.

Colorized photograph of a modified Beutepanzer.

---

---

A7V

General
Name(s):	Sturmkampfwagen A7V (St. Kw. A7V)	9/1917-8/1918
	schwerer Kampfwagen A7V (s. Kw. A7V)	8/1918-
Type:	Heavy tank
Status:	Production
Derived From:	None
Derivatives:	schwerer Kampfwagen A7V-U
Produced:	20	Production Date:	9/1917-1918
Producer(s):	German Empire	20	9/1917-1918
	Daimler-Motoren-Gesellschaft	20	9/1917-1918
Used:	20	Service Date:	10/1917-11/1918
User(s):	Duetches Heer (German Army)	10/1917-11/1918

Full User(s) List

–	Unit	Date	Status
User(s):	Duetches Heer (German Army)
	Sturm-Panzer-Kraftwagen-Abteilung Nr. 1	29/9/1917-2/10/1918	↓Renamed↓
	Schwere Kampfwagen-Abteilung (A7V) Nr. 1	10/1918-11/1918	Disbanded
	Sturm-Panzer-Kraftwagen-Abteilung Nr. 2	29/9/1917-31/8/1918	↑Merged↑
	Sturm-Panzer-Kraftwagen-Abteilung Nr. 3	5/2/1918-2/10/1918	↓Renamed↓
	Schwere Kampfwagen-Abteilung (A7V) Nr. 3	12/1917-11/1918	Disbanded

Dimensions
Weight:	30.0 t
Ground Pressure:	0.69 kg/cm²
	Length	Width	Height
Vehicle:	8.0 m	3.05 m	3.4 m
Ground Clearance:	19-40 cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Belg. 5,7cm K. (180)	Casemate, Mechanical, -/+45° @ 15°/s	Mechanical, -20°/+20° @ 4°/s	15 rpm
3 x	M. G. 08 (30,000)	Ballports, Manual, -/+45° @ 60°/s	Manual, -10°/+10° @ 60°/s	500 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
57 mm Gun
	5,7cm Gr. m. P.	APHE	3.1 kg/120 g Fp. 02, 40 mm @ 487 m/s
	5,7cm Gr.	HE	2.8 kg/160 kg Fp. 02, 6 mm @ 487 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	2-3.5x zoom, for Belg. 5,7cm K.

Protection
Location	Thickness	Type
Frontwards
Upper front glacis	30 mm @ 25° (LoS 33 mm)	RHA
Lower frontal glacis	30 mm @ 48° (LoS 45 mm)	RHA
Tower front	15 mm @ 18° (LoS 16 mm)	RHA
Gun mantlet	30 mm @ 0-50°	CHA
Front viewports	20 mm @ 25° (LoS 22 mm)	RHA
Sidewards
All side	20 mm @ 12°	RHA
Tower side	15 mm @ 12°	RHA
Lower side hatches	15 mm @ 12°	RHA
Lower side covers	15 mm @ 0-12°	Unhardened
Rearwards
All rear	15 mm @ 25°	RHA
Lower rear glacis	15 mm @ 45° (LoS 21 mm)	RHA
Tower rear	15 mm @ 18° (LoS 16 mm)	RHA
Machine gun ports	20 mm @ 25° (LoS 22 mm)	RHA
Upwards
Roof	10 mm @ 82°	RHA
Center-tower roof	10 mm @ 0°	RHA
Grille	15 mm @ 82°	RHA
Upper rear roof	8 mm @ 82°	RHA
Lower rear roof	12 mm @ 73°	RHA
Downwards
Floor	20 mm @ 0°	Unhardened
Inwards
Fuel tank cover	10 mm	RHA
Ammunition stowage	5 mm	Unhardened
Engine wall	5 mm	Unhardened

Crew
18	Total
1	Commander
1	Driver, Mechanic
1	Mechanic, Signalman
1	Mechanic
1	Gunner
1	Gun Loader
6	Machine Gunners
6	Machine Gun Loaders

Automotive
Fuel Capacity:	500 l
Engine(s):	2 x - Daimler 165-204 Typ 75 Kw.
	Type:	Gasoline
	Horsepower (Total):	75 (149) kW
	@ RPM	???
	Cylinder:	4
	Capacity:	17 l
		Foward	Reverse
Transmission:	Adler 3-speed	3	3
Steering:	???
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	24/6
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	0
	Type:	N/A
Drive Sprockets:	2
	Type:	19-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	???
	Length:	??? cm
	Width:	??? cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	12.1 km/h
Maximum Reverse Speed:	6.3 km/h
Power-to-Weight Ratio:	5.0 kW/t
Maximum Grade:	43°
Maximum Trench:	2.2 m
Maximum Wall:	0.45 m
Maximum Fording:	70 cm
Minimum Turning Diameter:	??? m
Cruising Range:	80 km
	Mileage:	??? l/100 km

Summary
A7V was Germany’s first domestic tank and only (production) domestic tank during the First World War. Despite British tanks appearing en masse in 1916, design on a domestic German tank didn’t begin until 1917 when it became apparent that tanks were becoming a staple of the modern battlefield despite Germany’s numerous anti-tank weapons. Thus, the first A7V was only produced near the end of 1917, and it wouldn’t be until nearly midway through 1918 that any combat units would be ready to use them in battle. When deployed, they adopted all of the same problems that the first British tanks had: faulty and overworked components, poor visibility, and, despite the on-paper mobility, poor speed and prone to getting stuck within the muddy terrain of the Western Front. Worse yet, the lack of initiative from the OHL and most of the German industries being diverted to other war material left the production of the A7Vs sorely lacking: a mere 20 tanks, alongside the around 40 Beutepanzers, against the literally thousands of Entente tanks produced throughout the war.

Consequently of the three A7V battalions organized by the start of their March offensives, they would be left with only one operational battalion by the end of the war. The last operation of an A7V-derivative, a converted Überlandwagen, took place during the German Revolution of 1919 in the hands of the Freikorps in order to suppress the communist uprisings. It was also the last tank, alongside two female Beutepanzer, to be in German hands before they were forced to turn it over to the Entente due to the Treaty of Versailles.

Variants & Changes:

• A7V-U: See below.

---

---

A7V-U

General
Name(s):	Sturmkampfwagen A7V-U (St. Kw. A7V)	6/1918-8/1918
	schwerer Kampfwagen A7V-U (s. Kw. A7V)	8/1918-
Type:	Heavy tank
Status:	Prototype
Derived From:	A7V
Derivatives:	None
Produced:	1	Production Date:	1918-6/1918
Producer(s):	German Empire	1	1918-6/1918
	Daimler-Motoren-Gesellschaft	1	1918-6/1918
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	39.6 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	8.38 m	3.06 m	3.14 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
2 x	Belg. 5,7cm K. (???)	Sponsons, Mechanical, -/+???° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	15 rpm
?? x	L. M. G. 08/15 (???)	???, Manual, -/+???° @ 60°/s	Manual, -??°/+??° @ 60°/s	500 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
57 mm Gun
	5,7cm Gr. m. P.	APHE	3.1 kg/120 g Fp. 02, 40 mm @ 487 m/s
	5,7cm Gr.	HE	2.8 kg/160 kg Fp. 02, 6 mm @ 487 m/s

Devices
# of - Name	Type	Effect, Location/for
2 x - ???	Sight	2-3.5x zoom, for Belg. 5,7cm K.

Protection
Location	Thickness	Type
Frontwards
All front	30 mm @ ??°	RHA
Sidewards
All side	20 mm @ ??°	RHA
Rearwards
All rear	??? mm @ ??°	RHA

Crew
7	Total
7	???

Automotive
Fuel Capacity:	500 l
Engine(s):	2 x - Daimler 165-204 Type 150 Kw.
	Type:	Gasoline
	Horsepower (Total):	112 (224) kW
	@ RPM	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	???
	Type:	???
	Idlers:	???
Return rollers:	???
	Type:	???
Drive Sprockets:	???
	Type:	???

Tracks
Type:	???
	Shoes:	???
	Length:	??? cm
	Width:	??? cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	12.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	5.6 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
Despite the A7V’s on-paper better mobility than contemporary British tanks, it suffered from a lack of mobility over the beaten terrain of the Western Front due to their top-heaviness and track layout. To rectify that, the layout and suspension of the British Marks were copied in spirit and used to create an A7V-based tank based on the British layout. One prototype of this A7V-U was completed and despite some issues, namely its heavier weight, twenty tanks were ordered before the end of the war albeit none would enter production before the end of it.

Variants & Changes:

None

---

---

Großkampfwagen

General
Name(s):	Großkampfwagen (G. K.-Wagen)
Type:	Heavy tank
Status:	Partial Prototype
Derived From:	None
Derivatives:	None
Produced:	0 (2)	Production Date:	6/1917-Uncompleted
Producer(s):	German Empire	0 (2)	6/1917-Uncompleted
	Wegmann & Co.	0 (2)	6/1917-Uncompleted
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	120 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	12.7 m	6.1 m	3.0 m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
4 x	7,7cm F. G. L/27 (800)	Sponsons, Mechanical, -/+???° @ ??°/s	Mechanical, -15°/+30° @ ??°/s	?? rpm
7 x	L. M. G. 08/15 (21,000)	Ballports, Manual, -/+???° @ 60°/s	Manual, -??°/+??° @ 60°/s	500 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
77 mm Gun
	7,7cm K. Gr. 15 m. P.	APHE	6.85 kg/230 g Fp. 02, 52 mm @ 470 m/s
	7,7cm K. Gr. 15 m. P. m. L.	APHE-T	7 kg/230 g Fp. 02, 52 mm @ 465 m/s
	7,7cm K. Gr. 16	HE-TF/SAPHE	6.25 kg/700 g Amatol, 11/33 mm @ 480 m/s
	7,7cm L. F. K. Gr.	HE-TF	7.18 kg/930 g Amatol, ??? mm @ 465 m/s
	7,7cm Kt.	Cn	6.65 kg, 475 m/s
	7,7cm K. Gr. 16 (N.)	Sm	6.25 kg/400 g Fp. 02-100 g Sm Mix, 480 m/s

Devices
# of - Name	Type	Effect, Location/for
4 x - ???	Sight	??x zoom, for 7,7cm F. G.

Protection
Location	Thickness	Type
Frontwards
All front	40 mm @ ??°	RHA
Sidewards
All side	30 mm @ ??°	RHA
Rearwards
All rear	20 mm @ ??°	RHA
Upwards
Roof	20 mm @ ??°	RHA
Downwards
Floor	10 mm @ ??°	RHA

Crew
27	Total
1	Commander
1	Driver
1	Assistant Driver
2	Mechanics
1	Signalman, Mechanic
1	Artillery Officer
4	Gunners
8	Gun Loaders
6	Machine Gunners, Machine Gun Loaders
1	Machine Gunner
1	Machine Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	2 x - Daimler-Benz Naval
	Type:	Gasoline
	Horsepower (Total):	485 (969) kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	Electromagnetic	??	??
Steering:	???
Brakes:	???

Suspension
Type:	None
Road wheels:	???
	Type:	???
	Idlers:	???
Return rollers:	???
	Type:	???
Drive Sprockets:	???
	Type:	???

Tracks
Type:	???
	Shoes:	???
	Length:	??? cm
	Width:	??? cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	7.5 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	8.1 kW/t
Maximum Grade:	???°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The G. K.-Wagen begin development before the A7V had even been completed, and it was already ordered by mid-1917. However, construction was slow and lagged to the end of the war, where two G. K.-Wagen were only partially completed.

Variants & Changes:

None

---

---

SELF-PROPELLED GUNS

---

---

Marienwagen II

General
Name(s):	Marienwagen II
Type:	Self-propelled gun on semi-tracked truck
Status:	Production
Derived From:	Marienwagen I
Derivatives:	None
Produced:	44	Production Date:	1918
Producer(s):	German Empire	44	1918
	Daimler-Motoren-Gesellschaft	44	1918
Used:	44	Service Date:	1918-???
User(s):	Duetches Heer (German Army)	1918-11/1918
	Freikorps (Free Corps)	12/1918-6/1919
	Reichswehr (Realm Defense)	???

Full User(s) List

–	Unit	Date	Status
User(s):	Duetches Heer (German Army)
	???
	Freikorps (Free Corps)
	???
	Reichswehr (Realm Defense)
	???

Dimensions
Weight:	10.4 t*
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	6.53 m	2.01 m	3.0 m
Ground Clearance:	??? cm

*This is an estimate based off of the weight of the semi-tracked truck itself, plus the weight of the gun.

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	5,7cm Hotchkiss L/40 (???)	Pedestal, Manual, -/+???° @ ??°/s	Manual, -15°/+80° @ ??°/s	25 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
57 mm Gun
	5,7cm Gr. m. P.	APHE	3.1kg/120 g Fp. 02, 47 mm @ 550 m/s
	5,7cm Gr.	HE	2.75 kg/160 g Fp. 02, 5 mm @ 554 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for 5,7cm Hotchkiss

Protection
Location	Thickness	Type
All	??? mm @ ??°	???

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Daimler LA1264
	Type:	Gasoline
	Horsepower:	34 kW
	@ RPM	???
	Cylinder:	4
	Capacity:	7.24 l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
—	—	—
Wheels
Type:	???
Road wheels:	2x2
	Type:	Spoked
	Steering:	Front wheels
Tracks
Type:	???
Road wheels:	8/2
	Type:	???
	Idlers:	???
Return rollers:	0
	Type:	N/A
Drive Sprockets:	2
	Type:	Toothless forward-rear drive

Mobility
Maximum Forward Speed:	10.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	3.2 kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The Marienwagen II was a small production run of utility halftracks. Their production lasted into 1919 and their service into the Reichswehr era, along with some limited export to countries like Latvia. At least one was turned into a carrier for a 5,7cm gun by the removal of the canvas covering.

Variants & Changes:

None

---

---

ANTI-AIRCRAFT VEHICLES

---

---

Daimler MG M1914

General
Name(s):	Daimler M. G.-Wagen 1914
Type:	Self-propelled anti-aircraft gun
Status:	Production
Derived From:	Daimler Panzerautomobil 1909
Derivatives:	None
Produced:	???	Production Date:	1914
Producer(s):	German Empire	???	1914
	Daimler-Motoren-Gesselschuft	???	1914
Used:	???	Service Date:	???
User(s):	Duetches Heer (German Army)	1914-1915

Full User(s) List

–	Unit	Date	Status
User(s):	Duetches Heer (German Army)
	Kw.-M. G.-Zug. Nr.1	1914-1915	Disbanded

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
3 x	[7,92mm] M. G. 08 (20,000)	Pedestal, Manual, -/+180° @ 60°/s	Mechanical, -??°/+??° @ 60°/s	500 rpm
		Rear, Manual, -/+???° @ 60°/s	Mechanical, -??°/+??° @ 60°/s	500 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
7.92 mm Gun
	???

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for M. G. 08.

Protection
Location	Thickness	Type
All	??? mm @ ??°	RHA

Crew
??	Total
??	???

Automotive
Fuel Capacity:	200 l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	??? kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	???
	Type:	???
	Steering:	???

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The Daimler MG wagon first appeared in 1914 by being converted from their earlier panzerautomobils. It featured two low-angle machine guns in the rear for anti-infantry purposes and a single high-angle machine gun in the middle for anti-aircraft purposes.

Variants & Changes:

None

---

---

Ehrhardt 3,7cm M1905

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on car
Status:	Prototype
Derived From:	Ehrhardt-Décauville 16/20 PS
Derivatives:	None
Produced:	1	Production Date:	1905
Producer(s):	German Empire	1	1905
	Heinrich Ehrhardt Automobilwerke AG	1	1905
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	3.2 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	3,7cm Bak. (???)	Pedestal, Mechanical, -/+180° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	??? rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
??? mm Gun
	???

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for 3,7cm Bak.

Protection
Location	Thickness	Type
All	None	N/A

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	???
	Horsepower:	15 kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	Chain drive	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	???
	Type:	???
	Steering:	???

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	4.6 kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
Observation balloons had made their threat to armies prevalent during the late 19th century, to deadly consequences for those that aren’t able to counter them. During the 1900s, this idea was expanded upon to include self-propelled counters and the Ehrhardt 3,7cm M1905 was among the first of these. It also served the precursor for the rest of Ehrhardt’s anti-balloon gun cars during this period.

Variants & Changes:

None

---

---

Ehrhardt-Rheinmentall 5cm M1906

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on armored car
Status:	Prototype
Derived From:	Ehrhardt 31/60 PS
Derivatives:	Ehrhardt 5cm M1907
Produced:	1	Production Date:	1906
Producer(s):	German Empire	1	1906
	Heinrich Ehrhardt Automobilwerke AG	1	1906
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	3.2 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Rheinmentall 5cm Bak. L/30 (100)	Pedestal, Mechanical, -/+30° @ ??°/s	Mechanical, -5°/+43° @ ??°/s	??? rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
50 mm Gun
	???	Sh-TF	2.4 kg/40 g ??? & 128 8 g Balls & 36 9 g Balls, ??? mm @ 450 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for Rheinmentall 5cm Bak. L/30

Protection
Location	Thickness	Type
Frontwards
All	3 mm @ ??°	???
Sidewards
All	3 mm @ ??°	???
Rearwards
All	3 mm @ ??°	???
Upwards
All	3 mm @ ??°	???
Downwards
All	??? mm @ ??°	???

Crew
5	Total
1	Commander
1	Driver
1	Gunner
2	Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Ehrhardt
	Type:	Gasoline
	Horsepower:	37 kW
	@ RPM	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	Chain drive	??	??
Steering:	???
Brakes:	???

Suspension
Type:	Leaf spring
Road wheels:	4x2
	Type:	Solid with rubber tire
	Steering:	Front wheel

Mobility
Maximum Forward Speed:	45.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	11.5 kW/t
Maximum Grade:	22°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
In 1906, Ehrhardt took his concept of a self-propelled anti-balloon gun by mounting it on a completely armored concept, a novel concept for the time which is also one of the reasons for why it was rejected. For the military, there was no reason to armor a gun meant to deal with a balloon that doesn’t have any armaments of its own. That, and the limited firing angles of the gun, forced him to redesign the car into the 5cm M1907.

Variants & Changes:

• Ehrhardt 5cm M1907: See below.

---

---

Ehrhardt-Rheinmentall 5cm M1907

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on armored car
Status:	Prototype
Derived From:	Ehrhardt 5cm M1906
Derivatives:	None
Produced:	1	Production Date:	1907
Producer(s):	German Empire	1	1907
	Heinrich Ehrhardt Automobilwerke AG	1	1907
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Rheinmentall 5cm Bak. L/30 (???)	Pedestal, Mechanical, -/+180° @ ??°/s	Mechanical, -5°/+70° @ ??°/s	??? rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
50 mm Gun
	???	Sh-TF	2.4 kg/40 g ??? & 128 8 g Balls & 36 9 g Balls, ??? mm @ 450 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for Rheinmentall 5cm Bak. L/30

Protection
Location	Thickness	Type
Frontwards
All	3 mm @ ??°	???
Sidewards
All	3 mm @ ??°	???
Rearwards
All	3 mm @ ??°	???
Downwards
All	??? mm @ ??°	???

Crew
5	Total
1	Commander
1	Driver
1	Gunner
2	Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Ehrhardt
	Type:	Gasoline
	Horsepower:	37 kW
	@ RPM	???
	Cylinder:	4
	Capacity:	??? l
		Foward	Reverse
Transmission:	Chain drive	??	??
Steering:	???
Brakes:	???

Suspension
Type:	Leaf spring
Road wheels:	4x2
	Type:	Solid with rubber tire
	Steering:	Front wheel

Mobility
Maximum Forward Speed:	45.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
In order to solve the core issue of the Ehrhardt 5cm M1906, the upper armored chassis was removed and the gun was replaced into an open mount. While this gave it far better firing angles to the military’s satisfaction, the armored part of the car was still seen as unnecessarily expensive. As a result, the design was still rejected despite the changes.

Variants & Changes:

None

---

---

Ehrhardt-Rheinmentall 5cm M1908

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on armored car
Status:	Prototype
Derived From:	Ehrhardt W33 31/45 PS
Derivatives:	None
Produced:	1	Production Date:	1908
Producer(s):	German Empire	1	1908
	Heinrich Ehrhardt Automobilwerke AG	1	1908
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Rheinmentall 5cm Bak. L/30 (???)	Pedestal, Mechanical, -/+180° @ ??°/s	Mechanical, -5°/+70° @ ??°/s	??? rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
50 mm Gun
	???	Sh-TF	2.4 kg/40 g ??? & 128 8 g Balls & 36 9 g Balls, ??? mm @ 450 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for Rheinmentall 5cm Bak. L/30

Protection
Location	Thickness	Type
All	None	N/A

Crew
5	Total
1	Commander
1	Driver
1	Gunner
2	Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Ehrhardt
	Type:	Gasoline
	Horsepower:	33 kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	???
	Type:	???
	Steering:	Rear wheel

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
Likely due to the criticisms leveled at the 5cm M1906 and the M1907 for being unnecessarily armored, Ehrhardt built a new model in 1908 that was unarmored. It retained the same gun, but the chassis used was otherwise unchanged. This was a bit to its detriment as the bed of the truck was too small to use anything larger than a 5cm effectively and even the 5cm struggled to shoot sidewards due to the instability of the chassis. The cross-country capability was poor and the on-the-move-firing capability proved impossible due to that. It was presented to the Austro-Hungarians, but was rejected for purchase and production.

Variants & Changes:

None

---

---

Ehrhardt-Rheinmentall 6,5cm M1910

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on armored car
Status:	Prototype
Derived From:	Ehrhardt Lafette 36/70 PS
Derivatives:	None
Produced:	4	Production Date:	1910
Producer(s):	German Empire	4	1910
	Heinrich Ehrhardt Automobilwerke AG	4	1910
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Rheinmentall 6,5cm Bak. L/35 (???)	Pedestal, Mechanical, -/+180° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	??? rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
65 mm Gun
	???

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for Rheinmentall 6,5cm Bak. L/35

Protection
Location	Thickness	Type
All	None	N/A

Crew
5	Total
1	Commander
1	Driver
1	Gunner
2	Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Ehrhardt
	Type:	Gasoline
	Horsepower:	51 kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	4x4
	Type:	Spoked
	Steering:	All wheels

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
By 1910, the 5cm guns no longer had the range required by the German military. Due to that, a new 6,5cm gun was developed and placed onto an unarmored chassis with three or four models produced. While this satisfied the range aspects at the time, the new requirements also laid out the need for an armored carriage so that the cars would be able to move offensively with frontline units which the unarmored chassis did not satisfy.

Variants & Changes:

None

---

---

Ehrhardt-Rheinmentall 7,7cm M1912

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on armored car
Status:	Prototype
Derived From:	Ehrhardt Lafette 36/70 PS
Derivatives:	None
Produced:	4	Production Date:	1912
Producer(s):	German Empire	4	1912
	Heinrich Ehrhardt Automobilwerke AG	4	1912
Used:	4	Service Date:	1912-???
User(s):	Duetches Heer (German Army)	1912-???

Full User(s) List

–	Unit	Date	Status
User(s):	Duetches Heer (German Army)
	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Rheinmentall 7,7cm Bak. L/30 (???)	Pedestal, Mechanical, -/+???° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	??? rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
77 mm Gun
	7,7cm Br. Schr. Gr.	ShI-TF	6.8 kg/167 g Blackpowder, ??? mm @ ??? m/s
	7,7cm F. Schr. 96 (umg.)	Sh-TF	7 kg/100 g Blackpowder, ??? mm @ ??? m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for Rheinmentall 7,7cm Bak. L/30

Protection
Location	Thickness	Type
Unarmored
Frontwards
All	None	N/A
Armored
Frontwards
All	5 mm @ ??°	???
Sidewards
All	5 mm @ ??°	???
Rearwards
All	5 mm @ ??°	???
Downwards
All	??? mm @ ??°	???

Crew
5	Total
1	Commander
1	Driver
1	Gunner
2	Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Ehrhardt
	Type:	Gasoline
	Horsepower:	51 kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	4x4
	Type:	Spoked
	Steering:	All wheels

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
By 1912, the German requirements for a self-propelled anti-balloon gun had become solidified. It had to be armored and use the now standardized 7,7cm gun, allowing it to move offensively with frontline units while also having the range to deal with the increasingly large balloons. The first models only satisfied one of those requirements, as they used the same unarmored chassis that the 6,5cm M1910 had used, but at least one model was built on a semi-armored chassis to satisfy the requirement. These would be template for all of Ehrhardt’s self-propelled anti-aircraft guns during the war. The only problem is that the gun would quickly start to lose its edge against the increasingly fast and deadly fixed-wing aircraft.

Variants & Changes:

• 1912: At least one gun was mounted onto a semi-armored chassis.

Variant Images

*An Ehrhardt semi-armored chassis with a 7,7cm gun.

---

---

Ehrhardt-Rheinmentall 7,7cm M1914

General
Name(s):	Rheinmetall 7,7cm leichte Kraftwagen Bak. L/27 (Rheinmetall 7,7cm l. Kw. Bak. L/27)	1914-1916
	Rheinmetall 7,7cm leichte Kraftwagen Flak. L/27 (Rheinmetall 7,7cm l. Kw. Flak. L/27)	1916-11/1918
Type:	Self-propelled anti-aircraft gun
Status:	Production
Derived From:	Ehrhardt Kraftwagen 14 (Kw. 14)
Derivatives:	None
Produced:	40	Production Date:	1914-1917
Producer(s):	German Empire	40	1914-1917
	Heinrich Ehrhardt Automobilwerke AG	40	1914-1917
Used:	40	Service Date:	1914-11/1918
User(s):	Duetches Heer (German Army)	1914-11/1918

Full User(s) List

–	Unit	Date	Status
User(s):	Duetches Heer (German Army)
	???

Dimensions
Weight:	7.03 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Rheinmetall 7,7cm Flak. L/27* (60)	Pedestal, Mechanical, -/+180° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	20 rpm

*Were designated Bak. until 1916.

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
77 mm Gun
	7,7cm K. Gr. 15 m. P. m. L.	APHE-T	7 kg/230 g Fp. 02, 52 mm @ 465 m/s
	7,7cm K. Gr. 15 m. P.	APHE	6.85 kg/230 g Fp. 02, 52 mm @ 470 m/s
	7,7cm K. Gr. 16	HE-TF/SAPHE	6.25 kg/700 g Amatol, 11/33 mm @ 480 m/s
	7,7cm Br. Schr. Gr.	ShI-TF	6.8 kg/167 g Blackpowder, ??? mm @ 470 m/s
	7,7cm F. Schr. 96 (umg.)	Sh-TF	7 kg/100 g Blackpowder, ??? mm @ 465 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for Rheinmentall 7,7cm Flak.

Protection
Location	Thickness	Type
Frontwards
All front	3.5-5 mm @ ??°	RHA
Sidewards
All side	3.5-5 mm @ ??°	RHA
Rearwards
All rear	3.5-5 mm @ ??°	RHA
Upwards
Roof	??? mm @ ??°	RHA
Downwards
Floor	??? mm @ ??°	RHA

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Ehrhardt
	Type:	Gasoline
	Horsepower:	60 kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	4x4
	Type:	Spoked
	Steering:	All wheels

Mobility
Maximum Forward Speed:	60.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	8.5 kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
Only a token amount of self-propelled anti-aircraft guns had been made prior to the First World War. The commencement of it led to Germany ordering 40 self-propelled anti-aircraft guns from both Daimler and Ehrhardt, to be based on their respective Plattformkraftwagen Kw. 14 chassis. These were largely identical aside from superficial differences, namely that the Ehrhardt sported flat radiator guards while the Daimler was angular, and that the former used a Rheinmetall gun while the latter used a Krupp gun. These were in use throughout the war, with 105 of both types built by 1917 and 85 individual batteries being organized by the end of the war. A variant with a slightly larger 8 cm gun would see service with Austro-Hungary.

Variants & Changes:

• 1915: The gun shield was removed, the hood was simplified, and the railway tires were removed in order to reduce weight.

Variant Images

Remodeled Ehrhardt-Rheinmetall version with gunshield removed.

---

---

Ehrhardt-Henschel 7,62cm M1918

General
Name(s):	7,62cm leichte Kraftwagen Flak. L/31.5 (7,62cm l. Kw. Flak. L/31.5)
Type:	Self-propelled anti-aircraft gun
Status:	Production
Derived From:	Ehrhardt Lafette 36/70 PS
Derivatives:	None
Produced:	50	Production Date:	1918
Producer(s):	German Empire	40	1918
	Henschel und Sohn AG	40	1918
Used:	40	Service Date:	1914-11/1918
User(s):	Duetches Heer (German Army)	1914-11/1918

Full User(s) List

–	Unit	Date	Status
User(s):	Duetches Heer (German Army)
	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	7,62cm Flak. L/31.5 (???)	Pedestal, Mechanical, -/+180° @ ??°/s	Mechanical, -0°/+70° @ ??°/s	15 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
76.2 mm Gun
	???

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for 7,62cm Flak. L/31.5

Protection
Location	Thickness	Type
Frontwards
All front	3.5-5 mm @ ??°	RHA
Sidewards
All side	3.5-5 mm @ ??°	RHA
Rearwards
All rear	3.5-5 mm @ ??°	RHA
Upwards
Roof	??? mm @ ??°	RHA
Downwards
Floor	??? mm @ ??°	RHA

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Ehrhardt
	Type:	Gasoline
	Horsepower:	51 kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	4x4
	Type:	Spoked
	Steering:	All wheels

Mobility
Maximum Forward Speed:	60.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
In 1918, an additional order for fifty Kraftwagen Flak. from Daimler was made, though this time they were built with Henschel guns based off of captured Russian guns of the same size. The chassis used was the 36/70, used for the earlier 6,5cm M1910 and 7,7cm M1912 guns.

Variants & Changes:

None

---

---

Krupp-Daimler 6,5cm M1908

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on armored car
Status:	Prototype
Derived From:	Daimler Plattformwagen 28/52 PS
Derivatives:	None
Produced:	1	Production Date:	1908
Producer(s):	German Empire	???	1908
	Friedrich Krupp AG	1	1908
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Krupp 6,5cm Bak. L/35 (???)	Pedestal, Mechanical, -/+???° @ ??°/s	Mechanical, -??°/+65° @ ??°/s	??? rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
65 mm Gun
	???

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for Krupp 6,5cm Bak. L/35

Protection
Location	Thickness	Type
Frontwards
Engine front	3.5 mm @ ??°	???
Sidewards
Engine side	3.5 mm @ ??°	???
Upwards
Engine roof	3.5 mm @ ??°	???
Downwards
All	??? mm @ ??°	???

Crew
??	Total
??	???

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	38 kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	???
	Type:	???
	Steering:	???

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
While Ehrhardt pursued turreted solutions for a self-propelled anti-aircraft gun, Krupp’s first attempt took a more conventional solution by mounting the anti-balloon gun as is onto a fixed mount, and using the vehicle itself. However, this came with the obvious problem that it could be difficult to find the right angle to turn the truck to, and since the concept of self-propelled artillery hasn’t become common yet, the design was rejected.

Variants & Changes:

None

---

---

Krupp-Daimler 7,7 M1909

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on armored car
Status:	Prototype
Derived From:	Daimler Plattformwagen 28/52
Derivatives:	None
Produced:	1	Production Date:	1909
Producer(s):	German Empire	1	1909
	Friedrich Krupp AG	1	1909
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Krupp 7,7cm Bak. L/27 (???)	Pedestal, Mechanical, -/+???° @ ??°/s	Mechanical, -??°/+80° @ ??°/s	??? rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
77 mm Gun
	7,7cm Br. Schr. Gr.	ShI-TF	6.8 kg/167 g Blackpowder, ??? mm @ 470 m/s
	7,7cm F. Schr. 96 (umg.)	Sh-TF	7 kg/100 g Blackpowder, ??? mm @ 465 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for Krupp 7,7cm Bak. L/27

Protection
Location	Thickness	Type
Frontwards
All	??? mm @ ??°	N/A
Sidewards
All	??? mm @ ??°	N/A
Rearwards
All	??? mm @ ??°	N/A
Downwards
All	??? mm @ ??°	N/A

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	??? kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	4x4
	Type:	???
	Steering:	All

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The design was the first Krupp-Daimler experiment with a turreted gun, a departure from the fixed gun attempt they had made the year prior. It performed better than Ehrhardt’s own truck-based anti-aircraft gun, but still remained only a prototype while another more armored design was produced. However, the 7,7cm gun would become the standard for German anti-balloon and large-caliber anti-aircraft guns going into the First World War.

Variants & Changes:

None

---

---

Krupp-Daimler 7,7cm M1909/1910

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on armored car
Status:	Prototype
Derived From:	Daimler Plattformwagen 28/52
Derivatives:	Krupp-Daimler 7,7cm M1910/1911
Produced:	2	Production Date:	1909-1910
Producer(s):	German Empire	2	1909-1910
	Friedrich Krupp AG	2	1909-1910
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Krupp 7,7cm Bak. L/27 (???)	Pedestal, Mechanical, -/+???° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	??? rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
77 mm Gun
	7,7cm Br. Schr. Gr.	ShI-TF	6.8 kg/167 g Blackpowder, ??? mm @ 470 m/s
	7,7cm F. Schr. 96 (umg.)	Sh-TF	7 kg/100 g Blackpowder, ??? mm @ 465 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for Krupp 7,7cm Bak. L/27

Protection
Location	Thickness	Type
Frontwards
All	5 mm @ ??°	N/A
Sidewards
All	5 mm @ ??°	N/A
Rearwards
All	5 mm @ ??°	N/A
Upwards
All	5 mm @ ??°	N/A
Downwards
All	??? mm @ ??°	N/A

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Daimler
	Type:	Gasoline
	Horsepower:	??? kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	Leaf spring
Road wheels:	4x4
	Type:	Solid (front) or pneumatic (rear) with rubber tire
	Steering:	All

Mobility
Maximum Forward Speed:	40.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The effectiveness of the M1909 prompted them to try to improve it by armoring the truck. However, this proved to be too radical of a change as the armor overloaded the chassis, albeit the all-wheel drive did help in reducing that effect. Another problem was the lack of visibility that the gunner had, which could make firing ineffective, and that the cramped turret made loading difficult. To solve part of these issues, one of the two vehicles was modified into the 7,7cm M1911.

Variants & Changes:

• 7,7cm M1910/1911: See below.

---

---

Krupp-Daimler 7,7cm M1910/1911

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on armored car
Status:	Prototype
Derived From:	Krupp-Daimler 7,7cm M1909/1910
Derivatives:	None
Produced:	???	Production Date:	1911
Producer(s):	German Empire	???	1911
	Friedrich Krupp AG	???	1911
Used:	0	Service Date:	N/A
User(s):	N/A	N/A

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Krupp 7,7cm Bak. L/27 (???)	Pedestal, Mechanical, -/+???° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	??? rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
77 mm Gun
	7,7cm Br. Schr. Gr.	ShI-TF	6.8 kg/167 g Blackpowder, ??? mm @ 470 m/s
	7,7cm F. Schr. 96 (umg.)	Sh-TF	7 kg/100 g Blackpowder, ??? mm @ 465 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for Krupp 7,7cm Bak. L/27

Protection
Location	Thickness	Type
Frontwards
All	5 mm @ ??°	N/A
Sidewards
All	5 mm @ ??°	N/A
Rearwards
All	5 mm @ ??°	N/A
Upwards
All	5 mm @ ??°	N/A
Downwards
All	??? mm @ ??°	N/A

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Daimler
	Type:	Gasoline
	Horsepower:	??? kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	Leaf spring
Road wheels:	4x4
	Type:	Solid (front) or pneumatic (rear) with rubber tire
	Steering:	All

Mobility
Maximum Forward Speed:	40.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
In an attempt to solve the problems of the 7,7cm M1909/1910, the upper sections of the armor were removed. This would have improved the visibility for the gunner and lightened the burden on the chassis, but evidently it wasn’t enough as the subsequent models took the lighter armoring even further.

Variants & Changes:

None

---

---

Krupp-Daimler 7,7cm M1911

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on armored car
Status:	Prototype
Derived From:	Daimler Plattformwagen 28/52
Derivatives:	None
Produced:	1	Production Date:	1911
Producer(s):	German Empire	1	1911
	Friedrich Krupp AG	1	1911
Used:	???	Service Date:	???
User(s):	???	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Krupp 7,7cm Bak. L/27 (???)	Pedestal, Mechanical, -/+???° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	??? rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
77 mm Gun
	7,7cm Br. Schr. Gr.	ShI-TF	6.8 kg/167 g Blackpowder, ??? mm @ 470 m/s
	7,7cm F. Schr. 96 (umg.)	Sh-TF	7 kg/100 g Blackpowder, ??? mm @ 465 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for Krupp 7,7cm Bak. L/27

Protection
Location	Thickness	Type
Frontwards
All	??? mm @ ??°	N/A
Sidewards
All	??? mm @ ??°	N/A
Rearwards
All	??? mm @ ??°	N/A
Downwards
All	??? mm @ ??°	N/A

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	??? kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	???
	Type:	???
	Steering:	???

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The 7,7cm M1911 took the lessons from the 7,7cm M1909/1910 and the M1910/1911 and took them further. The chassis was even more lightened in comparison, with the cab and the turret only being covered by a short armored wall compared to the previous versions. This was evidently considered acceptable in some form, as at least the subsequent and nearly identical 7,7cm M1912 saw service in the First World War.

Variants & Changes:

None

---

---

Krupp-Daimler 7,5cm M1912

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on armored car
Status:	Prototype
Derived From:	Daimler Plattformwagen 28/52
Derivatives:	None
Produced:	1	Production Date:	1912
Producer(s):	German Empire	1	1912
	Friedrich Krupp AG	1	1912
Used:	1	Service Date:	1912-???
User(s):	Duetches Heer (German Army)	1912-???

Full User(s) List

–	Unit	Date	Status
User(s):	Duetches Heer (German Army)
	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	Krupp 7,5cm Bak. L/35 (???)	Pedestal, Mechanical, -/+???° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	??? rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
75 mm Gun
	???

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for Krupp 7,5cm Bak. L/35

Protection
Location	Thickness	Type
Frontwards
All	??? mm @ ??°	N/A
Sidewards
All	??? mm @ ??°	N/A
Rearwards
All	??? mm @ ??°	N/A
Downwards
All	??? mm @ ??°	N/A

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	??? kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	???
	Type:	???
	Steering:	???

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The 7,5cm M1912 was effectively a 7,7cm M1911 with a different gun, albeit there are minor differences in their frames and turrets between them. It at least saw service with the army up to 1914 in France, but the design wouldn’t carry over into the mass-production 7,7cm M1914 aside from the most superficial of aspects.

Variants & Changes:

None

---

---

Krupp-Daimler 7,7cm M1914

General
Name(s):	Krupp 7,7cm leichte Kraftwagen Bak. L/27 (Krupp 7,7cm l. Kw. Bak. L/27)	1914-1916
	Krupp 7,7cm leichte Kraftwagen Flak. L/27 (Krupp 7,7cm l. Kw. Flak. L/27)	1916-11/1918
Type:	Self-propelled anti-aircraft gun on artillery tractor
Status:	Production
Derived From:	Daimler Kraftwagen 14 (Kw. 14)
Derivatives:	None
Produced:	57	Production Date:	1914-1917
Producer(s):	German Empire	57	1914-1917
	Friedrich Krupp AG	57	1914-1917
Used:	57	Service Date:	1914-11/1918
User(s):	Duetches Heer (German Army)	1914-11/1918

Full User(s) List

–	Unit	Date	Status
User(s):	Duetches Heer (German Army)
	???

Dimensions
Weight:	7.03 t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
Krupp
1 x	Krupp 7,7cm Flak. L/27* (60)	Pedestal, Mechanical, -/+180° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	20 rpm
Rheinmentall
1 x	Rheinmentall 7,7cm Flak. L/27* (60)	Pedestal, Mechanical, -/+180° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	20 rpm

*Were designated Bak. until 1916.

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
77 mm Gun
	7,7cm K. Gr. 15 m. P. m. L.	APHE-T	7 kg/230 g Fp. 02, 52 mm @ 465 m/s
	7,7cm K. Gr. 15 m. P.	APHE	6.85 kg/230 g Fp. 02, 52 mm @ 470 m/s
	7,7cm K. Gr. 16	HE-TF/SAPHE	6.25 kg/700 g Amatol, 11/33 mm @ 480 m/s
	7,7cm Br. Schr. Gr.	ShI-TF	6.8 kg/167 g Blackpowder, ??? mm @ 470 m/s
	7,7cm F. Schr. 96 (umg.)	Sh-TF	7 kg/100 g Blackpowder, ??? mm @ 465 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for 7,7cm Flak.

Protection
Location	Thickness	Type
All	3.5-5 mm @ ??°	RHA

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	60 kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	4x4
	Type:	Spoked
	Steering:	All wheels

Mobility
Maximum Forward Speed:	60.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	8.5 kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
Only a token amount of self-propelled anti-aircraft guns had been made prior to the First World War. The commencement of it led to Germany ordering 40 self-propelled anti-aircraft guns from both Daimler and Ehrhardt, to be based on their respective Plattformkraftwagen Kw. 14 chassis. These were largely identical aside from superficial differences, namely that the Ehrhardt sported flat radiator guards while the Daimler was angular, and that the former used a Rheinmetall gun while the latter used a Krupp gun. These were in use throughout the war, with 105 of both types built by 1917 and 85 individual batteries being organized by the end of the war. At least one car was equipped with a Rheinmentall gun instead of the normal Krupp gun.

Variants & Changes:

• 1915: The gun shield was removed in order to reduce weight.
• 1918: At least one car equipped with a Rheinmentall gun.

Variant Images

Remodeled Krupp-Daimler version with gunshield removed.

Krupp-Daimler with a Rheinmentall gun.

---

---

Krupp-Daimler KD-I

General
Name(s):	???	1918-11/1918
	Geschützkraftwagen Kw. 19	1919-8/11/1935
	Geschützkraftwagen Kw. 19 Krupp/Daimler (Sd. Kfz. 1)	8/11/1935-7/5/1945
Type:	Self-propelled anti-aircraft gun
Status:	Production
Derived From:	Artillerie-Kraftzugmaschine Krupp-Daimler 100 PS
Derivatives:	None
Produced:	67	Production Date:	1918
Producer(s):	German Empire	67	1918
	Daimler-Motoren-Gesselschuft	67	1918
Used:	67	Service Date:	1918-1945
User(s):	Duetches Heer (German Army)	1918-11/1918
	Reichswehr (Realm Defense)	???
	Wehrmacht (Defense Force)	???

Full User(s) List

–	Unit	Date	Status
User(s):	Duetches Heer (German Army)
	???
	Reichswehr (Realm Defense)
	???
	Wehrmacht (Defense Force)
	???

Dimensions
Weight:	10.0 or 11.25 t*
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	6.27 m	2.17 m	??? m
Ground Clearance:	40 cm

*Former is the weight of the 7,5cm carrier and latter is the weight of the 7,7cm carrier.

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
L/36 Carrier
1 x	Krupp 7,5cm Flak. L/36 (60)	Pedestal, Mechanical, -/+180° @ ??°/s	Mechanical, -??°/+??° @ ??°/s	??? rpm
L/27 Carrier
1 x	Krupp 7,7cm Flak. L/27 (60)	Pedestal, Mechanical, -/+180° @ 20°/s	Mechanical, -8°/+75° @ ??°/s	20 rpm
L/35 Carrier
1 x	Krupp 7,7cm Flak. L/35 (60)	Pedestal, Mechanical, -/+180° @ 20°/s	Mechanical, -8°/+75° @ ??°/s	15 rpm
n. A. L/36 Carrier
1 x	7,5 cm Flak. 16 n. A. L/36 (60)	Pedestal, Mechanical, -/+180° @ 25°/s	Mechanical, -5°/+75° @ ??°/s	15 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
Krupp 75 mm Gun
	???
L/27 77 mm Gun
	7,7cm K. Gr. 15 m. P. m. L.	APHE-T	7 kg/230 g Fp. 02, 52 mm @ 465 m/s
	7,7cm K. Gr. 15 m. P.	APHE	6.85 kg/230 g Fp. 02, 52 mm @ 470 m/s
	7,7cm K. Gr. 16	HE-TF/SAPHE	6.25 kg/700 g Amatol, 11/33 mm @ 480 m/s
	7,7cm Br. Schr. Gr.	ShI-TF	6.8 kg/167 g Blackpowder, ??? mm @ 470 m/s
	7,7cm F. Schr. 96 (umg.)	Sh-TF	7 kg/100 g Blackpowder, ??? mm @ 465 m/s
L/35 77 mm Gun
	7,7cm K. Gr. 15 m. P. m. L.	APHE-T	7 kg/230 g Fp. 02, 65 mm @ 545 m/s
	7,7cm K. Gr. 15 m. P.	APHE	6.85 kg/230 g Fp. 02, 65 mm @ 550 m/s
	7,7cm K. Gr. 16	HE-TF/SAPHE	6.25 kg/700 g Amatol, 11/40 mm @ 545 m/s
	7,7cm Br. Schr. Gr.	ShI-TF	6.8 kg/167 g Blackpowder, ??? mm @ 550 m/s
	7,7cm F. Schr. 96 (umg.)	Sh-TF	7 kg/100 g Blackpowder, ??? mm @ 545 m/s
n. A. 75 mm Gun
	7,5 cm Hl. Gr. Patr. 38C	HEAT-T	4.8 kg/515 g H. 10, 115 mm @ 450 m/s
	7,5 cm Hl. Gr. Patr. 38B	HEAT	4.57 kg/513 g H. 5, 87 mm @ 450 m/s
	7,5 cm Hl. Gr. Patr. 38A	HEAT	4.5 kg/399 g H. 5/Fp. 02, 81 mm @ 450 m/s
	7,5 cm Hl. Gr. Patr. 38	HEAT	4.4 kg/570.2 g H. 5/Fp. 02, 55 mm @ 450 m/s
	7,5 cm K.-Gr. rot. Pz. Patr.	APCBC-T	6.8 kg/80 g Fp. 02/Np. 10, 99 mm @ 650 m/s
	7,5 cm Spr. Gr. Patr. 34	HE	5.74 kg/725 g Fp. 02/Np. 10, 15 mm @ 665 m/s
	7,5 cm K.-Gr. rot. Patr.	HE-TF/SAPHE	5.83/6.62 kg/520 g Amatol, 10/50 mm @ 662/655 m/s
	7,5 cm Schr. Patr. L/3,2	Sh-TF	6.08 kg/80 g Black Powder & ??? g Balls, ??? mm @ 661 m/s
	7,5 cm K.-Gr. rot. Nb. Patr.	Sm	6.2 kg/95 g Pent., ??? s smoking @ 660 m/s

Devices
# of - Name	Type	Effect, Location/for
L/36 Carrier
1 x - ???	Sight	??x zoom, for Krupp 7,5cm Flak. L/36
L/27 Carrier
1 x - ???	Sight	??x zoom, for Krupp 7,7cm Flak. L/27
L/35 Carrier
1 x - ???	Sight	??x zoom, for Krupp 7,7cm Flak. L/35
n. A. L/36 Carrier
1 x - ???	Sight	??x zoom, for 7,5 cm Flak. 16 n. A. L/36

Protection
Location	Thickness	Type
All	4 mm @ ??°	RHA

Crew
4	Total
1	Commander
1	Driver
1	Gunner
1	Gun Loader

Automotive
Fuel Capacity:	200 l
Engine(s):	1 x - Mercedes
	Type:	Gasoline
	Horsepower:	75 kW
	@ RPM	???
	Cylinder:	6
	Capacity:	??? l
		Foward	Reverse
Transmission:	8-speed	8	2
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	4x4
	Type:	Spoked or rubber*
	Steering:	All wheels

*Spoked wheels were replaced by rubber wheels starting from 1931.

Mobility
Maximum Forward Speed:	65.0 km/h
Maximum Reverse Speed:	8.5 km/h
Power-to-Weight Ratio:	6.8 or 7.6* kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	6.5 m
Cruising Range:	??? km
	Mileage:	??? l/100 km

*Former is the power-to-weight ratio of the 7,7cm carrier and latter is the power-to-weight ratio of the 7,5cm carrier.

Summary
The KD-I was the most advanced artillery tractor built before the end of the war and it found use as a self-propelled anti-aircraft gun during the closing months of the war. They were meant to be used during the 1919 campaigns, hence the Kw. 19 designation, but, consequently, its late adoption meant that it never actually saw frontline use during the war. Instead, most of the gun carriers were retained after the war and served within the Reichswehr and later the Wehrmacht. They, and the basic artillery tractors, were among the first to receive special Sd. Kfz. designations. However, by 1930 they begin to remodeled with modern 7,5cm guns – in violation of the Versailles, aside from the four Krupp 7,5cm gun carriers which continued to serve in their basic form until their decommissioning.

Variants & Changes:

• 1918: Variations produced with either the 7,7cm L/27 or the L/35 gun.
  • 1920s: A curved shield was installed on all 7,7cm guns.
  • 1930-1932: All 7,7cm guns were replaced by a 7,5 cm F. K. n. A. L/36.
• 1918: Four models were produced with the 7,5cm gun.
• 1931: Spoked wheels started to be phased out in favor of rubber wheels.

Variant Images

7,5cm gun carrier.

Mixed L/27 and L/35 gun battery.

Remodeled 1930s gun, evident by the rubber wheels.

---

---

Benz-Gaggenau Typ 5 K

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on artillery tractor
Status:	Production
Derived From:	None
Derivatives:	None
Produced:	???	Production Date:	???
Producer(s):	German Empire	???	???
	???
Used:	???	Service Date:	???
User(s):	Duetches Heer (German Army)	1918-11/1918

Full User(s) List

–	Unit	Date	Status
User(s):	Duetches Heer (German Army)
	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	8,8cm Flak. L/45 (60)	Pedestal, Mechanical, -/+???° @ 20°/s	Mechanical, -10°/+70° @ ??°/s	15 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
	8,8cm Sprgr. L/3,8 (Iz.)	SAPHE	10 kg/640 g Fp. 02 or Pieretic, 114 mm @ 795 m/s
	8,8cm Sprgr. L/3,9	HE-TF	9.75 kg/582 g Fp. 02 & Np. 10, 13 mm @ 805 m/s
	8,8cm Sprgr. L/3,7	HE-TF	9.75 kg/580 g Fp. 02 & Np. 10, 13 mm @ 805 m/s
	8,8cm Sprgr. L/3,6 (Kz.)	HE-TF/HE-T-TF	10 kg/560 g Fp. 02, 12 mm @ 795 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for 8,8cm Flak.

Protection
Location	Thickness	Type
All	??? mm @ ??°	???
Turret	15 mm @ ??°	RHA

Crew
5	Total
1	Commander
1	Driver
1	Gunner
2	Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - ???
	Type:	Gasoline
	Horsepower:	43 kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	4x2
	Type:	Spoked
	Steering:	Front wheels

Mobility
Maximum Forward Speed:	26.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
Benz-Gaggenau Typ 5 K trucks have been in service prior to the war and throughout the entirety of it. This was in various forms as utility trucks to artillery tractors. One such form, of which only an image survives, is of it serving as a carrier for a 8,8cm Flak. L/45 in a naval MPL C/13 mounting. It was destroyed on the Vesne Front in August of 1918.

Variants & Changes:

None

Images

Photograph of the destroyed gun carrier.

---

---

Raupenwagen LW

General
Name(s):	Lanz Raupenwagen LW
Type:	Self-propelled anti-aircraft gun on artillery tractor
Status:	Production
Derived From:	None
Derivatives:	None
Produced:	149 (all versions)	Production Date:	1917-1918
Producer(s):	German Empire	149	1917-1918
	Heinrich Lanz AG	149	1917-1918
Used:	???	Service Date:	1917-11/1918
User(s):	Duetches Heer (German Army)	1918-11/1918

Full User(s) List

–	Unit	Date	Status
User(s):	Duetches Heer (German Army)
	???
	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	7,62cm Flak. L/30 (60)	Pedestal, Mechanical, -/+180° @ 20°/s	Mechanical, -5°/+70° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
	7,62cm St. Gr.	HE/SAPHE	6.0 kg/390 g Amatol, 9/50 mm @ 598 m/s
	7,62cm Flak. Gr.	HE	6.8 kg/340 g Fp. 70/30, 8 mm @ 590 m/s
	7,62cm Br. Shrap. Gr.	ShI-TF	6.8 kg/167 g Blackpowder, ??? mm @ 590 m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for 7,62cm Flak.

Protection
Location	Thickness	Type
All	??? mm @ ??°	???

Crew
5	Total
1	Commander
1	Driver
1	Gunner
2	Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	?? x - ???
	Type:	Gasoline
	Horsepower:	60-75 kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	???
	Type:	???
	Idlers:	???
Return rollers:	???
	Type:	???
Drive Sprockets:	???
	Type:	???

Tracks
Type:	???
	Shoes:	???
	Length:[/u]	??? cm
	Width:	??? cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	??? km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The Lanz Raupenwagen LW is likely the most obscure vehicle of the First World War, which is made odd due to its, relatively, large production count. It was produced as another tracked solution to artillery tractors and had four variations, of which at least one upgraded the vehicle with a stronger engine. However, visually they look identical and no documents exist to specify their actual differences. Based on photographs, at least one was converted into an anti-aircraft gun carrier in the same fashion as an Überlandwagen was. It is not known if this specific vehicle was equipped with the 80 hp (60 kW) or 100 hp (75 kW) engine.

Variants & Changes:

• Lanz Raupenwagen LW I: no known differences
• Lanz Raupenwagen LW II: no known differences
• Lanz Raupenwagen LW III: no known differences
• Lanz Raupenwagen LW IV: no known differences

---

---

Flakwagen A7V

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun on tank
Status:	Prototype
Derived From:	Überlandwagen
Derivatives:	None
Produced:	3	Production Date:	1918
Producer(s):	German Empire	3	1918
	Daimler-Motoren-Gesselschuft	3	1918
Used:	3	Service Date:	???-11/1918
User(s):	Duetches Heer (German Army)	???-11/1918

Full User(s) List

–	Unit	Date	Status
User(s):	Duetches Heer (German Army)
	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
Prototype #1/2
2 x	7,62cm Flak. L/30 (60)	Pedestal, Mechanical, -/+180° @ 20°/s	Mechanical, -5°/+70° @ ??°/s	20 rpm
Prototype #3 Early
2 x	7,7cm Flak. L/27 (60)	Pedestal, Mechanical, -/+180° @ 20°/s	Mechanical, -5°/+70° @ ??°/s	20 rpm
Prototype #3 Late
1 x	7,7cm Flak. L/27 (60)	Pedestal, Mechanical, -/+180° @ 20°/s	Mechanical, -5°/+70° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
7.62 mm Gun
	7,62cm St. Gr.	HE/SAPHE	6.0 kg/390 g Amatol, 9/50 mm @ 598 m/s
	7,62cm Flak. Gr.	HE	6.8 kg/340 g Fp. 70/30, 8 mm @ 590 m/s
	7,62cm Br. Shrap. Gr.	ShI-TF	6.8 kg/167 g Blackpowder, ??? mm @ 590 m/s

Devices
# of - Name	Type	Effect, Location/for
Prototype #1/2
2 x - ???	Sight	??x zoom, for 7,62cm Flak.
Prototype #3 Early
2 x - ???	Sight	??x zoom, for 7,7cm Flak.
Prototype #3 Late
1 x - ???	Sight	??x zoom, for 7,7cm Flak.

Protection
Location	Thickness	Type
All	??? mm @ ??°	RHA

Crew
8	Prototype #1/2, & #3 Early
1	Commander
1	Driver
2	Gunners
4	Gun Loaders
5	Prototype #3 Late
1	Commander
1	Driver
1	Gunners
2	Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	2 x - Daimler 165-204 Typ 75 Kw.
	Type:	Gasoline
	Horsepower (Total):	75 (149) kW
	@ RPM	???
	Cylinder:	4
	Capacity:	17 l
		Foward	Reverse
Transmission:	Adler 3-speed	3	3
Steering:	???
Brakes:	???

Suspension
Type:	Vertical spring
Road wheels:	24/6
	Type:	Rigid non-spaced
	Idlers:	Front track
Return rollers:	0
	Type:	N/A
Drive Sprockets:	2
	Type:	19-tooth rear drive

Tracks
Type:	Continuous linked steel
	Shoes:	???
	Length:[/u]	??? cm
	Width:	??? cm
	Pitch:	??? cm
	Depth:	??? cm
Ground Contact:	??? m

Mobility
Maximum Forward Speed:	12.1 km/h
Maximum Reverse Speed:	6.3 km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	???°
Maximum Trench:	2.2 m
Maximum Wall:	0.45 m
Maximum Fording:	70 cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
The Flakwagen A7V is a mysterious prototype, namely because nothing survived of it aside from its photographs. What is known is that it’s an Überlandwagen modified with a slightly longer hull to accommodate the anti-aircraft guns and that at least three prototypes were constructed, each in a different configuration. It is rumored that at least one was sent to the Western Front as a part of an anti-aircraft battery, but aside from that it is thought they were simply scrapped at the end of the war.

Variants & Changes:

• 1918: Second prototype constructed; armored cover for driver and commander replaced by canvas cover
• 1918: Third prototype constructed; 7,62cm Flak. L/30 replaced by 7,7cm Flak. L/27 and canvas cover bars removed
  • 1918: canvas cover bars installed
    • 1918: canvas cover bars and rear 7,7cm gun removed

Variant Images

Initial prototype.

Second prototype, with armor covers around driver and commander removed.

Third prototype, with doors open and canvas cover bars removed.

Third prototype, with doors open and canvas cover bars reinstalled.

Third prototype, with doors closed and rear 7.7cm gun and canvas cover bars removed.

---

---

Austro-Hungarian Vehicles

---

---

ANTI-AIRCRAFT VEHICLES

---

---

Ehrhardt 8cm M1916

General
Name(s):	???
Type:	Self-propelled anti-aircraft gun
Status:	Imported
Derived From:	Ehrhardt Lafette 36/70 PS
Derivatives:	None
Produced:	24	Production Date:	1916
Producer(s):	German Empire	24	1916
	Heinrich Ehrhardt Automobilwerke AG	24	1916
Used:	24	Service Date:	1916-11/1918
User(s):	Landstreitkräfte Österreich-Ungarns (Land Forces of Austria-Hungary)	1916-11/1918

Full User(s) List

–	Unit	Date	Status
User(s):	Landstreitkräfte Österreich-Ungarns (Land Forces of Austria-Hungary)
	???

Dimensions
Weight:	??? t
Ground Pressure:	??? kg/cm²
	Length	Width	Height
Vehicle:	??? m	??? m	??? m
Ground Clearance:	??? cm

Armaments
# of	Munition (Ammo #)	Location(s), Type, Horizontal	Type, Vertical	Firing Rate
1 x	8cm Lfa.-K. M 05/16 (???)	Pedestal, Mechanical, -/+180° @ ??°/s	Mechanical, -5°/+70° @ ??°/s	20 rpm

Ammunition
	Bullet	Type	Weight/Filler, Penetration @ Velocity
76.5 mm Gun
	8 cm M 14	HE-TF	??? kg/??? g ???, ??? mm @ ??? m/s
	8 cm M 08B	HE-TF	6.68 kg/120 g Amatol, 8 mm @ 500 m/s
	8 cm M 08	HE-TF	6.68 kg/120 g Amatol, 8 mm @ 500 m/s
	8 cm M 05	HE-TF	6.68 kg/120 g Amatol, 8 mm @ 500 m/s
	8 cm M 14 R	Sh-TF	6.6 kg/70 g Black Powder & 261 10 g Balls, ??? mm @ ??? m/s
	8 cm M 08	Sh-TF	??? kg/??? g ??? & 316 9 g Balls & 16 13 g Balls, ??? mm @ ??? m/s
	8 cm M 05	Sh-TF	??? kg/??? g ??? & 316 9 g Balls & 16 13 g Balls, ??? mm @ ??? m/s

Devices
# of - Name	Type	Effect, Location/for
1 x - ???	Sight	??x zoom, for 8cm Lfa.-K. M 05/16

Protection
Location	Thickness	Type
Frontwards
All front	5 mm @ ??°	RHA
Sidewards
All side	5 mm @ ??°	RHA
Rearwards
All rear	5 mm @ ??°	RHA
Upwards
Roof	??? mm @ ??°	RHA
Downwards
Floor	??? mm @ ??°	RHA

Crew
5	Total
1	Commander
1	Driver
1	Gunner
2	Gun Loaders

Automotive
Fuel Capacity:	??? l
Engine(s):	1 x - Ehrhardt
	Type:	Gasoline
	Horsepower:	51 kW
	@ RPM	???
	Cylinder:	???
	Capacity:	??? l
		Foward	Reverse
Transmission:	???	??	??
Steering:	???
Brakes:	???

Suspension
Type:	???
Road wheels:	4x4
	Type:	Spoked
	Steering:	All wheels

Mobility
Maximum Forward Speed:	35.0 km/h
Maximum Reverse Speed:	??? km/h
Power-to-Weight Ratio:	??? kW/t
Maximum Grade:	??°
Maximum Trench:	??? m
Maximum Wall:	??? m
Maximum Fording:	??? cm
Minimum Turning Diameter:	??? m
Cruising Range:	??? km
	Mileage:	??? l/100 km

Summary
Initially, Austria-Hungary lacked any self-propelled anti-aircraft guns at all. This wasn’t an issue until Italy entered the war and started to deploy balloons and aircrafts over the Alps and deployed them to raid across the Adriatic. To rectify this, twenty-four cars were imported from Germany and outfitted with Austro-Hungarian 8cm M 05/8 guns, designated M 05/16 in the self-propelled configuration. The cars were divided into four batteries with six cars each and mainly deployed along the Italian front, where they claimed “several dozen” fixed-wing aircraft shot down over the last two years of the war.

Variants & Changes:

None

---

---

[Ghostmaxi]

@Wiggly_Armed_Man

which only an image survives

2 pictures actually. From 2 different angels.

Pictures:(Click to show)

[Wiggly_Armed_Man]

I should’ve used better terminology, but yes.

[Wiggly_Armed_Man]

Test tree.

Spoiler

• Holt-Gas Electric (I Rank, 1.0 BR): Tank, Holt-Gas Electric
• Steam Tank (I Rank, 1.7 BR, Premium): Tank, Steam (Wheeled)
• Mark V (I Rank, 1.7 BR, Mark V Group): Tank, Heavy, Mark V
• Mark V* (E) (I Rank, 1.7 BR, Premium): Tank, Heavy, Mark V* w/ 20.5-in tracks
• Mark V* (L) (I Rank, 1.7 BR, Mark V Group): Tank, Heavy, Mark V* w/ 26.5-in tracks
• Mark VIII (P) (E) (I Rank, 1.3 BR, Premium): Tank, Heavy, Mark VIII; mild steel prototype w/ Hotchkiss machine guns
• Mark VIII (P) (L) (I Rank, 1.3 BR): Tank, Heavy, Mark VIII; mild steel prototype w/ Browning machine guns
• Mark VIII (I Rank, 2.0 BR): Tank, Heavy, Mark VIII
• Mark VIII Strobe (I Rank, 2.0 BR, Premium): Tank, Heavy, Mark VIII w/ strobe vision dome cupola
• Mark VIII Air (I Rank, 2.0 BR, Premium): Tank, Heavy, Mark VIII w/ air-cooled engine

[Wiggly_Armed_Man]

Version two of the USA tree.

There are some things to note:

• I included and marked the interwar vehicles that I believe could be added alongside them.
• The tree presumes that all of the 37-mm M1916 would receive OR 37 mle 1892 APHE, and that at least most of them would receive OR 37 mle 1935 or 1937 APCR. This is completely ahistorical since they were completely reliant on the Mk. II HE-BF for armor-piercing capability, but this would block the addition of America’s earliest light tanks and also block the addition of the famous Christie designs.
• The T1 light tanks do not use ammunition from the aerial 37-mm M4. This became a persistent rumor at one point, I imagine because the guns are distantly related. The guns that they use are the “short-barreled” Browning M1924 No. 2, later redesignated T3, and the “long-barreled” Browning M1925 No. 2, later redesigned T2. They used 37x120R and 37x123B cartridges, respectively, propelling the guns at either a velocity of 1,350 fps (411 m/s) or 2,000 fps (610 m/s), again respectively. I have no idea how they perform outside of that since I’ve never been able to figure out what ammunition they actually use to plug into the penetration calculator; due to that, the later T1s could end up anywhere from rank I or up to rank III and their wide BR range is reflective of that.
• The BRs aren’t absolute. They’re more representative of how the vehicles would be positioned against each other, rather than how they would exactly be positioned in-game.
• The current in-game rank I has been pushed to rank IV at the bottom, with rank III being a hypothetical intermediate rank between the two with earlier interwar vehicles.

List of Vehicles:

Spoiler

• Light Tanks
  • Renault FT (E) (I Rank, 1.0 BR): Tank, Light, Renault FT w/ either Girod-Renault or Berliet-Girod turret
  • Renault FT (L) (I Rank, 1.0 BR, Premium): Tank, Light, Renault FT w/ Renault turret
  • M1917 (I Rank, 1.0 BR): Tank, Light, M1917
  • M1917A1 (I Rank, 1.0 BR, Premium): Tank, Light, M1917A1
• Heavy Tanks
  • Holt-Gas Electric (II Rank, 2.0 BR): Tank, Holt-Gas Electric
  • Steam Tank (II Rank, 2.7 BR, Premium): Tank, Steam (Wheeled)
  • Mark V (II Rank, 2.7 BR, Mark V Group): Tank, Heavy, Mark V
  • Mark V* (E) (II Rank, 2.7 BR, Premium): Tank, Heavy, Mark V* w/ 20.5-in tracks
  • Mark V* (L) (II Rank, 2.7 BR, Mark V Group): Tank, Heavy, Mark V* w/ 26.5-in tracks
  • Mark VIII (P) (E) (II Rank, 2.0 BR, Premium): Tank, Heavy, Mark VIII; mild steel prototype w/ Hotchkiss machine guns
  • Mark VIII (P) (L) (II Rank, 2.0 BR): Tank, Heavy, Mark VIII; mild steel prototype w/ Browning machine guns
  • Mark VIII (II Rank, 3.0 BR): Tank, Heavy, Mark VIII
  • Mark VIII Strobe (II Rank, 3.0 BR, Premium): Tank, Heavy, Mark VIII w/ strobe vision dome cupola
  • Mark VIII Air (II Rank, 3.0 BR, Premium): Tank, Heavy, Mark VIII w/ air-cooled engine

Interwar Inserts:

• Light Tanks
  • T1 Light (I Rank, 1.3 BR, T1/E1 Light Group): Tank, Light, T1
  • T1E1 Light (I Rank, 1.3 BR, T1/E1 Light Group): Tank, Light, T1E1
  • T1E2 Light (E) (II Rank, 2.0-3.0 BR, T1E2/E3 Light Group): Tank, Light, T1E2 w/ 37-mm T2
  • T1E2 Light (L) (I Rank, 1.3 BR, Premium): Tank, Light, T1E2 w/ 37-mm M1916
  • T1E3 Light (II Rank, 2.0-3.0 BR, T1E2/E3 Light Group): Tank, Light, T1E3
  • T1E4 Light (E) (II Rank, 2.0-3.0 BR, Premium): Tank, Light, T1E4 w/ Cunningham 110 hp (81 kW) engine
  • T1E4 Light (L) (II Rank, 2.0-3.0 BR, T1E4/E6 Light Group): Tank, Light, T1E4 w/ Cunningham 140 hp (103 kW) engine
  • T1E5 Light (II Rank, 2.0-3.0 BR, Premium): Tank, Light, T1E5
  • T1E6 Light (II Rank, 2.0-3.0 BR, T1E4/E6 Light Group): Tank, Light, T1E6
  • M1931 Christie (I Rank, 1.7-2.3 BR, Premium): Christie M1931 Tank; welded unlike production versions
  • T1 Combat (E) (II Rank, 1.7-2.3 BR, Premium): Car, Combat, T1 w/o radio
  • T1 Combat (L) (II Rank, 1.7-2.3 BR, T1/E1 Combat Group): Car, Combat, T1 w/ radio
  • T1E1 Combat (II Rank, 1.7-2.3 BR, T1/E1 Combat Group): Car, Combat, T1E1
  • T1E3 Combat (II Rank, 1.7-2.3 BR, Premium): Car, Combat, T1E3
  • T3 Medium (E) (II Rank, 1.7-2.3 BR, Premium): Tank, Medium, T3
  • T3 Medium (M) (II Rank, 1.7-2.3 BR, Premium): Tank, Medium, T3 w/ driver windshield
  • T3 Medium (L) (II Rank, 1.7-2.3 BR, T3/E1 Medium Group): Tank, Medium, T3 w/ radio
  • T3E1 Medium (P) (II Rank, 1.7-2.3 BR, Premium): Tank, Medium, T3
  • T3E1 Medium (E) (II Rank, 1.7-2.3 BR, Premium): Tank, Medium, T3E1 w/ reinforced bottom
  • T3E1 Medium (M) (II Rank, 1.7-2.3 BR, Premium): Tank, Medium, T3E1 w/ reinforced bottom & driver windshield
  • T3E1 Medium (L) (II Rank, 1.7-2.3 BR, T3/E1 Medium Group): Tank, Medium, T3E1 w/ reinforced bottom & radio
  • T3E2 Medium (II Rank, 2.0-2.3 BR): Tank, Medium, T3E2
  • T3E3 Medium (II Rank, 2.0-2.3 BR, Premium): Tank, Medium, T3E3
• Medium Tanks
  • M1919 Christie (II Rank, 2.3-2.7 BR, Premium): Christie M1919 Convertible Tank
  • M1921 Christie (II Rank, 2.0-2.7 BR, Premium): Christie M1921 Convertible Tank
  • M1921 Medium (E) (II Rank, 2.7-3.0 BR): Tank, Medium, M1921 w/ naval 220 hp (162 kW) engine
  • M1921 Medium (L) (II Rank, 2.7-3.0 BR, Premium): Tank, Medium, M1921 w/ Packard 200 hp (147 kW) engine
• TDs
  • M1921 75-mm (II Rank, 3.0 BR, Premium): Christie M1921 Amphibious for 75-mm Gun
  • LWMGC 75-mm (II Rank, 3.0 BR): Land and Water Motor Gun Carriage (Christie) for 75-mm Gun
  • G.C.2 (E) (I Rank, 1.0 BR): United States Marine Corps Tank, Gun Carrier 2 w/ 37-mm M1916
• SPAA
  • T11E1 MGMC (I Rank, 1.7 BR): Carriage, Motor, Multiple Gun, T11E1
  • 3x7.62 Truck (I Rank, 1.3 BR, Premium): Truck with multiple gun mount from T11E1 installed above cab (couldn’t find any name of this design)

Gap Vehicles Potential (III Rank)

• Armored Cars
  • T7
  • T4
    • M1
  • T11
    • T11E1
    • T11E2
• Scout Cars
  • T7
    • M1
  • M3
    • M3A1
    • M3A1 w/ DJXD diesel
    • M3A1 w/ 6DT-317 diesel
    • M3A1 Command
• Combat Cars
  • T2
    • T2E1
  • T4
    • T4E1
    • T4E2
  • T5E1
    • T5E2
    • M1 w/ D-shaped turret (later M1A1 Light)
    • M1 w/ irregular octagonal-shaped turret (later M1A1 Light)
    • M1E1
    • M1E2
    • M1A1 (later M1A1 Light)
    • M1A1E1
    • M1E3
    • M2 (later M1A2 Light)
    • M2 diesel (later M1A2 Light)
• Light Tanks
  • T2
    • T2E1
    • M2A1
    • T2E2
    • M2A2E1
    • M2A2E2
    • M2A2E3
    • M2A3
    • M2A3E1
    • M2A3E2
    • M2A3E3
• Medium Tanks
  • M1921 w/ Liberty L-12 338 hp (249 kW) engine
  • M1922
  • T1 w/ 57-mm M1920
    • T1 w/ 75-mm M1920
    • T1E1
  • T2 w/ T3E1 gun system (37-mm T2 & .30 cal. M1919 Browning)
    • T2 w/ 37-mm M1916
    • T2 w/ .30 cal. Browning
  • T4
    • T4E1
• SPAA
  • Willys MB w/ .50 cal M2 Browning
  • M28 w/ .50 cal. M1921 Browning
  • Tucker Tiger
• TD
  • Christie M1922 Amphibious
  • G.C.2 w/ 75-mm M1897
  • T1 HMC

[Wiggly_Armed_Man]

Does anyone have more information on the clusterbuck that are the German prewar Bak./Flak. trucks? Of the ones that I could find, I could hardly find anything other than what chassis they were using and the gun they used, and I’m sure I completely missed a few trucks between them or that of the ones I did find, that I confused some as something else or got bad information, etc.

There are also 5cm, 7,1cm, and 7,5cm gun calibers for the Bak. that I couldn’t find anything about, along with whatever small gun that the Ehrhardt M1905 uses (looks like a 3,7cm Bak.).

Edit: Unrelated, but my favorite vehicle is now the Balloon Destroyer.

Spoiler
