ZBD04A AFT-10 Multi Purpose Anti Tank Missile System

reminds me of a battletech LRM carrier lol

4 Likes

Would absolutely love to see this!

2 Likes

This thing looks really cool, and it looks quite gnarly with the 8 missile containers on top. It would be quite powerful in WT, esp with the extending mast.

I guess the HJ-10s are just too big to fit into the ZBD to have a launcher setup like this that recesses into the vehicle? I guess this makes reloading easier too

1 Like

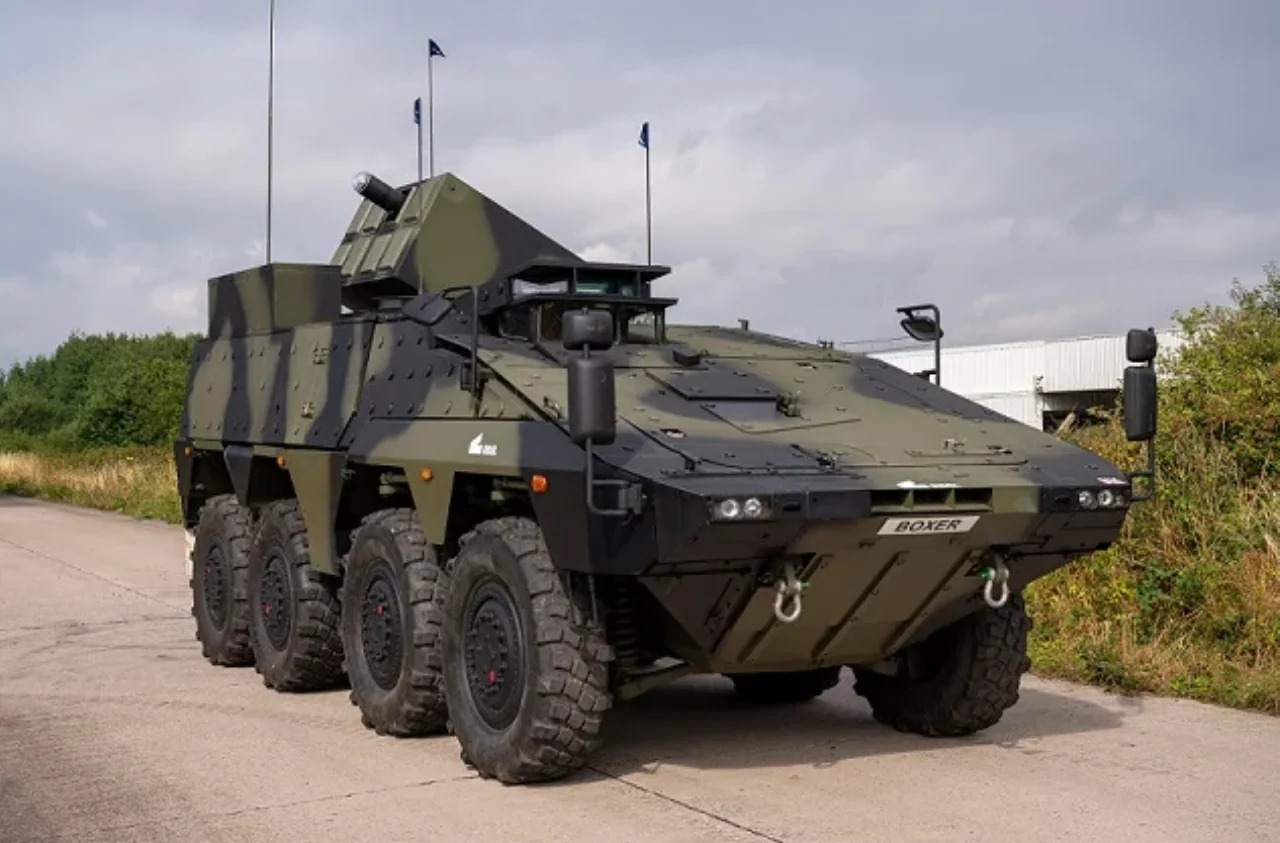

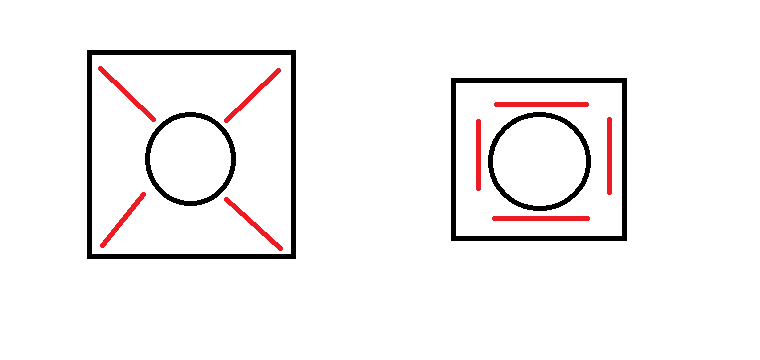

Early HJ-10 's wings fold like the left(latest version in ZBD-05 hull changed to right one like Spike), makes its box large, not suitable to fit in the hull, and also, put them in hull requires big structure change which may influence the vehicle’s structure strength. Boxer’s hull don’t have this problem because it’s modular.

7 Likes

The side eye boi

1 Like

should be added

1 Like

i want this in game

4 Likes

yeah i dont know why it hasnt been aded yet

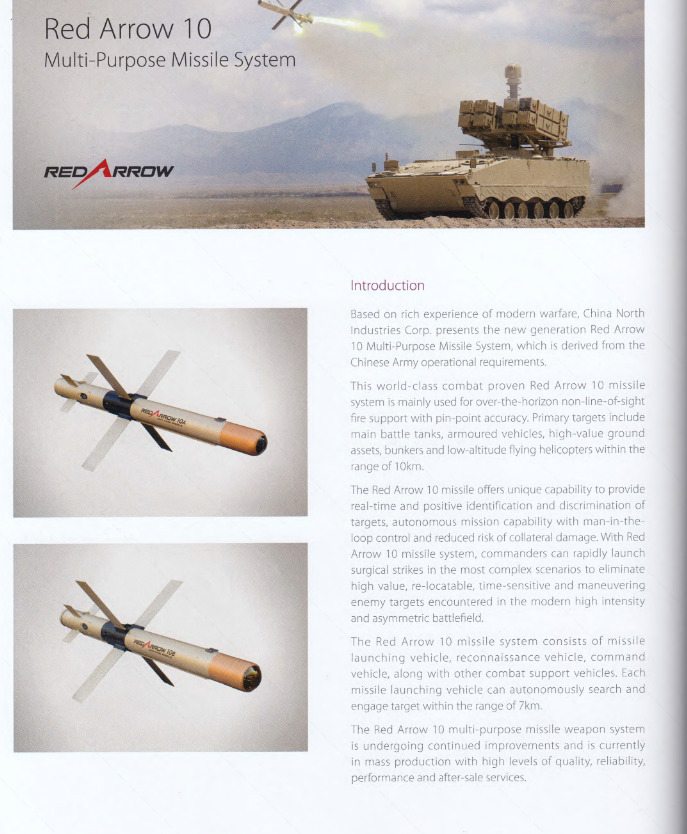

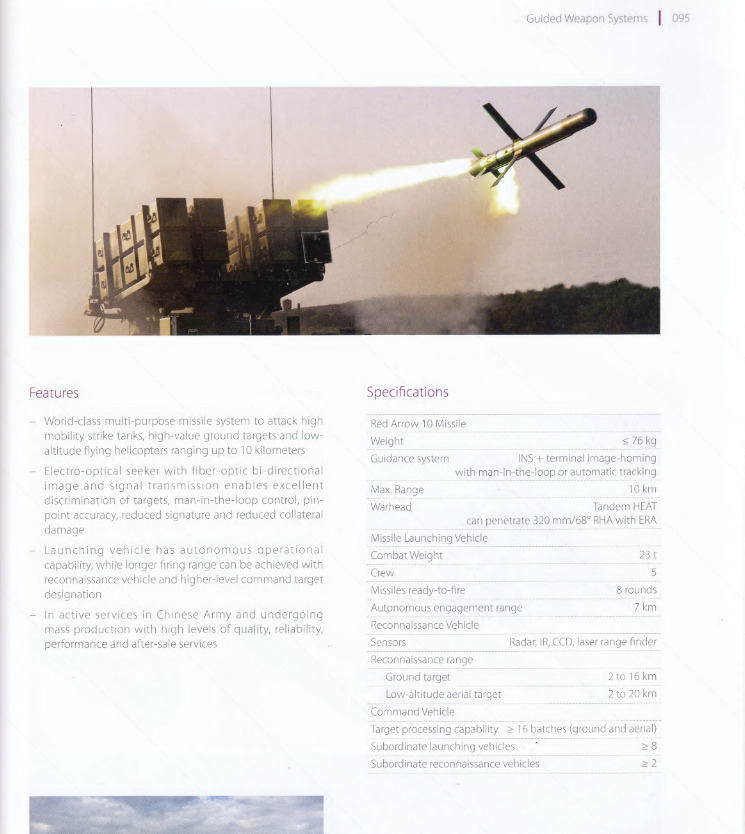

Oh uuuhh right. Thought I already included the 2017 Norinco HJ-10 info here, but I forgot, so now it’s in. Same has been done on the VN-1 version



1 Like

Hm, it also appears that the base HJ-10, which this one appears to be the 10A, uses TV for terminal stage. The HJ-10B on the VN-1 has IR

This would match up the claim of the HJ-10B having a “seeker upgrade” (which was not specified what exactly was upgraded), although I must admit that I’ve never seen a HJ-10C or D

1 Like

the new fold wing HJ-10 should have a new name. it changed the way wings folded top make the box much smaller.

I think hull don’t influence missile/launcher, just depends on what kind is needed. many Chinese image missiles have switchable TV/IIR seeker

5 Likes

damn that would be nice
