Valentine tank brake drum rotation speed incorrect (should rotate significantly faster than tracks)

Machinery of War Discussion Ground Vehicle
,
1

The brake drum animation on the Valentine series tanks appears to be incorrect. In-game, the brake drum rotates at approximately the same speed as the tracks. However, in real life, the brake drum rotates significantly faster—approximately 6–8 times the speed of the tracks—due to its position within the drivetrain.

Vehicle(s) affected:
Valentine tank (all variants)
Archer

2

Source ?

Create a ticket, say that here is useless.

2 Likes
3

Source, I own one

4

Thats not a source lmao, plus really? If so thats cool

1 Like
5

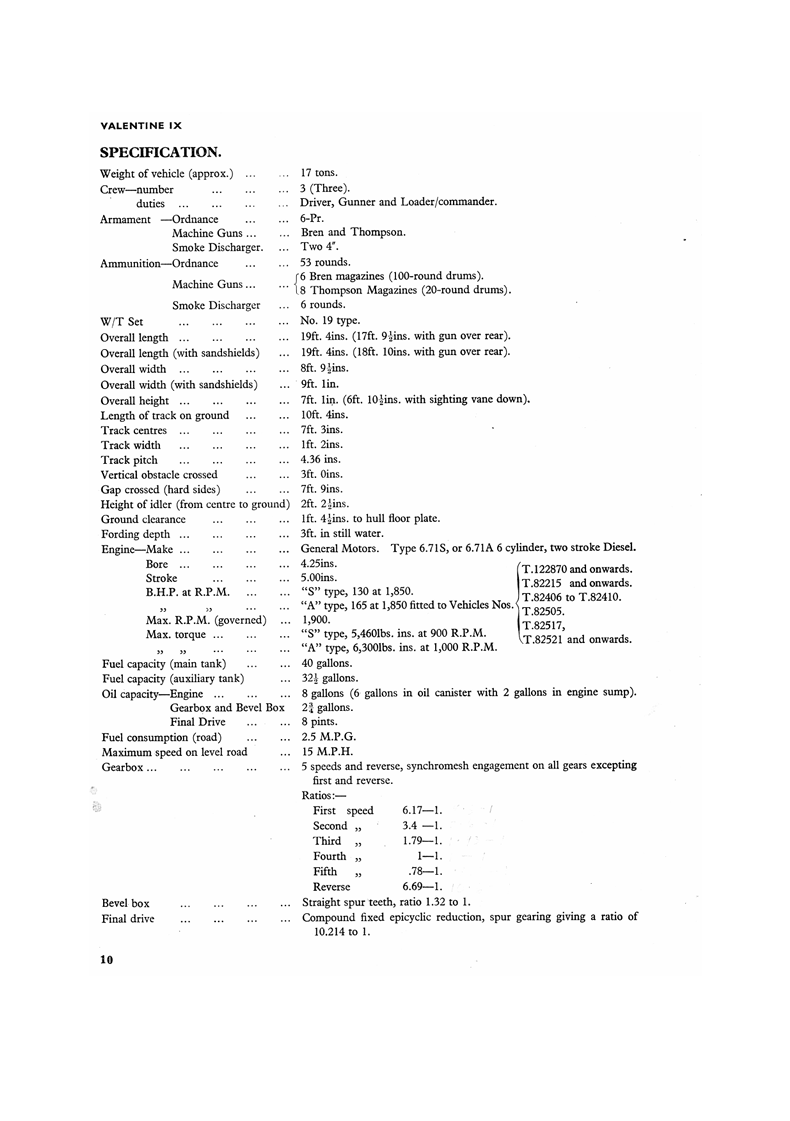

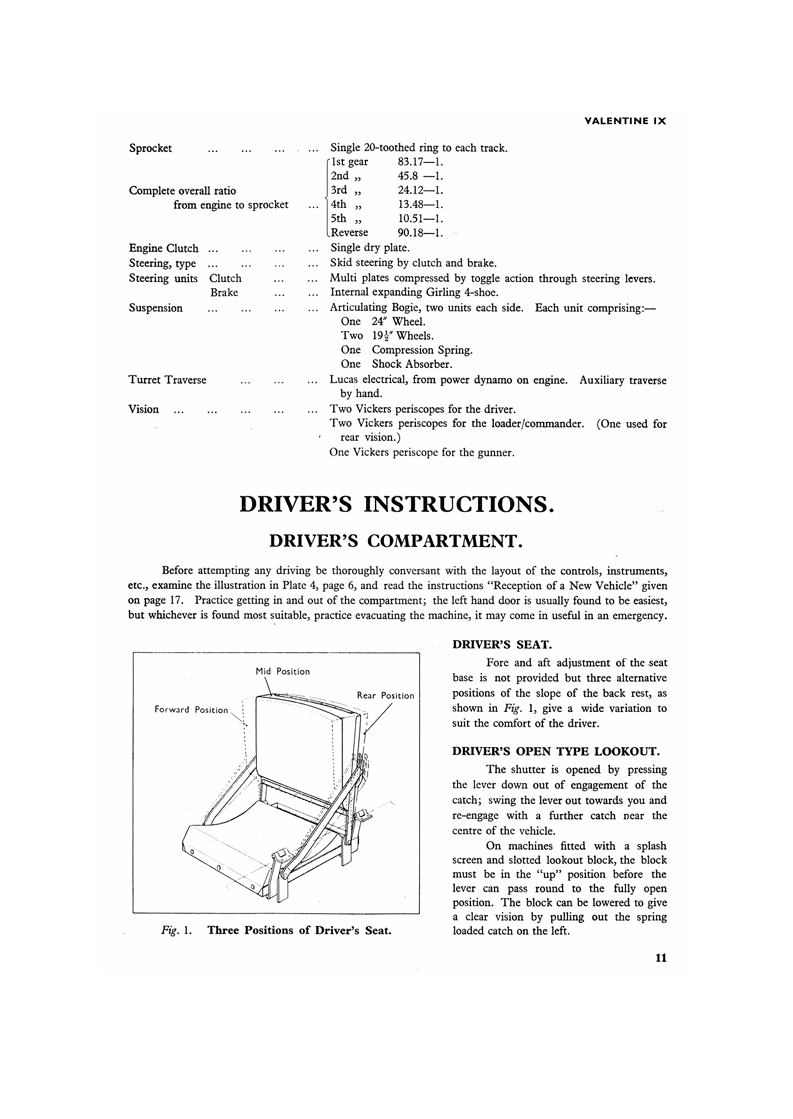

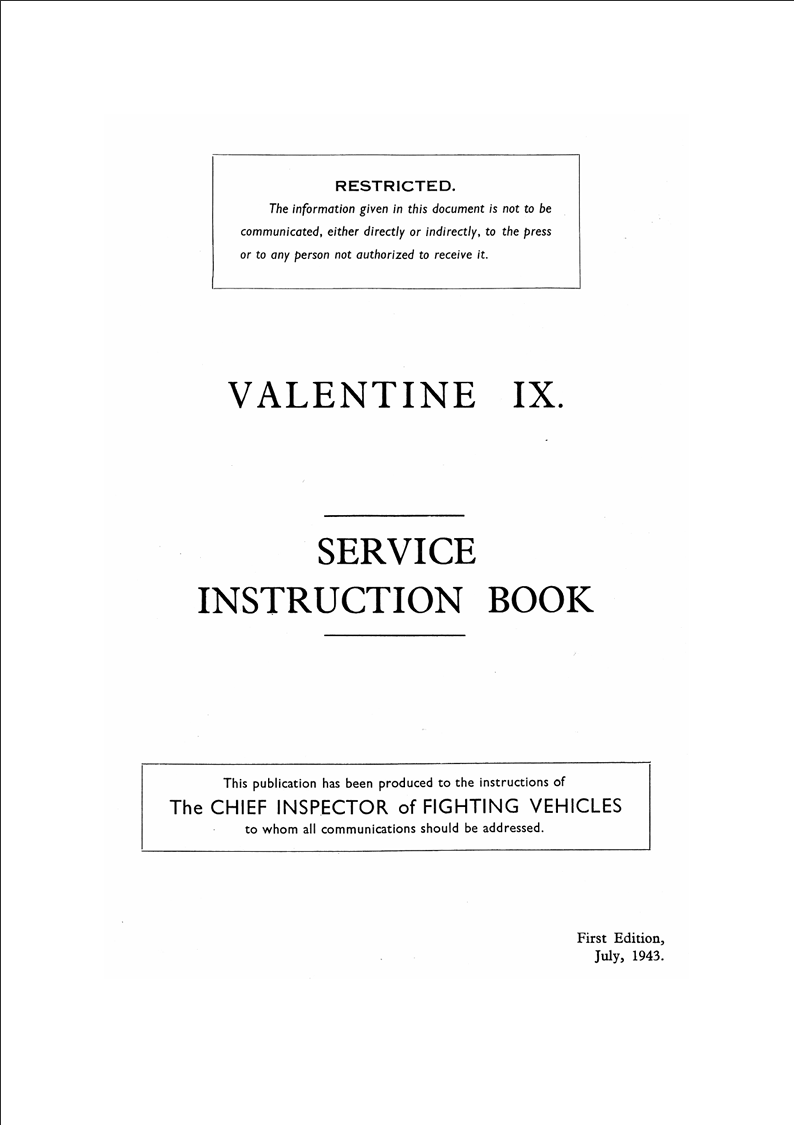

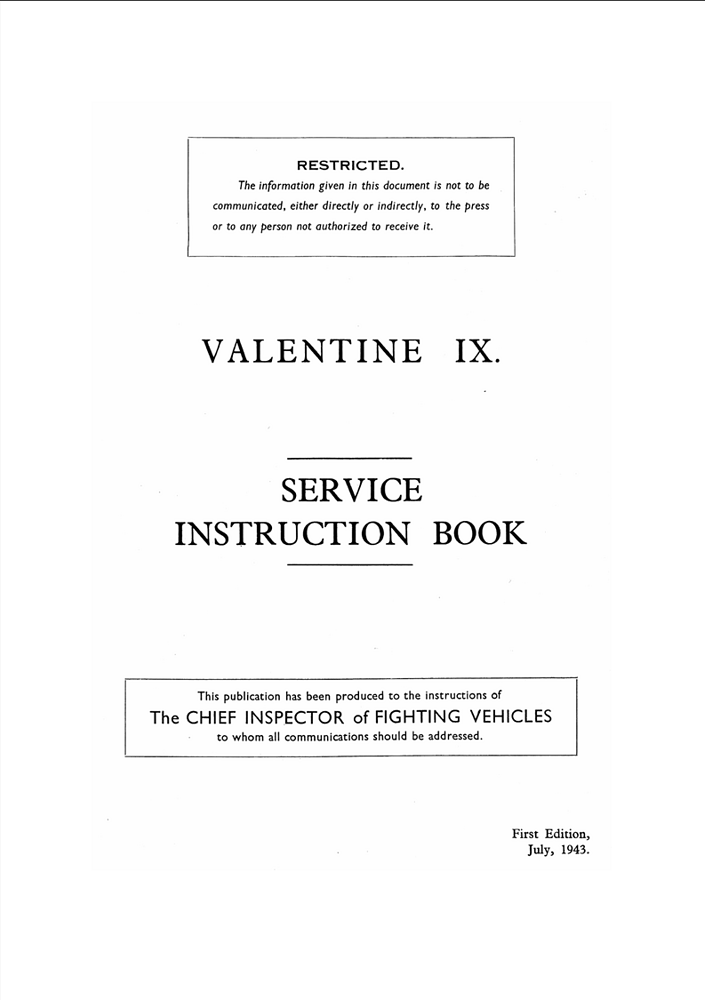

Here’s video evidence, I’m struggling to find a manual I don’t need to pay for online.

And yes.

6

So its mounted before the reduction gears then? That seems fairly straightforward lmao

Need an extra crew member lmao?

7

[ Engine ]
↓
[ Gearbox ]
↓
[ Steering Clutches / Brake Drum ]
↓
[ Final Drive (Reduction Gears) ]
↓
[ Drive Sprocket ]
↓
[ Tracks ]

We sometimes let random people in the turret when driving at shows if there’s space.

8

Yeah thats about what I figured. Takes less force to brake then doesnt it? Or did I just pull that out of my ass

Thats really cool. The Valentine is a gorgeous tank

9

Yeah, less force needed, less heat generated and gives the driver more control with turning.

2 Likes
