The zones here are rather incorrect, the side facing ones should be able to look more to the back and the rear facing one is, iirc, capable of guiding
1 Like
i have nothing seen yet that says so
1 Like
So pretty much what i know, is that the RWR function is done by the gazillion arrays in the wings and the radars (the tail array too), so maybe it has some blindspots unless there are some more dedicated antennas.
Hmm you did read that george tweet on X.
Those values are placeholders, since the side arrays coverage should go a 60 degrees rearwards too, but yeah the rear array is not for radar, its function is ECM, RWR and PD MAWS.
Do you have any sources on its abilities?
I’m curious to learn about it myself.

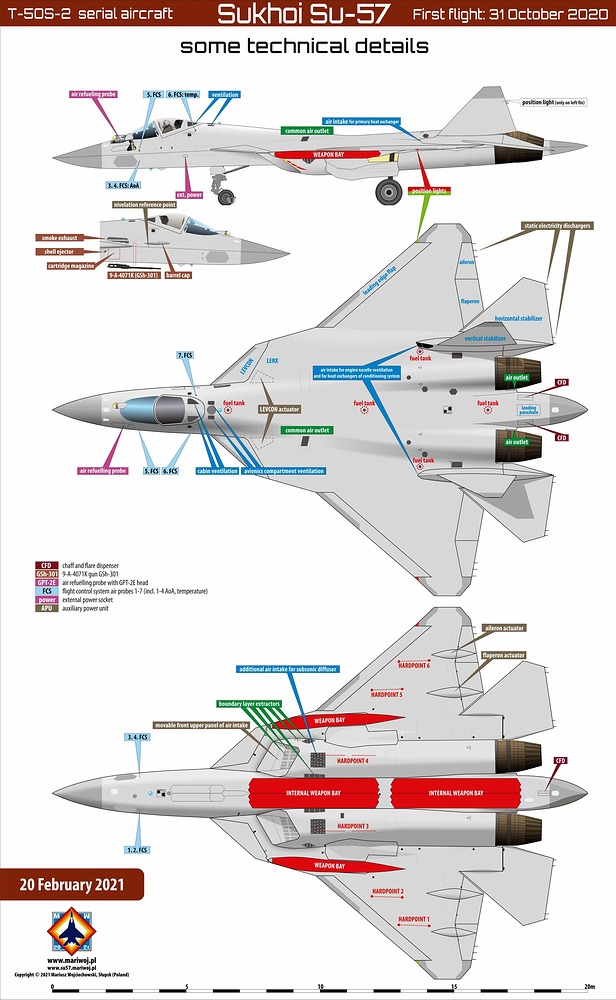

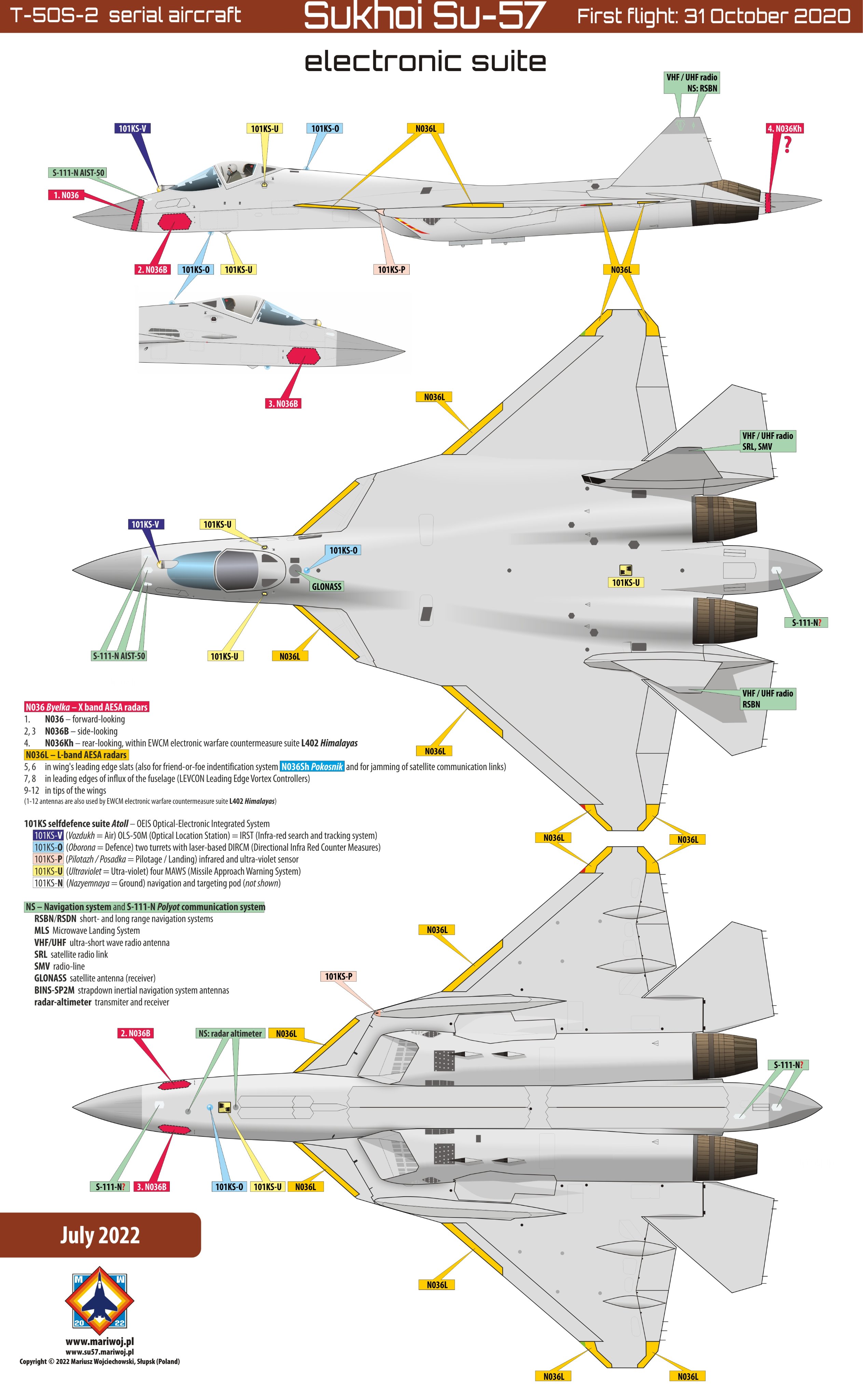

If this can help for people to know more about the su-57 sensors
(Source: Mariusz Wojciechowski, Słupsk (Poland) )
Original
19-01 12.008 ПМ Стариченкова.zip (272.7 KB)

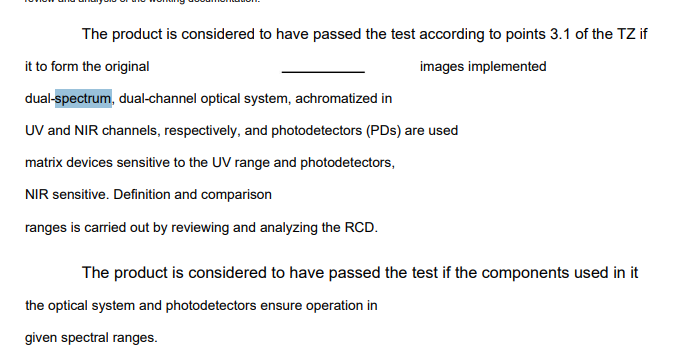

Translation
19-01 12.008 ПМ Стариченкова (1).zip (915.3 KB)
Pic (transl) :-
2 Likes

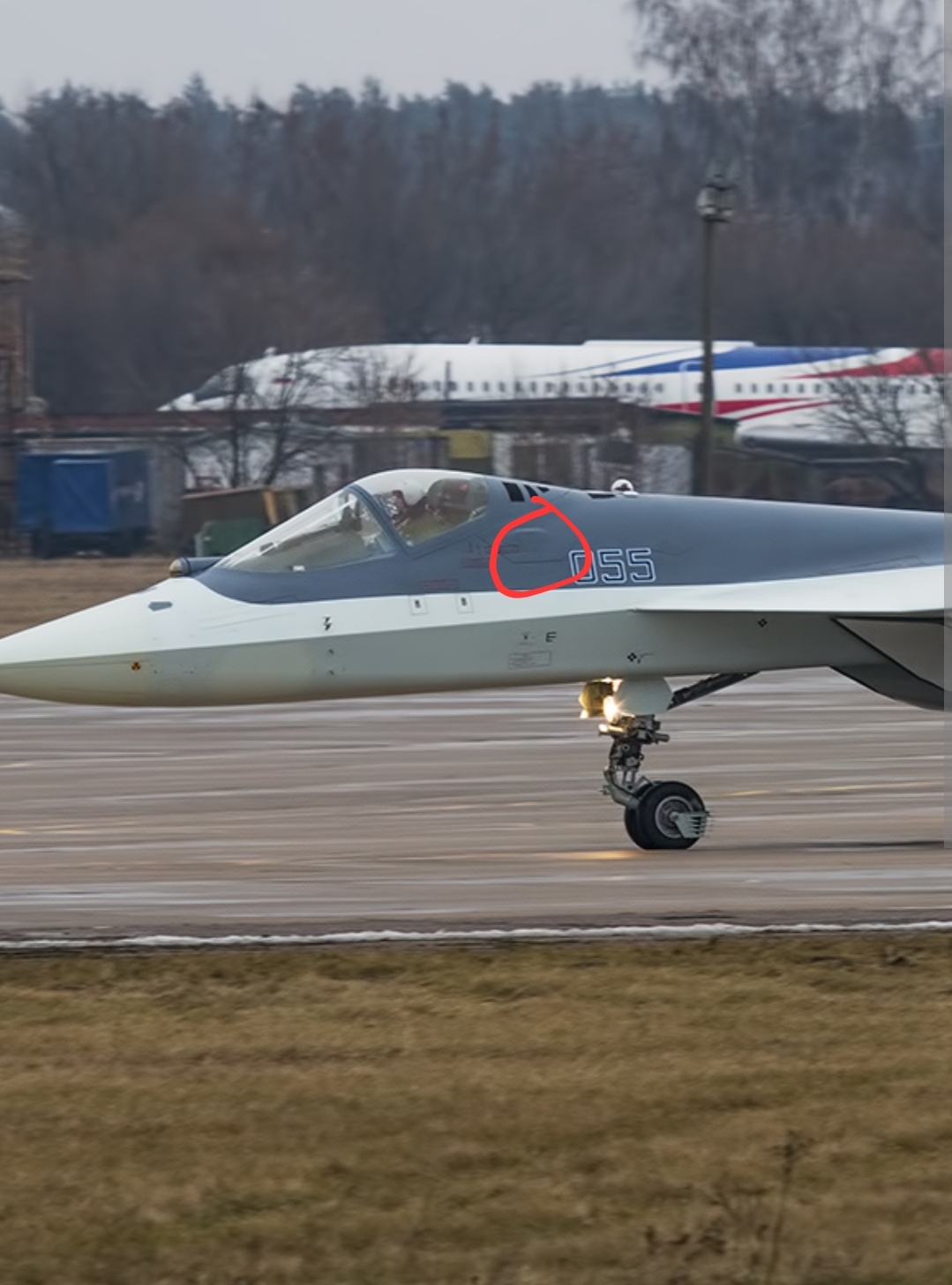

just reposting here.
not sure which one is used but it look like the one on the right ( s71m )
Got flaged lmao, didnt even show bad things, well that sad
edit: i might just post the source, Y’all can go watch here
6 Likes
Got flagged because there are too many washing machines on display in those images/s
3 Likes
i update it, surely a source cant be offensive
1 Like
Proof that Russia isn’t a technologically inferior nation isn’t welcome among some in this forum who believe so
3 Likes
these shovel and washing machine are becoming scary
Well and truly
I meant that is hardly cutting edge tech
Dunno, those edges look pretty sharp to me
1 Like
Imagine gett your leg caught on it😬
F-104 wing edge moment
