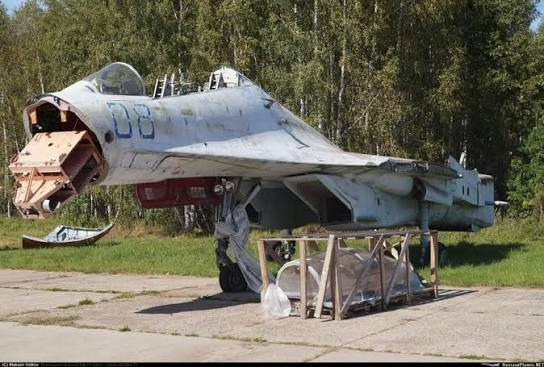

flanker gore
5 Likes
Jesus… put it under a spoiler, will ya?!
on of the UB airframes it seems. At first i thought that it is a mock-up fr testing, but it has way too much sensors intact, including SPO-15 antennas on the intakes to be just a mock-up
here have it under a spoiler
idk why you need it like that tho
11 Likes
Radar performance probably modelled based on this🥲
5 Likes
does anyone have the full document/pdf from TSKBA?
1 Like

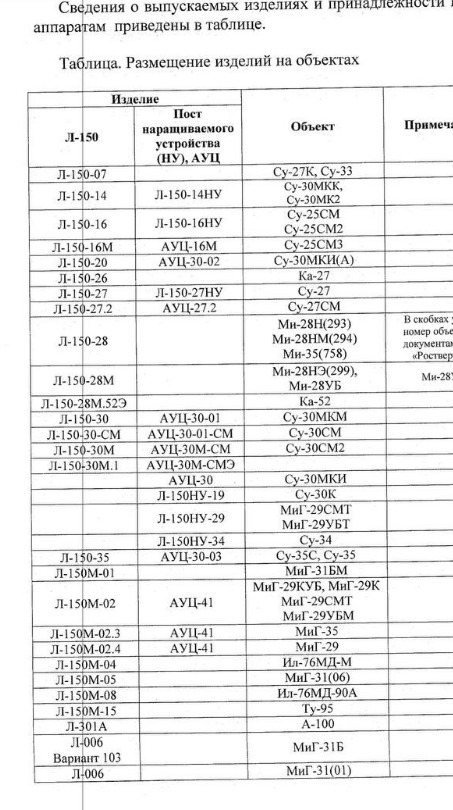

I’ve only seen this table. An only on this very forum, ironically enough

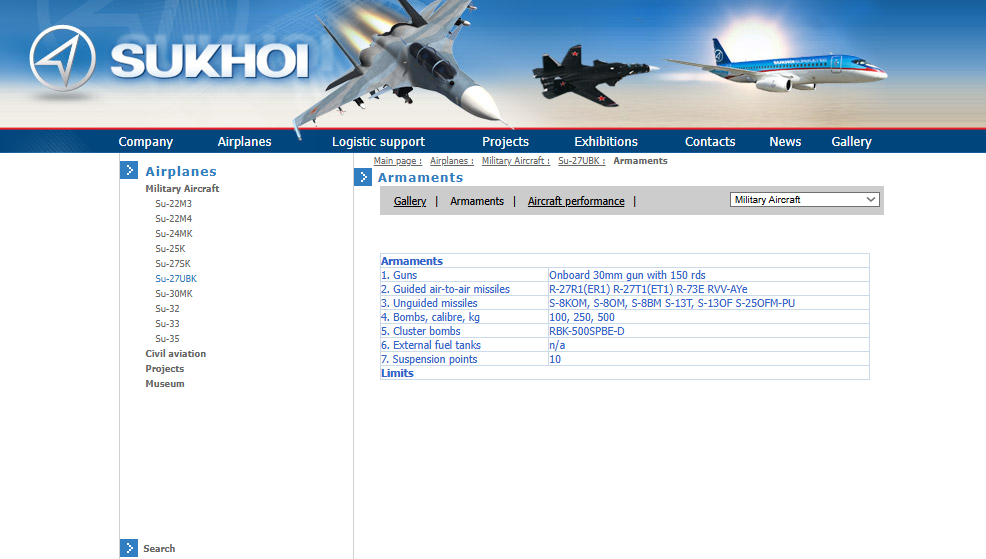

I just noticed Sukhoi says Su-27UBK can use RVV-AE
2 Likes

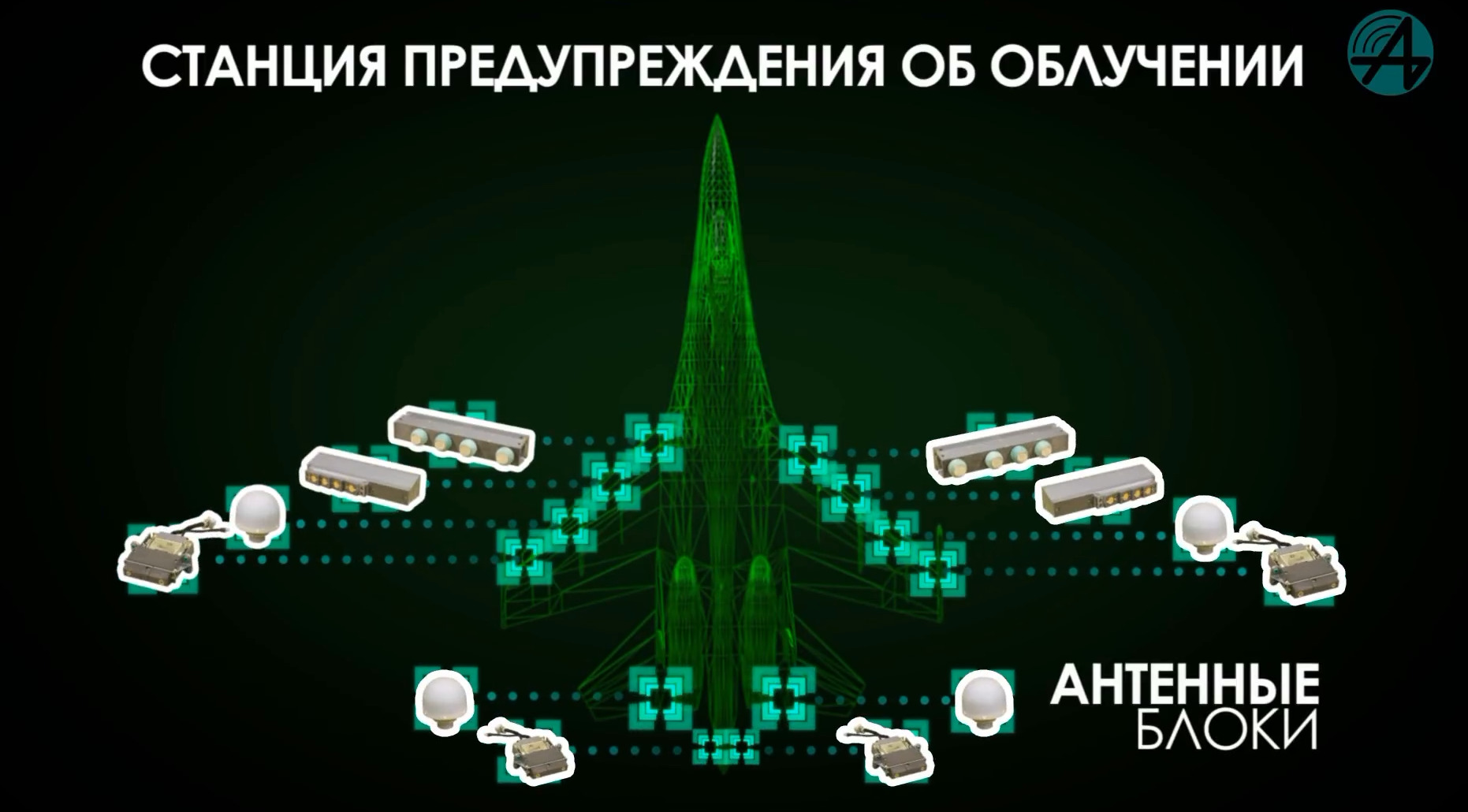

Found an interesting video from ЦКБА about their passive radio reconnaisance systems
This seems to be how the full set of antennas on Su-35S looks like for the L-150
link to the video itself
2 Likes
This kinda lines up with where those Multifunctional AESA Interrogators would sit, no?
Maybe that’s one of their functions.
1 Like
I think so as well, but the compartment itself might just house both RWR and Interrogators inside
1 Like
i could see them being used for it
bc it would still just proccess radar returns, but not ones that it sent out itself
1 Like
I found another Su-35UB Pic.
I thought this was just a Su-30 for the longest time. But no, It’s a Su-35UB.
3 Likes
Is that grey radome going to be the new standard? Also is that a portrait of Archangel Michael? Also look like no pitot tube.
These are all older photos taken from online. But from what I’ve seen most Su-35S use a light grey for their radome.
Yes.
Also yes, The Su-35S does not have a Pitot Tube in the nose.
1 Like
AFAIK su-35ub and su-30mkk are basically the same, ub was built from a su-30mkk and was converted back to a su-30mkk when the su-35 failed
1 Like
Does anyone know what radar this uses?
I assumed N001 but if it uses RVV-AE then it might use a different variant.
Fomin says that, but I’m not sure how true this is, couldn’t find any other proof than that.
Also found an old video from KnAAPO
2 Likes
I mean, J-11A has N001 with RVV-AE integration so it isn’t too unreal to assume that UBK would also have it
1 Like
Berkut my beloved!
1 Like
