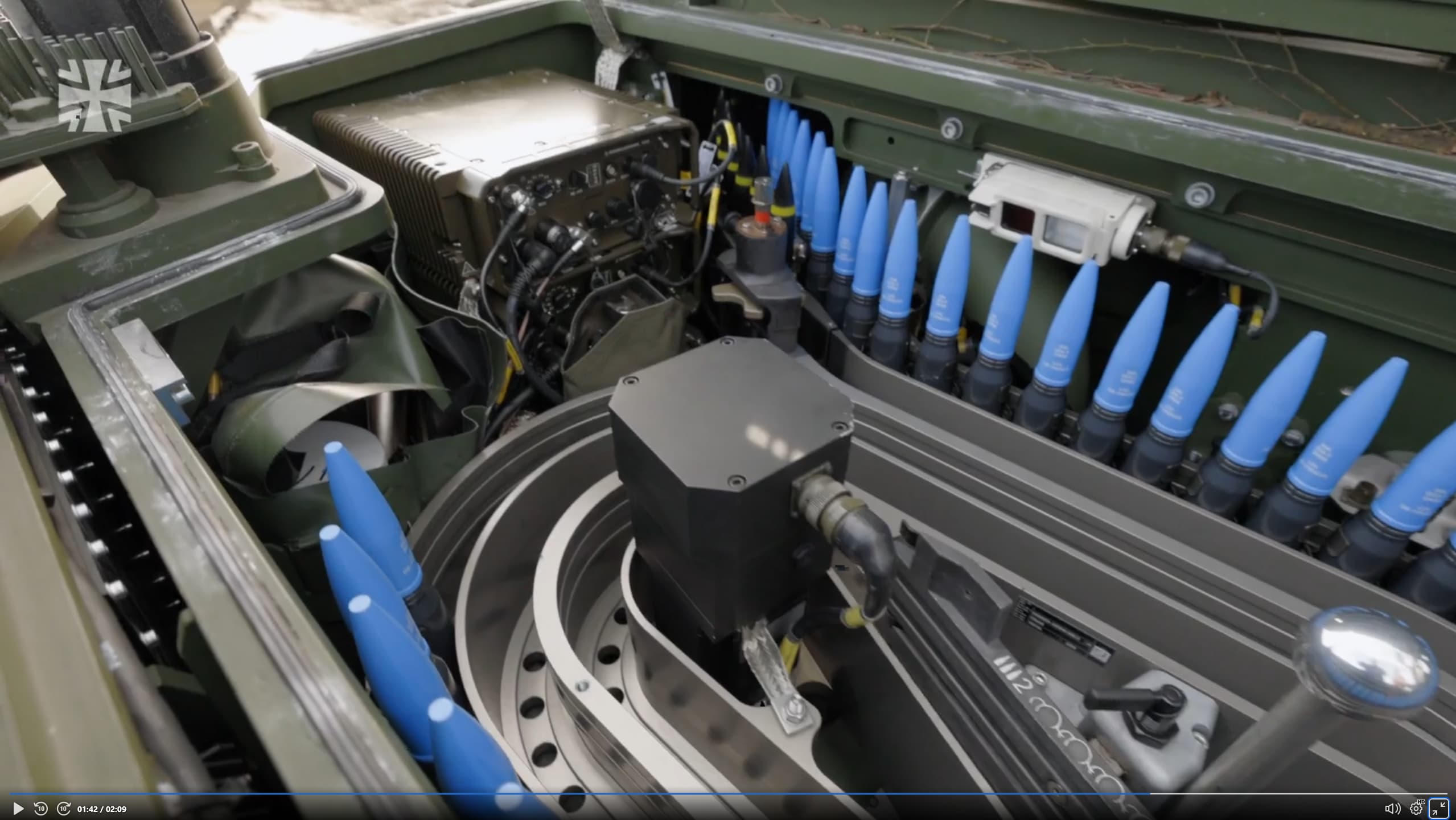

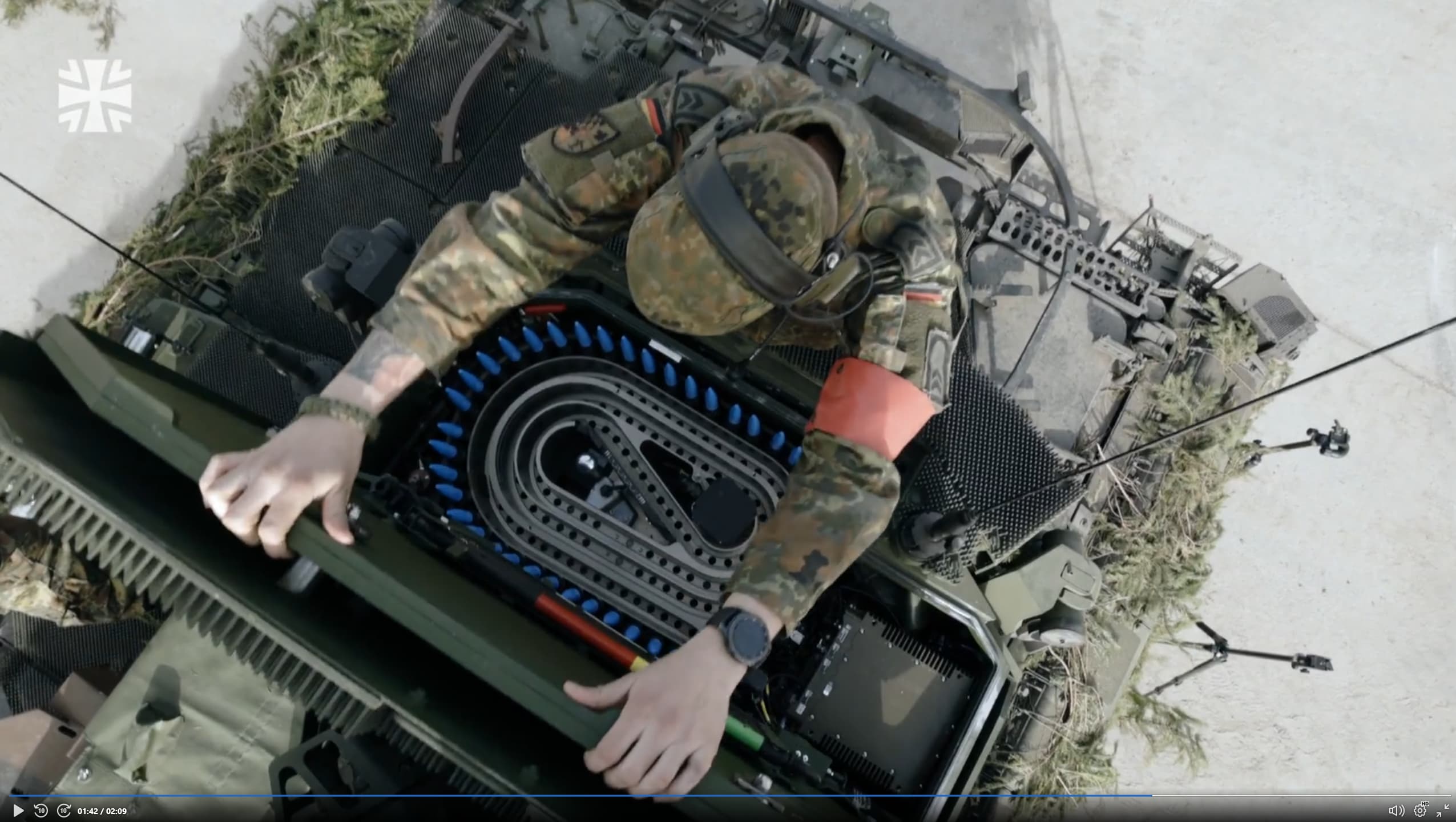

Some pictures of the turret-roof armour:
1 Like
A Source could be very neat or if you want you can add it in my Report as a comment.😀
btw the link to the Report: Puma IFV (All) Missing Turret Roof Composite
Another Report but this is about the Rear side being 15mm of RHA even though PSM states it can resist 14.5mm API (~40mm)
Puma IFV (All) Insufficient Rear Protection
2 Likes
Zusammenfassung

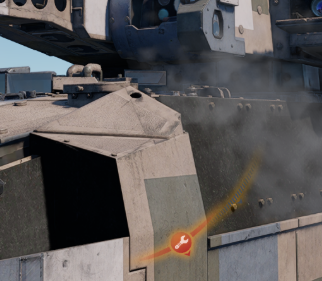

You can overpressure the tank with ~1kg tnt onto the Driver
Edit:
MUSS reacts to 105mm HEATFS
1 Like
“our team cannot reproduce this bug!”
1 Like
Would it be correct this way?
Spall-Liner → hull(15mm?) → AMAP-B(Picture?) → ERA/CLARA
2 Likes
is it what she wouldve wanted?
Im pretty sure its missing that armor entirely
The worst part is, I would lie when I say it would surprise me :(

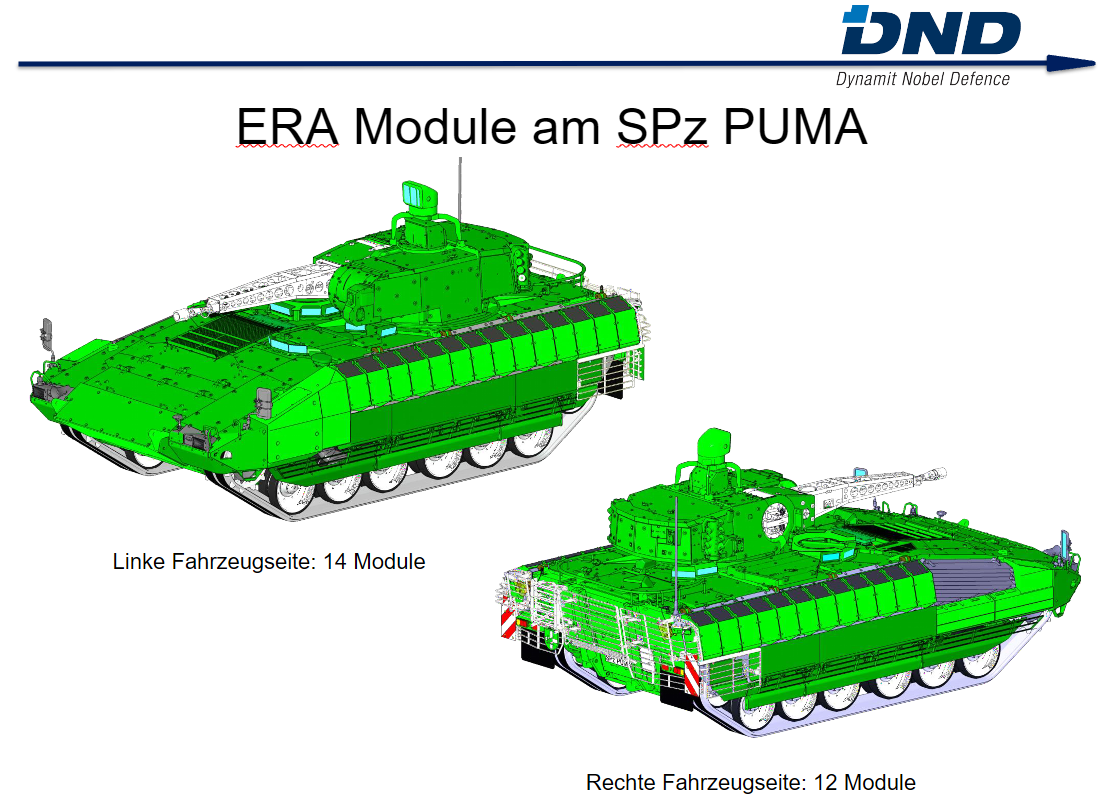

Anyway, source of my Pic
1 Like

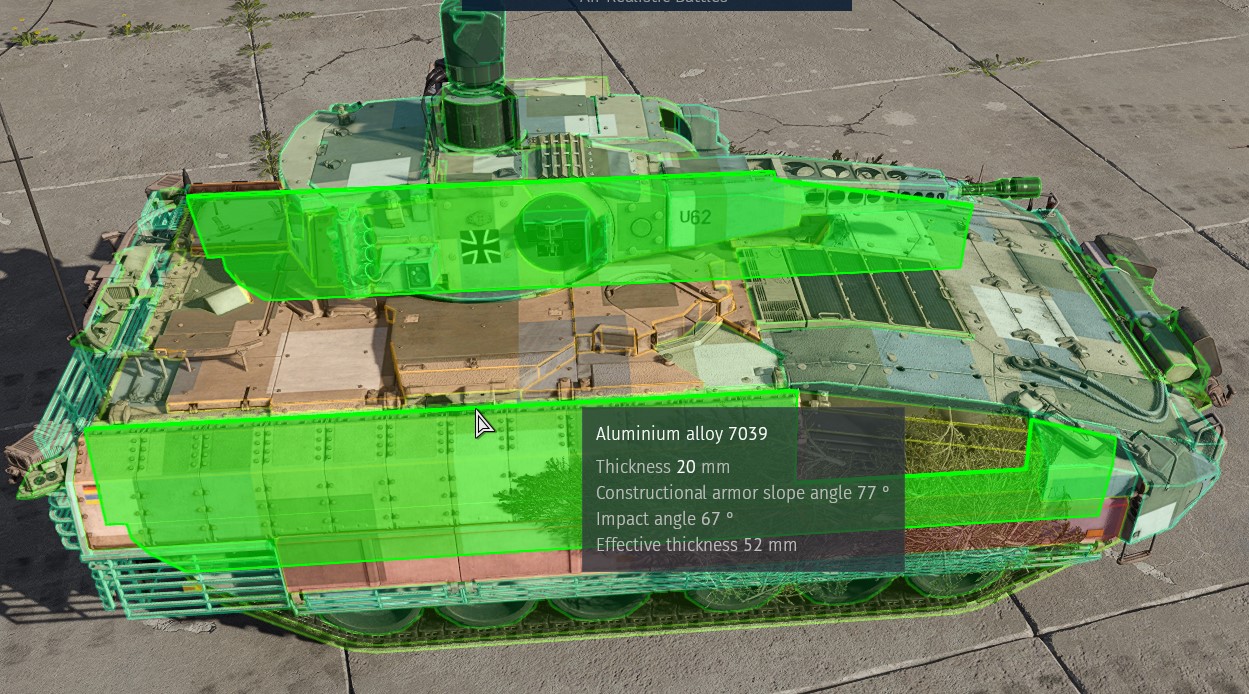

So since the the current Side Armor is roughly 37.5mm (with all layers) which isnt really enough to stop 14.5mm API (39mm)

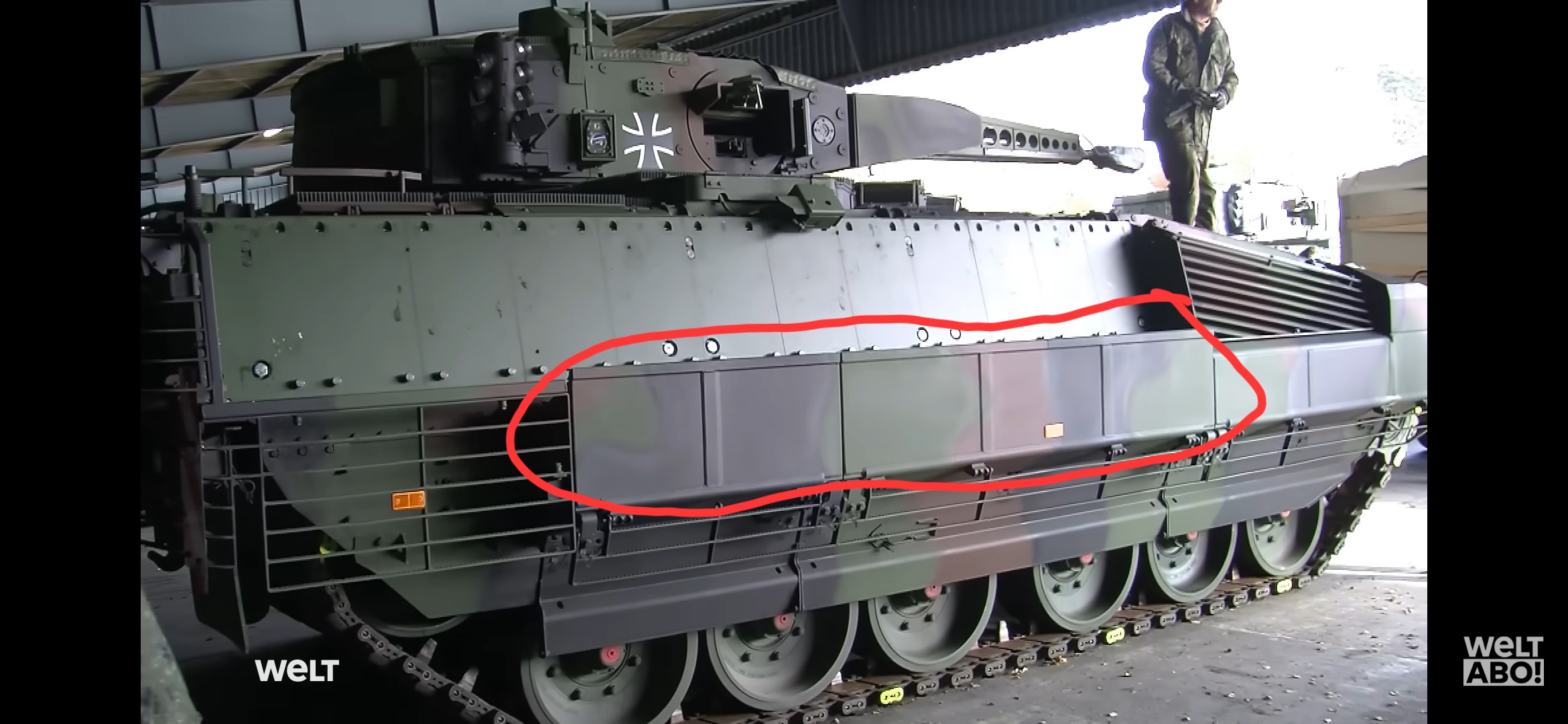

The Lower Part is Composite not ERA on the Second Image

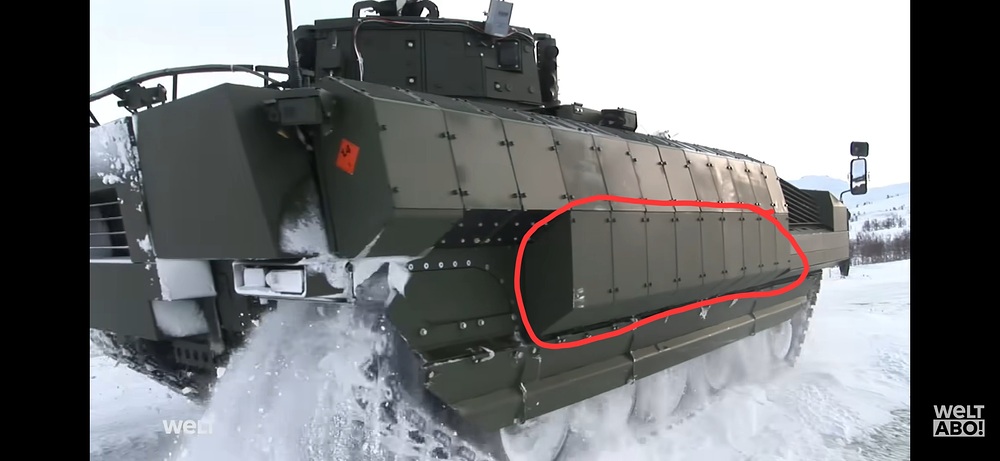

Also in the Snow Picture?
Because looks 1/1 like the ERA Blocks
Looks more like ERA
Could it be the Composite sits on top of ERA?
Still SuS :3
1 Like
2 Likes

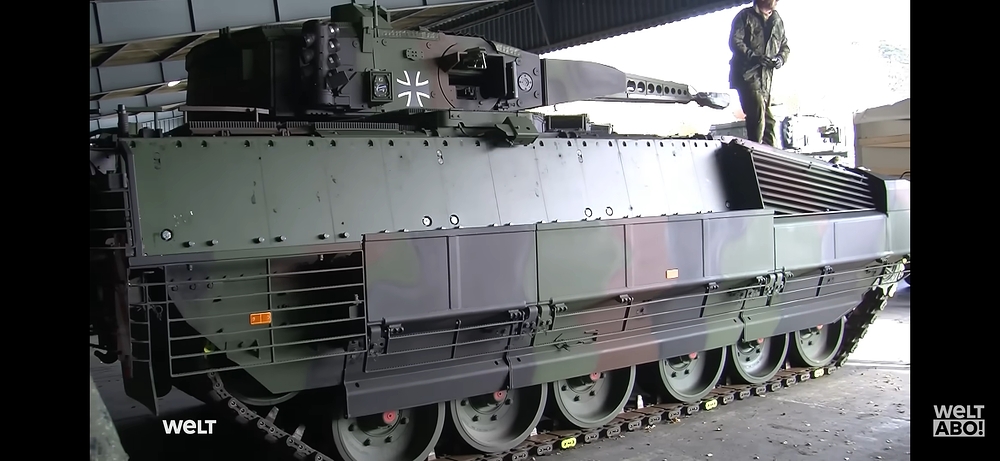

The longer I look at the IRL pic, the more it looks like the armor (AMAP-B?) is really missing.
