Robotbåt R 142 Ystad

[Would you like to see Robotbåt R 142 Ystad in-game?]
  • Yes
  • No
0 voters

(Close-up video)




History

Sammanfattning

The story of the Robot Boats begins with Torpedo Boat type Nkg, a group of twelve vessels constructed at the Karlskrona Shipyard AB between 1973 and 1976. Previously, the tradition had been to name torpedo boats after stars, but the Nkg series ships were instead named after cities, breaking with the old Swedish Navy custom of naming ships after stars and constellations. Already in 1976, the idea of ​​modifying the Nkg class into robot boats was proposed, with plans to use the American Harpoon missile. However, in 1979, the Swedish parliament decided that Sweden should develop and acquire its own Swedish missile instead of purchasing the Harpoon. As a result, the ships were equipped with the completely Swedish-made Robot 15.

From 1981 onwards, modifications began, which involved equipping the ships with missiles and improving radar, combat control, and fire control systems. The type name was thus changed to “Robot Boat type Norrköping.” In 1995, further modernization and a six-year overhaul began for HMS Ystad (R-142), the first of six planned to be retained; the other six robot boats, HMS Norrtälje (R133), HMS Varberg (R134), HMS Västerås (R135), HMS Västervik (R136), HMS Umeå (R137), and Strömstad (R141), were decommissioned.

The modernization mainly involved some ship technical measures such as replacing the GT5 for power supply with an additional diesel-powered generator, hydraulic start for turbines, vibration measurement equipment for main machinery, torpedo weapon control systems, RBS15 MK II missile instruments, air conditioning in the Combat Information Center (CIC), new VHF and navigation radar on the bridge, equipment for GMDSS, and a complete renovation of the combat control center with MARIL 2000. The type name was changed to “Robot Boat type Ystad” and with this modification, the ships were intended to remain operational until at least 2015.

The first ships to undergo the modification were HMS Ystad (R 142) and HMS Norrköping (R 131), followed by HMS Nynäshamn (R132) and HMS Luleå (R139), and finally HMS Piteå (R138) and HMS Halmstad (R140). The last ships were completed in the year 2000.

In 2001, two more ships from the series were decommissioned, HMS Luleå (R139) and HMS Halmstad (R140), leaving four ships remaining.

In 2003, two more ships from the series were decommissioned, HMS Nynäshamn (R132) and HMS Piteå (R138), leaving two ships remaining until the autumn of 2005 when the remaining two robot boats, in service HMS Ystad (R 142) and HMS Norrköping (R 131), were decommissioned and left at the Naval Base in Karlskrona.

Ship Data (Translation)

Sammanfattning

Data
Built: 1976
Length: 44,1 m
Width: 7,1 m
Height: 2,4 m
Displacement: 230 tons
Top speed: 40 knots
Engine: 3 Gas turbine type Bristol Siddely Proteus, effect 4500 hp/unit
Propellers: 3 KaMeWa (swivel able)
Rudders: 2 rudders between propellers
Electric and hydraulic: 2 Scania 6-cyl Dieses engines
Fire-control tower: Arte 722
Fire-control system: Maril 2000
Armament:
Missiles: max 8 “Robot 15 Mark II”
Torpedos: max 6 “Torped 61, 53 cm”
Main gun: Automatkanon Bofors 57 mm
Machineguns: 2 “m/58, 7.62 mm”
Countermeasures:
2 Mounts for 57mm Illumination & Chaff rockets.
2 dispensers for Chaff and flares.
Mine rail; for Depth charges and Mines*


(Sources)

5 Likes

100% yes for any Swedish missile gunboat

1 Like

Would love to see this in whatever variant is added, should be able to compete nicely at higher tiers with its 57 mm gun. It should be noted that the Norrköping-class can’t use the 3P round that is shown in this suggestion. That was only available to the Mk3 version of the 57 mm L/70 as found on the Visby-class, this round being known as 57/70 KULSGR 2000LK in Swedish service. The Norrköping-class uses the Mk1 version of the 57 mm gun, aka 57 mm apj 7101, and lacks the ability to use programmable ammunition. It instead used HE, standard HE-VT, and SAP

1 Like

If you provide details for munitions i can replace the 3P

I provided it since i found no other proof of other munitions

It’s in the ammunition catalogue from the era but also mentioned here Kanon - Marinmuseum / DigitaltMuseum

Sjömålsgranat is essentially SAP with a nose fuze. It’s the same gun as used on the Begleitpanzer btw, although I’ve never seen any historical reference to there being a naval APCBC shell. May have been developed for the Begleitpanzer for all I know
https://wiki.warthunder.com/Bofors_L/70_Mk.1_(57_mm)

Quite late to this but I thought I might aswell help with the ammunition;

The R142 Ystad uses the Bofors 57 mm SAK L/70 Mk. 1 (APJÄS 7101) and can thus use the following ammunition-types;


HE, HE-VT, HE-PFPX, SAPHEI (delay) & TP

Specific Data & Characteristics

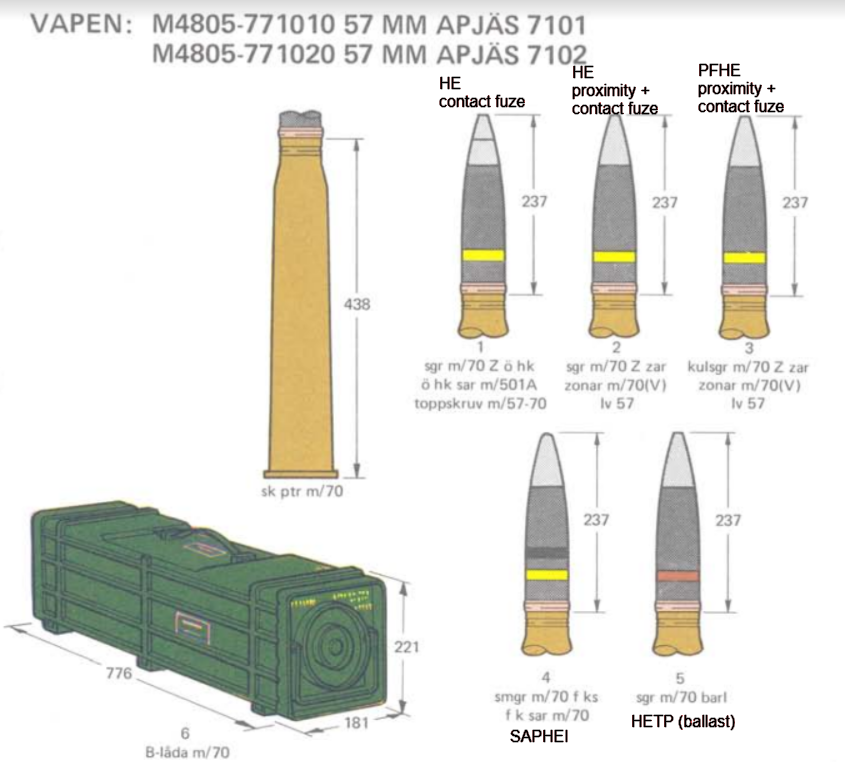

AMKAT_Apjas_7101_7102

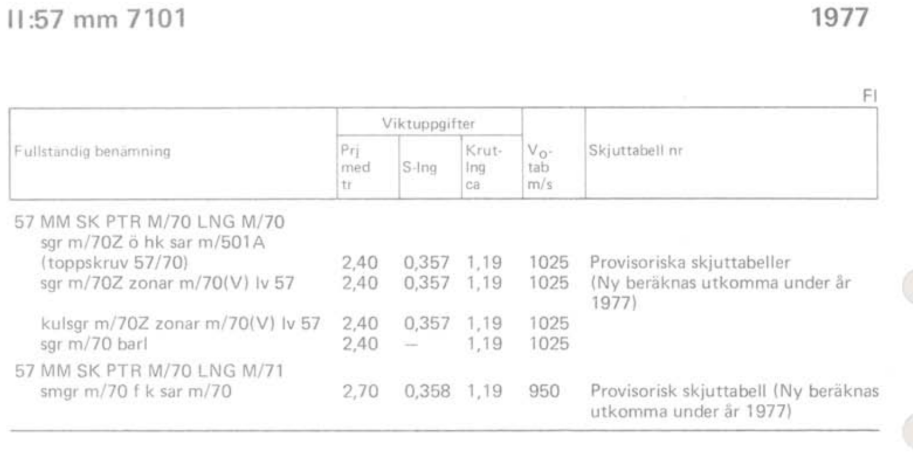

AMKAT_data_och_bilder_marinen_1977_57mm_apjas_7101


High Explosive [HE]
Name: “57 mm sgr m/70 Z ö hk”
Projectile: “57 mm sgr m/70 Z”
(sgr → spränggranat ~ [high] Explosive grenade)
Fuze: “ö hk sar m/501A”
(ö hk sar → ögonblickligt högkänsligt spetsanslagsrör ~ Immediate [action] highly sensitive PD-Fuze)
Fuze-Type: Point Detonating (/Impact) Fuze
MV: 1020-1025m/s
Weight (full): 6.1 kg
Weight (Prj.): 2.4 kg
Expl. Filler: 0.45 kg
Expl. Type: Hexotonal
Tracer: No
Ingame: Yes; 57x438 HE-T (shouldnt have a tracer but not yet reported)


High Explosive - Variable Time [HE-VT]
Name: “57 mm sgr m/70 Z zar”
Projectile: “57 mm sgr m/70 Z”
(sgr → spränggranat ~ [high] Explosive grenade)
Fuze: “zonar m/70(V)”
(zonar → zonanslagsrör ~ Proximity + PD-Fuze)
Fuze-Type: Proximity + Point Detonating (/Impact) Fuze
MV: 1020-1025m/s
Weight (full): 6.1kg
Weight (Prj.): 2.4 kg
Expl. Filler: 0.45 kg
Expl. Type: Hexotonal
Proximity-Radius: 6-7m (effective - against: Aircraft) & 3-5m (effective - against Ordnance)
Tracer: No
Ingame: Yes; 57x438 HE-VT (as above)


High Explosive - Pre Fragmented ProXimity [HE-PFPX]
Name: “57 mm kulsgr m/70 Z zar”
Projectile: “57 mm kulsgr m/70 Z”
(kulsgr → kulspränggranat ~ Ball-Explosive grenade)
Fuze: “Zonar m/70(V)”
(zonar → zonanslagsrör ~ Proximity + PD-Fuze)
Fuze-Type: Proximity + Point Detonating (/Impact) Fuze
MV: 1020-1025m/s
Weight (full): 6.1 kg
Weight (Prj.): 2.4 kg
Expl. Filler: 0.38 kg
Expl. Type: Hexotonal
Pre-Fragm.: 1200 tungsten-alloy pellets (Diameter: 3mm, Density: ca. 16,505g/cm³)
Pre-Fragm. Mass: 0.28 kg total (~0.2333g/pellet)
Proximity-Radius: 6-7m (effective - against: Aircraft) & 3-5m (effective - against Ordnance)
Tracer: No
Ingame: No, but submitted as suggestion via bug-report

^The values above are from the PFHE Mk. 2, which is the round the Begleitpanzer 57 mm used - I’m not sure which exact changes were made compared to the Mk. 1 except for the electronics in the fuze; but from what I’ve heard the Mk. 1 PFHE round only featured 600 tungsten pellets and had a lower total weight of 5.8kg.


Semi Armour Piercing High Explosive Incendiary (fuze-delay) [SAPHEI]
Name: “57 mm smgr m/70 f ks”
Projectile: “57 mm smgr m/70”
(smgr → sjömålsgranat ~ Naval Target grenade)
Fuze: “f k sar m/70”
(f k sar → fördröjt känsligt spetsanslagsrör ~ delayed [action] sensitive PD-Fuze)
Fuze-Type: Point Detonating (/Impact) Fuze with delayed action
MV: 950m/s
Weight (full): 6.3kg
Weight (Prj.): 2.7 kg
Expl. Filler: 0.3 kg
Expl. Type: Hexotonal
Tracer: No
Ingame: Yes; 57x438 SAP
Note: Can also be considered as “High Capacity” (HC) round depending on prefered terminology.

Source: Ammunitionskatalog, Data Och Bilder, Marinen, 1977

Also some important notes;
The APCBC-T (57 mm slpprj m/67) should also be compatible if used in the L/70 cartridge but I have not seen it listed for the 57/70 Mk. 1 in any AMKAT so far (only for the lvakan m/54 & 57/60). However, it does appear in some BOFORS advertisements for the 57/70 Mk. 1 and was used on the Begleitpanzer 57 mm - the ingame round can be copy pasted without issues.

Technically, the Mk. 1 can use all Mk. 2 ammunition-types, however some rounds are either not compatible at all or only if “minor modifications” were made;
HCER [High Capacity Extended Range] - Requires modifications
HCER-BB [High Capacity Extended Range - Base Bleed] - Not compatible
KULSGR 2000LK [3P] - Not compatible

I don’t know whether the other modern rounds are compatible (I assume they are but then again, they certainly were not used by R142 Ystad so it’s kinda irrelevant).

2 Likes

+1 when Sweden gets it’s navy
