Panzer 87-140 WE: The Alpine Hammer

Would you like to see the Panzer 87 140 in-game?
  • Yes
  • No

0 voters


Panzer 87-140 WE


History

The Panzer 87 140 WE prototype represented a significant step in the evolution of Swiss armoured warfare, conceived to bring the Leopard 2A4 into the future battlefield with enhancements in firepower, electronics, and protection. Launched in 2003, the upgrade was an ambitious plan to transform the existing Panzer 87 Werterhaltung (Pz 87 WE), which had already received updates including improved optics and control systems.

The 140 WE variant was designed to further build upon the Pz 87 WE’s upgrades, which had introduced new composite armour, potentially incorporating titanium, advanced surveillance systems like thermal and reverse cameras, and an electric turret drive for increased efficiency. More so, it aimed to elevate the tank’s combat capabilities with a sophisticated autoloading mechanism and state-of-the-art weaponry.

However, despite the prototype’s promise to set a new standard for Swiss tanks, both the Panzer 87 140 WE and original WE prototype were ultimately deemed too costly for the Swiss Army’s requirements. The focus thus shifted back to the Pz 87 WE, which became the mainstay after a cost-effective modernization of select units. This pragmatic approach led to the official upgrade of 134 tanks to the WE standard by 2013, incorporating many of the practical advancements from the prototype without the full extent of its envisioned capabilities. The journey of the Panzer 87 140 WE, while not culminating in full-scale adoption, nonetheless influenced future Swiss military procurement and the continuous iterative development of their armoured fleet.


Weaponry
Due to the nature of the prototype not much is publicly known about the capabilities of Panzer 87 140 WE’s available APFSDS or HEATFS shell. Some pictures and statements from swiss munition producers claim the APFSDS to be 1000mm long, 26mm in diameter and having muzzle velocity of 1,800m/s. This would make the round quite capable. According to the diagrams of the turret, it has an autoloader capable of holding 32 rounds with potentially being able to load a shell every ~9 seconds. I would assume the turret rotation speed, gun elevation and depression remain the same as the 2A4.

  • 1 x RUAG 140mm L/47 gun (32 rounds)
  • 1 x 7.5 mm MG 51/87(4,750 rounds)

Mobility

While the Panzer 87 140 WE likely became heavier due to its new gun and the space modifications required for the autoloader, various design changes counterbalance this increase. With the reduction of the crew to three men and a decrease in the protected area, the overall weight of the tank may not exceed that of the regular Panzer 87-WE. Therefore, until more specific data is obtained, it’s reasonable to maintain the estimated weight at 56.5 tonnes. This assumption, combined with the tank’s MTU MB 873 Ka-501 liquid-cooled V12 twin-turbo diesel engine, which delivers 1,500 PS (1,479 hp, 1,103 kW) at 2,600 rpm, and a power-to-weight ratio of 27 hp/tonnes through a Renk HSWL 354 transmission, suggests that the Panzer 87 140 WE should retain mobility comparable to the Leopard 2A4.

  • Engine: MTU MB 873 Ka-501 liquid-cooled V12 twin-turbo diesel engine 1,500 HP
  • Transmission: Renk HSWL 354

Protection
The Panzer 87 140 WE advances the Leopard 2A4’s legacy through an upgraded composite armor, believed to include titanium, which significantly enhances its protective capabilities against kinetic energy and chemical energy threats. These improvements remain classified, underscoring the armour’s modernity and strategic advantage. This strategic enhancement in armour not only provides a substantial boost in defence but also results in a weight increase of approximately 1.5 tonnes.


Dimensions
Due to the lack of information I was not sure if the Panzer 87 140 WE had 3 or 4 crew members, most likely only had 3 due to the new autoloader setup but sadly there are still a lot of missing details about this mysterious tank.



Pictures

Panzer 87-140 WE

Panzer 87 WE

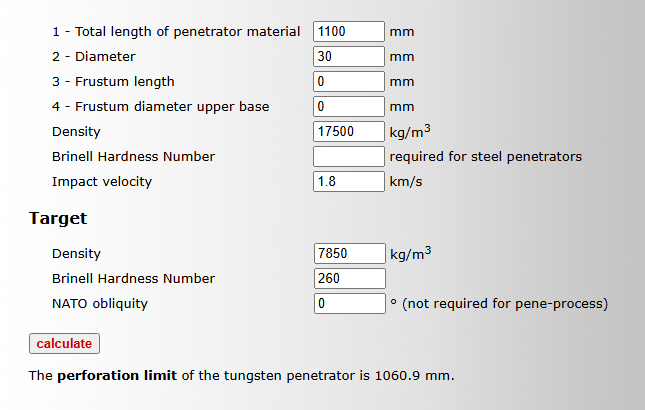

Potential penetration test?

Sources

Journal of International Defense Review 1997-09

Unknown article
19601560_1543106365748103_1652252357892782114_n

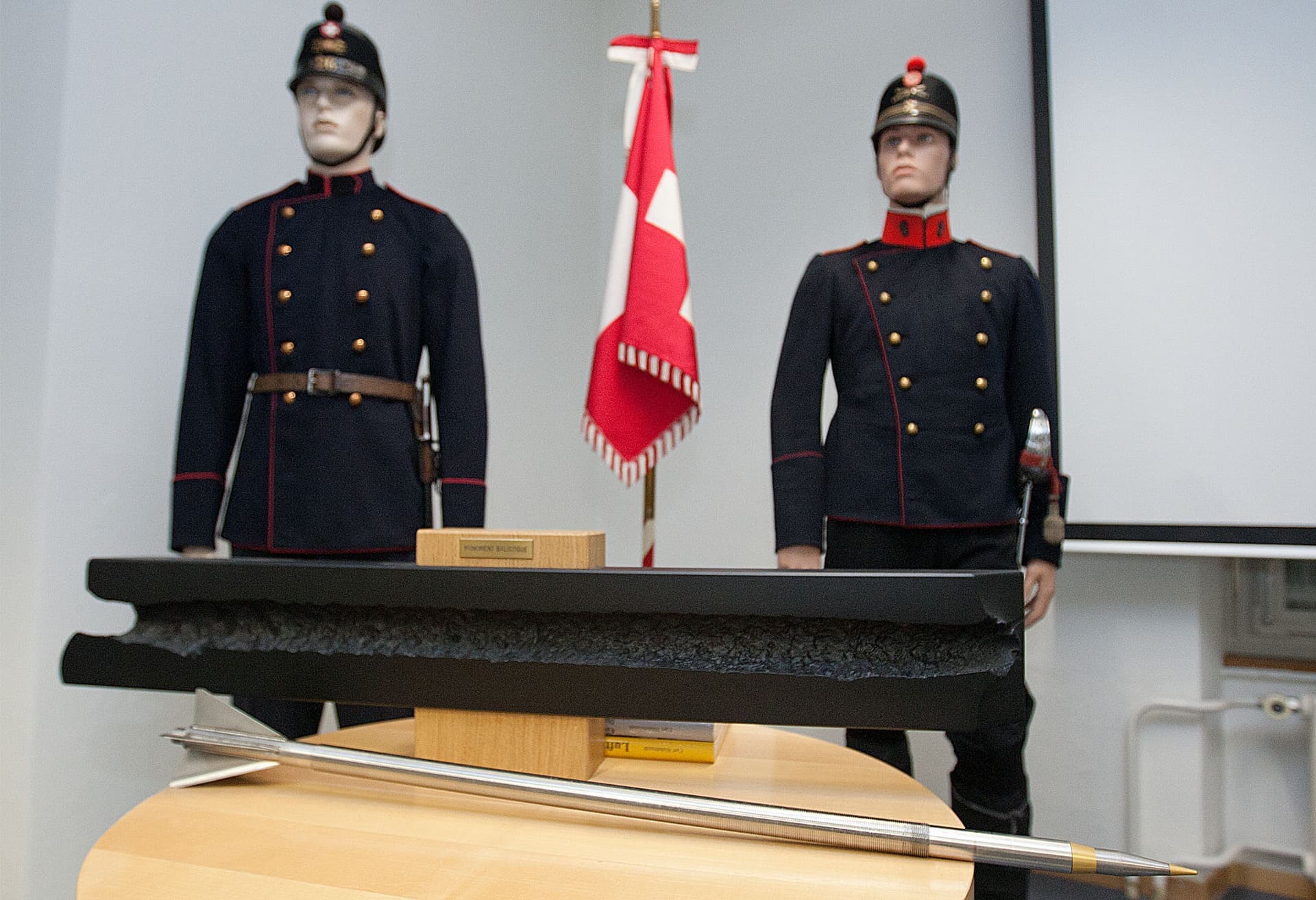

Breach + APFSDS
19429992_1543097735748966_5618624628380828801_n

Diagram of the turret & autoloader.
Most likely uses version A as the commander & loader hatches are still clearly visible.
19875299_1543199299072143_3867481043402448840_n

Diagram of the turret & autoloader.
19510665_1543111339080939_628085795654138714_n

Tanks. Being tanks.

In Development: Panzer 87-140 | Armored Warfare - Official Website

140mm Versuchskanone für Leopard 2 – Militär- und Festungsmuseum Full-Reuenthal

Panzer 68 with 140mm Test Gun | Secret Projects Forum

https://wikiwarriors.org/wiki/Основной_боевой_танк_Panzer_87-140


8 Likes

Should def add

Cool tank

+1 def interesting addition specially after the object292 was presented

1 Like

Ngl I read the title too quickly and thought it said “The Alpine Hamster” XD

This looks great, especially as an alternative to the 292! +1

4 Likes

the alpine hamster

10 Likes

+1 for Alpine TT!

1 Like

the Alpine tree? Interesting.

1 Like

There are Alpine Ground/Air Tech Tree suggestions posted on the old and new forums, so take a look.

Definitely, for a future Swiss/Alpine tree!

@T50B_BlackEagles sorry to tell you guys, but Smin pretty much confirmed more Swiss stuff will go to germany

2 Likes

When?

very recently in the F-16 for germany thread, we got him to pretty much say that an addition for germany between f4f ice and typhoon is coming, as part of it he clarified this when the Hunter was brought up

1 Like

Is this not referring the fact that Germany already has the Swiss hunter, so that’s why it’s wrong to say Germany ‘would never’ get Swiss vehicles because they already have 1?

I really hope they don’t just chuck them in Germany. I’m not sure how they could even do it – Germany has 5 lines already, and they don’t seem to show a willingness to go beyond that. I hope, if they do, it’ll be more like an Israeli vehicles in US/UK tree situation, where they can be moved later on… hopefully…

2 Likes

sorry to tell you, but its specialy answered to the statement of not more swiss vehicles for germany

they will just be added in between where they fit / its more of a canada situation where it will be split between france and germany

Issue is is that there’s so many potential vehicles for Switzerland, far more than Canada, or even more than Israel and China currently. They don’t deserve to be relegated to one-off premiums/events or slotted in randomly into trees they don’t belong in. Unfortunate, but thanks.

3 Likes

thats debatable, every swiss tree suggestion i saw so far had paper / mock up vehicles included that didnt realy exist. I do not consider it a specialy good tree

But no worries, better to inform the players sooner what might happen, then if they get dissapointed later on

1 Like

@ChieftainWarrior i think it was pikpikker , definitly sth with a P. I w8nt do the work compsring everything

Either way sahilku says it perfectly , you can fight the tree viability as you want, but as it currently looks

As much as I would like to discuss how adding the Swiss tree to Germany is BS, this isn’t the thread to do it, take your comments elsewhere.

+1 for the suggestion (eventually in some combined tree)
I’m interested in the turret rotation and elevation speed, I’ve seen some people claim that the extra turret armor and big gun really slowed down both, can anyone confirm?
