Mikoyan-Gurevich MiG-29S (9-13S) Fulcrum-C

[Would you like to see this in-game?]
  • Yes
  • No
0 voters

MiG-29S

Aircraft info:

Spoiler

The MiG-29S is a 4th generation multi role fighter developed by the Mikoyan bureau in the late 80s as a modernization/upgrade of the base 9-12/9-13 models already in use by the Soviet air force. The upgrade included improved avionics/electronics and expanded armament air to air armament.

Aircraft history:

Spoiler

The work on this variant of the MiG-29 named product 9-13S began in 1985 after chief designer of the Phazotron design office Adolf Tolkachev would leak detailed data about the latest Soviet aircraft’s radar systems to western intelligence, thanks to this the west would learn about all the strengths and weaknesses in all of the latest Soviet combat aircraft. The soviets would quickly start development of improved variants of their aircraft after the leak including the 9-13S. Majority of the effort would be put in to improving its aircraft’s electronics such as the improved N019M Topaz radar based on the previous N019 Rubin model and integrating the latest weapons systems in to the aircraft’s arsenal such as the ARH R-77 and SARH and IR R-27ER/ET. Testing would begin with a few units of already existing 9-12 units being upgraded with the new N019M Topaz to test and evaluate the new upgrades and would take to the skies in 1985/1986. Testing of both aircraft would be done by August 1989. And Production of the new 9-13S would start in 1989 at the Moscow no. 30 plant replacing the production of the older outgoing 9-12/9-13 models and the first serial production variant would take to the skies on December 23rd 1990. However the production of the 9-13S would be severely affected by the collapse of the Soviet union in 1991 and the following economic crisis in the new Russian federation. The MiG-29S would find itself among the group of purchases and projects cut by the new budget cuts and the VVS and VMF would not buy any more units of the 9-13S. In the end 46 units would be produced of the new 9-13S standard and only 16 would be delivered to the VVS.

Aircraft specifications:

Spoiler
  • Length: 17.32m
  • Wingspan: 11,36m
  • Height: 4.73m
  • Empty weight: 10200kg
  • Max take off weight: 19700kg
  • Service ceiling: 17000m
  • Engine: 2x Klimov RD-33 turbofan engine
  • 2x 8300 kgf (pre channel loss)
  • Radar: N019M Topaz
  • IRST: OEPS-29
  • RWR: SPO-15LM
  • Countermeasures: 2x BVP-30-26M CM dispensers (60x regular caliber CM)

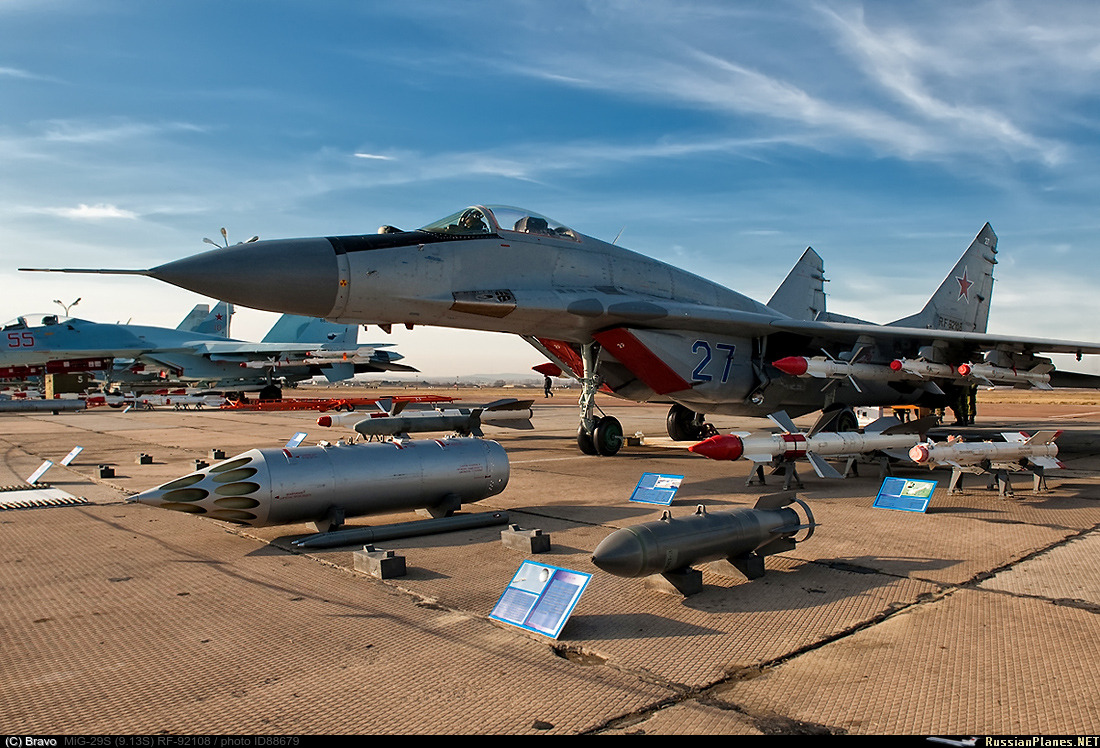

Aircraft Armament:

Spoiler

Main armament:

  • GSH-30-1
  • 7 total hardpoints

Additional equipment that can be mounted:

  • 1x center line drop tank

Air to air missile:

  • 6x R-77
  • 2x R-27R/ER
  • 2x R-27T/ET
  • 6x R-73
  • 6x R-60M

Unguided rockets:

  • 4x B-8M1 rocket pods
  • 4x S-24B rockets

Dumb bombs:

  • FAB-250
  • FAB-500
  • ZB-500

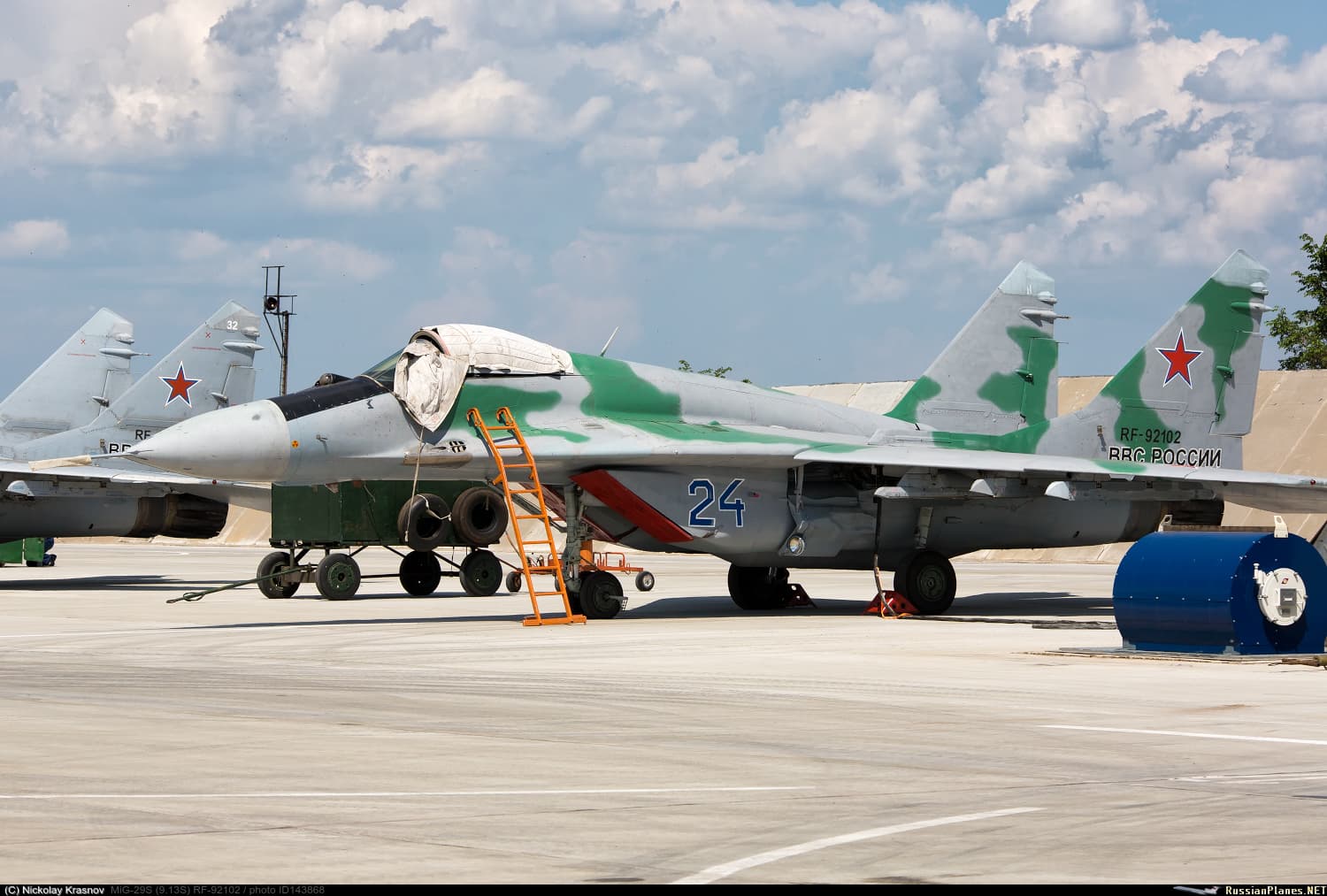

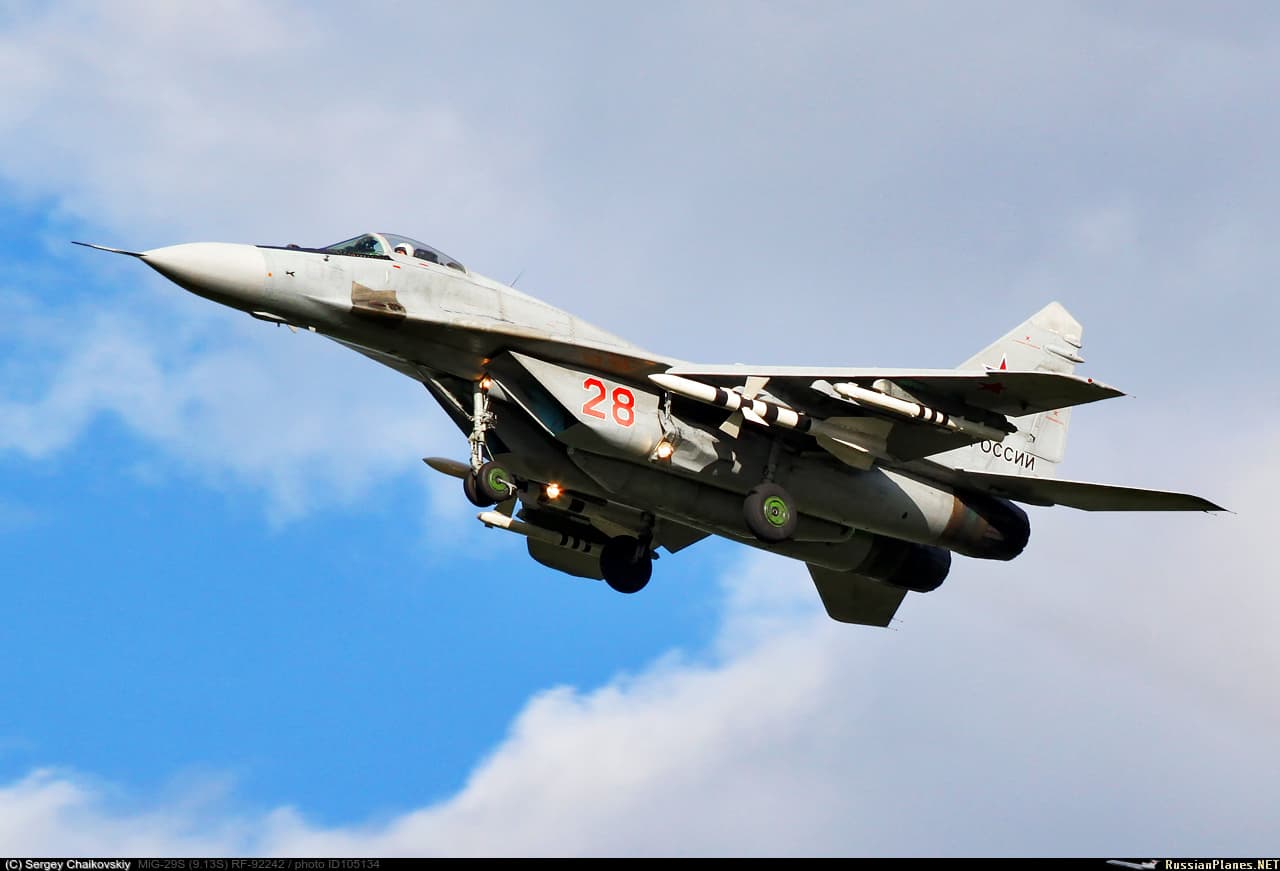

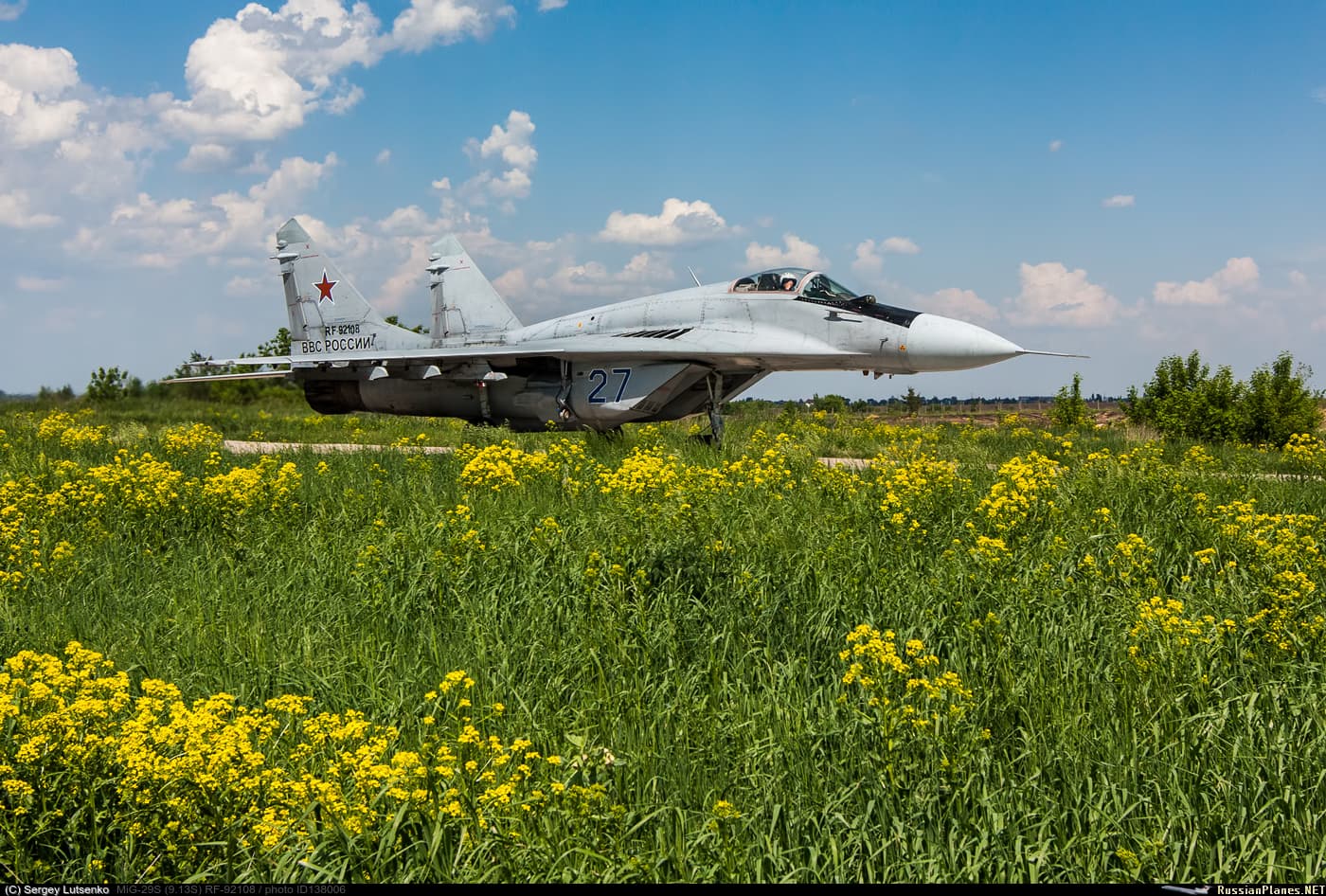

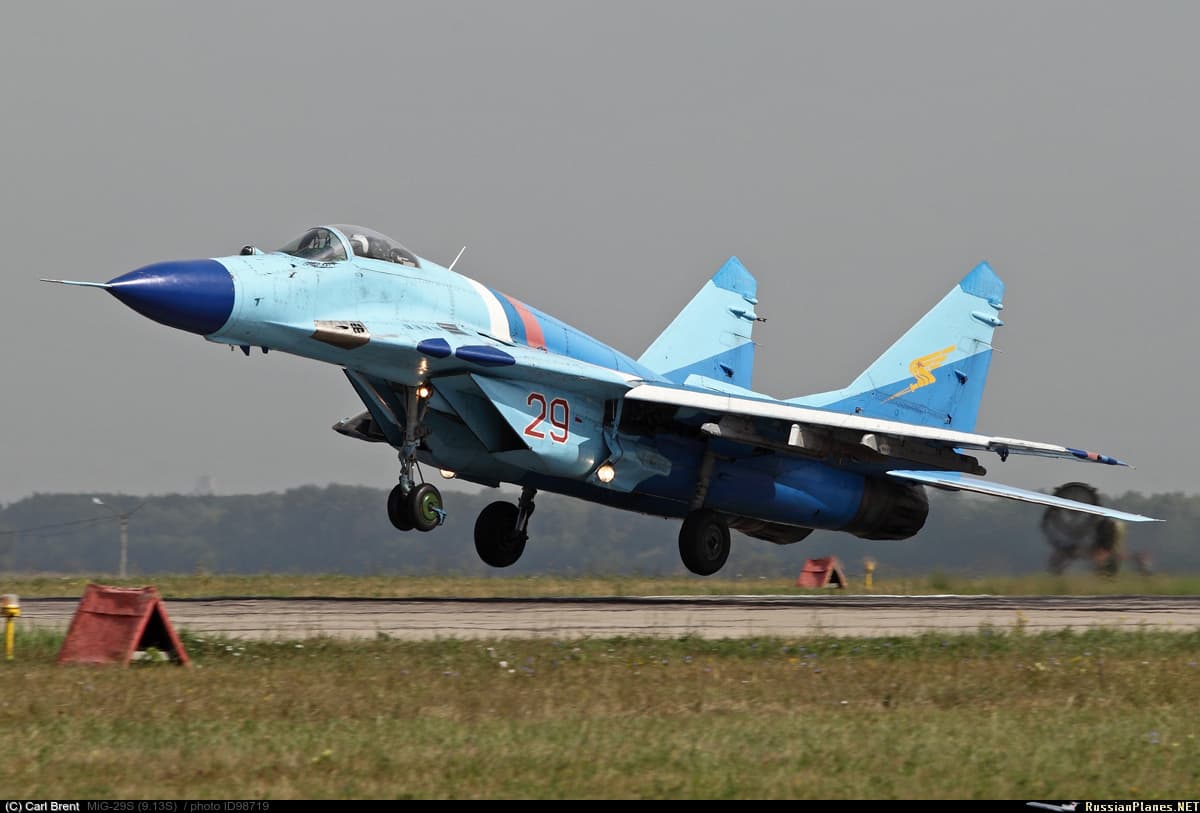

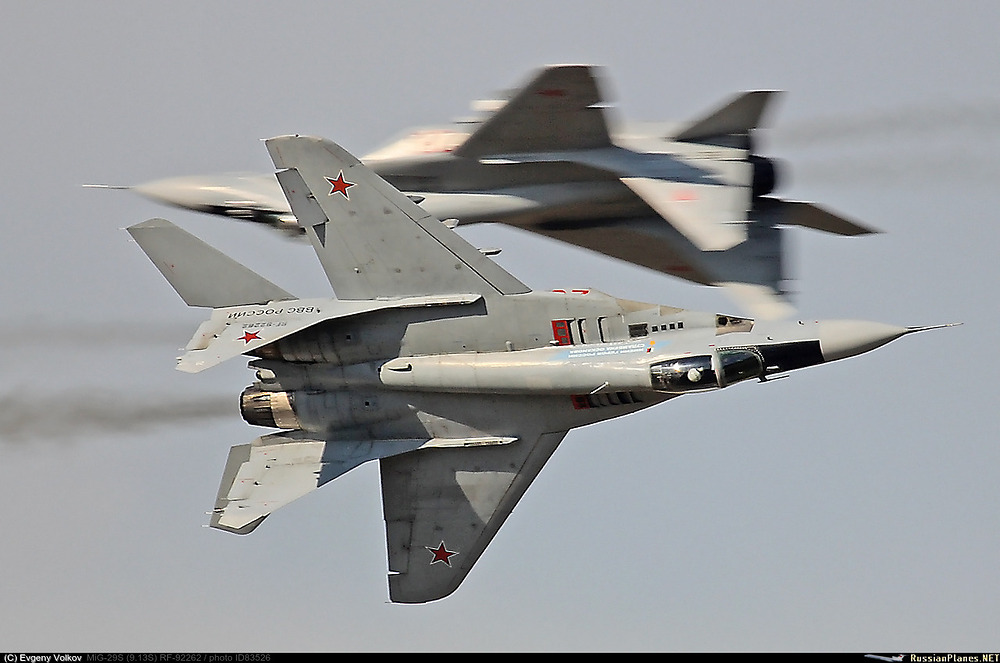

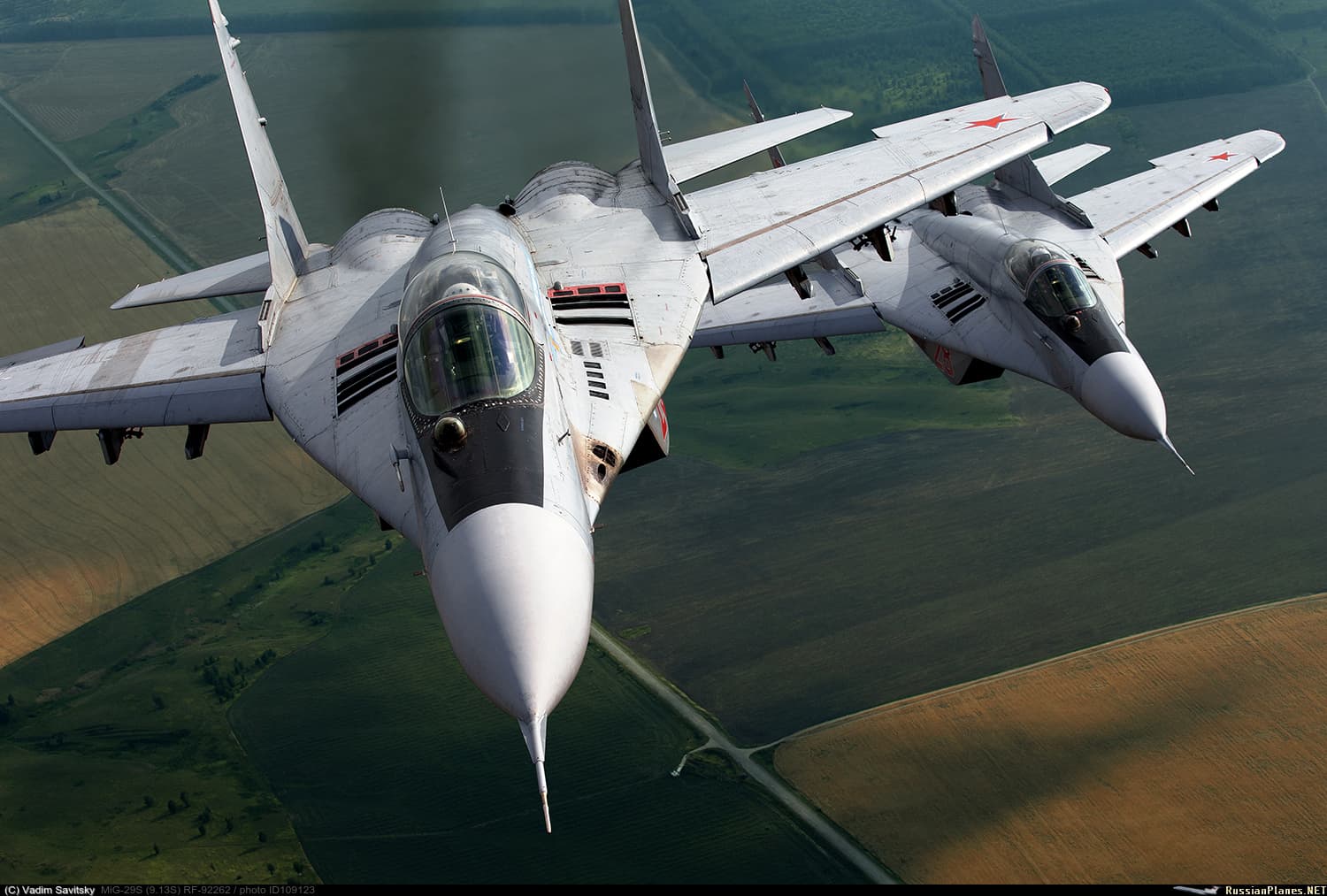

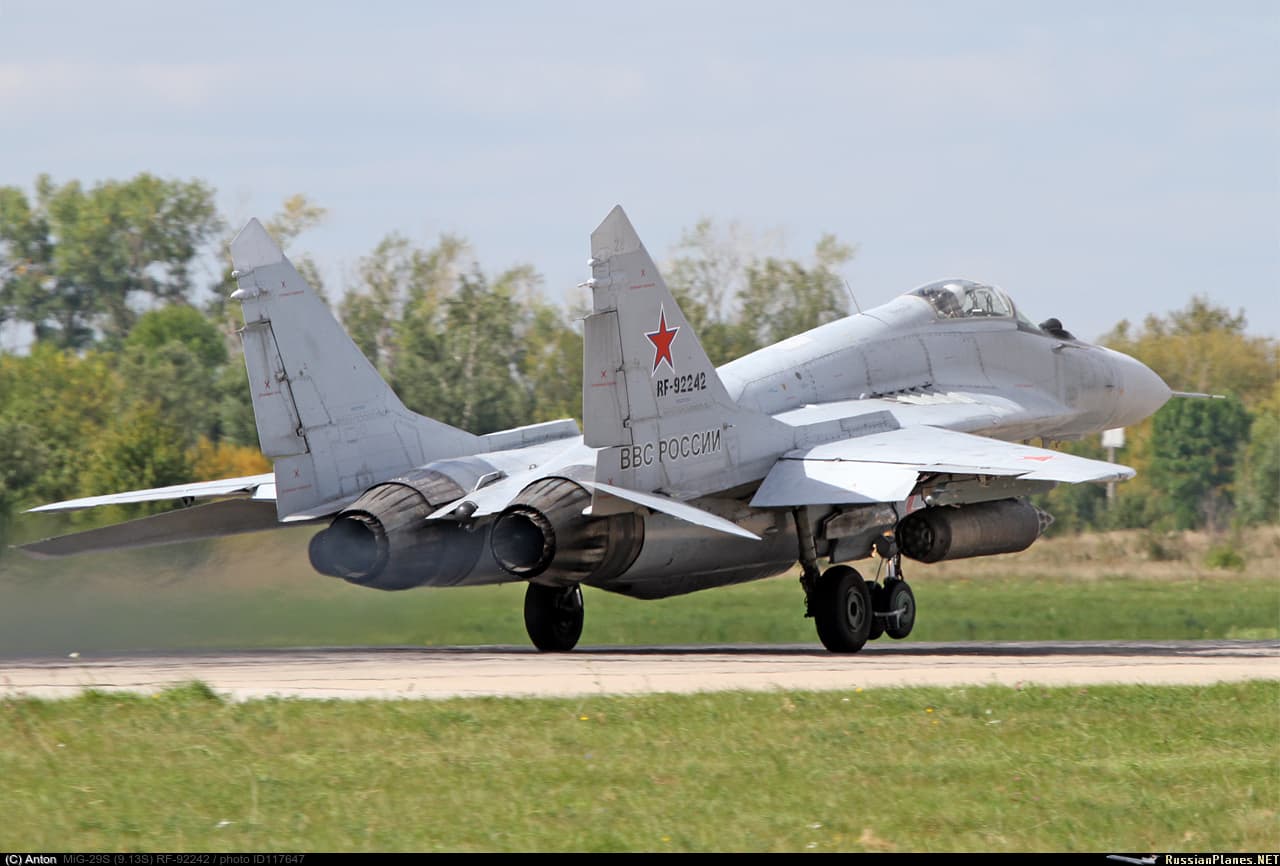

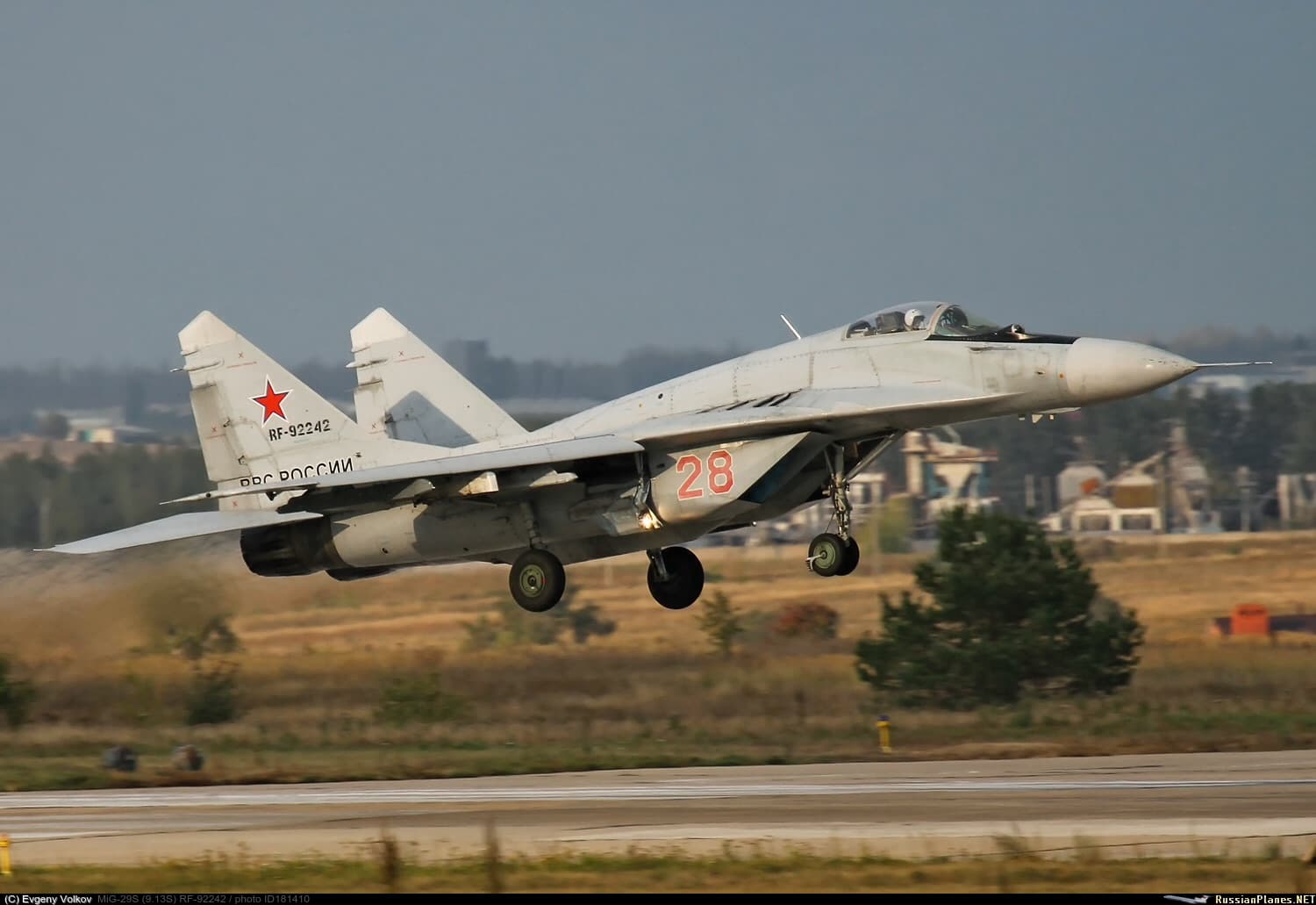

Gallery:

Spoiler









Sources:

Spoiler
3 Likes

+1 looks cool

no thanks, would rather have 9-12sm with l-150 rwr. -1 for me

i doubt its lighter than the 9.12
