Jais 4x4 (SAMI-CMI) CPWS

Tim_TeaDrinker · August 13, 2026, 1:56pm

Would you like to see this vehicle in the game

Yes
No

0 voters

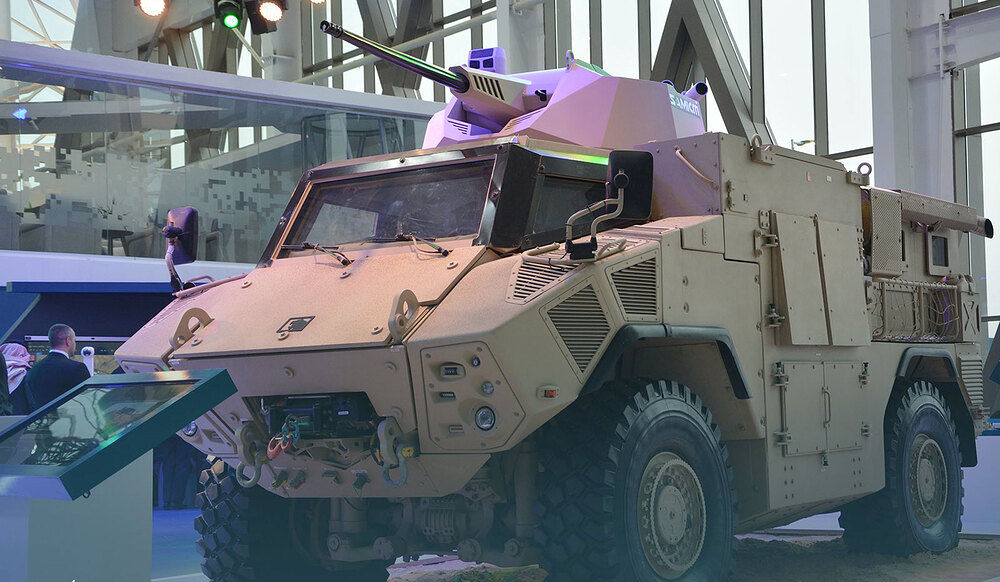

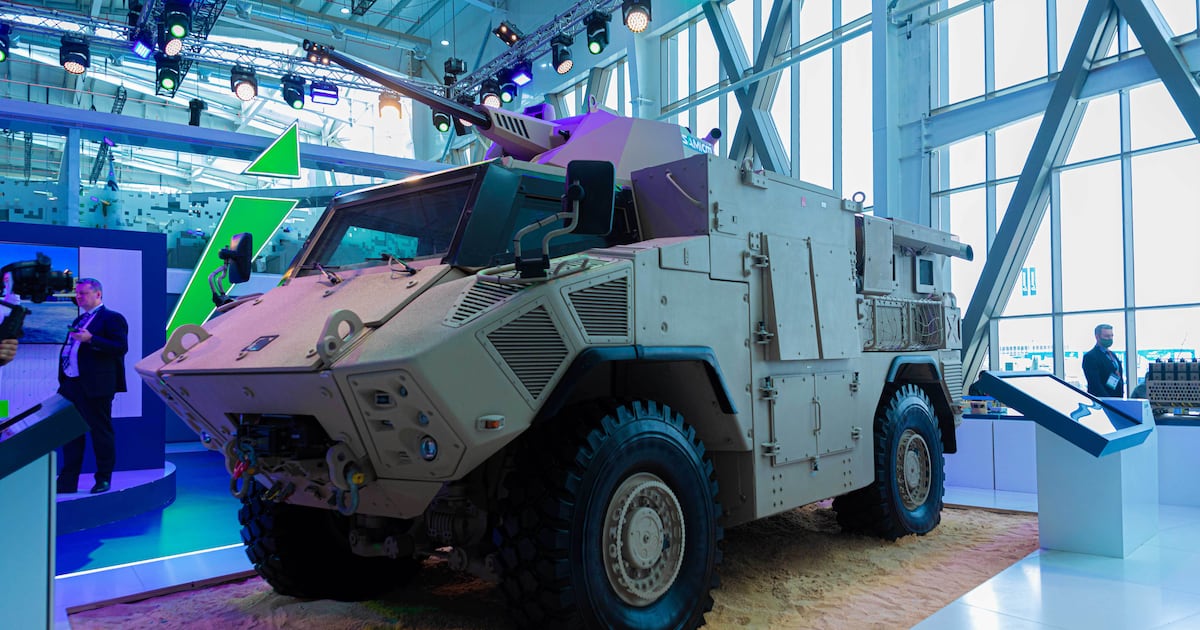

This Jais 4x4 was shown at the WDS 2022 by Saudi Arabian company SAMI, with SAMI-CMI CPWS turret.

History

Spoiler

Based on a South African RG35. The Jais is a family of MRAPs with a side mounted powerpack; V-shaped hull; exceptional balance between firepower, survivability, protection and mobility. This vehicle is produced by NIMR Automotive in the UAE.

The Jais is adopted into the UAE service and it even took part in the military conflict in Yemen, where it showed its capabilities of protection and crew survivability. One vehicle came under enemy fire, but kept the entire crew safe and unharmed. Later this Jais 4x4 was exhibited at IDEX 2017 under the slogan “NIMR Saves Lives” as promotion for its efficiency.

Spoiler

The success of Jais has interested Saudi Arabia.
The SAMI (Saudi Arabian Military Industries) and military experts arranged competitions for several vehicles. The combat proven Jais outperformed opponents and was chosen.
However, they were not interested in just some Jais from UAE production. On 25 April 2016 the Saudi government and Crown Prince Mohammed bin Salman launched the development program “Saudi Vision 2030” that includes localising industry, diversifying the economy, and reducing the country’s economic dependency on oil. Therefore, at the IDEX2021 SAMI and NIMR Automotive signed a Teaming Agreement, which started a cooperation to search for Jais localization opportunities in Saudi Arabia.

Similar cooperation aimed at localization, also, has been concluded before. On the 28th of January 2019 a CMI (Cockerill Mechanical Industries) signed an agreement with Saudi Arabia to create a joint venture specialized in turrets. The collaboration is called SAMI-CMI. Thus, Saudi Arabia received the license to produce CMI turrets, including the CPWS turret.

As a result, at the WDS 2022 SAMI introduced Jais 4x4 with SAMI-CMI CPWS turret and signed with NIMR a manufacturing agreement for JAIS 4×4 producing in Saudi Arabia.

Regardless of SAMI actions, in the IDEX 2023 NIMR Automotive presented Jais 4x4 with a CMI CPWS turret.

Despite, Jais SAMI-CMI and Jais CMI are absolutely the same, there is still one difference between them. It’s a meteorological sensor on the roof of the CMI CPWS turret. The SAMI-CMI CPWS doesn’t have it.

Spoiler

Jais 4x4 Specifications

Spoiler

Wheelbase 3,350 mm
Length 5,982 mm
Overall Width 2,790 mm
Height 2,630 mm
Turning circle/radius 16 m/8 m
Hump radius 2,400 mm

Payload 3,200 kg
GVW up to 21,000 kg
Engine power 336 kw/450 hp
Engine torque 1,850 Nm
Maximum speed 100 km/h
Cruising range 700 km
Transmission 6-speed automatic
Independent suspension with hydro-pneumatic strut.
Fording 900mm
Step climb 500mm
Trench crossing 900mm
Gradient 60%

Self Sealing fuel tank
Max crew 2+5

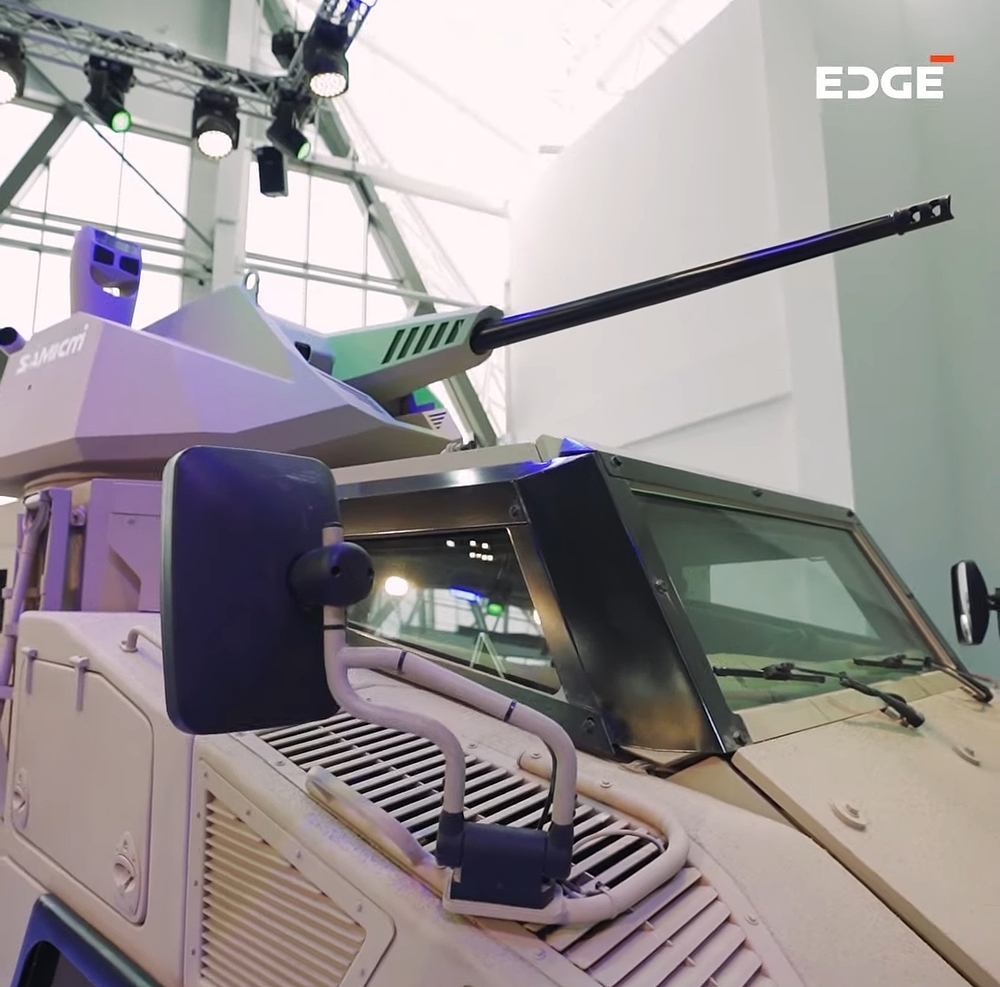

The entire Jais family can be fitted with the additional armor on the driver’s windshield. The protection is attached at three points on the upper front plate, and Jais 4x4 has them too. This protection kit also includes armor for the driver’s side windows.

Spoiler

CPWS Specifications

Spoiler

CPWS is a Cockerill Protected Weapon Station that is fully stabilized and remotely controlled and its crew protection allows reloading under armor.
Welded Ballistic aluminium.
Ballistic protection
Level 2 STANAG 4569
4 smoke grenade launchers

Elevation -10°to +60°
Travers 360°

Stabilized sight system with laser range finder and thermal can be in two variants:
Panoramic or Linked to the gun.

Main Armament
25x137 mm M242 Bushmaster
Fire rate is 200rpm.
Single/dual feeder with a minimum of 155 ready-rounds.
This gun is already represented in the game. It can fire APDS, APFSDS and HE ammunition

Spoiler

Secondary Armament
Coax 7.62 mm

The Jais 4x4 with SAMI-CMI CPWS will fit a role of high mobility scout vehicle armed with a 25mm Bushmaster. Not so fast fire rate and below 100mm penetration are not so bad. It’s enough for the flanking gameplay. The good vertical aiming angles (-10°/+60°) will allow you to fight helicopters and shoot in uneven terrain; a remote operated turret will be an advantage in hull down positions.

With additional armor on the driver’s windshield and the ability to transport troops, this vehicle may be useful in the future infantry game mode.

As mentioned earlier, the Jais SAMI-CMI CPWS has a twin: the Jais CMI CPWS. So, this vehicle can be added into two TT. If UAE and Saudi Arabian vehicles will not be in the same TT.

Pictures

Spoiler

787662dd3827d625f950772c361e9377
