J-8F problems collection(MAWS, PL-11, IRCCM missiles)

Machinery of War Discussion Aircraft
141

likely maws. also those are definitely some rwr antennas

142

some are definitely RWR antennae
but which are the MAWS
do we take it to mean the J-8F has rear and front aspect MAWS?
and possibly below as well?

143

@David_Bowie
is there an internal report about the lack of MAWS on the J8F?

144

yes
J-8F lacks MAWS // Gaijin.net // Issues

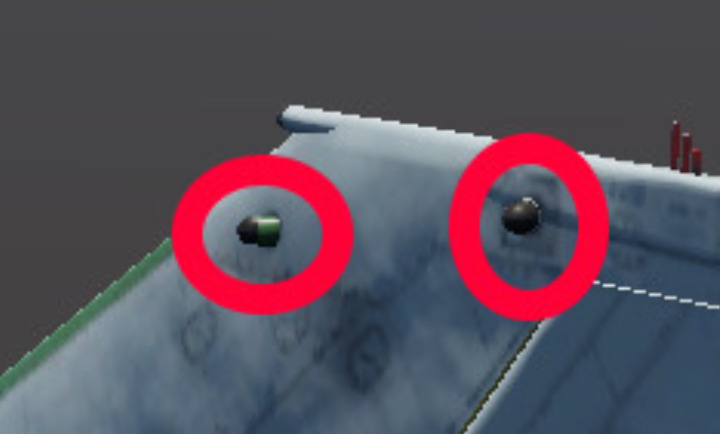

the small transparent one below the RWR antennae

image1380×917 107 KB

1 Like
145

thats a light bulb…

these are (what i suspect to be) the MAWS sensors

1 Like
146

I’m pretty sure the maws is rear aspect only

147

going by the supposed sensors… imo its all aspect

148

Those are likely rwr antennas

149

too many for that lol

150

it is.
I mean that’s what thee original issue suggests.
I re-checked some of photos and didn’t find anything looks like a MAWS, could be a misunderstanding.
I remember some retired J-8F are exhibited to public, maybe someone can take some close photos

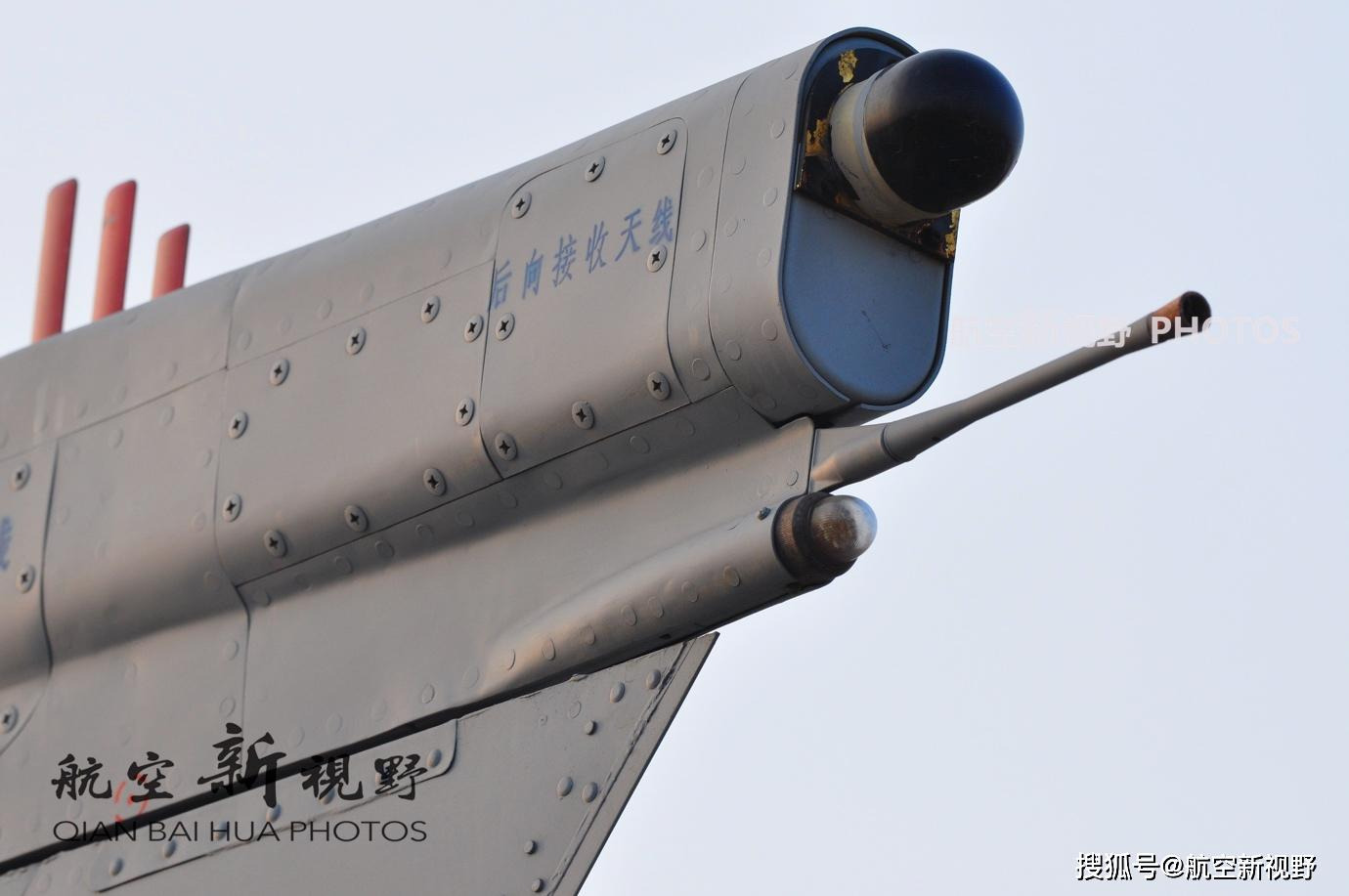

image1280×853 146 KB

151

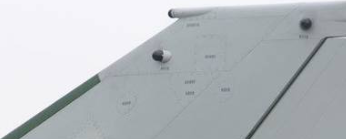

J-8F


JF-17 (block 3 MAWS moved to top of tail)


front aspect sensors also added


so imo the J-8F had all its sensors on the top of the tail

152

That here is no maws

image1380×917 57.7 KB

153

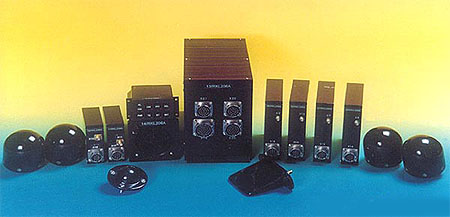

1_164719_1
Thats the KJ8602A rwr

2 Likes
154

yep.

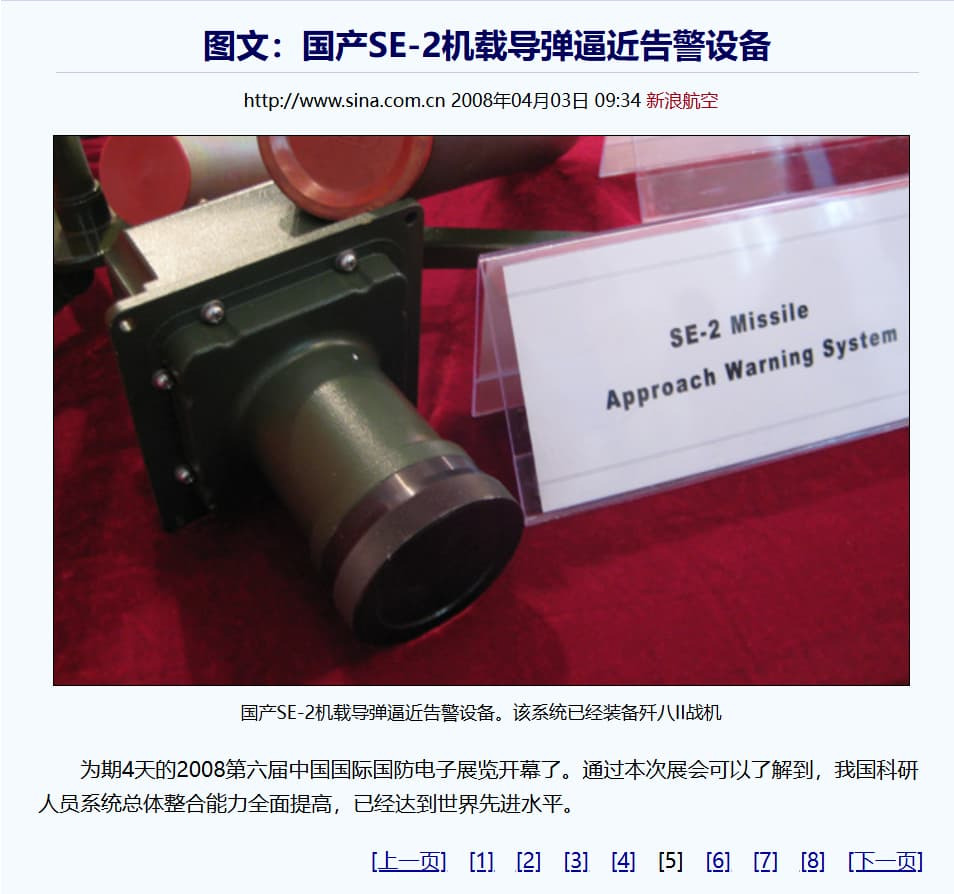

this is the maws

155

is pl-11 the aspide?

156

Yeah same thing (in game)

157

Nope it is no maws

158

And when it is a maws, what maws system is it

159

is pl12 stock on the j8f?

160

Yeah
