This, we see Gaijin making compromises on similar issues for the sake of balance all the time. The issue of slight clipping seems insignificant to some of the atrocities we have seen them commit (cough cough F-5C flares, cough cough Stinger looks like Igla so no it can’t be buffed cough cough.)
3 Likes
Yeah, I mean the Swift F.7 never had guns irl yet has them ingame, neither did the Sea Meteor. That is a much larger change than this.
It seems like a no brainer to just slightly alter the model by a few cm so it can fit.
The F-5C flares are a technical possibility, which is something we have always been quite open that we would always explore. Here we have:
- A current physical impossibility where it physically cannot fit
- No evidence of a technical possibility on ZH200 / ZJ201 when its known the production variants had changes after it was decided not to adopt internal cannons.
Both of these had the space and capacity to do so. So this was done. The space was there in the Swift F.7 bays and technical drawings also confirmed this. The Sea Meteor was much the same case. Though that is very much a legacy aircraft that probably would not have been introduced in todays roster.
The cannon pod was ready to be given despite the lack of photos. That was never the key issue. But the pod physically cannot fit on the prototypes. So its clear there is now a reason why there isn’t a single photo with a cannon pod fitted.
Its not sadly just a question of balance. Physically this does not work according to the devs. There was no objection on any gameplay balance side of things.
2 Likes
I just hope gaijin give us more than just a couple of aim 9s to spade the jet with at this point and make it easier to unlock the skyflash because well, yeah.
Though really stock skyflash would be optimal for spading with its other weaknesses, speed, lack of CMs, lack of gun.
2 Likes
That is fair enough, I’m glad we are at least getting a variant with internal cannons.
1 Like
It would also be nice if the RDA could get some improved AGM-65 variants as its a notably higher BR than the ZH200.
That along with having wing tip 9Ls would give Britain a tech tree CAS aircraft with modern AGM-65s for their 11.7 ground lineup.
Would this not apply to the RDA as well, though? Multiple primary sources show the internal guns being able to be fitted to the aircraft, so surely the internal 25 mm’s could be given to the RDA as well as the first prototype?
7 Likes

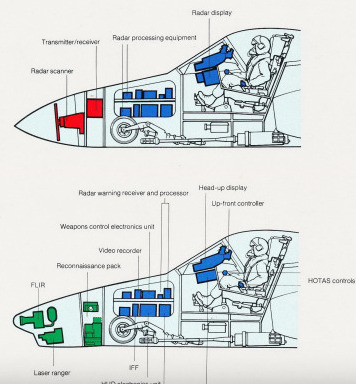

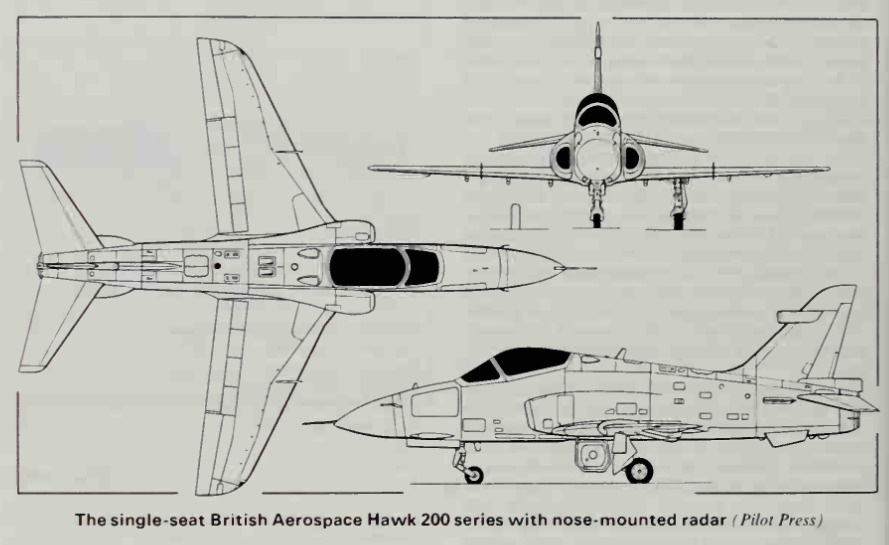

There is sadly no sources past the initial proposal drawings showing cannons + radar. ZJ201 never had cannons. We don’t have any evidence any of this was possible beyond paper at the moment. These diagrams are not reflective of either of the two actual prototypes or even the production aircraft. The “Night Attack” configuration with the FLIR was nothing more than a mock-up.

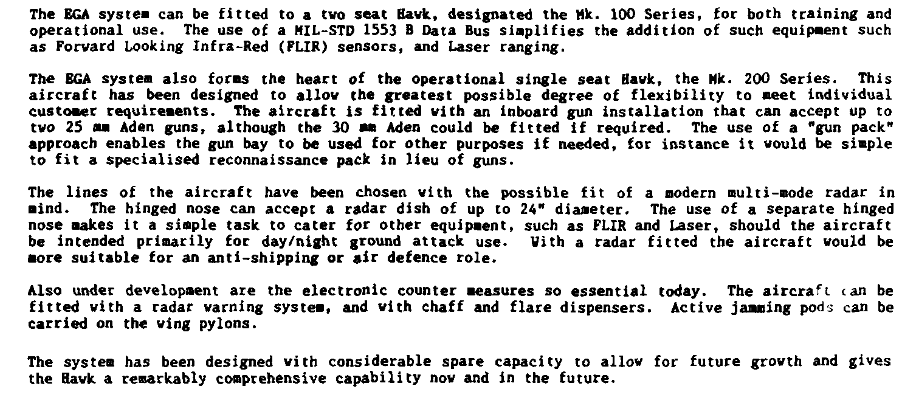

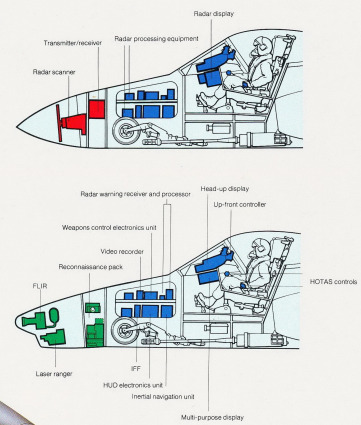

Additionally there is only one primary source among the ones you have posted here, and thats the one of the two unrealised configurations from the promotional brochure:
Spoiler

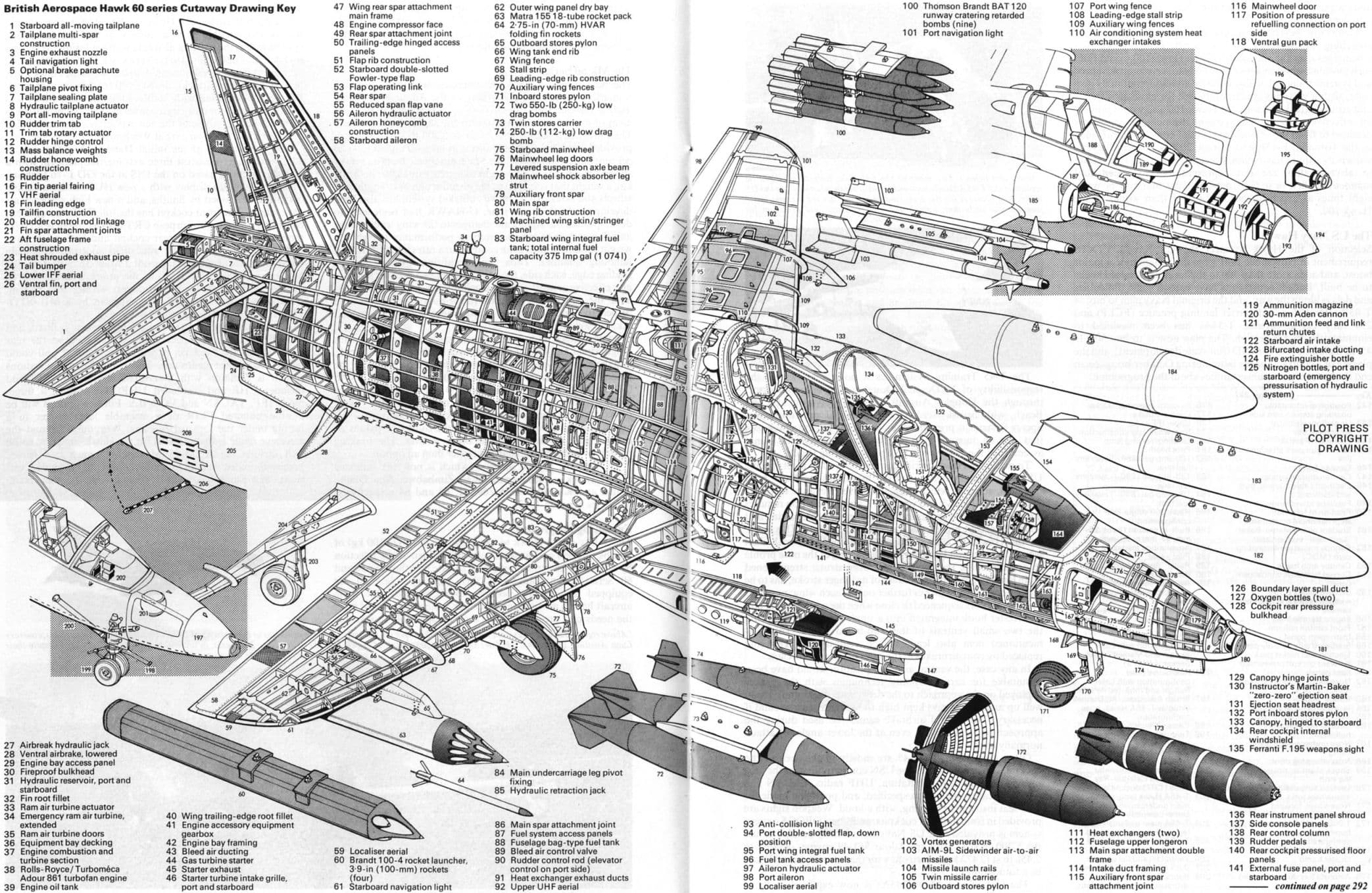

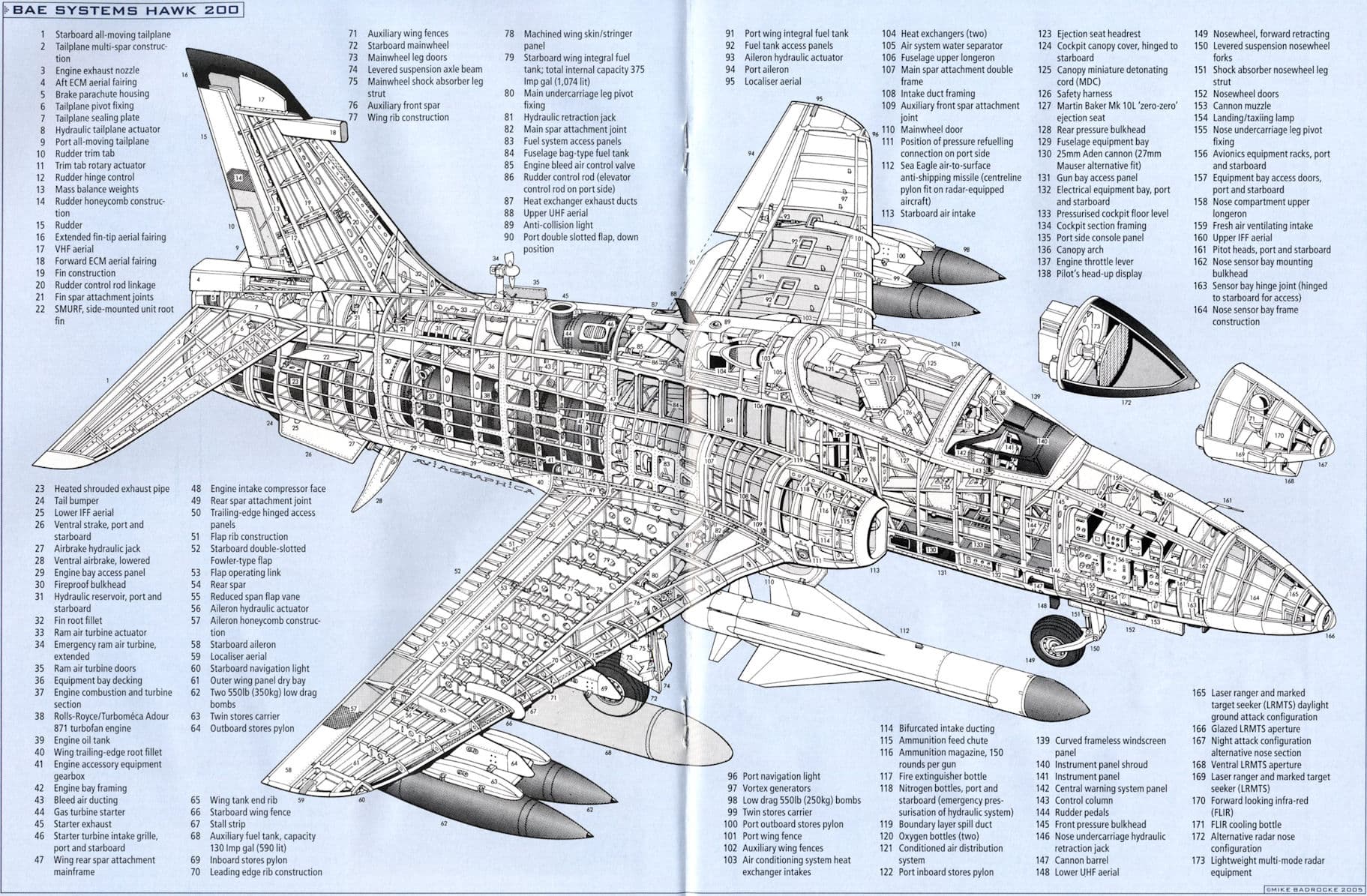

The rest are 3rd party publications and Janes, which is not valid at all.
The Swift F.7 was verified in person with a surviving example airframe before it was decided on the documentations too.
2 Likes
too bad was before the HAWK 200 even took its first flight in
Are we able to see the concrete evidence the devs have used to come to the conclusion that ZJ201 couldn’t mount a gunpod since its belly is nearly identical to the production aircraft
Its a phsyical model matter. Not source / evidence based (though it does also explain why there is no photos of ZH200/JZ201 with a pod). As explained yesterday, if any information can be located showing ZH200 / ZJ201 can/did mount a particular pod then they will review it.
But the pod found on production 203/8/9 Hawks does not fit the underside of the prototype hawks. This was tested and attempted with both current 3D models in game.

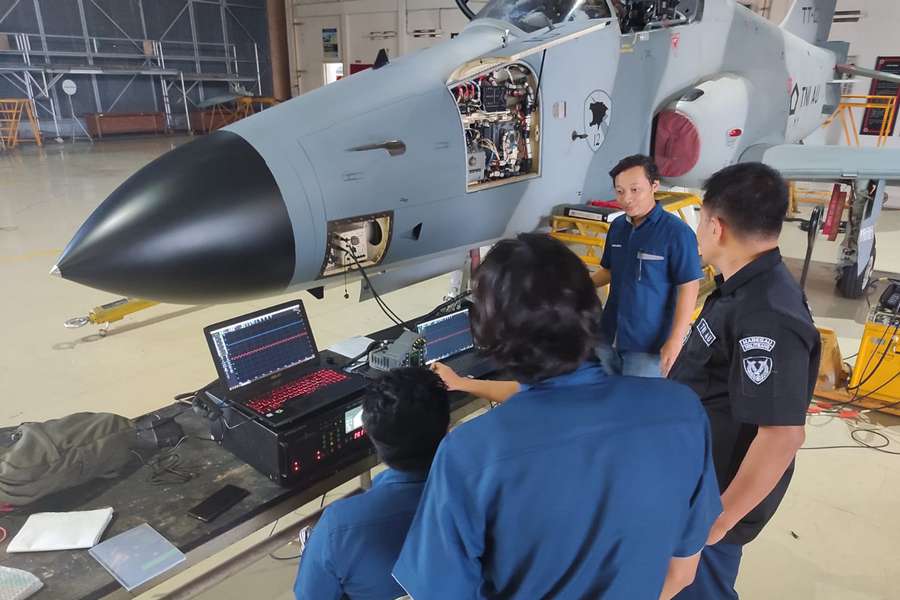

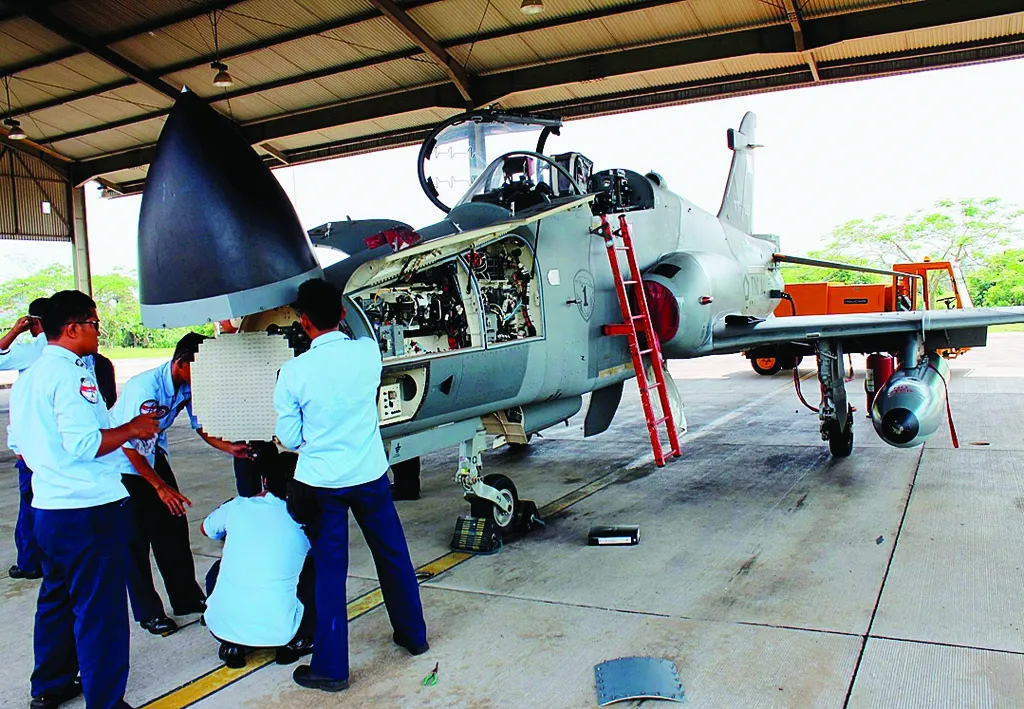

The promotional diagram is consistent with how the radar is installed on production aircraft though. The processing set is installed entirely in the upper half of the nose, on top of the nose gear well. All radar equipment forward of the nose gear shows no wiring or further equipment routing to the sides of the nose gear well in such a way that it would lead to the radar installation intruding into the spaces that were established the internal guns
The front landing gear well more or less creates a physical barrier between the two spaces, and is a bigger limiting factor on the size and location of the radar set, than the guns would be - as the feed system and receivers are located within the purpose-built gondola below the cockpit and the barrels straddle the nose gear well with the muzzles emerging mid-way along the gear well.
2 Likes
None of the production models have the bulges for guns, since this was changed between ZH200 / ZJ201. So sadly, the drawings dont reflect prototype or production aircraft in eventuality. The radar instalation itself hasn’t been called into question or its arrangement.
Again, the devs welcome new evidence of gun carrage on ZJ201 or gunpods for ZH200/ZJ201. But sadly these drawings have been reviewed by the devs multiple times. Changes wont be made from them.

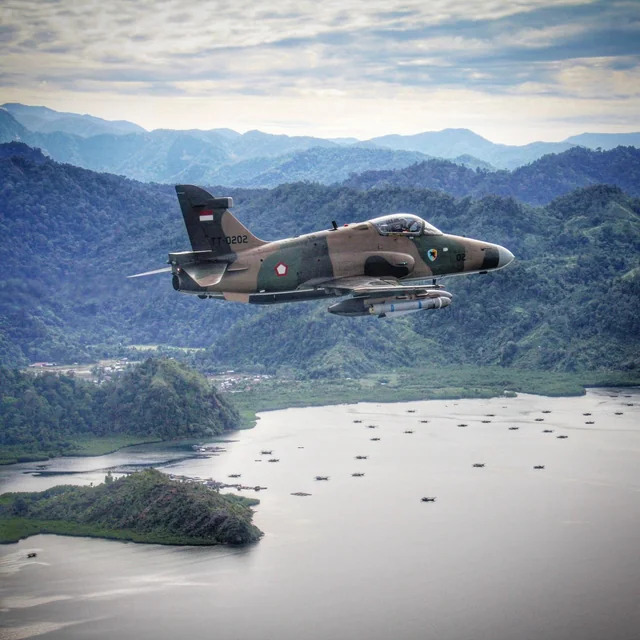

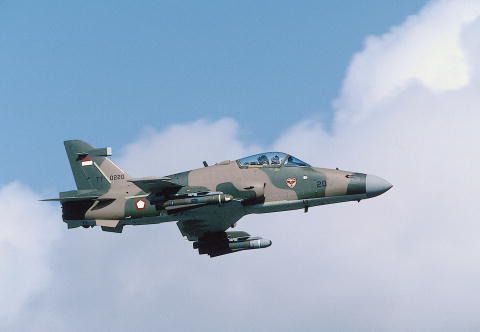

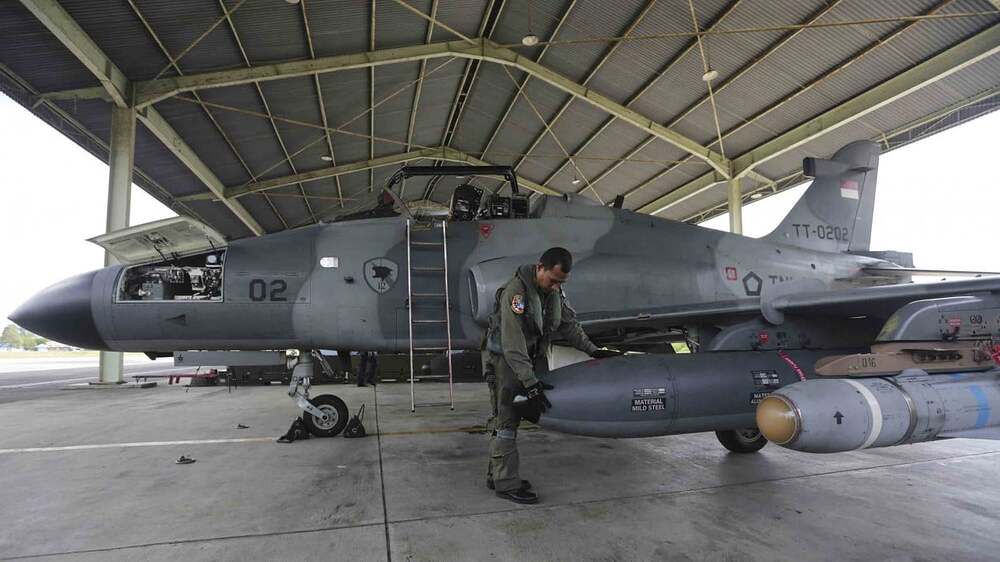

There are images of other Hawks with the bulge + gunpod though, like this one.
Is there a difference with the bulge? Or maybe a different variant of the gun? Because it looks the same to whats in-game to me.
1 Like
Its the underside buldge. To quote the devs:
“Production models are compatible with then pod. it has compatible belly. More flat in the center.”
Umm, yes they do. The bulge below the cockpit to accommodate the cannon receivers and ammunition feed is still there.
The only difference is the panels where the muzzles emerge either side of the nose gear well, are faired over, and there is no central ridge on the bulge. The purpose of the central ridge is unknown (possibly for adapting it for recce packs like mentioned here, all I can see is it has the plane’s ADF antenna on it) and I understand that it’s the reason the prototypes don’t get a centreline gunpod. But none the less, the bulge for the internal gunpack remains on Hawk 203, 208 and 209
1 Like
Reports are welcome with new evidence. Im afriad ive passed on all answers from the developers. Currently however changes wont be made from the earlier brochure images.
Should you find evidence that ZJ201 can carry the pod or ZH200 for that matter please report it and forward the link to myself or @Smin1080p_WT happy to accept a report on this.
3 Likes
I think the nature of the two gun solutions for Hawk is confusing matters a bit.
Rather than the pod. I was expanding on the points lxtav raised about whether ZJ201 could or could not accommodate the internal (25mm) gunpack that ZH200 has, alongside ZJ201’s radar. Especially, as neatspartan112 pointed out the 25mm is not a fixed installation, and the fuselage modifications to accommodate the volume of the internal gunpack, still exist on production planes.
By 1990 (before ZJ201 was built), the muzzle ports for the 25mm were also faired over on ZH200 leaving it in the same configuration as ZJ201 would fly in, minus the radar - but obviously those panel changes don’t mean ZH200 couldn’t have accommodated the 25mm guns
As I said, I understand why the gunpod (30mm) is seen as not being viable for the two prototypes, but there’s nothing to indicate that any Hawk 200 after ZH200, could not have the 25mm gunpack installed instead of the 30mm (aside from Aden 25s not actually functioning IRL), if Gaijin actually want an option for putting guns on ZJ201.
1 Like
I hope we see other Hawk variants capable of carrying 6 x AAMs with a radar + gun (eg. The Hawk 208)
However, I doubt these version would be given Skyflashes ingame.
