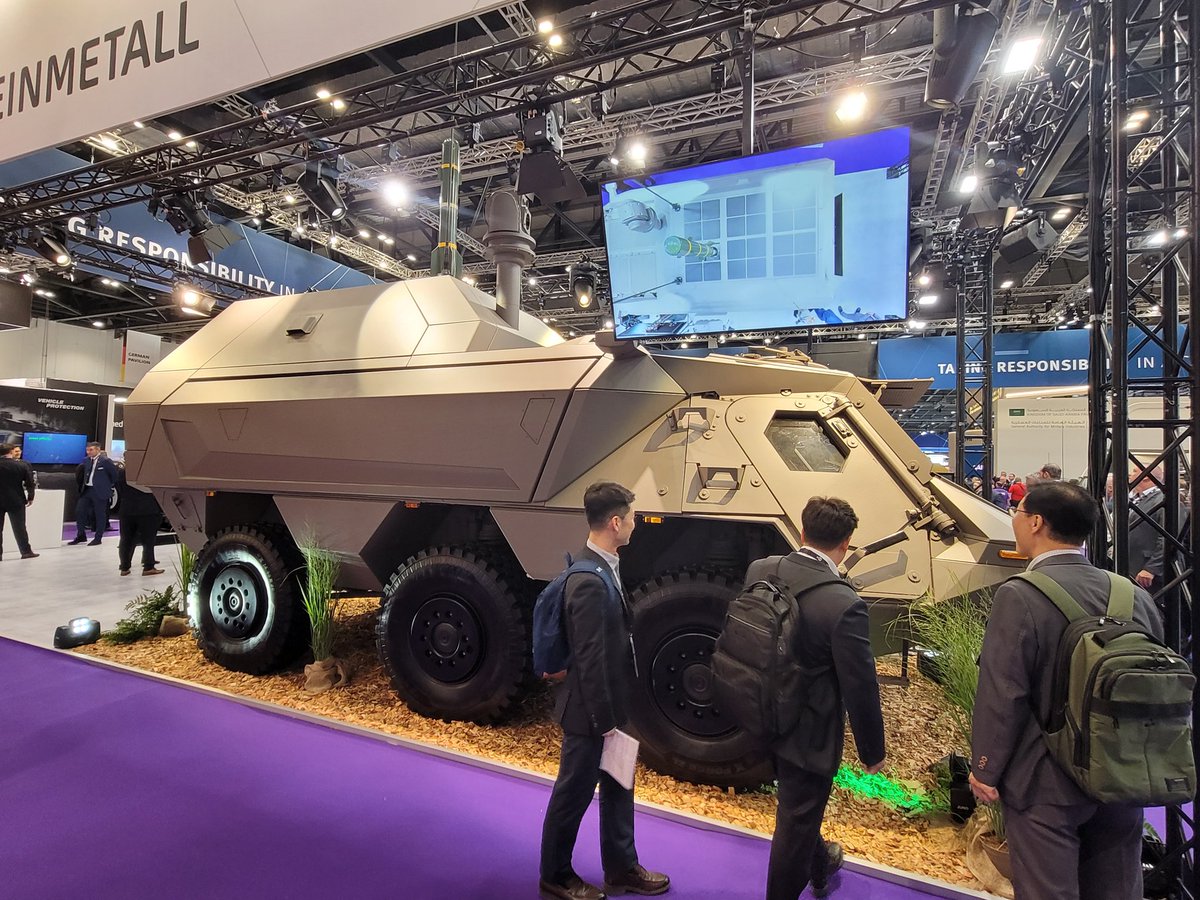

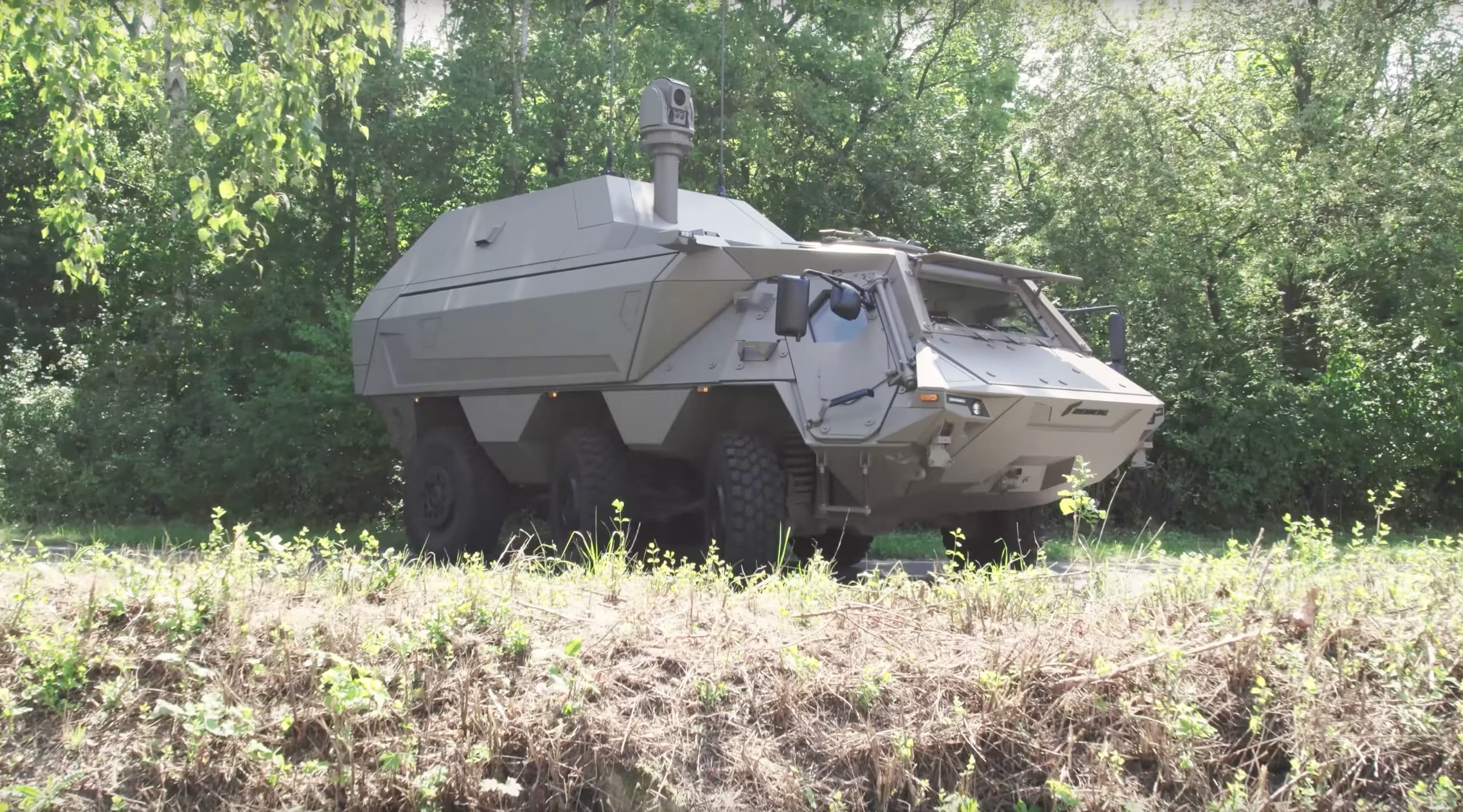

Fuchs JAGM

History

The TPz Fuchs is a German armoured personnel carrier designed by Daimler-Benz and built and subsequently modified by Rheinmetall MAN Military Vehicles (RMMV). The Fuchs was the second wheeled armored vehicle to enter service with the Bundeswehr. Its applications include troop transport, engineer transport, bomb disposal, nuclear, biological, and chemical reconnaissance, and electronic warfare. RMMV and its predecessors have produced over 1000 Fuchs for the German Army.

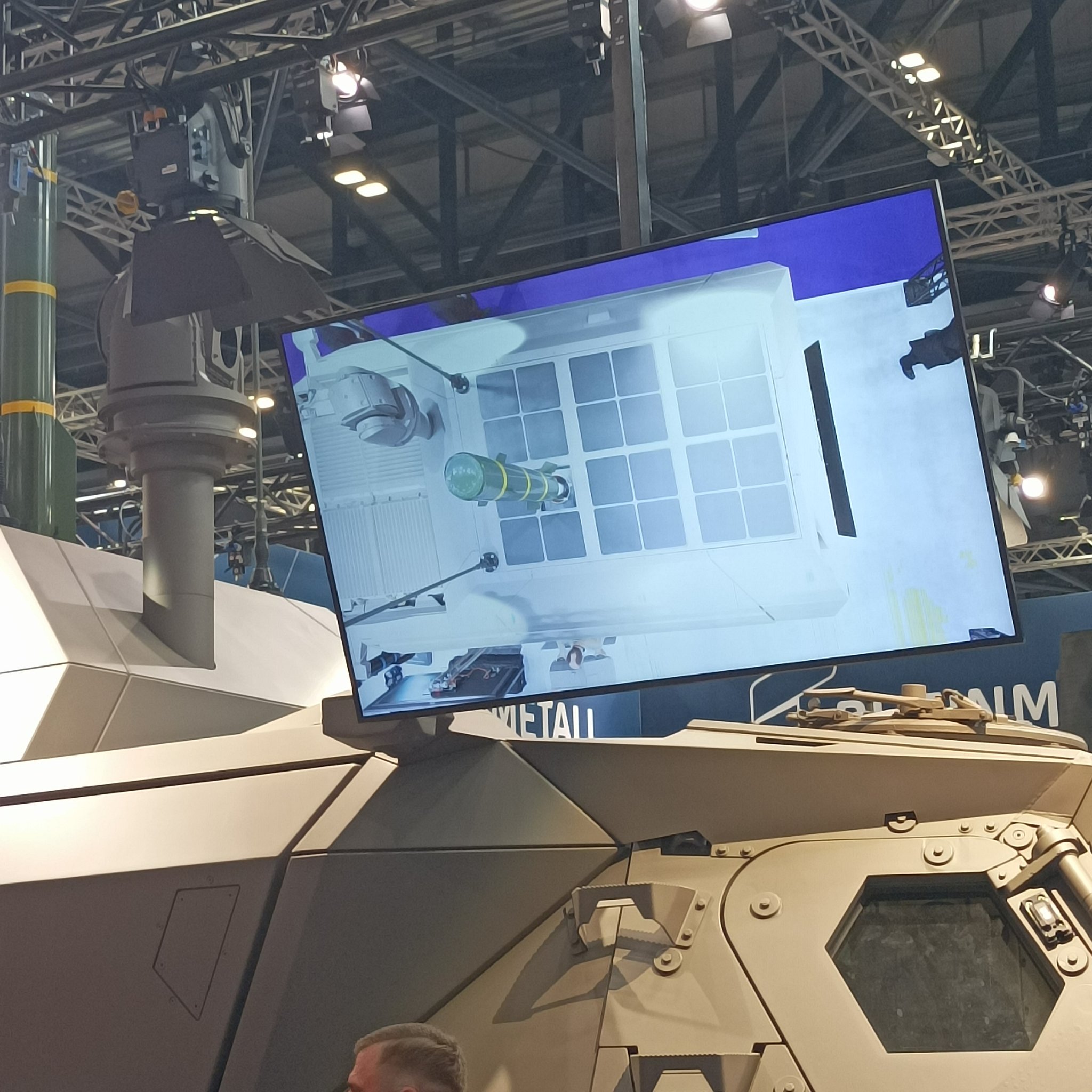

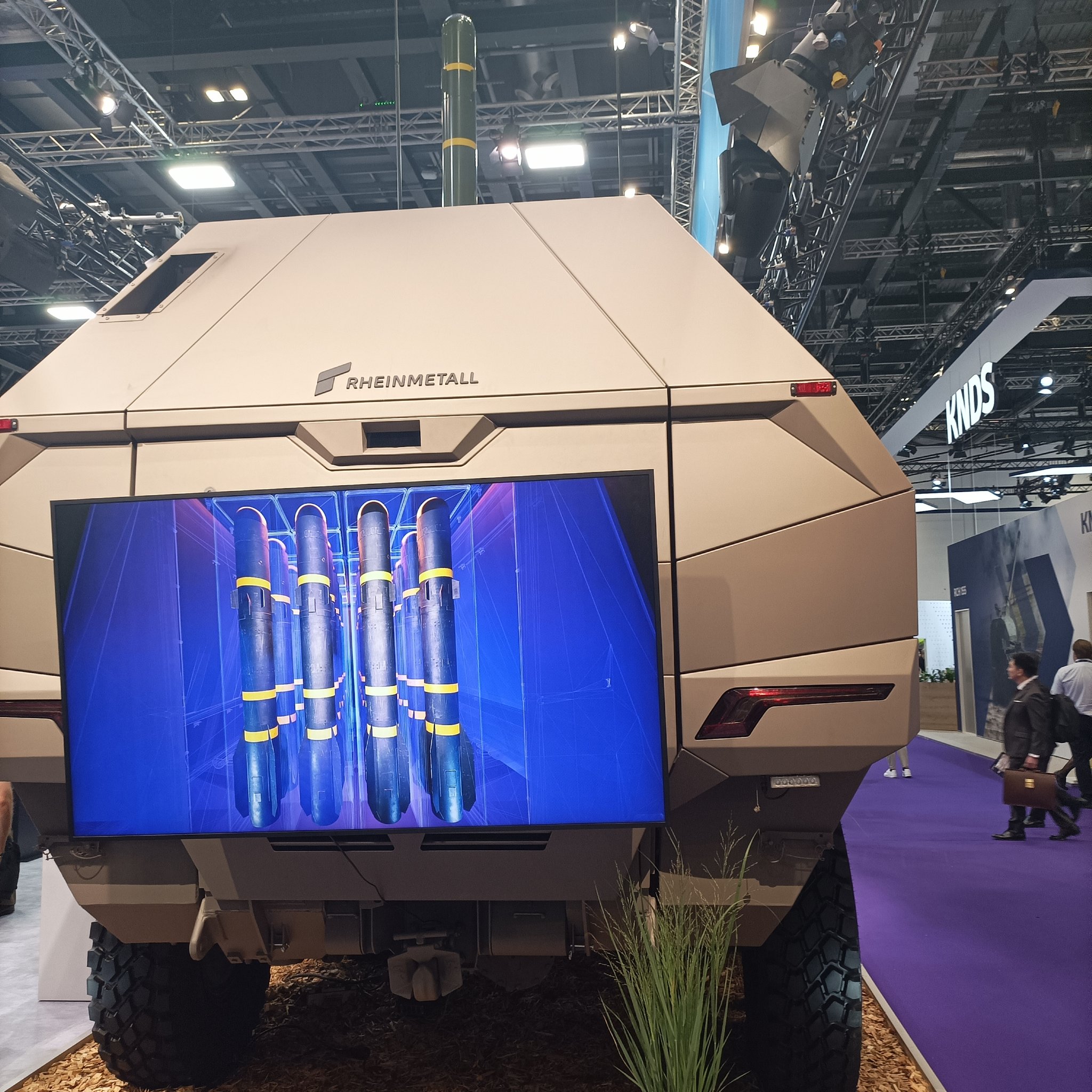

Rheinmetall’s 6x6 Fuchs has developed into the Fuchs Evolution, a battle-tested and dependable option. With over sixty variants available in nine countries, it has established a strong global reputation. The Fuchs has better drivetrain, digital architecture, situational awareness, and payload capacity. The tank destroyer, based on the Fuchs armored transport vehicle, is highly mobile and can quickly deploy against enemy tanks and vehicles. The vehicle has mobility, a specific anti-tank weapon, and advanced reconnaissance equipment. With 24 missiles, the vehicle can engage up to 24 battle tanks without reloading. The launcher integrates the Joint Air-to-Ground Missile (JAGM) missile family and M299 launcher into vehicles and surface ships, utilizing MK41 Vertical Launching System (VLS). The launcher’s mechanical structure and gas management system use approved VLS designs to improve weapon density while ensuring dependability and survivability in combat settings.

Features

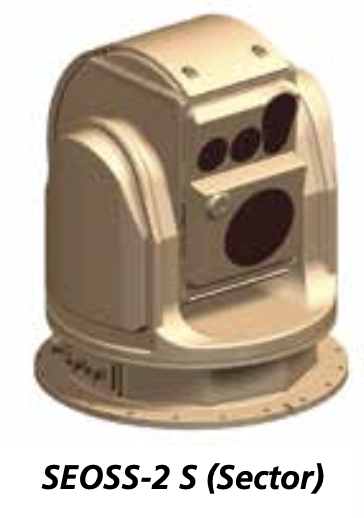

Optics

Thermal imager view (resolution 1024 x 768, field of view (FoV): 2.2°, 4.4°, 8.9° and 16.7°
Daylight view (resolution 1024 x 768, FoV: 2,2°, 4,4°, 8,9° and 16,7°; 4 fixed FoV)
Laser range finder (50 m to 10 km with 5 m accuracy, eye-safe)

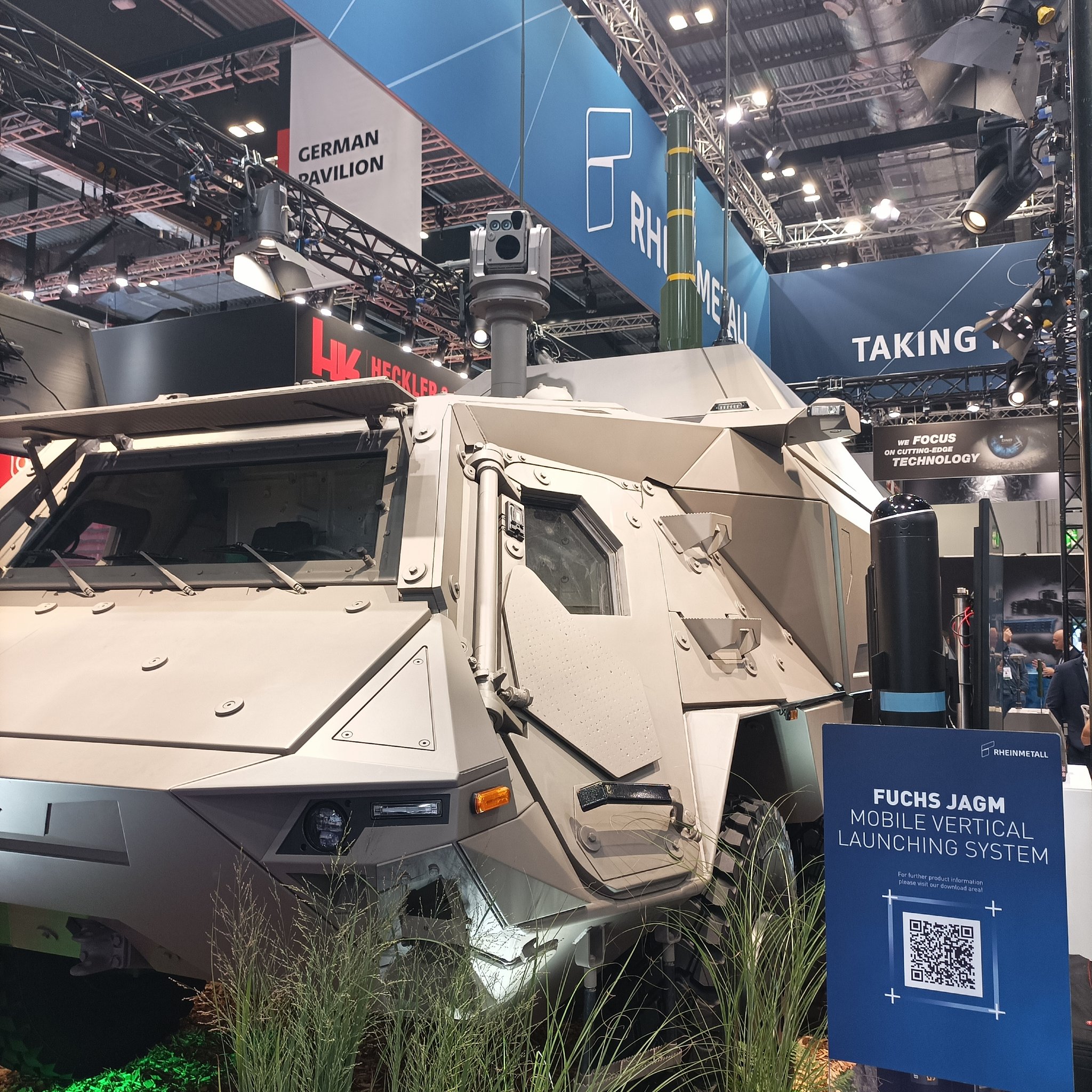

Mast Extendable up to ~7m from the ground

Performance

Speed on road max.: 100 km/h
Gradient: 60%
Side slope: 30%
Fording depth: 1,500 mm
Climbing ability: 700 mm
Trench crossing: 1,200 mm
Turning circle (c2c): < 17.5 m
Cruising range: >800 km up to 10
Occupants: up to 10

Power Pack

Engine: 6V 199 TE20
Engine power: 335 kW
Engine torque: 2,200 NM

Protection

Blast and IED protection
NBC filtration >12 hours

Optional Add-ons

Laser, acoustic, NC, CO, CO2 warning
MirrorCam, 360° vision system, IR systems
RCWS, crow’s nest, smoke grenade launcher
CTIS, Runflats, brake controlled trailer

Weaponry

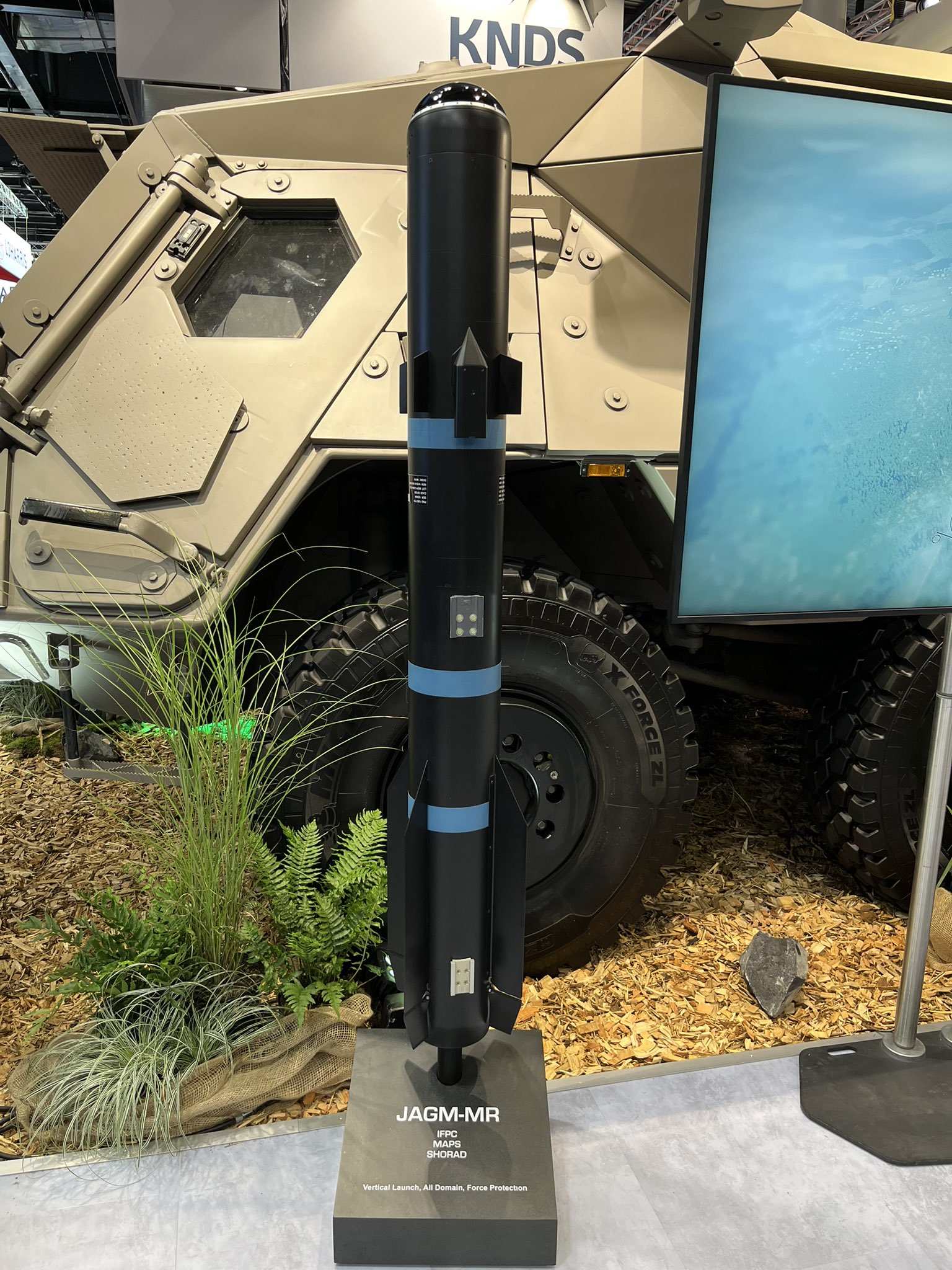

JAGM/-MR

Range: 8 to 16km
Guidance: Multi-Mode SAL/MMW (+NIR for JAGM-MR)
Warhead: Multi purpose cockpit, selectable, tandem, shaped charge, blast, fragmentation
Weight: 113.5 lb (51.5 kg)
Length: 69.2 in (175.8 cm)
Diameter: 7 in (17.8 cm)

Hellfire

• Range up to 8km
• Warhead 9kg tandem shaped charge, fragmentation warhead
• Guidance System Semi-active laser
