F16 ADF Hardpoints

Game Discussion General Discussion
,
1

Hey all, I noticed the F-16 ADF can only fit sparrows on its innermost hardpoints, and lacks TWS.

https://www.f-16.net/f-16_versions_article3.html

States that “The AN/APG-66 radar on the Block 15 Fighting Falcons was provided with an early version of a track-while-scan mode for greater air defense capability.”

F-16-Sparrow-1
F-16-Sparrow-11002×575 55.9 KB

Here’s sparrows on the middle? pylons

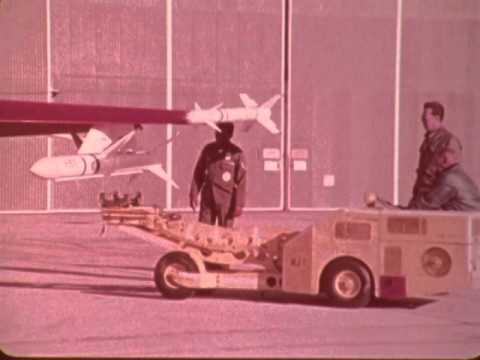

Apparently also gear door sparrows? Might have been some test

81-0665

Also AIM-120 capability (wingtip mounted) so that’s neat

Conclusion:

Shouldn’t the F-16 ADF (AJ and MLU too) have 6x sparrow capability?

1 Like
2

The wiring harnesses arent correct for AIM-7 firing on other hardpoints. Unfortunately this will not change. AMRAAM is a much lighter missile however, hence more hardpoint compatibility.

3

In the video shown, that was the YF-16. The YF-16 had gear door hardpoints for sparrows, but was ultimately removed when the final product was put into production. You were correct about it being a test.

1 Like
