Background
Spoiler
The primary objective behind the development of the J-7IIM was to evaluate the capabilities of the PL-8 missile. Its technical specifications are largely aligned with those of the J-7M intended for export. Nevertheless, to better suit domestic operational requirements, the J-7IIM has undergone significant modifications based on the J-7M design.
The inner wing pylons are capable of accommodating PL-2B, PL-5B, PL-8, and PL-7 missiles. Additionally, a head-up display (HUD) has been integrated to provide ballistic parameters for the PL-8 missile and to indicate the missile’s tail-chasing attack zone.
The original WP-7 engine, which featured dual-channel ignition and mechanisms to prevent automatic nozzle enlargement, has been upgraded to the WP-7B variant. The ejection seat system retains the life-saving indicators from the J-7II model, operational at zero altitude, 250 km/h (low speed), and 850 km/h (high speed). The identification system for friend-or-foe continues to utilize the YD-3 type.
Due to the integration of the PL-8 missile, adjustments have been made to the aircraft’s center of gravity, resulting in altered flight characteristics. A total of four J-7IM aircraft had been modified in accordance with the specifications set forth by the Chinese Air Force.
Technical Data
Specifications
Crew - 1
Length - 13.95 m
Height - 4.1 m
Wingspan - 7.15 m
Empty Weight - ~5,345 kg
Gross Weight - ~7,532 kg
Takeoff Weight - ~8,752 kg
Powerplant - 1 x WP-7B Turbojet Engine (43.15 kN dry ,59.82 kN wet).
Max Speed - 2,177 km/h at 12,500 m.
Service Ceiling - 19,200 m
Rate of Climb - 155 m/s
Range - 1,200 km, 1,450 km with drop tanks.
(~Estimated Weights used, actual weight of J-7IIM is not provided.)
Armament
2 x 30-1 30mm Cannons (60 rpg)
2 x PL-2A/B
2 x PL-5B
2 x PL-7
2 x PL-8
4 x Type 100-2 bombs
2 x Type 250-2 Bombs
4 x HF-7D Rocket Pods
4 x HF-16 Rocket Pods
1 x 720 Litre Drop Tank
Avionics
FD-3 IFF
Sky Ranger 7M ranging radar
Type 0101-HRA/2 radar altimeter
MADS-7 electronic defense system

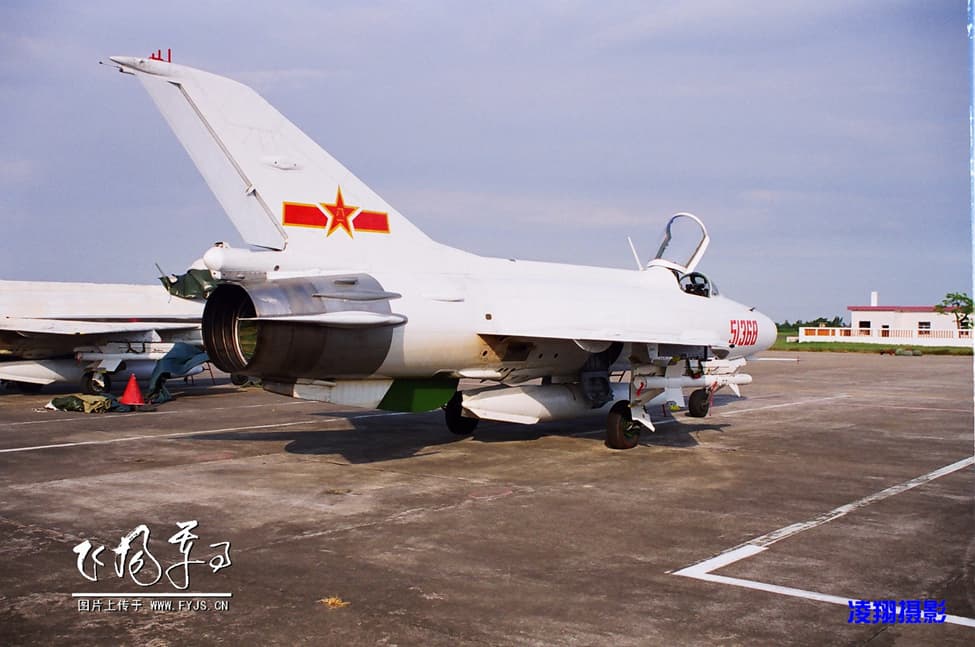

Images
Spoiler
Sources
Spoiler
(Book) Encyclopedia of Chinese Aircraft (Vol. 3) (Pg57)
