Caproni Ca.133.

History.

The Caproni Ca.133 was a three-engined, high-wing monoplane transport aircraft developed by Caproni in 1934. It was affectionately nicknamed by its crews as the “Caprona”, and although its characteristics and low top speed made it vulnerable to modern warfare, was used with good results in the theater of Italian East Africa and in the footsteps of hunting units in the Soviet Union and the Balkans. The first prototype of this aircraft was registered under the serial number MM.283 and flew for the first time in 1934 to Taliedo. The aircraft was immediately approved and production began, albeit with minor modifications, and the aircraft was used until the end of the war in 1945.

Armaments and propulsion.

The plane was armed with four 7.7 mm Breda-SAFAT machine guns, one dorsal, one ventral, and two lateral and could load up to 1.200 kg of bombs. Propulsion was entrusted to three 7 cylinder Piaggio P.VII C.16 radial engines placed on a single star air-cooled, enclosed in a NACA cowling, each capable of delivering a power equal to 460 HP which drove double-bladed variable-pitch propellers to the ground.

Specifications.

Spoiler

Crew: 3
Length: 15.45 m
Wingspan: 21.44 m
Height: 4.00 m
Wing surface area: 65.00 m²
Maximum weight: 6,500 kg
Engines: 3x Piaggio P.VII C.15 7-cylinder air-cooled radials, 475 HP each
Maximum speed: 260 km/h
Autonomy: 2,000 km
Tangency: 6 500 m
Armament: 4x Lewis 7.7 mm caliber and up to 500 kg of bombs

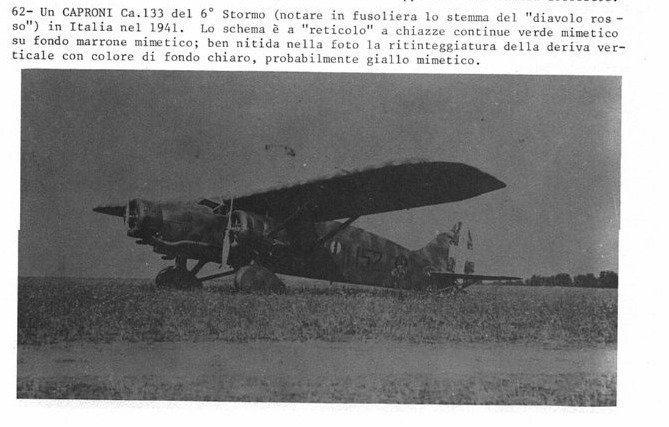

Pictures and drawnings.

Spoiler









Sources.

Spoiler

Caproni Ca.133 - Wikipedia
Caproni Ca 133 - transport
Gli Aeroplani Caproni: Ca - 133
Le foto storiche dall
Caproni Ca.133
Caproni Ca 133
Caproni Ca.133
Caproni Ca.133 - Wikipedia
Caproni Ca.133
https://www.youtube.com/watch?v=oJVxj0o6jAk
Two Italian Workhorses : SM 81 and Ca133
Бомбардировщик-транспортник Caproni Ca.133

5 Likes

+1

1 Like

+1 yes to all italian trimotors

2 Likes

It would be a decent BR 1.0 bomber.

1 Like

Trimotor check, Italian check, good defensive armament check, decent bomb load check. +1 check
