History and introduction

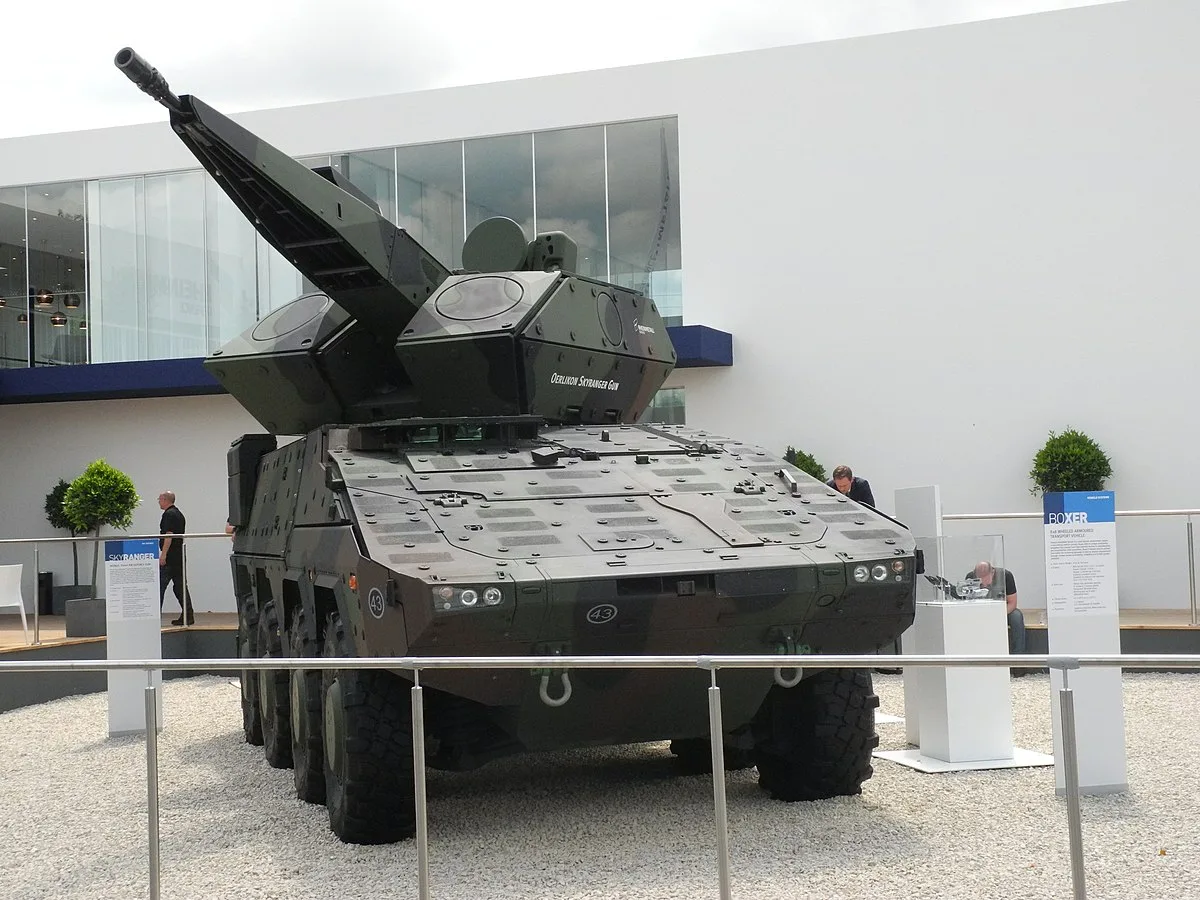

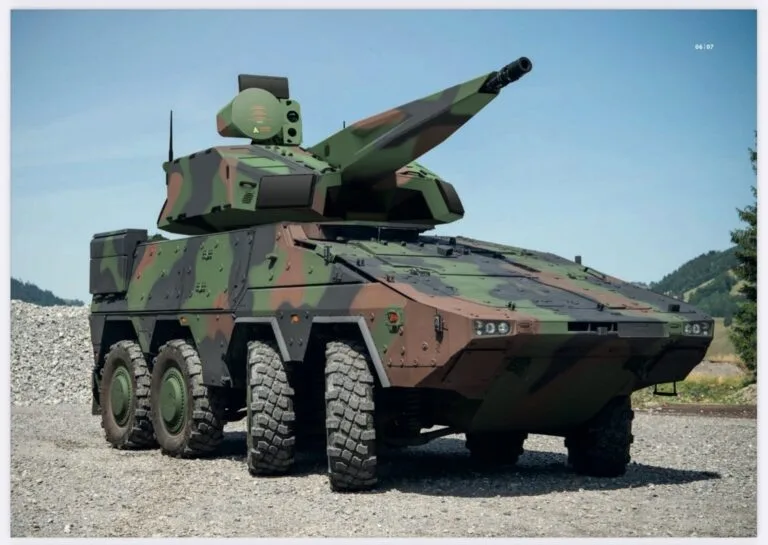

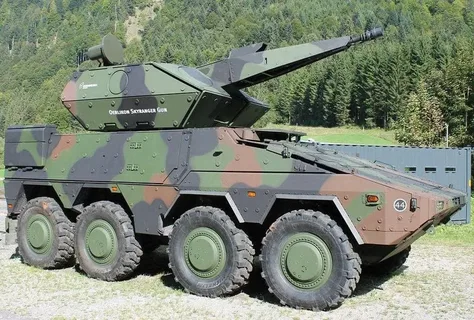

At the Eurosatory 2018 exhibition in Paris, the German company Rheinmetall Defense presented a demonstrator of the wheeled artillery system Oerlikon Skyranger Boxer. The car is based on the chassis of the GTK Boxer wheeled armored personnel carrier with a turret Oerlikon Skyranger Rheinmetall Air Defense is responsible for the concept of the new mobile anti-aircraft system. The tower module, developed by Oerlikon Contraves, is armed with a 35 mm automatic cannon. The 3D AESA, S-band or X-band radar and the Skymaster electro-optic head are responsible for tracking targets. The tower was fitted with a GTK Boxer ifv chassis at the request of the German ground forces, who are planning to replace the Opel Gepard cars with a new set.Oerlikon Skyranger was designed primarily to counter threats from unmanned aerial vehicles (C-UAS), low-flying manned aircraft, missiles and mortars. Electronically programmable 35 mm x 228 AHEAD (Advanced Hit Efficiency and Destruction) ammunition with fragmentation projectiles firing tungsten sub-projectiles can also be used to attack ground targets. The shooting range of the Oerlikon Revolver Gun Mk.3 is 4,000 m, theoretical rapid firing - 1,050 rpm. One series was limited to 200 shots The gun can be powered by four types of 35 mm AHEAD ammunition. These are the PMD062 with 152 sub-munitions, the PMD330 with 497 sub-munitions, the PMD375 with 860 sub-munitions and the PMD428 with over 600 sub-munitions. The gun can fire armor-piercing-fragmentation (FADS) or APFSDS-T. The dual feed system allows the operator to use two types of ammunition simultaneously.
Ammunition
It is capable of using a wide variety of ammunition
35mm HEI (DM11A1)
35mm AP (DM13)
35mm AHEAD (PMD 062, PMD 330)
35mm FAPDS (DM33)
35mm HEI (DM31)
35mm APDS (DM23)
35mm APFSDS-T (PMD 060)
Chassis and mobility
Engine : MTU V8 199TE 20/21
Power : 816 hp
Transmission : Allison model HD4070 with 7 gears forward and 3 reverse gears
Top Speed : 103 km/h max speed , limited to 80 km/h with a weight of 38,5 Tons
Weight : 38,5t
Power to weight : 21,19 hp/t
