BAMSE SRSAM
Summary
The BAMSE SRSAM is a wheeled SAM system that is made up of an Eldenhet 23 BAMSE mounted on the back of a Super Stallion 8x8 truck which was made in collaboration between Saab and Ashok Leyland in 2014. It comes with six missiles and has a long-range, however, it has no search radar so all targets need to be detected manually. It would be very similar to the Lvrbv 701 currently located in the Swedish tech tree when it comes to playstyle, but it has upgrades in almost every regard, except for the addition of a search radar.
History
In the middle of the 1980s, Sweden required a new air defence system that was able to defeat small and fast targets from far away to protect strategically important locations such as ports and air bases which led to the start of the development of the Robotsystem 23 BAMSE. In 1999 it was decided to adopt the system, with a contract following in 2000 for Saab to produce the system for the Swedish military where it entered service in 2008. Later in 2014, Saab teamed up with Ashok Leyland for the Indian Army’s ground-based air defence programme, with them offering a variant of the Eldenhet 23 BAMSE system called BAMSE MCC mounted on the back of Ashok Leyland’s Super Stallion 8x8 truck, which came to be called the BAMSE SRSAM. This vehicle was also displayed at the Saab booth at DefExpo 2014 where a model version of it was put up on display. The Indian Army never ended up procuring the BAMSE SRSAM, but in 2016 a functional version of this vehicle was put up for display at the anniversary of the Swedish Air Force in Linköping where Saab demonstrated it.
Features
Hull
The main hull of the BAMSE SRSAM is the Super Stallion 8x8 made by the Indian company Ashok Leyland with the BAMSE MCC missile launcher made by Saab mounted on the rear. This is an 8x8 truck which was designed to give a high mobility in demanding environments. It has a crew of three with the driver sitting in the front of the truck, and both the gunner and commander sitting inside the crew compartment of the BAMSE MCC launcher. The truck has no protection whatsoever, but the crew compartment in the launcher is protected against fragmentation.
Ashok Leyland Super Stallion 8x8.
Armaments
The BAMSE SRSAM is outfitted with six Luftvärnsrobot 23 missiles mounted on the BAMSE MCC launcher. This launcher rotates around a central mast where the sensors are fitted. On both sides of the mast, there is a launcher holding three missiles each. These missiles have a range of 20 km, can shoot down targets 15 km in the air, and have a top speed of Mach 3. The missile consists of two stages with an initial booster accelerating the missile to a speed of 3000 km/h within a second, after which the smokeless main engine starts to propel the missile toward the target. Well at the target it has a proximity fuze and a backup contact fuze to detonate the pre-fragmented warhead within the missile. The Luftvärnsrobot 23 is guided by radar beam-riding where it rides the beam of the tracking radar fitted on the top of the mast. It has both ACLOS and SACLOS modes for firing. The mast needs to be deployed for the missiles to be fired, and without it raised, the gunner’s sight wont is available.

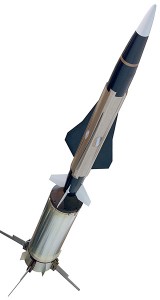

Luftvärnsrobot 23.
FCS
For fire control, it has an eight-metre-tall foldable mast that extends from the centre of the BAMSE MCC launcher. At the top of the mast, there is the fire control radar Eldledningsradar PE-2302 and a high-definition thermal camera for the gunner. The firing modes that it has are SACLOS and ACLOS letting the missile both be guided manually by the gunner and automatically by the FCS. The PE-2302 radar is a pulse doppler radar operating in the Ka band and has a max range of 30 km. The system is also outfitted with an IFF system letting the gunner know if an aircraft is friendly or not. As the Luftvärnsrobot 23 has both ACLOS and SACLOS modes for firing, the gunner gets to choose whether to manually guide the missile to the target using the thermal camera on the top of the mast, or whether to let the FCS automatically guide the missile to the target, giving it a sort of “soft fire and forget” mode where a second target can be engaged at the same time if it is located within the radar cone.
Folded up Eldenhet 23 BAMSE.
In War Thunder
In War Thunder, the BAMSE SRSAM would function a lot like the already existing Lvrbv 701. You would have no search radar to speak of and would as such be required to search for targets with your eyes, but unlike with the Lvrbv 701, you would have a thermal imager to assist you with searching for targets. The missiles would however be a lot stronger than the RBS 70 missiles that the Lvrbv 701 has with a much longer range and a higher velocity. Other than that the vehicle is much more manoeuvrable than the Lvrbv 701 letting you try to flank around the edges of the map to pick off aircraft and helicopters from an angle that they won’t expect. A problem with the vehicle is that the mast needs to be raised for the vehicle to be able to fire, or to even use the optics, and it is questionable at best if that mast can be raised whilst the vehicle is moving so you would probably have to stop and wait for the mast to deploy before being able to fire. An interesting gameplay mechanic would be the ability to fire at two different targets simultaneously with the radar being able to guide two missiles simultaneously, either at the same target or two different ones providing that the targets are both within the radar cone.
Specifications
General:
-
Crew: 3
- Driver
- Gunner
- Commander
-
Weight: < 27 300 kg *
-
Height: 3,29 m (excluding the BAMSE MCC launcher)
-
Width: 2,5 m
-
Length: 9,77m
-
Protection: Small arms fire
-
The Super Stallion 8x8 weighs 14 300 kg and the regular Eldenhet 23 BAMSE trailer weighs 13 000 kg, but not the entire BAMSE trailer is mounted on the Super Stallion so the weight is somewhere below the combined weight of both.
Mobility:
- Top speed: 90 km/h
- Gradient: 30°
- Side slope: 21,8°
- Approach and departure angles: 35°
- Ground clearance: 400 mm
- Turning radius: 27 m
- Vertical obstacle: 0,6 m
- Trench: 2 m
- Fording: 1,2 m
- CTIS
- Engine: Neptune 360
- 360 hp
- 265 Kw
- 2200 rpm
- 1400 Nm torque at 1300 - 1500 rpm
- Transmission: 8S151
- Automatic
- 8 forward gears
- 1 reverse gear
Armaments:
-
Luftvärnsrobot 23:
- General data:
- Length: ~2300 mm
- Body diameter: 108 mm
- Fin span: 600 mm
- Weight: 85 kg
- Booster motor diameter: 210 mm
- Propulsion:
- Range: 20 km
- Altitude coverage: 15 km
- Top speed: Mach 3 (1021 m/s)
- Acceleration: 833.3 m/s²
- Smokeless propulsion on the main motor
- Guidance:
- Radar beam-riding
- ACLOS
- SACLOS
- Radar beam-riding
- Warhead:
- Proximity fuze
- Backup contact fuze
- General data:
-
BAMSE MCC
- Ammo count: 6 missiles
- Horizontal coverage: Full 360° coverage
- Vertical coverage: Unknown *
- Turret rotation speed: Unknown
-
The missiles on the BAMSE MCC launcher can be vertically angled to 180° degrees to point straight backwards, it is however unknown at which point firing becomes restricted. Could possibly be full 90° vertical coverage.
FCS:
- Eldledningsradar PE-2302
- Range: 30 km
- PD radar
- Ka band (35 GHz)
- Can engage two different targets simultaneously
- Thermal gunsight
- IFF
Sources
History of Eldenhet 23 BAMSE and specifications of Luftvärnsrobot 23
History of Eldenhet 23 BAMSE and specifications for Luftvärnsrobot 23
Specifications for Luftävrnsrobot 23 and Eldledningsradar PE-2302
Specifications for Luftvärnsrobot 23 and the FCS of BAMSE
Specifications for the BAMSE SRSAM
Specifications for the FCS of BAMSE SRSAM
Specifications for the FCS of BAMSE SRSAM
Specifications for the Super Stallion 8x8
Additional images / videos

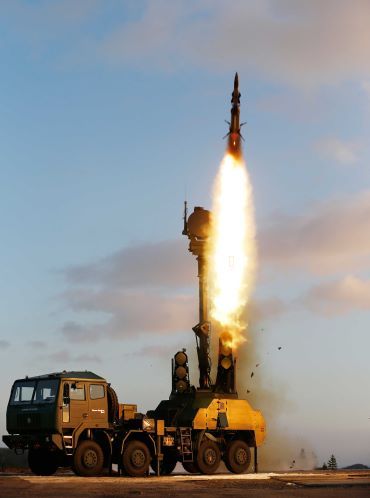

Eldenhet 23 BAMSE firing.

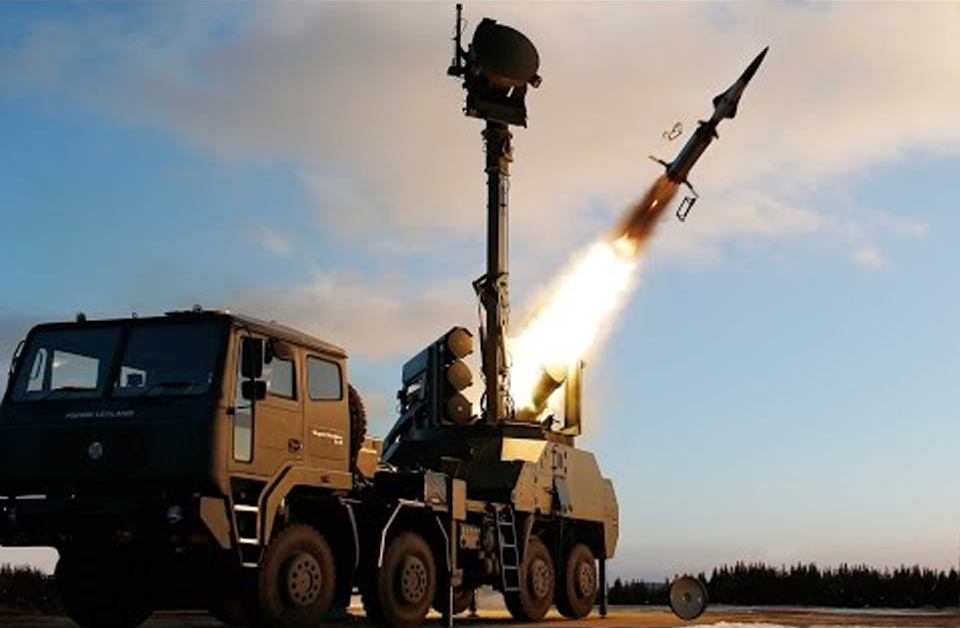

BAMSE SRSAM Firing.
