Autocannone da 102/35 su FIAT 634N

History.

1940, Libya. The war is underway on the Italian-Egyptian front and the Italian High Commands realize the usefulness of fast and well-armed means to intercept and destroy the Commonwealth forces. The Italian technicians began working on “Autocannoni”, just as they did during the First World War, using vehicles captured from the British armed forces and mounting old 65 mm cannons or 20 mm anti-aircraft guns on them. After some experimentation it was decided to convert a heavy truck, the Fiat 634 N, to a cannon by mounting a 102/35 cannon of naval origin used on various anti-aircraft and coastal defense units. The first vehicles were stationed at the 132nd Ariete Division and the 102nd Trento Division and gave good results by shooting at long-range targets with high precision and very high damage. Unfortunately, as the war progressed, the vehicles were lost in bombings, attacks and breakdowns and none of the vehicles survived until modern times.

Armament and propulsion.

The truck was armed with a 102/35 Model 1914 naval gun on various carriages (three on paper but only two documented by photographs, the OTO Mod. 1933 and the Vickers-Terni Mod. 1925). A normally trained crew could fire the cannon at an average of 20 rounds per minute, a rate usually slowed down to avoid overheating damage to the barrel and not to tire the crew.
The vehicle itself was instead a Fiat 634 N, a heavy transport truck weighing 14 tons (basic version) powered by a 80 HP 6-cylinder Fiat 355C in-line engine, which allowed the vehicle to reach a maximum speed of 41 km /h.

Specifications.

Spoiler

Dimesions (L-W-H): 7.35 x 2.4 x ~3 m
Weight: 6,2 tons
Engine: FIAT 355C 6-cylinder diesel engine, 80 hp
Maximum speed: 41 km/h
Crew: 6 (driver, commander, gunner and 3 servants)
Armament: Cannone Schneider-Ansaldo da 102/35 Mod. 1914
Ammo rack: 36

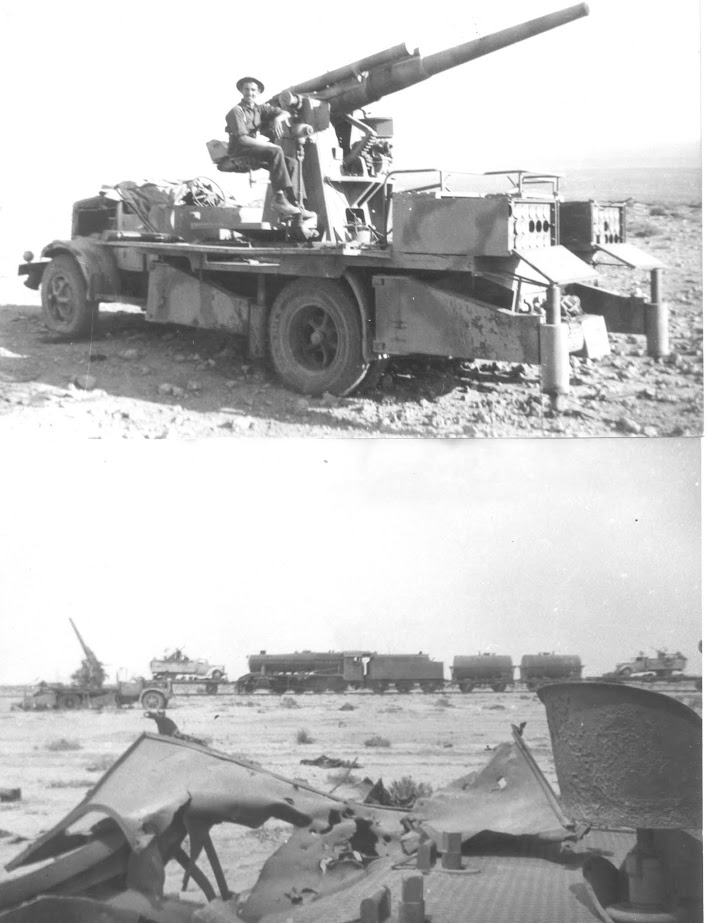

Photos and drawnings.

Spoiler









Sources.

Spoiler

102/35 su Fiat 634N - Wikipedia
https://www.amazon.it/dp/0897476018?ref_=as_li_ss_tl&language=en_US&linkCode=gs2&linkId=406a07be0501f2dc9ca83731a07223e9&tag=tankencyclo09-21
https://www.amazon.it/dp/B07L6THHWV?ref_=as_li_ss_tl&language=en_US&linkCode=gs2&linkId=bc1fbd5bb3e95f736e6c1516cd59675c&tag=tankencyclo09-21
https://www.amazon.it/corazzati-circostanza-italiani-Nico-Sgarlato/dp/8875652619
102/35 su Fiat 634N - Wikipedia
Italy 102 mm/35 (4") Schneider-Armstrong Model 1914-1915 - NavWeaps
Engines of the Wehrmacht in WW2
Raduni RFI in programma per il PDF Free Download
Autocannone da 102/35 su FIAT 634N - Tank Encyclopedia
LA MECCANIZZAZIONE DELL'ESERCITO FINO AL 1943 tomo II -parte 2 by Biblioteca Militare - Issuu
Italian 102/35 anti-aircraft ammunition fuze : Lieutenant B Brock, HQ Company, 2/2 Battalion, AIF
WarWheels.Net- Fiat 634N 102/35 Self-Propelled Gun Truck Index
102-35
Italy 102 mm/35 (4") Schneider-Armstrong Model 1914-1915 - NavWeaps

11 Likes

Really cool gun truck. Italy has really carved a niche out for itself in the game with these SPGs and I would love to see it continue and expanded upon.

On another note, I did a quick look-up of ammunition types. It seems that at least one AP projectile existed, weighing 15 kg and probably having the same ~750 m/s muzzle velocity as the other rounds. This would give it a penetration value between 120 - 160 mm (depending if it contained explosive filler or not).

Also, this could be two vehicles since two different mounts have been photographed (with a third documented but not photographed). These two, the Vickers-Terni Mod. 1925, and the O.T.O. Mod. 1935 have different elevation values. The Vickers-Terni being -5°/+90°, and the O.T.O. being -10°/+80°. That extra depression on the O.T.O. can really make a difference.
The third mount wasn’t anything special. The Ansaldo Mod. 1925, it had -5°/+85° in elevation values.
I really hope we get to see both (or three?).

5 Likes

I tell you one better thing.
-10°/+90°

1 Like

This and the 90mm gun trucks are absolutely needed. Love these sorts of things, and this one can even shoot forward!

5 Likes

Simply the best.

1 Like

Gaijin needs to add this and the 90mm lancia 3ro next update!

5 Likes

Couldn’t agree more!

2 Likes

If this thing it’s going to get AP, it will be insane, combined with the decent muzzle velocity and excellent reload speed.

2 Likes

It had the AP, with 116-160 mm penetration. A beast.

3 Likes

We’ll probably get an Italian vessel armed with it, before this truck as there were many of them. We’ll see what shells it’ll get.

1 Like

LOVE THIS +1

We need all the autocannoni we can get!

2 Likes

If my calculations are correct, between real cannons and machines/trucks armed with 20 mm pieces, there would be about 15 more vehicles in the Italian tech tree.

2 Likes

Even more fun for low tier, then 😀

1 Like

Fun to 1.0 from 3.0.

I think that vehicles with big guns like these can go up to 3.7, like the M41M da 90/53.
Other trucks with smaller cannons (20mm) are probably better left to rank I or II.

1 Like

How many of those are 20mm gun trucks? 20mm vehicles are already quite cheezy and the community has been quite vocal about them. They also often play very similarly to each other, even if they’re mounted on different chassis and whatnot.

I love gun trucks and such vehicles, but it’s important that they bring something to the table I feel. For any other gun I’m quite okay if they’re somewhat similar to each other though.

I think it could also be used as an AA vehicle, if Gaijin made time fuse shells more playable. 20 rpm + decent elevation, combined with enough tnt filler to hit planes.

1 Like

Of trucks with 20 mm for Italy there would still be 6/7 if I’m not mistaken (including those already proposed).

I think they should add another 20 mm truck, but with the Scotti-IF 20/77. The Alfa Romeo 430, for example.

1 Like

Why not.
