Abram's gunshield info needed

Machinery of War Discussion Ground Vehicle
42

Exactly, this composite armor sits flush with the piece circled in red. The piece circled in red is not modeled

1359030592_yds7e-xxzxk

1 Like
43

{26EC7147-DD25-495C-939C-7C348D1A46FC}

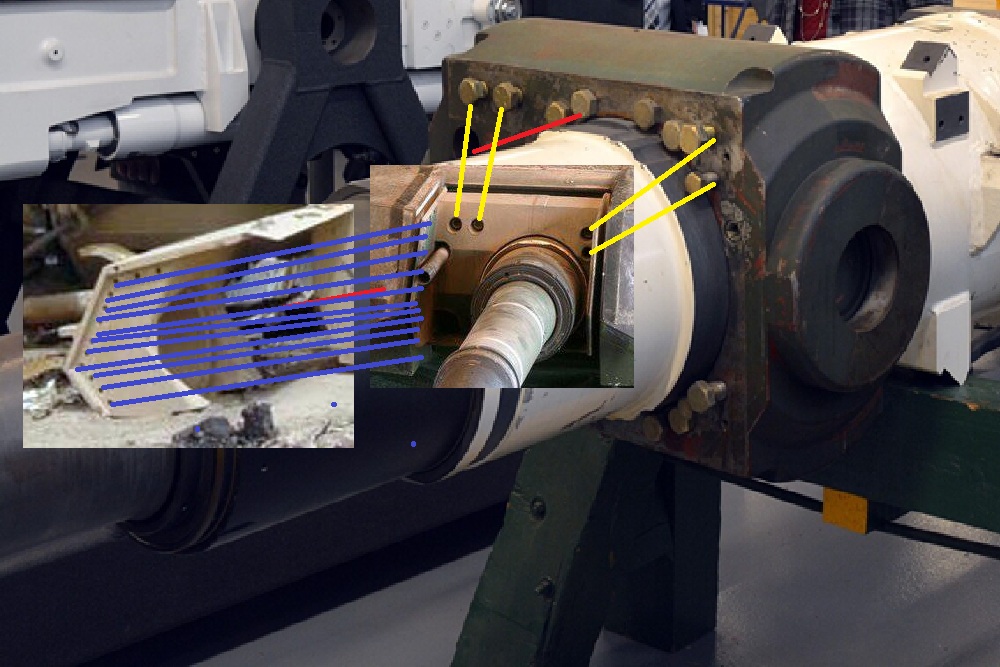

For reference, I added how everything bolts together, the bolts on the nera pack are on either side and it secures to the backing that’s not modeled

boltholes

2 Likes
44

@Abrams_X do you have any input or documents pertaining to that component that’s missing? Thanks!
