AAM-2 Missle
The AAM-2 was a Japanese missile based on the AIM-4D rocket. It was not accepted for operational use, it was manufactured by Mitsubishi Heavy Industries Corporation.
History

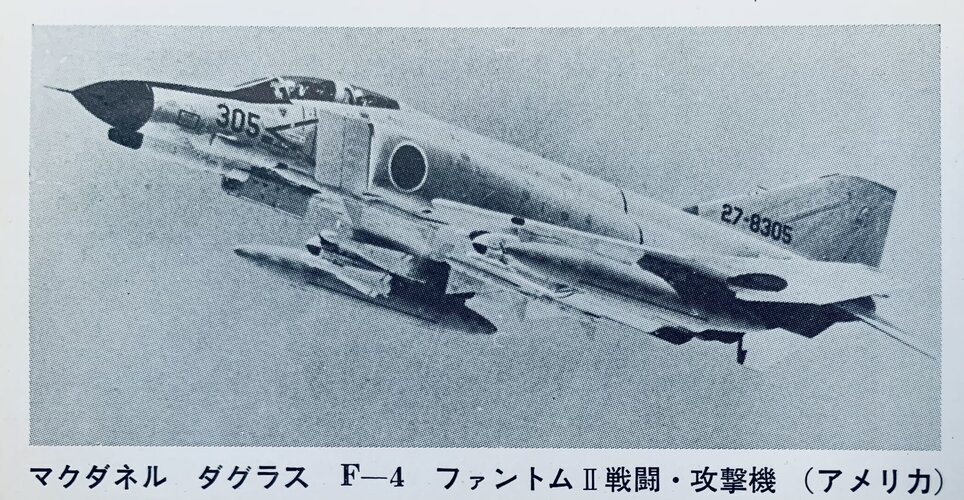

This missile was supposed to be a domestic replacement for the AIM-4D missile, which the Americans did not want to sell to Japan, which was used by the newly acquired F-4EJ aircraft. In 1970, development work began on it by the Technical Research Division and Mitsubishi Heavy Industries. The prototype was ready in 1971 and tests began at the Niijima proving ground, which revealed a number of problems, this caused the need for additional tests, which lasted from December 1972 to June 1975.The AAM-2 passed the final tests and was accepted by the Self-Defense Forces. Unfortunately, two things happened at this point that caused production not to start. The first was the end of the Vietnam War, which caused the market to be flooded with surplus from US Army inventories.The second was to negotiate the purchase of a license for the AIM-9L guided missile, which was successful, and the production of missiles in Japan from 1976 onwards.
Structure description

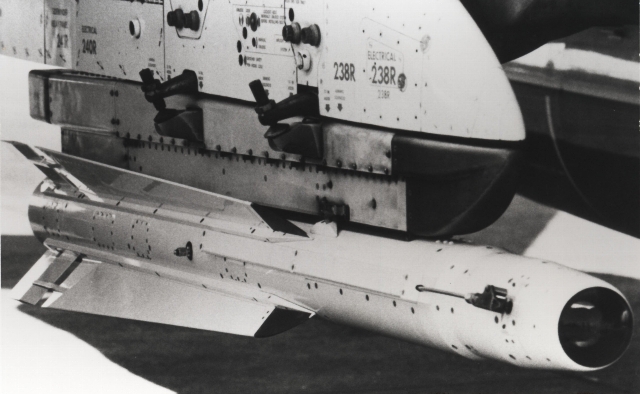

The guidance system uses infrared guidance, similar to the AIM-4D, but although it is limited, it uses omnidirectional infrared guidance that can attack from the front and side of enemy aircraft, and the use of high-performance rocket engines improves maneuverability and range. It also had an increased warhead power compared to the AIM-4D and was equipped with a proximity fuze, which solved the problem of a small warhead and the lack of a proximity fuze. In addition, the reliability of electronic devices has been improved. Therefore, although the AAM-2 was very similar in appearance to the AIM-4 model, it can be said that it was completely different.Unfortunately, the exact speed, range and power of the warhead is not known, it can be assumed that they were very similar to what the AIM-4D
General characteristics
- Length: 220cm
- Span: 49cm
- Diameter: 16cm
- Weight: 74kg
- Guidance Method: guided by infrared (IR)
- Range: 5 km
- Additional info: it is resistant to lure flares
Now for the estimates
- Warhead: Explosive charge probably between 3.4 and 10 kg
- Speed: Mach 3 ?
- engine:Liquid fuel engine, no additional data available.
Summary
The AAM-2 would be a great addition to the F-104j and F-4EJ. All sources report an increased range of attack (attack from the side or from behind), not which say that it is a rocket to attack from all directions. Adding it will increase the number of unique rockets for Japan, so it should be remembered that the work on it helped to make the AAM-3 rocket in the future. As for me, this is a great idea compared to adding AIM-4D missiles, which only have a bump fuse and not a proximity fuze like the AAM-2.
Finally, I apologize for the linguistic and logical errors because unfortunately English is not my main language and I had to use google translator.
Source
AIM-4 – Wikipedia, wolna encyklopedia
Lista wyposażenia Powietrznych Sił Samoobrony – Wikipedia, wolna encyklopedia
Encyklopedia missile_Baidu “Mitsubishi” AAM-2
Category:Mitsubishi AAM-2 - Wikimedia Commons
1976 | 2321 | Flight Archive
Wayback Machine (archive.org)
Sidewinder – Wikipedia, wolna encyklopedia
AAM-2 – Wikipedia, wolna encyklopedia
AAM-2 – Wikipedia, wolna encyklopedia
誘導武器1967-1999 (mod.go.jp)
