4 Rad Tropen Panzerspähwagen

Would you like to see this in-game?
  • Yes
  • No
0 voters

I would like to suggest the 4 Rad Tropen Panzerspähwagen, which was a trail vehicle, based on the 234 hull, but shortened, only 4x4 to replace the Sd.Kfz.222, however beyond the Trail vehicle, it never entered production.
It was to be armed with the 2 cm Hängelafette 38 as allready found on the Sd.Kfz.234/1, a direct improved model to the Hängelafette 30 of the 222.

It would in game be a slightly improved Sd.Kfz.222, with more armor of fully frontally 30mm, at a stronger angle, similar speed, but also slightly improved armarment, beeing a coax Mg 42 instead of Mg 34.

History:
On 21 July 1941, the development of a new light reconnaissance armored vehicle (Leichter Panzerspähwagen), to replace the Sd.Kfz.221/222/223 was issued to companys. It was to use as many components of the planned Schwerer Panzerspähwagen 234 as possible and assambled and supplied by Büssing NAG, like the older Panzerspähwagen befor it, with the armored body by Horch.

The full front (instead of just lower hull) was to be 30mm angled to be immune against 20mm guns, with the rest against 7,92mm S.m.K ammo, beeing angled 8mm plates.
Powered by the 6 cylinder air cooled Diesel Tatra V 910 engine with 125 Ps, which was basically half of the V 12 engine of the Sd.Kfz.234.
The vehicle was to reach the same top speed of 85 km/h on roads and the Hängelafette 38, armed with the 2 cm KwK 38 L/65 and Mg 42, which offered good firepower against, infantry, light armored vehicles and airtargets, with great traverse and elevation angles.

1 or 2 Prototypes were constructed and send by Büssing in the spring of 1943, after intesive tests, it was ordered to produce 1000 units beginning in October 1943, however befor the production started, it was decided to simplefy production and instead only concentrate on Sd.Kfz.234 vehicles to replace all other types. And instead some more Sd.Kfz.222 and 223 were also produced.


Pictures:(Click to show)



Armarment:
2 cm KwK 38 L/65 and Coax Mg 42 (1500 rpm)
450-480 rpm 230 rounds of ammo. -4° to +70° elevation and 40°/sec traverse speed

Ammo: Different AP and HE rounds. 148g/820(800 for L/50)m/s to 120g/920(900 for L/50)m/s and HVAP 100g/1050m/s
For more info (and ease of editing when new/more info is available, ill only add it here:

The Vehicle:
Speed: 85 km/h
Crew: 4
Weight: 7 ton
Engine: 125 Ps
Armor: 30mm Front, sides 8mm back 10mm

Source:
Panzer tracts 13
Armored vehicles, Germany 1919-1945 (part 1)
Munition der 2 cm waffen

7 Likes

Cute lill Puma +1

2 Likes

Considering it was never really fitted with any armament, what are the chances of seeing suggestion for 50mm armed version ?

Leichter Panzerspähwagen 4-Rad  - 1

3 Likes

As far as i know, it wasnt even conciddered and the drawing you show is the /2 turret, tho with also a 2 cm Gun.

Oh my bad did not realised that, took it right from my old folder, will be fixing it thank you.

I cannot find where I’ve get it but this source mentions 50mm here, other than that Panzer Tracts mentions 20mm as you’ve put. I’ll see if I can find the book which I’ve took this screenshot.

I’ve found the source by the way, Encyclopedia of German Tanks of World War Two Revised Edition by Chamberlain, Peter , Doyle, Hilary L. & Thomas L. Jentz @Ghostmaxi

1 Like

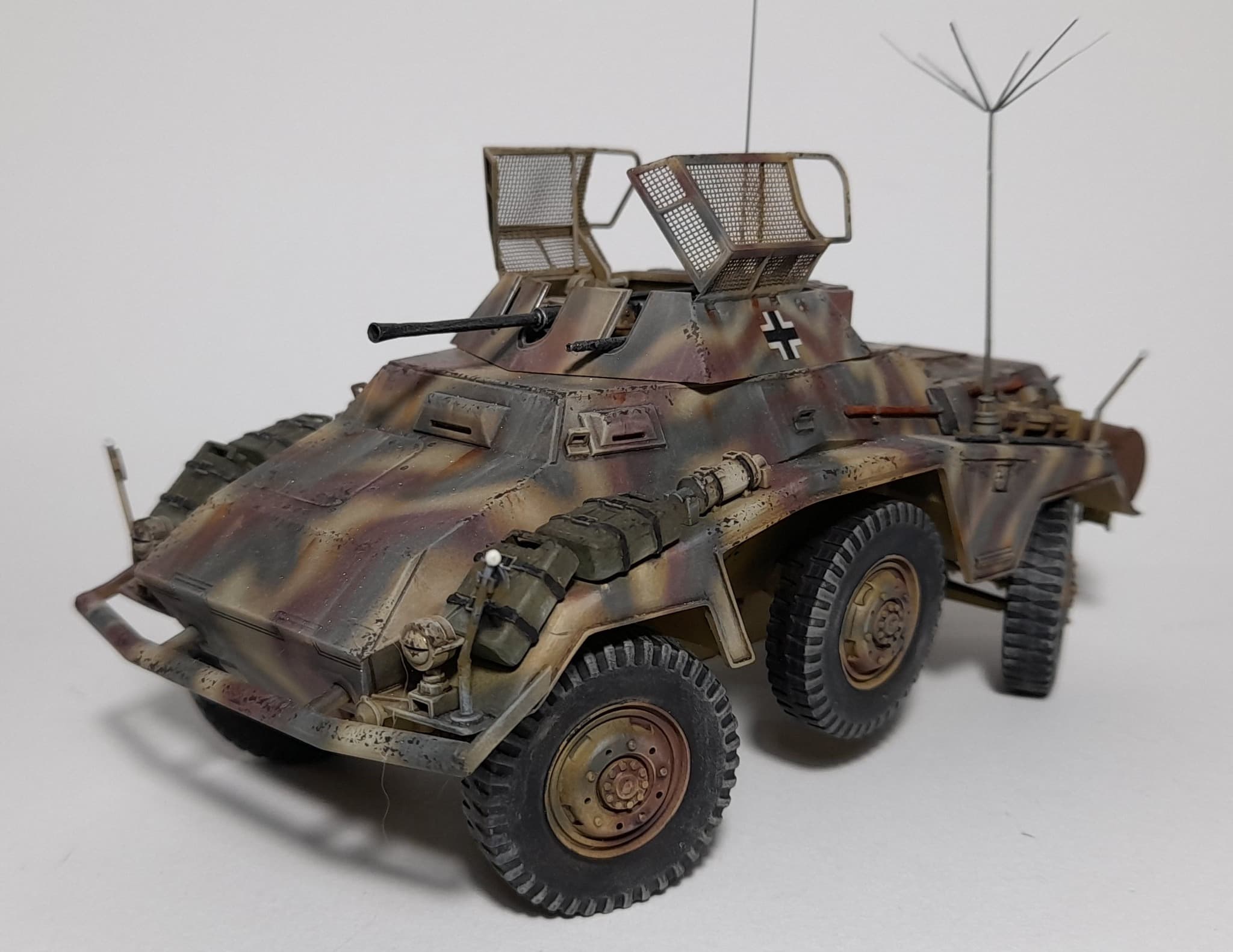

Model


Tamiya Model Magazine | Reconnaissance Vehicle 20mm | Facebook

+1 would be nice
