3,7 cm Flak 43 L/57 auf gepanzerter schwerer Wehrmachtschlepper sWS

[Would you like to see this in-game?]
  • Yes
  • No
0 voters

I would like to suggest the Gepanzerter schwerer Wehrmachtschlepper mit 3,7 cm Flak 43 L/57. In game it can be placed at a lower Br (around 2.3-2.7) while the gun is quite powerfull with a good fire rate, the chassis however, compared to other halftracts trades allmost all mobility for some armor and strong gears for very high offroad capability with strong gears to be powerfull with towing, transporting and general while slow, allways good mobility, with a top speed of just 27 kmh.

The later stages of the War, the production capacitys where allready hindered by bombing, so ration production of less different models was considdered, so instead of 5 different halftracts as main towing vehicles it was decided to change to just 2-3, namely the leichter Wehrmachtschlepper (which didnt go past the paper stage duo problems and turning out to be not ideal) and the schwerer Wehrmachtschlepper which while overall good and rather easy to produce was far slower than the other models, cince it had so high gearing for high towing strength over speed, which is why in the end it didnt replace the other vehicles.

The Chassis: schwerer Wehrmachtschlepper:
Produced by Büssig-NAG (825 produced)
Length: 6,67 m
Width: 2,5 m
Height: 2,8 m
Weight: 13,5 t
Engine: 100 Ps Maybach HL 42
Speed: 27 kmh
Armor 6 to 14,5mm heavily angled with 10-14,5 mm Gunshield.

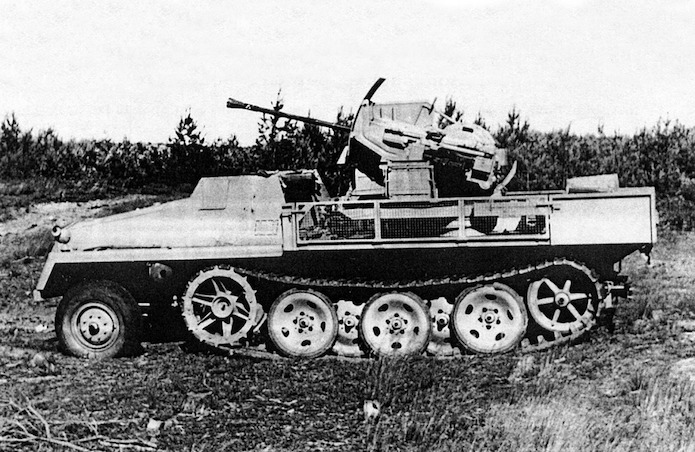

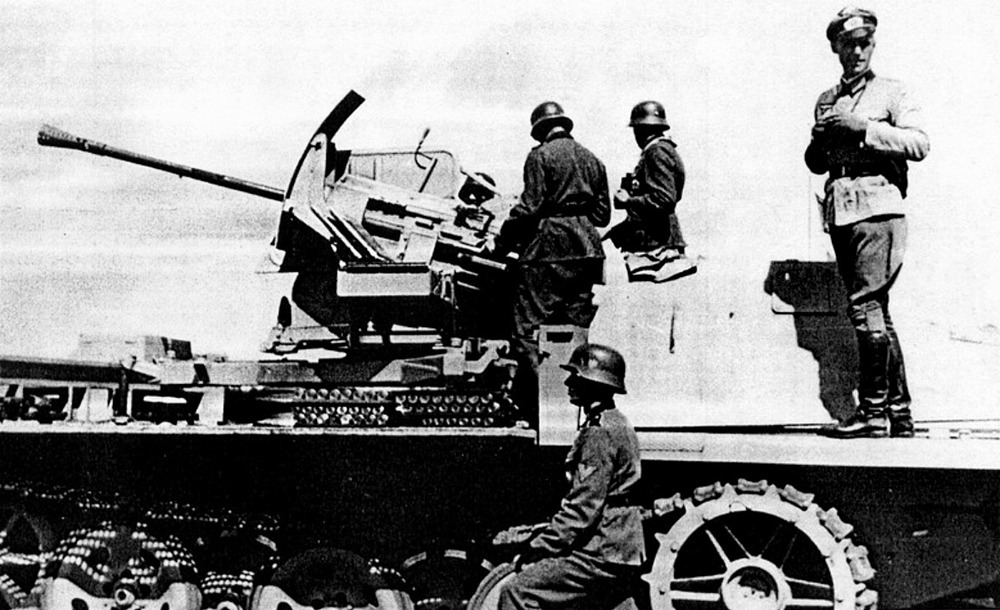

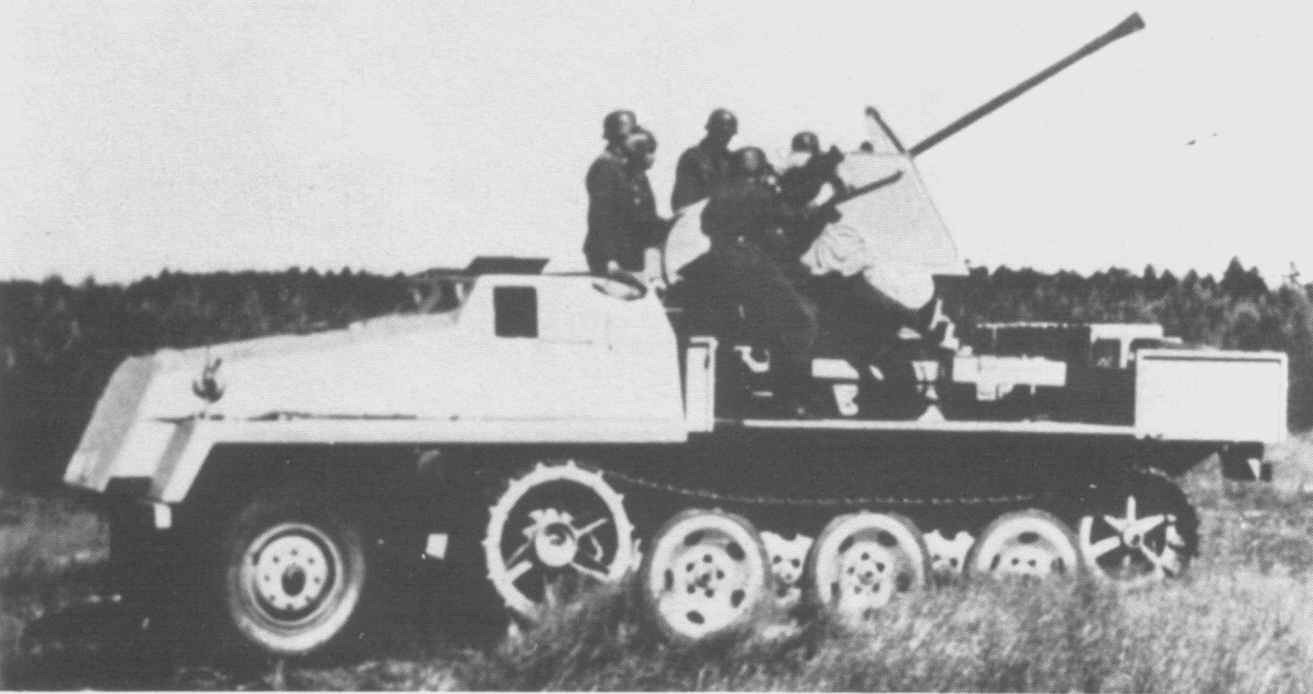

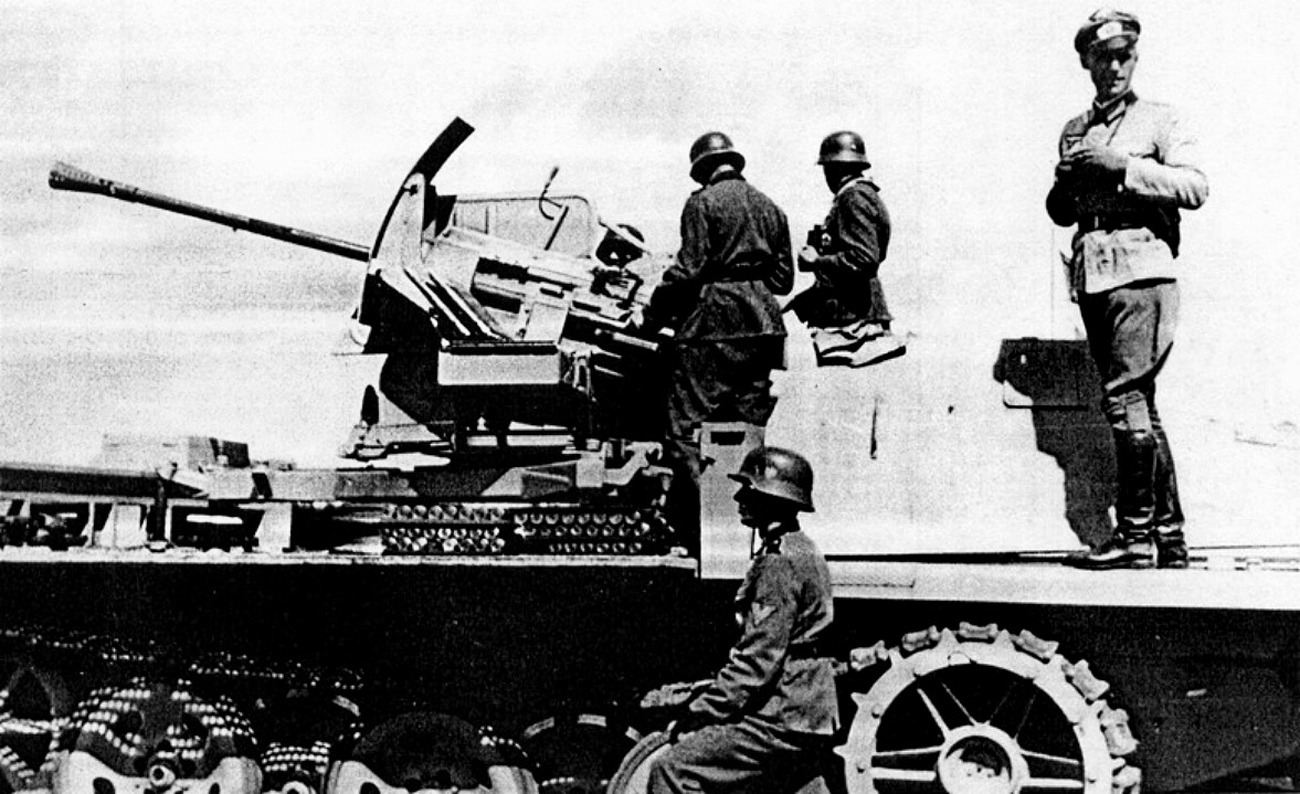

Pictures:

Pictures:(Click to show)

sWS - Fahrzeuge-der-Wehrmacht.de









37mm Flak 43 L/57
Pictures:(Click to show)



Caliber: 37mm

Ammo: 37x265mmB

Fire Rate: 250 rpm

Loading Tray 8 round Rahmen (Frame)

Muzzle velocity: 770-1170m/s

Weight: <274 kg(Flak 18), 2780kg in Fire position

Ammo Types: Aphe, Hvap-T, He-T, HeI-T, He-I, HeI-T(m)


Ap:


Pzgr.18 L'Spur (Aphe) 0,685 kg 770/800m/s 13g Pent (22,1g) 49-52mm/10m

770m/s is for worn barrels.
Note: Against Ground and Air Targets.
Bottum Fuze after 7mm active.
Screenshot 2024-06-02 183242


Pzgr. L’Spur (Naval) (Apcbc) 0,7 kg 790m/s solid 64mm/10m


M-Pzgr. L'Spur. o.Zerl. (Aphe) 0,710 kg 783M/s 90g HTA (108g) 42mm/10m

Note: Mainly against Air Targets, as well as ground targets and ships. (Propably didnt go into service.)
Bottum Fuze active after 5mm
Screenshot 2024-05-03 160342


H-Pzgr. L'Spur. o.Zerl. (Apcr) 0,405/0,410 kg 1150/1170m/s 231g core(16,1mm) 110-113mm/10m

1150m/s is for worn barrels.
Note: Only against Tanks, where other Ap rounds cant penetrate. The Carrier has an Incendary effect when melting upon impact.
Screenshot 2024-05-03 161328


He:


Sprgr.18 L'Spur. FES (Hef-T) 0,61-0,635 kg 820/830/835m/s 29g Pent (49,3g) 7mm/10m

820m/s is for worn barrels.
Screenshot 2024-06-02 183613


Brsprgr. L'Spur FES (Hefi-T) 0,61-0,635 kg 820/830/835m/s 30g H.5 and Aluminium

820m/s is for worn barrels.
Note: Against Air and Ground targets.


Brsprgr. vk L'Spur. FES (HefI-T) 0,61-0,635 kg 820/830/835m/s 40g H.5 and Aluminium

820m/s is for worn barrels.
Note: Against Air and Ground targets, shortened Tracer for increased He and Incendary effect.


Brsprgr. o.L'Spur FES (HEFI) 0,62-0,644 kg 820/830/835m/s 90g H.5 und Zink

820m/s is for worn barrels.
Note: Against Air and ground targets.
(Filler of 35,5g H.5 and 54,5g Zink, calculated by Killakiwi)
Zeichn_05


Minengeschoss:


M-Gr.18 L'Spur. o.Zerl. (HEFI-T (m)) 0,55kg 914m/s 90g HTA (108g) 7mm/10m



Mountings:

Flaklafette 43
Flaklafette 44 (Zwilling)


Source:
D 606/15 schwerer Wehrmachtschlepper Gerätebeschreibung
Munition der 3,7 cm Flak 43
German late War armored fighting vehicles
