2 cm Gebirgsflak 38 L/65 auf VW Typ 166 Schwimmwagen

[Would you like to see this in-game?]
  • Yes
  • No
0 voters

I would like to suggest the fast and nimble small Typ 166 Schwimmwagen armed with a 2 cm Gebirgsflak 38, which would add to the german tree a small, fast and nimble vehicle that can also swimm, which the german TT currently doesnt have at all. It would be similar to the Sd.Kfz.222 but smaller, without armor and more nimble perfect to get fast into small good positions, with great Elevation of -22° to + 90°!

The Volkswagen Typ 166 (or Kfz.1/20) was a amphibious all wheel drive car for a “crew” of 4 to transport personell. It was based on the Volkswagen Typ 82 Kübelwagen and build for the Waffen SS and Wehrmacht from Fall 1942 to Summer 1944 with over 14.000 produced at Fallersleben.

The Gebirgsflak 38 was a lightweight version of the Flak 38 with a new and simplefide Mount made from lighter alloys as well as beeing able to be disassabled easily into multiple parts without tools with the heaviest beeing mere 38 kg.
The whole idea was that it could be carried by the crew or on a Horse/Donkey up hills and mountains where no bigger vehicles can drive to and be a good general purpose gun against planes and all other light vehicles it may encounter with improved elevation of -22° to +90° as such it can easily aim at targets below it down hill and all other targets even if it wasnt placed on flat ground.

While it is unknown why this was created, the german army needed to mobilise every possible gun and such a vehicle could be easy to conceal and can react fast to an attack and get ready as well as has good mobility even across rivers.

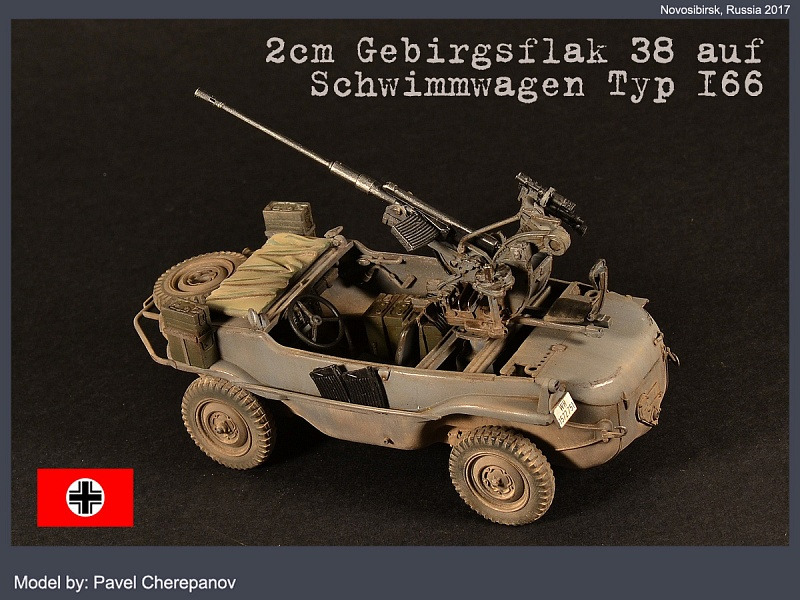

Picture:(Click to show)



The Gun:
2 cm Gebirgsflak 38 L/65
20 Round mags 480 Rpm, unknown ammo amount
-22° to +90° elevation and 360° traverse
Ammo: (Click to show)

Pzgr. L`Spur. o.Zerl. (ApI-T) 0,148kg 830m/s 0g 40mm/10m


Pzgr. L'Spur zerl. (Aphe-T Sd) 0,148 kg 830m/s 2,4g Pent 37mm/10m


NOTE: It does NOT have a fuze, the filler is for self destruction, in game it would also explode upon impact when shattering, like the japanese 30mm Aphe.

Pzgr. 40 L`Spur. o.Zerl. (HVAP-T) 0,100kg 1050m/s 62g core 12mm 50mm/10m


Pzsprgr. L'Spur m.Zerl. (Aphe-T Sd) 0,121 kg 900m/s 3,6g Pent 33mm/10m

(This last picture is an adaption for the Mg151/20 and uses a different shorter tracer, which results in it beeing also a bit lighter)

Sprgr. L`Spur. o.Zerl. (Hefi-T) 0,120kg 900m/s 6,2g Pent (10,54g) 5mm/10m


Brsprgr. o.L'Spur. o.Zerl. (He-I) 0,120kg 900m/s 20g H.5 and Zink (7g H.5 13g Zink (calculated by Killakiwi))

Screenshot 2023-09-06 122928

The vehicle:
VW Typ 166 Schwimmwagen
Weight: 1345 kg (+395 kg of the gun (full weight is 450, but the tripod is left away)= 1.740 kg)
Engine: 4 Cylinder Boxer 24,5 Ps / 3000 rpm and 26 Ps / 3300 Rpm
Drive: 4x4 + Propeller
Speed: 80 km/h on land 10 km/h on water
Size: 3,825 m / 1,480 m / 1,615 m

VW Typ 166 Manual
Munition der 2 cm Waffen
Manual of the 2 cm Gebirgsflak 38



+1 although I would like to see its counterpart as well:


I didnt know the picture had a caption.

lil’ meme machine, sure why not. +1
