ZA-35 - Technical data and discussion

Machinery of War Discussion Ground Vehicle
1

Work in progress

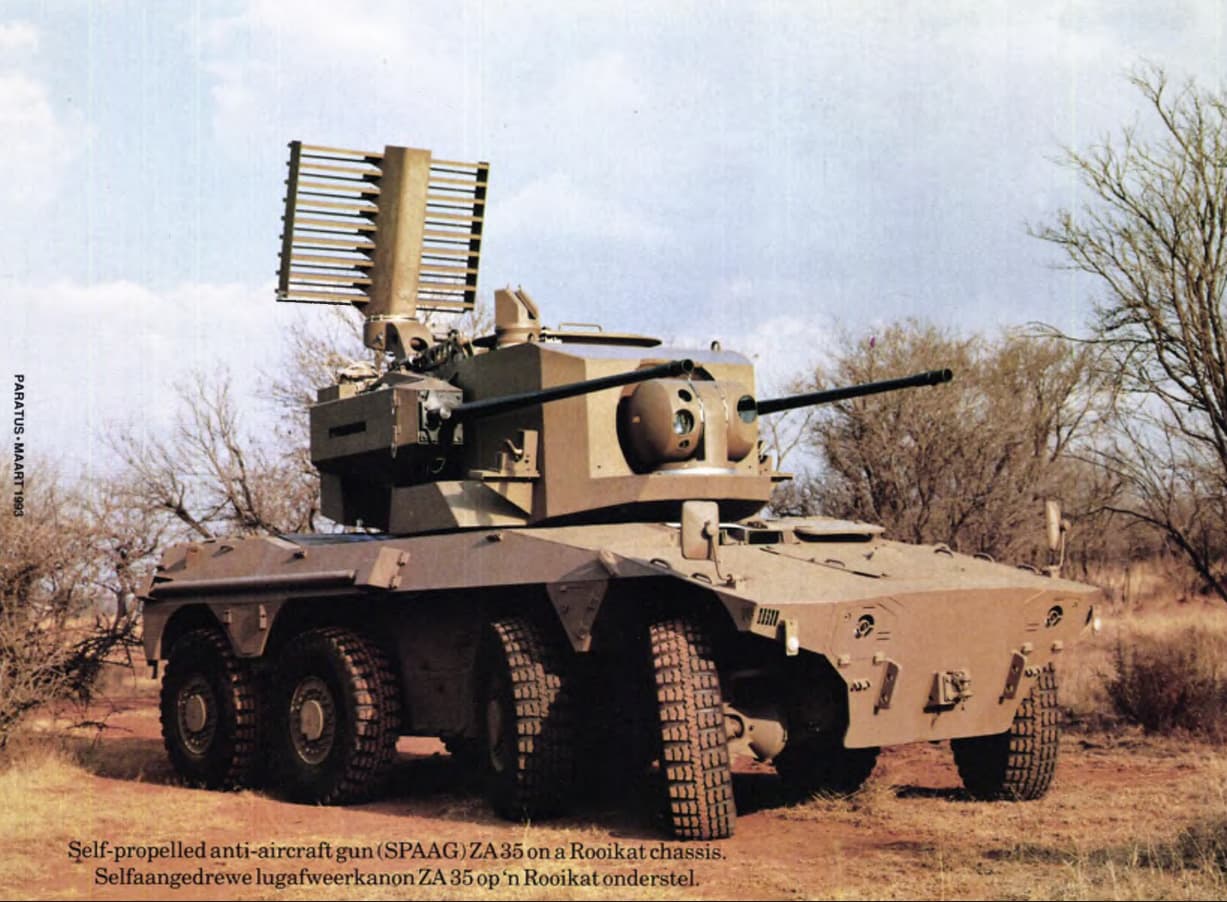

image1227×902 124 KB

Technical Specifications:

General:

Lenght: 7,2m
Width: 2,9m
Height: 3,1m with radar folded, 6m with radar erected
Weight: 32 tonnes
Engine: V10 producing 563hp
Gearbox: Automatic, 6 forward 1 backwards, sellectable high and low ratios
Suspension: 8x8 with 4 front wheels steering
Max speed: 120km/h
Crew: 3 Driver, Gunner and Commander/Radar Operator
Protection:
Hull: 50mm front, 25mm side, 20mm rear
Turret: 40mm front, 30mm side, 20mm rear
Horizontal limits: 360° rotation
Turret rotation speed: 45°/s
Vertical limits: -8° +81°, tracker has independent limits
Elevation speed: 42°/s
Stabilized: Yes, two-plane

Search radar:

Radar: EDR 110.
Type: Planar array PESA radar
Band: IEEE: L NATO: D
Range: 12km with 4km ceiling
Scan zone: 360°x50°(-5°+45°)
Scan rate: 60 rpm
IFF
TWS on 100 targets

Features

Ability to cue turret and tracker to target in whole 360°

Tracker:

Tracker: AA-EOT
Type: Combined TV/IR tracker
IRST lock range: 10km
Features:
Limits: 360° horizontally, -10° +90° vertically
TVD: Gen 1 or Gen 2
Laser rangefinder: LR-41 20km 20 Hz pulse
Stabilized: Yes, Two-plane

Commander sight:

AA-CS-300D panoramic day sight
Limits: 360° horizontal, -15° +75° vertical
Magnification: x3-x10
Target acquisition range: 10km
Commander override is available
Stabilized: Yes, Two-plane

Armament:
2x Vektor GA 35 automatic cannon
Calibre: 35mm
Fire rate: 550 rpm per gun
Muzzle velocity: 1175m/s
Effective range: 4000m
Ammunition storage: 460 rounds per gun
Ammunition types:
HEI-T
HEI
Base fuze HEI with penetration of 12mm at 1000m
APCI-T with penetration of 100mm at 1000m
SAPHEI
All shells are ballistically matched.

5 Likes
2

GIVE ME THERMALS AND THE 100mm @ 1km PENNING SHELL OR GIVE ME DEATH

1 Like
4

After the Gepard gets full fapds belts :3

1 Like
5

You do realise FAPDS will be worse than even the SAP rounds right?

6

It wouldn’t. It would preform as a slightly less penning apds. And by slightly I mean by like 2 if that

7

Thermals, some radar tracking possibility.

8

It’s in the name. Frangible. It’ll shatter on everything at every angle because that’s what it’s designed to do. It’ll completely shred aircraft but do nothing against anything with armour.

9

Wrong flag

10

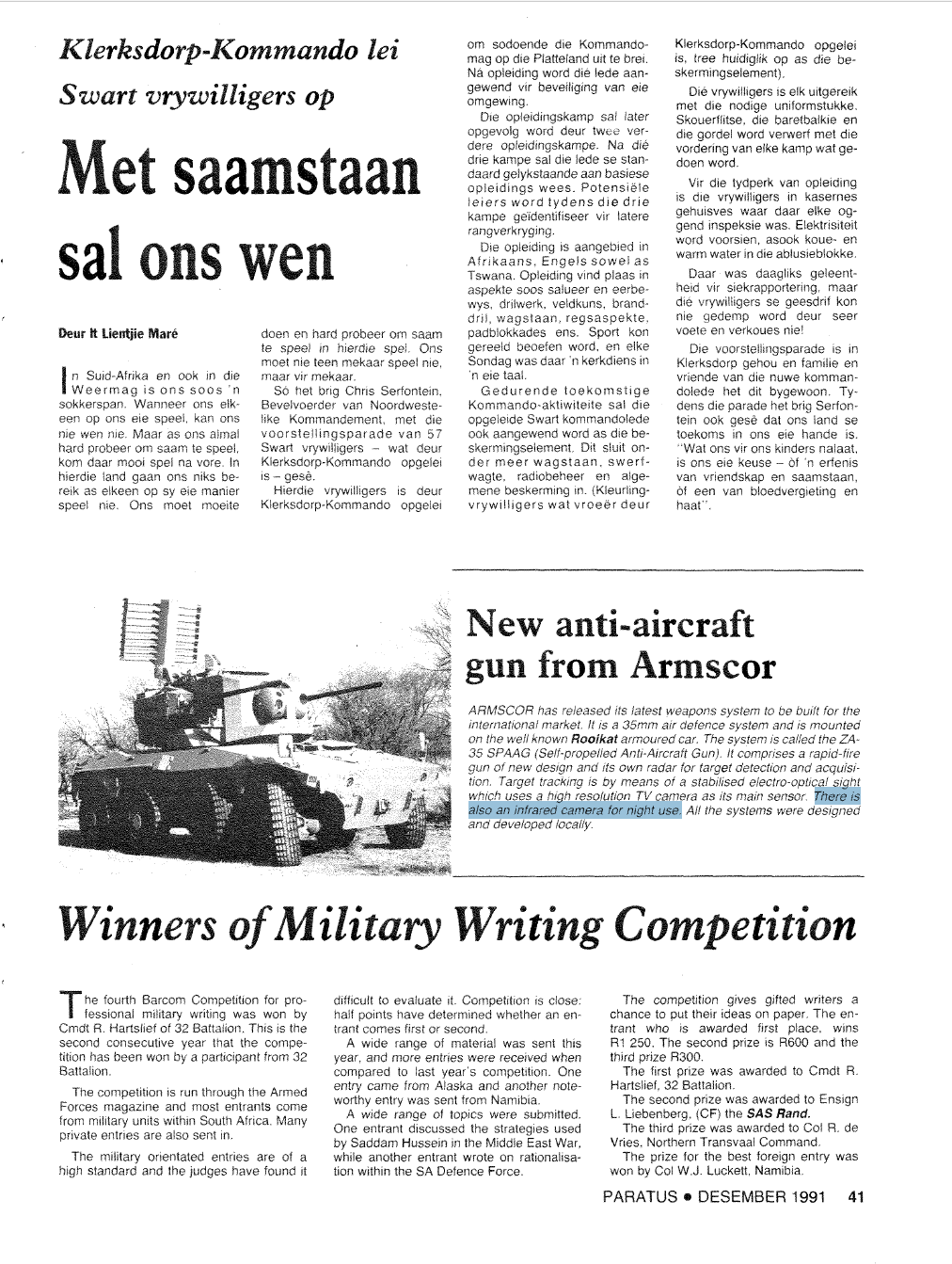

I am currently working on the thermals, as despite finding primary source, tech mod decided to reject it.
https://community.gaijin.net/issues/p/warthunder/i/BiX8AdYUZ2h0

image1012×1343 448 KB

2 Likes
11

Kept the same sabot as the apds but with the added shrapnel. Also just ignore the whole apds in the name lmao literally armour piercing.

12

It’ll be peak to see :3

13

don’t forget the steering angle fix

1 Like
14

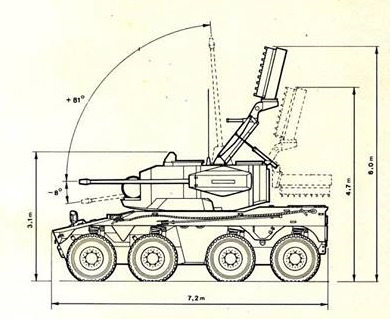

How the ZA-35 radar should fold.

1 Like
15

Unfortunately we don’t have variable radar heights. Should automatically change with the current range setting.

2 Likes
16

It did not rely on range settings, it was operaten in lower position while moving through tree rich areas, in oreder to minimize possible damage.

17

Did it not affect the max range at all?

18

17857731973106220540669844605488

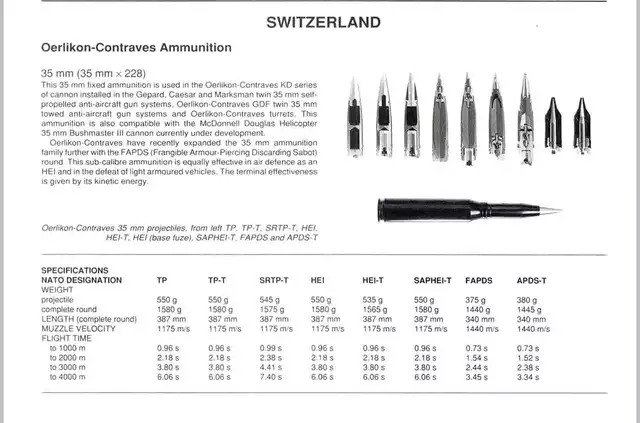

FAPDS
FAPDS1236×1756 222 KB

Basically identical rounds in everyway. Only way it would end up worse is you don’t get funni Aphe moments but you have 640 rounds of apds

3 Likes
19

The Dutch had trials and eventually had the FAPDS-T in-service on the PRTL GWI “Cheetah”

2 Likes
20

I’m surprised the cheetah hasn’t been added yet tbh

21

Now i have remade the report with ALL the sources i have.
Wall of text warning
ZA-35 should have gunner TVD
