VT-4A1 should have better Turret traverse and Verticle targeting

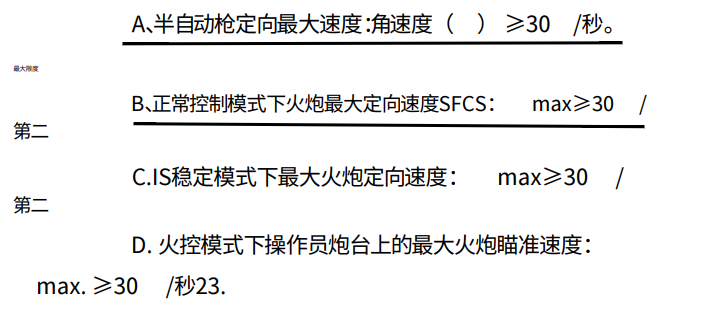

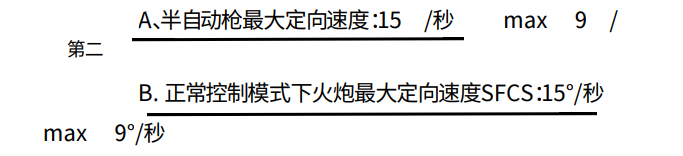

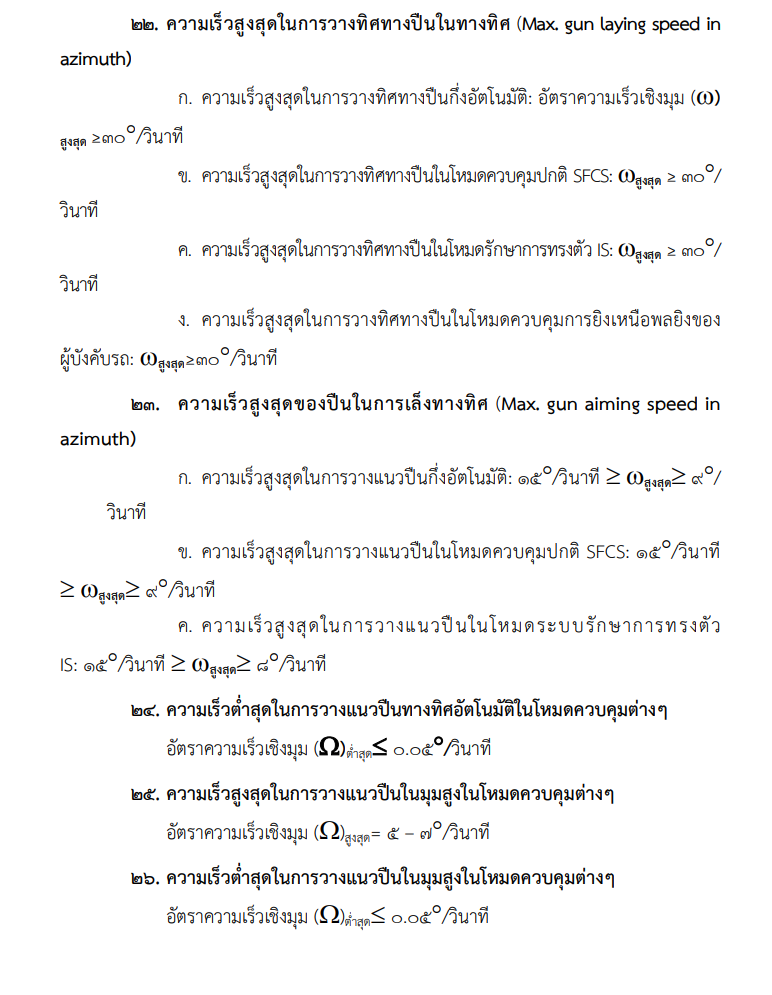

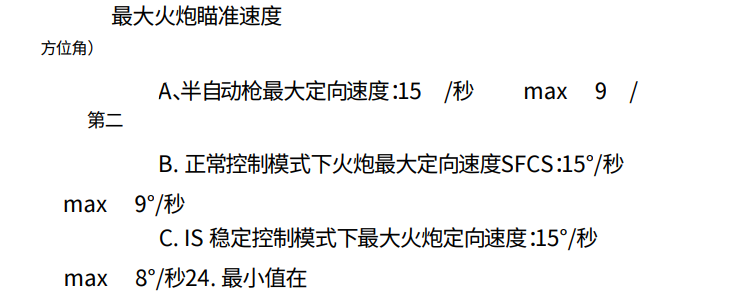

In the operation manual submitted on the forum regarding VT4A1, the turret speed and aiming speed are different from those provided in the game,In the operation manual, VT4A1 has better turret speed and aiming speed,so it needs to be strengthened.
4b1092bfc769778ff7d7460bfd990e40
0a324448df048c650b504662d3801c2a
779d87f5ed3168bfcba0ad144bd9698b
{FFAC8693-B1CA-4f3e-A08F-FACFE717EA61}
b8b6a44607dfb2ab33f01ca78782a0e3
在论坛上提交的关于VT4A1的操作手册中,炮塔转速和瞄准速度与游戏中提供的是不一样的,在操作手册中,VT4A1拥有更好的炮塔转速与瞄准速度,因此他需要被加强。

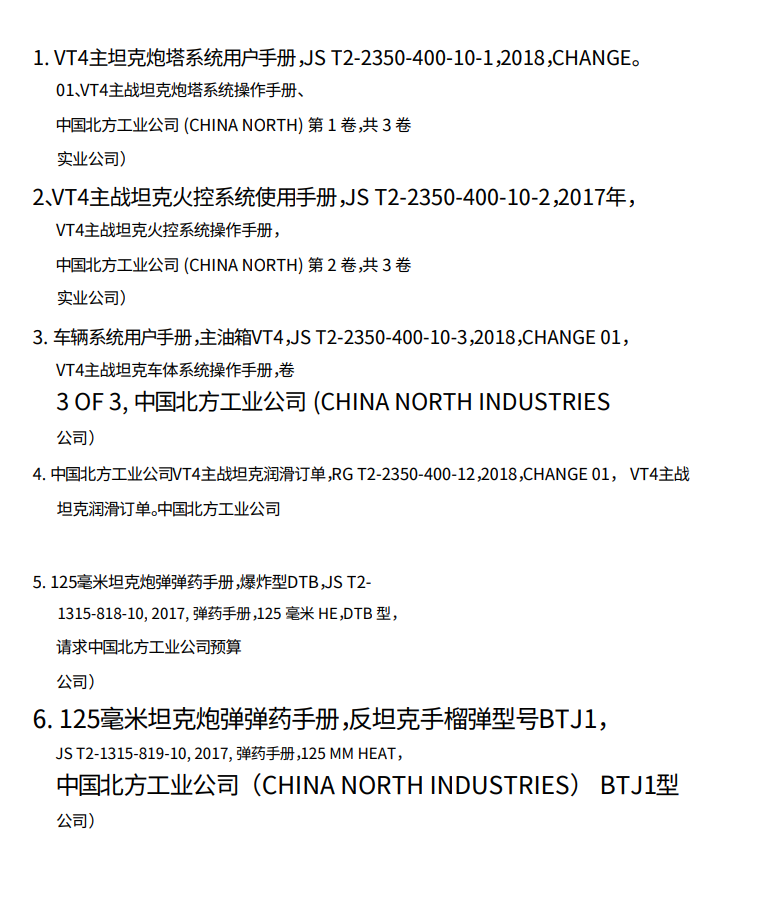

Furthermore, it must be mentioned that there are many errors in the operation manual of Thailand, such as the loading speed of the automatic loading machine, which provides data of 6-8 rounds/minute and 7-9 rounds/minute, respectively. Therefore, the manual of Thailand should have mixed the data of VT4A1 with different configurations,
另外,不得不提一下,泰国的操作手册中有很多错误,例如自动装弹机的装填速度,分别给出了6-8发/分和7-9发/分的数据,因此泰国的手册中应该是混合了不同配置的VT4A1的数据,如果你同意我的说法,请点击链接: VT-4A1 should have better Turret traverse and Verticle targeting // Gaijin.net // Issues

8 Likes

新的issue:Gaijin.net // Issues

5 Likes

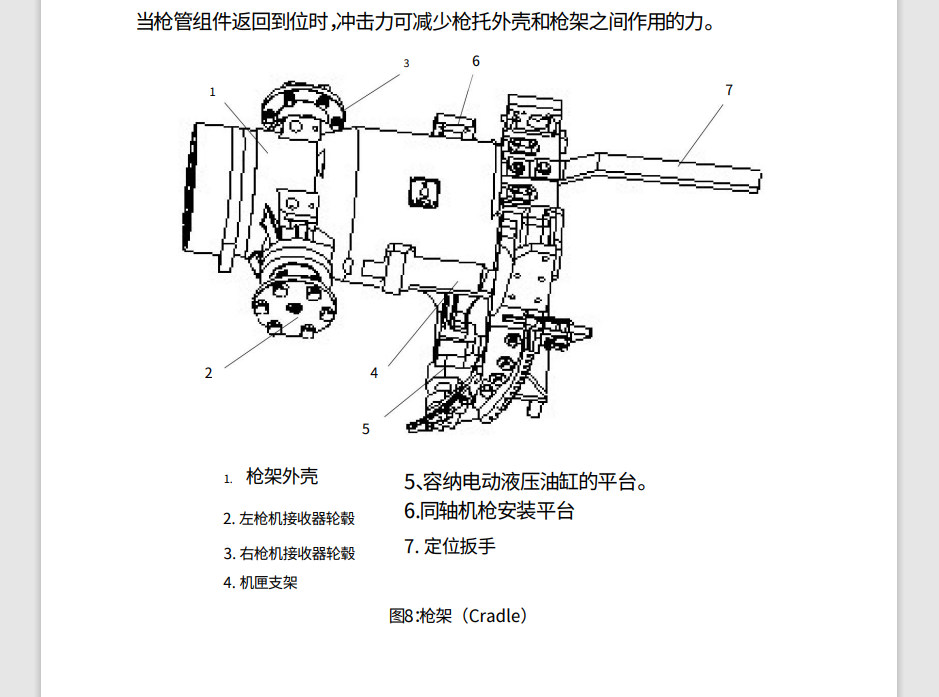

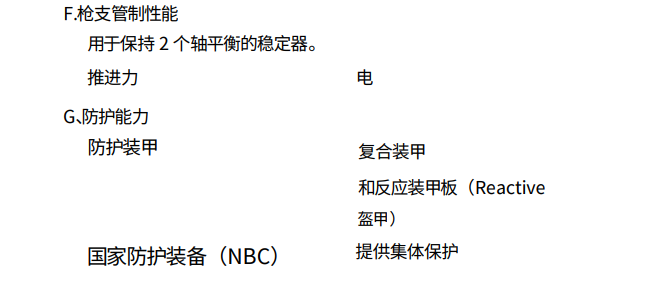

在泰国的VT4手册中,将不同配置版本的VT4放在同一手册中进行说明,以炮控装置为例,在第一章节”概述“中,驱动力为电,但在第二章节“火炮“中,出现了电动液压缸的安装位置,如此可见,在炮控装置驱动力上存在全电和电力-液压两种版本
电液(简中)
纯电(简中)
In the VT4 manual in Thailand, versions of VT4 in different configurations are put in the same manual for explanation, taking the gun control device as an example, in the first chapter “Overview”, the driving force is electric, but in the second chapter “Artillery”, the installation position of the electro-hydraulic cylinder appears, so it can be seen that there are two versions of the driving force of the gun control device, all-electric and electric-hydraulic.

4 Likes

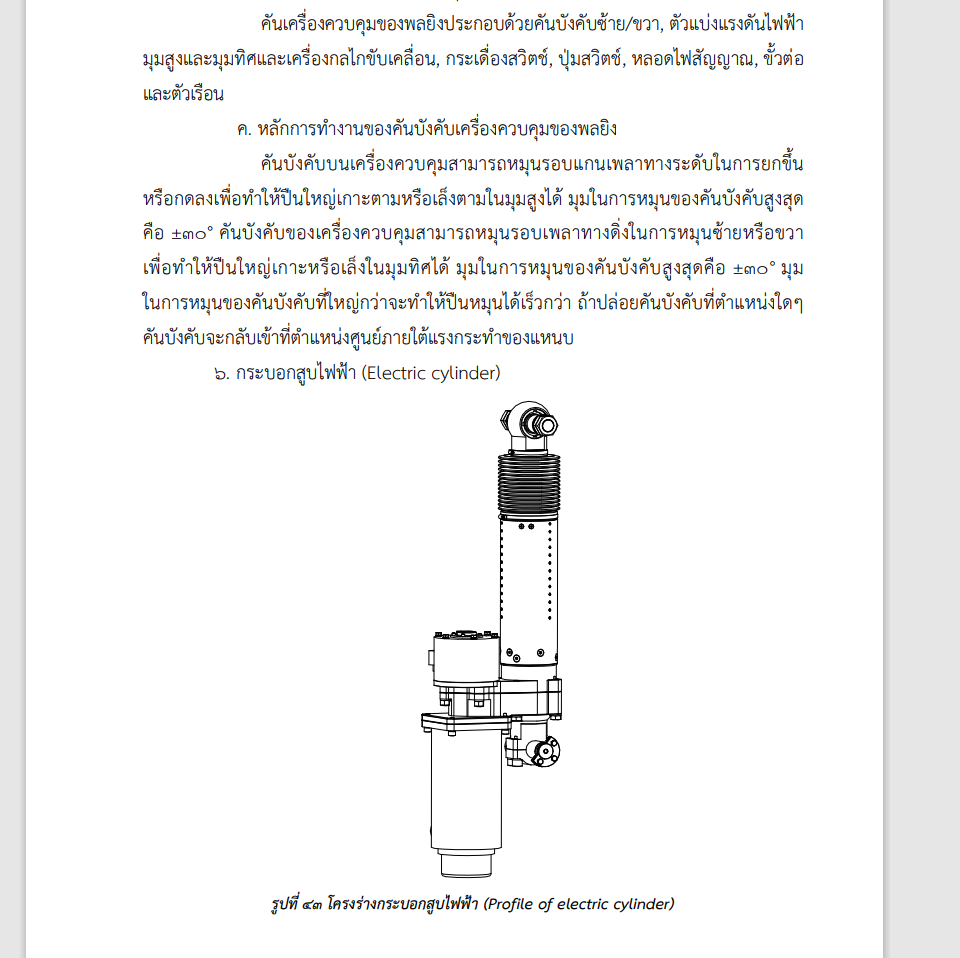

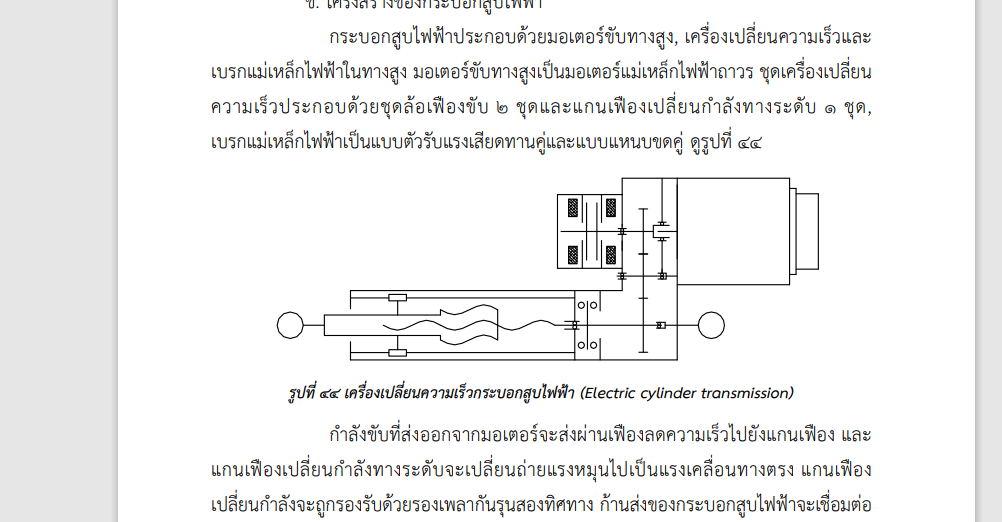

在第三章"火控系统",第118页说明中,电动高低机行程150mm 火炮身管角度变更18° 根据手册描述的电动缸性能,当取负荷数值40(KN)时,电动缸行程150mm,所需时间为1.5s,此时高低机速度为12°/s ,取负荷为5(KN)时,火炮电动缸行程150mm,所需时间为0.83s,此时高低机速度为22.5°/s,由此可见,VT-4确实存在安装全电炮控和电动-液压炮控两种版本,全电炮控高低机为12°/s-22.5°/s,与手册中5-7°每秒差距较大,故采用先进配置的VT-4A1应以全电炮控的数据为准
纯电1


纯电电动缸(简中)

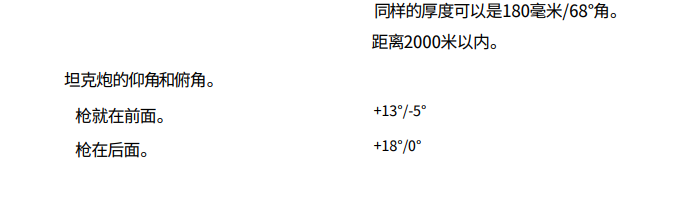

火炮俯仰角
In Chapter 3 “Fire Control System”, page 118, the electric high and low machine stroke 150mm The gun barrel angle is changed by 18° According to the performance of the electric cylinder described in the manual, when the load value is 40 (KN), the electric cylinder stroke is 150mm, and the required time is 1.5s, at this time, the speed of the high and low machine is 12°/s, and when the load is 5 (KN), the stroke of the gun electric cylinder is 150mm, and the required time is 0.83s, and the speed of the high and low machine is 22.5°/s. VT-4 does have two versions of all-electric gun control and electro-hydraulic gun control, the all-electric gun control high and low machine is 12°/s-22.5°/s, which is a large gap with the manual of 5-7° per second, so the VT-4A1 with advanced configuration should be subject to the data of all-electric gun control.

5 Likes


这是gaijin自己认的手册,来源就是泰国的手册

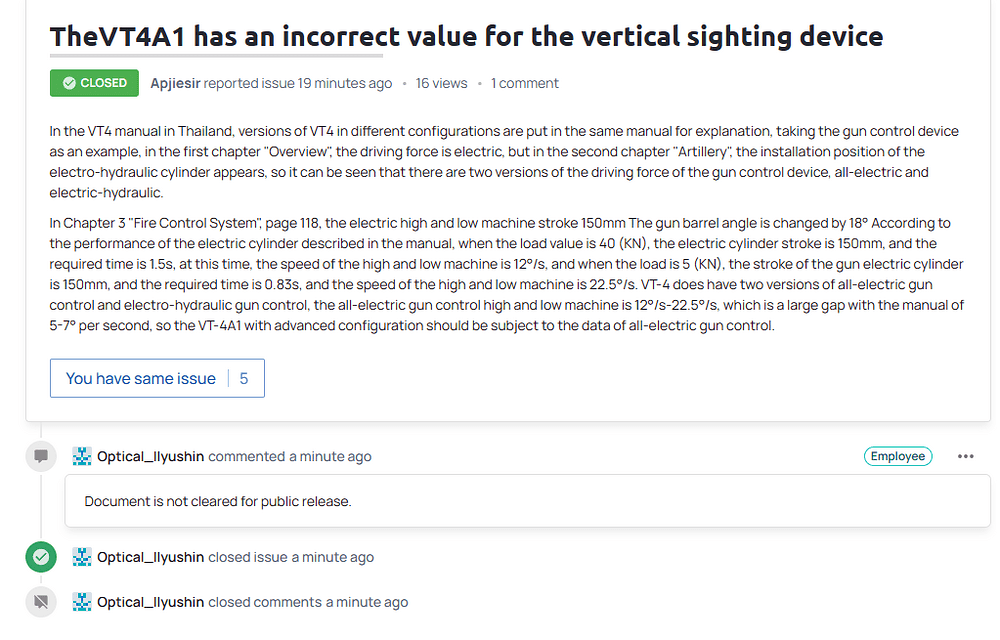

新issue:Gaijin.net // Issues

3 Likes

This is real and reliable information, please do not ignore it
