Type 142 Zobel class fast attack craft - The last German torpedo boat

Type 142 Zobel class fast attack craft - The last German torpedo boat

Would you like to see the Type 142 class added to the game, and in what form?
  • I would like to see them added either as built and or in their modernized state.
  • I would like to see them added as built in particular.
  • I would like to see them added in their modernized state.
  • I think maybe they could be added, but not full interested in seeing them added or not.
  • Unsure if I would want them added to the game.
  • I do not think they should be added to the game.
0 voters


Background

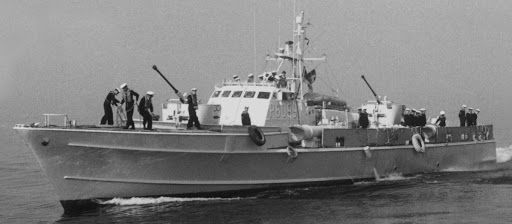

The Zobel class fast attack craft was a class of 10 fast attack craft or otherwise known as torpedo boats, the class themselves are somewhat similar to the Jaguar class fast attack craft as they were a modified version of the former class with the main difference being the superstructure with the vessels including a rear superstructure, new bridge design as well as new mast, and later on they also newer radar and systems. The Zobel’s themselves were the last of the German torpedo boats as the Gepard class of the 1980’s replaced them and in which case the Gepard’s were of a subclass to the Albatros class fast attack craft.

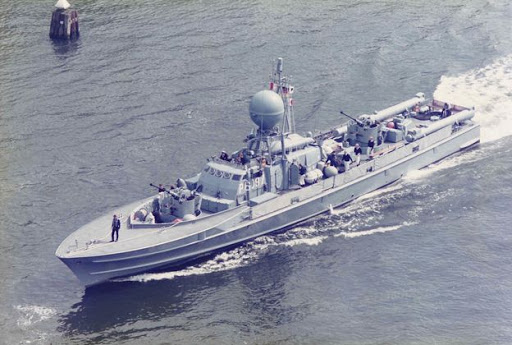

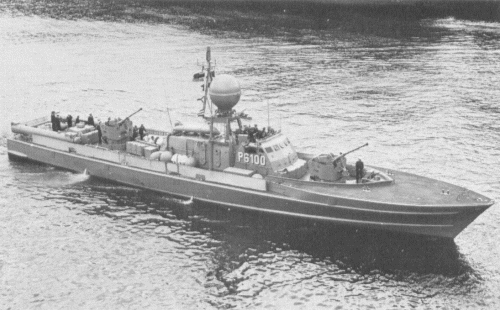

As the Zobels are based of the Jaguar class they were armed with 2 40mm/70 Bofors as the primary gun armament, they also came with 4 533mm however this can be reduced to 2 torpedo tubes, as for other weapons these vessels could carry 4 depth charges as well as up to 23 naval mines which were on mine laying rails however the mine rails could only be installed when the aft 2 torpedo tubes were removed. Though their capabilities were comparable to that of the Jaguars they later on they had their torpedo tube mounts reduced to 2 with the ships using now the Seal torpedo tube which were side launched like the Albatross as well as that they had new radar sets that gave them a more distinct profile, additionally they no longer had the abilities to lay mines due to the changes.


Specifications

Displacement

(As built)

172.5 tons standard

190 tons full loaded

(1970’s Modernization)

213 tons standard

219 tons fully loaded

Length 42.6 m (140 ft)

Beam 7.1 m (23 ft)

Draft 2.3 m (7.5 ft)

Propulsion

4 × Mercedes-Benz MB 518 B diesel engines, 3000PS each

4 × propeller shafts, driving three-bladed propellers of 1.15m diameter

Speed

(As built)

42 knots (78 km/h; 48 mph)

(1970’s Modernization)

38.5 knots (71 km/h; 44 mph)

Complement 39

Sensors and processing systems

(As built)

Decca 1226 radar

(1970’s Modernization)

Kelvin Hughes 14/9 radar

2x M20 radar

Armament

Primary armament

2 × Bofors 40mm gun

Torpedo tubes

(As built)

4 to 2 × 533mm torpedo tubes (reduced to 2 if mines are in use)

(1970’s Modernization)

2 x 533mm torpedo tubes (uses different torpedo tubes)

Other weaponry

Up to 23 Naval mines *(Mines cannot be carried unless rear torpedo tubes are removed, mines cannot be used in the 1970’s modernization)

4 x Depth charges


Sources

Spoiler

Zobel-class fast attack craft - Wikipedia

Zobel-Klasse – Wikipedia

Type 142 Zobel class Fast Attack Craft German Navy

ZOBEL fast attack craft (torpedo) (1961 - 1963)

ZOBEL fast attack craft (torpedo) (1961 - 1963) (navypedia.org)

Image Sources

Spoiler

Förderverein Museums-Schnellboot e.V.

kranich (ship-model-today.de)

Type 142 Zobel class Fast Attack Craft German Navy

ZOBEL fast attack craft (torpedo) (1961 - 1963) (navypedia.org)

Zobel-class fast attack craft - Wikipedia

1 Like

Always up for more coastal stuff. +1

any idea if they have the same gun mounts as the Jaguar, or the same (worse) ones as Pfeil/Hugin?

A +1 from me, more Coastal stuff is always appreciated
