Tor-M2DT — Arctic Air Defense System

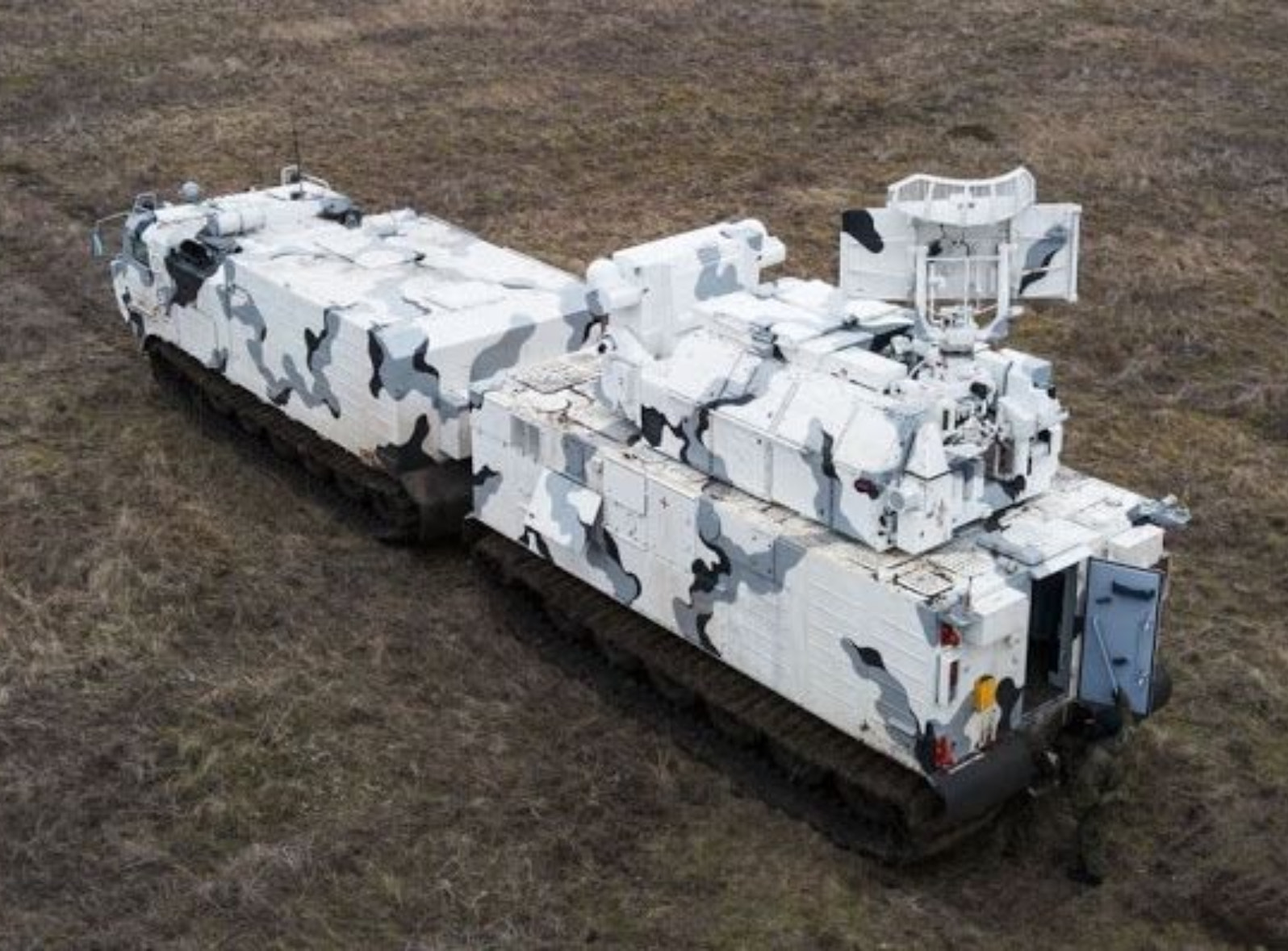

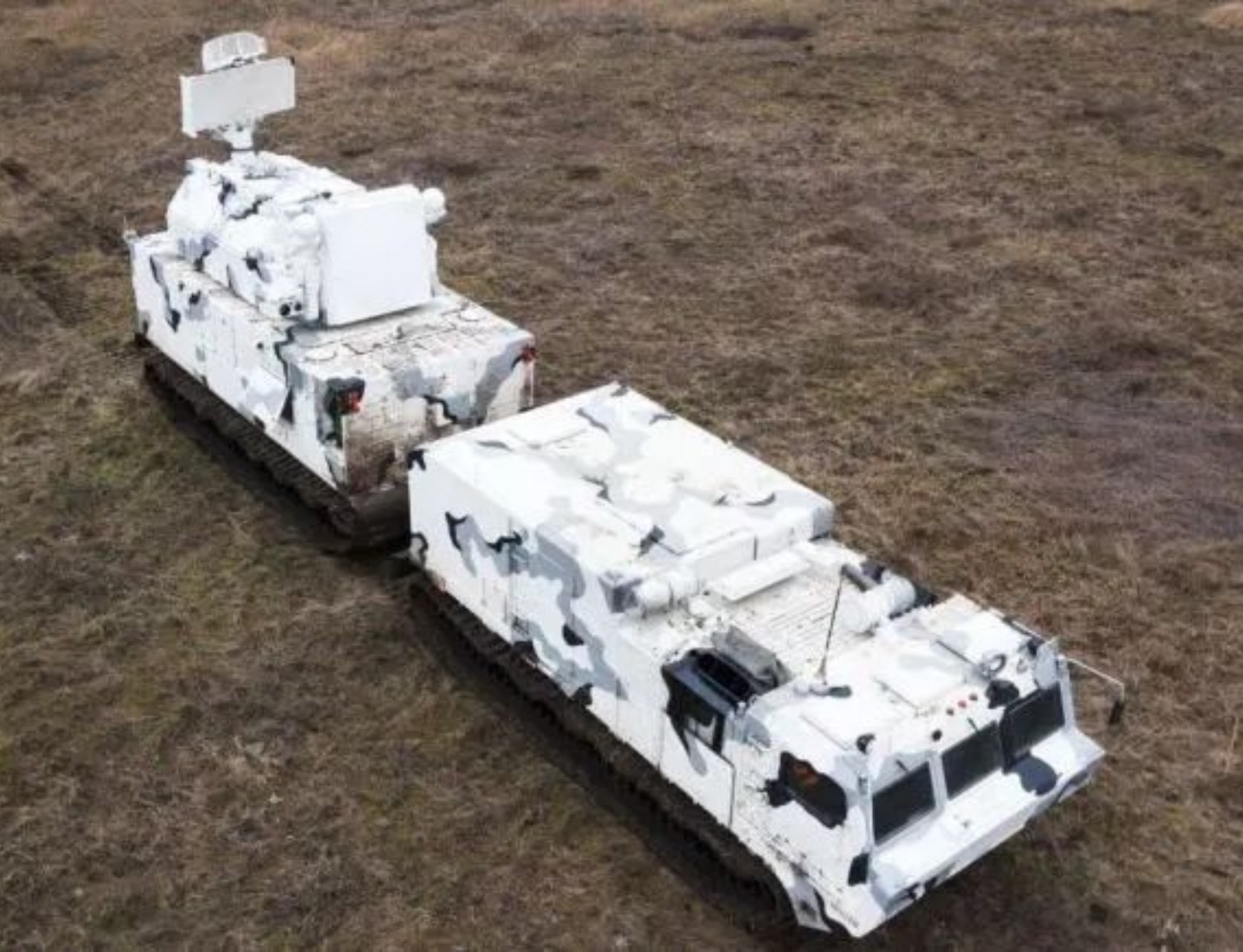

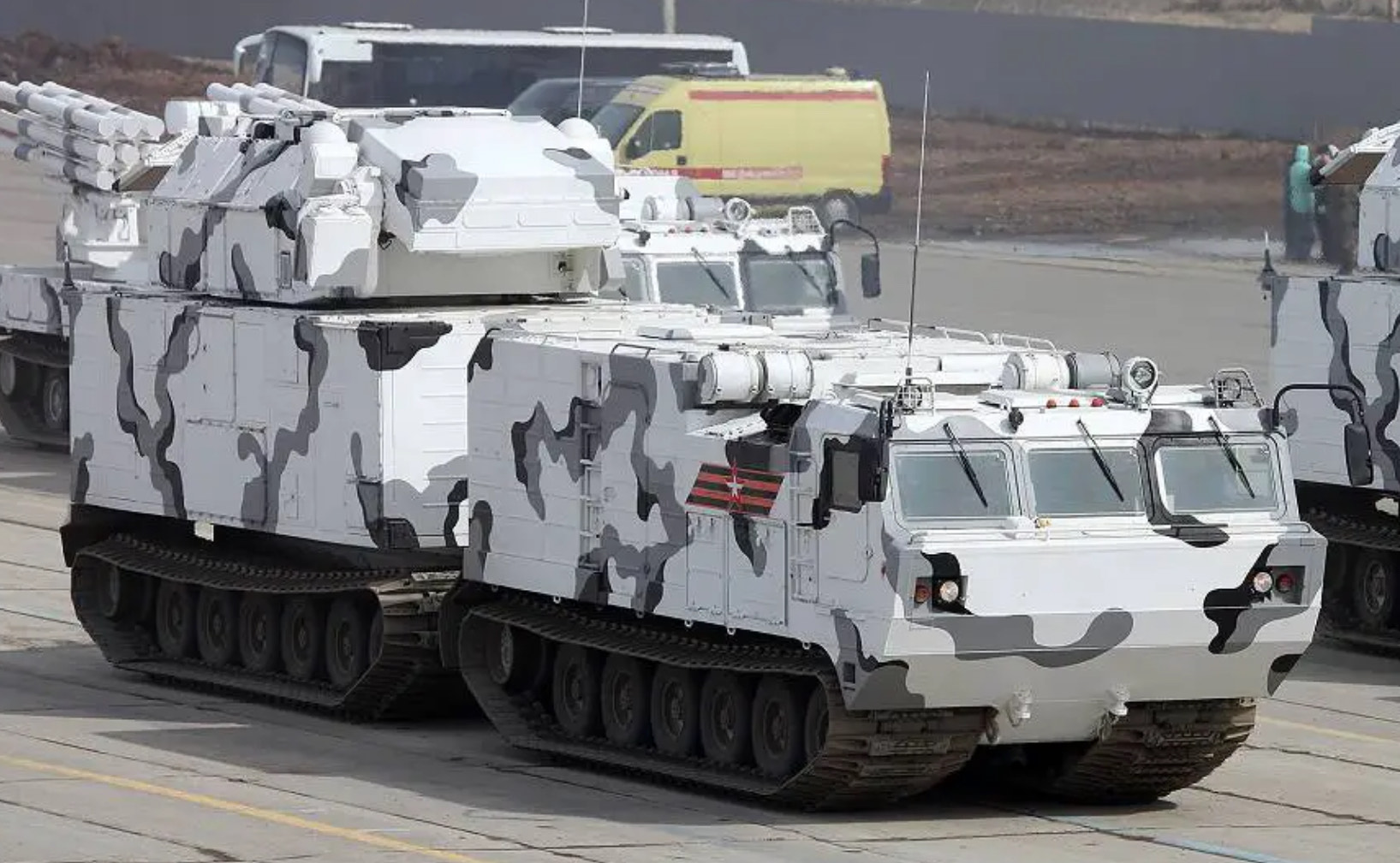

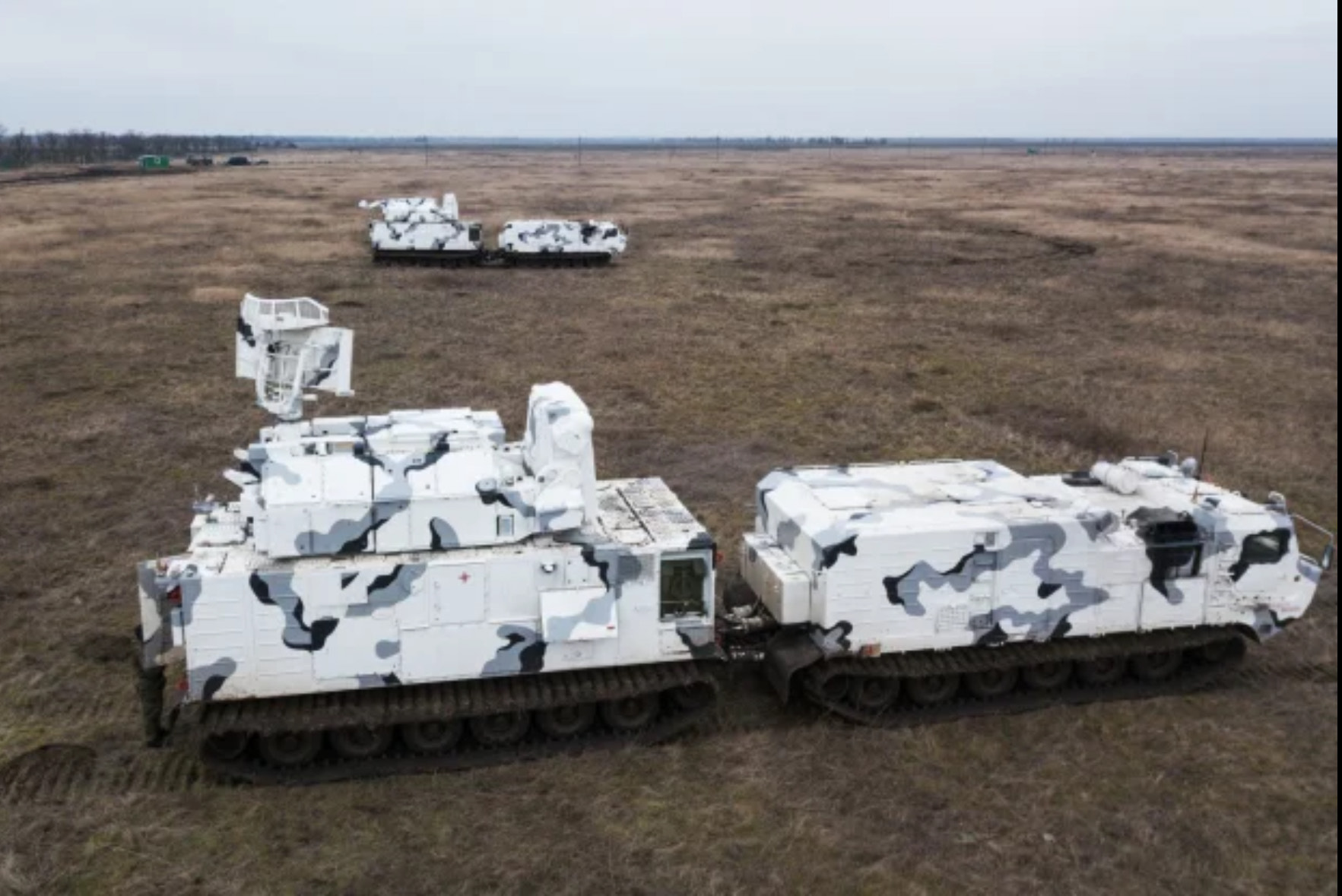

The Tor-M2DT is Russia’s specialized Arctic variant of the battle-proven Tor family of short-range air defense systems. Developed alongside Pantsir-SA to provide robust air protection for military bases, radar stations, and critical supply routes in the High North, the Tor-M2DT combines the advanced Tor-M2 combat module with the DT-30PM Vityaz, a powerful two-unit tracked chassis designed for deep snow, drifting ice, and roadless tundra. Unlike conventional Tor units, this Arctic version can deploy to isolated regions far beyond road networks, keeping remote outposts secure against modern aerial threats such as cruise missiles, guided bombs, and drone swarms. Publicly unveiled during the 2017 Victory Day Parade in Moscow, the Tor-M2DT has since become a cornerstone of Russia’s layered Arctic air defense strategy.


History

Spoiler

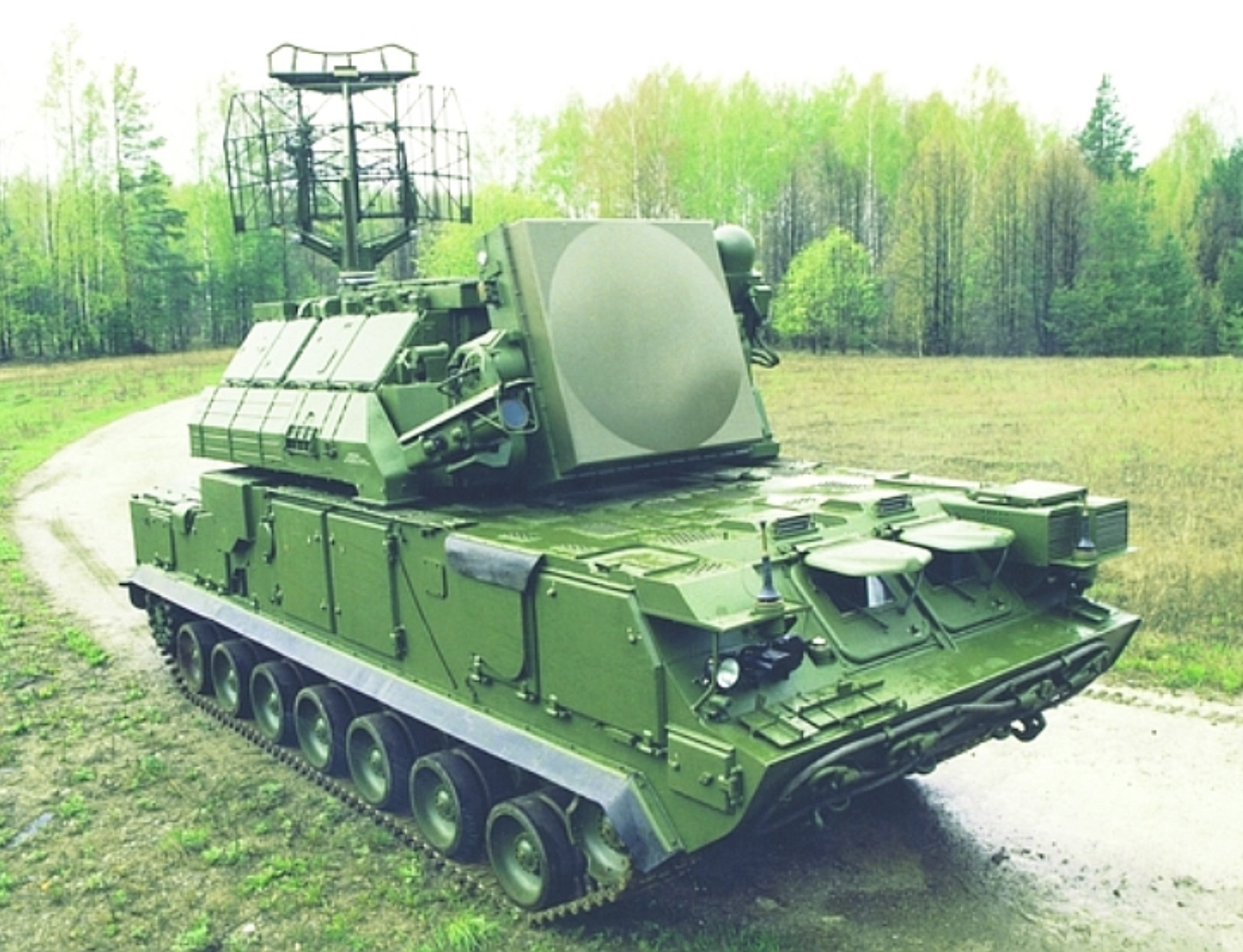

The Tor system emerged during the final decades of the Soviet Union as a dedicated short-range air defense solution for frontline armored divisions, filling a critical gap between portable MANPADS and larger strategic SAM systems. The original 9K330 Tor (NATO: SA-15 Gauntlet) entered service in 1986, featuring rapid reaction times and all-weather automation, which allowed it to shoot down low-flying targets before they could threaten armored columns. Over time, the system evolved into the Tor-M1 and, later, the Tor-M2 series, gaining enhanced radars, faster data processing, and the ability to track and intercept multiple threats simultaneously, capabilities crucial for countering modern saturation attacks by UAVs and precision munitions.

With Russia’s strategic focus shifting to the Arctic in the 2010s, driven by expanding energy infrastructure, new shipping routes, and heightened military presence, the need arose for an air defense system that could operate reliably on frozen seas, drifting ice, and vast snow plains. Engineers responded by integrating the Tor-M2’s advanced weapon station with the DT-30PM “Vityaz”, a robust, low-ground-pressure tracked carrier designed for heavy loads in extreme cold. This marriage of cutting-edge firepower and proven Arctic mobility resulted in the Tor-M2DT, which entered service with specialized Arctic brigades of the Northern Fleet in 2018. Since then, it has been deployed to defend remote radar sites, logistics hubs, and new Arctic bases, often alongside other cold-weather assets like the Pantsir-SA, forming a cohesive multi-layered air defense network.


Weapon Station

Spoiler

At the heart of the Tor-M2DT is the same highly automated combat module used on standard Tor-M2 units, featuring vertically launched missiles, integrated surveillance and tracking radars, and advanced fire control computers. The system is capable of carrying either 8 larger 9M331 missiles or 16 of the more modern and compact 9M338 missiles, which offer greater agility and slightly improved range. These command-guided missiles can intercept fast-moving fighter jets, helicopters, cruise missiles, and the 9M338 are especially effective against small drones and loitering munitions that pose a challenge to larger, long-range air defense systems and even the larger Tor missiles.

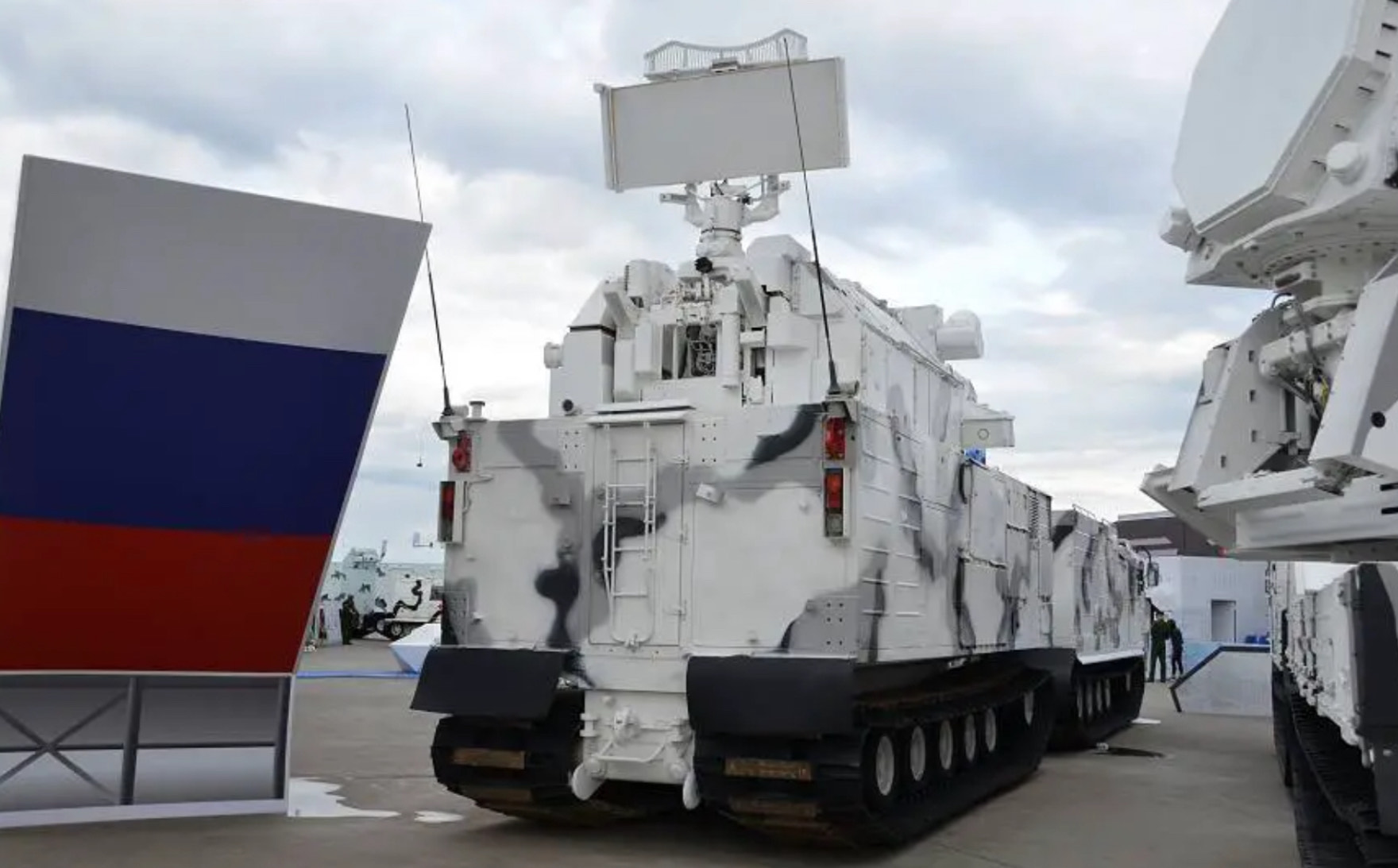

The radar suite includes a powerful pulse-Doppler surveillance radar providing uninterrupted 360-degree coverage to detect incoming threats at distances up to 30–32 km. Once a target is detected, a dedicated fire-control radar and an optical sight precisely track it, enabling the Tor-M2DT to engage multiple threats simultaneously even in adverse weather or electronic warfare conditions. This self-sufficiency makes the Tor-M2DT a true point-defense asset that can react and fire autonomously, providing immediate cover for static installations or mobile units traversing the Arctic wilderness.


Vehicle Platform: DT-30PM “Vityaz”

Spoiler

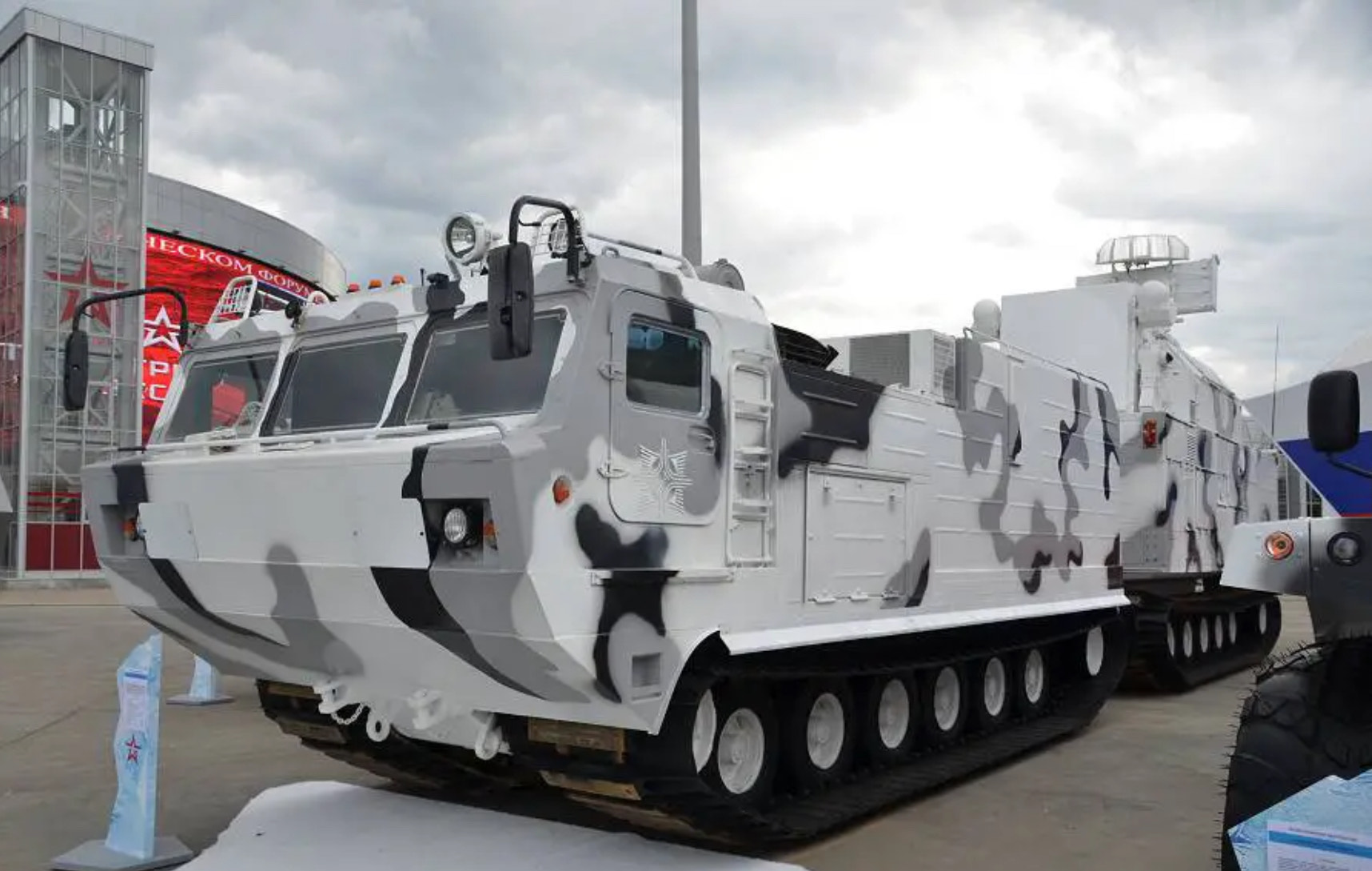

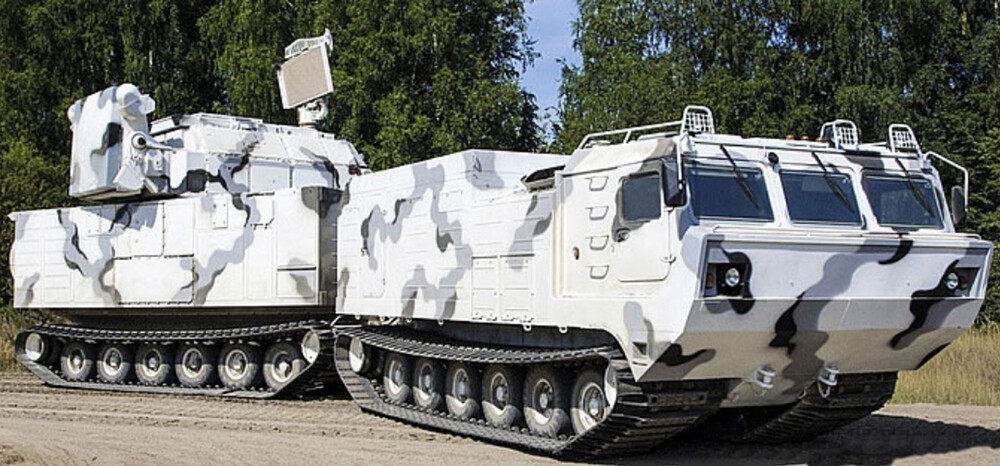

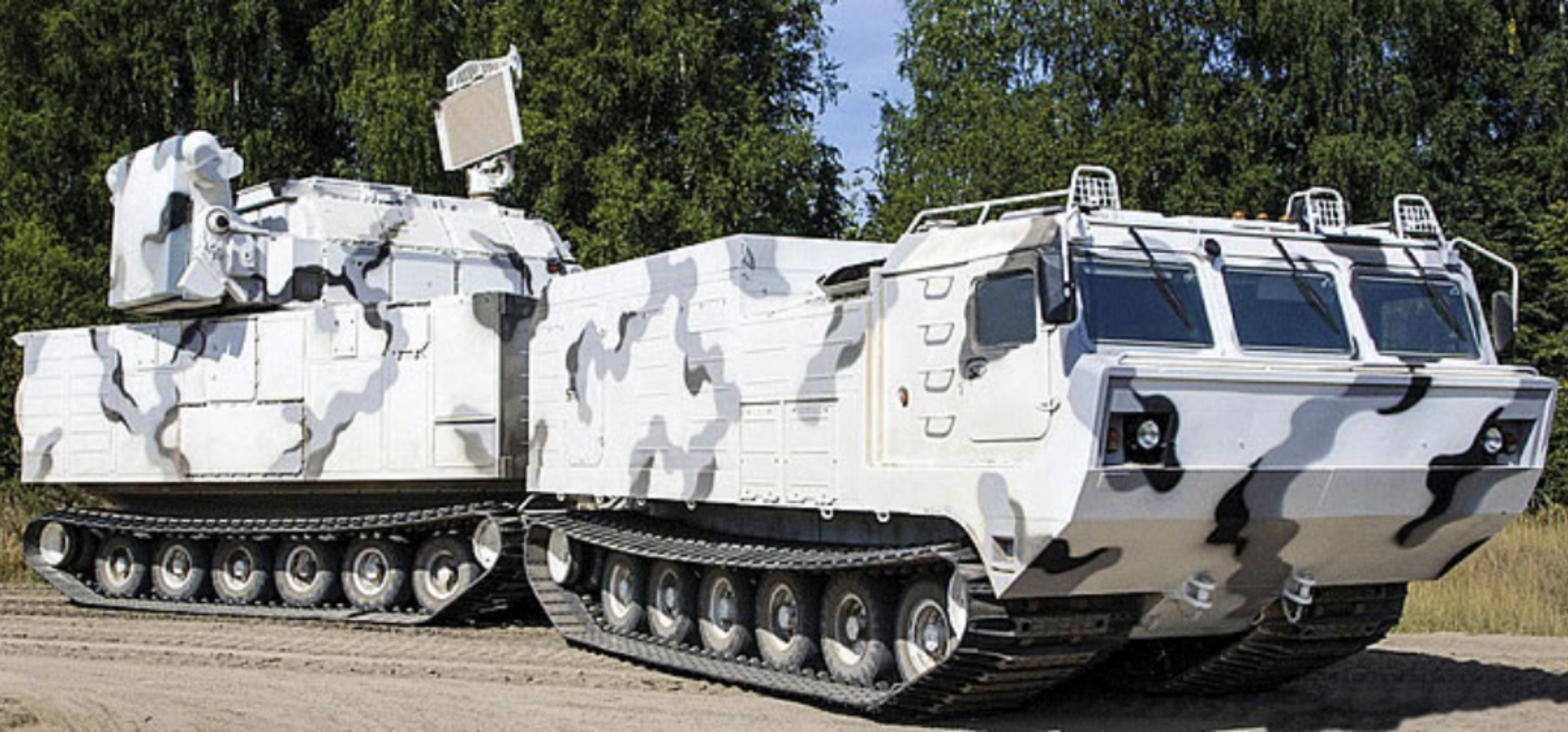

The DT-30PM “Vityaz” provides the Tor-M2DT with the extreme mobility necessary to operate in some of the world’s harshest environments. Originally designed for oil and gas expeditions and military supply runs across Siberian terrain, this two-unit articulated tractor distributes weight evenly across two wide-tracked sections connected by a steering joint. This configuration minimizes ground pressure, allowing the vehicle to float over deep snow, cross partially frozen rivers, and traverse soft tundra that would bog down conventional vehicles.

The front unit houses a powerful YaMZ-847.10 12-cylinder diesel engine producing around 800 horsepower, along with a fully enclosed and heated crew cabin that keeps the operators comfortable at temperatures as low as –50°C. The rear unit mounts the entire Tor-M2 combat module and its radar mast. Capable of swimming at low speeds and tackling slopes, deep trenches, and snowdrifts, the DT-30PM ensures the Tor-M2DT can reposition quickly or accompany mobile units without being hindered by the Arctic’s challenging terrain. Its integrated climate control, reinforced hull, and modular configuration make it a trusted platform for various specialized military and civilian roles in the polar regions.


Operational Role

Spoiler

The Tor-M2DT plays a vital role in Russia’s layered Arctic air defense network, providing low- and medium-altitude protection for remote bases, weather stations, radar outposts, and new military infrastructure stretching across the northern coastline and archipelagos. Thanks to its DT-30PM carrier, the system can operate year-round in places inaccessible to most other air defense vehicles, moving with Arctic motor rifle brigades and logistics convoys that must remain secure against sudden aerial incursions.

Deployed alongside complementary systems like the Pantsir-SA and long-range S-400 batteries positioned at major airfields, the Tor-M2DT serves as the immediate, last line of defense against low-flying fighters, attack helicopters, cruise missiles, and swarms of drones. Its autonomous radar and targeting capabilities allow it to function independently, even when disconnected from higher-echelon command posts, ensuring that isolated Arctic sites remain protected at all times. This makes the Tor-M2DT an indispensable part of Russia’s strategy to secure its economic and military interests in the rapidly evolving Arctic theatre.


Tor-M2DT — Full Specifications

Spoiler

General

Feature Detail
Type Short-range self-propelled surface-to-air missile system (Arctic variant)
Primary Role Mobile air defense for Arctic bases, convoys, and isolated outposts
Developer Almaz-Antey Corporation
Operator Russian Northern Fleet, Arctic motor rifle brigades
Entered Service 2017–2018
Combat Weight Approximately 55 tons

Armament

| Main Weapon | Up to 16 × 9M338 missiles or 8 × 9M331 missiles in vertical launch cells |
| Engagement Range | Approximately 1 km minimum to up to 15–16 km |
| Engagement Altitude | Near ground level to about 10 km |
| Missile Speed | Around Mach 2.5–2.8 |
| Warhead | High-explosive fragmentation |
| Guidance | Fully autonomous radar command guidance |


Sensors and Fire Control

| Search Radar | Pulse-Doppler surveillance radar with 360° azimuth coverage |
| Detection Range | Up to 30–32 km |
| Tracking Radar | Dedicated tracking/guidance radar integrated with optical sight |
| Control System | Fully automatic threat detection, tracking, and multi-target engagement |


Chassis: DT-30PM “Vityaz”

| Chassis Type | Two-unit articulated tracked vehicle designed for Arctic operations |
| Engine | YaMZ-847.10 diesel, ~800 hp |
| Max Road Speed | About 40 km/h |
| Typical Off-road Speed | Roughly 20 km/h depending on terrain |
| Operational Range | Approximately 700 km |
| Mobility | Amphibious capability; excels on deep snow, ice, and swampy ground |
| Arctic Adaptations | Insulated, heated cabin with winterized equipment and robust cold-start systems |


Crew

| Crew | 4 (driver, commander, first operator, second operator) |
| DT-30PM “Vityaz” Cab Space | 4–7 |
| Cabin | Fully insulated and climate-controlled for Arctic use |


Video


Sources

Spoiler

DT-30PM

TOR-M2DT

Первая партия арктических "Тор-М2ДТ" поступила в Вооруженные силы РФ - Российская газета

Tor-M2DT | Weaponsystems.net

6 Likes

I like the idea of being able to choose between the 8x larger missiles or 16x smaller ones. +1

1 Like

+1

+1 why not

I think we have part of this model already in game as a prop! Hope its somehow better then a normal tor and does not become a tech tree road stop.
+1 hopefully for more arctic or even an Antarctic map 😉

3 Likes

+1

That’s exactly why I suggested this. You have the prop, you have the map with the missing Half-Life ship. Why not add this?

your thinking 5 steps ahead of even Gaijin!

reminds me of the pantsir SA, i really like harsh environment vehicle, they are so unique
