no information on the exact achieved range - difficult to get any idea of it.
Credits to Yamahagi for image
1 Like
Chinese documents?
they also put the 120d-3 at 185 km
What launch conditions?
Nvm I see it now, M1.2 at 10km
I wonder how far the Raptor shot was since that could easily be mach 2 at 18km
yeah essentially

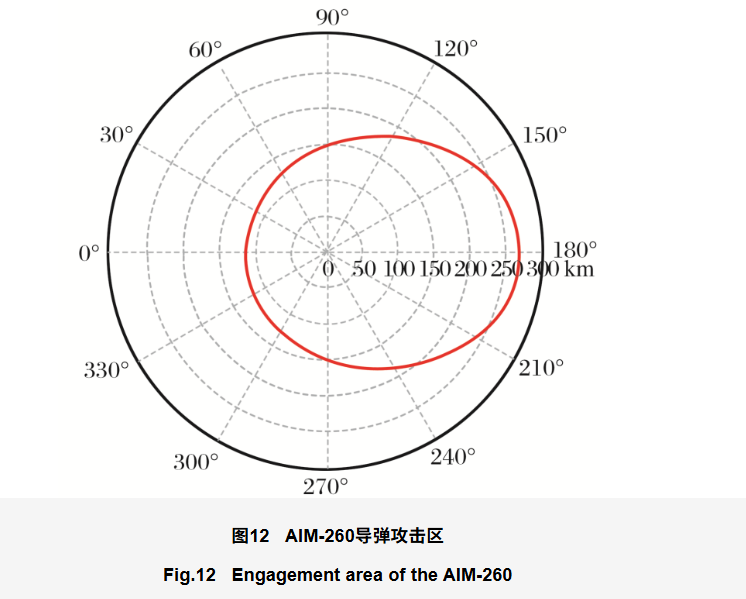

Launch Parameters for AIM-260 Simulation
- Launch Mach number: 1.2
- Launch altitude: 10 km
- Target aspect:
- Head-on (迎头) max effective range 265.2 km
- Tail-chase (追尾) max effective range 111.1 km
1 Like
btw this makes aim-260 better than the 500 kg r-37m. impressive
do they assumed M1.2 for the aircraft being shot at in head on and tail chase?
they don’t actually give parameters for the target vehicle unfortunately
1 Like
aim-260 is quite impressive considering it’s still essentially in the same form factor as aim-120. really impressed at how much range they’ve managed to squeeze out of it

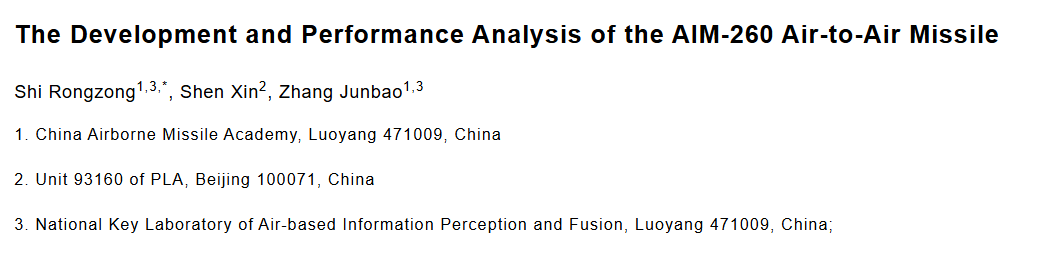

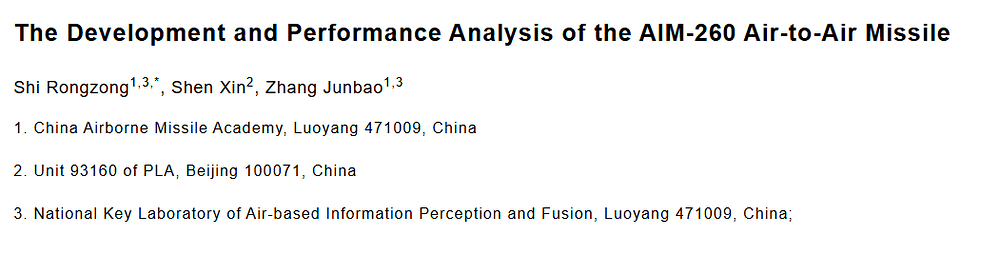

here is the link to the study itself
https://www.aeroweaponry.avic.com/CN/10.12132/ISSN.1673-5048.2025.0057
If this does hold up, it’s looking like the chinese will have the very best long range missile, with the us close behind, then the russians
Yeah they’ve been doing good work, I hope it’s maneuverability is equal or better to AMRAAM
1 Like

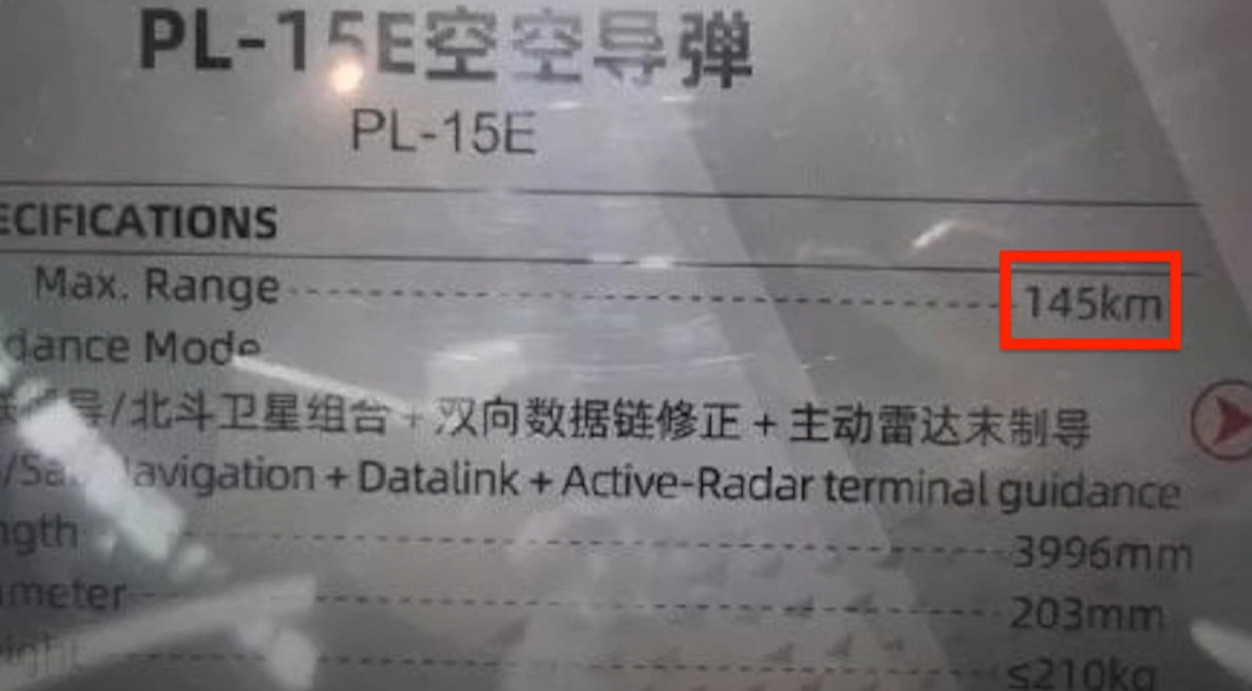

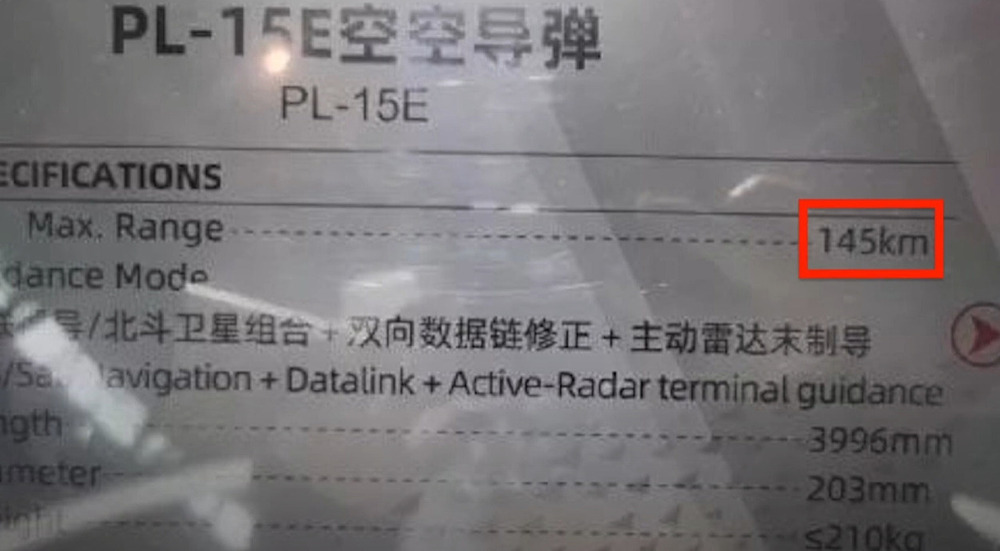

pl-15 is like 30-40% heavier than 120D right?
pl-15 is 210 kg.

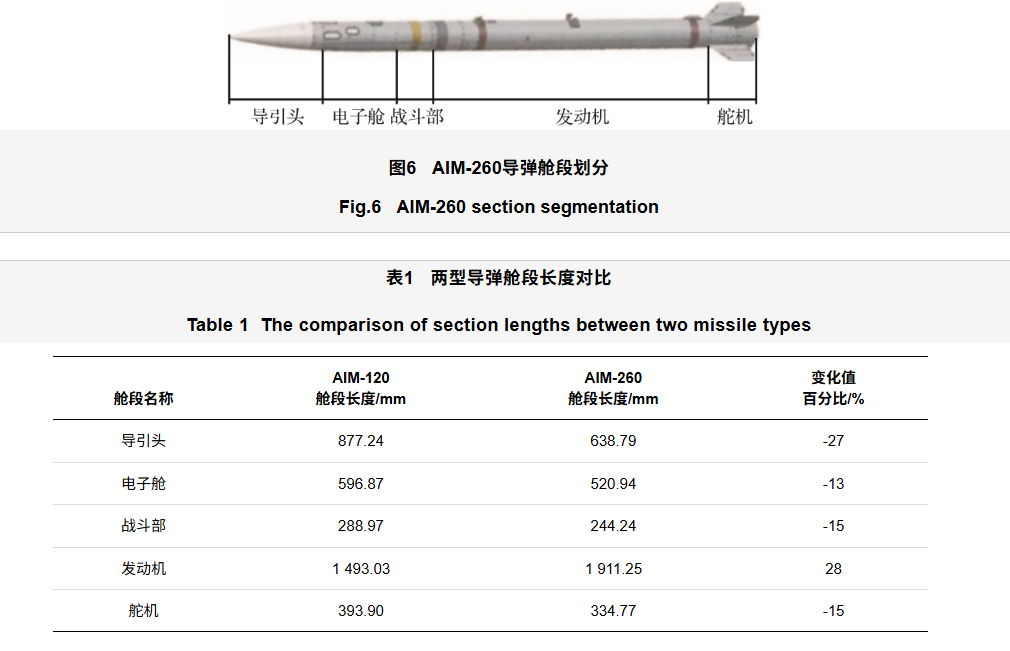

The paper lists the AIM-260’s basic physical specs as length 3.65 m, diameter 178 mm, and mass 163.5 kg
probably around 350-375lb
looks like AVIC agrees
1 Like
yeah
so for its weight it’s definitely the best missile
1 Like
makes me wonder if they will make an enlarged variant for carriage on platforms that will probably have larger bays like F-47 and maybe some big CCA
2 Likes
10km and Ma1.2 for both launcher and target.
1 Like
It is not essentially, it is identical form factor but takes up less space when you consider the wings.
This Chinese paper on the AIM-260 sells it short a little bit, doesn’t account for the massive improvements in propellant made recently.
