T-72KAE: Piercing Aybalta

[Would you like to see this in-game?]
  • Yes
  • No

0 voters

1556486849__.png.f9a0f93ca026e98fe689b74 T-72KAE: Piercing Aybalta

Dgimw39WAAEyYKx?format=jpg&name=large

The T-72KAE.

  • Description:
    • Role: Main Battle Tank
    • Origin: Kazakhstan/Turkey
    • Manufacturer: Kazakhstan ASELSAN Engineering (KAE)/Aselsan
    • Summary:
      • The T-72KAE is a derivative of the Soviet T-72A main battle tank, modernized by the Kazakh Defense Company, and Aselan Defense of Turkey. The project began in the early 2010’s to modernize the Kazakh Army’s aging T-72A/B’s, whether in service or in storage, to meet modern military requirements. Involved are three parties, Kazakhstan Engineering, ASELSAN, and the Presidency of the Defense Industry. These three entities formed the Kazakhstan ASELSAN Engineering, or KAE company with a respective share of 50%, 49%, and 1%. The vehicle has gone through multiple minor modernizations each with the same mission. Two main programs were developed from the company, the ‘Shygys’ and KAE which is essentially the same tank with minor differences. The T-72KAE developed by KAE focuses on several enhancements including new fire control system (FCS), remote weapon station (RWS), powerpack, armor panels, countermeasures, and communications equipment. The new FCS, developed by Aselsan, utilizes a central interface unit which connects to multiple electronic control units, laser rangefinder, and sensors which provide information to the Gunner through there 3rd-generation optical sight as well as the Commander through the SARP-NSV remote weapon station which also acts as an independent sight equipped with its own laser rangefinder. Also connected to the central interface unit is a laser warning receiver to alert the crew of incoming laser guided munitions or targeting equipment and 8x 81mm smoke grenade launchers. The original powerpack is swapped to a locally built V-84-1 turbocharged diesel engine produced by Argun which produces 840hp to propel the vehicle as well as power electronic equipment. The T-72KAE is equipped with ERA paneling that covers the turret front and top as well as the UFP of the vehicle. It can be optionally mounted on the hull sides or have cage armor installed instead. Other upgrades include new VHF radios developed by ASELSAN for secure, encrypted communications between command and frontline elements. The T-72KAE has made multiple debuts such as KADEX-2018, and KADEX-2020. In 2018, testing occurred during Kazakhstan’s volatile weather with highly successful results. Currently it is unknown what the status of this vehicle is and whether upgrades have been completed and accepted into service or have been delayed.
    • Special thanks to @Dewastorfor assistance in this suggestion!
  • Armament:
    • Primary: 125mm 2A46M Smoothbore Gun
      • Cartridge: 125mm
        • Ammunition:
          • APFSDS-T
          • HEAT-FS
          • HE-FRAG
        • Feed System:
          • Autoloader-22rds
    • Coaxial: PKT 7.62mm Machine Gun
    • Tertiary: SARP-NSV RWS 12.7mm Heavy Machine Gun
  • Maneuverability:
    • Engine: 840hp Argun V-84-1 Turbocharged Diesel Engine
    • Transmission: Synchromesh Manual, 7-Forward , 1-Reverse
    • Chassis: Torsion Bar
    • Max Speed: 60km/h
  • Dimensions:
    • Length: 9.53m (w/ gun forward)
    • Width: 6.86m
    • Height: 2.3m
    • Weight: t
  • Crew (3x):
    • Commander
    • Gunner
    • Driver
  • Accessories:
    • 8x 81mm Smoke Grenade Launchers
    • ESS
    • Laser Rangefinder
    • Laser Warning System (LWS)
    • Entrenching Blade
    • Armor:
      • Explosive Reactive Armor (ERA)
        • Is located on turret and UFP with the option to mount on hull sides,
      • Cage Armor
        • Can be mounted around just the engine compartment or length of the vehicle.
    • NVD:
      • Driver: Night Vision Periscope
      • Gunner: Thermal Camera
      • Commander: Aselsan SARV-NSV RWS
  • In-game:
    • Estimated Battle Rating: 10.3
  • Sources:

Imagery

Spoiler

DX7YbbuXUAAo7jq?format=jpg&name=large

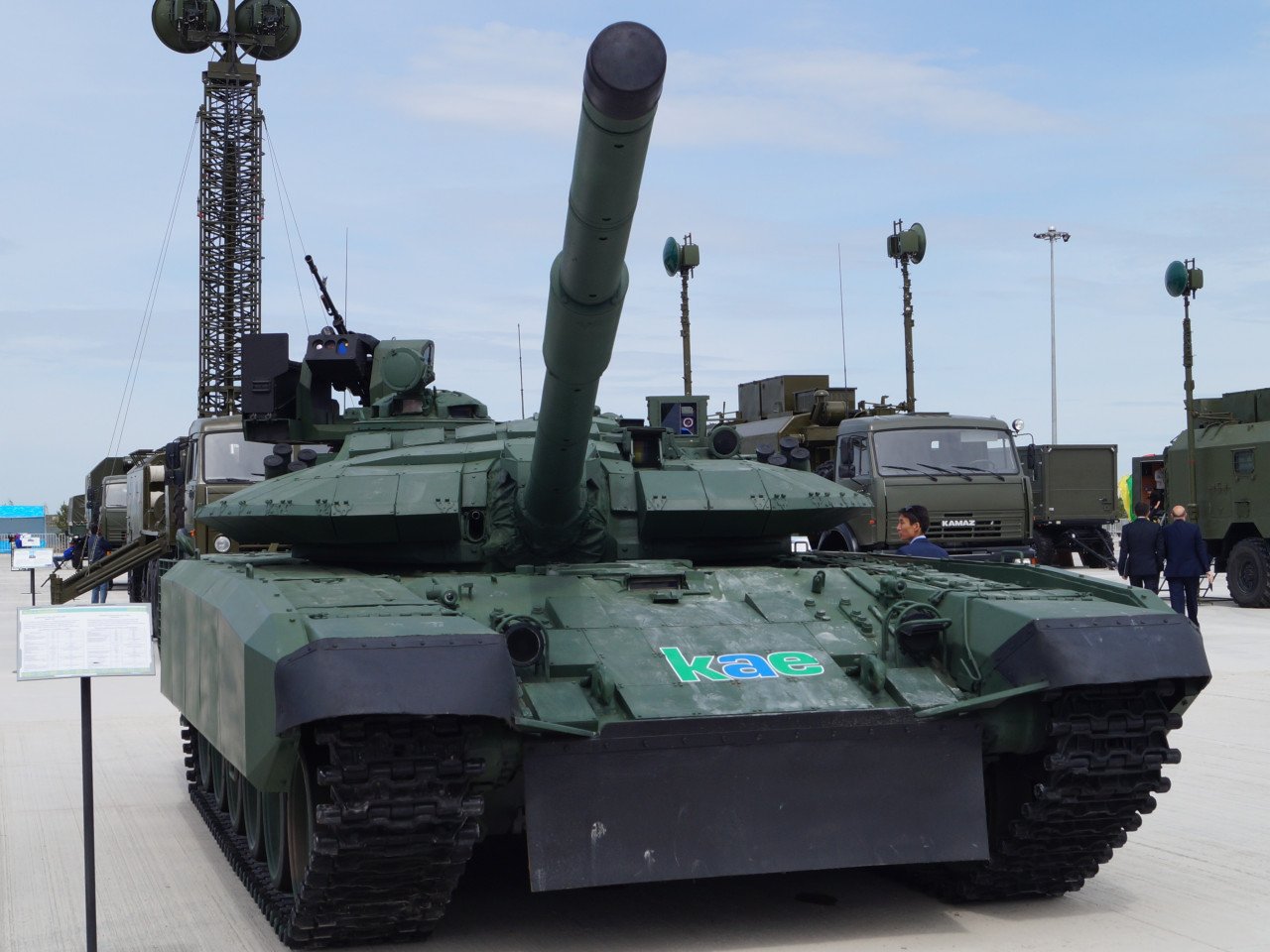

Earlier model of the ‘Shygys’.

u5t7j6j7bku61.jpg?auto=webp&s=b6b0a78b5f

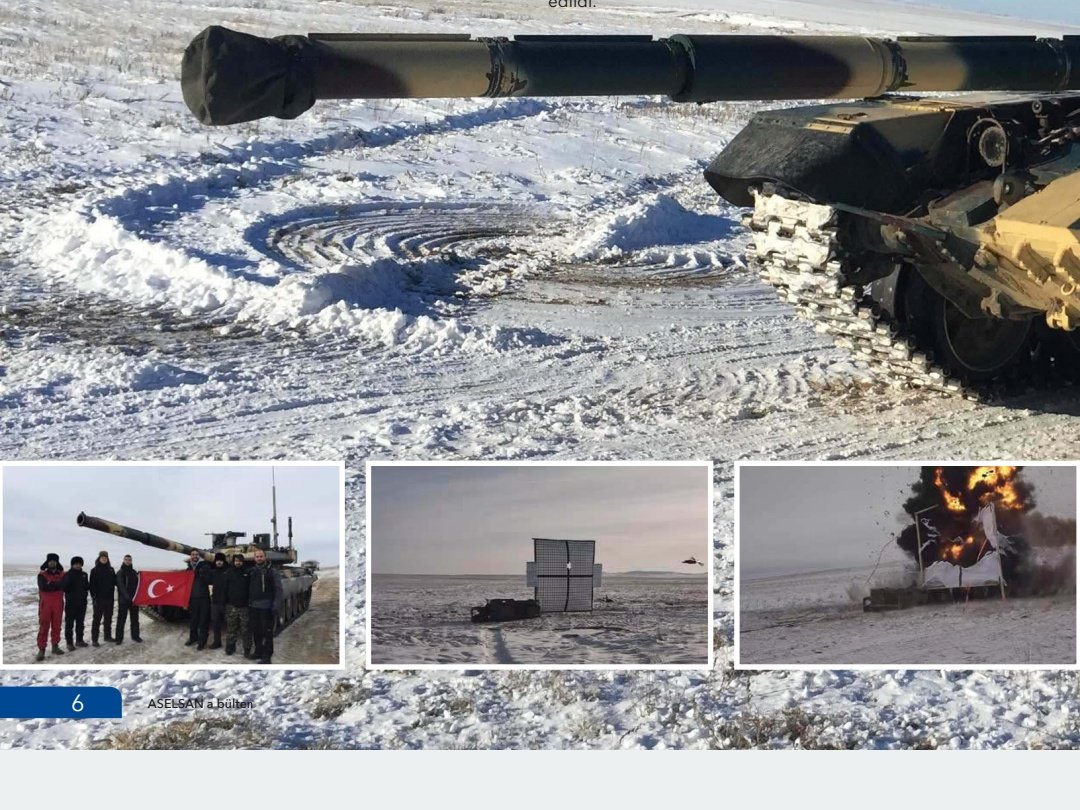

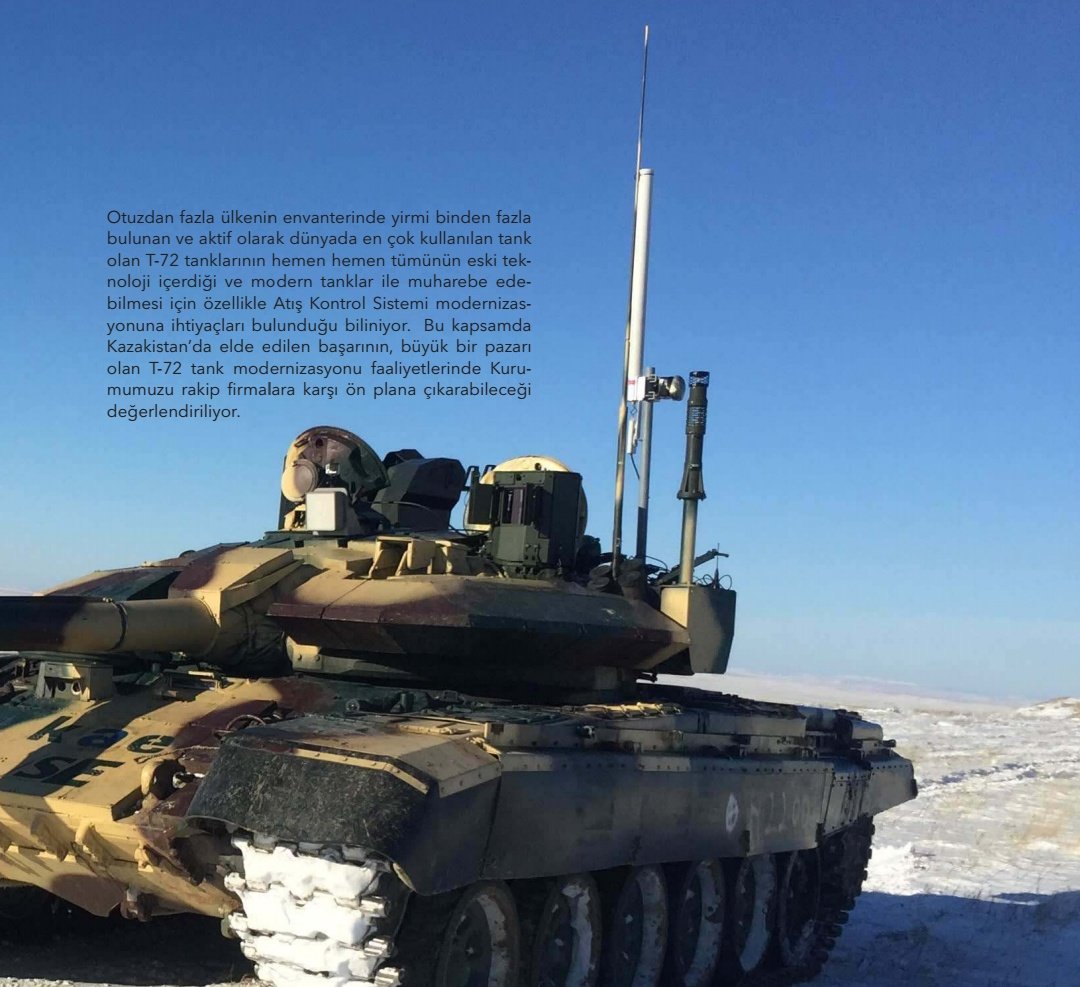

Views of the later KAE during testing.

kadex-2018-day-2-kazakhstan-defense-indu

The T-72KAE equipped with full cage armor.




Article covering the latest iteration of the T-72KAE


Fire Control System of the ‘Shygys’ and KAE developed by Aselsan.


V-84-1 diesel engine built by Argun.

https://twitter.com/Defence_Turk/status/972458355800322048?s=20

KADEX 2018 Day 2: Kazakhstan Defense Industry latest innovations - YouTube

KADEX-2018 T-72KAE on display.
