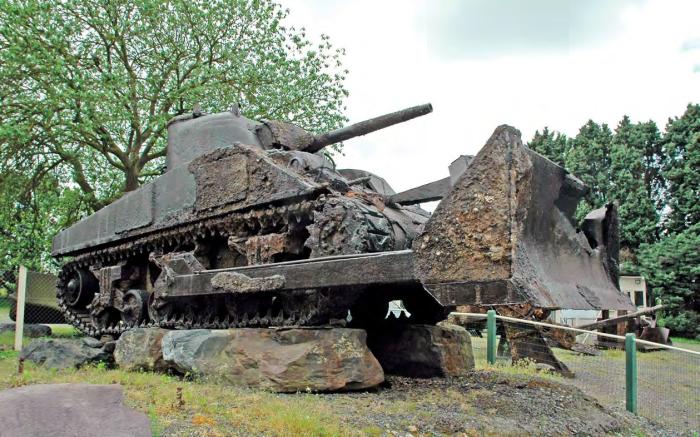

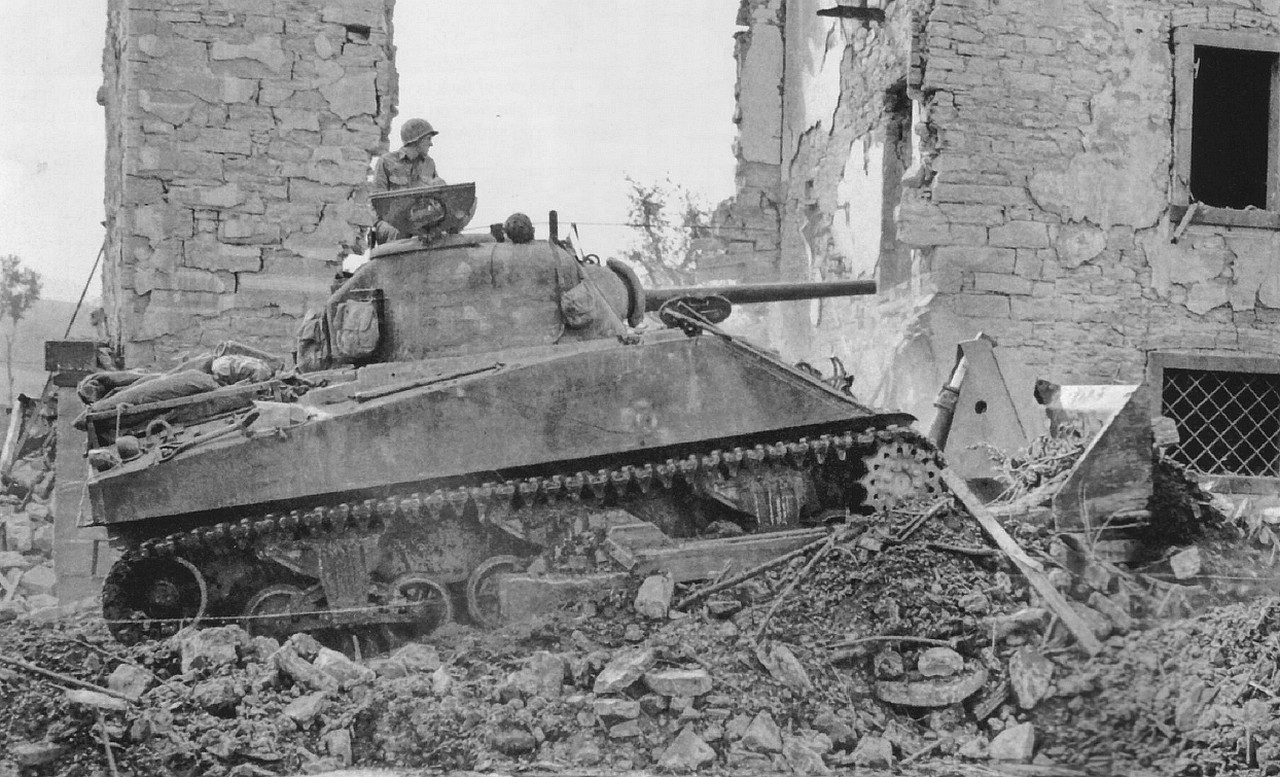

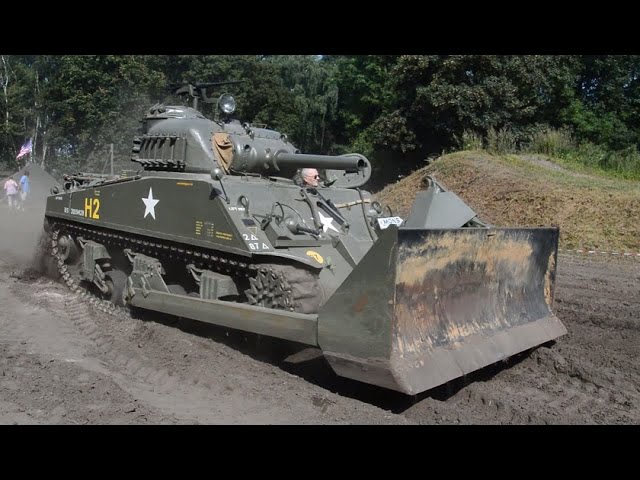

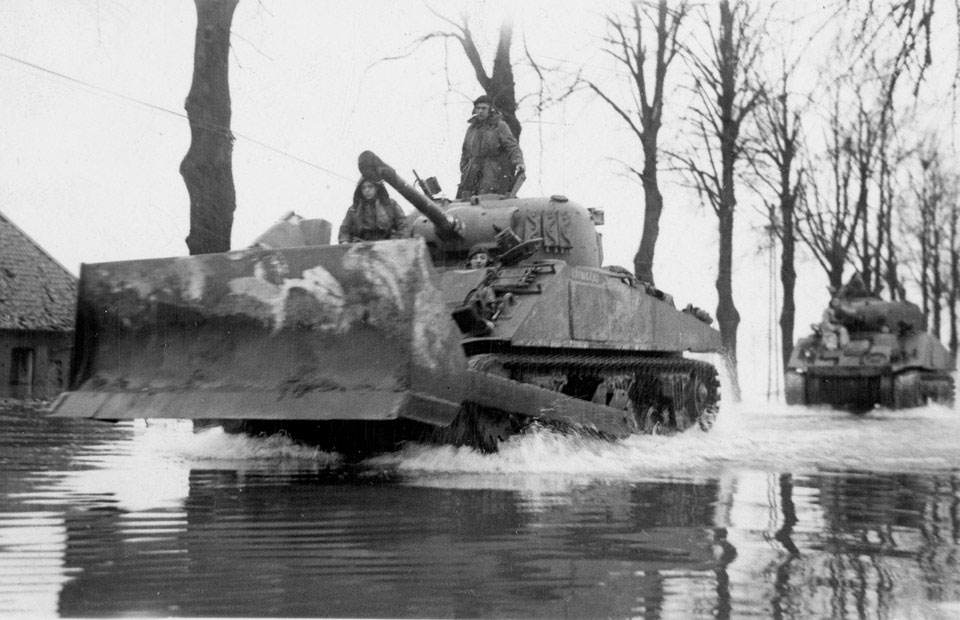

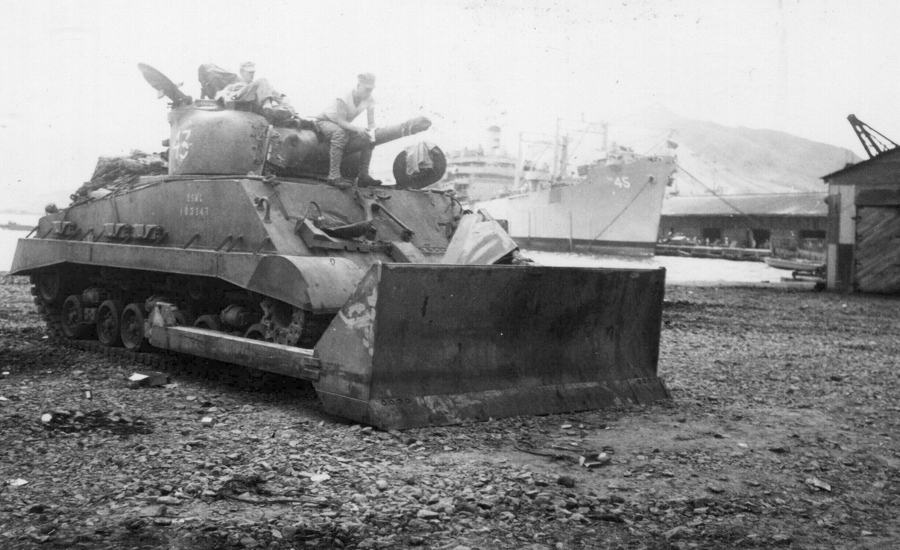

During the early stages of World War II, the U.S. Army realized that standard tanks were often halted by roadblocks, craters, and hedgerows that required dedicated engineering vehicles to clear. To solve this without deploying vulnerable unarmored bulldozers to the front lines, the M1 dozer blade was developed as a kit for the M4 Sherman. Introduced in 1943, the kit featured a rugged blade mounted on the lower hull and operated by a hydraulic cylinder. This allowed a standard combat tank to retain its 75mm main gun and machine guns while gaining the ability to clear paths through rubble and anti-tank obstacles under enemy fire.

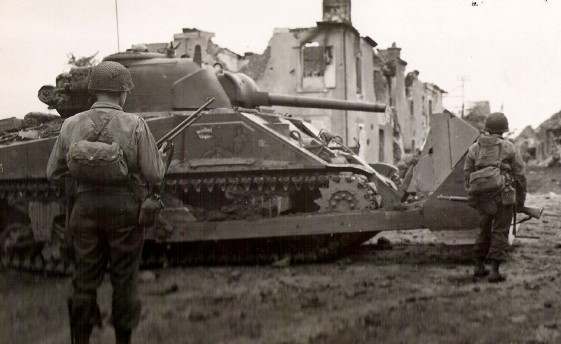

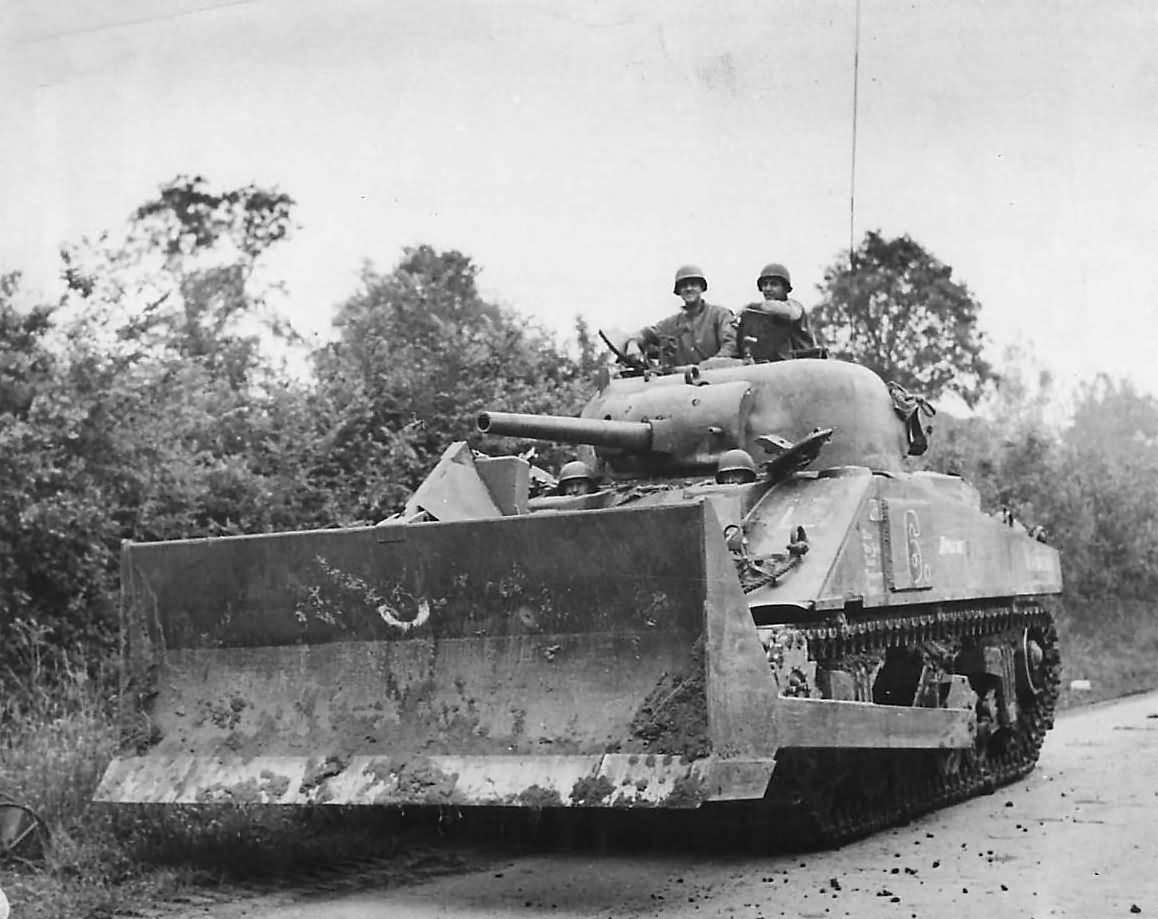

The Sherman dozer proved its worth most famously during the push out of Normandy in June 1944. Where allied forces were bogged down by the natural terrain and hedgerows that German defenders used to ambush tanks from the flanks. While many Shermans used “Culin” cutters to slice through the brush, dozer-equipped Shermans were used to physically bulldoze gaps through the heavy earth walls, allowing entire armored columns to bypass German kill zones. These “tank-dozers” became so essential that commanders frequently requested one for every tank platoon to ensure mobility in all environments.

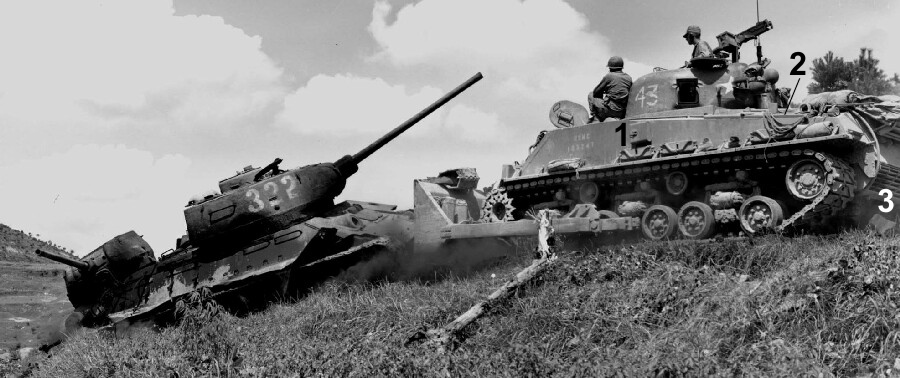

By the end of the war and into the Korean conflict, the role of the dozer blade expanded from simple clearing to defensive fortification. Tank crews used the blades to rapidly dig hull-down positions. This allowed the crew to position a tank in a way that significantly increased crew survivability during static defensive battles. Though the added weight of the blade placed a heavy strain on the Sherman’s front suspension and reduced its top speed, the tactical flexibility it provided made the “dozer” one of the most successful and enduring modifications of the M4 chassis.
The Dozer blades used by the Shermans also happened to be the downfall of the T28/T95 superheavy tank. It was intended to be used to push through the Siegfried Line; however, by the time it could have been used, Shermans equipped with dozer blades had already built earth bridges over the anti-tank structures along it.
Stats:
Weight: 7400 lbs
Width: 138in
Blade Height: 48in
Max Load: 5000 lbs
Lift Height of Blade: 1ft 8in up to 3ft 6in

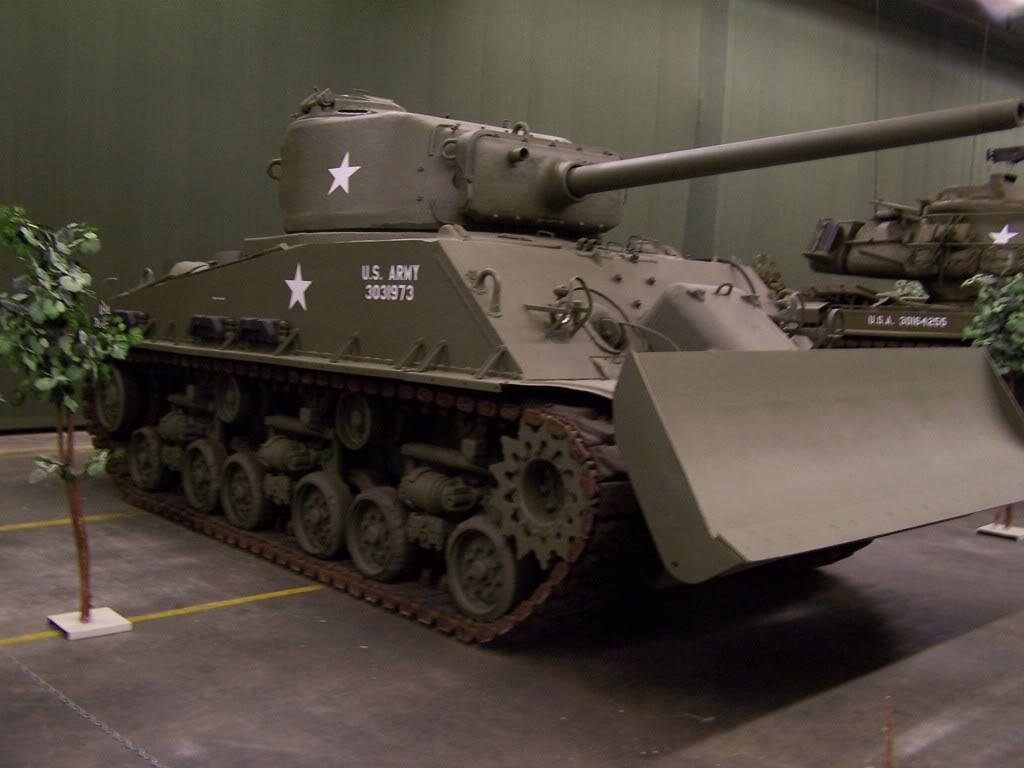

Compatibility: The M1A1 Dozer blade is compatible with all HVSS and VVSS Shermans.
Sources
https://www.theshermantank.com/sherman/dozers-the-m1-and-m1a1-dozer-blade-kit/
https://www.theshermantank.com/wp-content/uploads/2015/12/TM9-719-Tank-Mounting-Bulldozer-M1-and-M1A1.pdf
