Sky Sabre/Land Ceptor is the newest SAM missile system of United Kingdom, replacing Rapier in service.

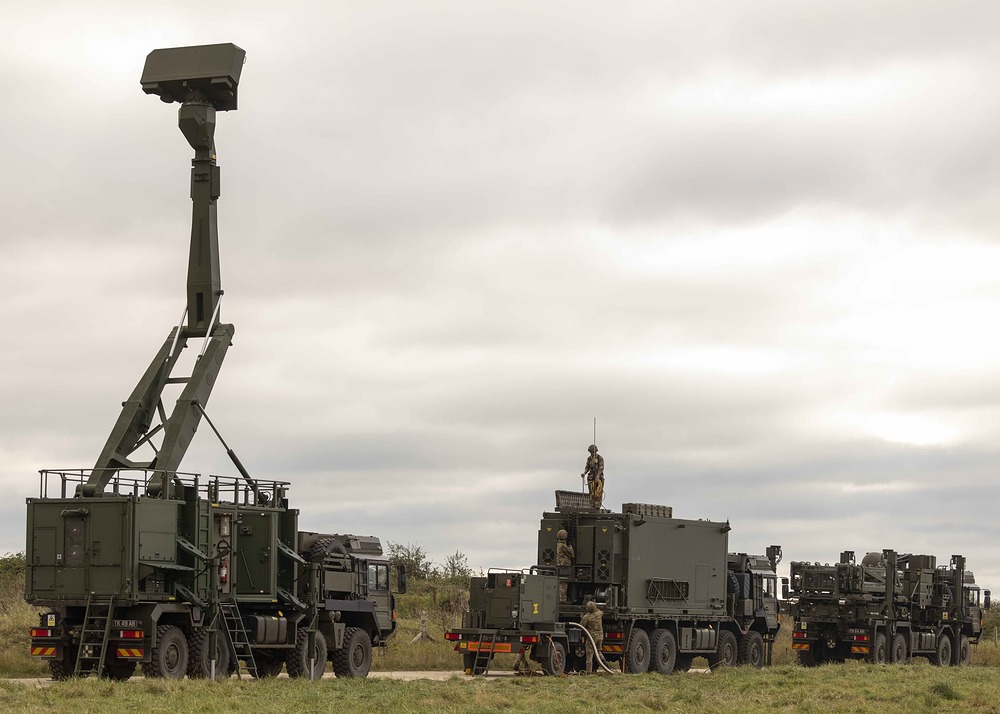

The whole system, called Sky Sabre, comprises of:
Radar
Radar used by the system is produced by SAAB Giraffe AMB.
Specitifations:
Range: 180km
Altitude: 20km
Coverage: 360°x70°
RPM: 60 or 30
Type: 3D AESA with 12 stacked beam active at all time
Band: IEEE: C NATO: G
Features:
LPI
Ultra low sidelobes
MPRF with Doppler processing
Integrated IFF
TWS >150 targets
Very high ECCM
RAP
TEWA
Automatic identification and classification
Tracking targets as small as tennis ball
Impact point prediction
C-RAM
C-UAS
Detection and tracking of sea targets
Air and Sea channel work in parallel
Antenne is raised 12m above the ground
Command and Control system
C&C used by the system is produced by Rafael MIC4AD
Equipped with a Link 16 allows for communication with Royal Navy and Royal Air Force ships and aircraft, as well as UK allies.
The system can intercept 24 targets at once, by guiding 24 missile at the same time.
Each part of the system can be up to 15km from eachother
Launcher
Launcher is a MBDA EMADS. In the British service it has it’s own name, Land Ceptor
It is capable of operation independent from the Radar or Control system
Launcher is equipped with a TacFLIR 380-HLD sight
8 missiles carried at the same time.
NLOS engagment capability
High rate of fire against saturation attack
Missiles
MBDA CAMM
Weight: 99kg
Length: 3.2m
Diameter: 166mm
Effective range: ~ 25km
Max range: 60km*
Warhead: 10kg
Speed: Mach 3
G-overload: ~50G
Reduced smoke propelant
IOG + 2-way DL
Soft launch in any direction
Multipath immune ARH seeker
High ECCM
Ability to engage both Air and Surface targets
Ability to engage targets as small as tennis ball traveling at twice the speed of sound
Effective against targets at very close ranges
MBDA CAMM-ER
Weight: 160kg
Length: 4.2m
Diameter: 190mm
Effective range: well beyond 40km
Warhead: 10kg
Speed: Mach 3*
G-overload: ~50G*
IOG + 2-way DL
Soft launch in any direction
Multipath immune ARH seeker
High ECCM
Ability to engage both Air and Surface targets
Ability to engage targets as small as tennis ball traveling at twice the speed of sound
Effective against targets at very close ranges
Information with * means it is not confirmed by a primary source.
Bug reports:
Vehicles:
[DEV]Sky Sabre (TEL) incorrect name [Accepted]
[DEV] Land Ceptor sight incorrect [Accepted]
[DEV] Sky Sabre (TADS) internal layout incorrect [Accepted]
[DEV] Land Ceptor should work independently from the radar [Accepted]
[DEV] Land Ceptor incorrect missile holding frame [Accepted]
[DEV] Land Ceptor E/O mast cable animation error [Accepted]
[DEV] Sky Sabre (TADS) radiator vent model incorrect [Accepted]
[DEV] Land Ceptor DL mast cable animation error
[DEV] Land Ceptor masts actuators animation error
[DEV] Land Ceptor footwalk and stabilizers should fold
Sky Sabre is a cold launch system[Accepted]
[DEV] Land Ceptor should be cold launch [Duplicate]
Land Ceptor sight should be stabilized [Not a bug]
Radar:
[DEV] Giraffe AMB incorrect range [Accepted]
[DEV] Giraffe AMB incorrect amount of targets and guided missile [Accepted]
[DEV] Giraffe AMB incorrect amount of TWS targets [Accepted]
[DEV] Giraffe AMB incorrect targets detections ranges [Accepted]
[DEV] Giraffe AMB incorrect minimum range [Not a bug]
[DEV] Giraffe AMB should classify drones as drones [Accepted]
[DEV] Giraffe AMB should detect very slow targets
[DEV] Giraffe AMB should detect very small targets
Giraffe AMB missing electronic pitch stabilization
Missiles:
[DEV] CAMM should be reduced smoke [Accepted]
[DEV] CAMM struggles against munition [Accepted]
[DEV] CAMM minimum range incorrect [Accepted]
[DEV] CAMM and CAMM-ER should work in multipath [Accepted]
[DEV] CAMM and CAMM-ER proximity fuze should work at low alt [Accepted]
[DEV] CAMM does not pull 50G [Not enough info]
[DEV] CAMM does not pull 50G #2 [Accepted]
[DEV] CAMM-ER does not pull 50G [Duplicate]
[DEV] Sky Sabre CAMM/ER [Accepted]
CAMM - Guidance issue causing missile to miss easy targets #2 [Accepted]
CAMM-ER struggles against munitions [Duplicate]
CAMM-ER struggles against drones [Duplicate]
CAMM data link does not work
CAMM-ER data link does not work
